A3LSCHA220Dual-Band CDMA Phone

World Wide Webhttp://www.samsungmobile.com SCH-A220 User’s Manual Printed in Korea No.: GHxx -xxxxxA English.06/2002.Rev.1.0 Please read this manual before operating your phone, and keep itfor future reference. * Some contents in this manual may differ from your phone depending on the software of the phone or your service provider. For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and inte rnational standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthor ized antennas, modifications, or attachments could impair call quality, damage the phone, or resu lt in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged ant enna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, us e only belt-clips, holsters or similar accessories that maintain a 1.5 cm. separation distance between the us er’s body and the back of t he phone, including the antenna, whether extended or retracted. The use of belt-clips, holsters and similar a ccessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirem ents, and should be avoided. WARNING! Read this information before using your phone 3 Safety Quick Guide ..................................................................... 7 Unpacking ..................................................................................... 9 Your PhonePhone Layout ................................................................................. 10Display .......................................................................................... 13Service Light .................................................................................. 15Getting StartedUsing a Battery ............................................................................... 16Switching the Phone On/Off ............................................................ 20Your Phone’s Mode ......................................................................... 21Call FunctionsMaking a Call .................................................................................. 23Redialing the Last Call ...................................................................... 24Emergency Dialing............................................................................ 24Prepend Dialing................................................................................ 25Making a Call from the Phonebook ................................................... 25Speed Dialing ................................................................................... 26Pause Dialing ................................................................................... 27Voice Dialing .................................................................................... 30Adjusting the Volume ........................................................................ 31Answering a Call .............................................................................. 32Options During a Call ....................................................................... 33Using Caller ID ................................................................................ 34Viewing Missed Calls ........................................................................ 34Three-Way Calling ........................................................................... 35Call Waiting ..................................................................................... 36Call Forwarding ............................................................................... 36 Table of Contents 4 5 Entering TextChanging the Text Input Mode ......................................................... 38T9 Word Mode ................................................................................. 39ABC Mode ....................................................................................... 41Symbol Mode .................................................................................. 43123 Mode ....................................................................................... 43Using the MenusAccessing a Menu Function by Scrolling ............................................ 44Accessing a Menu Function by Using Its Shortcut................................ 45List of Menu Functions ..................................................................... 46CallsMissed Calls (MENU 1-1) ........................................................... 48 Incoming Calls (MENU 1-2) ....................................................... 49 Outgoing Calls (MENU 1-3) ......................................................... 49 Erase History (MENU 1-4) .......................................................... 49 Air Time (MENU 1-5) ................................................................. 50 Phone BookFind (MENU 2-1) ...................................................................... 51 Add New Entry (MENU 2-2) ...................................................... 53 Group Setting (MENU 2-3) ........................................................ 55 My Phone Number (MENU 2-4) .................................................. 55 Memory (MENU 2-5) .....................................…

Text truncated - open the document above for the full version.

July 15, 2002 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSCHA220 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market.

February 4, 2002 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsun Electronics America July 15, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:Samsung Electronics Co., Ltd. FCC ID: A3LSCHA220 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652. Sincerely, Wallace Oh Engineering Manager Samsun Electronics America

July 19, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG Electronics Co., Ltd. FCC ID: A3LSCHA220 Part 22/24 Certification Gentlemen: Submitted herewith, on behalf of SAMSUNG Electronics Co., Ltd., is an application for Part 22/24 Certification of the Dual-Band CDMA Phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SAMSUNG Electronics Co., Ltd.

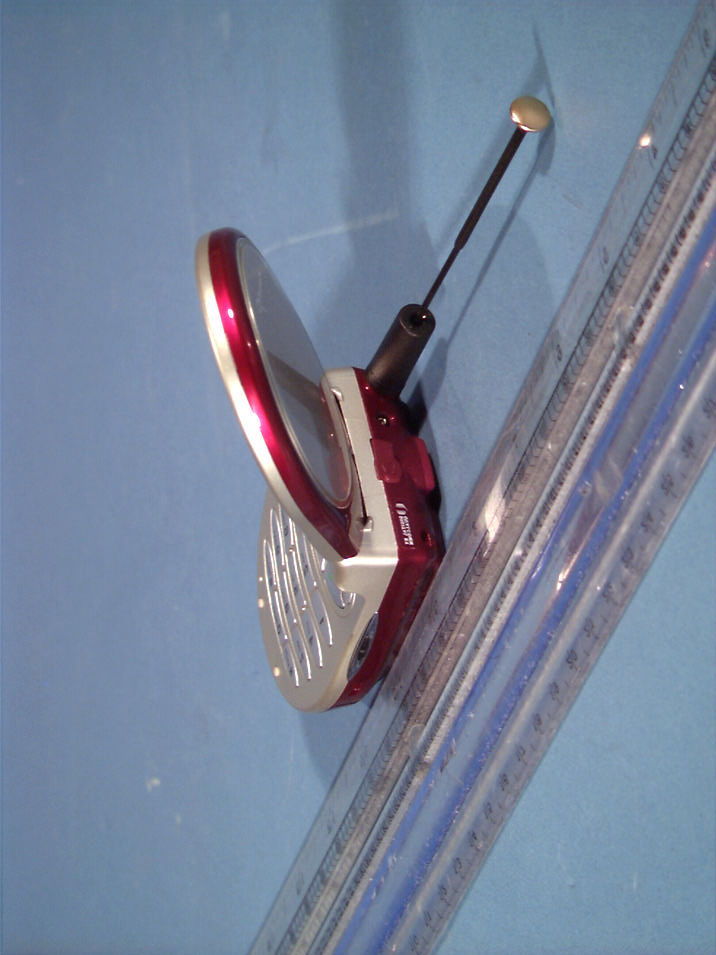

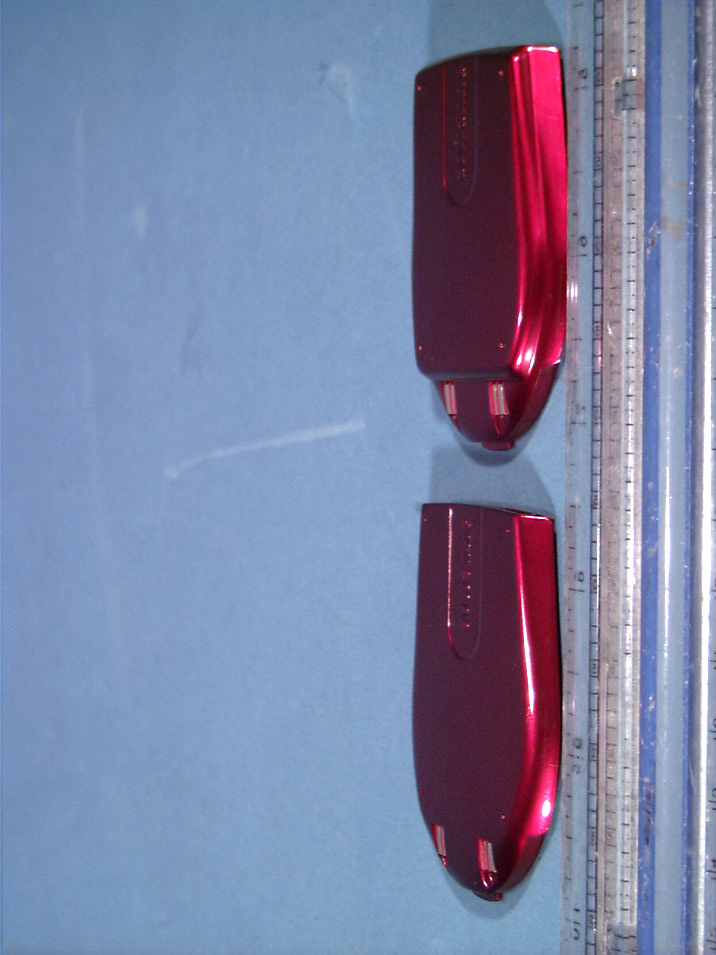

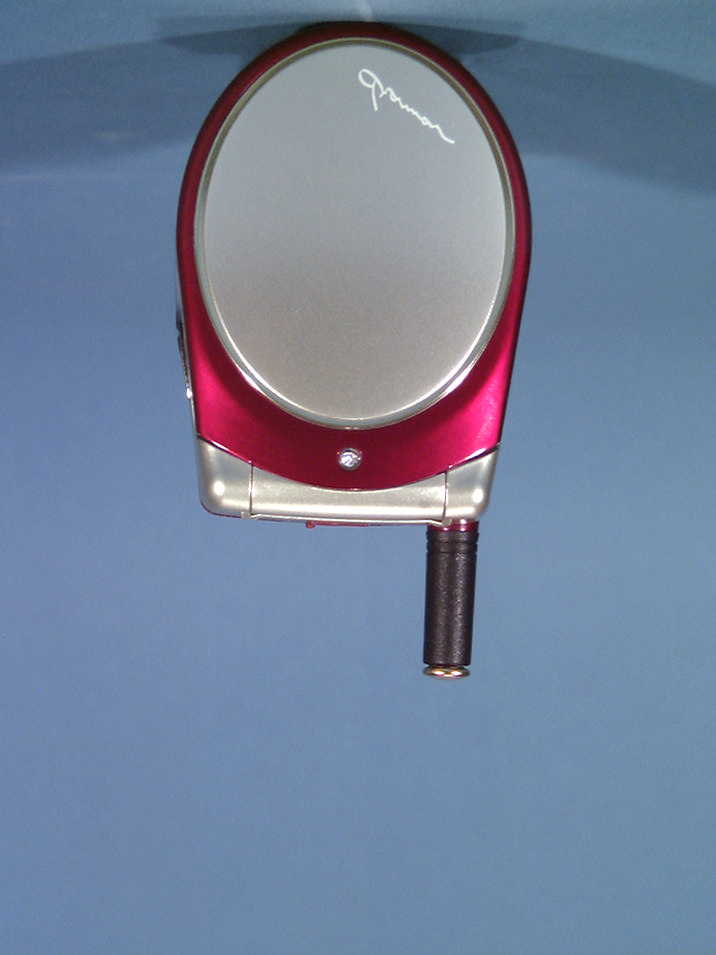

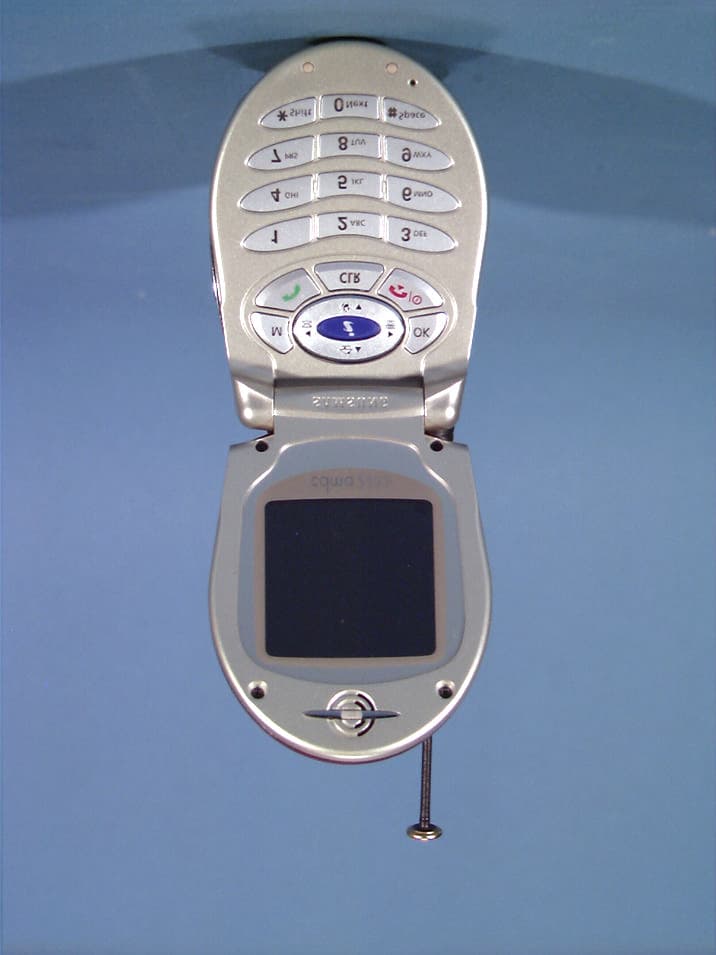

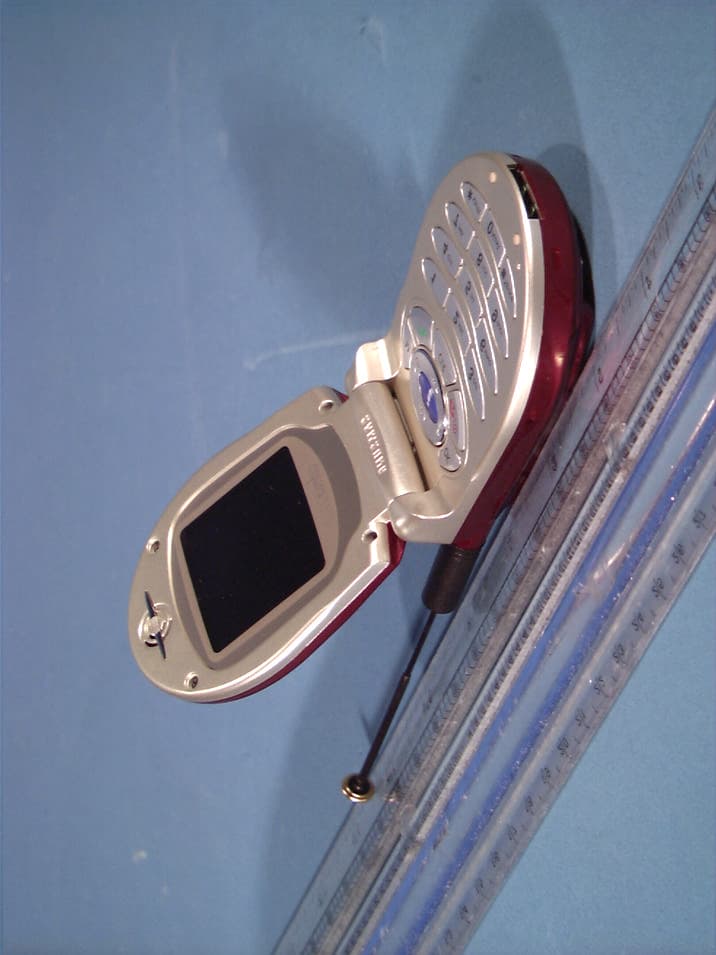

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220)

© 2002 PCTEST Lab SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) SAMSUNG ELECTRONICS CO., LTD. MODEL NO: SCH-A220 FCC ID: A3LSCHA220 MADE IN KOREA SAMSUNG ELECTRONICS CO., LTD

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220)

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220708357.A3L Test Dates: July 8-9, 2002 Phone Type: Dual-Band CDMA FCC ID: A3LSCHA220 Page 1 of 29 © 2002 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: July 8-9, 2002 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: 22/24.220708357.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID: A3LSCHA220 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. EUT Type: Dual-Band CDMA Phone Tx Frequency: 824.70 — 848.31 MHz (CDMA) / 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) / 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.268 W ERP CDMA (24.283 dBm) / 24.5 dBm Conducted 0.406 W EIRP PCS CDMA (26.081 dBm) / 24.5 dBm Conducted Max. SAR Measurement: 0.75W/kg CDMA Head SAR; 1.03W/kg CDMA Body SAR; 1.30W/kg PCS CDMA Head SAR; 1.10W/kg PCS CDMA Body SAR Trade Name/Model(s): SCH-A220 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220708357.A3L PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220708357.A3L Test Dates: July 8-9, 2002 Phone Type: Dual-Band CDMA FCC ID: A3LSCHA220 Page 2 of 29 © 2002 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION ................................................................................................... 3 SAR DEFINITION.................................................................................................... 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware .................................................................................................... 4 System Electronics................................................................................................... 4 3. DASY3 E-FIELD PROBE SYSTEM............................................................................. 5 Probe Measurement System .................................................................................... 5 Probe Specifications................................................................................................ 5 4. Probe Calibration Process ....................................................................................... 6 Dosimetric Assessment Procedure........................................................................... 6 Free Space Assessment............................................................................................ 6 Temperature Assessment ......................................................................................... 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 7 SAM Phantom ......................................................................................................... 7 Brain & Muscle Simulating Mixture Characterization .............................................. 7 Device Holder ........................................................................................................ 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications..................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS .................................................. 9 Measurement Procedure ......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications .................................. 9 8. DEFINITION OF REFERENCE POINTS .................................................................. 10 EAR Reference Point ............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS ................................................................... 11 Positioning for Cheek/Touch ................................................................................. 11 Positioning for Ear / 15° Tilt................................................................................... 12 Body Holster /Belt Clip Configurations.................................................................. 13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................... 14 Uncontr…

Text truncated - open the document above for the full version.

SAR Data Report 02070813 Start : 8-Jul-02 11:06:25 am End : 8-Jul-02 11:12:43 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SCH-A220 Serial Number : 1 Frequency : 824.70 MHz Transmit Pwr : 0.280 W Antenna Type : Helical Antenna Posn. : Out Measurement Data: Phantom Name : SAM-R Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 42.200 Tissue Conductivity : 0.930 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: CDMA Mode CH-1013 Cheek CF=1; Amb. Temp= 22.5 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=72.0 y=17.0 = 0.69 W/kg Zoom Scan - Max Peak SAR Value at x=65.0 y=22.0 z=0.0 = 0.94 W/kg Max 1g SAR at x=70.0 y=19.0 z=0.0 = 0.70 W/kg Max 10g SAR at x=72.0 y=18.0 z=0.0 = 0.49 W/kg 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:65.0 y:22.0 1g SAR Values 0.697 0.675 0.652 0.629 0.607 0.584 0.561 0.539 0.516 0.494 0.471 SAR Data Report 02070918 Start : 9-Jul-02 02:33:06 pm End : 9-Jul-02 02:44:34 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SCH-A220 Serial Number : 1 Frequency : 848.31 MHz Transmit Pwr : 0.280 W Antenna Type : Helical Antenna Posn. : Out Measurement Data: Phantom Name : SAM-L Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 42.200 Tissue Conductivity : 0.930 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: CDMA Mode CH-777 Cheek CF=1; Amb. Temp= 22.4 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=68.0 y=15.0 = 0.70 W/kg Zoom Scan - Max Peak SAR Value at x=67.0 y=15.0 z=0.0 = 1.16 W/kg Max 1g SAR at x=67.0 y=17.0 z=0.0 = 0.75 W/kg Max 10g SAR at x=69.0 y=16.0 z=0.0 = 0.49 W/kg 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:67.0 y:15.0 1g SAR Values 0.746 0.707 0.668 0.629 0.590 0.552 0.513 0.474 0.435 0.396 0.358 SAR Data Report 02070921 Start : 9-Jul-02 03:07:59 pm End : 9-Jul-02 03:14:31 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SCH-A220 Serial Number : 1 Frequency : 848.31 MHz Transmit Pwr : 0.280 W Antenna Type : Helical Antenna Posn. : Out Measurement Data: Phantom Name : SAM-L Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 42.200 Tissue Conductivity : 0.930 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: CDMA Mode CH-777 Tilt CF=1; Amb. Temp= 22.4 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=38.0 y=13.0 = 0.27 W/kg Zoom Scan - Max Peak SAR Value at x=38.0 y=18.0 z=0.0 = 0.40 W/kg Max 1g SAR at x=39.0 y=15.0 z=0.0 = 0.28 W/kg Max 10g SAR at x=38.0 y=15.0 z=0.0 = 0.20 W/kg 0.0 0.1 0.2 0.3 0.4 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:38.0 y:18.0 1g SAR Values 0.2847 0.2769 0.2690 0.2611 0.2532 0.2454 0.2375 0.2296 0.2217 0.2139 0.2060 SAR Data Report 02070807 Start : 8-Jul-02 10:29:15 am End : 8-Jul-02 10:35:29 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SCH-A220 Serial Number : 1 Frequency : 824.70 MHz Transmit Pwr : 0.280 W Antenna Type : Helical Antenna Posn. : Out Measurement Data: Phantom Name : SAM-R Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 42.200 Tissue Conductivity : 0.930 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: CDMA Mode CH-1013 Tilt CF=1; Amb. Temp= 22.5 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=64.0 y=18.0 = 0.24 W/kg Zoom Scan - Max Peak SAR Value at x=56.0 y=22.0 z=0.0 = 0.33 W/kg Max 1g SAR at x=59.0 y=20.0 z=0.0 = 0.24 W/kg Max 10g SAR at x=62.0 y=19.0 z=0.0 = 0.17 W/kg 0.00 0.10 0.20 0.30 0.40 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:56.0 y:22.0 1g SAR Values 0.2402 0.2343 0.2285 0.2226 0.2168 0.2109 0.2051 0.1992 0.1934 0.1875 0.1817 SAR Data Report 02070819 Start : 8-Jul-02 01:23:06 pm End : 8-Jul-02 01:30:54 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SCH-A220 Serial Number : 1 Frequency : 1851.25 MHz Transmit Pwr : 0.280 W Antenna Type : Helical Antenna Posn. : In Measurement Data: Phantom Name : SAM-R Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 40.890 Tissue Conductivity : 1.410 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 1900 MHz Tissue Type : Brain Calibrated Dielectric : 40.200 Calibrated Conductivity : 1.410 Calibrated Density : 1.…

Text truncated - open the document above for the full version.

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220)

File: 02-04-2002.cal Date: 04-Feb-02 01:20:16 pm Probe Name: PCT002 Frequency:835 MHz Comment:PCTEST TEM CAL Amp 1 Setting: 20.000 Amp 2 Setting: 20.000 Amp 3 Setting: 20.000 0.0 0.2 0.4 0.6 0.8 1.0 1.2 050100150200250300350 Ch 0 Ch 1 Ch 2 Sum Degrees (x10) Voltage (in mV) File: 02-04-2002.cal2 Date: 04-Feb-02 03:18 :09 pm Probe Name: PCT002 Frequency:1900 MHz Comment:PCTEST TEM CAL Amp 1 Setting:20.000 Amp 2 Setting:20.000 Amp 3 Setting:20.000 0.0 0.2 0.4 0.6 0.8 1.0 1.2 050100150200250300350 Ch 0 Ch 1 Ch 2 Sum Degrees (x10) Voltage (in mV) Conversion Factor Assessment for IDX SAR Measurement System S/N: PCT002 835 MHz Brain ε r = 40.7 ± 5% σ = 0.89 ± 5% mho/m Conversion Factor = 5.8 ± 7% (k=2) 1900 MHz Brain ε r = 40.2 ± 5% σ = 1.41 ± 5% mho/m Conversion Factor = 4.7 ± 7% (k=2) Probe calibration 1900 MHz Brain (WG 1900) 0 1 2 3 4 5 6 7 8 0510152025303540 z in mm SAR in mW/cm^3 / W Analytical Measurements Probe Calibration 835 MHz Brain (WG 835) 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 0510152025303540 z in mm SAR in (mW/cm^3)/W Analytical Measurements

SAR Data Report 02070801 Start : 8-Jul-02 8:48:20 am End : 8-Jul-02 8:54:22 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : Validation Frequency : 835 MHz Transmit Pwr : 0.250 W Antenna Type : Dipole Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Brain Tissue Dielectric : 42.200 Tissue Conductivity : 0.930 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: 835 MHz Validation CF=1; Amb. Temp= 22.5 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=-2.0 y=2.0 = 2.41 W/kg Zoom Scan - Max Peak SAR Value at x=-1.0 y=8.0 z=0.0 = 3.78 W/kg Max 1g SAR at x=-1.0 y=2.0 z=0.0 = 2.52 W/kg Max 10g SAR at x=-1.0 y=2.0 z=0.0 = 1.59 W/kg Validation Results at 0.25 W: Peak Nominal = 3.5, Error: 7.91 % 1g Nominal = 2.4, Error: 6.25 % 10g Nominal = 1.6, Error: 2.59 % 0 1 2 3 4 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-1.0 y:8.0 1g SAR Values 2.523 2.443 2.362 2.282 2.201 2.121 2.040 1.960 1.879 1.799 1.718 SAR Data Report 02070804 Start : 8-Jul-02 09:08:30 pm End : 8-Jul-02 09:13:56 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : Validation Frequency : 1900 MHz Transmit Pwr : 0.250 W Antenna Type : Dipole Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Brain Tissue Dielectric : 40.890 Tissue Conductivity : 1.410 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 1900 MHz Tissue Type : Brain Calibrated Dielectric : 40.200 Calibrated Conductivity : 1.410 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 4.700 Probe Sensitivity : 3.000 2.995 2.653 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: 1900 MHz Validation CF=1; Amb. Temp= 22.4 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=0.0 y=0.0 = 9.39 W/kg Zoom Scan - Max Peak SAR Value at x=0.0 y=0.0 z=0.0 = 16.94 W/kg Max 1g SAR at x=1.0 y=1.0 z=0.0 = 9.94 W/kg Max 10g SAR at x=1.0 y=0.0 z=0.0 = 5.19 W/kg Validation Results at 0.25 W: Peak Nominal = 18.0, Error: -6.03 % 1g Nominal = 9.9, Error: 0.12 % 10g Nominal = 5.1, Error: 1.26 % 0 2 4 6 8 10 12 14 16 18 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:0.0 y:0.0 1g SAR Values 9.94 9.36 8.79 8.22 7.65 7.08 6.50 5.93 5.36 4.79 4.21

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA220 Dual-Band CDMA Phone (Model: SCH-A220)
