A3LSCHA301Single-Mode Cellular Phone (CDMA)

Printed in Korea Code No. : GH68-XXXXXA HonKong China. 2001/04. Rev.1.0 PORTABLE CELLULAR TELEPHONE SCH-A301 User’s Manual ELECTRONICS World Wide Webhttp://www.samsungmobile.com Draft version (2001.5.7) * Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider. ii i CC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC)of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure toradio frequency electromagnetic energy emitted by FCCregulated transmitters. Those guidelines are consistent with thesafety standard previously set by both U.S. and internationalstandards bodies. The design of this phone complies with theFCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorizedantennas, modifications, or attachments could impair callquality, damage the phone, or result in violation of FCCregulations.Do not use the phone with a damaged antenna. If a damagedantenna comes into contact with the skin, a minor burn mayresult. Please contact your local dealer for replacementantenna.Body-worn OperationThis device was tested for typical body-worn operations usingthe optional belt-clip/holster placed 1.5cm fromthe body. To comply with FCC RF exposure requirements, aminimum separation distance of 1.5cm must bemaintained between the user’s body and the phone, includingthe antenna, whether extended or retracted. The use of third-party belt-clips/ holsters with no metallic components thatprovide the minimum separation distance of 1.5cmcan be used to satisfy FCC RF exposure requirements. The useof non-tested accessories or other body-worn operations maynot comply with FCC RF exposure requirements and should beavoided. Contact your local dealer for optional accessory items.Vehicle Mounted External Antenna (optional, if available.) A minimum separation distance of 7.9 inches (20cm) must bemaintained Between a person and the vehicle mounted externalantenna to satisfy FCC RF exposure requirements.For more information about RF exposure, please visit the FCCwebsite at www .fcc.gov SAR Information & FCC ID Labeling THIS MODEL PHONE MEETS THE GOVERNMENT’SREQUIREMENTS FOR EXPOSURE TO RADIO WAVES.Your wireless phone is a radio transmitter and receiver. It isdesigned and manufactured not to exceed the emission limitsfor exposure to radiofrequency (RF) energy set by the FederalCommunications Commission of the U.S. Government. Theselimits are part of comprehensive guidelines and establishpermitted levels of RF energy for the general population. Theguidelines are based on standards that were developed byindependent scientific organizations through periodic andthorough evaluation of scientific studies. The standards includea substantial safety margin designed to assure the safety of allpersons, regardless of age and health.The exposure standard for wireless mobile phones employs aunit of measurement know as the Specific Absorption Rate, orSAR. The SAR limit set by the FCC is 1.6W/kg.* Tests for SARare conducted using standard operating positions specified bythe FCC with the phone transmitting at its highest certifiedpower level in all tested frequency bands. Although the SAR isdetermined at the highest certified power level, the actual SARlevel of the phone while operating can be well below themaximum value. This is because the phone is designed tooperate at multiple power levels so as to use only the powerrequired to reach the network. In general, the closer you are toa wireless base station antenna, the lower the power output.Before a phone model is available for sale to the public, itmust be tested and certified to the FCC that it does not exceedthe limit established by the government-adopted requirementfor safe exposure. The tests are performed in positions andlocations (e.g., at the ear and worn on the body) as required bythe FCC for each model. The highest SAR value for this modelphone when tested for use at the ear is XXXXX and when worn on the body, as described in this user guide, is XXXXX . (Body- worn measurements differ among phone models, dependingupon available accessories and FCC requirements). While theremay be differences between the SAR levels of various phonesand at various positions, they all meet the governmentrequirement for safe exposure. 1 iii ContentsUnpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Your PhonePhone Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Service Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Getting StartedInstalling Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Charging a Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15Switching the Phone On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . 18Your Phone’s Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Call FunctionsMaking a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Correcting the Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Redialing Last Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Speed Dialing from Phone Book Memory . . . . . . . . . . . . . . . . 23Four-Digit Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Quick Switching to Vibrate Mode . . . . . . . . . . . . . . . . . . . . . . . 27 In-Use Menu Options . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT B – ATTESTATION STATEMENT(S) May 01,2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 2 1046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsung Electronics America June 12, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Samsung Electronics Co., Ltd. FCC ID: A3LSCHA301 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID:A3LSCHA301) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. June 12, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHA301 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652.

© 2001 PCTEST Lab ATTACHMENT A – COVER LETTER(S) June 12, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHA301 Part 22 Certification Gentlemen: Attached herewith, on behalf of SAMSUNG ELECTRONICS CO., LTD. is an application for Part 22 Certification of the following Single-Mode Cellular CDMA Phone: FCC ID: A3LSCHA301 TRADE / MODEL(s): SAMSUNG SCH-A301 EUT TYPE: Non-Broadcast transmitter Held to Ear (TNE) Tx Freq. Range: 824.70 – 848.31 MHz Rx Freq. Range: 869.70 – 893.31 MHz Max. RF Output Power: 0.271 W ERP CDMA (24.321 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Wallace Oh Engineering Manager SAMSUNG American QA Lab

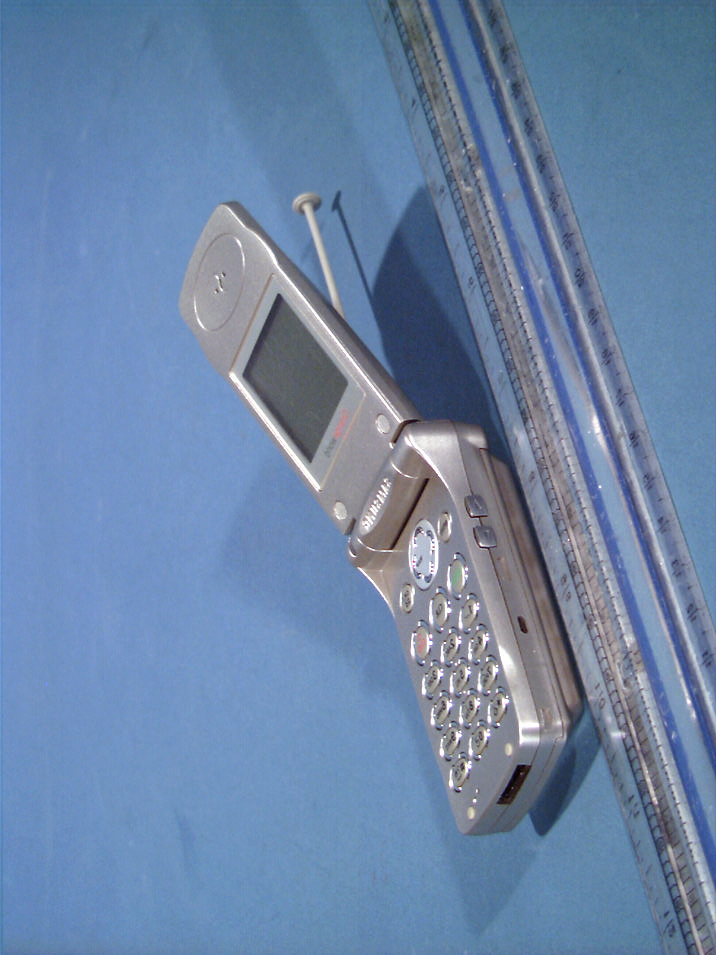

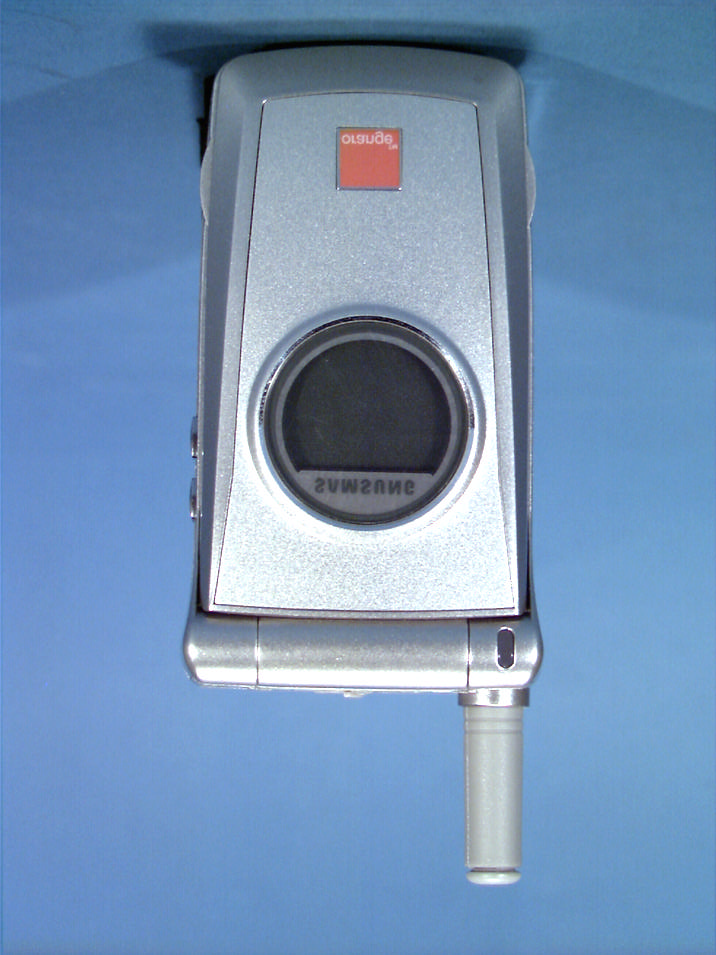

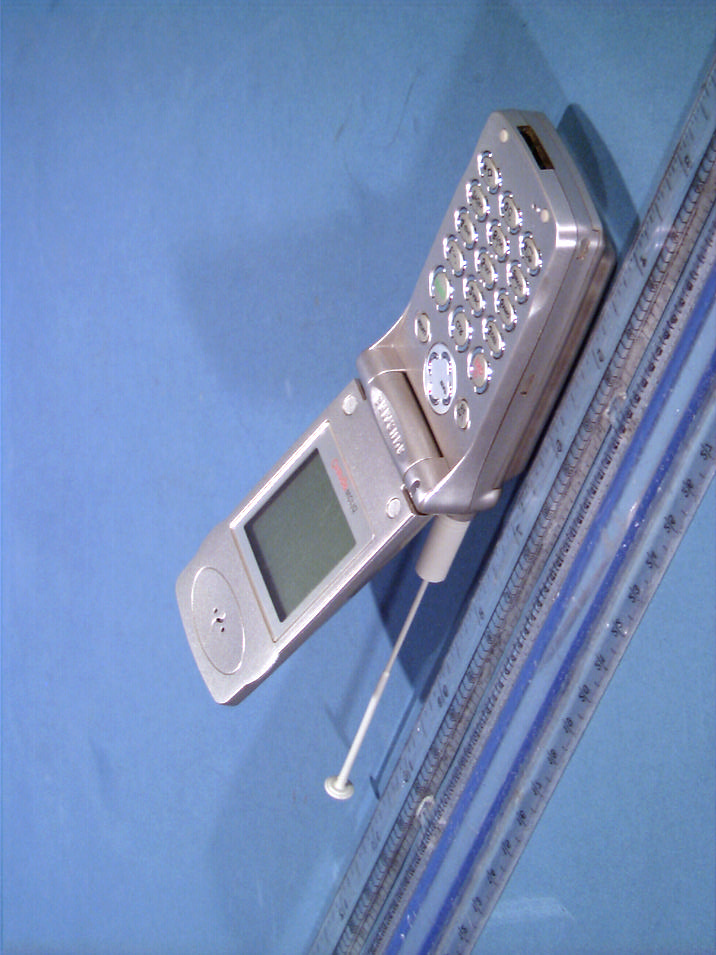

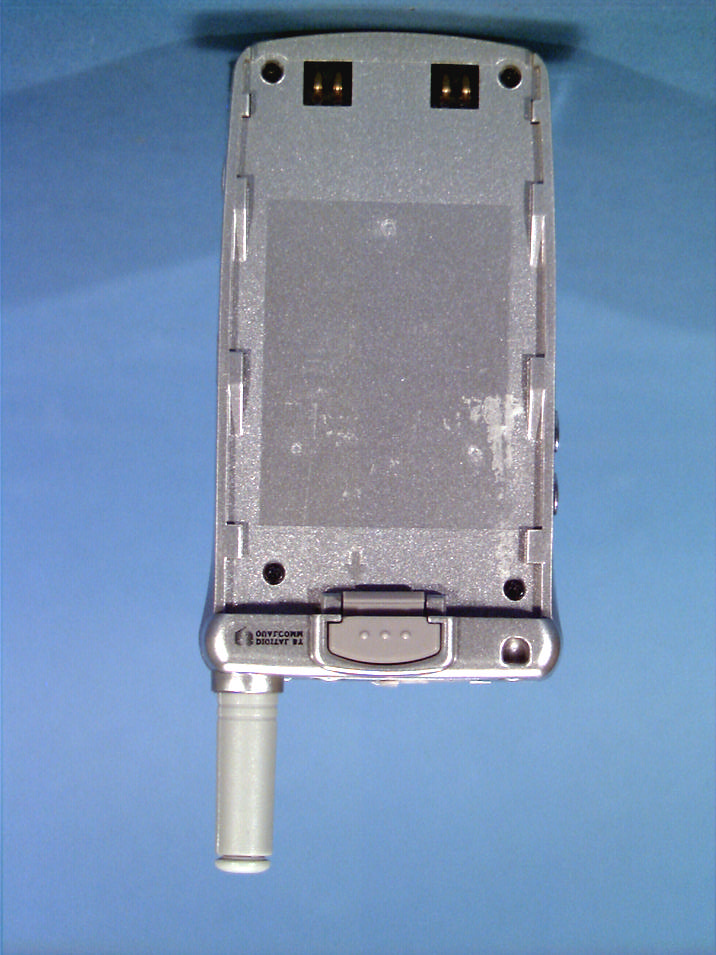

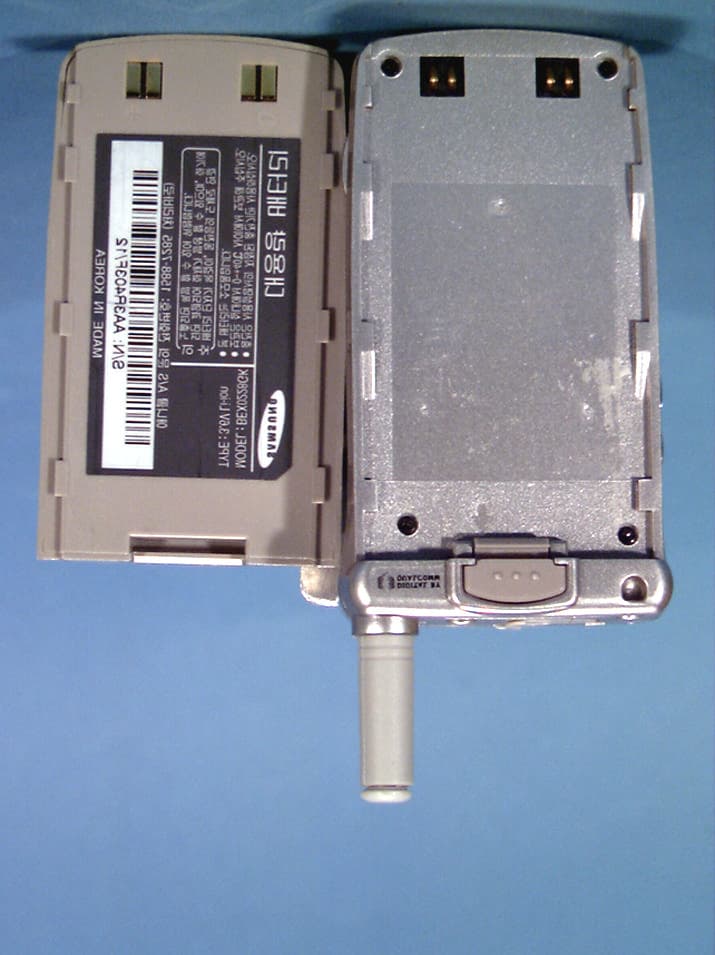

© 2001 PCTEST Lab ATTACHMENT G – EXTERNAL PHOTOGRAPHS © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA)

© 2001 PCTEST Lab ATTACHMENT E – FCC ID LABEL / LOCATION © 2001PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.

© 2001 PCTEST Lab ATTACHMENT H – INTERNAL PHOTOGRAPHS © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA)

© 2001 PCTEST Lab ATTACHMENT O – SAR TEST DATA Peak SAR Location © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) Head SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01060109_ZOOM.VLT Start : 1-Jun-101 02:53:02 pm End : 1-Jun-101 03:02:18 pm Radio Type : SAMSUNG Model Number : SCH-A301 Serial Number : 1 Frequency : 824.70 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG SINGLE MODE PHONE - CDMA MODE CH 1013 Conducted 23.0 dBm SAMSUNG SINGLE MODE PHONE - HEAD SAR Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.000, Y = -2.250, Z = 0.000 (cm) Value = 21.947 Measured Values (volts) = 2.196E-002 1.657E-002 1.372E-002 1.130E-002 1.004E-002 8.750E-003 7.868E-003 7.150E-003 6.523E-003 6.029E-003 5.530E-003 4.983E-003 4.377E-003 3.777E-003 3.216E-003 2.665E-003 2.196E-003 1.891E-003 1.715E-003 1.640E-003 1.670E-003 Calc. Voltage @ Surface (Vs) = 0.0278 Voltage @ 1.00 cm (Vt) = 0.0113 Ave. Voltage (Vs+Vt)/2 = 0.0196 Ave. SAR over 1 g (mW/g) = 1.4269 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 mW/g -1012345 Z centimeters SAR Scan File : 01060109_ZOOM Start : 1-Jun-101 02:53:02 pm End : 1-Jun-101 03:02:18 pm SAMSUNG/SCH-A301/1;824.70MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01060109_ZOOM Start : 1-Jun-101 02:53:02 pm End : 1-Jun-101 03:02:18 pm SAMSUNG/SCH-A301/1;824.70MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.60 1.48 1.37 1.25 1.14 1.02 0.90 0.79 0.67 0.55 File : 01060109_ZOOM Start : 1-Jun-101 02:53:02 pm End : 1-Jun-101 03:02:18 pm SAMSUNG/SCH-A301/1;824.70MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.60 1.48 1.37 1.25 1.14 1.02 0.90 0.79 0.67 0.55 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01060103_ZOOM.VLT Start : 1-Jun-101 11:26:01 am End : 1-Jun-101 11:35:13 am Radio Type : SAMSUNG Model Number : SCH-A301 Serial Number : 1 Frequency : 824.70 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG SINGLE MODE PHONE - CDMA MODE CH 1013 Conducted 23.0 dBm SAMSUNG SINGLE MODE PHONE - HEAD SAR Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 1.750, Y = -2.000, Z = 0.000 (cm) Value = 22.692 Measured Values (volts) = 2.122E-002 1.557E-002 1.308E-002 1.102E-002 9.595E-003 8.430E-003 7.570E-003 6.837E-003 6.345E-003 5.848E-003 5.392E-003 4.909E-003 4.394E-003 3.775E-003 3.267E-003 2.701E-003 2.282E-003 1.909E-003 1.756E-003 1.702E-003 1.761E-003 Calc. Voltage @ Surface (Vs) = 0.0271 Voltage @ 1.00 cm (Vt) = 0.0110 Ave. Voltage (Vs+Vt)/2 = 0.0191 Ave. SAR over 1 g (mW/g) = 1.3905 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 01060103_ZOOM Start : 1-Jun-101 11:26:01 am End : 1-Jun-101 11:35:13 am SAMSUNG/SCH-A301/1;824.70MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01060103_ZOOM Start : 1-Jun-101 11:26:01 am End : 1-Jun-101 11:35:13 am SAMSUNG/SCH-A301/1;824.70MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.66 1.55 1.43 1.32 1.21 1.10 0.99 0.88 0.77 0.66 File : 01060103_ZOOM Start : 1-Jun-101 11:26:01 am End : 1-Jun-101 11:35:13 am SAMSUNG/SCH-A301/1;824.70MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.66 1.55 1.43 1.32 1.21 1.10 0.99 0.88 0.77 0.66 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01060101_ZOOM.VLT Start : 1-Jun-101 10:57:44 am End : 1-Jun-101 11:08:51 am Radio Type : SAMSUNG Model Number : SCH-A301 Serial Number : 1 Frequency : 835.89 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG SINGLE MODE PHONE - CDMA MODE CH 0363 Conducted 23.0 dBm SAMSUNG SINGLE MODE PHONE - HEAD SAR Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.000, Y = -2.000, Z = 0.000 (cm) Value = 22.897 Measured Values (volts) = 2.180E-002 1.631E-002 1.359E-002 1.144E-002 9.963E-003 8.760E-003 7.856E-003 7.148E-003 6.578E-003 6.002E-003 5.493E-003 4.925E-003 4.393E-003 3.752E-003 3.186E-003 2.685E-003 2.244E-003 1.924E-003 1.766E-003 1.701E-003 1.730E-003 Calc. Voltage @ Surface (Vs) = 0.0277 Voltage @ 1.00 cm (Vt) = 0.0114 Ave. Voltage (Vs+Vt)/2 = 0.0195 Ave. SAR over 1 g (mW/g) = 1.4264 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 mW/g -1012345 Z centimeters SAR Scan File : 01060101_ZOOM Start : 1-Jun-101 10:57:44 am End : 1-Jun-101 11:08:51 am SAMSUNG/SCH-A301/1;835.89MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01060101_ZOOM Start : 1-Jun-101 10:57:44 am End : 1-Jun-101 11:08:51 am SAMSUNG/SCH-A301/1;835.89MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.67 1.53 1.38 1.24 1.10 0.95 0.81 0.67 0.52 0.38 File : 01060101_ZOOM Start : 1-Jun-101 10:57:44 am End : 1-Jun-101 11:08:51 am SAMSUNG/SCH-A301/1;835.…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT P – SAR TEST SETUP PHOTOGRAPHS © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA)

© 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: June 1-4, 2001 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.210530335.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia, MD USA Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSCHA301 APPLICANT SAMSUNG Electronics Co. Ltd. EUT Type: Single-Mode Cellular Phone (CDMA) Tx Frequency: 824.70 – 848.31 MHz (CDMA) Rx Frequency: 869.70 – 893.31 MHz (CDMA) Max. RF Output Power: 0.271 W ERP CDMA (24.321 dBm) Trade Name/Model(s): SAMSUNG SCH-A301 FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.4762 W/kg Brain SAR 0.7553 W/kg Body SAR 0.8048 W/kg Hand SAR (over 10 gms) This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210530335.A3L Test Report S/N: SAR.210530335.A3L SAR Measurement Report Test Dates: JUNE 1-4, 2001 FCC Part 22 Certification Table of Contents 1.1 SCOPE........................................................................................................................1 2.1 INTRODUCTION........................................................................................................1 3.1 SAR MEASUREMENT SET-UP.............................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM...............................................................4 5.1 E-field PROBE CALIBRATION PROCESS..........................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES...........................................................7 7.1 SYSTEM SPECIFICATIONS...................................................................................8 8.1 MEASUREMENT PROCESS..................................................................................8 9.1 TEST POSITION OF THE PHONE.......................................................................10 10.1 BODY-WORN TEST SETUP...............................................................................11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS..........................................12 12.1 MEASUREMENT UNCERTAINTIES.................................................................13 13.1 SAR TEST DATA SUMMARY.............................................................................14 14.1 SAR TEST EQUIPMENT.....................................................................................17 15.1 CONCLUSION.......................................................................................................18 Test Report S/N: SAR.210530335.A3L SAR Measurement Report Test Dates: June 1-4, 2001 FCC Part 22 Certification SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) © 2001 PCTEST Lab Single-Mode Cellular Phone (CDMA) 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name: SAMSUNG ELECTRONICS CO., LTD. Address: 416 Maetan-3 Dong, Paldal-Ku Suwon City, Kyungki-Do, 441-742, KOREA Attention: Mr. Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • EUT Type: Single-Mode Cellular Phone (CDMA) • Trade Name: SAMSUNG • Model(s): SCH-A301 • FCC IDENTIFIER: A3LSCHA301 • Tx Frequency: 824.70 – 848.31 MHz (CDMA) • Rx Frequency: 869.70 – 893.31 MHz (CDMA) • Application Type: Certification • FCC Classification: Non-Broadcast Transmitter Held to Ear • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): CDMA • Max RF. Output Power: 0.271 W ERP CDMA (24.321 dBm) • Date(s) of Tests: June 1-4, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210530335.A3L 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210530335.A3L SAR Measurement Report Test Dates: June 1-4, 2001 FCC Part 22 Certification SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) © 2001 PCTEST Lab Single-Mode Cellular Phone (CDMA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Elec…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT C – TEST REPORT © 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification SAMSUNG Electronics Co., Ltd. Dates of Tests: June 1-4, 2001 146 Maetun-3 Dong, Paldal-Ku, Test Report S/N: 22.210530336.A3L Suwon City, Kyungki-Do, KOREA 441-742 Test Site: PCTEST Lab, Columbia, MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSCHA301 APPLICANT SAMSUNG Electronics Co., Ltd. Classification: Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): §22.901(d), §2 EUT Type: Single-Mode Cellular CDMA Phone Trade Name/Model(s): SAMSUNG SCH-A301 Tx Frequency Range: 824.70 ~ 848.31 MHz Rx Frequency Range: 869.70 ~ 893.31 MHz Max. RF Output Power: 0.271 W ERP (24.321 dBm) Max. SAR Measurement(s): 1.4762 W/kg (1g) Cellular CDMA Brain SAR; 0.7553 W/kg (1g) Cellular CDMA Body SAR 0.8048 W/kg (10g) Cellular CDMA Hand SAR Frequency Tolerance: 0.00025% (2.5 ppm) Emission Designator: 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in § 2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.862. 210530336.A3L FCC Part 22 Certification © 2001 PCTEST Engineering Laboratory, Inc. FCC Part 22 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION 2 3.1 DESCRIPTION OF INSERTS 3 4.1 DESCRIPTION OF TESTS 4-5 5.1 EFFECTIVE RADIATED POWER OUTPUT 6 6.1 RADIATED MEASUREMENTS 7-9 7.1 FREQUENCY STABILITY 10-11 8.1 PLOTS OF EMISSIONS 12 9.1 LIST OF TEST EQUIPMENT 13 10.1 SAMPLE CALCULATIONS 14 11.1 CONCLUSION 15 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L: OPERATIONAL DESCRIPTION ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 22.210530336.A3L FCC Part 22 Test Dates: JUNE 1-4, 2001 Certification © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA301 (Model: SCH-A301) 1 Single-Mode Cellular CDMA Phone (CDMA) MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. General Information Applicant Name: SAMSUNG Electronics Co., Ltd. Address: 146 Maetun-3 Dong, Paldal-Ku, Suwon City, Kyungki-Do, KOREA 441-742 Attention: …

Text truncated - open the document above for the full version.
