A3LSCHA399Single-Mode Cellular CDMA Phone

© 2001 PCTEST Lab ATTACHMENT M – USER’S MANUAL SCH-A399 (CDMA 800MHz) CONFIDENTIAL JUNE 29 , 2001 8. USERS MANUAL 32 FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters.Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations using the optional belt-clip/holster placed 1.5cm from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 1.5cm must be maintained between the user’s body and the phone, including the antenna, whether extended or retracted. The use of third- party belt-clips/ holsters with no metallic components that provide the minimum separation distance of 1.5cm can be used to satisfy FCC RF exposure requirements. The use of non-tested accessories or other body-worn operations may not comply with FCC RF exposure requirements and should be avoided. Contact your local dealer for optional accessory items. Vehicle Mounted External Antenna (optional, if available.) A minimum separation distance of 7.9 inches (20cm) must be maintained Between a person and the vehicle mounted external antenna to satisfy FCC RF exposure requirements. For more information about RF exposure, please visit the FCC website at www .fcc.gov. SAFETY PRECAUTIONS ............................................................. 7 UNPACKING ...............................................................................9 YOUR PHONE Phone Layout .............................................................................. 10 Display ....................................................................................... 13 Backlight .................................................................................... 15 Service Light ............................................................................... 15 GETTING STARTED Installing the UIM Card ................................................................. 16 Charging a Battery ...................................................................... 18 Switching the Phone On/Off ........................................................ 22 Changing the Display for Standby Mode ...................................... 23 CHV Code .................................................................................... 24 Your Phone’s Mode ....................................................................... 24 CALL FUNCTIONS Making a Call ............................................................................... 26 Redialing the Last Number ............................................................ 27 Making a Call from the Phonebook ............................................... 28 Prepending Dialing ....................................................................... 28 Speed Dialing ............................................................................... 29 Emergency Dialing ........................................................................ 30 Pause Dialing ............................................................................... 31 Voice Dialing ................................................................................ 34 Adjusting the Volume ..................................................................... 35 Answering a Call ........................................................................... 36 In-Call Options .............................................................................. 37 Quick-switching to Silent Mode ...................................................... 38 Viewing Missed Calls ..................................................................... 38 Call Waiting .................................................................................. 39 Call Forwarding ............................................................................ 39 Three-Way Calling ........................................................................ 40 Table of Contents 54 ENTERING TEXT Changing Text Input Mode ........................................................... 42 Chinese PY(Pinyin) Mode ............................................................. 43 Chinese Stroke Mode ................................................................... 48 Word Mode ................................................................................. 51 ABC Mode ................................................................................... 53 Symbol Mode .............................................................................. 55 123 Mode ................................................................................... 55 USING THE MENUS Accessing a Menu Functions by Scrolling ....................................... 56 Accessing a Menu Functions by Using its Shortcut .......................... 57 List of Menu Functions ................................................................. 58 CALLS Outgoing(MENU 1-1) ............................................................ 62 Incoming (MENU 1-2) ............................................................ 63 Missed (MENU 1-3) ................................................................ 63 Erase Logs (MENU 1-4)............................................................ 63 Air Time (MENU 1-5)...........…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT B – ATTESTATION STATEMENT(S) May 01,2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 2 1046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsung Electronics America August 21, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Samsung Electronics Co., Ltd. FCC ID: A3LSCHA399 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Part's List, Tune-up Procedure, and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID:A3LSCHA399) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. August 21, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHA399 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652.

© 2001 PCTEST Lab ATTACHMENT A – COVER LETTER(S) August 21, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHA399 Part 22 Certification Gentlemen: Attached herewith, on behalf of SAMSUNG ELECTRONICS CO., LTD. is an application for Part 22 Certification of the following Single-Mode Cellular CDMA Phone: FCC ID:A3LSCHA399 TRADE / MODEL(s):SAMSUNG SCH-A399 EUT TYPE:Non-Broadcast transmitter Held to Ear (TNE) Tx Freq. Range:824.70 – 848.31 MHz Rx Freq. Range:869.70 – 893.31 MHz Max. RF Output Power:0.280 W ERP CDMA (24.473 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Wallace Oh Engineering Manager SAMSUNG American QA Lab

October 15, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Andy Leimer SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHA399 731 Confirmation No.: EA102144 Correspondence Reference No.: 20889 Request for Tech. Info.: 10/11/01 Dear Andy: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd. is an amendment provided in response to the request for technical information dated October 11, 2001. 1. Please find the attached ERP data points for the standard and extended battery to support use of the standard battery during the SAR testing. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

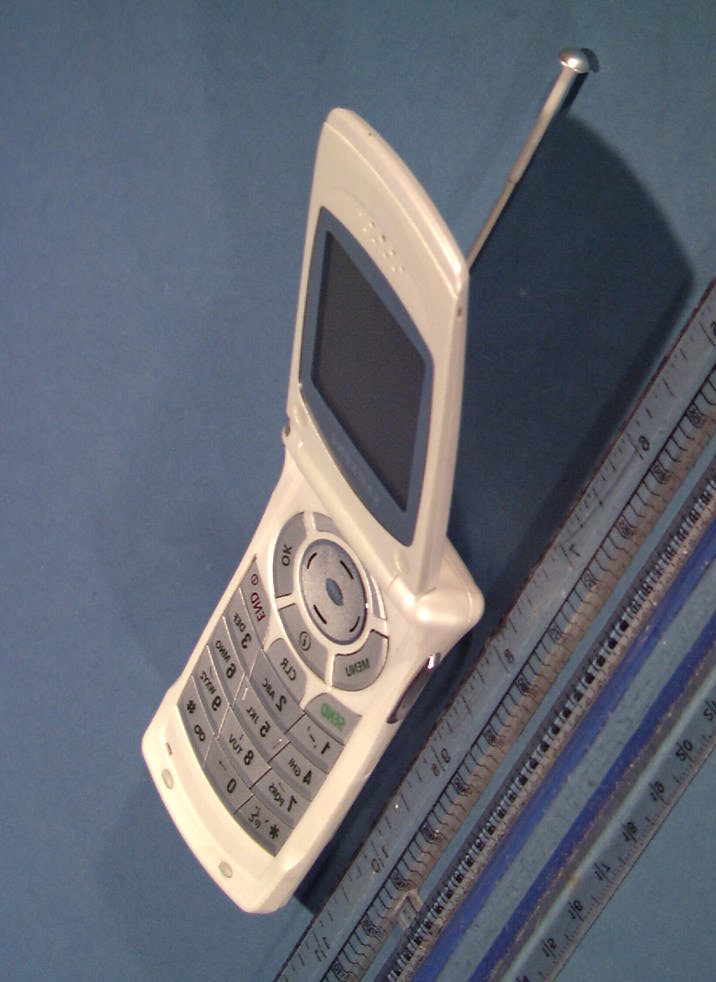

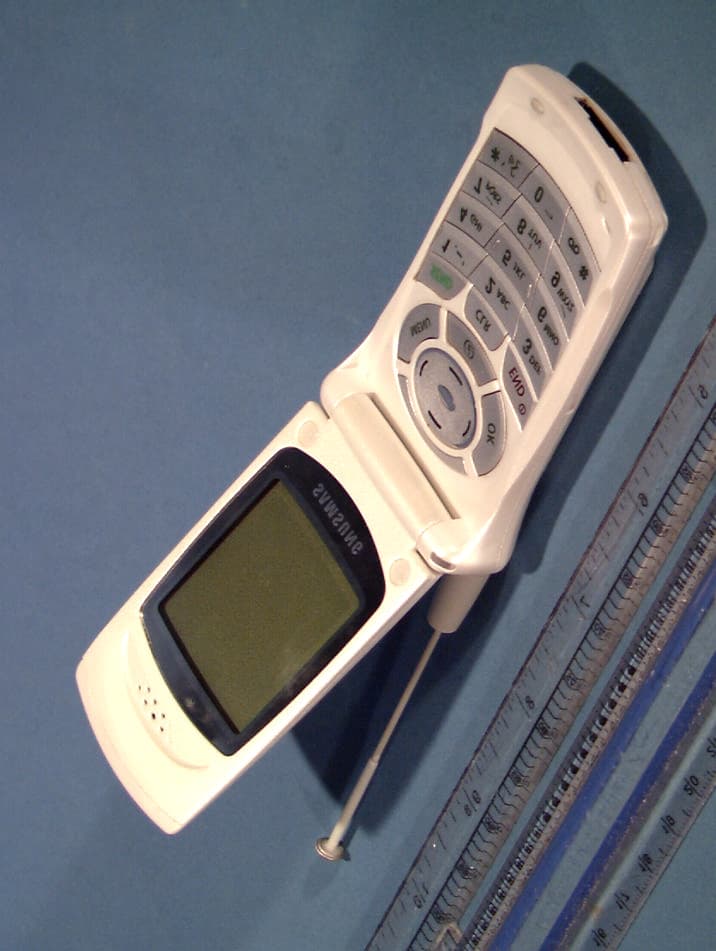

© 2001 PCTEST Lab ATTACHMENT G – EXTERNAL PHOTOGRAPHS © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA)

© 2001 PCTEST Lab ATTACHMENT E – FCC ID LABEL / LOCATION © 2001PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) SAMSUNG ELECTRONICS CO., LTD. MODEL NO: SCH-N399 FCC ID: A3LSCHN399 MADE IN KOREA SAMSUNG ELECTRONICS CO., LTD

© 2001 PCTEST Lab ATTACHMENT H – INTERNAL PHOTOGRAPHS © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA)

© 2001 PCTEST Lab ATTACHMENT O – SAR TEST DATA Peak SAR Location © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) NVLAP Lab Code: 100431-0 Single-Mode Cellular Phone (CDMA) Head SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01080920_ZOOM.VLT Start : 9-Aug-101 04:45:19 pm End : 9-Aug-101 04:55:08 pm Radio Type : SAMSUNG Model Number : SCH-A399 Serial Number : C Frequency : 824.70 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG CDMA-MODE PHONE - AMPS MODE CH 1013 Conducted 25.0 dBm SAMSUNG CDMA-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 3.250, Y = -2.750, Z = 0.000 (cm) Value = 15.836 Measured Values (volts) = 1.415E-002 9.451E-003 7.826E-003 6.766E-003 5.958E-003 5.307E-003 4.870E-003 4.498E-003 4.106E-003 3.725E-003 3.280E-003 2.797E-003 2.143E-003 1.752E-003 1.347E-003 1.202E-003 1.097E-003 1.177E-003 1.283E-003 1.408E-003 1.506E-003 Calc. Voltage @ Surface (Vs) = 0.0191 Voltage @ 1.00 cm (Vt) = 0.0068 Ave. Voltage (Vs+Vt)/2 = 0.0129 Ave. SAR over 1 g (mW/g) = 0.9446 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 mW/g -1012345 Z centimeters SAR Scan File : 01080920_ZOOM Start : 9-Aug-101 04:45:19 pm End : 9-Aug-101 04:55:08 pm SAMSUNG/SCH-A399/C;824.70MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01080920_ZOOM Start : 9-Aug-101 04:45:19 pm End : 9-Aug-101 04:55:08 pm SAMSUNG/SCH-A399/C;824.70MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.16 1.05 0.94 0.83 0.73 0.62 0.51 0.41 0.30 0.19 File : 01080920_ZOOM Start : 9-Aug-101 04:45:19 pm End : 9-Aug-101 04:55:08 pm SAMSUNG/SCH-A399/C;824.70MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.16 1.05 0.94 0.83 0.73 0.62 0.51 0.41 0.30 0.19 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01080927_ZOOM.VLT Start : 9-Aug-101 06:35:07 pm End : 9-Aug-101 06:44:55 pm Radio Type : SAMSUNG Model Number : SCH-A399 Serial Number : C Frequency : 824.70 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG CDMA-MODE PHONE CH 1013 Conducted 25.0 dBm SAMSUNG CDMA-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 4.000, Y = -3.750, Z = 0.000 (cm) Value = 16.417 Measured Values (volts) = 1.634E-002 1.261E-002 1.064E-002 9.431E-003 8.374E-003 7.379E-003 6.682E-003 5.813E-003 5.265E-003 4.475E-003 3.719E-003 3.009E-003 2.303E-003 1.746E-003 1.381E-003 1.188E-003 1.221E-003 1.314E-003 1.404E-003 1.489E-003 1.370E-003 Calc. Voltage @ Surface (Vs) = 0.0203 Voltage @ 1.00 cm (Vt) = 0.0094 Ave. Voltage (Vs+Vt)/2 = 0.0149 Ave. SAR over 1 g (mW/g) = 1.0838 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 01080927_ZOOM Start : 9-Aug-101 06:35:07 pm End : 9-Aug-101 06:44:55 pm SAMSUNG/SCH-A399/C;824.70MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01080927_ZOOM Start : 9-Aug-101 06:35:07 pm End : 9-Aug-101 06:44:55 pm SAMSUNG/SCH-A399/C;824.70MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.20 1.09 0.97 0.86 0.75 0.64 0.53 0.41 0.30 0.19 File : 01080927_ZOOM Start : 9-Aug-101 06:35:07 pm End : 9-Aug-101 06:44:55 pm SAMSUNG/SCH-A399/C;824.70MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.20 1.09 0.97 0.86 0.75 0.64 0.53 0.41 0.30 0.19 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01080922_ZOOM.VLT Start : 9-Aug-101 05:13:22 pm End : 9-Aug-101 05:23:10 pm Radio Type : SAMSUNG Model Number : SCH-A399 Serial Number : C Frequency : 835.89 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG CDMA-MODE PHONE - AMPS MODE CH 363 Conducted 25.0 dBm SAMSUNG CDMA-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 3.250, Y = -2.750, Z = 0.000 (cm) Value = 16.049 Measured Values (volts) = 1.339E-002 8.480E-003 7.079E-003 5.872E-003 5.235E-003 4.637E-003 4.244E-003 3.889E-003 3.584E-003 3.256E-003 2.822E-003 2.372E-003 1.818E-003 1.581E-003 1.155E-003 1.034E-003 9.169E-004 9.507E-004 1.048E-003 1.188E-003 1.198E-003 Calc. Voltage @ Surface (Vs) = 0.0186 Voltage @ 1.00 cm (Vt) = 0.0059 Ave. Voltage (Vs+Vt)/2 = 0.0122 Ave. SAR over 1 g (mW/g) = 0.8928 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 mW/g -1012345 Z centimeters SAR Scan File : 01080922_ZOOM Start : 9-Aug-101 05:13:22 pm End : 9-Aug-101 05:23:10 pm SAMSUNG/SCH-A399/C;835.89MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01080922_ZOOM Start : 9-Aug-101 05:13:22 pm End : 9-Aug-101 05:23:10 pm SAMSUNG/SCH-A399/C;835.89MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.17 1.06 0.96 0.85 0.74 0.64 0.53 0.42 0.32 0.21 File : 01080922_ZOOM Start : 9-Aug-101 05:13:22 pm End : 9-Aug-101 05:23:10 pm SAMSUNG/SCH-A399/C;835.89MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.17 1.06 0.…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT P – SAR TEST SETUP PHOTOGRAPHS © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) NVLAP Lab Code: 100431-0 Single-Mode Cellular CDMA Phone (CDMA)

© 2001 PCTEST Lab ATTACHMENT N – SAR MEASUREMENT REPORT © 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: Aug. 9 & 17, 2001 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.210713406.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia, MD USA Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSCHA399 APPLICANT SAMSUNG Electronics Co. Ltd. EUT Type: Single-Mode Cellular Phone (CDMA) Tx Frequency: 824.70 – 848.31 MHz (CDMA) Rx Frequency: 869.70 – 893.31 MHz (CDMA) Max. RF Output Power: 0.280 W ERP CDMA (24.473 dBm) Trade Name/Model(s): SAMSUNG SCH-A399 FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.2181 W/kg Brain SAR 0.4961 W/kg Body SAR This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210713406.A3L Test Report S/N: SAR.210713406.A3L SAR Measurement Report Test Dates: AUG. 9 & 17, 2001 FCC Part 22 Certification Table of Contents 1.1 SCOPE....................................................................................................1 2.1 INTRODUCTION.......................................................................................2 3.1 SAR MEASUREMENT SET-UP.................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM.....................................................4 5.1 E-field PROBE CALIBRATION PROCESS.................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES..................................................7 7.1 SYSTEM SPECIFICATIONS......................................................................8 8.1 MEASUREMENT PROCESS.....................................................................9 9.1 TEST POSITION OF THE PHONE..........................................................10 10.1 BODY-WORN TEST SETUP.................................................................11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS....................................12 12.1 MEASUREMENT UNCERTAINTIES.......................................................13 13.1 SAR TEST DATA SUMMARY................................................................14 14.1 SAR TEST EQUIPMENT.......................................................................16 15.1 CONCLUSION......................................................................................17 Test Report S/N: SAR.210713406.A3L SAR Measurement Report Test Dates: Aug. 9 & 17, 2001 FCC Part 22 Certification SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) © 2001 PCTEST Lab Single-Mode Cellular Phone (CDMA) 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name: SAMSUNG ELECTRONICS CO., LTD. Address: 416 Maetan-3 Dong, Paldal-Ku Suwon City, Kyungki-Do, 441-742, KOREA Attention: Mr. Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • EUT Type: Single-Mode Cellular Phone (CDMA) • Trade Name: SAMSUNG • Model(s): SCH-A399 • FCC IDENTIFIER: A3LSCHA399 • Tx Frequency: 824.70 – 848.31 MHz (CDMA) • Rx Frequency: 869.70 – 893.31 MHz (CDMA) • Application Type: Certification • FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): CDMA • Max RF. Output Power: 0.280 W ERP CDMA (24.473 dBm) • Date(s) of Tests: Aug. 9 & 17, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210713406.A3L 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210713406.A3L SAR Measurement Report Test Dates: Aug. 9 & 17, 2001 FCC Part 22 Certification SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) © 2001 PCTEST Lab Single-Mode Cellular Phone (CDMA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. © 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measur…

Text truncated - open the document above for the full version.

Test Report S/N: 22.210713407.A3L FCC Part 22 Test Dates: August 9 & 17, 2001 Certification © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHA399 (Model: SCH-A399) 6 Single-Mode Cellular CDMA Phone (CDMA)









5.1 Test Data 5.2 Effective Radiated Power Output A. POWER: High (CDMA Mode) Freq. Tuned LEVEL POL ERP ERP BATTERY (M H z) (d B m ) (H / V ) (W ) (d B m ) 824.70 -16.900 V 0.27425 24.382 Standard 836.49 -17.100 V 0.27159 24.329 Standard 848.31 -17.100 V 0.28033 24.477 Standard 848.31 -17.300 V 0.26835 24.277 Extended NOTES: Effective Radiated Power Output Measurements by Substitution Method according to ANSI/TIA/EIA-603 (rev.1998): The EUT was placed on a wooden turn table 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was ad justed to obtain the same receive spectrum analyzer reading. The conducted power at the trminals of the dipole is measured. The ERP is recorded.

© 2001 PCTEST Lab ATTACHMENT C – TEST REPORT © 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification SAMSUNG Electronics Co., Ltd. Dates of Tests: August 9 & 17, 2001 146 Maetun-3 Dong, Paldal-Ku, Test Report S/N: 22.210713407.A3L Suwon City, Kyungki-Do, KOREA 441-742 Test Site: PCTEST Lab, Columbia, MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSCHA399 APPLICANT SAMSUNG Electronics Co., Ltd. Classification: Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): §22.901(d), §2 EUT Type: Single-Mode Cellular CDMA Phone Trade Name/Model(s): SAMSUNG SCH-A399 Tx Frequency Range: 824.70 ~ 848.31 MHz Rx Frequency Range: 869.70 ~ 893.31 MHz Max. RF Output Power: 0.280 W ERP (24.473 dBm) Max. SAR Measurement(s): 1.2181 W/kg (1g) Cellular CDMA Brain SAR; 0.4961 W/kg (1g) Cellular CDMA Body SAR Frequency Tolerance: 0.00025% (2.5 ppm) Emission Designator: 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in § 2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.862. 210713407.A3L FCC Part 22 Certification © 2001 PCTEST Engineering Laboratory, Inc. FCC Part 22 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION 2 3.1 DESCRIPTION OF INSERTS 3 4.1 DESCRIPTION OF TESTS 4-5 5.1 EFFECTIVE RADIATED POWER OUTPUT 6 6.1 RADIATED MEASUREMENTS 7-9 7.1 FREQUENCY STABILITY 10-11 8.1 PLOTS OF EMISSIONS 12 9.1 LIST OF TEST EQUIPMENT 13 10.1 SAMPLE CALCULATIONS 14 11.1 CONCLUSION 15 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L: OPERATIONAL DESCRIPTION ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPO…

Text truncated - open the document above for the full version.
