A3LSCHA591Single-Mode Cellular Phone (CDMA)

ELECTRONICS World Wide Webhttp://www.samsungmobile.com SCH-A591 User’s Manual Printed in Korea Código No.: GHxx -xxxxxA English.02/2002.Rev.1.0 Please read this manual before operating your phone, and keep itfor future reference.Draft version (2002.02.08)This manual is made from SCH-A475manual only by changing the pictures.The contents will be updated whenthe software is fixed. For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-c lips, holsters or similar accessories that maintain a 1.5 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone 1 SAFETY QUICK GUIDE ..................................................................... 5 UNPACKING ...................................................................................... 7 YOUR PHONE Phone Layout ...................................................................................... 8Display .............................................................................................. 11Service light ...................................................................................... 13GETTING STARTEDInstalling a Battery ............................................................................. 14Charging a Battery ............................................................................. 15 Low Battery Indicator ..................................................................... 16 Switching the Phone On/Off ................................................................ 17Your Phone’s Mode ............................................................................ 18CALL FUNCTIONSMaking a Call ..................................................................................... 20Answering a Call ................................................................................. 28In-Call Options .................................................................................... 29Using Caller ID .................................................................................... 30Viewing Missed Calls ........................................................................... 31Three-Way Calling ............................................................................... 32Call Waiting ........................................................................................ 33Call Forwarding .................................................................................. 33Adjusting the Volume ........................................................................... 34ENTERING TEXTChanging Text Input Mode ................................................................... 36T9 Mode .............................................................................................. 37ABC Mode ........................................................................................... 39Symbol Mode ...................................................................................... 41Number Mode ..................................................................................... 41 Table of Contents 2 3 USING THE MENUSAccessing Menu Functions by Scrolling .................................................. 42Accessing Menu Functions by Using its Shortcut...................................... 42List of Menu Functions ......................................................................... 44CALLSOutgoing (MENU 1-1) ................................................................... 46 Incoming (MENU 1-2) ................................................................... 47 Missed (MENU 1-3) ........................................................................ 47 Erase History (MENU 1-4) .............................................................. 47 Air Time (MENU 1-5) ...................................................................... 48 PHONE BOOKFind (MENU 2-1) ........................................................................... 49 Add (MENU 2-2) ........................................................................... 50 Rename (MENU 2-3) ..................................................................... 53 My Phone # (MENU 2-4) ................................................................ 53 Memory (MENU 2-5) .................................................................... 53 MESSAGESNew Messages (MENU 3-1) ............................................................. 54 Voice (MENU 3-2) ........................................................................... 56 Inbox (MENU 3-3) .................................................…

Text truncated - open the document above for the full version.

May 10, 2002 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSCHA591 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market.

February 4, 2002 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsun Electronics America AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID: A3LSCHA591) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. May 10, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:Samsung Electronics Co., Ltd. FCC ID: A3LSCHA591 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652.

July 24, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Martin Perrine SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHA591 731 Confirmation No.: TC692137 Correspondence Reference No.: 4550 Request for Tech. Info.: 7/03/02 Dear Martin: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd. is an amendment provided in response to the request for technical information dated July 03, 2002. 1. Please find attached the SAR Plots for Body with antenna “in”. 2. Response to the SAR Calibration process was forwarded to Mr. Perrine separately. Please find attached the revised Probe Calibration Process (page 7). 3. Please find attached the supporting test data associated with the radiated measurements to complement the summary tables provided in the EMC report. 4. Samsung would like to confirm that the differences between this device and Model: SCH-A592 is the software. 5. We would like to confirm that we have marked this application as not confidential. We trust this information is sufficient to resolve FCC questions in this application. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

June 12, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG Electronics Co., Ltd. FCC ID: A3LSCHA591 Part 22 Certification Gentlemen: Submitted herewith, on behalf of SAMSUNG Electronics Co., Ltd., is an application for Part 22 Certification of the Single-Mode Cellular CDMA Phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SAMSUNG Electronics Co., Ltd.

June 17, 2002 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Att: Richard Fabina Chief, Equipment Authorization Branch Re: SAR Report submitted with FCC ID: A3LSCHA591 Confidentiality Request Gentlemen: Pursuant to Sections 0.457 and 0.459 of CFR Title 47 FCC Rules and Regulations, PCTEST Lab request confidentiality for the SAR report submitted as an attachment(s) to the subject application for certification for the reference FCC ID: A3LSCHA591. The attachment(s) to the application is (are) identified as "PCTEST Operational Description SAR Report" is marked confidential. This report contains trade secrets and commercial information that are customarily guarded from competitors and are never released to the public. Section 0.457(d)(2) stipulates that such material will be withheld from routine inspection if it is shown that the material contains the type of information specified in the preceding statement. Specifically, the PCTEST Operational Description SAR Report contains processes and procedures developed by PCTEST Lab that enable RF Exposure tests performed at PCTEST Lab to meet the stringent requirements of the most recent FCC released Supplement C guidelines for performing such measurements. Disclosure of this information to competitors will result in material harm to PCTEST Lab. PCTEST Lab is currently reviewing the document for which they requested confidentiality to insure that it conforms to the requirements of the FCC rules for withholding information. Test data that is contained in the report has been left in to facilitate review of the report by the FCC. However, the test data contained in this section has been duplicated and submitted in a public file along with the SAR plots. The “PCTEST Operational Description SAR Report” contains confidential business information that PCTEST Lab does not release to the public and accordingly does not wish to have made available to the public via the FCC files. PCTEST Lab is aware that the issue of confidential treatment of this report is under review by the OET legal counsel and possibly by the Office of General Counsel of the Commission. Pending a decision by the appropriate authorities, PCTEST Lab will continue to request confidential treatment of the file identified as “PCTEST Operational Description SAR Report”. If the determining authority decides this information cannot be held confidential, PCTEST Lab will inform the Lab as to their intentions to appeal that decision or accept the decision. In the event the decision is accepted by PCTEST Lab, we will not pursue continued confidential treatment of the report and will assist the Lab in any way possible regarding correcting existing records. In compliance with the provisions of Section 0.457(d) stipulating that test measurements will be made available to the public following the effective date of the authorization, PCTEST Lab has separated the measurement data required to show compliance with the RF Exposure requirements in a separate file identified as "SAR Measurement Data" that will be available for public inspection following the effective date of the authorization. Please contact the undersigned by telephone at 410-290-6652, or by email at [email protected] or by correspondence at the above address if there are any further questions or additional information needed concerning this request for confidentiality. Regards,

July 26, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Re: Withdrawal of Confidentiality Request FCC ID: A3LSCHA591 Gentlemen: PCTEST TCB has removed or is removing the check mark from the confidentiality request box for the reference item in compliance with your request. This action insures that all requests and other issues raised by the Commission in regard to their post grant review of this application has been addressed. In regard to the original request for confidentiality of the subject business documents, it is understood that such a request should be addressed through a different venue. Accordingly, we are withdrawing the confidentiality request and the test firm, in this case PCTEST Lab, is considering addressing the confidentiality issues directly as a policy matter with the Commission. Should you have any questions or comments concerning the above, please contact the undersigned.

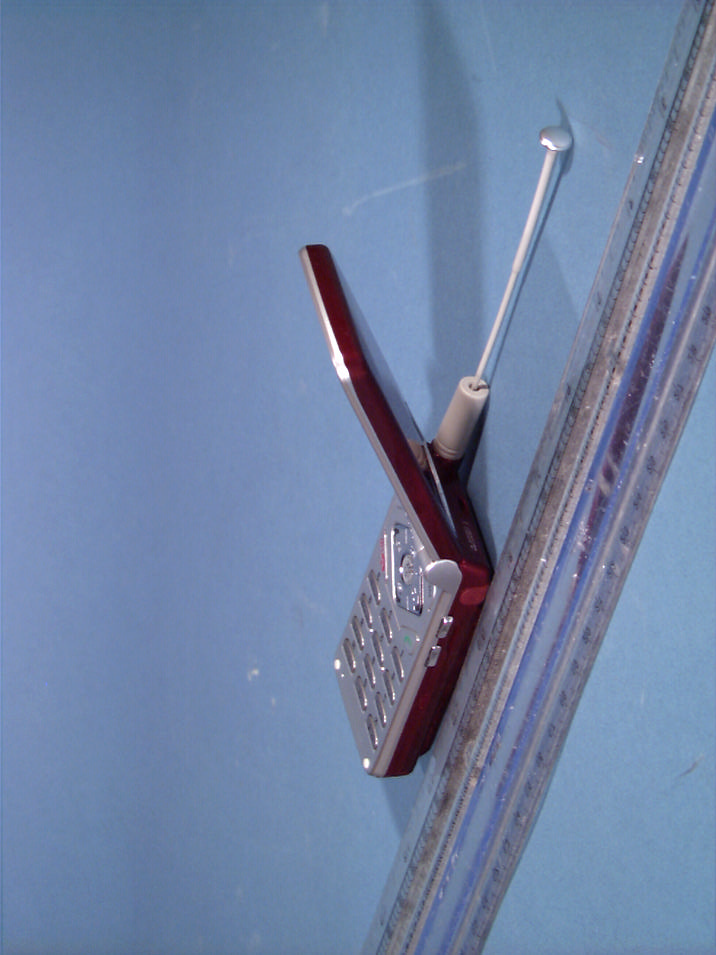

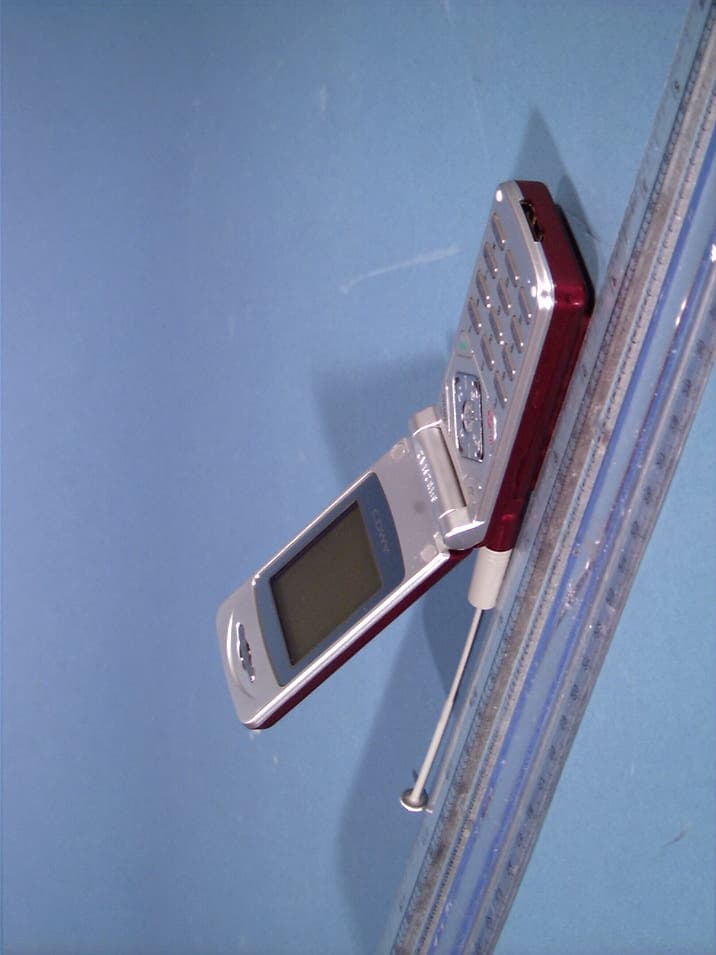

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591)

© 2002PCTEST Lab SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) SAMSUNG ELECTRONICS CO., LTD. MODEL NO: SCH-A591 FCC ID: A3LSCHA591 MADE IN KOREA SAMSUNG ELECTRONICS CO., LTD

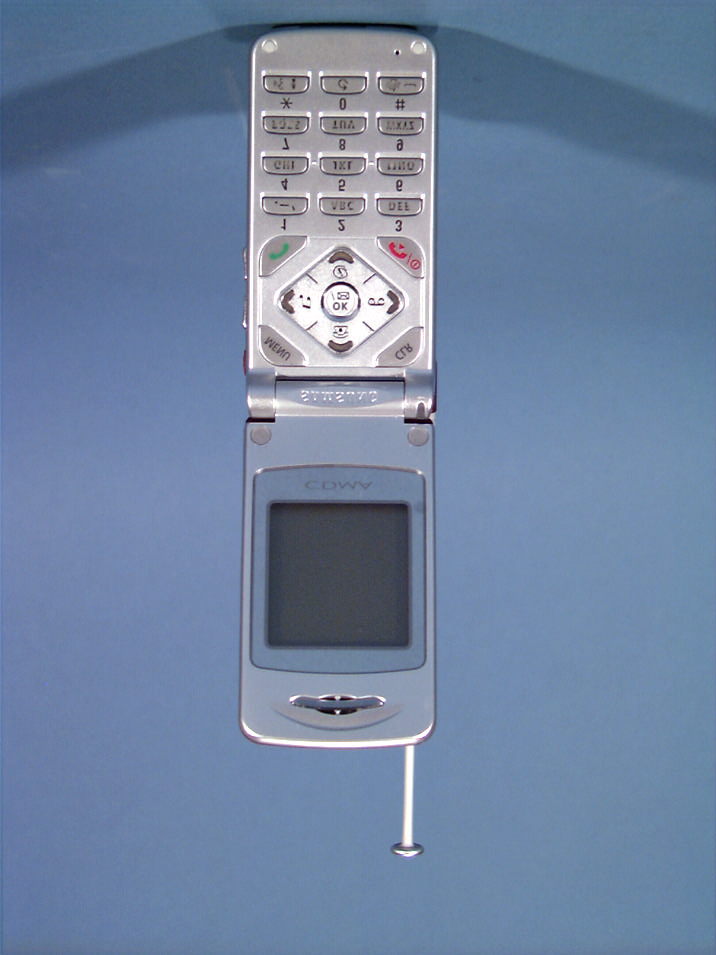

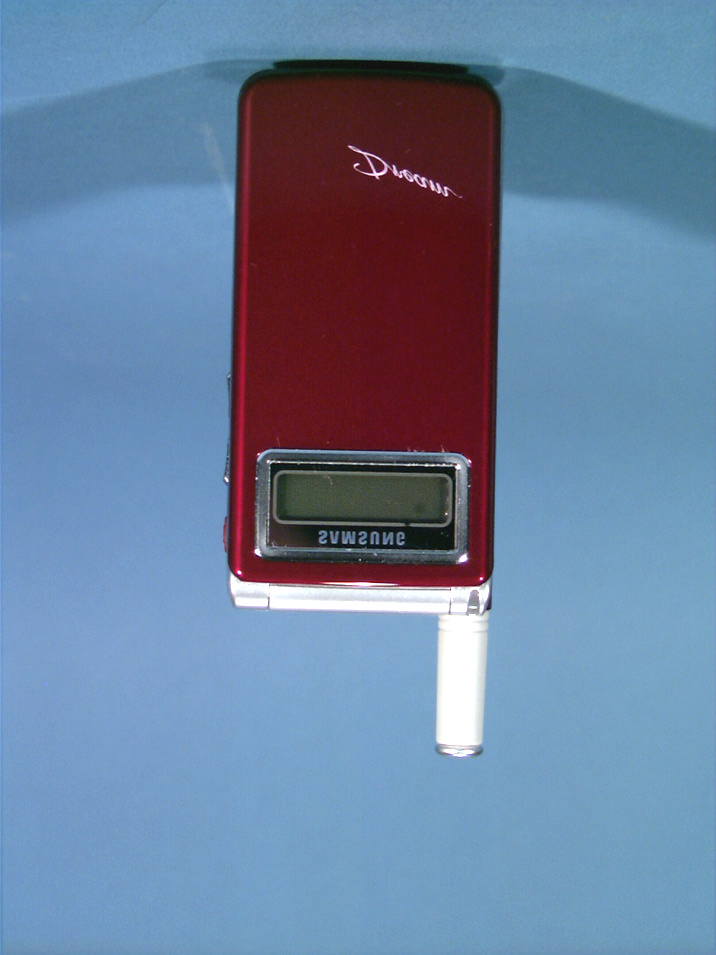

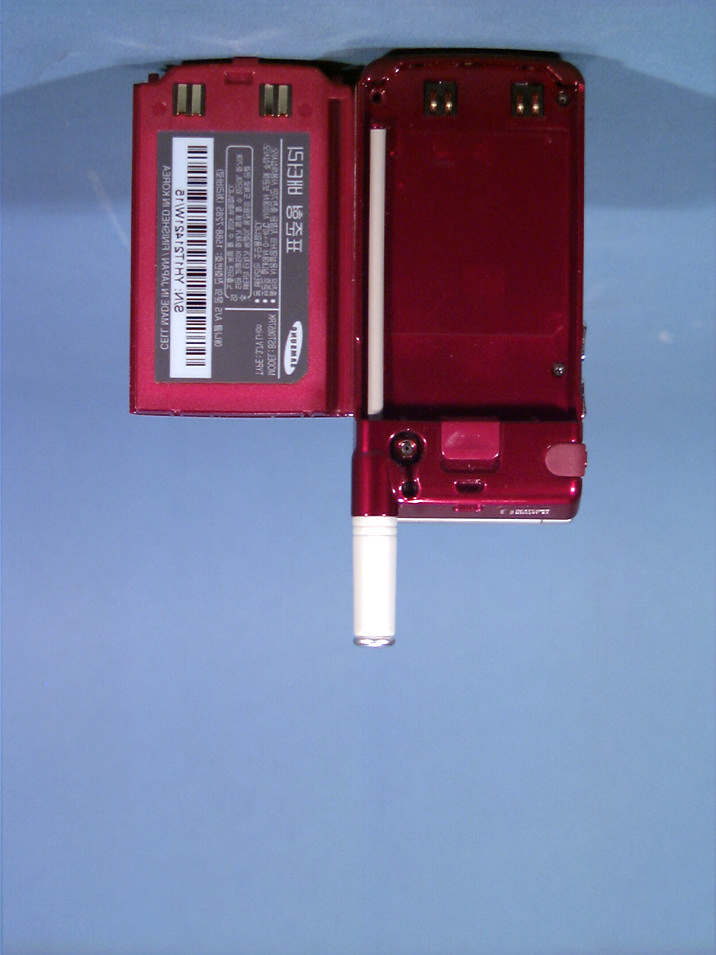

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591)

SCH-A 591 (Single ban d S ingle Mode) RETRACTABLEBOTTOMHELICALANTENNA VENDOR: SBTELCOM. CO. LTD ELECTRICAL DATA Freq. Band CDMABand Tr an s mi t Ba n d : 8 24.70 ~ 8 48.31 M Hz Rece i ve Ba n d : 86 9.70 ~ 8 93.31 M Hz Impedance Normal Value : 50 ߟ (NOMINAL) VSWR(Free Space) RetractedLess than 2.0 : 1(NOMINAL) ExtendedLess than 2.0 : 1(NOMINAL) Gain RetractedGreater than -4dBd ExtendedGreater than -3dBd (dBd : dBrelative to a dipole) MaximumLobe Tilt Retracted90 ¢™ Extended90 ¢™

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220507236.A3L Test Dates: May 8-10, 2002 Phone Type: Single-Mode CDMA FCC ID: A3LSCHA591 Page 1 of 25 © 2002 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: May 8-10, 2002 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.220507236.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID: A3LSCHA591 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. EUT Type: Single-Mode Cellular Phone (CDMA) Tx Frequency: 824.70 — 848.31 MHz (CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) Max. RF Output Power: 0.250 W ERP CDMA (23.973 dBm) / 24.5 dBm Conducted Max. SAR Measurement: 1.04W/kg CDMA Head SAR; 0.53W/kg CDMA Body SAR Trade Name/Model(s): SCH-A591 FCC Classification: Licensed Non-Broadcast Transmitter Held To Ear (TNE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220507236.A3L PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220507236.A3L Test Dates: May 8-10, 2002 Phone Type: Single-Mode CDMA FCC ID: A3LSCHA591 Page 2 of 25 © 2002 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION ................................................................................................... 3 SAR DEFINITION.................................................................................................... 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware .................................................................................................... 4 System Electronics................................................................................................... 4 3. DASY3 E-FIELD PROBE SYSTEM............................................................................. 5 Probe Measurement System .................................................................................... 5 Probe Specifications................................................................................................ 5 4. Probe Calibration Process ....................................................................................... 6 Dosimetric Assessment Procedure........................................................................... 6 Free Space Assessment............................................................................................ 6 Temperature Assessment ......................................................................................... 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 7 SAM Phantom ......................................................................................................... 7 Brain & Muscle Simulating Mixture Characterization .............................................. 7 Device Holder ........................................................................................................ 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications..................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS .................................................. 9 Measurement Procedure ......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications .................................. 9 8. DEFINITION OF REFERENCE POINTS .................................................................. 10 EAR Reference Point ............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS ................................................................... 11 Positioning for Cheek/Touch ................................................................................. 11 Positioning for Ear / 15° Tilt................................................................................... 12 Body Holster /Belt Clip Configurations.................................................................. 13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................... 14 Uncontrolled Environment .................................................................................... 14 Controlled Environment ...................................................…

Text truncated - open the document above for the full version.

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSCHA591 Single-Mode CDMA Cellular Phone (Model: SCH-A591)

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220507236.A3L Test Dates: May 8-10, 2002 Phone Type: Single-Mode CDMA FCC ID: A3LSCHA591 Page 1 of 25 © 2002 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: May 8-10, 2002 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.220507236.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID: A3LSCHA591 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. EUT Type: Single-Mode Cellular Phone (CDMA) Tx Frequency: 824.70 — 848.31 MHz (CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) Max. RF Output Power: 0.250 W ERP CDMA (23.973 dBm) / 24.5 dBm Conducted Max. SAR Measurement: 1.04W/kg CDMA Head SAR; 0.53W/kg CDMA Body SAR Trade Name/Model(s): SCH-A591 FCC Classification: Licensed Non-Broadcast Transmitter Held To Ear (TNE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220507236.A3L PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220507236.A3L Test Dates: May 8-10, 2002 Phone Type: Single-Mode CDMA FCC ID: A3LSCHA591 Page 16 of 25 © 2002 PCTEST Engineering Laboratory, Inc. 12. SYSTEM VERIFICATION Tissue Verification Table 12.1 Simulated Tissue Verification Test System Validation Prior to assessment, the system is verified to the ±10% of the specifications at 835MHz by using the system validation kit(s). (Graphic Plots Attached) Table 12.2 System Validation MEASURED TISSUE PARAMETERS Date(s) 05/06/02 835MHz Brain 835MHz Muscle 1900MHz Brain 1900MHz Muscle Liquid Temperature (°C) 22.7 Target Measured Target Measured Target Measured Target Measured Dielectric Constant: ε 41.50 40.60 55.20 57.26 40.00 N/A 53.30 N/A Conductivity: σ 0.900 0.870 0.970 0.990 1.400 N/A 1.520 N/A SYSTEM DIPOLE VALIDATION TARGET & MEASURED System Validation Kit: D-835S, S/N: 103 835MHz Brain Targeted SAR 1g (mW/g) 2.375 Measured SAR 1g (mW/g) 2.44 Deviation (%) + 2.59 Figure 12.1 Dipole Validation Test Setup PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220507236.A3L Test Dates: May 8-10, 2002 Phone Type: Single-Mode CDMA FCC ID: A3LSCHA591 Page 17 of 25 © 2002 PCTEST Engineering Laboratory, Inc. 13. SAR TEST DATA SUMMARY See Measurement Result Data Pages Procedures Used To Establish Test Signal The handset was placed into simulated call mode (Cellular CDMA mode) using manufacturers test codes. Such test signals offer a consistent means for testing SAR and are recommended for evaluating SAR [4]. When test modes are not available or inappropriate for testing a handset, the actual transmission is activated through a base station simulator or similar equipment. See data pages for actual procedure used in measurement. Device Test Conditions The handset is battery operated. Each SAR measurement was taken with a fully charged battery. In order to verify that the device was tested at full power, conducted output power measurements were performed before and after each SAR measurement to confirm the output power. If a conducted power deviation of more than 5% occurred, the test was repeated. EUT Handset Reference Points Figure 13.1 Handset Reference Points ERP —Ear Reference Point Horizontal Center Li…

Text truncated - open the document above for the full version.
