A3LSCHA603Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA)

March 25, 2003 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsun Electronics America March 25, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSCHA603), using the Automatic A/B Roaming — Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID: A3LSCHA603) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative.

March 25, 2003 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSCHA603 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

May 6, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG Electronics Co., Ltd. FCC ID: A3LSCHA603 Part 22/24 Certification Gentlemen: Submitted herewith, on behalf of SAMSUNG Electronics Co., Ltd., is an application for Part 22/24 Certification of the Tri-Mode Dual-Band Analog/PCS CDMA Phone (AMPS/CDMA). Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SAMSUNG Electronics Co., Ltd.

June 12, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Martin Perrine SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHA603 731 Confirmation No.: TC617176 Correspondence Reference No.: 8490 Request for Tech. Info.: 06/06/03 Dear Martin: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd. is an amendment provided in response to the request for technical information dated June 6, 2003. 1. Please find attached the resubmitted user’s manual. Please note the body-worn accessory statement is located on page 2 of the user’s manual. We trust this information is sufficient to resolve FCC questions in this application. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

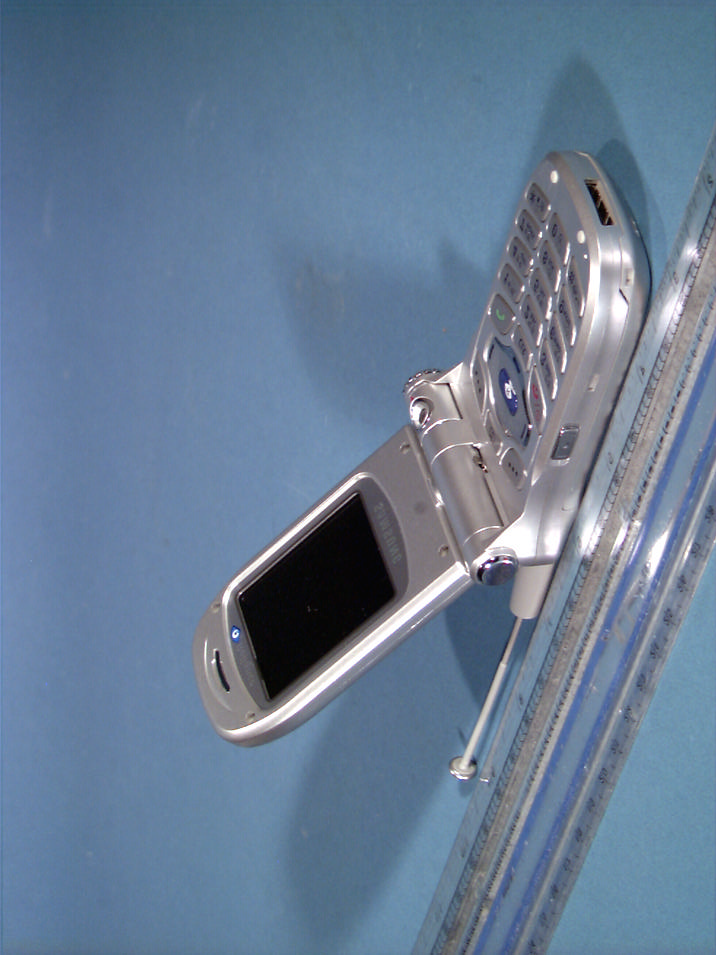

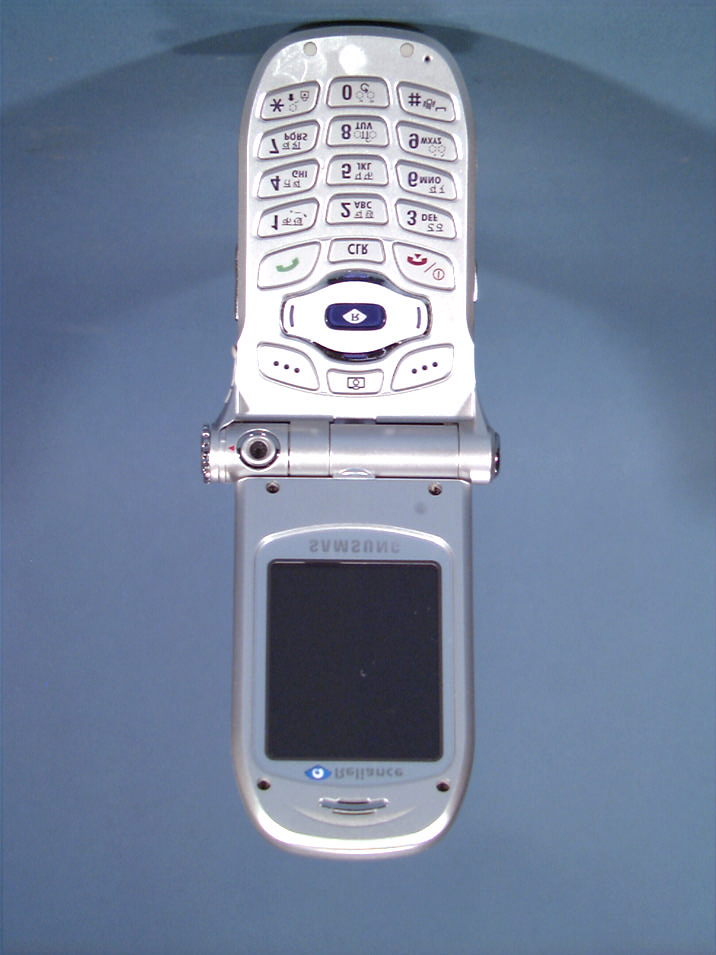

SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603

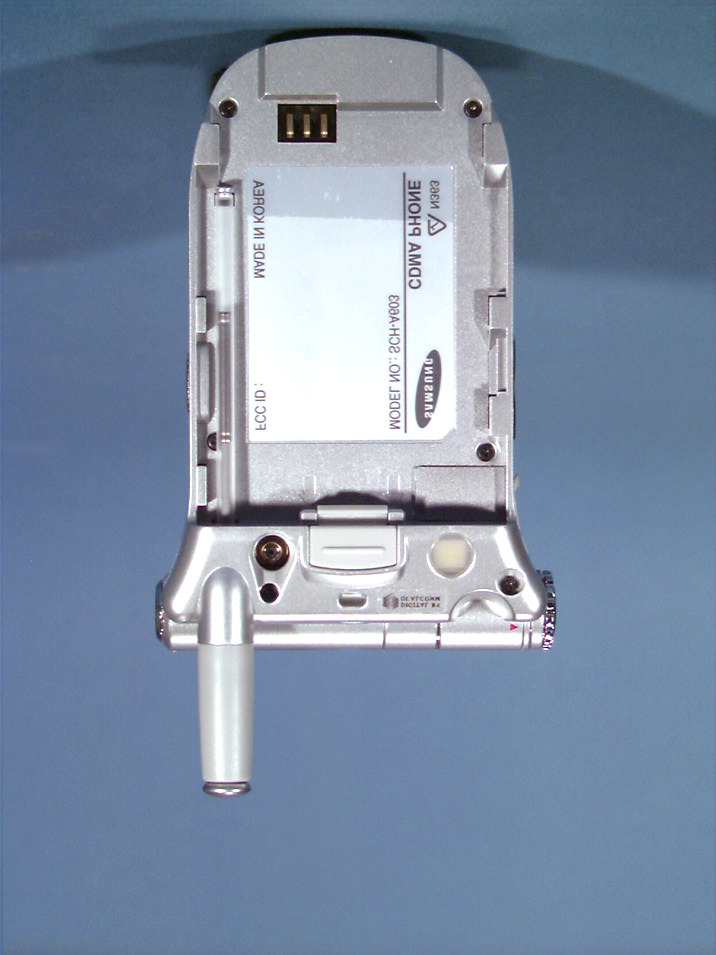

© 2003 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) SAMSUNG ELECTRONICS CO., LTD. MODEL NO: SCH-A603 FCC ID: A3LSCHA603 MADE IN KOREA SAMSUNG ELECTRONICS CO., LTD

SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.230307215.A3L Test Dates: May 1-2, 2003 EUT Type: Tri-Mode Dual-Band Phone FCC ID: A3LSCHA603 Page 1 of 33 © 2003 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: May 1-2, 2003 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.230307215.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia, MD USA Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID: A3LSCHA603 APPLICANT NAME: SAMSUNG ELECTRONICS CO., LTD. EUT Type: Tri-Mode Dual-Band Analog/PCS CDMA Phone Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.321 W ERP AMPS (25.059 dBm) / 25.5 dBm Conducted 0.256 W ERP CDMA (24.083 dBm)/ 24.5 dBm Conducted 0.448 W EIRP PCS CDMA (26.501 dBm) / 24.5 dBm Conducted Max. SAR Measurement: 1.18 W/kg AMPS Head SAR; 0.67 W/kg AMPS Body SAR; 0.93 W/kg CDMA Head SAR; 0.47 W/kg CDMA Body SAR; 0.98 W/kg PCS CDMA Head SAR; 0.74 W/kg PCS CDMA Body SAR Trade Name/Model(s): SCH-A603 FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical Prototype [S/N: FA-002-C] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 15, 2002). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Output is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is limited to the specific holster/ belt-clip tested for this filing. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. SAR.230307215.A3L PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.230307215.A3L Test Dates: May 1-2, 2003 EUT Type: Tri-Mode Dual-Band Phone FCC ID: A3LSCHA603 Page 2 of 33 © 2003 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION................................................................................3 2. SAR MEASUREMENT SETUP............................................................................................4 3. ALIDX-500 E-FIELD PROBE SYSTEM.................................................................................5 4. PROBE CALIBRATION PROCESS......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES................................................................................7 6. TEST SYSTEM SPECIFICATIONS........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS...............................................................9 8. DEFINITION OF REFERENCE POINTS.............................................................................10 9. TEST CONFIGURATION POSITION................................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS................................................................12 11. MEASUREMENT UNCERTAINTIES..................................................................................13 12. SAR TEST DATA SUMMARY...........................................................................................14 13. SAR TEST EQUIPMENT..................................................................................................15 14. CONCLUSION..............................................................................................................16 15. REFERENCES.................................................................................................................17 EXHIBIT A. SYSTEM VERIFICATION......................................................................................18 EXHIBIT A. SAR DATA SUMMARY...................................................................................19-33 PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.230307215.A3L Test Dates: May 1-2, 2003 EUT Type: Tri-Mode Dual-Band Phone FCC ID: A3LSCHA603 Page 3 of 33 © 2003 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electr…

Text truncated - open the document above for the full version.

Calibration Laboratory 6660-B Dobbin Road Columbia, Maryland 21045 USA © 2003 PCTEST Calibration Summary Model: E-010 S/N: PCT003 Boundary Effect < 2%, 2.6 mm from probe tip to phantom Diode Compression Point: 76 mV Environmental Conditons: Temperature: 23.34 o C Relative Humidity: 34% Barometer: 100.1 kPa --------------------- This probe was calibrated under the IEEE Std 1309-1966, IEEE Standard for Calibration of Electromagnetic Field Sensors and Probes, Exluding Antennas, from 9 kHz to 40 GHz. OFFSET ANGLE (cm) (deg) 0.24 54.73 Tissue Type Frequency (MHz) Dielectric Constant r ε Conductivity (S/m) σ Conversion Factor zyx γγγ,, Brain 835 40.00 0.91 7.20 Brain 1880 40.20 1.41 4.05 Brain 2440 39.34 1.77 8.80 Brain 5300 37.10 4.84 3.20 Brain 5800 36.00 5.28 2.30 Muscle 835 55.70 0.98 7.70 Muscle 1900 53.90 1.48 4.40 Muscle 2440 52.30 1.99 9.90 Muscle 5300 48.80 5.43 3.45 Muscle 5800 48.50 6.05 2.50 Isotropy Frequency (MHz) % dB 835 3.49 0.15 1880 5.35 0.23 2440 4.02 0.17 5300 4.85 0.21 5800 4.93 0.21 Calibration Laboratory 6660-B Dobbin Road Columbia, Maryland 21045 USA © 2003 PCTEST 835 MHz Calibration (PCT003) 0 0.2 0.4 0.6 0.8 1 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 Ch1 Ch2 Ch3 Sum 1880 MHz Calibration (PCT003) 0 0.25 0.5 0.75 1 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 Ch1 Ch2 Ch3 Sum Calibration Laboratory 6660-B Dobbin Road Columbia, Maryland 21045 USA © 2003 PCTEST 2440 MHz Calibration (PCT003) 0 0.25 0.5 0.75 1 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 Ch1 Ch2 Ch3 Sum 5300 MHz Calibration (PCT003) 0 0.25 0.5 0.75 1 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 Ch1 Ch2 Ch3 Sum Calibration Laboratory 6660-B Dobbin Road Columbia, Maryland 21045 USA © 2003 PCTEST 5800 MHz Calibration (PCT003) 0 0.25 0.5 0.75 1 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 Ch1 Ch2 Ch3 Sum 0 30 60 90 120 150 180 210 240 270 300 330 0 60 120 180 240 300 360 -1 -0.5 0 0.5 1 dB Polarization Rotation (theta) Probe Rotation (phi) Verification of Isotropy for PCT003 Calibration Laboratory 6660-B Dobbin Road Columbia, Maryland 21045 USA © 2003 PCTEST Linearity Calibration Plot for PCT003 0 100 200 300 400 500 600 700 800 900 1000 00.511.522.5 Power (Watts) Power Density (mW/cm^2) Uncompensated Compensated Probe Physical Characteristics Serial Number: PCT003 Sensor Offset: 2.4 mm Sensor Length: 2.5 mm Tip Enclosure: Glass Tip Diameter: 7 mm Tip Length: 40 mm Total Length: 290 mm Calibration Laboratory 6660-B Dobbin Road Columbia, Maryland 21045 USA © 2003 PCTEST Test Equipment The test equipment used during the probe calibration are listed as follows: EQUIPMENT SPECIFICATIONS Type Calibration Date Asset Number/ Serial Number CRS Robot F3 February 2002 RAF0134133 CRS C500C Motion Controller February 2002 RCB0003303 CRS Teach Pendant (Joystick) February 2002 STP0132231 DELL Computer, Pentium 4 1.6 GHz, Windows 2000 TM February 2002 4PJZ111 E-Field Probe E-010 January 2003 PCT003 Flat SAM Phantom (P-SAM-FLAT) February 2002 94X-097 IDX Robot End Effector (EE-103-C) February 2002 07111223 IDX Probe Amplifier February 2002 07111113 Validation Dipole D-835S October 2002 PCT441 Validation Dipole D-1900S October 2002 PCT541 Validation Dipole D-2450S October 2002 PCT641 Validation Dipole D-5000S November 2002 PCT741 HP-778D Dual-Directional Coupler (0.1 ~ 2.0 GHz) November 2002 PCT664 MicroCircuits Directional Coupler (4.0 ~ 8.0 GHz) November 2002 PE2204-6 Amplifier Research 5S1G4 Power Amp January 2003 PCT540 IFI T184-10 Power Amplifier (4.0 ~ 18.0 GHz) December 2002 5957 Agilent E8241A (250kHz ~ 20GHz) Signal Generator November 2002 US42110432 HP-8648D (9kHz ~ 4 GHz) Signal Generator January 2003 PCT526 HP-8753E (30kHz ~ 6GHz) Network Analyzer January 2003 PCT552 HP85070B Dielectric Probe Kit January 2003 PCT501 IFI CC110EXX TEM Cell (DC to 2000 MHz) January 2003 PCT498 EMCO 3115 Horn Antenna (2.0 ~ 18.0 GHz) August 2002 PCT496 Guidline 5150 Precision Dual-Thermometer November 2002 66145 Calibration Laboratory 6660-B Dobbin Road Columbia, Maryland 21045 USA © 2003 PCTEST Calibration Laboratory 6660-B Dobbin Road Columbia, Maryland 21045 USA © 2003 PCTEST Calibration Laboratory 6660-B Dobbin Road Columbia, Maryland 21045 USA © 2003 PCTEST

SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603

PCTEST Engineering Lab., Inc. SUBJECT:Modulation CharacteristicsTest Report No.:22/24.230307121.A3L FCC Part 24/22Test Date:03.20.2003 EUT:SAMSUNG Tri-Mode Dual-Band Analog/PCS CDMA Phone (AMPS/CDMA) Model:SCH-A603 FCC ID:A3LSCHA603 REFERENCE:1 kHz = 0 dB Modulation Limiting 0 2000 4000 6000 8000 10000 12000 14000 -35-30-25-20-15-10-50 Audio Input Level (dBV) Deviation (Hz) 3KHz 1KHz 300Hz SAMSUNG Tri-Mode Dual-Band Analog/PCS CDMA Phone (AMPS/CDMA) FCC ID: A3LSCHA603 PCTEST Engineering Lab., Inc. SUBJECT:Modulation CharacteristicsTest Report No.:22/24.230307121.A3L FCC Part 24/22Test Date:03.20.2003 EUT:SAMSUNG Tri-Mode Dual-Band Analog/PCS CDMA Phone (AMPS/CDMA) Model:SCH-A603 FCC ID:A3LSCHA603 REFERENCE:1 kHz = 0 dB Frequency Response of Audio Low Pass Filter -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0.0 10.0 FREQUENCY (Hz) LEVEL (dB) Relative to 1kHz 10k1k 100k SAMSUNG Tri-Mode Dual-Band Analog/PCS CDMA Phone (AMPS/CDMA) FCC ID: A3LSCHA603 PCTEST Engineering Lab., Inc. SUBJECT:Modulation CharacteristicsTest Report No.:22/24.230307121.A3L FCC Part 24/22Test Date:03.20.2003 EUT:SAMSUNG Tri-Mode Dual-Band Analog/PCS CDMA Phone (AMPS/CDMA) Model:SCH-A603 FCC ID:A3LSCHA603 REFERENCE:1 kHz = 0 dB Transmitter Audio Frequency Response -60.00 -50.00 -40.00 -30.00 -20.00 -10.00 0.00 10.00 20.00 FREQUENCY (Hz) LEVEL (dB) Relative to 1kHz 100 1k 10k 100k SAMSUNG Tri-Mode Dual-Band Analog/PCS CDMA Phone (AMPS/CDMA) FCC ID: A3LSCHA603

PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.230307121.A3L Test Dates: March 20-21, 2003 EUT Type: Tri-Mode Dual-Band Phone FCC ID: A3LSCHA603 Page 1 of 31 © 2003 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: March 20 – 21, 2003 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: 22/24.230307121.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSCHA603 APPLICANT SAMSUNG ELECTRONICS CO., LTD. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H), §22.901(d); §2 EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Model: SCH-A603 Tx Frequency Range: 824.04MHz – 848.97MHz (AMPS) / 824.70 – 848.31MHz (CDMA) 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.04MHz – 893.97MHz (AMPS) / 869.70 – 893.31MHz (CDMA) 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.321 W ERP AMPS (25.059 dBm) / 0.256 W ERP CDMA (24.083 dBm) 0.448 W EIRP PCS CDMA (26.501 dBm) Max. SAR Measurement: 1.18 W/kg AMPS Head SAR; 0.67 W/kg AMPS Body SAR; 0.93 W/kg CDMA Head SAR; 0.47 W/kg CDMA Body SAR; 0.98 W/kg PCS CDMA Head SAR; 0.74 W/kg PCS CDMA Body SAR Emission Designator(s): 40K0F8W / 40K0F1D (AMPS), 1M25F9W (CDMA) Test Device Serial No. Identical Prototype [S/N: FA-002-C] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Output is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is limited to the specific holster/ belt-clip tested for this filing. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 230307121.A3L PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.230307121.A3L Test Dates: March 20-21, 2003 EUT Type: Tri-Mode Dual-Band Phone FCC ID: A3LSCHA603 Page 2 of 31 © 2003 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-9 5.1 EFFECTIVE RADIATED POWER OUTPUT 10-11 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 12 7.1 RADIATED MEASUREMENTS 13-21 8.1 FREQUENCY STABILITY 22-27 9.1 PLOTS OF EMISSIONS 28 10.1 LIST OF TEST EQUIPMENT 29 11.1 SAMPLE CALCULATIONS 30 12.1 CONCLUSION 31 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT DATA ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.230307121.A3L Test Dates: March 20-21, 2003 EUT Type: Tri-Mode Dual-Band Phone FCC ID: A3LSCHA603 Page 3 of 31 © 2003 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: SAMSUNG ELECTRONICS CO., LTD. Address: 416 Maetan-3 Dong, Paldal-Ku Suwon City Kyungki-Do 441-742, KOREA Attention: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • FCC ID: A3LSCHA603 • Quantity: Quantity production is planned • Emission Designators: 40K0F8W / 40K0F1D (AMPS), 1M25F9W (CDMA) • Tx Freq. Range: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.321 W ERP AMPS (25.059 dBm) / 0.256 W ERP CDMA (24.083 dBm) 0.448 W EIRP PCS CDMA (26.501 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Tri-Mode Dual-Band Analog/PCS Phone • Modulation(s): AMPS / CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22(H), §22.901(d) • Dates of Tests: March 20-21, 2003 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22/24.230307121.A3L PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.230307121.A3L Test Dates: March 20-21, 2003 EUT Type: Tri-Mode Dual-Band Phone FCC ID: A3LSCHA603 Page 4 of 31 © 2003 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet abov…

Text truncated - open the document above for the full version.

SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603 SAMSUNG FCC ID: A3LSCHA603 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A603
