October 2, 2003 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSCHA650 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

October 2, 2003 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsun Electronics America October 2, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSCHA650), using the Automatic A/B Roaming — Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned.

October 2, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG Electronics Co., Ltd. FCC ID: A3LSCHA650 Part 22/24 Certification Gentlemen: Submitted herewith, on behalf of SAMSUNG Electronics Co., Ltd., is an application for Part 22/24 Certification of the Tri-Mode Dual-Band Analog/PCS CDMA Phone (AMPS/CDMA). Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SAMSUNG Electronics Co., Ltd.

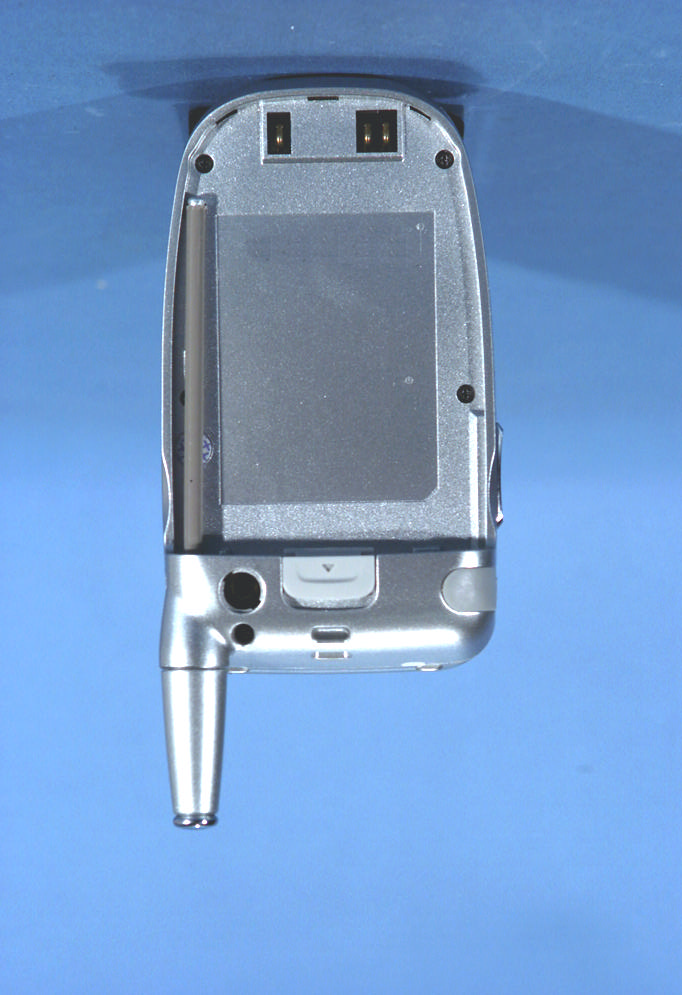

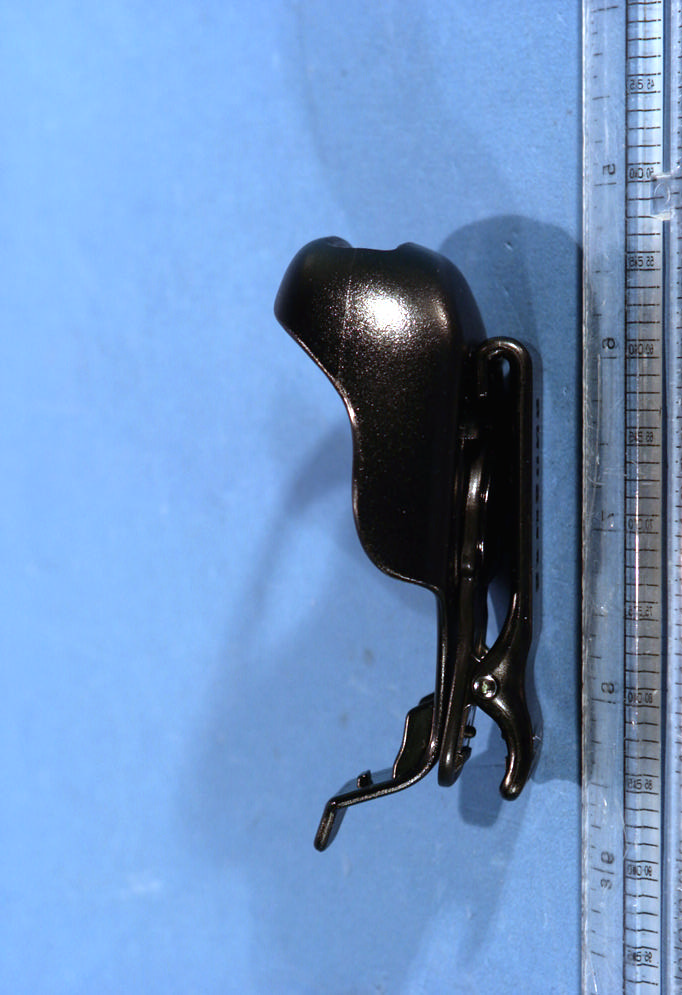

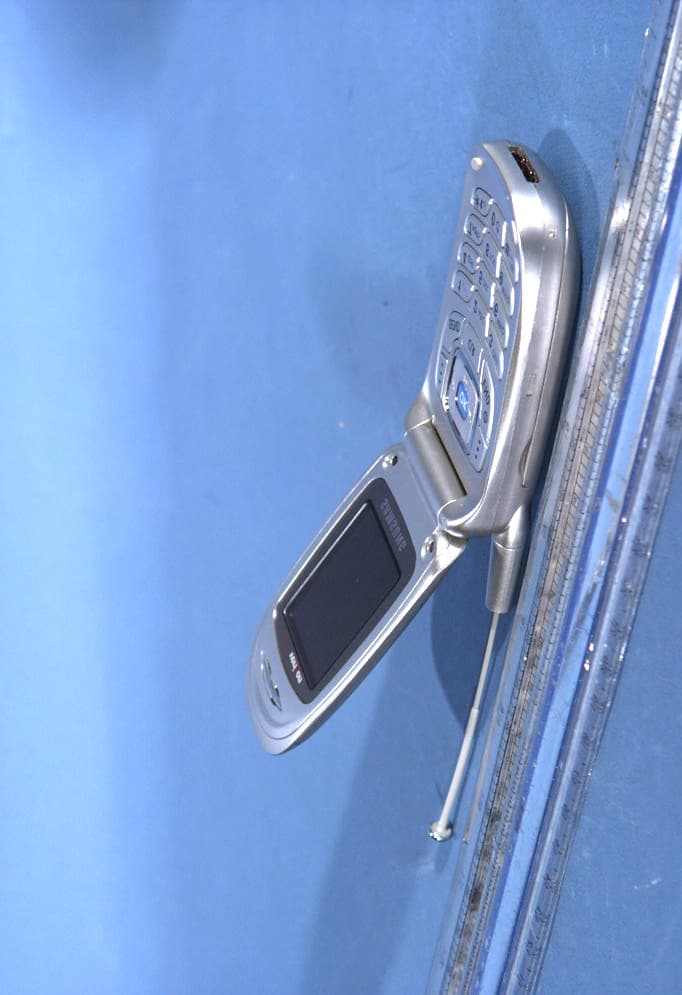

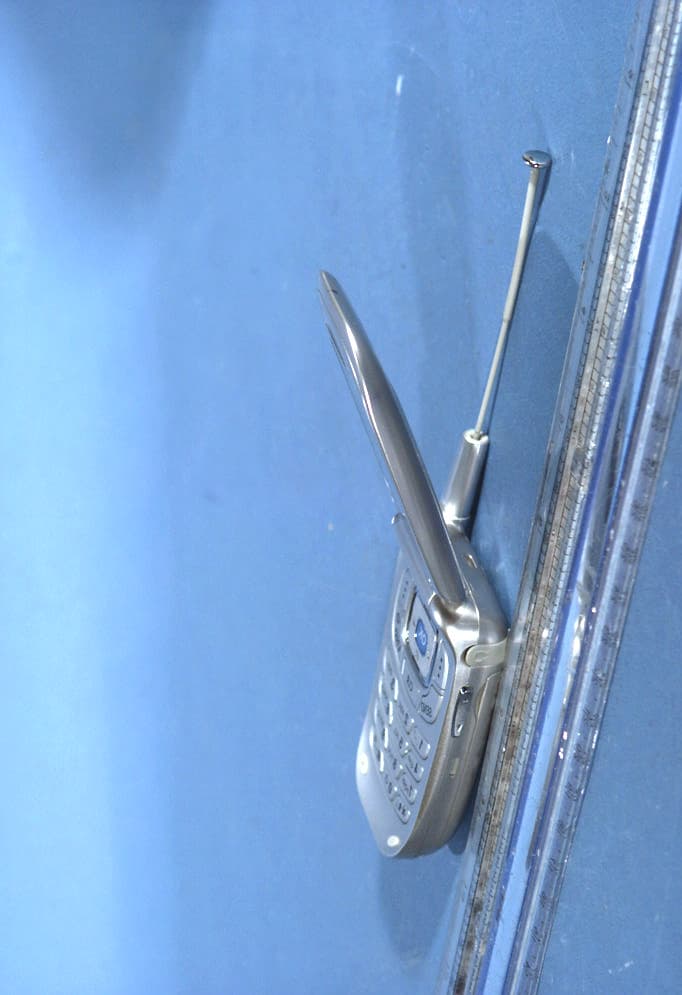

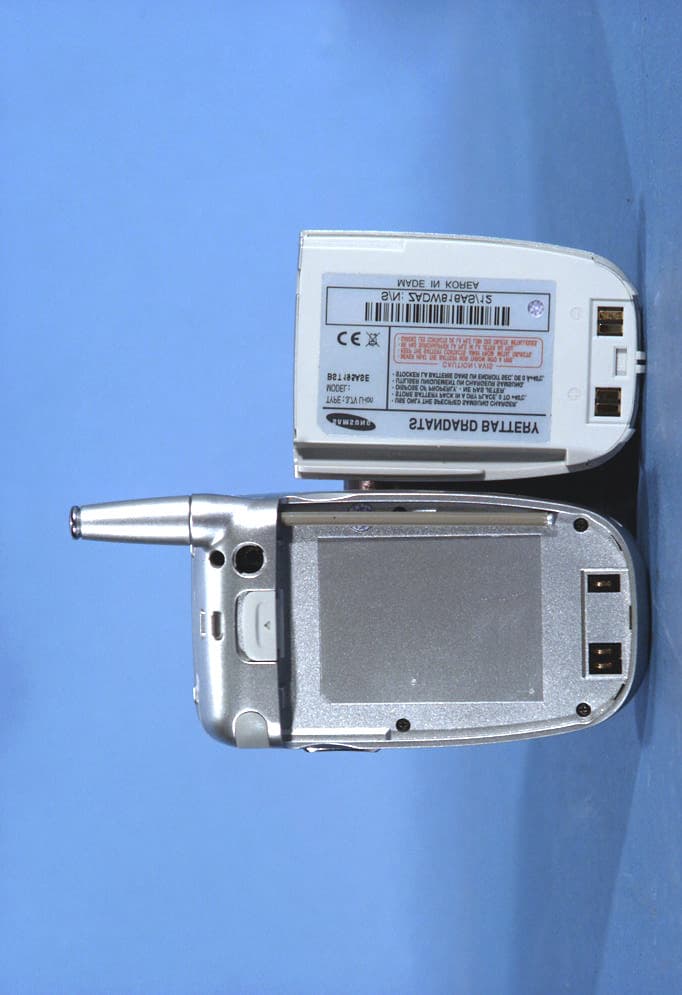

SAMSUNG FCC ID: A3LSCHA650 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A650 SAMSUNG FCC ID: A3LSCHA650 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A650 SAMSUNG FCC ID: A3LSCHA650 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A650 SAMSUNG FCC ID: A3LSCHA650 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A650 SAMSUNG FCC ID: A3LSCHA650 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A650 SAMSUNG FCC ID: A3LSCHA650 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A650 SAMSUNG FCC ID: A3LSCHA650 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A650 SAMSUNG FCC ID: A3LSCHA650 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A650 SAMSUNG FCC ID: A3LSCHA650 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A650 SAMSUNG FCC ID: A3LSCHA650 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A650

© 2003 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

SAMSUNG FCC ID: A3LSCHA650 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A650 SAMSUNG FCC ID: A3LSCHA650 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A650 SAMSUNG FCC ID: A3LSCHA650 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A650 SAMSUNG FCC ID: A3LSCHA650 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A650 SAMSUNG FCC ID: A3LSCHA650 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A650 SAMSUNG FCC ID: A3LSCHA650 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A650 SAMSUNG FCC ID: A3LSCHA650 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A650 SAMSUNG FCC ID: A3LSCHA650 EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCH-A650

APPENDIX A: SAR TEST DATA PCTEST ENGINEERING LABORATORY, INC. DUT: SAMSUNG A3LSCHA650; Type: Tri Mode Phone; S/N: FA- 018-J Program: SCH-A650 AMPS Mode Communication System: AMPS; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.89 mho/m, ε r = 41.48, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 09-10- 2003; Ambient Temp: 22.5 ° C ; Tissue Temp: 20.6°C Probe: ET3DV6 - SN1560; ConvF(6.9, 6.9, 6.9); Calibrated: 9/27/2002 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 SN330; Calibrated: 12/1/2002 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Ch.0383, Touch, Ant.Out, Standard Battery Area Scan (51x131x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 2.06 W/kg SAR(1 g) = 1.33 mW/g ; SAR(10 g) = 0.819 mW/g Reference Value = 9.72 V/m PCTEST ENGINEERING LABORATORY, INC. DUT: SAMSUNG A3LSCHA650; Type: Tri Mode Phone; S/N: FA-018-J Program: SCH-A650 AMPS Mode Communication System: AMPS; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.89 mho/m, ε r = 41.48, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 09-10- 2003; Ambient Temp: 22.5 ° C ; Tissue Temp: 20.6°C Probe: ET3DV6 - SN1560; ConvF(6.9, 6.9, 6.9); Calibrated: 9/27/2002 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 SN330; Calibrated: 12/1/2002 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Ch.0383, Tilt, Ant.Out, Standard Battery Area Scan (51x131x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.348 W/kg SAR(1 g) = 0.248 mW/g ; SAR(10 g) = 0.177 mW/g Reference Value = 8.73 V/m PCTEST ENGINEERING LABORATORY, INC. DUT: SAMSUNG A3LSCH; Type: Tri Mode Phone; S/N: FA-018-J Program: SCH-A650 AMPS Mode Communication System: AMPS; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.89 mho/m, ε r = 41.48, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 09-10- 2003; Ambient Temp: 22.5 ° C ; Tissue Temp: 20.6°C Probe: ET3DV6 - SN1560; ConvF(6.9, 6.9, 6.9); Calibrated: 9/27/2002 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 SN330; Calibrated: 12/1/2002 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Ch.0383, Touch, Ant Out, Standard Battery Area Scan (51x131x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.75 W/kg SAR(1 g) = 1.17 mW/g ; SAR(10 g) = 0.747 mW/g Reference Value = 8.18 V/m PCTEST ENGINEERING LABORATORY, INC. DUT: SAMSUNG A3LSCHA650; Type: Tri Mode Phone; S/N: FA- 018-J Program: SCH-A650 AMPS Mode Communication System: AMPS; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.89 mho/m, ε r = 41.48, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 09-10- 2003; Ambient Temp: 22.5 ° C ; Tissue Temp: 20.6°C Probe: ET3DV6 - SN1560; ConvF(6.9, 6.9, 6.9); Calibrated: 9/27/2002 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 SN330; Calibrated: 12/1/2002 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Ch.0383, Tilt, Ant Out, Standard Battery Area Scan (51x131x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.272 W/kg SAR(1 g) = 0.203 mW/g ; SAR(10 g) = 0.145 mW/g Reference Value = 8.61 V/m. PCTEST ENGINEERING LABORATORY, INC. DUT: SAMSUNG A3LSCHA650; Type: Tri Mode Phone; S/N: FA-018-J Program: SCH-A650 CDMA Mode Communication System: Cellular CDMA; Frequency: 835.89 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.89 mho/m, ε r = 41.48, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 09-11- 2003; Ambient Temp: 22.8 ° C ; Tissue Temp: 20.6°C Probe: ET3DV6 - SN1560; ConvF(6.9, 6.9, 6.9); Calibrated: 9/27/2002 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 SN330; Calibrated: 12/1/2002 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Ch.0363, Touch, Ant.Out, Standard Battery Area Scan (51x131x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.56 W/kg SAR(1 g) = 0.999 mW/g ; SAR(10 g) = 0.616 mW/g Reference Value = 8.57 V/m PCTEST ENGINEERING LABORATORY, INC. DUT: SAMSUNG A3LSCHA650; Type: Tri Mode Phone; S/N: FA-018-J Program: A3LSCHA650 CDMA Mode Communication System: Cellular CDMA; Frequency: 835.89 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.89 mho/m, ε r = 41.48, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 09-11- 2003; Ambient Temp: 22.8 ° C ; Tissue Temp: 20.6°C Probe: ET3DV6 - SN1560; ConvF(6.9, 6.9, 6.9); Calibrated: 9/27/2002 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 SN330; Calibrated: 12/1/2002 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Ch.0363, Tilt, Ant.Out, Standard Battery Area Scan (51x131x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.228 W/kg SAR(1 g) = 0.171 mW/g ; SAR(10 g) = 0.124 mW/g Reference Value = 7.72 V/m PCTEST ENGINEERING LABORATORY, INC. DUT: SAMSUNG A3LCSHA650; Type: Tri Mode Phone; S/N: FA-018-J Program: SCH-A650 CDMA Mode Communication System: Cellular CDMA; Frequency: 835.89 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.89 mho/m, ε r = 41.48, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 09-11- 2003;…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-230728386.A3L Test Dates: September 8-12, 2003 Phone Type: Tri-Mode Dual-Band FCC ID: A3LSCHA650 Page 1 of 35 © 2003 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Samsung Electronic Co., Ltd. Dates of Tests: September 8 - 12, 2003 3351 Michelson Drive, Suite 290 Test Report S/N: SAR.230908424.A3L Irvine, CA 92612 Test Site: PCTEST Lab, Columbia MD FCC ID: A3LSCHA650 APPLICANT: SAMSUNG ELCTRONICS CO., LTD. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.322 W ERP AMPS (25.073 dBm) / 26.0 dBm Conducted 0.255 W ERP CDMA (24.063 dBm) / 25.0 dBm Conducted 0.324 W EIRP PCS CDMA (25.091 dBm) / 25.0 dBm Conducted Max. SAR Measurement: 1.330 W/kg AMPS Head SAR; 1.120 W/kg AMPS Body SAR; 0.999 W/kg CDMA Head SAR; 0.906 W/kg CDMA Body SAR; 0.971 W/kg PCS CDMA Head SAR; 0.426 W/kg PCS CDMA Body SAR Trade Name/Model(s): SCH-A650 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: FA-018-J] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 15, 2002). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is limited to the specific belt-clip/holster tested for this filing. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. SAR.230908424.A3L PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-230728386.A3L Test Dates: September 8-12, 2003 Phone Type: Tri-Mode Dual-Band FCC ID: A3LSCHA650 Page 2 of 35 © 2003 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP.............................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM........................................................................................5 4. Probe Calibration Process..................................................................................................6 5. PHANTOM & EQUIVALENT TISSUES................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS...............................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITIONS...............................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................14 11. MEASUREMENT UNCERTAINTIES...................................................................................15 12. SYSTEM VERIFICATION..................................................................................................16 13. SAR TEST DATA SUMMARY...........................................................................................17 15. SAR TEST EQUIPMENT...................................................................................................33 16. CONCLUSION...............................................................................................................34 17. REFERENCES..................................................................................................................35 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-230728386.A3L Test Dates: September 8-12, 2003 Phone Type: Tri-Mode Dual-Band FCC ID: A3LSCHA650 Page 3 of 35 © 2003 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure descr…

Text truncated - open the document above for the full version.

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.230908423.A3L Test Dates: SEPT. 8-12, 2003 Phone Type: Tri-Mode Dual-Band FCC ID: A3LSCHA650 Page 1 of 32 © 2003 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification Samsung Electronics Co., Ltd. Dates of Tests: September 8-12, 2003 3351 Michelson Drive, Suite 290 Test Report S/N: 22/24.230908423.A3L Irvine, CA 92612 Test Site: PCTEST Lab, Columbia MD FCC ID A3LSCHA650 APPLICANT SAMSUNG ELECTRONICS CO., LTD. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H), §22.901(d); §2 EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Model: SCH-A650 Tx Frequency Range: 824.04MHz – 848.97MHz (AMPS) / 824.70 – 848.31MHz (CDMA) 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.04MHz – 893.97MHz (AMPS) / 869.70 – 893.31MHz (CDMA) 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.322 W ERP AMPS (25.073 dBm) / 0.255 W ERP CDMA (24.063 dBm) 0.324 W EIRP PCS CDMA (25.091 dBm) Max. SAR Measurement: 1.330 W/kg AMPS Head SAR; 1.120 W/kg AMPS Body SAR; 0.999 W/kg CDMA Head SAR; 0.906 W/kg CDMA Body SAR; 0.971 W/kg PCS CDMA Head SAR; 0.426 W/kg PCS CDMA Body SAR Emission Designator(s): 40K0F8W / 40K0F1D (AMPS), 1M25F9W (CDMA) Test Device Serial No. Identical Prototype [S/N: FA-018-J] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is limited to the specific belt-clip/holster tested for this filing. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 230908423.A3L PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.230908423.A3L Test Dates: SEPT. 8-12, 2003 Phone Type: Tri-Mode Dual-Band FCC ID: A3LSCHA650 Page 2 of 32 © 2003 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-10 5.1 EFFECTIVE RADIATED POWER OUTPUT 11-12 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 13 7.1 RADIATED MEASUREMENTS 14-22 8.1 FREQUENCY STABILITY 23-28 9.1 PLOTS OF EMISSIONS 29 10.1 LIST OF TEST EQUIPMENT 30 11.1 SAMPLE CALCULATIONS 31 12.1 CONCLUSION 32 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.230908423.A3L Test Dates: SEPT. 8-12, 2003 Phone Type: Tri-Mode Dual-Band FCC ID: A3LSCHA650 Page 3 of 32 © 2003 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: SAMSUNG ELECTRONICS CO., LTD. Address: 3351 Michelson Drive, Suite 290 Irvine, CA 92612 • FCC ID: A3LSCHA650 • Quantity: Quantity production is planned • Emission Designators: 40K0F8W / 40K0F1D (AMPS), 1M25F9W (CDMA) • Tx Freq. Range: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.322 W ERP AMPS (25.073 dBm) / 0.255 W ERP CDMA (24.063 dBm) 0.324 W EIRP PCS CDMA (25.091 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Tri-Mode Dual-Band Analog/PCS Phone • Modulation(s): AMPS / CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22(H), §22.901(d) • Dates of Tests: September 8 - 12, 2003 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22/24.230908423.A3L PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.230908423.A3L Test Dates: SEPT. 8-12, 2003 Phone Type: Tri-Mode Dual-Band FCC ID: A3LSCHA650 Page 4 of 32 © 2003 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient…

Text truncated - open the document above for the full version.
