A3LSCHA770Dual-Band CDMA Phone

3 SCH-a770 Series All Digital Mobile Phone User Guide Please read this guide before operating your phone, and keep it for future reference. 4 Intellectual property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating thereto (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Samsung Telecommunications America, L.P. Headquarters Customer care center 1301 East Lookout Drive 1601 E. Plano Parkway, Suite 150 Richardson, TX 75082 Plano, TX 75074 Tel: 972.761.7000 Toll Free Tel: 1.888.987.HELP (4357) Fax: 972.761.7001 Fax: 972.761.7001 and 972.761.7501 Internet Address: http://www.samsungusa.com ©2004 Samsung Telecommunications America. Samsung is a registered trademark of Samsung Electronics America, Inc. and its related entities. Licensed by Qualcomm Incorporated under one or more of the following patents: U.S. Patent No. 4, 901, 307; 5, 056, 109; 5, 099, 204; 5, 101, 501; 5, 103, 459; 5, 107, 225; 5, 109, 390. Printed in South Korea Revised February 26, 2004 GH68-04440A Openwave® is a registered Trademark of Openwave, Inc. RSA® is a registered Trademark RSA Security, Inc. 5 Disclaimer of warranties; exclusion of liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Contents 1 Contents Contents ......................................................1 SCH-a770 open view ....................................6 SCH-a770 closed view ..................................7 Quick reference ............................................8 Quick reference ..........................................10 Introduction ...............................................12 Key features of the SCH-a770 ........................ 12 Install the battery ........................................ 13 Remove the battery ...................................... 14 Charge the battery ....................................... 14 Understand your phone ..............................16 Antenna ...................................................... 16 Backlight features ........................................ 16 Power save mode ......................................... 17 Left soft key ................................................ 17 Right soft key .............................................. 18 Clear key .................................................... 18 End key ...................................................... 18 Headset connector ........................................ 19 Microphone ................................................. 19 Alpha-numeric keypad .................................. 19 Volume key ................................................. 19 SEND key .................................................... 20 Navigation key ............................................. 20 Your phone’s display ..................................... 20 Contents 2 Your phone’s modes ...................................23 Call answer mode ......................................... 23 Text input mode ........................................... 23 Lock mode .................................................. 23 Standby mode ............................................. 24 Receive messages in standby mode ................ 24 Talk mode ................................................... 24 Silent mode ................................................. 25 The ringer setting ......................................... 25 Getting started ...........................................26 Obtaining service ......................................... 26 Turn the phone on ........................................ 26 Turn the phone off ....................................... 27 Make and answer calls .................................. 27 Menus and sub menus ................................31 Menu navigation .........................................33 Navigate using keys ..................................... 33 Navigate using a shortcut .............................. 34 In-use menu ................................................ 35 Phone book ................................................37 Open the phone book ....................................…

Text truncated - open the document above for the full version.

April 29, 2004 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSCHA770 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

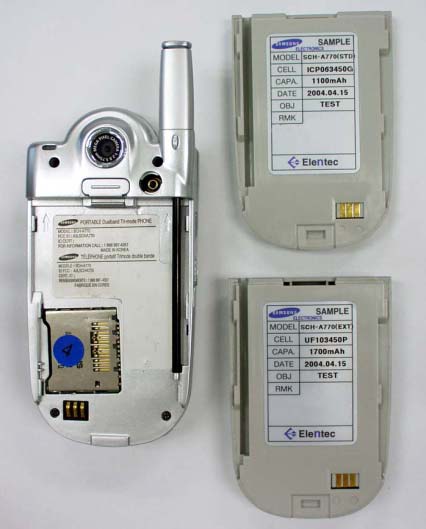

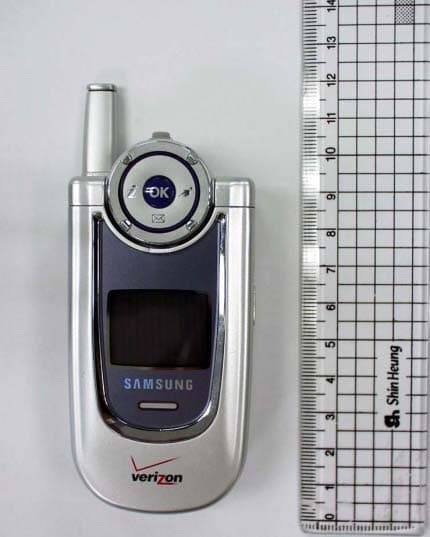

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA770 Dual-Mode Dual-Band CDMA/PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA770 Dual-Mode Dual-Band CDMA/PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA770 Dual-Mode Dual-Band CDMA/PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA770 Dual-Mode Dual-Band CDMA/PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA770 Dual-Mode Dual-Band CDMA/PCS Phone

Confidential SCH-A770 Tri- Band Tri-Mode 2004. 04. SAMSUNG ELECTRONICS CO., LTD. MODEL NO: SCH-A770 FCC ID: A3LSCHA770 MADE IN KOREA SAMSUNG ELECTRONICS CO., LTD

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA770 Dual-Mode Dual-Band CDMA/PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA770 Dual-Mode Dual-Band CDMA/PCS Phone

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Team IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 442-742 TEST REPORT ON SAR Model Tested: SCH-A770 FCC ID (Requested): A3LSCHA770 Job No: FB-019 Report No: FB-019-S1 Date issued: Apr. 27, 2004 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By Date KS AN – Test Engineer Checked By Date JH CHOI - Manager Authorized By Date JK CHOI – Senior Manager 1 of 31 Contents 1. General Information.............................................................................................3 2. Description of Device...........................................................................................3 3. Description of Test Equipment..............................................................................4 3.1 SAR Measurement Setup.........................................................................................4 3.2 DASY3 E-Field Probe.............................................................................................5 3.3 SAM Phantom.....................................................................................................6 3.4 Brain & Muscle Simulating Mixture Characterization....................................................7 3.5 Device Holder for transmitters.................................................................................8 3.6 Validation Dipole...................................................................................................8 3.7 Equipment Calibration.............................................................................................9 4. SAR Measurement Procedure.............................................................................10 5. Description of test position..............................................................................11 5.1 SAM Phantom Shape............................................................................................11 5.2 Cheek/Touch Position............................................................................................11 5.3 Ear/Tilt 15 Position..............................................................................................13 5.4 Body/Leather Configuration.....................................................................................14 6. Measurement Uncertainty...................................................................................16 7. System Verification............................................................................................18 7.1 Tissue Verification.................................................................................................18 7.2 Test System Validation...........................................................................................18 8. SAR Measurement Results.................................................................................19 8.1 Measurement Results(CELLULAR CDMA Right Head SAR-Touch).................................20 8.2 Measurement Results(CELLULAR CDMA Right Head SAR-Tilt).....................................21 8.3 Measurement Results(CELLULAR CDMA Left Head SAR-Touch)...................................22 8.4 Measurement Results(CELLULAR CDMA Left Head SAR-Tilt).......................................23 8.5 Measurement Results(PCS CDMA Right Head SAR-Touch)..........................................24 8.6 Measurement Results(PCS CDMA Right Head SAR-Tilt)................................................25 8.7 Measurement Results(PCS CDMA Left Head SAR-Touch)..............................................26 8.8 Measurement Results(PCS CDMA Left Head SAR-Tilt)..................................................27 8.9 Measurement Results(CELLULAR CDMA Body SAR w/o Leather)...................................28 8.10 Measurement Results(PCS CDMA Body SAR w/o Leather)...........................................29 9. Conclusion.......................................................................................................30 10. Reference.......................................................................................................31 Report Number : FB-019-S1 2 of 31 1. GENERAL INFORMATION Test Sample : Dual-Mode Dual-Band CDMA/ PCS Phone Model Number : SCH-A770 Serial Number : Identical prototype (S/N : # FB-019-C ) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : Y Choi, Assistant Manager Phone : +82-54-479-7637 Fax : +82-54-479-5921 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : April 19, 2004 ~ April 22, 2004 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Freq. Range : 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power : 0.454W ERP CDMA (26.57dBm) 0.377W EIRP PCS (25.76dBm) Antenna Manufacturer : SB Telcom Model No.: SCH-A770 Antenna Dimensions : Length = 88 mm[Helical / Whip] Report Number : FB-019-S1 3 of 31 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY3 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, Pentium computer, near-field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung Pentium 5…

Text truncated - open the document above for the full version.

SAMSUNG FCC ID: A3LSCHA770 -- 835MHz CDMA Head SAR SAM(900MHz) Phantom; Right Cheek(CRP) Section; Probe:ET3DV6 - SN1735; ConvF(7.00,7.00,7.00) Head 835 MHz: σ = 0.88 mho/m ε r = 41.3 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.495 mW/g SAMSUNG Dual-Mode Dual-Band CDMA/ PCS Phone Model: SCH-A770 CDMA Mode, Ch.777 [848.31MHz]; Standard Battery; Meas. Ambient Temp. (°C) - 22.8 Conducted Power=25.0dBm; Right Head Phantom, Cheek/Touch Position; Meas. Tissue Temp. (°C) - 20.9 Test Date--04/20/2004 [FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 4.27E-2 1.28E-1 2.13E-1 2.99E-1 3.84E-1 <SAMSUNG ELECTRONICS> SAMSUNG FCC ID: A3LSCHA770 -- 835MHz CDMA Head SAR SAM(900MHz) Phantom; Right Cheek(CRP) Section; Probe:ET3DV6 - SN1735; ConvF(7.00,7.00,7.00) Head 835 MHz: σ = 0.88 mho/m ε r = 41.3 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.184 mW/g SAMSUNG Dual-Mode Dual-Band CDMA/ PCS Phone Model: SCH-A770 CDMA Mode, Ch.1013 [824.7MHz]; Standard Battery; Meas. Ambient Temp. (°C) - 22.8 Conducted Power=25.0dBm; Right Head Phantom, Ear/Tilt 15 deg Position; Meas. Tissue Temp. (°C) - 20.9 Test Date--04/20/2004 [FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 1.90E-2 5.70E-2 9.50E-2 1.33E-1 1.71E-1 <SAMSUNG ELECTRONICS> SAMSUNG FCC ID: A3LSCHA770 -- 835MHz CDMA Head SAR SAM(900MHz) Phantom; Left Cheek(CRP) Section; Probe:ET3DV6 - SN1735; ConvF(7.00,7.00,7.00) Head 835 MHz: σ = 0.88 mho/m ε r = 41.3 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.444 mW/g SAMSUNG Dual-Mode Dual-Band CDMA/ PCS Phone Model: SCH-A770 CDMA Mode, Ch.1013 [824.7MHz]; Standard Battery; Meas. Ambient Temp. (°C) - 22.8 Conducted Power=25.0dBm; Left Head Phantom, Cheek/Touch Position; Meas. Tissue Temp. (°C) - 20.9 Test Date--04/20/2004 [FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 4.55E-2 1.37E-1 2.27E-1 3.19E-1 4.09E-1 <SAMSUNG ELECTRONICS> SAMSUNG FCC ID: A3LSCHA770 -- 835MHz CDMA Head SAR SAM(900MHz) Phantom; Left Cheek(CRP) Section; Probe:ET3DV6 - SN1735; ConvF(7.00,7.00,7.00) Head 835 MHz: σ = 0.88 mho/m ε r = 41.3 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.153 mW/g SAMSUNG Dual-Mode Dual-Band CDMA/ PCS Phone Model: SCH-A770 CDMA Mode, Ch.777 [848.31MHz]; Standard Battery; Meas. Ambient Temp. (°C) - 22.8 Conducted Power=25.0dBm; Left Head Phantom, Ear/Tilt 15 deg Position; Meas. Tissue Temp. (°C) - 20.9 Test Date--04/20/2004 [FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 1.59E-2 4.77E-2 7.95E-2 1.11E-1 1.43E-1 <SAMSUNG ELECTRONICS> SAMSUNG FCC ID: A3LSCHA770 -- 1900MHz PCS Head SAR SAM(1800MHz) Phantom; Right Cheek(CRP) Section; Probe:ET3DV6 - SN1735; ConvF(5.60,5.60,5.60) Head 1900 MHz: σ = 1.41 mho/m ε r = 38.6 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.704 mW/g SAMSUNG Dual-Mode Dual-Band CDMA/ PCS Phone Model: SCH-A770 PCS CDMA Mode, Ch.1175 [1908.75MHz]; Standard Battery; Meas. Ambient Temp. (°C) - 22.5 Conducted Power=25.0dBm; Right Head Phantom, Cheek/Touch Position; Meas. Tissue Temp. (°C) - 21.2 Test Date--04/21/2004 [FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 7.16E-2 2.15E-1 3.58E-1 5.01E-1 6.44E-1 <SAMSUNG ELECTRONICS> SAMSUNG FCC ID: A3LSCHA770 -- 1900MHz PCS Head SAR SAM(1800MHz) Phantom; Right Cheek(CRP) Section; Probe:ET3DV6 - SN1735; ConvF(5.60,5.60,5.60) Head 1900 MHz: σ = 1.41 mho/m ε r = 38.6 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.144 mW/g SAMSUNG Dual-Mode Dual-Band CDMA/ PCS Phone Model: SCH-A770 PCS CDMA Mode, Ch.25 [1851.25MHz]; Standard Battery; Meas. Ambient Temp. (°C) - 22.5 Conducted Power=25.0dBm; Right Head Phantom, Ear/Tilt 15 deg Position; Meas. Tissue Temp. (°C) - 21.2 Test Date--04/21/2004 [FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 1.56E-2 4.68E-2 7.80E-2 1.09E-1 1.40E-1 <SAMSUNG ELECTRONICS> SAMSUNG FCC ID: A3LSCHA770 -- 1900MHz PCS Head SAR SAM(1800MHz) Phantom; Left Cheek(CRP) Section; Probe:ET3DV6 - SN1735; ConvF(5.60,5.60,5.60) Head 1900 MHz: σ = 1.41 mho/m ε r = 38.6 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.598 mW/g SAMSUNG Dual-Mode Dual-Band CDMA/ PCS Phone Model: SCH-A770 PCS CDMA Mode, Ch.25 [1851.25MHz]; Standard Battery; Meas. Ambient Temp. (°C) - 22.5 Conducted Power=25.0dBm; Left Head Phantom, Cheek/Touch Position; Meas. Tissue Temp. (°C) - 21.2 Test Date--04/21/2004 [FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 7.12E-2 2.14E-1 3.56E-1 4.98E-1 6.41E-1 <SAMSUNG ELECTRONICS> SAMSUNG FCC ID: A3LSCHA770 -- 1900MHz PCS Head SAR SAM(1800MHz) Phantom; Left Cheek(CRP)Section; Probe:ET3DV6 - SN1735; ConvF(5.60,5.60,5.60) Head 1900 MHz: σ = 1.41 mho/m ε r = 38.6 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.202 mW/g SAMSUNG Dual-Mode Dual-Band CDMA/ PCS Phone Model: SCH-A770 PCS CDMA Mode, Ch.1175 [1908.75MHz]; Standard Battery; Meas. Ambient Temp. (°C) - 22.5 Conducted Power=25.0dBm; Left Head Phantom, Ear/Tilt 15 deg Position; Meas. Tissue Temp. (°C) - 21.2 Test Date--04/21/2004 [FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 2.37E-2 7.11E-2 1.19E-1 1.66E-1 2.13E-1 <SAMSUNG ELECTRONICS> SAMSUNG FCC ID: A3LSCHA770 -- 835MHz CDMA Body SAR SAM(900MHz) Phantom; Flat Section; Probe:ET3DV6 - SN1735; ConvF(6.90,6.90,6.90) Body 835 MHz: σ = 0.95 mho/m ε r = 55.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.846 mW/g SAMSUNG Dual-Mode Dual-Band CDMA/ PCS Phone Model: SCH-A770 CDMA Mode, Ch.1013 [824.7MHz]; Standard Battery, Ambient Temp. (°C) - 22.5 Conducted Power=25.0dBm; With Holster, Tissue Temp. (°C) - 21.3 Test Date--04/22/2004 [FCC/OET Bulletin 65-Supplement C, July 2001] SAR Tot [mW/g] 9.05E-2 2.71E-1 4.53E-1 6.33E-1 8.15E-1 <SAMSUNG ELECTRONICS> SAMSUNG FCC ID: A3LSCHA770 -- 1900MHz PCS Body SAR SAM(1800MHz) Phantom; Flat Section; Probe:ET3DV6 - SN1735; ConvF(4.70,4.70,4.70) Body 1900 MHz: σ = 1.53 mho/m ε r = 51.9 ρ = 1.00 g/cm 3 …

Text truncated - open the document above for the full version.

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA770 Dual-Mode Dual-Band CDMA/ PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA770 Dual-Mode Dual-Band CDMA/ PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA770 Dual-Mode Dual-Band CDMA/ PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA770 Dual-Mode Dual-Band CDMA/ PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA770 Dual-Mode Dual-Band CDMA/ PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA770 Dual-Mode Dual-Band CDMA/ PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA770 Dual-Mode Dual-Band CDMA/ PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA770 Dual-Mode Dual-Band CDMA/ PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA770 Dual-Mode Dual-Band CDMA/ PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA770 Dual-Mode Dual-Band CDMA/ PCS Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA770 Dual-Mode Dual-Band CDMA/ PCS Phone

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3Dong, Youngtong-Gu, Suwon-city, Gyeonggi-Do, Korea 442-600 FCC CFR47 PART 22 & 24 SUBPART CERTIFICATION REPORT Model Tested: SCH-A770 FCC ID (Requested): A3LSCHA770 Report No: FB-019-R1 Job No: FB-019 Date issued: April 29, 2004 - Abstract – All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part22, Part24. Prepared By Date SS LEE – Test Engineer Checked By Date JH CHOI - Engineer Authorized By Date JK CHOI – Senior Manager © Copyright SAMSUNG Electronics Euro QA Lab 2004 2004.04.30 2004.04.30 2004.04.30 Report Number : FB-019-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information 3 1.1 2.1033 General Information 3 2. INTRODUCTION 4 2.1 General 4 3. MEASURING INSTRUMENT CALIBRATION 5 4. TEST EQUIPMENT LIST 6 5. DESCRIPTION OF TESTS 7 5.1 Effective Radiated Power/Equivalent Isotropic Radiated Power 7 5.2 Radiated Spurious & Harmonic Emission 8 5.3 Occupied Bandwidth 10 5.4 Spurious and Harmonic Emissions at Antenna Terminal 10 5.4.1 Occupied Bandwidth Emission Limits 10 5.4.2 Conducted Spurious Emission 11 5.5 Frequency Stability / Temperature Variation 12 6. TEST DATA 13 6.1 Effective Radiated Power(E.R.P.) 13 6.2 Equivalent Isotropic Radiated Power(E.I.R.P.) 14 6.3 Cellular CDMA Radiated Spurious & Harmonic Measurement 15 6.4 PCS CDMA Radiated Spurious & Harmonic Measurement 16 6.5 CDMA Radiated Spurious & Harmonic Conversion Table 17 6.6 PCS Radiated Spurious & Harmonic Conversion Table 18 6.7 Frequency Stability 19 6.7.1 CDMA Frequency Stability Table 19 6.7.2 PCS Frequency Stability Table 20 6.7.3 CDMA Frequency Stability Graph 21 6.7.4 PCS Frequency Stability Graph 23 7.SAMPLE CALCULATION 25 7.1 Emission Designator 8. CONCLUSION 26 9. TEST PLOTS 27 Report Number : FB-019-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Rart2, Subpart J, Sections 2.1033 – 2.1055. 2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416, Maetan-3Dong, Youngtong-Gu, Suwon City Gyeonggi-Do, KOREA 442-600 Attention: FCC ID: Wallace Oh, Engineering Manager (QA Lab) A3LSCHA770 Quantity: Quantity production is planned Emission Designators: 1M25F9W Tx Freq. Range: 824.70-848.31MHz (CDMA) 1851.25-1908.75MHz (PCS CDMA) Rx Freq. Range: 869.70-893.31 MHz (CDMA) 1931.25-1988.75 MHz (PCS CDMA) Max. Power Rating: 0.454W ERP CDMA( 26.57 dBm) 0.377W EIRP PCS CDMA ( 25.76 dBm) FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) Equipment (EUT) Type: Dual-Band CDMA/PCS Phone Modulation(s): CDMA/PCS Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 24(E), 22(H), 2. Dates of Test: April 19, 23-28, 2004 Place of Test: SAMSUNG Lab, Test Report S/N: FB-019-R1 Report Number : FB-019-R1 2. INTRODUCTION General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416,Maetan-3Dong, Youngtong-Gu, Suwon City, Gyeonggi-Do, KOREA 442- 600 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FB-019-R1 3.MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. - End of page - . . Report Number : FB-019-R1 4. TEST EQUIPMENT LIST Name of Equipment Model Serial No. Due Date ESI26 836119/010 2004-09-15 E4440A(3Hz~26.5GHz) MY41000236 2004-11-07 Spectrum Analyzer E4440A(3Hz~26.5GHz) MY41000233 2004-11-14 SMIQ03B 83824/021 2005-01-15 Signal Generator SMR20 835197/030 2005-01-15 Power Meter E4419B GB41293846 2004-10-02 8481B 3318A10325 2004-10-06 Power Sensor 8485A 3318A19924 2004-10-04 Amplifier 5S1G4 304866 2004-11-17 Pre-Amplifier 8449B 3008A00691 2005-01-16 8960 GB42230535 2004-11-17 Communication test set 8960 GB42360886 2004-11-10 Antenna Master MA0001 ANT0967 Not Required Controller HD100 100/756 Not Required PL-4S 13005454 2004-08-22 SH-241 92000548 2004-12-04 Environmental Chamber SH-241 92000549 2004-12-04 Horn Antenna HF906 360306/011 2005-03-11 Dipole Antenna 3121C-DB4 9007-587 2004-10-21 Receive Antenna HL040 353255/019 2004-07-14 8494A 3308A31997 2005-01-17 Attenuator 8496A 3308A14426 2005-01-17 4278-311-2 B3679637 2005-01-14 Directional Coupler 4278-111-2 B103DC8722 2005-01-14 WHK1.0/15G-10SS 1 Not Required WHK1.0/15G-10SS 1 Not Required WHK/3.5/18G-10SS 3 Not Required High Pass Filter WHK/3.5/18G-10SS 4 Not Required Shielded Semi-Anechoic Chamber RF0002 ANT0001 Not Required DC power supply E3640A MY40003595 2004-07-11 Report Number : FB-019-R1 5. DESCRIPTION OF TESTS 5.1 Effective Radiated Power / Equivalent Isotropic Radiated Power Test Set-up for the ERP/EIRP TEST Effective R…

Text truncated - open the document above for the full version.
