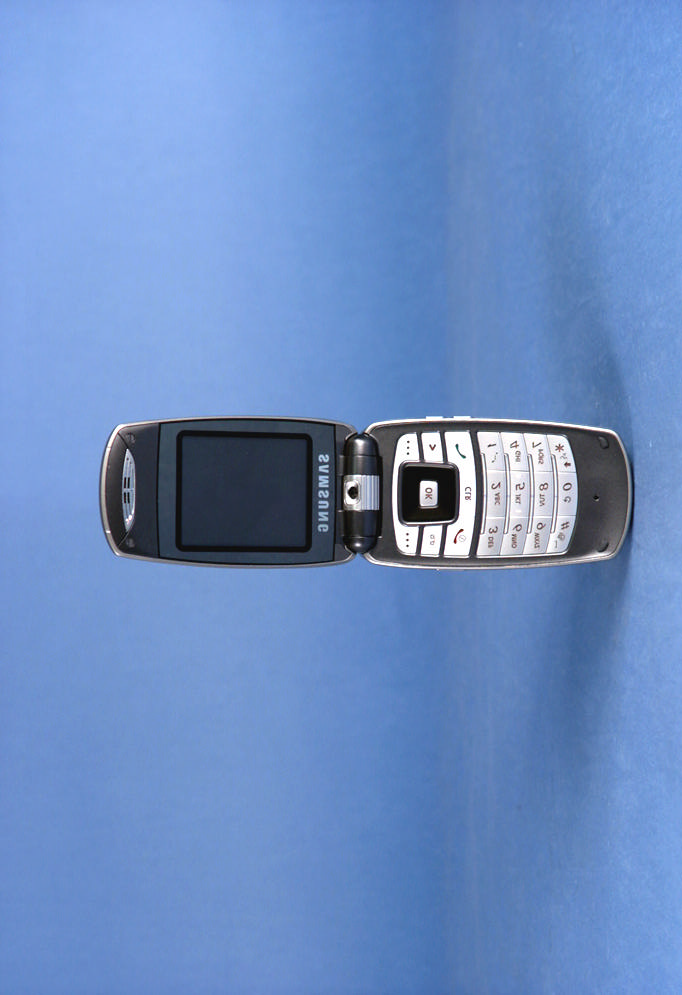

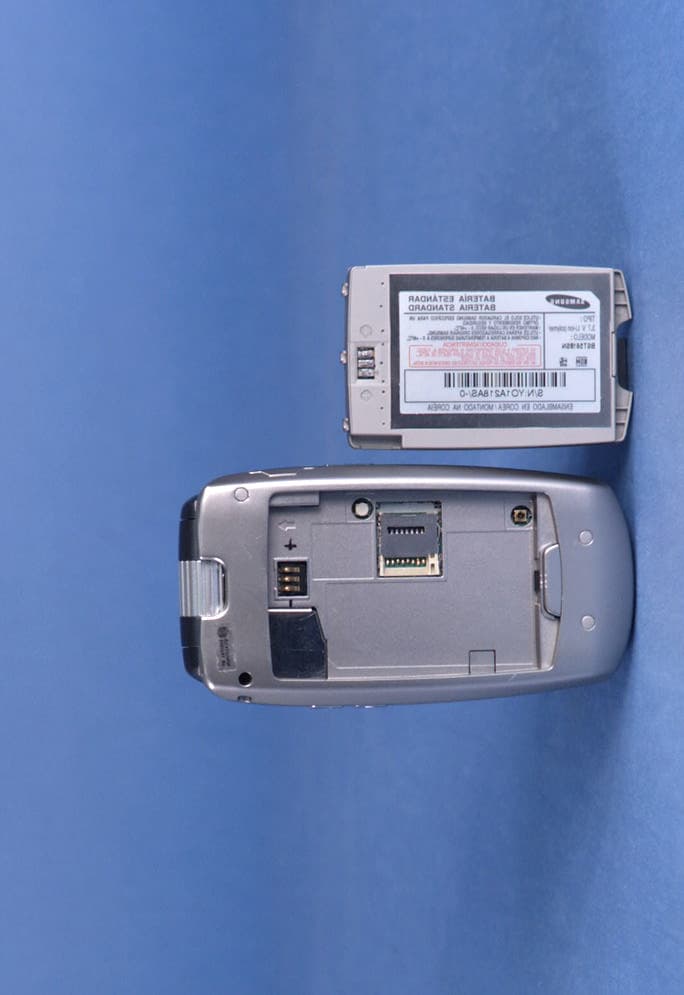

SAMSUNG FCC ID: A3LSCHA915 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone w/ Bluetooth Model: SCH-A915 SAMSUNG FCC ID: A3LSCHA915 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone w/ Bluetooth Model: SCH-A915 SAMSUNG FCC ID: A3LSCHA915 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone w/ Bluetooth Model: SCH-A915 SAMSUNG FCC ID: A3LSCHA915 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone w/ Bluetooth Model: SCH-A915 SAMSUNG FCC ID: A3LSCHA915 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone w/ Bluetooth Model: SCH-A915 SAMSUNG FCC ID: A3LSCHA915 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone w/ Bluetooth Model: SCH-A915 SAMSUNG FCC ID: A3LSCHA915 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone w/ Bluetooth Model: SCH-A915

SAMSUNG FCC ID: A3LSCHA915 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone w/ Bluetooth Model: SCH-A915 SAMSUNG FCC ID: A3LSCHA915 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone w/ Bluetooth Model: SCH-A915 SAMSUNG FCC ID: A3LSCHA915 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone w/ Bluetooth Model: SCH-A915 SAMSUNG FCC ID: A3LSCHA915 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone w/ Bluetooth Model: SCH-A915 SAMSUNG FCC ID: A3LSCHA915 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone w/ Bluetooth Model: SCH-A915 SAMSUNG FCC ID: A3LSCHA915 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone w/ Bluetooth Model: SCH-A915

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0603070160 Test Dates: March 13-15, 2006 Phone Type: Dual-Band CDMA Phone w/ Bluetooth FCC ID: A3LSCHA915 Page 1 of 30 © 2006 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: March 13-15, 2006 3351 Michelson Drive, Suite 290 Test Report S/N: 0603070160 Irvine, CA 92612 Test Site: PCTEST Lab, Columbia MD FCC ID: A3LSCHA915 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. EUT Type: Dual-Band CDMA Phone with Bluetooth Tx Frequency: 824.70 – 848.31 MHz (CDMA)/ 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 – 893.31 MHz (CDMA)/ 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.287 W ERP CDMA (24.583 dBm) / 24.5 dBm Conducted 0.322W EIRP PCS CDMA (25.081 dBm) / 24.5 dBm Conducted Max. SAR Measurement: 1.050 W/kg CDMA Head SAR; 0.924 W/kg CDMA Body SAR; 1.340 W/kg PCS CDMA Head SAR; 0.775 W/kg PCS CDMA Body SAR Trade Name/Model(s): SCH-A915 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: FD-024-G] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528 - 2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0603070160 Test Dates: March 13-15, 2006 Phone Type: Dual-Band CDMA Phone w/ Bluetooth FCC ID: A3LSCHA915 Page 2 of 30 © 2006 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM........................................................................................5 4. PROBE CALIBRATION PROCESS.......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITIONS...............................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................14 11. MEASUREMENT UNCERTAINTIES...................................................................................15 12. SYSTEM VERIFICATION..................................................................................................16 13. SAR TEST DATA SUMMARY.......................................................................................17-32 15. SAR TEST EQUIPMENT..........................................................................................33 16. CONCLUSION...............................................................................................................29 17. REFERENCES..................................................................................................................30 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0603070160 Test Dates: March 13-15, 2006 Phone Type: Dual-Band CDMA Phone w/ Bluetooth FCC ID: A3LSCHA915 Page 3 of 30 © 2006 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] …

Text truncated - open the document above for the full version.

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0603070159 Test Dates: March 13-15, 2006 Phone Type: Dual-Band CDMA w/ Bluetooth FCC ID: A3LSCHA915 Page 1 of 24 © 2006 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: March 13-15, 2006 18600 Broadwick Street Test Report S/N: 0603070159 Rancho Dominguez, CA 90220 Test Site: PCTEST Lab, Columbia MD FCC ID A3LSCHA915 APPLICANT SAMSUNG ELECTRONICS CO., LTD. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H); §2 EUT Type: Dual-Band CDMA Phone with Bluetooth Model: SCH-A915 Tx Frequency Range: 824.70 – 848.31MHz (CDMA) / 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.70 – 893.31MHz (CDMA) / 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.287 W ERP CDMA (24.583 dBm) / 24.5 dBm Conducted 0.322W EIRP PCS CDMA (25.081 dBm) / 24.5 dBm Conducted Max. SAR Measurement: 1.050 W/kg CDMA Head SAR; 0.924 W/kg CDMA Body SAR; 1.340 W/kg PCS CDMA Head SAR; 0.775 W/kg PCS CDMA Body SAR Emission Designator(s): 1M25F9W (CDMA) Test Device Serial No. Identical Prototype [S/N: FD-024-G] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0603070159 Test Dates: March 13-15, 2006 Phone Type: Dual-Band CDMA w/ Bluetooth FCC ID: A3LSCHA915 Page 2 of 24 © 2006 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: TEST REPORT ATTACHMENT C: ATTESTATION STATEMENT(S) 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 DESCRIPTION OF TESTS 5-8 4.1 EFFECTIVE RADIATED POWER OUTPUT 9 5.1 EQUIVALENT ISOTROPIC RADIATED POWER 10 6.1 RADIATED MEASUREMENTS 11-16 7.1 FREQUENCY STABILITY 17-20 8.1 PLOTS OF EMISSIONS 21 9.1 LIST OF TEST EQUIPMENT 22 10.1 SAMPLE CALCULATIONS 23 11.1 CONCLUSION 24 ATTACHMENT D: TEST PLOTS ATTACHMENT E: TEST SETUP PHOTOGRAPHS ATTACHMENT F: EXTERNAL PHOTOGRAPHS ATTACHMENT G: INTERNAL PHOTOGRAPHS ATTACHMENT H: SAR MEASUREMENT REPORT ATTACHMENT I: SAR TEST DATA ATTACHMENT J: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT K: DIPOLE VALIDATION ATTACHMENT L: PROBE CALIBRATION ATTACHMENT M: COPY OF GRANT PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0603070159 Test Dates: March 13-15, 2006 Phone Type: Dual-Band CDMA w/ Bluetooth FCC ID: A3LSCHA915 Page 3 of 24 © 2006 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: SAMSUNG ELECTRONICS CO., LTD. Address: 3351 Michelson Drive, Suite 290 Irvine, CA 92612 • FCC ID: A3LSCHA915 • Quantity: Quantity production is planned • Emission Designators: 1M25F9W • Tx Freq. Range: 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.287 W ERP CDMA (24.583 dBm) / 24.5 dBm Conducted 0.322 W EIRP PCS CDMA (25.081 dBm) / 24.5 dBm Conducted • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Dual-Band CDMA Phone with Bluetooth • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22(H) • Dates of Tests: March 13-15, 2006 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 0603070159 • Deviation from measurement procedure - None PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0603070159 Test Dates: March 13-15, 2006 Phone Type: Dual-Band CDMA w/ Bluetooth FCC ID: A3LSCHA915 Page 4 of 24 © 2006 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spuri…
