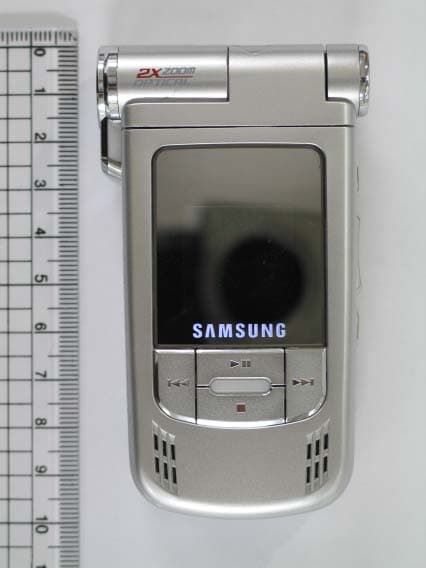

A3LSCHA970Dual-Band CDMA Phone with Bluetooth

Samsung Electronics Co Ltd

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Jun 06, 2005
Application Purpose: Original Equipment
Date of Application: Jun 06, 2005
Equipment Note: Dual-Band CDMA Phone with Bluetooth
Frequency Range: 2402.00000000 - 2480.00000000
Company: Samsung Electronics Co Ltd
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

DIGITAL CELLULAR TELEPHONE SCH-A970 User’s Manual Printed in Korea Code No. : GH68-00000A English. 2005/01. Rev.1.0 World Wide Web http://www.samsungmobile.com ELECTRONICS IImmppoorrttaanntt SSaaffeettyy PPrreeccaauuttiioonnss Sensible Use Use only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on. Emergency Call Ensure the phone is switched on and in service. Key in the emergency number for your present location, then press <SEND>. If certain feature are in use, deactivate those features before you can make an emergency call. Give all the necessary information as accurately as possible. Do not cut off the call until given permission to do so. Water Resistance Your phone is not water-resistance. Keep it dry. Accessories and Batteries Use only Samsung-approved accessories and batteries. Qualified Service Only qualified service personnel may install or repair your phone. For more detailed safety information, see “Health and Safety Information” on page 51. 2 Important Safety Precautions Read these guidelines before using your wireless phone. Failure to comply with them may be dangerous or illegal. Road Safety at All Times Do not use a hand-held phone while driving; park the vehicle first. Switching Off When Refueling Do not use the phone at a refueling point (service station) or near fuels or chemicals. Switching Off in Aircraft Wireless phones can cause interference. Using them in aircraft is both illegal and dangerous. Switching Off in Hospitals Switch off your phone near medical equipment. Follow any regulations or rules in force. Interference All wireless phones may be subject to interference, which could affect their performance. Special Regulations Meet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger (in a hospital for example). 1 YOUR PHONE Key Descriptions ................................................................................... 5 Display ................................................................................................ 6 Service light .......................................................................................... 8 Unpacking ............................................................................................. 8 GETTING STARTED Charging a Battery .................................................................................9 Low Battery Indicator ..........................................................................10 Switching the Phone On/Off ................................................................ 11 CALL FUNCTIONS Making a Call ......................................................................................12 Answering a Call .................................................................................. 18 In-Use Options .................................................................................... 19 Using Caller ID .................................................................................... 20 Viewing Missed Calls ........................................................................... 21 Three-Way Calling ............................................................................... 22 Call Waiting ........................................................................................ 23 Call Forwarding ....................................................................................23 Adjusting the Volume ........................................................................... 24 Quick Switching to Vibration Mode ....................................................... 24 ENTERING TEXT Changing Text Input Mode ................................................................... 25 T9 Mode .............................................................................................. 26 Alpha Mode ..........................................................................................27 Symbol Mode ...................................................................................... 29 Number Mode ..................................................................................... 29 Table of Contents 23 USING THE MENUS Accessing a Menu Functions by Scrolling .............................................. 30 Accessing a Menu Functions by Using its Shortcut.................................. 31 Your Phone’s Main Menu .................................................................... 32 GET IT NOW Get Tunes & Tones (MENU1-1) ..................................................... 34 Get Fun & Games ( MENU1-2) ..................................................... 34 Get Pix & Flix ( MENU1-3) ............................................................ 34 Get News & Info ( MENU1-4) ........................................................ 34 Get Going ( MENU1-5) .................................................................. 34 MESSAGING New Text Msg (MENU 2-1)............................................................ 35 New Pix/Flix Msg (MENU 2-2)..................................................... 36 New Hnad. Msg (MENU 2-3)........................................................ 36 Inbox (MENU 2-4)........................................................................ 36 Sent ( MENU2-5) .......................................................................... 37 Drafts ( MENU2-6) ....................................................................... 37 Voicemail (MENU 2-7).................................................................. 37 E-Mail ( MENU2-8) ....................................................................... 38 Mobile IM ( MENU2-9) .................................................................. 38 Chat ( MENU2-0) .......................................................................... 38 CONTACTS New Contact (MENU 3-1)............................................................. 3…

Text truncated - open the document above for the full version.

Attestation Statements

May 13, 2005 !"# $%&' ( &) "* +,- . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4 .(5(65(5 / (5 1 # )57/(5)8 )94144 *4 1 1: ;&/ 1&19<;3<4 May 13, 2005 ! "" "" #$%" & ' ()*+ ! , ! "-) . /01# 23! . A3LSCHA970 , $ 5 5! 1 " . ! 6 2) 5 , )( /01 # 2 3! - $ 5! 5 ' +7" 7" 8 3 and Operational % " 5 -9 %% 2 : ! " ! ! " ! $%" ! % ! ! 5 " - % ! 6 /01 # 2 3! ! - 7 % % 5! ! "! 7 ! 6 6 ! 7 %- 2 ! 7 - 5 " 6 5 7 % ! 6 /01 # 23! ! 5 " 6 !- 5- 5 "% ! ! 5 5 " ! " 6 !7 "% 5 ! 7 "+ 2 ;"<" =3- /01# " 0 May 13, 2005 ! "" "" # !$ % $&'" # ( )*+, ! - ! ".* /012$ %3!% FCC ID: A3LSCHA970 - & 5 67 " 5! 7 8 " / ! 9%*) !%* 5 -*)012$ %3!% & 6 " 5! 5 '' : ' ' ! ; " 5 ! ' % 7 ! " ! ! " ! &'" ! ' ! ! 5 " . ' ! 9 012 $ %3! ! . ' ' 5! ! "! < ! 9 9 ! < '. % ! < . 5 " 9 5 < ' ! 9 012 $ %3!5 5 " 9 !. 5. 5 "' ! ! 5 5 " ! " 9 !< "' 5! < ", % =">" ?3. 012$ " 1%

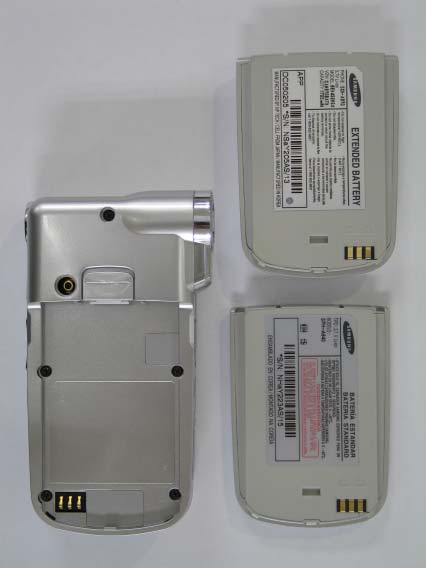

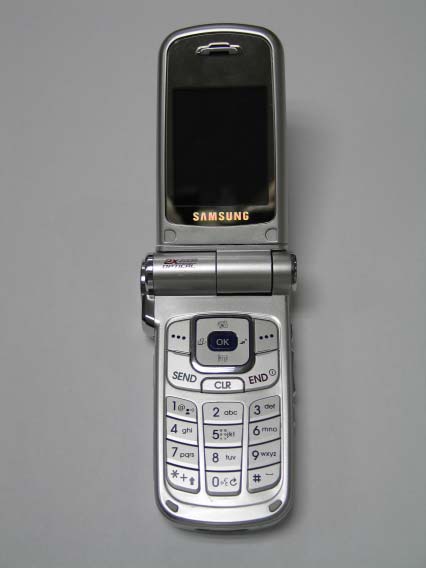

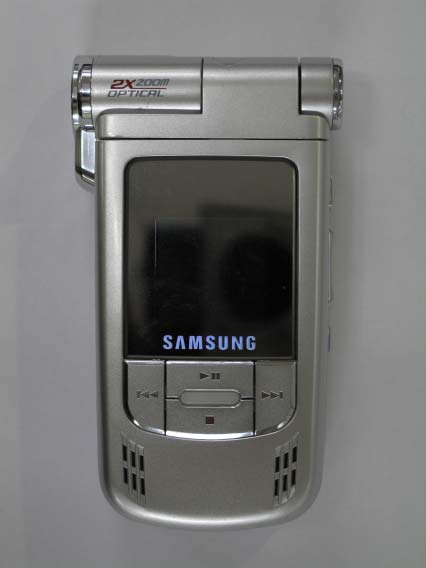

External Photos

ID Label/Location Info

3. FCC Label Location

Internal Photos

© 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA970 Dual-Mode Dual-Band CDMA/ PCS Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA970 Dual-Mode Dual-Band CDMA/ PCS Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA970 Dual-Mode Dual-Band CDMA/ PCS Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA970 Dual-Mode Dual-Band CDMA/ PCS Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA970 Dual-Mode Dual-Band CDMA/ PCS Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA970 Dual-Mode Dual-Band CDMA/ PCS Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA970 Dual-Mode Dual-Band CDMA/ PCS Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA970 Dual-Mode Dual-Band CDMA/ PCS Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA970 Dual-Mode Dual-Band CDMA/ PCS Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA970 Dual-Mode Dual-Band CDMA/ PCS Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA970 Dual-Mode Dual-Band CDMA/ PCS Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA970 Dual-Mode Dual-Band CDMA/ PCS Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA970 Dual-Mode Dual-Band CDMA/ PCS Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHA970 Dual-Mode Dual-Band CDMA/ PCS Phone

Test Report

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon-city, Gyeonggi-Do, Korea 442-742 FCC CFR47 PART 15 SUBPART CERTIFICATION REPORT Model Tested: SCH-A970 FCC ID (Requested): A3LSCHA970 Report No: FC-025-R2 Job No: FC-025 Date issued: March 11, 2005 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part15. Prepared By Date SS LEE – Test Engineer Checked By Date JH CHOI – Engineer Authorized By Date JK CHOI – Senior Manager © Copyright SAMSUNG Electronics 2005 2005.03.11 2005.03.11 2005.03.11 Report Number : FC-025-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION 4 1.1 2.1033 GENERAL INFORMATION 4 2. INTRODUCTION 4 2.1 SAMSUNG TEST LOCATION 5 2.2 SCOPE 5 2.2 MEASUREMENT PROCEDURE 5 3. TEST EQUIPMENT LIST 6 4. TECHNICAL CHARACTERISTICS TEST 7 4.1 20dB BANDWIDTH 7 4.1.1 LIMIT 7 4.1.2 TEST SET-UP 7 4.1.3 TEST PROCEDURE 7 4.1.4 TEST RESULT 7 4.2 OUTPUT POWER MEASUREMENT 8 4.2.1 LIMIT 8 4.2.2 TEST SET-UP 8 4.2.3 TEST PROCEDURE 8 4.2.4 TEST RESULT 8 4.3 CONDUCTED SPURIOUS EMISSION TEST 9 4.3.1 LIMIT 9 4.3.2 TEST SET-UP 9 4.3.3 TEST PROCEDURE 9 4.3.4 TEST RESULT 9 4.4 BAND EDGE COMPLIANCE 10 4.4.1 LIMIT 10 4.4.2 TEST SET-UP 10 4.4.3 TEST PROCEDURE 10 4.4.4 TEST RESULT 10 4.5 NUMBER OF HOPPING CHANNELS 11 4.5.1 LIMIT 11 4.5.2 TEST SET-UP 11 4.5.3 TEST PROCEDURE 11 4.5.4 TEST RESULT 11 Report Number : FC-025-R1 4.6 CHANNEL SEPARATION TEST 12 4.6.1 LIMIT 12 4.6.2 TEST SET-UP 12 4.6.3 TEST PROCEDURE 12 4.6.4 TEST RESULT 12 4.7 DWELL TIME 13 4.7.1 LIMIT 13 4.7.2 TEST SET-UP 13 4.7.3 TEST PROCEDURE 13 4.7.4 TEST RESULT 13 4.8 RADIATED HARMONIC MEASUREMENTS 14 4.8.1 LIMIT 14 4.8.2 TEST SET-UP 14 4.8.3 TEST PROCEDURE 14 4.8.4 TEST RESULT 15 5. CONCLUSION 16 6. TEST PLOTS 17 Report Number : FC-025-R1 MEASUREMENT REPORT 1. FCC CERTIFICATION INFORMATION The following information is in accordance with FCC Rules, 47CFR Part15, Subpart C 1.1 2.1033 GENERAL INFORMATION Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 442-742 Attention: FCC ID: SungJoo KIM, Engineering Manager (QA Lab) A3LSCHA970 Quantity: Quantity production is planned. Equipment (EUT) Type: Dual-Mode Dual-Band CDMA/PCS Phone With Bluetooth FCC Classification(s): FCC Part15 Spread Spectrum Transceiver (DSS) Frequency Range: 2402 ~ 2480MHz(Bluetooth) Max. Output Power: 0.0016W(2.07dBm)Conducted FCC Rule Part(s): 15.247, 2 Dates of Test: March 07, 09-11, 2005 Place of Test: SAMSUNG Lab, Test Report S/N: FC-025-R1 Report Number : FC-025-R1 2. INTRODUCTION 2.1 SAMSUNG TEST LOCATION These measurement test were conducted at the SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 442-742. The site has 1 Fully-anechoic chamber and measurement facility. 2.2 SCOPE All measurement tests were conducted at the SAMSUNG Lab, except Radiated Emission & Conducted Emission test. RE and CE measurement test reports are issued separately. 2.3 MEASUREMENT PROCEDURE The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. Figure2. Photograph of 3m Fully Anechoic Chamber - End of page - Figure1. Map of the Suwon City area. Report Number : FC-025-R1 3. TEST EQUIPMENT LIST Name of Equipment Model Serial No. Due Date ESI26 836119/010 2005-09-20 E4440A(3Hz~26.5GHz) MY41000236 2005-10-27 Spectrum Analyzer E4440A(3Hz~26.5GHz) MY41000233 2005-11-04 Signal Generator SMR27 100039 2005-08-11 Pre-Amplifier 8449B 3008A00691 2006-01-11 Antenna Master MA0001 ANT0967 Not Required Controller HD100 100/756 Not Required SEP-60 83845 2005-08-10 Horn Antenna HF906 100134 2005-05-02 WHK/3.5/18G-10SS 3 Not Required High Pass Filter WHK/3.5/18G-10SS 4 Not Required Shielded Full y-Anechoic Chamber RF0002 ANT0001 Not Required Power Meter E4419B GB41293846 2005-09-21 Power sensor 8481B 3318A10325 2005-10-06 Power sensor 8485A 3318A19924 2005-09-20 Network Analyzer 8753E JP38160590 2005-07-22 Power Supply E3640A MY40003595 2005-06-30 Power Supply E3640A MY40003594 2005-07-02 UNIVERSAL RADIO COMMUNICATION TESTER CMU200 838115/081 2005-04-07 Report Number : FC-025-R1 4. TECHNICAL CHARACTERISTICS TEST 4.1 20dB BANDWIDTH FCC Part15, Subpart C Section 15.247(a) For frequency hopping system operation in the 2400-2483.5MHz and 5725-5850MHz bands, the maximum 20dB bandwidth of the hopping channels is 1MHz. The EUT was connected to a spectrum through a 50ohm RF cable. 1. Check the calibration of the measuring instrument (SA) using either an internal calibrator or a known signal from an external generator. 2. Turn on the EUT and connect it to measurement instrument. Then set it to any one proper frequency within its operating range. 3. Measure the frequency difference of two frequencies that were attenuated 20dB from the highest peak value. 4. Repeat above procedures until all frequencies measured were complete. Report Number : FC-025-R1 4.2 OUTPUT POWER MEASUREMENT FCC Part15, Subpart C Section 15.247(b) For frequency hopping systems in the 2400-2483.5MHz band employing at least 75 hopping channels, and all frequency hopping systems in the 5725-5850 MHz BAND : 1 Watt (30dBm) The EUT was connected to a spectrum through a 50ohm RF cable 1. Check the calibration of the measuring instrument (SA) using either an internal calibrator or a known signal from an external generator. 2. Turn the EUT and connect it to measurement instrument. Then set it to any one proper frequency within its operating range. Set a reference level on the measuring instrument equal to the highest peak value. 3. The center frequency of the spectrum analyzer is set to the fundamental frequency and using 3MHz RBW and…

Text truncated - open the document above for the full version.

Test Report

PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 1503150120-1 Test Dates: March 17, 2005 EUT Type: Samsung Dual-Band CDMA Phone w/ Bluetooth FCC ID: A3LSPHA970 Page 1 of 6 © 2005 PCTEST Engineering Laboratory, Inc. EXHIBIT A – Test Results (Cont.) Radiated Harmonic Measurements (Cont.) §15.247(b) / §15.205 & §15.209 Distance of Measurements: 3 Meters Channel: 01 Table A-8. Harmonic Measurements NOTES: 1. All harmonics in the restricted bands specified in §15.205 are below the limit shown in Table A-18. (Note: * = Restricted Band measured frequency) 2. All harmonics/spurs are at least 20 dB below the highest emission in the authorized band using RBW = 100kHz 3. Average Measurements > 1GHz using RBW = 1 MHz VBW = 10 Hz 4. The peak emissions above 1 GHz are not more than 20 dB above the average limit. 5. The antenna is manipulated through typical positions, polarity and length during the tests. 6. The EUT is supplied with nominal AC voltage or/and a new/fully-recharged battery. 7. The spectrum is measured from 9kHz to the 10 th harmonic and the worst-case emissions are reported. 8. < - 135 dBm are below the analyzer floor level. 9. Above 1 GHz, the limit is 500 μV/m (54dBμ/m) at 3 meters radiated. Figure A-7. Radiated limits at 3 meters. FREQ.LEVELAFCLPOLF/SF/SMARGIN (MHz)(dBm)(dB)(H/V)(dBuV/m)(uV/m)(dB) 4804.00-100.0040.4H47.4234.2-6.6 7206.00-110.0047.4H44.4166.3-9.6 9608.00-114.5050.3H42.8138.0-11.2 12010.00-135.0053.7H25.719.3-28.3 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 1503150120-1 Test Dates: March 17, 2005 EUT Type: Samsung Dual-Band CDMA Phone w/ Bluetooth FCC ID: A3LSPHA970 Page 2 of 6 © 2005 PCTEST Engineering Laboratory, Inc. EXHIBIT A – Test Results (Cont.) Radiated Harmonic Measurements (Cont.) §15.247(b) / §15.205 & §15.209 Distance of Measurements: 3 Meters Channel: 30 Table A-9. Radiated Fundamental & Harmonic Measurements NOTES: 1. All harmonics in the restricted bands specified in §15.205 are below the limit shown in Table A- 18. (Note: * = Restricted Band measured frequency) 2. All harmonics/spurs are at least 20 dB below the highest emission in the authorized band using RBW = 100kHz 3. Average Measurements > 1GHz using RBW = 1 MHz VBW = 10 Hz 4. The peak emissions above 1 GHz are not more than 20 dB above the average limit. 5. The antenna is manipulated through typical positions, polarity and length during the tests. 6. The EUT is supplied with nominal AC voltage or/and a new/fully-recharged battery. 7. The spectrum is measured from 9kHz to the 10 th harmonic and the worst-case emissions are reported. 8. < - 135 dBm are below the analyzer floor level. 9. Above 1 GHz, the limit is 500 μV/m (54dBμ/m) at 3 meters radiated. Figure A-8. Radiated limits at 3 meters. FREQ.LEVELAFCLPOLF/SF/SMARGIN (MHz)(dBm)(dB)(H/V)(dBuV/m)(uV/m)(dB) 4882.00-100.3040.5H47.2229.1-6.8 7323.00-108.2048.0H46.8218.8-7.2 9764.00-116.2050.3H41.1113.5-12.9 12205.00-135.0053.7H25.719.3-28.3 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 1503150120-1 Test Dates: March 17, 2005 EUT Type: Samsung Dual-Band CDMA Phone w/ Bluetooth FCC ID: A3LSPHA970 Page 3 of 6 © 2005 PCTEST Engineering Laboratory, Inc. EXHIBIT A – Test Results (Cont.) Radiated Harmonic Measurements (Cont.) §15.247(b) / §15.205 & §15.209 Distance of Measurements: 3 Meters Channel: 78 Table A-10. Radiated Fundamental & Harmonic Measurements NOTES: 1. All harmonics in the restricted bands specified in §15.205 are below the limit shown in Table A- 18. (Note: * = Restricted Band measured frequency) 2. All harmonics/spurs are at least 20 dB below the highest emission in the authorized band using RBW = 100kHz 3. Average Measurements > 1GHz using RBW = 1 MHz VBW = 10 Hz 4. The peak emissions above 1 GHz are not more than 20 dB above the average limit. 5. The antenna is manipulated through typical positions, polarity and length during the tests. 6. The EUT is supplied with nominal AC voltage or/and a new/fully-recharged battery. 7. The spectrum is measured from 9kHz to the 10 th harmonic and the worst-case emissions are reported. 8. < - 135 dBm are below the analyzer floor level. 9. Above 1 GHz, the limit is 500 μV/m (54dBμ/m) at 3 meters radiated. Figure A-9. Radiated limits at 3 meters. FREQ.LEVELAFCLPOLTOTALF/SMARGIN (MHz)(dBm)(dB)(H/V)(dBuV/m)(uV/m)(dB) 4960.00-100.0040.7H47.7242.7-6.3 7440.00-108.3048.2H46.9221.3-7.1 9920.00-116.3050.4H41.1113.5-12.9 12400.00-135.0053.8H25.819.5-28.2 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 1503150120-1 Test Dates: March 17, 2005 EUT Type: Samsung Dual-Band CDMA Phone w/ Bluetooth FCC ID: A3LSPHA970 Page 4 of 6 © 2005 PCTEST Engineering Laboratory, Inc. EXHIBIT A – Test Results (Cont.) Radiated Restricted Band Measurements §15.205 / §15.209 Special attention is made for the EUT’s harmonic and spurious radiated emission in the restricted bands of operations. The EUT was tested from 9kHz and up to the tenth harmonic of the fundamental frequency of the transmitter using CISPR quasi peak detector below 1GHZ. Above 1 GHz, average measurement was used, using RBW 1MHz – VBW 10Hz and linearly polarized horn antennas. All harmonics/spurs are at least 20dB below the highest emission in the authorized band using RBW = 100kHz. Measurements were performed up through the 10 th harmonic. In addition, peak measurements were taken to ensure that the peak levels are not more than 20dB above the average limit. All out of band emissions, other than those created by the spreading sequence, data sequence, and the carrier modulation must not exceed the limits show in Table G-1 per Section 15.209. Frequency F/S (μV/m) Measured Distance (Meters) 0.009 – 0.490 MHz 2400/F (kHz) 300 0.490 – 1.705 MHz 24000/F (kHz) 30 1.705 – 30.00 MHz 30 30 30.00 – 88.00 MHz 100 3 88.00 – 216.0 MHz 150 3 216.0 – 960.0 MHz 200 3 Above 960.0 MHz 500 3 Table A-…
