A3LSCHI355Dual-Mode Cellular Phone (AMPS/CDMA)

For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 2.0 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 2.0 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone

© 2001 PCTEST Lab ATTACHMENT M – USER’S MANUAL SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 8.UserManual SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001

SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001 SCH-i355(SinglebandDualMode) CONFIDENTIAL March26,2001

© 2001 PCTEST Lab ATTACHMENT B – ATTESTATION STATEMENT(S) March 9, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a) Sincerely, Wallace Oh Engineering Manager Samsung Electronics America June 1, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.:A3LSCHI355 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Parts List, Tune Up Procedure, Antenna Specs, Schematics, and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID:A3LSCHI355) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. June 1, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSCHI355), using the Automatic A/B Roaming – Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. June 1, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHI355 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652.

June 1, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG Electronics Co., Ltd. FCC ID: A3LSCHI355 Part 22 Certification Gentlemen: Submitted herewith, on behalf of SAMSUNG Electronics Co., is an application for Part 22 Certification of the following Dual-Mode Cellular Phone: FCC ID: A3LSCHI355 TRADE/MODEL(s): SAMSUNG SCH-I355 EUT TYPE: Dual-Mode Cellular Phone (AMPS/CDMA) Tx Freq. Range(s): 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) Max. RF Output Power: 0.493 W ERP AMPS (26.933 dBm) / 0.349 W ERP CDMA (25.433 dBm) Max. SAR Measurement: 1.3766 mW/g (1g) AMPS Brain SAR; 1.2479 mW/g (1g) AMPS Body SAR 0.9542 mW/g (1g) CDMA Brain SAR; 0.7267 mW/g (1g) CDMA BodySAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Wallace Oh Engineering Manager Samsung Electronics America (QA lab)

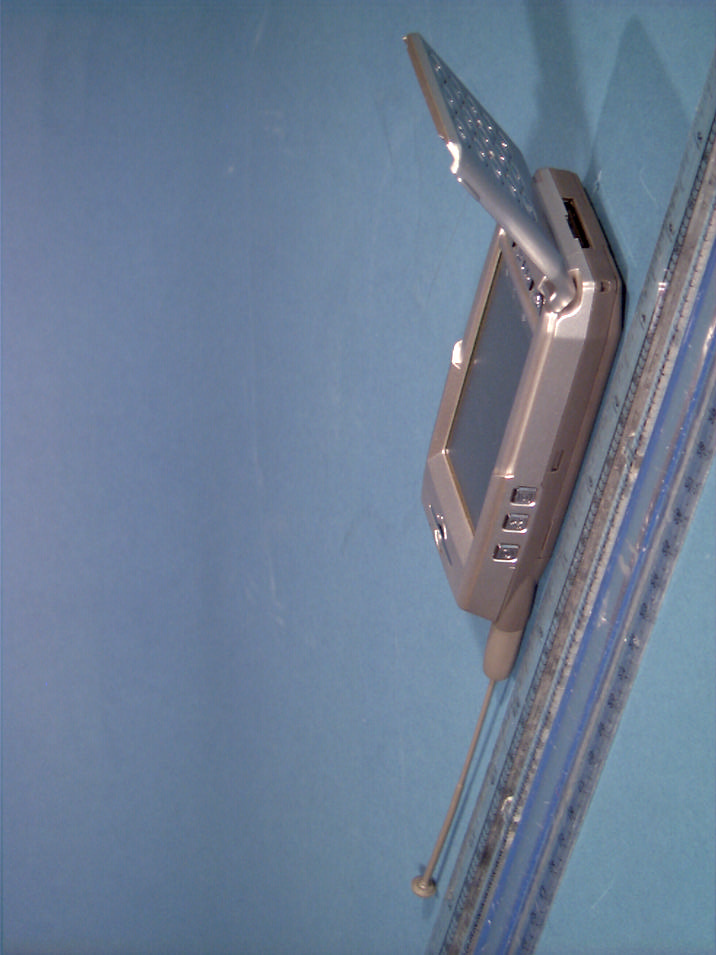

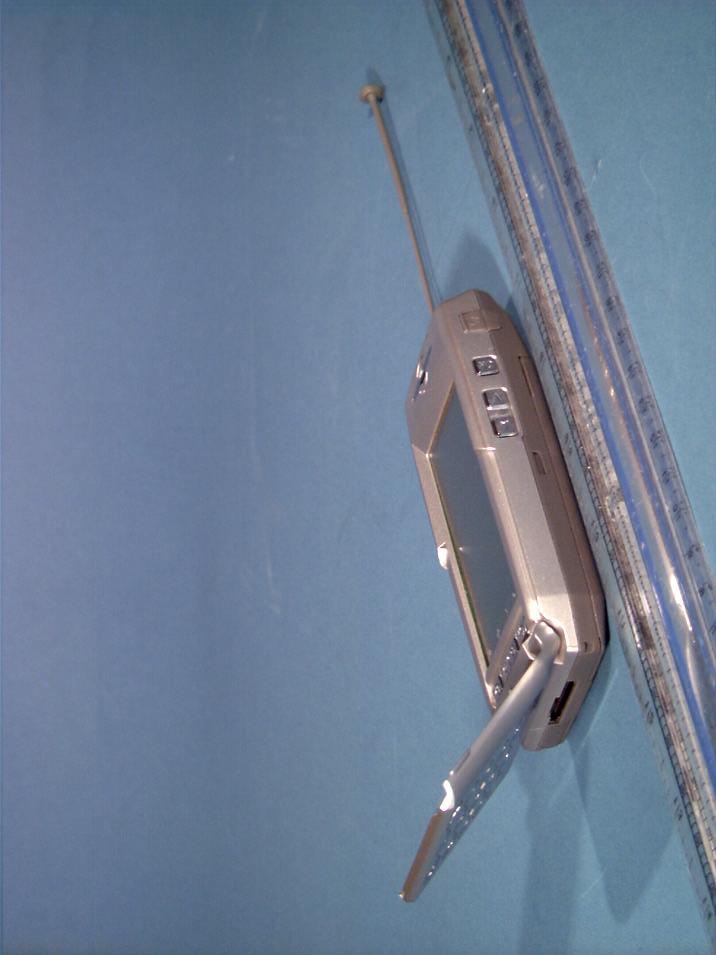

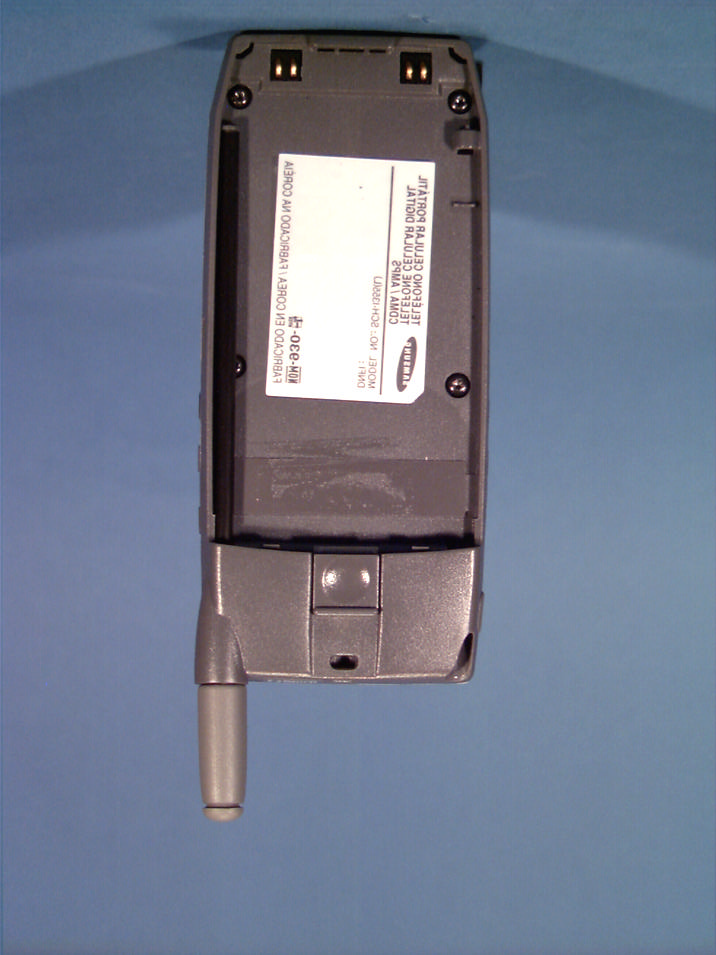

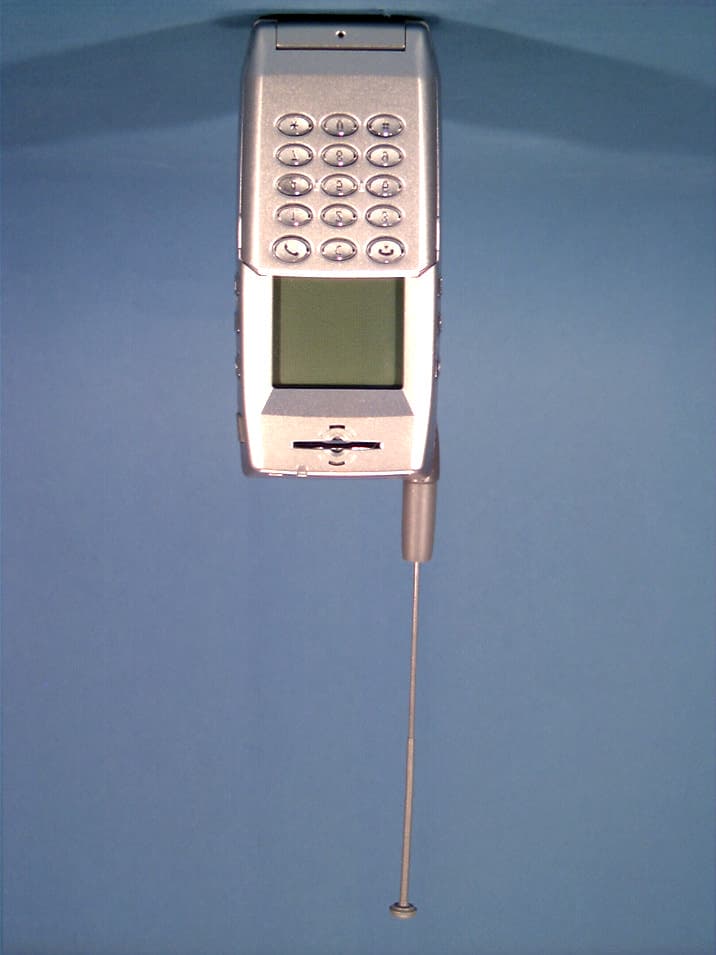

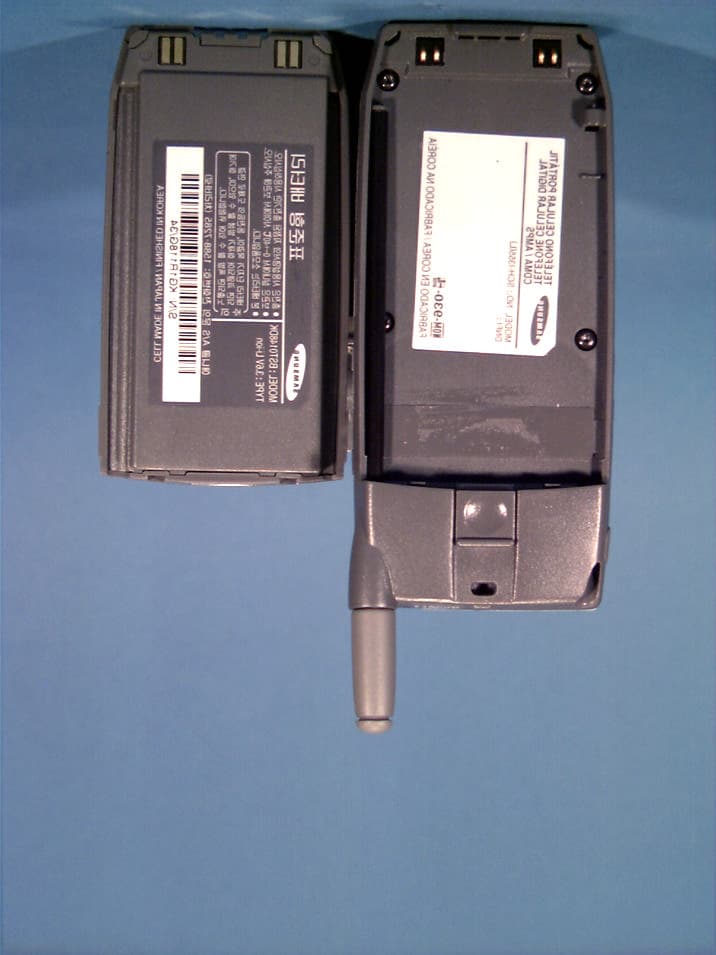

© 2001 PCTEST Lab ATTACHMENT G – EXTERNAL PHOTOGRAPHS © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA)

© 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.

© 2001 PCTEST Lab ATTACHMENT H – INTERNAL PHOTOGRAPHS © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA)

© 2001 PCTEST Lab ATTACHMENT O – SAR TEST DATA Peak SAR Location © 2001 PCTEST Lab FCC ID: A3LSCH355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) Head SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01050308_ZOOM.VLT Start : 3-May-101 11:08:17 am End : 3-May-101 11:17:41 am Radio Type : SAMSUNG Model Number : SCH-I355 Serial Number : 1 Frequency : 824.04 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG TRI-MODE PHONE - AMPS MODE CHAN 0991 Conducted 26.0 dBm SAMSUNG TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.250, Y = -4.000, Z = 0.000 (cm) Value = 14.602 Measured Values (volts) = 1.458E-002 1.135E-002 9.651E-003 7.949E-003 6.772E-003 5.817E-003 5.064E-003 4.500E-003 4.160E-003 3.848E-003 3.574E-003 3.293E-003 2.847E-003 2.482E-003 2.051E-003 1.603E-003 1.228E-003 9.585E-004 8.371E-004 9.009E-004 9.848E-004 Calc. Voltage @ Surface (Vs) = 0.0179 Voltage @ 1.00 cm (Vt) = 0.0079 Ave. Voltage (Vs+Vt)/2 = 0.0129 Ave. SAR over 1 g (mW/g) = 0.9442 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 mW/g -1012345 Z centimeters SAR Scan File : 01050308_ZOOM Start : 3-May-101 11:08:17 am End : 3-May-101 11:17:41 am SAMSUNG/SCH-I355/1;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01050308_ZOOM Start : 3-May-101 11:08:17 am End : 3-May-101 11:17:41 am SAMSUNG/SCH-I355/1;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.065 1.022 0.978 0.934 0.890 0.846 0.803 0.759 0.715 0.671 File : 01050308_ZOOM Start : 3-May-101 11:08:17 am End : 3-May-101 11:17:41 am SAMSUNG/SCH-I355/1;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.065 1.022 0.978 0.934 0.890 0.846 0.803 0.759 0.715 0.671 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01050307_ZOOM.VLT Start : 3-May-101 10:54:10 am End : 3-May-101 11:04:48 am Radio Type : SAMSUNG Model Number : SCH-I355 Serial Number : 1 Frequency : 824.04 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG TRI-MODE PHONE - AMPS MODE CHAN 0991 Conducted 26.0 dBm SAMSUNG TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.000, Y = -4.000, Z = 0.000 (cm) Value = 20.830 Measured Values (volts) = 2.005E-002 1.682E-002 1.418E-002 1.193E-002 1.024E-002 8.641E-003 7.526E-003 6.675E-003 6.076E-003 5.660E-003 5.264E-003 4.814E-003 4.382E-003 3.840E-003 3.183E-003 2.585E-003 1.957E-003 1.478E-003 1.242E-003 1.191E-003 1.354E-003 Calc. Voltage @ Surface (Vs) = 0.0239 Voltage @ 1.00 cm (Vt) = 0.0119 Ave. Voltage (Vs+Vt)/2 = 0.0179 Ave. SAR over 1 g (mW/g) = 1.3052 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 01050307_ZOOM Start : 3-May-101 10:54:10 am End : 3-May-101 11:04:48 am SAMSUNG/SCH-I355/1;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01050307_ZOOM Start : 3-May-101 10:54:10 am End : 3-May-101 11:04:48 am SAMSUNG/SCH-I355/1;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.520 1.461 1.401 1.342 1.283 1.224 1.164 1.105 1.046 0.987 File : 01050307_ZOOM Start : 3-May-101 10:54:10 am End : 3-May-101 11:04:48 am SAMSUNG/SCH-I355/1;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.520 1.461 1.401 1.342 1.283 1.224 1.164 1.105 1.046 0.987 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01050311_ZOOM.VLT Start : 3-May-101 11:41:19 am End : 3-May-101 11:50:40 am Radio Type : SAMSUNG Model Number : SCH-I355 Serial Number : 1 Frequency : 836.49 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG TRI-MODE PHONE - AMPS MODE CHAN 0383 Conducted 26.0 dBm SAMSUNG TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.500, Y = -4.000, Z = 0.000 (cm) Value = 15.474 Measured Values (volts) = 1.552E-002 1.224E-002 1.001E-002 8.505E-003 6.980E-003 6.011E-003 5.263E-003 4.749E-003 4.277E-003 4.012E-003 3.719E-003 3.407E-003 3.009E-003 2.588E-003 2.103E-003 1.690E-003 1.325E-003 1.081E-003 9.548E-004 9.645E-004 1.062E-003 Calc. Voltage @ Surface (Vs) = 0.0193 Voltage @ 1.00 cm (Vt) = 0.0085 Ave. Voltage (Vs+Vt)/2 = 0.0139 Ave. SAR over 1 g (mW/g) = 1.0152 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 01050311_ZOOM Start : 3-May-101 11:41:19 am End : 3-May-101 11:50:40 am SAMSUNG/SCH-I355/1;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01050311_ZOOM Start : 3-May-101 11:41:19 am End : 3-May-101 11:50:40 am SAMSUNG/SCH-I355/1;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.129 1.084 1.039 0.993 0.948 0.903 0.858 0.813 0.767 0.722 File : 01050311_ZOOM Start : 3-May-101 11:41:19 am End : 3-May-101 11:50:40 am SAMSUNG/SCH-I355/1;836.49MHz;W;Helical/In; Head/…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT P – SAR TEST SETUP PHOTOGRAPHS © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA)

© 2001 PCTEST Lab ATTACHMENT N – SAR MEASUREMENT REPORT © 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG Electronics Co., Ltd. Dates of Tests: May 2-3, 2001 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.210411216.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia, MD USA Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSCHI355 APPLICANT SAMSUNG Electronics Co., Ltd. EUT Type: Dual-Mode Cellular Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) Max. RF Output Power: 0.493W ERP AMPS (26.933 dBm) / 0.349W ERP CDMA (25.433 dBm) Trade Name/Model(s): SAMSUNG SCH-I355 FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.3766 W/kg AMPS Brain SAR; 1.2479 W/kg AMPS Body SAR 0.9542 W/kg CDMA Brain SAR; 0.7267 W/kg CDMA Body SAR This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210411216.A3L Test Report S/N: SAR.210411216.A3L SAR Measurement Report Test Dates: MAY 2-3, 2001 FCC Part 22 Certification Table of Contents 1.1 SCOPE....................................................................................................1 2.1 INTRODUCTION.......................................................................................2 3.1 SAR MEASUREMENT SET-UP.................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM.....................................................4 5.1 E-field PROBE CALIBRATION PROCESS.................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES..................................................7 7.1 SYSTEM SPECIFICATIONS......................................................................8 8.1 MEASUREMENT PROCESS.....................................................................9 9.1 TEST POSITION OF THE PHONE..........................................................10 10.1 BODY-WORN TEST SETUP.................................................................11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS....................................12 12.1 MEASUREMENT UNCERTAINTIES.......................................................13 13.1 SAR TEST DATA SUMMARY................................................................14 14.1 SAR TEST EQUIPMENT.......................................................................16 15.1 CONCLUSION......................................................................................17 Test Report S/N: SAR.210411216.A3L SAR Measurement Report Test Dates: May 2-3, 2001 FCC Part 22 Certification FCC ID: A3LSCHI355 (Model: SCH-I355) © 2001 PCTEST Lab SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name: SAMSUNG ELECTRONICS CO., LTD. Address: 416 Maetan-3 Dong, Paldal-Ku Suwon City Kyungki-Do 441-742, KOREA Attention: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • EUT Type: Dual-Mode Cellular Phone (AMPS/CDMA) • Trade Name: SAMSUNG • Model(s): SCH-I355 • FCC IDENTIFIER: A3LSCHI355 • Tx Frequency: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) • Rx Frequency: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) • Application Type: Certification • FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): AMPS/CDMA • Max RF. Output Power: 0.493W ERP AMPS (26.933 dBm) 0.349W ERP CDMA (25.433 dBm) • Date(s) of Tests: May 2-3, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210411216.A3L 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210411216.A3L SAR Measurement Report Test Dates: May 2-3, 2001 FCC Part 22 Certification FCC ID: A3LSCHI355 (Model: SCH-I355) © 2001 PCTEST Lab SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 St…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT C – TEST REPORT © 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 www.pctestlab.comwww.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification SAMSUNG Electronics Co., Ltd. Dates of Tests: May 2-3, 2001 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: 22.210411217.A3L Suwon City Kyungki-Do 441-742 Test Site: PCTEST Lab, Columbia MD USA Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSCHI355 APPLICANT SAMSUNG ELECTRONICS CO., LTD. Classification: Non-Broadcast Transmitter held to ear (TNE) FCC Rule Part(s): §22(H), §22.901(d), §2 EUT Type: Dual-Mode Cellular Phone (AMPS/CDMA) Trade Name/Model(s): SAMSUNG SCH-I355 Tx Frequency Range: 824.04 ~ 848.97MHz (AMPS) / 824.70 ~ 848.31 MHz (CDMA) Rx Frequency Range: 869.04 ~ 893.31MHz (AMPS) / 869.70 ~ 893.31 MHz (CDMA) Max. RF Output Power: 0.493W ERP AMPS (26.933 dBm) / 0.349W ERP CDMA (25.433 dBm) Max. SAR Measurement: 1.3766 mW/g (1g) AMPS Brain SAR; 1.2479 mW/g (1g) AMPS Body SAR; 0.9542 mW/g (1g) CDMA Brain SAR; 0.7267 mW/g (1g) CDMA Body SAR; Frequency Tolerance: 0.00025% (2.5 ppm) Emission Designators: 40K0F8W, 40K0F1D, 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210411217.a3l FCC Part 22 Certification © 2001 PCTEST Engineering Laboratory, Inc. FCC Part 22 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION 2 3.1 INSERTS 3 4.1 DESCRIPTION OF TESTS 4-6 5.1 EFFECTIVE RADIATED POWER OUTPUT 7-8 6.1 RADIATED MEASUREMENTS 9-14 7.1 FREQUENCY STABILITY 15-18 8.1 PLOTS OF EMISSIONS 19 9.1 LIST OF TEST EQUIPMENT 20 10.1 SAMPLE CALCULATIONS 21 11.1 CONCLUSION 22 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: CIRCUIT DIAGRAMS & DESCRIPTION ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L: OPERATIONAL DESCRIPTION ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 22.210411217.A3L FCC Part 22 Dates of Tests: May 2-3, 2001 Certification © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) 1 MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. General Information Applicant: SAMSUNG ELECTRONICS CO., LTD. Address: 416 Maetan-3 Dong, Paldal-Ku Suwon City Kyungki-Do 441-742, KOREA Attention: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • FCC ID: A3LSCHI355 • Trade Name(s): SAMSUNG • Model(s): SCH-I355 • Quantity: Quantity production is planned • Emission Designator: 40K0F8W, 40K0F1D, 1M25F9W • Tx Freq. Range: 824.04 – 848.97 MHz (AMPS) / 824.70 ~ 848.31 (CDMA) Rx Freq. Range: 869.04 – 893.31 MHz (AMPS) / 869.70 ~ 893.31 (CDMA) • Equipment Class: Non-Broadcast Transmitter Held to Ear (TNE) • Equipment Type: Dual-Mode Cellular Phone • Modulation(s): AMPS / CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • Max. RF Output Power: 0.493W ERP AMPS (26.933 dBm) / 0.349W ERP CDMA(25.433dBm) • FCC Rule Part(s): §22(H), §22.901(d), §2 • Battery Pack: 3.6 VDC • Dates of Tests: May 2-3, 2001 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. Test Report S/N: 22.210411217.A3L FCC Part 22 Dates of Tests: May 2-3, 2001 Certification © 2001 PCTEST Lab FCC ID: A3LSCHI355 (Model: SCH-I355) SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) 2 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV tr…

Text truncated - open the document above for the full version.
