User manual SCH-I879E Draft 6.1 2013-08-30 Only for Approval using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information Refer to— (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery damage. Never use a damaged charger or…

Text truncated - open the document above for the full version.

Samsung Electronics Co Ltd 19 Chapin Rd., Building D Pine Brook, New Jersey, United States Tel: 973-808-6362 ; Fax: 973-808-6361 Date: September 30, 2013 Statement We, Samsung Electronics Co Ltd, states that our device, FCC ID:A3LSCHI879E. The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, Contact Person: Sang Kyung Ra Company: Samsung Electronics Co Ltd TEL: 973-808-6362 FAX: 973-808-6361 E-mail: [email protected]

Rev. 1/1/03 Samsung Electronics Co Ltd 19 Chapin Rd., Building D Pine Brook New Jersey United States Tel: 973-808-6362 ; Fax: 973-808-6361 Date: September 30, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: A3LSCHI879E Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _____________ Contact Person: Sang Kyung Ra Company: Samsung Electronics Co Ltd TEL: 973-808-6362 FAX: 973-808-6361 E-mail: [email protected]

Samsung Electronics Co Ltd 19 Chapin Rd., Building D Pine Brook New Jersey United States Tel: 973-808-6362 ; Fax: 973-808-6361 Date: September 30, 2013 Power of Attorney To whom it may concern, Please be notified that I, Sang Kyung Ra, have designated Jones Tsai in Sporton International Inc. as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: A3LSCHI879E If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Sang Kyung Ra Company: Samsung Electronics Co Ltd TEL: 973-808-6362 FAX: 973-808-6361 E-mail: [email protected]

1/1 Samsung Electronics Co Ltd Date: September 30, 2013 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : A3LSCHI879E To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which Samsung Electronics Co Ltd deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Sang Kyung Ra Company: Samsung Electronics Co Ltd TEL: 973-808-6362 FAX: 973-808-6361 E-mail: [email protected]

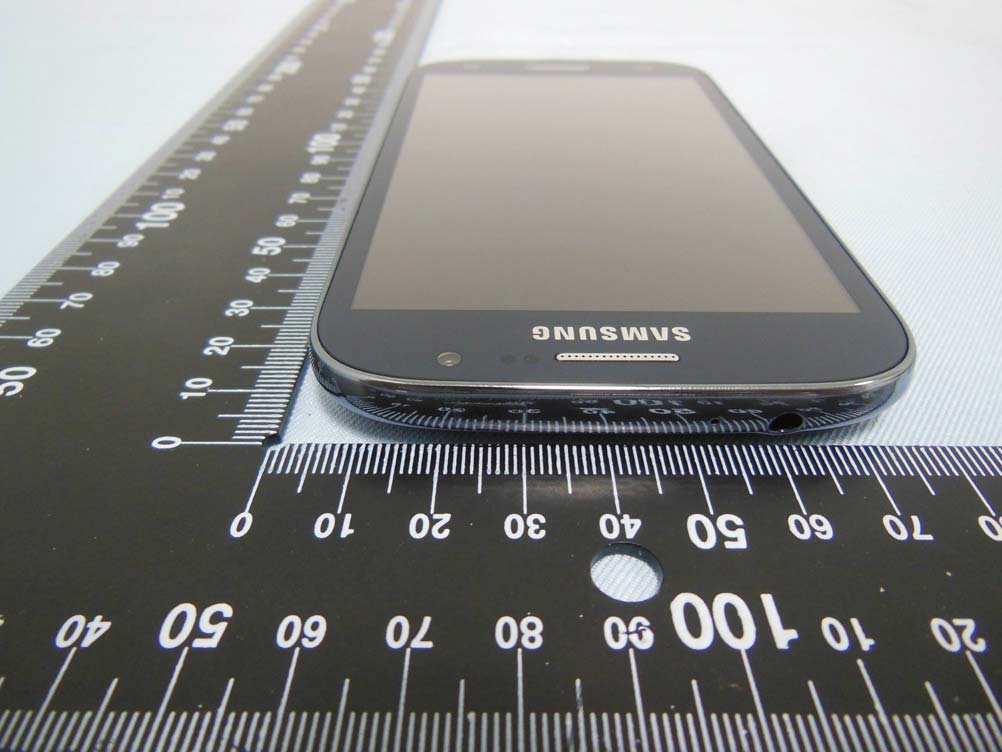

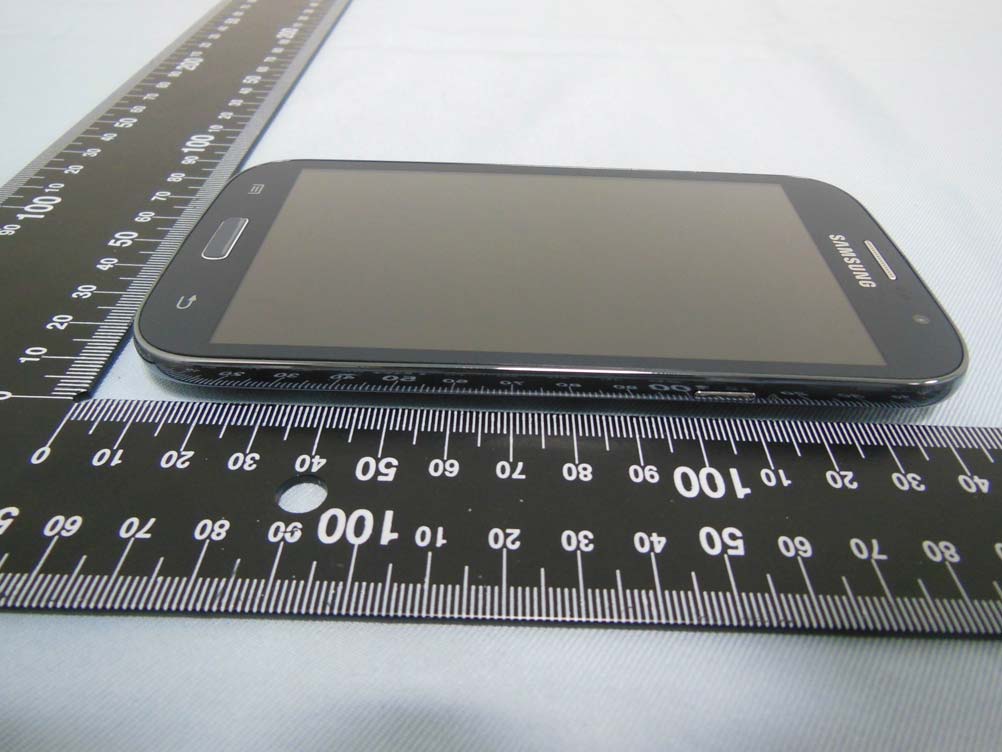

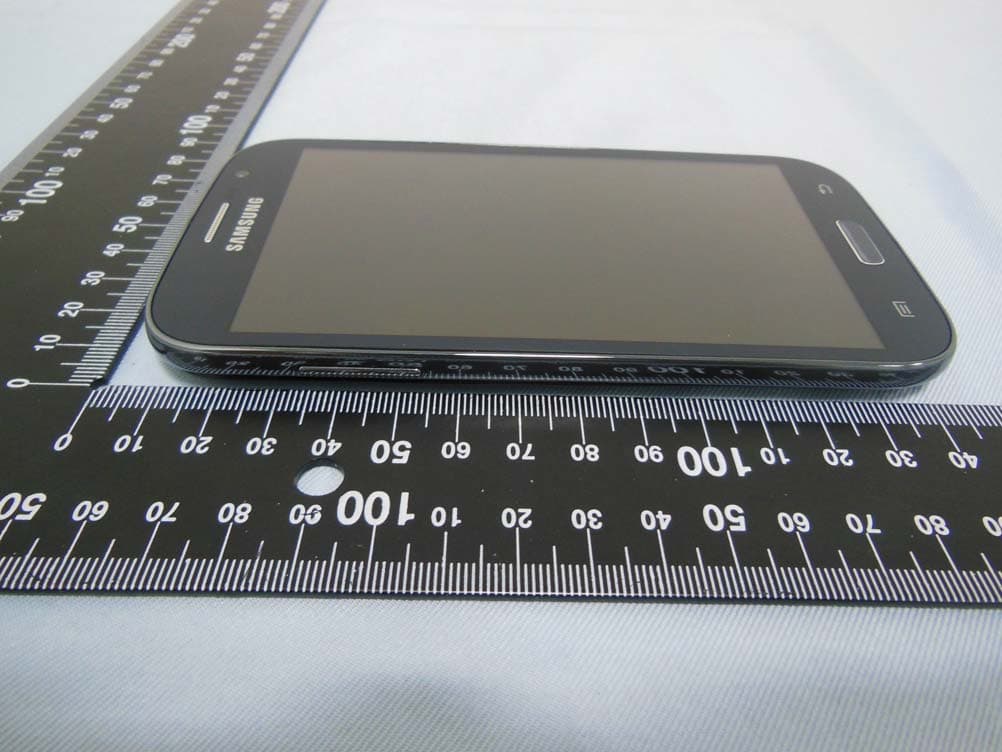

Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 1. External Photograph of EUT Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 7 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 List of Accessory: Specification of Accessory AC Adapter Brand Name SAMSUNG Model Name ETA0U82CBC Battery Brand Name SAMSUNG Model Name EB535163LU USB Cable Signal Line Type 1.0m, shielded cable, without core Earphone Signal Line Type 1.6m, unshielded cable Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 8 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 9 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 AC Adapter Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 10 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Battery Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 11 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01

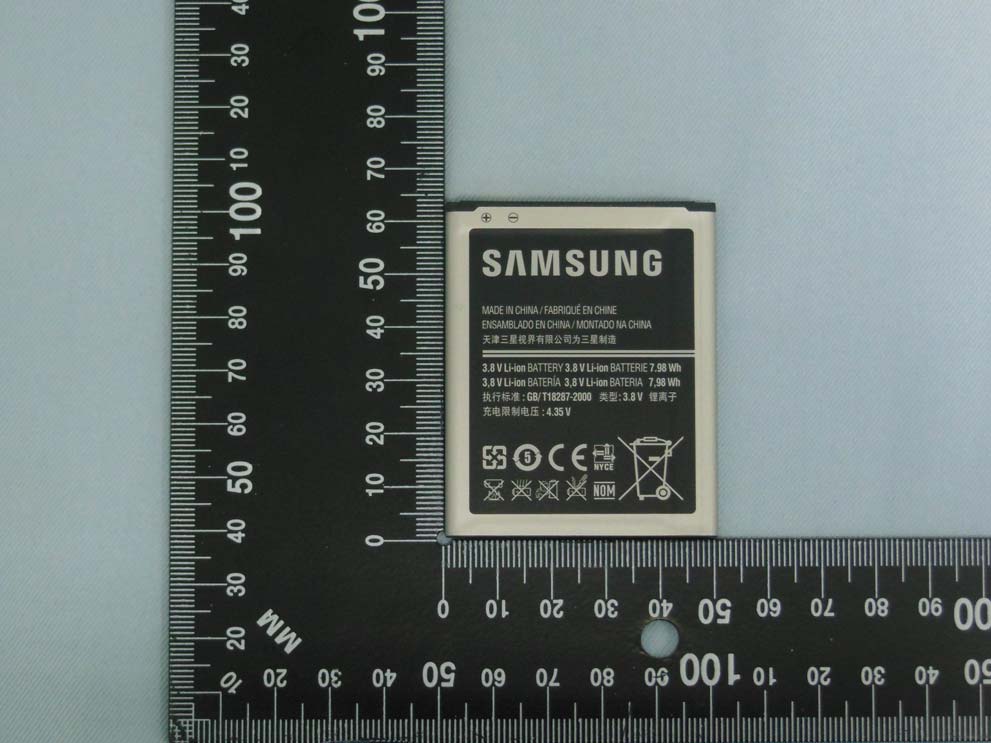

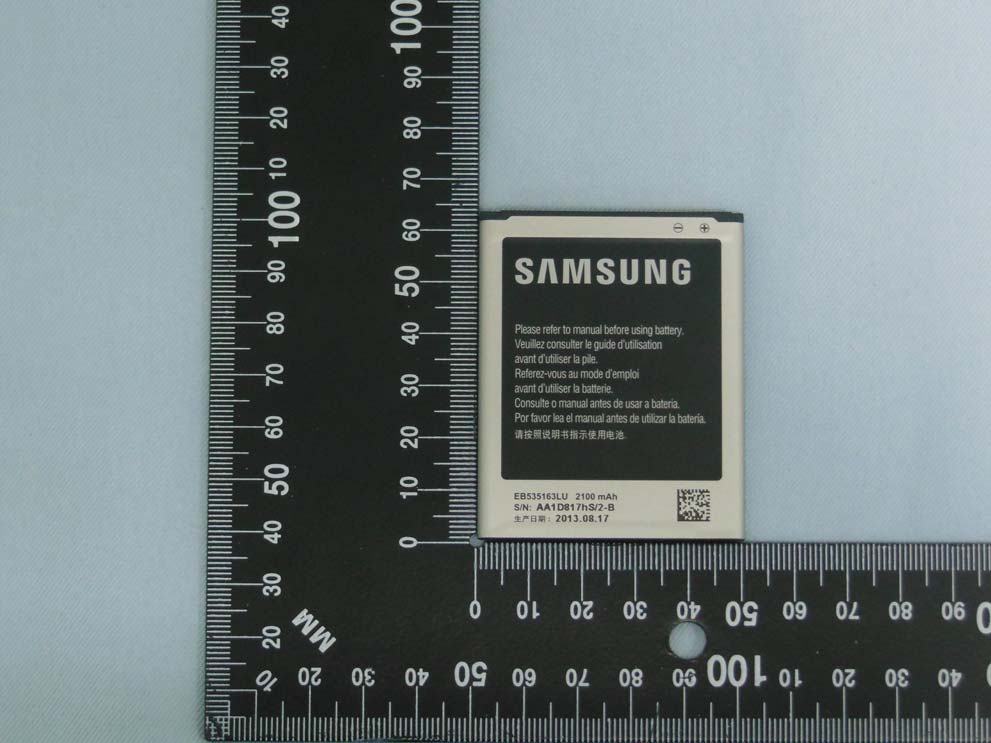

* Label Location of SCH-I879E Top Back of SCH - I879E Back of SCH I879E Ri ht Lft Right L e ft Label Battery Bottom

Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 12 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 3. Internal Photograph of EUT Bluetooth & WLAN Antenna WWAN Antenna GPS Antenna Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 13 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 14 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 15 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 16 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 17 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 18 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 19 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 20 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 21 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 22 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 23 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 24 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 25 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 26 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 27 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 28 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 29 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 30 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 31 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 Bluetooth & WLAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP392501-01 Brand Name: SAMSUNG; Model Name: SCH-I879E SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 32 of 32 TEL : 86-755-3320-2398 Report Issued Date : Nov. 12, 2013 FCC ID : A3LSCHI879E Report Version : Rev. 01 GPS Antenna <Rx>

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 38 TEL : 86-755-8637-9589 Report Issued Date : Nov. 12, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSCHI879E FCC SAR Test Report Report No. : FA392501-01 FCC SAR Test Report APPLICANT : Samsung Electronics Co., Ltd. EQUIPMENT : MOBILE PHONE BRAND NAME : SAMSUNG MODEL NAME : SCH-I879E FCC ID : A3LSCHI879E STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 The product was testing completed on Nov. 04, 2013. We, SPORTON INTERNATIONAL (SHENZHEN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (SHENZHEN) INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL (SHENZHEN) INC. No. 101, Complex Building C, Guanlong Village, Xili Town, Nanshan District, Shenzhen, Guangdong, P.R.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 38 TEL : 86-755-8637-9589 Report Issued Date : Nov. 12, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : A3LSCHI879E FCC SAR Test Report Report No. : FA392501-01 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory ...................................................................................................................................................5 2.2 Applicant .................................................................................................................................................................5 2.3 Manufacturer ...........................................................................................................................................................5 2.4 Application Details ...................................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Equipment Under Test (EUT) ...........................................................................................................6 3.2 Maximum RF output power among production units ...............................................................................................6 3.3 Applied Standard .....................................................................................................................................................7 3.4 Device Category and SAR Limits ............................................................................................................................7 3.5 Test Conditions ........................................................................................................................................................7 4. Specific Absorption Rate (SAR) ....................................................................................................................................8 4.1 Introduction .............................................................................................................................................................8 4.2 SAR Definition .........................................................................................................................................................8 5. SAR Measurement System ............................................................................................................................................9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) .......................................................................................................................10 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server ............................................................................................................................................. 11 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder .......................................................................................................................................................12 5.7 Data Storage and Evaluation ................................................................................................................................13 5.8 Test Equipment List ...............................................................................................................................................15 6. Tissue Simulating Liquids ...........................................................................................................................................16 7. System Verification Procedures .................................................................................................................................17 7.1 Purpose of System Performance check ................................................................................................................17 7.2 System Setup .............................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.11.04 System Check_Head_1900MHz_131104 DUT: D1900V2-SN: 5d118 Co mmunication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_131104 Medium parameters used: f = 1900 MHz; σ = 1.419 mho/m; ε r = 40.609; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(7.84, 7.84, 7.84); Calibrated: 2012.11.26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2012.11.22 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 13.9 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 97.713 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 17.639 mW/g SAR(1 g) = 9.7 mW/g; SAR(10 g) = 5.06 mW/g Maximum value of SAR (measured) = 13.8 W/kg 0 dB = 13.8 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.09.27 System Check_Head_2450MHz_130927 DUT: D2450V2-SN:840 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_130927 Medium parameters used: f = 2450 MHz; σ = 1.878 mho/m; ε r = 40.464; ρ = 1000 kg/m 3 Ambient Temperature： 23.4 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(6.99, 6.99, 6.99); Calibrated: 2012.11.26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2012.11.22 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 20.4 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 86.682 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 27.572 mW/g SAR(1 g) = 13 .0 mW/g; SAR(10 g) = 5.96 mW/g Ma ximum value of SAR (measured) = 20.2 W/kg 0 dB = 20.2 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.11.04 System Check_Body_1900MHz_131104 DUT: D1900V2-SN: 5d118 Co mmunication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_131104 Medium parameters used: f = 1900 MHz; σ = 1.533 mho/m; ε r = 54.611; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(7.67, 7.67, 7.67); Calibrated: 2012.11.26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2012.11.22 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 14.4 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 85.081 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 18.100 mW/g SAR(1 g) = 10.2 mW/g; SAR(10 g) = 5.37 mW/g Maximum value of SAR (measured) = 14.3 W/kg 0 dB = 14.3 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.09.27 System Check_Body_2450MHz_130927 DUT: D2450V2-SN:840 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130927 Medium parameters used: f = 2450 MHz; σ = 1.949 mho/m; ε r = 51.667; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(7.21, 7.21, 7.21); Calibrated: 2012.11.26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2012.11.22 - Phantom: SAM1; Type: QD000P40CD; Serial: TP:1670 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Pin=250mW/Area Scan (81x81x1): Interpolated grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 18.3 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 82.205 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 24.691 mW/g SAR(1 g) = 12.1 mW/g; SAR(10 g) = 5.71 mW/g Maximum value of SAR (measured) = 18.4 W/kg 0 dB = 18.4 W/kg

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.11.04 #41 GSM1900_GSM Voice_Right Cheek_Ch810 Communication System: Generic GSM; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_1900_131104 Medium parameters used: f = 1910 MHz; σ = 1.43 mho/m; ε r = 40.64; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(7.84, 7.84, 7.84); Calibrated: 2012.11.26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 2012.11.22 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch810/Area Scan (71x121x1): Interpolated grid: dx=15mm, dy=15mm Maximum value …
