A3LSCHI925UPortable Tablet Computer with Multi-band CDMA/LTE, WLAN and Bluetooth

Samsung Electronics Co., LTD. 416, Maetan-3dong, Yeongtong-gu Suwon-City, Gyeonggi-do, 443-742, Korea Date: January 6, 2013 PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 660-B Dobbin Road Columbia, MD 21045 Subject: Samsung Electronics Co., Ltd. FCC ID: A3LSCHI925U To Whom it May Concern We attest the following regarding FCC ID: A3LSCHI925U 1. MPR is permanently implemented for all channel BWs, modulations, frequency bands and RB sizes: Supported channel BWs, modulations, frequency bands: a. LTE Band 2 (Channel BW 5 & 10 MHz)/QPSK & 16QAM b. LTE Band 4 (Channel BW 5 & 10 MHz)/QPSK & 16QAM c. LTE Band 5 (Channel BW 5 & 10 MHz)/QPSK & 16QAM d. LTE Band 12 (Channel BW 5 & 10 MHz)/QPSK & 16QAM 2. MPR is implemented per 3GPP TS 36.101. With the MPR permanently implemented, this device will never operate over than 23.7 dBm in QPSK and 16QAM. 3. We confirm the specific MPR targets and tolerances shown below 1) The LTE MPR Targets for Band 2(AWS) are: Band Bandwidth [MHz] Modulation RB Size RB Offset Target MPR [dB] Maximum MPR Allowed per 3GPP [dB] LTE Band 2 5 QPSK 1 0 0 0 5 QPSK 1 24 0 0 5 QPSK 12 6 1 0-1 5 QPSK 25 0 1 0-1 5 16-QAM 1 0 1 0-1 5 16-QAM 1 24 1 0-1 5 16-QAM 12 6 2 0-2 5 16-QAM 25 0 2 0-2 10 QPSK 1 0 0 0 10 QPSK 1 49 0 0 10 QPSK 25 12 1 0-1 10 QPSK 50 0 1 0-1 10 16-QAM 1 0 1 0-1 10 16-QAM 1 49 1 0-1 10 16-QAM 25 12 2 0-2 10 16-QAM 50 0 2 0-2 2) The LTE MPR Targets for Band 4 (AWS) are Band Bandwidth [MHz] Modulation RB Size RB Offset Target MPR [dB] Maximum MPR Allowed per 3GPP [dB] LTE Band 4 5 QPSK 1 0 0 0 5 QPSK 1 24 0 0 5 QPSK 12 6 1 0-1 5 QPSK 25 0 1 0-1 5 16-QAM 1 0 1 0-1 5 16-QAM 1 24 1 0-1 5 16-QAM 12 6 2 0-2 5 16-QAM 25 0 2 0-2 10 QPSK 1 0 0 0 10 QPSK 1 49 0 0 10 QPSK 25 12 1 0-1 10 QPSK 50 0 1 0-1 10 16-QAM 1 0 1 0-1 10 16-QAM 1 49 1 0-1 10 16-QAM 25 12 2 0-2 10 16-QAM 50 0 2 0-2 3) The LTE MPR Targets for Band 5 (AWS) are Band Bandwidth [MHz] Modulation RB Size RB Offset Target MPR [dB] Maximum MPR Allowed per 3GPP [dB] LTE Band 5 5 QPSK 1 0 0 0 5 QPSK 1 24 0 0 5 QPSK 12 6 1 0-1 5 QPSK 25 0 1 0-1 5 16-QAM 1 0 1 0-1 5 16-QAM 1 24 1 0-1 5 16-QAM 12 6 2 0-2 5 16-QAM 25 0 2 0-2 10 QPSK 1 0 0 0 10 QPSK 1 49 0 0 10 QPSK 25 12 1 0-1 10 QPSK 50 0 1 0-1 10 16-QAM 1 0 1 0-1 10 16-QAM 1 49 1 0-1 10 16-QAM 25 12 2 0-2 10 16-QAM 50 0 2 0-2 4) The LTE MPR Targets for Band 17 are: Band Bandwidth [MHz] Modulation RB Size RB Offset Target MPR [dB] Maximum MPR Allowed per 3GPP [dB] Band 17 5 QPSK 1 0 0 0 5 QPSK 1 24 0 0 5 QPSK 12 6 1 0-1 5 QPSK 25 0 1 0-1 5 16-QAM 1 0 1 0-1 5 16-QAM 1 24 1 0-1 5 16-QAM 12 6 2 0-2 5 16-QAM 25 0 2 0-2 10 QPSK 1 0 0 0 10 QPSK 1 49 0 0 10 QPSK 25 12 1 0-1 10 QPSK 50 0 1 0-1 10 16-QAM 1 0 1 0-1 10 16-QAM 1 49 1 0-1 10 16-QAM 25 12 2 0-2 10 16-QAM 50 0 2 0-2 4. A-MPR was disabled for all SAR test samples for SAR testing purposes only. 5. This device implements power back-off schemes for SAR compliance. 6. We attest to the Simultaneous Tx listed on Operational Description to be accurate and furthermore, any other simultaneous Tx combinations not listed on the SAR report are not supported by software/hardware design. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jong-Seok Yoon Senior Engineer Samsung Electronics CO. LTD TEL: +82 31-301-4910 E-mail:[email protected]

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 4, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHI925U To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

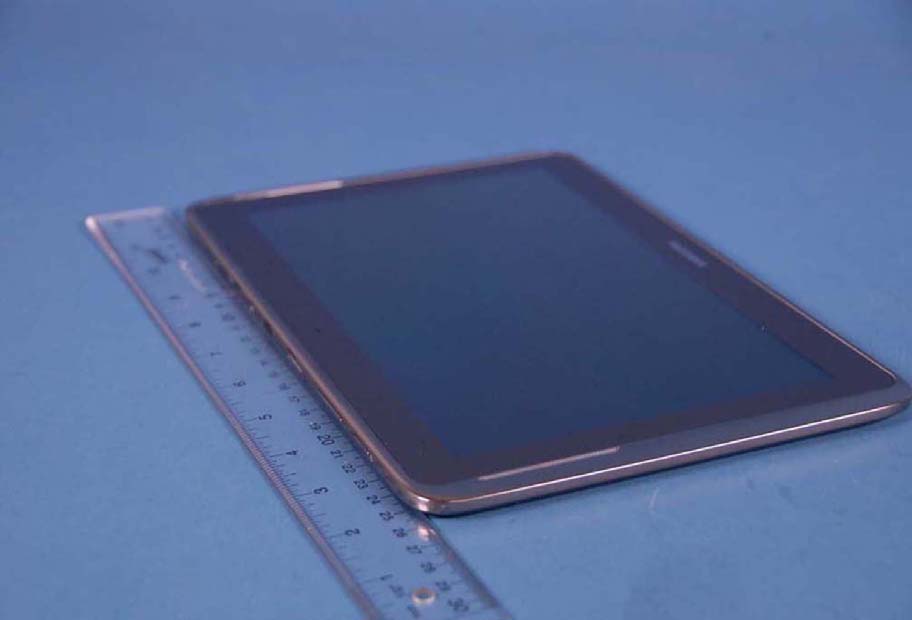

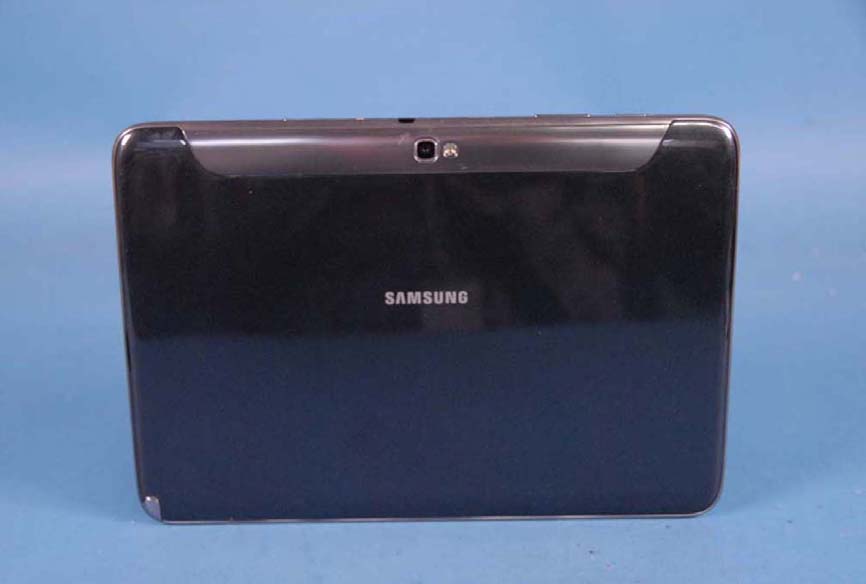

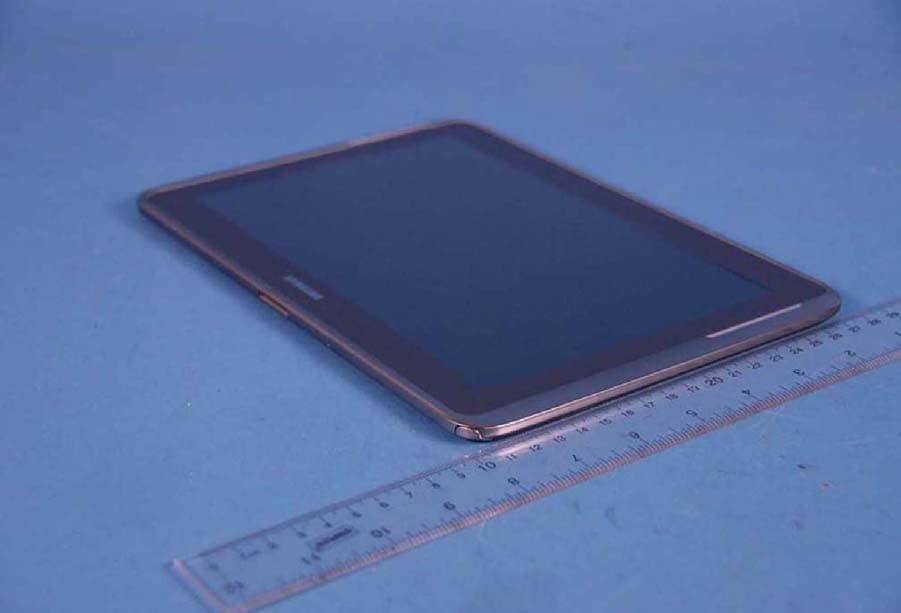

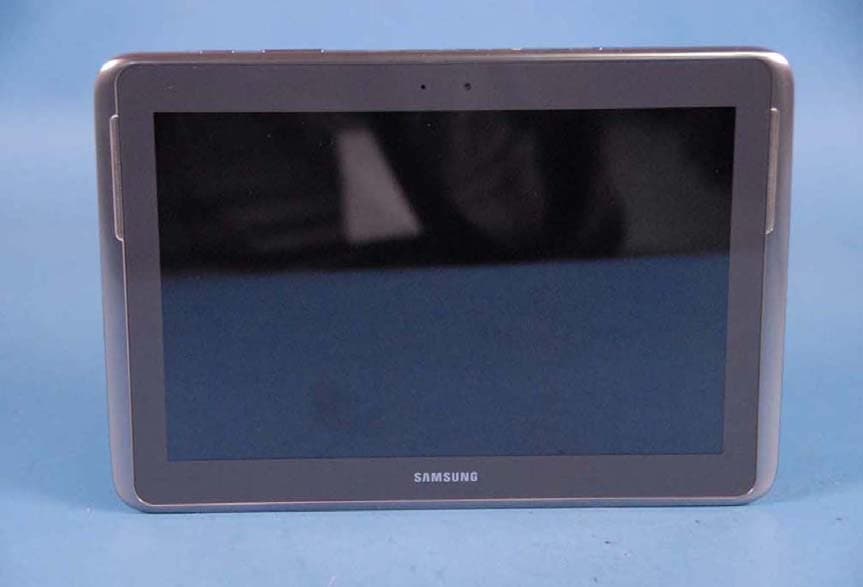

Samsung FCC ID: A3LSCHI925U Model: SCH-I925U External Photos EUT Type: Portable Tablet Page 1 of 2 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS . Samsung FCC ID: A3LSCHI925U Model: SCH-I925U External Photos EUT Type: Portable Tablet Page 2 of 2 © 2012 PCTEST Engineering Laboratory Inc.

FCC ID IS PRINTED ON BOTTOM OF THE DEVICE

Samsung FCC ID: A3LSCHI925U Model: SCH-I925U Internal Photos EUT Type: Portable Tablet Page 1 of 11 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung FCC ID: A3LSCHI925U Model: SCH-I925U Internal Photos EUT Type: Portable Tablet Page 2 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI925U Model: SCH-I925U Internal Photos EUT Type: Portable Tablet Page 3 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI925U Model: SCH-I925U Internal Photos EUT Type: Portable Tablet Page 4 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI925U Model: SCH-I925U Internal Photos EUT Type: Portable Tablet Page 5 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI925U Model: SCH-I925U Internal Photos EUT Type: Portable Tablet Page 6 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI925U Model: SCH-I925U Internal Photos EUT Type: Portable Tablet Page 7 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI925U Model: SCH-I925U Internal Photos EUT Type: Portable Tablet Page 8 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI925U Model: SCH-I925U Internal Photos EUT Type: Portable Tablet Page 9 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI925U Model: SCH-I925U Internal Photos EUT Type: Portable Tablet Page 10 of 11 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHI925U Model: SCH-I925U Internal Photos EUT Type: Portable Tablet Page 11 of 11 © 2012 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSCHI925U SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 56 0Y1211281716-R1.A3L 11/29/12 - 12/06/12 Portable Tablet Computer © 2013 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 11/29/12 - 12/06/12 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab, Columbia, MD, USA 443-742 , Republic of Korea Document Serial No.: 0Y1211281716-R1.A3L F C C I D : A3 LS CHI9 2 5 U AP P L I C AN T : S AMS UN G E LE CT RO NI CS , CO . LT D. DUT Type: Portable Tablet Computer Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SCH-I925U 1 gm Body (W/kg) PCBCell. CDMA/EVDO824.70 - 848.31 MHz24.500.72 PCBAWS CDMA/EVDO1711.25 - 1753.75 MHz24.920.73 PCBPCS CDMA/EVDO1851.25 - 1908.75 MHz25.150.75 PCBLTE Band 12701.5 - 713.5 MHz23.060.38 PCBLTE Band 5 (Cell)826.5 - 846.5 MHz23.410.46 PCBLTE Band 4 (AWS)1712.5 - 1752.5 MHz23.390.61 PCBLTE Band 2 (PCS)1852.5 - 1907.5 MHz23.340.67 DTS2.4 GHz WLAN2412 - 2462 MHz13.591.03 DTS5.8 GHz WLAN5745 - 5825 MHz13.230.69 UNII5.2 GHz WLAN5180 - 5240 MHz13.470.62 UNII5.3 GHz WLAN5260 - 5320 MHz13.160.78 UNII5.5 GHz WLAN5500 - 5700 MHz12.920.88 DSSBluetooth2402 - 2480 MHz11.21 1.55 SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class 0.30 Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. Note: This revised test report (S/N: 0Y1211281716-R1.A3L) supersedes and replaces the previously issued test report on the same subject DUT for the same type of testing indicated. Please discard or destroy the previously issued tests report(s) and dispose of accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSCHI925U SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 56 0Y1211281716-R1.A3L 11/29/12 - 12/06/12 Portable Tablet Computer © 2013 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 T A B L E O F C O N T E N T S 1 DEVICE UNDER TEST ....................................................................................................................3 2 LTE INFORMATION .........................................................................................................................8 3 INTRODUCTION ..............................................................................................................................9 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 10 5 RF EXPOSURE LIMITS ................................................................................................................ 11 6 FCC MEASUREMENT PROCEDURES ........................................................................................ 12 7 TABLET SAR TESTING PROCEDURES ..................................................................................... 15 8 RF CONDUCTED POWERS ......................................................................................................... 16 9 SYSTEM VERIFICATION .............................................................................................................. 30 10 SAR DATA SUMMARY ................................................................................................................. 32 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 37 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 50 13 EQUIPMENT LIST ......................................................................................................................... 51 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 52 15 CONCLUSION ............................................................................................................................... 54 16 REFERENCES .............................................................................................................................. 55 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS APPENDIX G: SENSOR TRIGGERING DATA SUMMARY FCC ID: A3LSCHI925U SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 56 0Y1211281716-R1.A3L 11/29/12 - 12/06/12 Portable Tablet Computer © 2013 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 1 D E V I C E U N D E R T E S T 1.1 Device Overview Cell. CDMA/EVDOData824.70 - 848.31 M…

Text truncated - open the document above for the full version.

FCC ID: A3LSCHI925U FCC Pt. 22/24/27 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 48 0Y1211281717.A3L 12/3/2012-1/14/2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 1.6CAPC 09/27/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 12/3/2012-1/14/2013 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab., Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1211281717.A3L FCC ID: A3LSCHI925U APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Application Type: Certification Model(s): SCH-I925U EUT Type: Portable Tablet FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §22(H), §24(E), §27(C) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 Test Device Serial No.: identical prototype [S/N: 27NOV-7] Max. Power (W) Max. Power (dBm) CDMA850824.70 - 848.311M27F9W0.10420.17 CDMA17001711.25 - 1753.751M28F9W0.28324.52 CDMA19001851.25 - 1908.751M28F9W0.13521.31 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22, 24, & 27 / IC RSS-132/RSS-133/RSS-139 FCC ID: A3LSCHI925U FCC Pt. 22/24/27 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 48 0Y1211281717.A3L 12/3/2012-1/14/2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 1.6CAPC 09/27/2012 TABLE OF CONTENTS FCC PART 22, 24 & 27 MEASUREMENT REPORT......................................................................3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 EVALUATION PROCEDURE .............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 AWS - BASE FREQUENCY BLOCKS ................................................................................................. 7 3.5 AWS - MOBILE FREQUENCY BLOCKS ............................................................................................. 7 3.6 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.7 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 8 3.8 OCCUPIED BANDWIDTH EMISSION LIMITS .................................................................................... 8 3.9 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL .............................................. 8 3.10 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 9 3.11 PEAK-AVERAGE RATIO ................................................................................................................... 10 3.12 FREQUENCY STABILITY / TEMPERATURE VARIATION ............................................................... 10 4.0 TEST EQUIPMENT CALIBRATION DATA .................................................................................... 11 5.0 SAMPLE CALCULATIONS ............................................................................................................ 12 6.0 TEST RESULTS ............................................................................................................................. 13 6.1 SUMMARY ......................................................................................................................................... 13 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ........................................................................... 14 6.3 E…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHI925U FCC Pt. 22, 24, 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1211281718.A3L December 3-11, 2012 Portable Tablet Page 1 of 78 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.7AWSC 12/10/09 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. December 3-11, 2012 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab., Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1211281718.A3L FCC ID : A3LSCHI925U APPLICANT: SAMSUNG ELECTRONICS CO., LTD. FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §22; §24; §27 EUT Type: Portable Tablet Model(s): SCH-I925U Test Device Serial No.: identical prototype [S/N: 27NOV-7] Max. Power (W) Max. Power (dBm) LTE Band 12701.5 - 713.54M49G7DQPSK0.12120.84 LTE Band 12701.5 - 713.54M48W7D16QAM0.09719.88 LTE Band 12704 - 7119M04G7DQPSK0.14021.47 LTE Band 12704 - 7118M96W7D16QAM0.12020.78 LTE Band 5826.5 - 846.54M47G7DQPSK0.24723.92 LTE Band 5826.5 - 846.54M47W7D16QAM0.19422.87 LTE Band 5829 - 8448M93G7DQPSK0.31224.94 LTE Band 5829 - 8448M90W7D16QAM0.23923.79 LTE Band 41712.5 - 1752.54M47G7DQPSK0.53627.29 LTE Band 41712.5 - 1752.54M48W7D16QAM0.43426.38 LTE Band 41715 - 17508M93G7DQPSK0.92529.66 LTE Band 41715 - 17508M94W7D16QAM0.73528.66 LTE Band 21852.5 - 1907.54M49G7DQPSK0.29324.67 LTE Band 21852.5 - 1907.54M47W7D16QAM0.23723.75 LTE Band 21855 - 19058M95G7DQPSK0.32225.08 LTE Band 21855 - 19058M96W7D16QAM0.26324.20 Mode Tx Frequency (MHz) Emission Designator ERP/EIRP Modulation This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 24 27 LTE Reviewed by: FCC ID: A3LSCHI925U FCC Pt. 22, 24, 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1211281718.A3L December 3-11, 2012 Portable Tablet Page 2 of 78 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.7AWSC 12/10/09 TABLE OF CONTENTS FCC PART 22 24 27 MEASUREMENT REPORT..............................................................................................................3 1.0 INTRODUCTION .................................................................................................................................................................... 4 1.1 SCOPE ...................................................................................................................................................................... 4 1.2 TESTING FACILITY .................................................................................................................................................. 4 2.0 PRODUCT INFORMATION.................................................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION ................................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................................ 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ................................................................................................ 5 3.0 DESCRIPTION OF TESTS..................................................................................................................................................... 6 3.1 MEASUREMENT PROCEDURE .............................................................................................................................. 6 3.2 BLOCK A FREQUENCY RANGE ............................................................................................................................. 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS ............................................................................................................ 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS ........................................................................................................ 6 3.5 PCS - BASE FREQUENCY BLOCKS ....................................................................................................................... 7 3.6 PCS - MOBILE FREQUENCY BLOCKS ................................................................................................................... 7 3.7 AWS - BASE FREQUENCY BLOCKS ...................................................................................................................... 7 3.8 AWS - MOBILE FREQUENCY BLOCKS .................................................................................................................. 7 3.9 OCCUPIED BANDWIDTH......................................................................................................................................... 8 3.10 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL .................................................................. 8 3.11 PEAK-AVERAGE RATIO ...............................................................................................…

Text truncated - open the document above for the full version.

Samsung FCC ID: A3LSCHI925U Model: SCH-I925U Test Set-Up Photos EUT Type: Portable Tablet Page 1 of 2 © 2012 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung FCC ID: A3LSCHI925U Model: SCH-I925U Test Set-Up Photos EUT Type: Portable Tablet Page 2 of 2 © 2012 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LSCHI925U SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 11/29/12 - 12/06/12 Portable Tablet Computer APPENDIX F: Page 1 of 1 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 A P P E N D I X F : S A R T E S T S E T U P P H O T O G R A P H S Reviewed by: FCC ID: A3LSCHI925U SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 11/29/12 - 12/06/12 Portable Tablet Computer APPENDIX F: Page 2 of 2 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 SAR Test Setup Photo 1 – Back Side at 0.0 cm SAR Test Setup Photo 2 – Back Side at 1.2 cm Reviewed by: FCC ID: A3LSCHI925U SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 11/29/12 - 12/06/12 Portable Tablet Computer APPENDIX F: Page 3 of 3 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 SAR Test Setup Photo 3 – Top Edge at 0.0 cm SAR Test Setup Photo 4 – Top Edge at 1.0 cm Reviewed by: FCC ID: A3LSCHI925U SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 11/29/12 - 12/06/12 Portable Tablet Computer APPENDIX F: Page 4 of 4 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 SAR Test Setup Photo 5 – Right Edge at 0.0 cm SAR Test Setup Photo 6 – Left Edge at 0.0 cm
