A3LSCHM105Single-Mode Cellular Phone (CDMA)

CELLULAR MP3 PHONE SCH-M105 User’s Manual Printed in Korea Code No. : GH68-01160A English. 2000/04. Rev.1.0 ELECTRONICS 1 GETTING STARTED Unpacking .................................................................................................... 7 Phone Layout ................................................................................................ 8 Display ....................................................................................................... 11 Icons ....................................................................................................... 11 Backlight ..................................................................................................... 12 Service Light ............................................................................................... 12 Installing Battery .......................................................................................... 13 To Install the Battery ................................................................................ 13 To Remove the Battery ............................................................................. 14 Charging a Battery ....................................................................................... 15 Low Battery Indicator ............................................................................... 16 Switching the Phone On/Off ......................................................................... 17 GENERAL FUNCTIONS Making a Call ............................................................................................... 19 Correcting the Number ............................................................................. 19 Ending a Call ........................................................................................... 19 Priority Dialing ........................................................................................ 20 Prepend Dialing ....................................................................................... 20 Making a Call from the Phone Book ............................................................ 21 Speed Dialing ............................................................................................. 21 One-Touch Dial ......................................................................................... 22 Two-Touch Dial ......................................................................................... 22 Three-Touch Dial ...................................................................................... 23 Voice Dialing ............................................................................................... 24 Last Number Redial ...................................................................................... 24 Answering a Call ........................................................................................... 25 Viewing Missed Calls ..................................................................................... 25 In-Call Options .............................................................................................. 26 Call Waiting ............................................................................................. 27 Three-Way Calling ..................................................................................... 27 Call Forwarding......................................................................................... 28 Adjusting the Volume..................................................................................... 28 Quick Switching to Vibration Mode ................................................................ 29 Recording a Voice Memo or Phone Conversation ............................................ 29 Table of ContentsFCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations using the optional belt-clip/holster placed 0.7 inches (1.8cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.7 inches (1.8cm) must be maintained between the user’s body and the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips/ holsters with no metallic components that provide the minimum separation distance of 0.7 inches (1.8cm) can be used to satisfy FCC RF exposure requirements. The use of non-tested accessories or other body-worn operations may not comply with FCC RF exposure requirements and should be avoided. Contact your local dealer for optional accessory items. Vehicle Mounted External Antenna (optional, if available.) A minimum separation distance of 7.9 inches (20cm) must be maintained Between a person and the vehicle mounted external antenna to satisfy FCC RF exposure requirements. For more information about RF exposure, please visit the FCC web site at www .fcc.gov 23 USING THE MENUS Using the Navigation Keys ............................................................................ 33 Using the Index System ................................................................................ 34 Menu Map ....................................................................…

Text truncated - open the document above for the full version.

April 13, 2000 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 2 1046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a) Sincerely, Wallace Oh Engineering Manager Samsung Electronics America

April 17, 2000 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.:A3LSCHM105 Request for Confidentiality To whom it may concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, and Circuit Description of the attached test report. These documents contain detailed system and equipment description and related information about the product which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market.

April 17, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHM105 Part 22 Certification Gentlemen: Attached herewith, on behalf of SAMSUNG ELECTRONICS CO., LTD. is an application for Part 22.901(d) Certification of the following Single Mode Cellular CDMA Phone: FCC ID:A3LSCHM105 TRADE / MODEL(s):SAMSUNG SCH-M105 EUT TYPE:Licensed Portable Transmitter Held to Ear (PCE) Tx Freq. Range:824.70 – 848.31 MHz (CDMA) Rx Freq. Range:869.70 – 893.31 MHz (CDMA) Max. RF Output Power:0.401 W ERP CDMA (26.03 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 Compliance Statement, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Wallace Oh Engineering Manager SAMSUNG American QA Lab

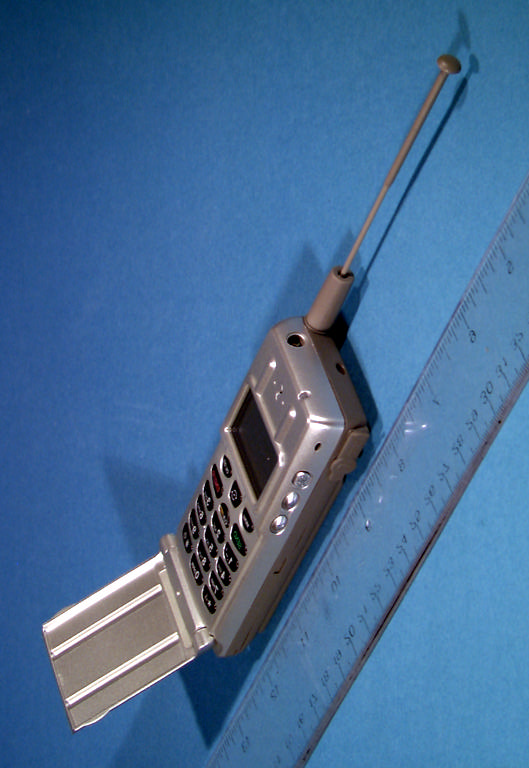

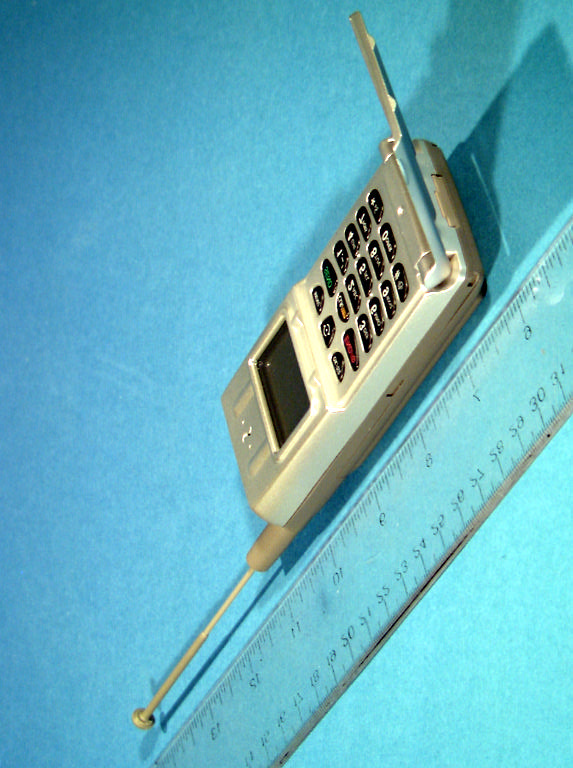

© 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. © 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. © 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. © 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. © 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. © 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd.

© 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) MODEL NO: SCH-M105 FCC ID: A3LSCHM105 CANADA: MADE IN KOREA

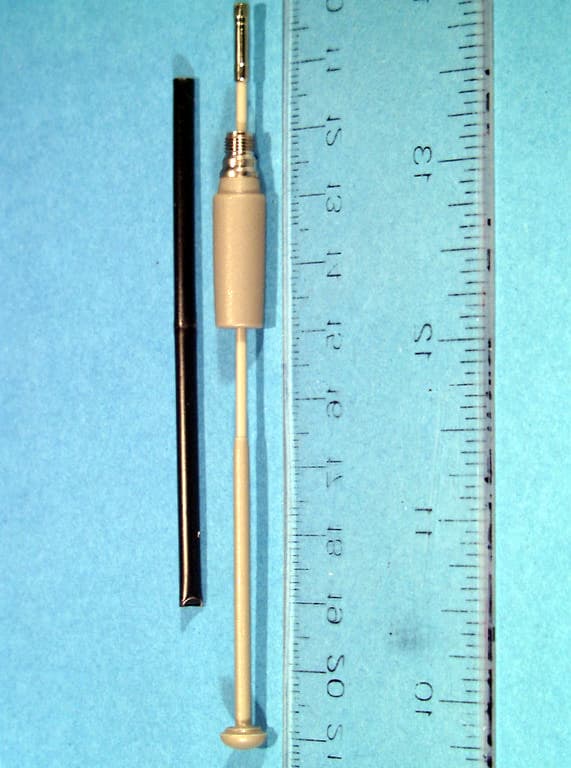

© 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. © 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. © 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. © 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. © 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. © 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. © 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. © 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. © 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. © 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd.

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG ELECTRONICS CO., LTD.Dates of Tests: April 10-14, 2000 416-Maetan-3 Dong, Paldal-KuTest Report S/N: SAR.200410151.A3L Suwon City, Kyungki-Do 441-742, KOREATest Site: PCTEST Lab, Columbia, MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSCHM105 APPLICANT SAMSUNG ELECTRONICS CO., LTD. EUT Type:Single-Mode Cellular CDMA Phone Tx Frequency:824.70 – 848.31 MHz Rx Frequency:869.70 – 893.31 MHz Max. RF Output Power:0.401W ERP (26.03 dBm) Trade Name/Model(s):SAMSUNG SCH-M105 FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.862. 200410151.A3L SAR Measurement ReportFCC Part 22 Certification © 2000 PCTEST Labi Table of Contents 1.1 SCOPE1 2.1 INTRODUCTION / SAR DEFINITION2 3.1 SAR MEASUREMENT SET-UP3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM4 5.1 E-FIELD PROBE SYSTEM5-6 6.1 PHANTOM & EQUIVALENT TISSUES7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS9 9.1 TEST POSITION OF THE PHONE10 10.1 BODY-WORN TEST SETUP11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS12 12.1 MEASUREMENT UNCERTAINTIES13 13.1 TEST DATA SUMMARY14-15 14.1 SAR TEST EQUIPMENT LIST16 15.1 CONCLUSION / REFERENCES17 Test Report S/N: SAR.200410151.A3LSAR Measurement Report Test Dates: April 10-14, 2000FCC Part 22 Certification SAMSUNG FCC ID: A3LSCHM105 (Tx 824-849 MHz) © 2000 PCTEST LabSingle-Mode CDMA Phone Model: SCH-M1051 Figure 1. SAR Test Set-up SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant:SAMSUNG ELECTRONICS CO., LTD. Address:416 Maetan-3 Dong, Paldal-Ku Suwon City, Kyungki-Do 441-742, KOREA Attention:Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • EUT Type:Single-Mode Cellular CDMA Phone • FCC Rule Part(s):§2.1093, Docket 96-326 • Trade Name:SAMSUNG • FCC IDENTIFIER:A3LSCHM105 • Model(s):SCH-M105 • S/N:Pre-production • Tx Frequency:824.70 ~ 848.31 MHz • Rx Frequency:869.70 ~ 893.31 MHz • Application Type: Certification • FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) • Max. RF Output Power:0.401W ERP (26.03 dBm) • Modulation:CDMA • Antenna Type:Helical (λ/2) • Antenna Dimensions:11.2 cm. (Length) • Dates of Tests:April 10-14, 2000 • Place of Tests:PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.200410151.A3L 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Test Report S/N: SAR.200410151.A3LSAR Measurement Report Test Dates: April 10-14, 2000FCC Part 22 Certification SAMSUNG FCC ID: A3LSCHM105 (Tx 824-849 MHz) © 2000 PCTEST LabSingle-Mode CDMA Phone Model: SCH-M1052 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. 2.2 SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative (rate) of the incremental energy (dU) absorbed by (dissipated in) an incremental mass (dm) contai…

Text truncated - open the document above for the full version.

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00041202_ZOOM.VLT Start : 12-Apr-100 10:12:34 am End : 12-Apr-100 10:24:26 am Radio Type : A3LSCHM105 Model Number : SCH-M105 Serial Number : 364 Frequency : 824.70 MHz Peak Trans. Pwr : 0.282 W Start Trans. Pwr: 0.282 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : SAMSUNG CDMA MODE CHAN 1013 SAR 24.5 dBm CONDUCTED FCC ID A3LSCHM105 Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 1.500, Y = -3.500, Z = 0.000 (cm) Value = 17.104 Measured Values (volts) = 1.673E-002 1.325E-002 1.115E-002 1.005E-002 8.988E-003 8.277E-003 7.457E-003 6.788E-003 5.869E-003 4.509E-003 3.895E-003 2.966E-003 2.316E-003 1.758E-003 1.474E-003 1.428E-003 1.571E-003 1.884E-003 2.122E-003 2.362E-003 2.333E-003 Calc. Voltage @ Surface (Vs) = 0.0205 Voltage @ 1.00 cm (Vt) = 0.0100 Ave. Voltage (Vs+Vt)/2 = 0.0153 Ave. SAR over 1 g (mW/g) = 1.1145 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 00041202_ZOOM Start : 12-Apr-100 10:12:34 am End : 12-Apr-100 10:24:26 am A3LSCHM105/SCH-M105/364;824.70MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00041206_ZOOM.VLT Start : 12-Apr-100 11:26:19 am End : 12-Apr-100 11:37:42 am Radio Type : A3LSCHM105 Model Number : SCH-M105 Serial Number : 364 Frequency : 824.70 MHz Peak Trans. Pwr : 0.282 W Start Trans. Pwr: 0.282 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : SAMSUNG CDMA MODE CHAN 1013 SAR 24.5 dBm CONDUCTED FCC ID A3LSCHM105 Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 1.250, Y = -3.750, Z = 0.000 (cm) Value = 20.962 Measured Values (volts) = 2.007E-002 1.610E-002 1.396E-002 1.248E-002 1.131E-002 1.038E-002 9.506E-003 8.424E-003 7.415E-003 6.163E-003 4.888E-003 3.819E-003 2.880E-003 2.199E-003 1.840E-003 1.808E-003 1.991E-003 2.320E-003 2.673E-003 2.929E-003 2.899E-003 Calc. Voltage @ Surface (Vs) = 0.0241 Voltage @ 1.00 cm (Vt) = 0.0125 Ave. Voltage (Vs+Vt)/2 = 0.0183 Ave. SAR over 1 g (mW/g) = 1.3337 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 00041206_ZOOM Start : 12-Apr-100 11:26:19 am End : 12-Apr-100 11:37:42 am A3LSCHM105/SCH-M105/364;824.07MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00041205_ZOOM.VLT Start : 12-Apr-100 11:04:44 am End : 12-Apr-100 11:16:07 am Radio Type : A3LSCHM105 Model Number : SCH-M105 Serial Number : 364 Frequency : 835.89 MHz Peak Trans. Pwr : 0.282 W Start Trans. Pwr: 0.282 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : SAMSUNG CDMA MODE CHAN 363 SAR 24.5 dBm CONDUCTED FCC ID A3LSCHM105 Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 1.500, Y = -3.250, Z = 0.000 (cm) Value = 16.331 Measured Values (volts) = 1.574E-002 1.222E-002 1.031E-002 9.106E-003 8.364E-003 7.567E-003 6.932E-003 6.307E-003 5.479E-003 4.636E-003 3.742E-003 2.863E-003 2.234E-003 1.715E-003 1.405E-003 1.331E-003 1.477E-003 1.747E-003 2.022E-003 2.241E-003 2.255E-003 Calc. Voltage @ Surface (Vs) = 0.0195 Voltage @ 1.00 cm (Vt) = 0.0091 Ave. Voltage (Vs+Vt)/2 = 0.0143 Ave. SAR over 1 g (mW/g) = 1.0425 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 00041205_ZOOM Start : 12-Apr-100 11:04:44 am End : 12-Apr-100 11:16:07 am A3LSCHM105/SCH-M105/364;835.89MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00041204_ZOOM.VLT Start : 12-Apr-100 10:51:43 am End : 12-Apr-100 11:02:48 am Radio Type : A3LSCHM105 Model Number : SCH-M105 Serial Number : 364 Frequency : 835.89 MHz Peak Trans. Pwr : 0.282 W Start Trans. Pwr: 0.282 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : SAMSUNG CDMA MODE CHAN 363 SAR 24.5 dBm CONDUCTED FCC ID A3LSCHM105 Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 1.500, Y = -3.750, Z = 0.000 (cm) Value = 21.725 Measured Values (volts) = 2.143E-002 1.644E-002 1.417E-002 1.265E-002 1.151E-002 1.052E-002 9.582E-003 8.463E-003 7.428E-003 6.195E-003 4.971E-003 3.866E-003 2.912E-003 2.310E-003 1.934E-003 1.911E-003 2.138E-003 2.492E-003 2.845E-003 3.013E-003 2.927E-003 Calc. Voltage @ Surface (Vs) = 0.0264 Voltage @ 1.00 cm (Vt) = 0.0127 Ave. Voltage (Vs+Vt)/2 = 0.0195 Ave. SAR over 1 g (mW/g) = 1.4244 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 00041204_ZOOM Start : 12-Apr-100 10:51:43 am End : 12-Apr-100 11:02:48 am A3LSCHM105/SCH-M105/364;835.89MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 00041204_ZOOM Start : 12-Apr-100 10:51:43 am End : 12-Apr-100 11:02:48 am A3LSCHM105/SC…

Text truncated - open the document above for the full version.

© 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. © 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. © 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. © 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd.

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00041210_ZOOM.VLT Start : 12-Apr-100 02:17:03 pm End : 12-Apr-100 02:28:34 pm Radio Type : A3LSCH-M105 Model Number : SCH-M105 Serial Number : 364 Frequency : 824.70 MHz Peak Trans. Pwr : 0.282 W Start Trans. Pwr: 0.282 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : SAMSUNG CDMA MODE body SAR flip mode 2 cm CHAN 1013 SAR 24.5 dBm CONDUCTED FCC ID A3LSCHM105 Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = -1.500, Y = -1.500, Z = 0.000 (cm) Value = 12.851 Measured Values (volts) = 1.277E-002 1.078E-002 9.234E-003 7.821E-003 6.406E-003 5.254E-003 4.512E-003 4.082E-003 4.117E-003 4.343E-003 5.012E-003 4.449E-003 4.107E-003 3.454E-003 2.583E-003 1.771E-003 1.117E-003 8.324E-004 9.767E-004 1.459E-003 2.005E-003 Calc. Voltage @ Surface (Vs) = 0.0150 Voltage @ 1.00 cm (Vt) = 0.0078 Ave. Voltage (Vs+Vt)/2 = 0.0114 Ave. SAR over 1 g (mW/g) = 0.9454 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 mW/g -1012345 Z centimeters SAR Scan File : 00041210_ZOOM Start : 12-Apr-100 02:17:03 pm End : 12-Apr-100 02:28:34 pm A3LSCH-M105/SCH-M105/364;824.70MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00041209_ZOOM.VLT Start : 12-Apr-100 01:55:09 pm End : 12-Apr-100 02:06:36 pm Radio Type : A3LSCH-M105 Model Number : SCH-M105 Serial Number : 364 Frequency : 824.70 MHz Peak Trans. Pwr : 0.282 W Start Trans. Pwr: 0.282 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : SAMSUNG CDMA MODE body SAR flip mode 2 cm CHAN 1013 SAR 24.5 dBm CONDUCTED FCC ID A3LSCHM105 Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = -0.750, Y = -1.500, Z = 0.000 (cm) Value = 18.164 Measured Values (volts) = 1.799E-002 1.549E-002 1.338E-002 1.137E-002 9.503E-003 7.801E-003 6.428E-003 5.566E-003 5.559E-003 5.045E-003 5.736E-003 5.812E-003 5.737E-003 5.279E-003 4.737E-003 2.996E-003 1.965E-003 1.261E-003 1.033E-003 1.400E-003 1.974E-003 Calc. Voltage @ Surface (Vs) = 0.0209 Voltage @ 1.00 cm (Vt) = 0.0114 Ave. Voltage (Vs+Vt)/2 = 0.0161 Ave. SAR over 1 g (mW/g) = 1.3335 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 00041209_ZOOM Start : 12-Apr-100 01:55:09 pm End : 12-Apr-100 02:06:36 pm A3LSCH-M105/SCH-M105/364;824.70MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00041212_ZOOM.VLT Start : 12-Apr-100 03:04:53 pm End : 12-Apr-100 03:16:20 pm Radio Type : A3LSCHM105 Model Number : SCH-M105 Serial Number : 364 Frequency : 835.89 MHz Peak Trans. Pwr : 0.282 W Start Trans. Pwr: 0.282 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : SAMSUNG CDMA MODE body SAR flip mode 2 cm CHAN 0363 SAR 24.5 dBm CONDUCTED FCC ID A3LSCHM105 Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = -1.250, Y = -1.500, Z = 0.000 (cm) Value = 12.936 Measured Values (volts) = 1.280E-002 1.092E-002 9.524E-003 8.021E-003 6.726E-003 5.419E-003 4.519E-003 3.947E-003 3.809E-003 3.921E-003 4.138E-003 4.255E-003 4.089E-003 3.629E-003 2.858E-003 2.015E-003 1.309E-003 8.982E-004 8.367E-004 1.173E-003 1.634E-003 Calc. Voltage @ Surface (Vs) = 0.0148 Voltage @ 1.00 cm (Vt) = 0.0080 Ave. Voltage (Vs+Vt)/2 = 0.0114 Ave. SAR over 1 g (mW/g) = 0.9459 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 mW/g -1012345 Z centimeters SAR Scan File : 00041212_ZOOM Start : 12-Apr-100 03:04:53 pm End : 12-Apr-100 03:16:20 pm A3LSCHM105/SCH-M105/364;835.89MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00041211_ZOOM.VLT Start : 12-Apr-100 02:43:32 pm End : 12-Apr-100 02:54:40 pm Radio Type : A3LSCHM105 Model Number : SCH-M105 Serial Number : 364 Frequency : 835.89 MHz Peak Trans. Pwr : 0.282 W Start Trans. Pwr: 0.282 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : SAMSUNG CDMA MODE body SAR flip mode 2 cm CHAN 0363 SAR 24.5 dBm CONDUCTED FCC ID A3LSCHM105 Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = -1.750, Y = -1.250, Z = 0.000 (cm) Value = 18.684 Measured Values (volts) = 1.810E-002 1.579E-002 1.359E-002 1.141E-002 9.396E-003 7.780E-003 6.472E-003 5.797E-003 5.665E-003 5.855E-003 6.157E-003 6.073E-003 5.655E-003 5.023E-003 3.941E-003 2.517E-003 1.701E-003 1.210E-003 1.329E-003 1.963E-003 3.488E-003 Calc. Voltage @ Surface (Vs) = 0.0209 Voltage @ 1.00 cm (Vt) = 0.0114 Ave. Voltage (Vs+Vt)/2 = 0.0162 Ave. SAR over 1 g (mW/g) = 1.3372 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 00041211_ZOOM Start : 12-Apr-100 02:43:32 pm End : 12-Apr-100 02:54:40 pm A3LSCHM105/SCH-M105/364;835.89MHz;W;Helical/Out; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 …

Text truncated - open the document above for the full version.

© 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. © 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. © 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd. © 2000 PCTEST Lab FCC ID: A3LSCHM105 NVLAP Lab Code: 100431-0 SAMSUNG Electronics Co., Ltd.

1 GETTING STARTED Unpacking ....................................................................................................7 Phone Layout ................................................................................................8 Display .......................................................................................................11 Icons .......................................................................................................11 Backlight ...…

Text truncated - open the document above for the full version.
