i SCH-N101(eng) 4/6/00 11:53 AM Page i SCH-N101 User Guide ELECT ELECTRONICS GH00-000000 ‘2000/3. Rev. 1. 1 SCH-N101 Series CDMA DIGITAL CELLULAR TELEPHONE SCH-N101(eng) 4/6/00 11:53 AM Page ii FeaturesCongratulations on the purchase of your Samsung Phone.Using the latest digital technlolgy, the Samsung Phone oper-ates similar to other wireless phones, while providing superi-or resonanc and tone quality.Your Samsung phone is packed with productive features thatare easy to use. Here are some of them:u Answer and hang up calls just by opening the phone u Large, easy-to-use Phone Book with 229 memory locations u Turbo Dialing u Voice Dialing-20 memory locations with one-touch access u Event Scheduler, to-do list, world clock, and calculator u Web Browser u Data and Fax call capable u Short Message Services (SMS) and Voicemail u Fast Ringer Mute during incoming calls u 10 ring tones, 11 melodies, or Vibrate alert u 10 Incoming and 10 Outgoing Call Logs with Caller ID u Pause Dialing for tele-services u Security features including Call Restriction u Alarm Clock u Dynamic Character Display SCH-N101(eng) 4/6/00 11:53 AM Page iv 1 Table of ContentsYour Consumer Package 7 Getting to Know Your Phone 8 Turning your Samsung Phone On and Off 15 To Turn it On 15 To Turn it Off 15 The Top Line of the Display 16 Using the Battery 18 Installing the Battery 18 Removing the Battery 18 Charging the Battery 18 Charging with the Traveler Adapter 19 Your Phone’s Modes 20 Standby Mode 20 Conversation Mode 20 Power Save Mode 21 Basic Voice Call Functions 22 Making a Voice Call 22 Redialing Calls 22 Correcting Dialing Mistakes 23 Ending a Call 23 Incoming Call Notification 23 Answering a Call 24 Adjusting Ring Volume 24 Silencing the Ringer on an Incoming Call 25 Setting the Ringer Type 25 To Mute the Microphone During a Call 25 Adjusting Voice Volume 26 Using Caller ID 26 Three-Way Calling 27 SCH-N101(eng) 4/6/00 11:53 AM Page vi 3 Setting the Language of the Display 45 Displaying your phone’s Hardware and Software Version 46 Alarm 47 Setting the Alarm 47 To Change the Alarm Setting 48 To Cancel the Alarm 48 Sounds 49 Key Beep Volume Setting 49 Ringer Options 50 One-Touch Vibrate Ringer 50 Fast Ringer Mute 50 Ring type setting for Data and Fax Calls 51 Ring Volume Setting for all Incoming Calls 51 Differential Ring 53 Voice-Activated Dialing 54 Tips on Recording Names 54 Program the Phone for Voice-Activated Dialing 55 Voice Dialing Activation 56 Placing a Call using Voice Dialing 57 Reviewing Voice Dialing Entries 57 Erasing Voice Dialing Entries 58 Message Services 59 Incoming Messages 59 Incoming Message Memory Capacity 59 Reviewing Incoming Page,Text, or Browser Messages 60 Incoming Message Ringer 61 Incoming Messages and Lock Mode 61 Options when Reviewing Incoming Messages 61 Erasing Inbox Messages 62 Voicemail 63 Setting up your Voicemail 63 Reviewing Voicemail Messages 63 2 Call Forwarding 27 Call Waiting 28 Answering a Call Waiting Call 28 Missed Calls 29 Dropped Calls 29 Failed Calls 29 Prepend Dialing 30 Emergency Dialing 31 Pause Dialing 32 Storing Pauses in a Phone Book Entry 32 Pause Dialing From a Stored Phone Book Entry 33 Manual Pause Dialing 33 Basic Setup of Your Phone 34 Automatic Retry 34 Automatic Answer 34 Automatic Hyphenation 35 Answer Options 35 Tone Length Setting 36 Setting the Time 36 Setting Your NAM 37 System Selection 38 How to Setup For a Voice, Data, or Fax Call 39 How to Setup the Web Browser Prompts 39 Audible Alerts 40 Minute Beep 40 Service Alert 40 Connect Alert 41 Disconnect Alert 41 Display Options 43 Backlight Control 43 Personal Greeting 44 Animation Display 44 Displaying your own Phone Number 45 SCH-N101(eng) 4/6/00 11:53 AM Page 2 5 4 The Phone Book 64 Viewing Stored Entries 64 Storing Phone Numbers and Names 66 Storing phone numbers shortcuts 67 Storing phone numbers at the end of a call 67 Prepend a Phone Number 68 Adding a Name Ringer 69 Changing Your Phone Book 70 Editing Phone Book numbers 70 Secret Phone Book numbers 70 Erasing Phone Book Entries 71 Erasing the Phone Book 71 Set Speed Dial 71 Dialing numbers from your Phone Book 72 Memory Dialing Shortcuts 72 Your Phone’s Security Features 73 Lock Mode 73 Dialing in Lock Mode 73 Locking the Phone 74 Unlocking the Phone 75 Call Restriction Options 75 Lock Code Setting 76 Priority Numbers 77 Storing a Priority Number 77 Dialing Priority Numbers in Lock Mode 78 Personal Identification Number (PIN) 78 Erasing Your Phone Book (Clear Memory) 79 Hiding your Phone Number 79 Vocoder 80 Resetting Your Phone 81 Keeping Track of Your Calls 82 Displaying Your Call Logs 82 Erasing Call Logs 83 Reviewing Air Time 84 Scheduler 86 Today 86View Month 88 Jump To Date 89 To Do List 90 Count Down 91 World Time 93 Calculator 94 Game 95 Fax and Data Calls 96 Receiving a Fax 96 Receiving a Data File 97 Sending a Fax or Data File 98 The Web Browser(WAP) 99 To Setup the Web Browser Prompts 99 Launching the Web Browser 100 To exit the Web Browser 101 The Web Browser Soft Keys 101 Navigating the Web Browser 102 Entering text, numbers, or symbols 104 Using Links 105 Initiating a Phone Call during a Web Browser Session 105 Receiving a phone call while in the Web Browser 105 Using Bookmarks 106 To Create a Bookmark 106 Finding a Bookmark 106 Orange Menu 107 Menus 108 Main Menu 108 In Use Menu 108 Navigating Menus 108 Your Phon’s Main Menu 109 SCH-N101(eng) 4/6/00 11:53 AM Page 4 7 6 Usage Guidelines:All about Performance and Safety 110 Understanding Signal Strength 110 Understanding Power Save Mode 110 Understanding How Your Phone Operates 110 Specifications Subject to Change 110 Radio Frequency Safety 111 Emergency Calls IMPORTNAT NOTICE! PLEASE READ! 111 Maintaining Your Phone’s Peak Performance 112 Protecting Your Battery 112 Battery Disposal and Recycling 113 Operating a Motor Vehicle 114 Following Safety Guidelines 115 Turn off Your Phone Before Flying 115 Restricting Children’s Access to Your Phone 115 Cautions 115 FCC Notice 115 Storin…

Text truncated - open the document above for the full version.

May 22, 2000 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a) Sincerely, Wallace Oh Engineering Manager Samsung Electronics America May 22, 2000 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.:A3LSCHN101 Request for Confidentiality To whom it may concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, and Circuit Description of the attached test report. These documents contain detailed system and equipment description and related information about the product which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID:A3LSCHN101) is so designed that it complies with all the requirements for ESN protection specified in Sec. 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative.

May 22, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHN101 Part 22 Certification Gentlemen: Attached herewith, on behalf of SAMSUNG ELECTRONICS CO., LTD. is an application for Part 22 Certification of the following CDMA Cellular Phone: FCC ID:A3LSCHN101 TRADE / MODEL(s):SAMSUNG SCH-N101 EUT TYPE:Non-Broadcast Transmitter held to ear (TNE) Tx Freq. Range:824.70 – 848.31 MHz Rx Freq. Range:869.70 – 848.31 MHz Max. RF Output Power:0.405 W ERP (26.07 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 Compliance Statement, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Wallace Oh Engineering Manager SAMSUNG American QA Lab

July 27, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Errol Chang / Kwok Chan SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHN101 (Single-Mode Phone) 731 Confirmation Number: EA97675 Correspondence Reference No.: 15289 Dear Errol / Kwok: Submitted herewith, on behalf of Samsung Electronics Co., Ltd., is an amendment in response to your e- mail dated July 27, 2000 requesting additional information for the subject application. 1. Please note that the Tune-Up Procedure and Operational Description previously submitted were inadvertently filed. Attached are the documents corresponding to the phone of inquiry. 2. SAR Tests were conducted at 26 dBm conducted power and are now reflected in the attached documents. 3. Attached is the final draft of the users manual with revised RF exposure warning page. No belt-clip or body holster was provided with the phone. The Body SAR was performed at a separation distance of 1.7 cm. We trust this information is sufficient to issue the grant asap. If you have any further questions, please do not hesitate to contact us. Thank you. Sincerely, cc: Ben Kim, Engineering Manager Samsung American QA Lab

August 11, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Errol Chang SUBJECT:SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHN101 731 Confirmation No.: EA97675 Correspondence Reference No.: 15362 Request for Tech. Info.: 8/2/00 Dear Errol: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd. is an amendment provided in response to the request for technical information dated August 2, 2000. 1. Please find the attached letter from Samsung indicating the deletion of the necklace accessory, and the deletion of the necklace from the user’s manual page. 2. As requested, we have attached the test plot indicating the peak SAR location for head exposure. 3. The attached RF exposure statement for body-worn operation with a 1.7 cm spacing requirement will be inserted in the FCC compliance section of the user’s manual. We trust this information is sufficient for the immediate grant of this application. cc:Samsung Electronics Co., Ltd.

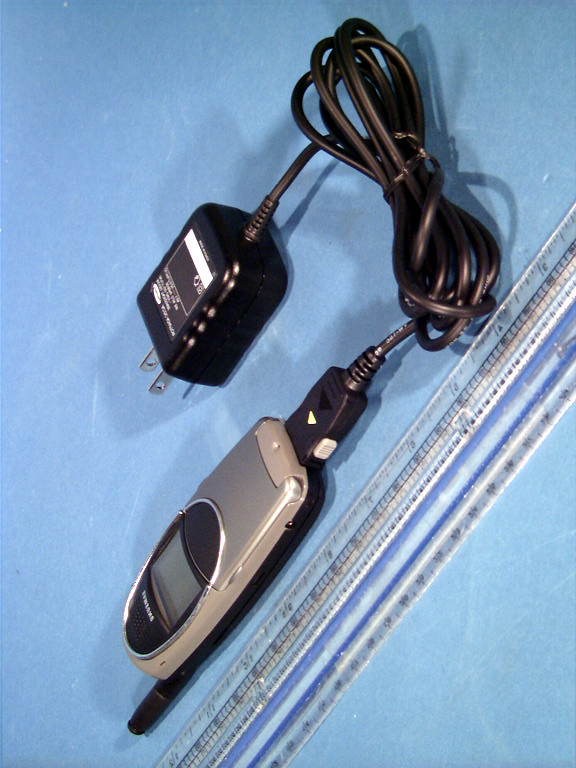

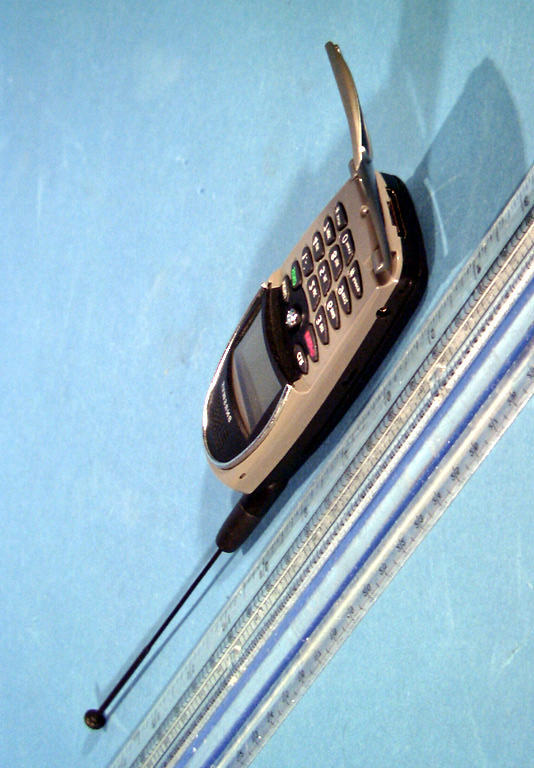

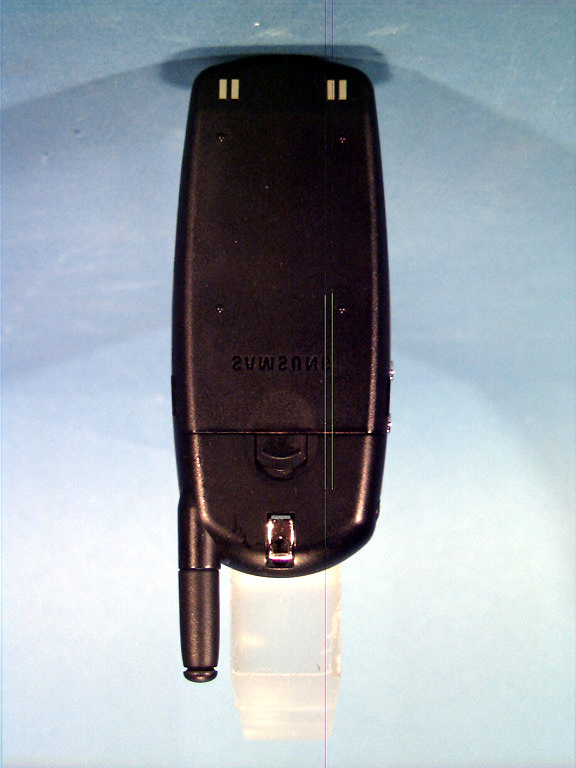

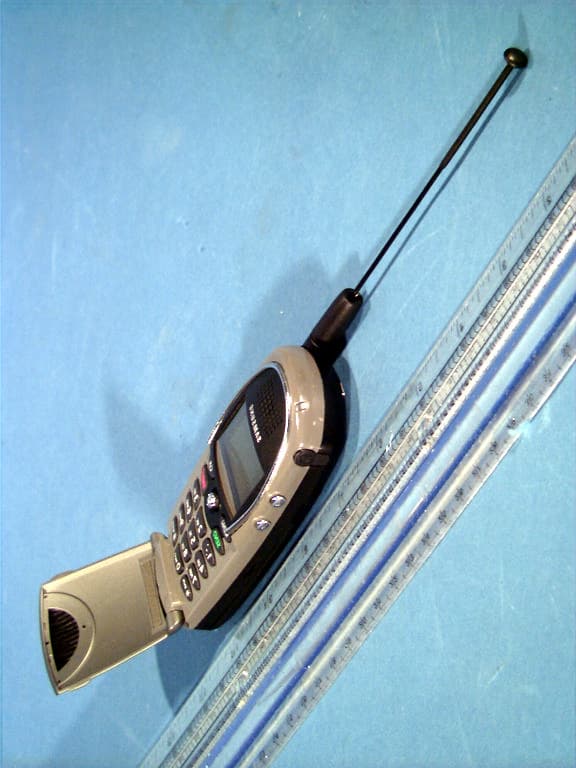

© 2000 PCTEST Lab Samsung FCC ID: SCHN101 NVLAP Lab Code: 100431-0 CDMA Cellular Phone © 2000 PCTEST Lab Samsung FCC ID: SCHN101 NVLAP Lab Code: 100431-0 CDMA Cellular Phone © 2000 PCTEST Lab Samsung FCC ID: SCHN101 NVLAP Lab Code: 100431-0 CDMA Cellular Phone © 2000 PCTEST Lab Samsung FCC ID: SCHN101 NVLAP Lab Code: 100431-0 CDMA Cellular Phone © 2000 PCTEST Lab Samsung FCC ID: SCHN101 NVLAP Lab Code: 100431-0 CDMA Cellular Phone © 2000 PCTEST Lab Samsung FCC ID: SCHN101 NVLAP Lab Code: 100431-0 CDMA Cellular Phone © 2000 PCTEST Lab Samsung FCC ID: SCHN101 NVLAP Lab Code: 100431-0 CDMA Cellular Phone © 2000 PCTEST Lab Samsung FCC ID: SCHN101 NVLAP Lab Code: 100431-0 CDMA Cellular Phone

© 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) MODEL NO: SCH-N101 FCC ID: A3LSCHN101 CANADA: MADE IN KOREA

© 2000 PCTEST Lab Samsung FCC ID: SCHN101 NVLAP Lab Code: 100431-0 CDMA Cellular Phone © 2000 PCTEST Lab Samsung FCC ID: SCHN101 NVLAP Lab Code: 100431-0 CDMA Cellular Phone © 2000 PCTEST Lab Samsung FCC ID: SCHN101 NVLAP Lab Code: 100431-0 CDMA Cellular Phone © 2000 PCTEST Lab Samsung FCC ID: SCHN101 NVLAP Lab Code: 100431-0 CDMA Cellular Phone © 2000 PCTEST Lab Samsung FCC ID: SCHN101 NVLAP Lab Code: 100431-0 CDMA Cellular Phone © 2000 PCTEST Lab Samsung FCC ID: SCHN101 NVLAP Lab Code: 100431-0 CDMA Cellular Phone © 2000 PCTEST Lab Samsung FCC ID: SCHN101 NVLAP Lab Code: 100431-0 CDMA Cellular Phone

© 2000 PCTEST Lab ATTACHMENT L – OPERATIONAL DESCRIPTION l-l. General ITEM TX Frequency Range Rx Frequency Range Channel Bandwidth Channel Spacing Number of Channel Duplex Separation Type of Emission TX Intermediate Frequency Rx Intermediate Frequency TX Local Frequency Rx Local Frequency TCXO Frequency Frequency Stability Operating Temperature Supply Voltage Size and Weight CDMA 824- 849MHz 869 -894MHz 1.23MHz 1.23MHz 20FA 45MHz 40KOF8W, 40KOF 130.38MHz 85.38MHz 1D lst(Ftx + 130.38MHz) / 2ndc260.76MHz) lst(170.76MHz) / Znd(Frx + 85.38MHz) 19.68MHz +2.5ppm(-30C - + 6O”C, -4°F - + 140°F) -30°C - + 60°C (-4°F - + 140°F) 3.6V Standard : 105(L) * 45(W) * 20.5(H), 118g l-2. Transmitter Waveform Quality : 0.944 or more Open Loop Power Control Range -25 dBm: -57.5dBm - -38.5dBm -65 dBm: -17.5dBm - + 1.5dBm -104 dBm : + 18.0dBm - + 30dBm Minimum TX Power Control : below -50dBm Closed Loop Power Control Range : +24dBm Maximum RF Output Power : 400mW Occupied Bandwidth : 1.23MHz Conducted Spurious Emission @SOOKHz : below -42dBc / 30KHz @1.98MHz : below -54dBc / 30KHz l-3. Receiver Rx Sensitivity and Dynamic Range : -104dBm, FER=0.5% or less -25dBm, FER=0.5% or less Conducted Spurious Emission 869 -894 : < -81dBm 824- 849 : < -61dBm All Other Frequencies : < -47dBm Single Tone Desensitization : lower than 1% Rx power level : -1OldBm Tone power level : -3OdBm Tone offset from carrier : k9OOKHz Intermodulation Spurious Response Attenuation : lower than 1% Rx power level : -1OldBm Tone 1 power : -43dBm Tone 2 power : -43dBm Tone 1 offset from carrier : f9OOKHz Tone 2 offset from carrier : AI 1.7MHz l-4. FREQUENCY RANGE FA NO. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 CHANNEL NO. TransimittedMHz) ReceivedMHz) 1011824.64869.64 29825.87 870.87 70827.10 872.10 111828.33873.33 152 829.56 874.56 193830.79 875.79 234832.02 877.02 275833.25 878.25 316834.48 879.48 363 835.89 880.89 404837.12882.12 445838.35883.35 486 839.58 884.58 527 840.8 1885.81 568842.04887.04 609843.27888.27 650 844.5 889.5 697845.9 1890.91 738847.14892.14 779848.37 893.37

10. FUNCTIONS OF DEVICE 11 osc401 KT16-DCV30L-19.680M-T Temperature Compansated Crystal Oscillator List of Equipment - DC Power Supply - Test Zig - Test Cable - COMA Mobile Station Test Set HP8924C - Spectrum Analyzer(include COMA Test Mode) HP8596E Configuration of Test Spectrum Analyzer m RF In/Out Dsub 25 PIN CONNECTOR PIN DESCRIPTION (TEST CABLE 1, BACK SIDE) DATA Dsub CONN.DATA Dsub CONN. I DESCRIPTION I PIN NO. DESCRIPTION ( PIN NO. V-F 12,21 DP_RX_DATA 8 DGND 2,4,6,13,19 HP_PWR 9 BATT 15,16,22 RI 10 t C-F 3,20 CD11 TX-AUDIO 5RTS14 DP_TX_DATA 7 CTS17 RX-AUDIO 1 DTR18 T 12 7 123456789101113 CONVERSION TABLE OF FREQUENCY vs CHANNEL TYPE ( CHANNEL CONVERSION EQUATION I REMARK N ; CH NUMBER F ; FREQUENCY Change to Test Mode A. To change the phone’s state from Normal Mode to Test Mode, YOU should enter the following keys. “*75 9 #813580” B. The command “0 1” is Suspend. C. To finish the Test Mode, you should enter the command “0 2”. Channel Selection and TX Power Output Level Control. A.EntertoTest Mode(‘I*7 59#8 13 5 80”) B. Suspend (“0 1”) C. Setto “363” channel (“0 9 0363”) D. Carrier On (“0 7”) E. Spread spectrum to 1.23MHz band width (“3 4”) F. Output level setting to AGC level (“7 1”) AGC level range is from 0 to 5 11. TEST ITEM PROCEDURE Setup the test equipment. “*7 59 # 81 3 58 0” : Enter to TestMode “0 1” : Suspend 1. PREPARATION 2. FREQUENCY ACCURACY 3. OCCUPIED CDMA BANDWIDTH - 2. LIMITATIONS ON EMISSION j. GATED POWER & TIME If you press a wrong key, press “#“, then enter new command. To exit the Test Mode at any time, enter “0 2”. “0 1” :Suspend. “0 9 0 3 6 3” : Set to “0363” channel. “0 7” :Carrier On. “7 1” :Set AGC level. ,Measure the TX frequency : 835.89MHz + 300Hz “0 1 I’ :Suspend “0 9 0 3 6 3” : Set to “0363” channel. “0 7” : Carrier On. “3 4” :Spread spectrum. “7 1” : Set AGC level. Measure the bandwidth. “0 1” : Suspend “0 9 0 3 6 3” : Set to “0363” channel. “0 7” : Carrier On. “3 4” : Spread spectrum. “7 1” : Set AGC level. Measure the spurious at Fc + 9OOKHz / f1.98MHz ZFc, 3Fc, l/ZFc Set the service option : 2 Set the data rate : Eighth (1200bps) Registering & Call Measure the Gated Power & Time. TEST COMMAND LIST Command No Command SW Name Description Ol(lF.O.O) T_SUSPEND_I Terminate the normal mode, enter to the test mode 02(3F,O.O) T-RESTART-1 Terminate the test mode. enter to the normal mode 07(81.0.0) T_CARRIERON_I Turn on the carrier 08(82.0.0) IT_CARRIER~FF_I I Turn off the carrier -1 09(83.4,0) T_LOADSYN_I lO(84,l.O) T_PWRLEVEL_I 1 l(85,O.O) T_RXRIUTE_I Set the synthesizer to the channel specified by ch_data Change RF power level RI&e rx audio I 12(86,0,0) I T_RXUNRIUTE_I I Unmute rx audio I 13(87.0.0) 14(88.0.0) T_TXRIUTE_I T_TXUNAIUTE_I Mute tx audio Unmute tx audio I 15(89.1.0) T_VOC_ESEC_I I Echo Canceller -1 16(8F,O,O) 1 T_STON_I I Turn on ST 17(90.0.0) lS(92.2.0) T_STOFF_I T_LCD_CONTRAST_I Turn off ST LCD contrast control 20(9E.3.0) 2 l(9C.5.0) 22(91.96.96) T_LNA_GAIN_WR_I T_TEST_SYS_I T_SNDNARI_I Write LNA gain for IAID test Set test system & channel Display and send NARI information. I 23C95.3.4) IT_SNDVERSION_I[Display and return s/w version I 24c9F.7.8) 25(92.0.0) T_SNDESN_I T_BACKLIGHT_ON_I Display and return ESN Turn on the backlight I T_BACKLIGHT_OFF_J I Turn off the backlignt T_DATASVC_ON_I T_DATASVC_OFF_I T_I’LINE_i Turn on the LED Turn off the LED Display and return production date 3 L(OO.1.0) 3ZAO. 1 .O) T_AL;TO_ANSxER_I T_SATON_I Enable auto-answer mode Turn on SAT 33(Al.O.O) 3 1(.42.0.0) -T_SATOFF_I -I’_CDAT.L\_I Turn off SAT Contmuouslq. send TX control data 38(A6.3.0) T_VOC_ENC_OFFSET_I Vocoder ENC offset 39&7.3.0) T_VOC_DEC_OFFSET_I Vocoder DEC offset 4O(A7.3.0)T_VOC_CDhIA_UNITY_GAIN_I Vocoder CDhIA unity gain 42(AA. 1,O) T_DTRIFON_ITurn on DThIF 43(AB.O.O) T_DTAIFOFF_ITurn off DTAIF 44(BO,O.O)T_CORIPANDORON_ITurn on compandor 45(B1.0,0) T_COAIPANDOROFF_I Turn off compandor 48(B4.0,0)T_VIBRATOR_ON_IActivate a vibrator 49(B5.0,0)T_VIBRATOR_OFF_IInactivate a vibrator 50(B6,0,4)T_BATT_TYPE_IDisplay Battery Type 52(B9,0.8) 53(BA.3,0) 54cBB.7.8) 55(AC, 1,O) 57(BC.O.O) 58(BD.O.O) 59(BE,O,O) 67(C6,3,6) 68(C8,0,3) 69(C9,0,3) 70(CA.3.0) 71(D1.3.0) 73cD3.1.0) 74(D4.4.0) 75(D3.0.3) T_HW_VERSION_I T-CARRIER-1 T_SNDPINFO_I T_EXT_AUDIO_I T_RIIC_ON_I T_hIIC_OFF_I T_ALLPATH_I T_READ_BATT_I T_VBATT 1-I T_VBATT2_I T_WRITE_BATT_I T_CDRIA_TXADJ_I T-SET-PA-R-1 T_TXRAS_ADJ_I T_READ_RSSI_I __. Display H/W Version. Target Carrier option Send product information 8 character External Audio Path on/off RIic path on hlic path off Turn on the all audio path Display Battery Voltage Level Set the low battery position in the standby Set the low battery position in the talking Write low battery Level Value to NVhI Set tx_agc_adj for CDhIA mode Set PA R1,RO range bits Set CDhIA TX RAS Table Read a RSSI and Adlust Rx RSSI 76cDG.3.0) 77cD7.0.3) T_WRITE_RSSI_I T_READ_TEhIP_I 78cD8.0.3) 79(D9.1.0) 80(DA,O.O) T_RXRAS_AUTO_I T_BL’ZZER_ON_I T_B’JZZER_OFF_I Write Rx RSSI AdJust Value(Just for Auto Test) Read Temperature code Calcurate Rx RAS tabIe(Just for Auto Test) Buzzer On Buzzer OFF 8 l(E3.0.0) 82(E4.0.0) T_VOC_PChILPON_I T_VOC_PCRILPOFF_I Play a I’CnI LOOP BACK Play off a PCRI LOOP BACK 85(E7.0.0) 86(E8.0.0) 89cEB.3.0) 93(F3. i.0) 96(F6.4.0) 99(FC.~l .O) T_SPEAKER_ON_I T_SPEAKER_OFF_I T_CDTRK_ADJ_I T_CDh IA-TEST-1 T_CH_FLATNESS_I T_SND_GAIN_I Turn on the speaker path Turn off the speaker path CDhlA TRK local adjust CDMA test Adjust TX high power RAS hlic/Speaker gain control

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road 6660-B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG ELECTRONICS CO., LTD.Dates of Tests: May 9-16, 2000 416-Maetan-3 Dong, Paldal-KuTest Report S/N: SAR.200508215.A3L Suwon City, Kyungki-Do 441-742, KOREATest Site: PCTEST Lab, Columbia, MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSCHN101 APPLICANT SAMSUNG ELECTRONICS CO., LTD. EUT Type:Single-Mode Cellular CDMA Phone Tx Frequency:824.70 – 848.31 MHz Rx Frequency:869.70 – 893.31 MHz Max. RF Output Power:0.405W ERP (26.07 dBm) Trade Name/Model(s):SAMSUNG SCH-N101 FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.862. 200508215.A3L SAR Measurement ReportFCC Part 22 Certification © 2000 PCTEST Labi Table of Contents 1.1 SCOPE1 2.1 INTRODUCTION / SAR DEFINITION2 3.1 SAR MEASUREMENT SET-UP3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM4 5.1 E-FIELD PROBE SYSTEM5-6 6.1 PHANTOM & EQUIVALENT TISSUES7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS9 9.1 TEST POSITION OF THE PHONE10 10.1 BODY-WORN TEST SETUP11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS12 12.1 MEASUREMENT UNCERTAINTIES13 13.1 TEST DATA SUMMARY14 14.1 SAR TEST EQUIPMENT LIST15 15.1 CONCLUSION / REFERENCES16 Test Report S/N: SAR.200508215.A3LSAR Measurement Report Test Dates: May 9-16, 2000FCC Part 22 Certification SAMSUNG FCC ID: A3LSCHN101 (Model: SCH-N101) © 2000 PCTEST LabSingle-Mode CDMA Cellular Phone1 Figure 1. SAR Test Set-up SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant:SAMSUNG ELECTRONICS CO., LTD. Address:416 Maetan-3 Dong, Paldal-Ku Suwon City, Kyungki-Do 441-742, KOREA Attention:Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • EUT Type:Single-Mode Cellular CDMA Phone • FCC Rule Part(s):§2.1093, Docket 96-326 • Trade Name:SAMSUNG • FCC IDENTIFIER:A3LSCHN101 • Model(s):SCH-N101 • S/N:Pre-production • Tx Frequency:824.70 ~ 848.31 MHz • Rx Frequency:869.70 ~ 893.31 MHz • Application Type: Certification • FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) • Max. RF Output Power:0.405W ERP (26.07 dBm) • Modulation:CDMA • Antenna Type:Helical (λ/2) • Antenna Dimensions:11.2 cm. (Length) • Dates of Tests:May 9-16, 2000 • Place of Tests:PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.200508215.A3L 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Test Report S/N: SAR.200508215.A3LSAR Measurement Report Test Dates: May 9-16, 2000FCC Part 22 Certification SAMSUNG FCC ID: A3LSCHN101 (Model: SCH-N101) © 2000 PCTEST LabSingle-Mode CDMA Cellular Phone2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. 2.2 SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative (rate) of the incremental energy (dU) absorbed by (dissipated in) an incremental mass (dm) contained in a volume element (d…

Text truncated - open the document above for the full version.

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00050921_ZOOM.VLT Start : 9-May-100 04:50:07 pm End : 9-May-100 05:01:51 pm Radio Type : SAMSUNG Model Number : A3LSCHN101 Serial Number : 01E124F Frequency : 835.89 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : SAMSUNG PHONE CDMA MODE CHAN 0363 SAR 26.0dBm CONDUCTED FCC PART 22 Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.250, Y = -3.250, Z = 0.000 (cm) Value = 12.832 Measured Values (volts) = 1.022E-002 8.656E-003 7.759E-003 6.944E-003 6.226E-003 5.372E-003 4.493E-003 3.574E-003 2.789E-003 2.169E-003 1.674E-003 1.394E-003 1.331E-003 1.439E-003 1.655E-003 1.894E-003 2.042E-003 1.971E-003 1.495E-003 1.021E-003 1.042E-003 Calc. Voltage @ Surface (Vs) = 0.0117 Voltage @ 1.00 cm (Vt) = 0.0069 Ave. Voltage (Vs+Vt)/2 = 0.0093 Ave. SAR over 1 g (mW/g) = 0.6811 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 mW/g -1012345 Z centimeters SAR Scan File : 00050921_ZOOM Start : 9-May-100 04:50:07 pm End : 9-May-100 05:01:51 pm SAMSUNG/A3LSCHN101/01E124F;835.89MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 00050921_ZOOM Start : 9-May-100 04:50:07 pm End : 9-May-100 05:01:51 pm SAMSUNG/A3LSCHN101/01E124F;835.89MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 0.936 0.869 0.803 0.736 0.669 0.602 0.535 0.468 0.401 0.335 File : 00050921_ZOOM Start : 9-May-100 04:50:07 pm End : 9-May-100 05:01:51 pm SAMSUNG/A3LSCHN101/01E124F;835.89MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 0.936 0.869 0.803 0.736 0.669 0.602 0.535 0.468 0.401 0.335 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00050922_ZOOM.VLT Start : 9-May-100 05:02:47 pm End : 9-May-100 05:14:51 pm Radio Type : SAMSUNG Model Number : A3LSCHN101 Serial Number : 01E124F Frequency : 835.89 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : SAMSUNG PHONE CDMA MODE CHAN 0363 SAR 26.0dBm CONDUCTED FCC PART 22 Robot : PCTEST Probe Offset = 0.…
