A3LSCHN150Tri-Mode Dual-Band Analog/PCS Phone

SCH-N150 Series P O RTA B LE C E L LULAR T E L E P H O NE User’s Guide Please read this manual before operating your phone, and keep it for future reference. For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.8 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.8 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone SCH-N150 User Guide Draft Rev 1.2 3/16/012 Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating thereto (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Samsung Telecommunications America (STA), Inc. Headquarters: Customer Care Center: 1130 E. Arapaho Road 1601 E. Plano Parkway, Suite 150 Richardson, TX 75081 Plano, TX 75074 Tel: 972.761.7000 Toll Free Tel: 1.888.987.HELP (4357) Fax: 972.761.7001 Fax: 972.761.7501 Internet Address: http://www.samsungusa.com ©2000 Samsung Telecommunications America, Inc. All rights reserved. No reproduction in whole or in part allowed without prior written approval. Samsung Telecommunications America, Inc. is a trademark of Samsung Electronics Corporation, Ltd. Licensed by Qualcomm Incorporated under one or more of the following patents: U.S. Patent No. 4, 901, 307; 5, 056, 109; 5, 099, 204; 5, 101, 501; 5, 103, 459; 5, 107, 225; 5, 109, 390. Phone.com ® is a registered Trademark of Openwave, Inc. RSA ® is a registered Trademark RSA Security, Inc. English: 2001:2:26. Version A Printed in South Korea. SCH-N150 User Guide Draft Rev 1.2 3/16/013 DISCLAIMER OF WARRANTIES; EXCLUSION OF LIABILITY EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. SCH-N150 User Guide Draft Rev 1.2 3/16/014 Introduction To Your Samsung N150 Series Phone Congratulations on the purchase of your Samsung N150 Series Phone. Using the latest digital technology, the Samsung N150 Series Phone operates similar to other wireless phones, while providing superior resonance and tone quality. Your Samsung N150 Tri-Mode phone is packed with productive features that are easy to use. Here are some of them: .Operates in 1900 MHz digital CDMA, 800 MHz digital CDMA, and 800 MHz analog networks. .Voice Dialing – 10 Locations .Answer or hang up calls just by opening and closing the flip on the phone. .User-friendly graphic display with dedicated icons for signal strength, service, roaming, messages, vibrator, and battery .9 Monotone Ring Types, 4 Melody Tones, LED Alert, and Vibrator Alert .Distinctive ringer types for voice, message, and alarm calls .Distinctive ringer volumes for voice, message, and alarm calls .Phone Book Memory – 89 Locations .Call Logs – 10 Locations each for outgoin…

Text truncated - open the document above for the full version.

April 2, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsung Electronics America April 2, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSCHN150 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. April 2, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSCHN150), using the Automatic A/B Roaming – Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID:A3LSCHN150) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. April 2, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHN150 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652.

April 6, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCHN150 Part 22 & 24 Certification Gentlemen: Attached herewith, on behalf of SAMSUNG ELECTRONICS CO., LTD. is an application for Part 22/24 Certification of the following Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA): FCC ID: A3LSCHN150 TRADE / MODEL(s): SAMSUNG SCH-N150 EUT TYPE: Licenced Portable Transmitter Held to Ear (PCE) Tx Freq. Range: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Freq. Range: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.465 W ERP AMPS (26.67 dBm) 0.294 W ERP CDMA (24.68 dBm) 0.359 W EIRP PCS CDMA (25.55 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 Compliance Statement, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Wallace Oh, Engineering Manager SAMSUNG American QA Lab

May 17, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Andy Leimer SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSCHN150 731 Confirmation No.: EA100650 Correspondence Reference No.: 19231 Request for Tech. Info.: 5/11/01 Dear Andy: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd. is an amendment provided in response to the request for technical information dated May 11, 2001. 1. Please find attached the revised Test Data. 2. Please note that the cover letter and the test report cover page are in EIRP levels, whereas, The SAR report has the conducted levels. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

© 2001 PCTEST Lab FCC ID: A3LSCHN150 NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSCHN150 NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSCHN150 NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSCHN150 NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSCHN150 NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSCHN150 NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSCHN150 NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone

© 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) SAMSUNG ELECTRONICS CO., LTD. MODEL NO: SCH-N150 FCC ID: A3LSCHN150 MADE IN KOREA SAMSUNG ELECTRONICS CO., LTD

© 2001 PCTEST Lab FCC ID: A3LSCHN150 NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSCHN150 NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSCHN150 NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSCHN150 NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSCHN150 NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone

© 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: Mar. 26 - 29, 2001 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.210326176.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia, MD USA Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSCHN150 APPLICANT SAMSUNG Electronics Co., Ltd. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.465 W ERP AMPS (26.67 dBm) / 0.294 W ERP CDMA (24.68 dBm) 0.359 W EIRP PCS CDMA (25.55 dBm) Trade Name/Model(s): SAMSUNG SCH-N150 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.3196 W/kg AMPS Brain SAR; 1.1947 W/kg AMPS Body SAR 0.9467 W/kg CDMA Brain SAR; 0.6680 W/kg CDMA Body SAR 1.4081 W/kg PCS Brain SAR; 0.6053 W/kg PCS Body SAR This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210326176.A3L Test Report S/N: SAR.210326176.A3L SAR Measurement Report Test Dates: MAR. 26 - 29, 2001 FCC Part 22/24 Certification Table of Contents 1.1 SCOPE....................................................................................................1 2.1 INTRODUCTION......................................................................................2 2.2 SAR Definition.......................................................................................................2 3.1 SAR MEASUREMENT SET-UP................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM.....................................................4 5.1 E-field PROBE CALIBRATION PROCESS................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES.................................................7 7.1 SYSTEM SPECIFICATIONS.....................................................................8 8.1 MEASUREMENT PROCESS.....................................................................9 9.1 TEST POSITION OF THE PHONE..........................................................10 10.1 BODY-WORN TEST SETUP.................................................................11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS..................................12 12.1 MEASUREMENT UNCERTAINTIES.......................................................13 13.1 SAR TEST DATA SUMMARY................................................................14 14.1 SAR TEST EQUIPMENT.......................................................................19 15.1 CONCLUSION.....................................................................................20 Test Report S/N: SAR.210326176.A3L SAR Measurement Report Test Dates: Mar. 26 - 29, 2001 FCC Part 24/22 Certification FCC ID: A3LSCHN150 (Model: SCH-N150) © 2001 PCTEST Lab SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name: SAMSUNG ELECTRONICS CO., LTD. Address: 416 Maetan-3 Dong, Paldal-Ku Suwon City, Kyungki-Do, 441-742, KOREA Attention: Mr. Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) • Trade Name: SAMSUNG • Model(s): SCH-N150 • FCC IDENTIFIER: A3LSCHN150 • Tx Frequency: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): AMPS/CDMA • Max RF. Output Power: 0.465W ERP AMPS (26.67 dBm) 0.294W ERP CDMA (24.68 dBm) 0.359W EIRP PCS CDMA (25.55 dBm) • Date(s) of Tests: Mar. 26 - 29, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210326176.A3L 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210326176.A3L SAR Measurement Report Test Dates: Mar. 26 - 29, 2001 FCC Part 24/22 Certification FCC ID: A3LSCHN150 (Model: SCH-N150) © 2001 PCTEST Lab SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET …

Text truncated - open the document above for the full version.

Peak SAR Location © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSCHN150 (Model: SCH-N150) NVLAP Lab Code: 100431-0 Tri-Mode Cellular/PCS Phone (AMPS/CDMA) 800 MHz Head SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01032722_ZOOM.VLT Start : 27-Mar-101 04:28:51 pm End : 27-Mar-101 04:40:05 pm Radio Type : SAMSUNG Model Number : SCH-N150 Serial Number : 1 Frequency : 824.04 MHz Peak Trans. Pwr : 0.500 W Start Trans. Pwr: 0.500 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG TRI-MODE PHONE - AMPS MODE CHAN 0991 Conducted 27.0 dBm SAMSUNG TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.250, Y = -4.500, Z = 0.000 (cm) Value = 20.160 Measured Values (volts) = 2.024E-002 1.552E-002 1.302E-002 1.090E-002 9.377E-003 8.624E-003 8.076E-003 7.550E-003 7.054E-003 6.364E-003 5.657E-003 4.593E-003 3.555E-003 2.541E-003 1.839E-003 1.393E-003 1.342E-003 1.613E-003 2.048E-003 2.533E-003 2.724E-003 Calc. Voltage @ Surface (Vs) = 0.0253 Voltage @ 1.00 cm (Vt) = 0.0109 Ave. Voltage (Vs+Vt)/2 = 0.0181 Ave. SAR over 1 g (mW/g) = 1.3196 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 01032722_ZOOM Start : 27-Mar-101 04:28:51 pm End : 27-Mar-101 04:40:05 pm SAMSUNG/SCH-N150/1;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01032722_ZOOM Start : 27-Mar-101 04:28:51 pm End : 27-Mar-101 04:40:05 pm SAMSUNG/SCH-N150/1;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.471 1.397 1.323 1.249 1.175 1.102 1.028 0.954 0.880 0.806 File : 01032722_ZOOM Start : 27-Mar-101 04:28:51 pm End : 27-Mar-101 04:40:05 pm SAMSUNG/SCH-N150/1;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.471 1.397 1.323 1.249 1.175 1.102 1.028 0.954 0.880 0.806 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01032728_ZOOM.VLT Start : 27-Mar-101 05:30:33 pm End : 27-Mar-101 05:40:00 pm Radio Type : SAMSUNG Model Number : SCH-N150 Serial Number : 1 Frequency : 824.04 MHz Peak Trans. Pwr : 0.500 W Start Trans. Pwr: 0.500 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG TRI-MODE PHONE - AMPS MODE CHAN 0991 Conducted 27.0 dBm SAMSUNG TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.250, Y = -4.500, Z = 0.000 (cm) Value = 17.730 Measured Values (volts) = 1.773E-002 1.370E-002 1.127E-002 9.679E-003 8.414E-003 7.589E-003 6.993E-003 6.621E-003 6.123E-003 5.554E-003 4.794E-003 3.926E-003 2.990E-003 2.160E-003 1.573E-003 1.257E-003 1.210E-003 1.460E-003 1.863E-003 2.239E-003 2.436E-003 Calc. Voltage @ Surface (Vs) = 0.0222 Voltage @ 1.00 cm (Vt) = 0.0097 Ave. Voltage (Vs+Vt)/2 = 0.0160 Ave. SAR over 1 g (mW/g) = 1.1647 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 01032728_ZOOM Start : 27-Mar-101 05:30:33 pm End : 27-Mar-101 05:40:00 pm SAMSUNG/SCH-N150/1;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01032728_ZOOM Start : 27-Mar-101 05:30:33 pm End : 27-Mar-101 05:40:00 pm SAMSUNG/SCH-N150/1;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.294 1.227 1.161 1.094 1.027 0.961 0.894 0.828 0.761 0.695 File : 01032728_ZOOM Start : 27-Mar-101 05:30:33 pm End : 27-Mar-101 05:40:00 pm SAMSUNG/SCH-N150/1;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.294 1.227 1.161 1.094 1.027 0.961 0.894 0.828 0.761 0.695 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01032724_ZOOM.VLT Start : 27-Mar-101 04:42:56 pm End : 27-Mar-101 04:54:11 pm Radio Type : SAMSUNG Model Number : SCH-N150 Serial Number : 1 Frequency : 836.49 MHz Peak Trans. Pwr : 0.500 W Start Trans. Pwr: 0.500 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SAMSUNG TRI-MODE PHONE - AMPS MODE CHAN 0383 Conducted 27.0 dBm SAMSUNG TRI-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.250, Y = -4.500, Z = 0.000 (cm) Value = 15.567 Measured Values (volts) = 1.549E-002 1.184E-002 9.821E-003 8.312E-003 7.120E-003 6.374E-003 5.888E-003 5.578E-003 5.227E-003 4.747E-003 4.185E-003 3.419E-003 2.676E-003 1.899E-003 1.347E-003 1.030E-003 9.306E-004 1.142E-003 1.511E-003 1.836E-003 2.023E-003 Calc. Voltage @ Surface (Vs) = 0.0195 Voltage @ 1.00 cm (Vt) = 0.0083 Ave. Voltage (Vs+Vt)/2 = 0.0139 Ave. SAR over 1 g (mW/g) = 1.0138 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 01032724_ZOOM Start : 27-Mar-101 04:42:56 pm End : 27-Mar-101 04:54:11 pm SAMSUNG/SCH-N150/1;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01032724_ZOOM Start : 27-Mar-101 04:42:56 pm End : 27-Mar-101 04:54:11 pm SAMSUNG/SCH-N150/1;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.136 1.084 1.032 0.980 0.928 0.875 0.823 0.771 0.719 0.667 File : 01032724_ZOOM Start : 27-Mar-101 04:42:56 pm End : 27-Mar-101 04:54:11 pm SAMSUNG/SCH-N150/1;836.49MHz;W;Helical/In; Head…

Text truncated - open the document above for the full version.

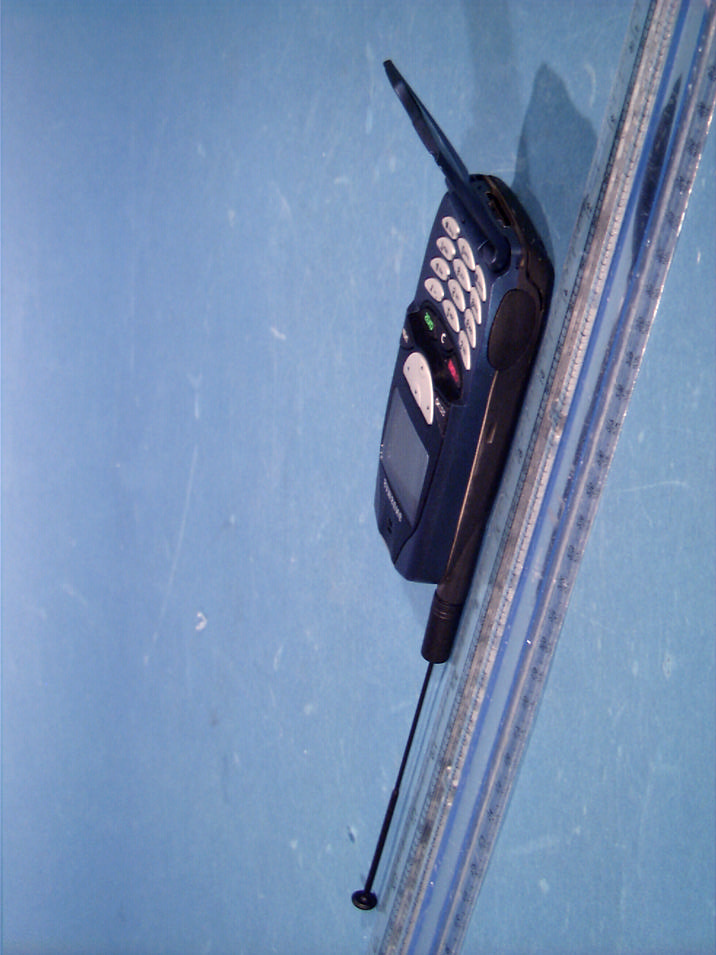

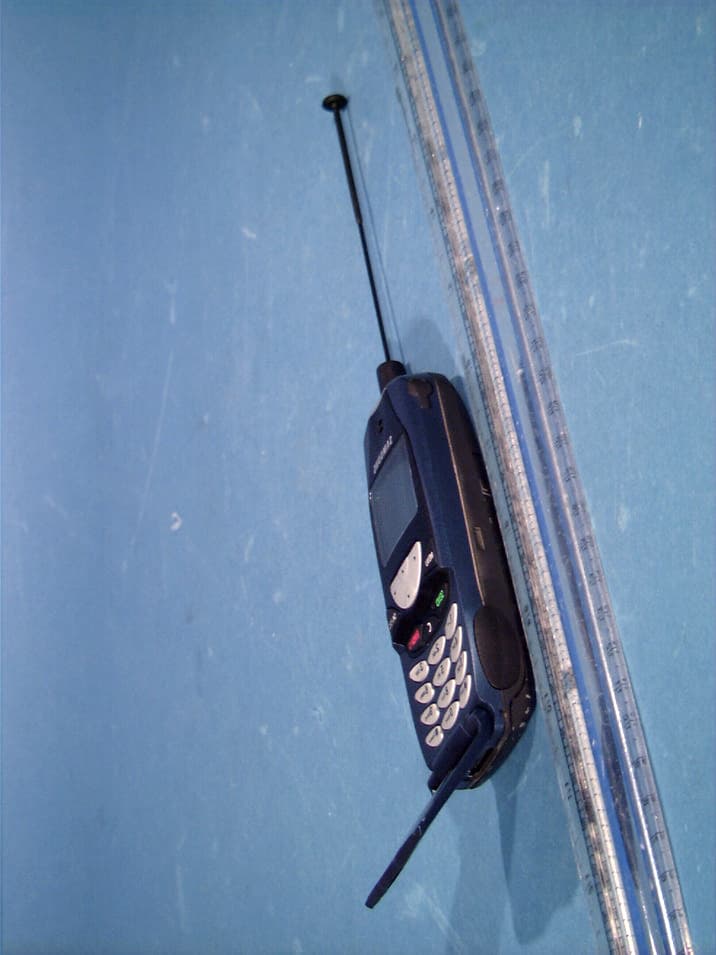

© 2001 PCTEST Lab FCC ID: A3LSCHN150 NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSCHN150 NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSCHN150 NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSCHN150 NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSCHN150 NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: A3LSCHN150 NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: March 26-29, 2001 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: 24/22.210326175.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSCHN150 APPLICANT SAMSUNG ELECTRONICS CO., LTD. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H), §2 EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Trade Name/Model: SAMSUNG SCH-N150 Tx Frequency Range: 824.04MHz – 848.97MHz (AMPS) / 824.70 - 848.31 MHz (CDMA) 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.04MHz – 893.97MHz (AMPS) / 869.70 - 893.31 MHz (CDMA) 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.465 W ERP AMPS (26.67 dBm) 0.294 W ERP CDMA (24.68 dBm) 0.359 W EIRP PCS CDMA (25.55 dBm) Emission Designator(s): 40K0F8W, 40K0F1D, 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210326175.A3L FCC Parts 24 & 22 Certification © 2001 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION 2 3.1 INSERTS 3 4.1 DESCRIPTION OF TESTS 4-7 5.1 EFFECTIVE RADIATED POWER OUTPUT 8-9 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 10 7.1 RADIATED MEASUREMENTS 11-19 8.1 FREQUENCY STABILITY 20-23 9.1 PLOTS OF EMISSIONS 24 10.1 LIST OF TEST EQUIPMENT 25 11.1 SAMPLE CALCULATIONS 26 12.1 CONCLUSION 27 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 24/22.210326175.A3L FCC Parts 24 & 22 Dates of Tests: March 26-29, 2001 Certification © 2001 PCTEST Lab FCC ID: A3LSCHN150 1 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. General…

Text truncated - open the document above for the full version.
