A3LSCHN353Single-Mode Cellular Phone (CDMA)

ELECTRONICS Printed in Korea Code No.: GH68-XXXXX English. 04/2004.Rev.1.0 World Wide Web http://www.samsungmobile.com * Some contents of this manual may differ from your phone depending upon the software of the phone or your service provider. Please read this manual before operating your phone, and keep it for future reference. PORTABLE CELLULAR TELEPHONE SCH-N353 User’s Manual 1 IMPORTANT SAFETY PRECAUTIONS............................................... 5 UNPACKING...................................................................................... 7 YOUR PHONE Phone Layout ...................................................................................... 8 Display .............................................................................................. 11 Backlight ........................................................................................... 13 Service Light ...................................................................................... 13 GETTING STARTED Installing the Battery .......................................................................... 14 Charging the Battery ........................................................................... 15 Switching the Phone On/Off ................................................................ 17 Your Phone’s Modes ........................................................................... 18 Using the Soft Keys ............................................................................ 20 CALL FUNCTIONS Making a Call ..................................................................................... 21 Answering a Call ................................................................................. 27 Options During a Call .......................................................................... 28 Using Caller ID .................................................................................... 29 Viewing Missed Calls ........................................................................... 29 Quickly Switching to Vibrate Mode ....................................................... 30 Quickly Switching to 1-Beep Mode ....................................................... 30 Call Forwarding .................................................................................. 31 Call Waiting ........................................................................................ 31 Three-Way Calling ............................................................................... 32 Table of Contents 32 ENTERING TEXT Changing the Text Input Mode ............................................................. 34 Using the T9(English) Mode ................................................................. 35 Using the Alphabet Mode ..................................................................... 37 Using the Symbol Mode ....................................................................... 38 Using the Number Mode ...................................................................... 39 USING THE MENUS Accessing Menu Functions by Scrolling .................................................. 40 Accessing Menu Functions by Using its Shortcut .................................... 41 List of Menu Functions ......................................................................... 42 PHONE BOOK Find(Menu 1-1)............................................................................. 46 Add Entry (Menu 1-2)..................................................................... 49 Groups (Menu 1-3) ......................................................................... 52 Memory Status (Menu 1-4).............................................................. 53 MESSAGE Write (Menu 2-1)............................................................................. 54 Inbox (Menu 2-2)........................................................................... 56 Outbox (Menu 2-3)......................................................................... 57 Draft (Menu 2-4)............................................................................ 58 Templates (Menu 2-5).................................................................... 58 Erase Messages (Menu 2-6)............................................................. 59 Settings (Menu 2-7)........................................................................ 59 Voice Mail (Menu 2-8)..................................................................... 61 CALL HISTORY Missed (Menu 3-1) .......................................................................... 62 Received (Menu 3-2) ...................................................................... 63 Dialled (Menu 3-3) ......................................................................... 64 Erase History (Menu 3-4) ................................................................ 64 Call Duration (Menu 3-5) ................................................................ 65 SOUND Ringtones(Menu 4-1)..................................................................... 66 Ringer Volume (Menu 4-2).............................................................. 67 Alerts (Menu 4-3)........................................................................... 68 Key Tone (Menu 4-4)...................................................................... 69 Power On/Off Melody (Menu 4-5).................................................. 69 DISPLAY Language (Menu 5-1)...................................................................... 70 Service Area (Menu 5-2).................................................................. 70 Wallpaper (Menu 5-3).................................................................... 70 Banner (Menu 5-4)......................................................................... 71 Backlight (Menu 5-5)...................................................................... 71 LCD Contrast (Menu 5-6)................................................................ 72 ORGANIZER Scheduler…

Text truncated - open the document above for the full version.

April 6, 2004 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSCHN353 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

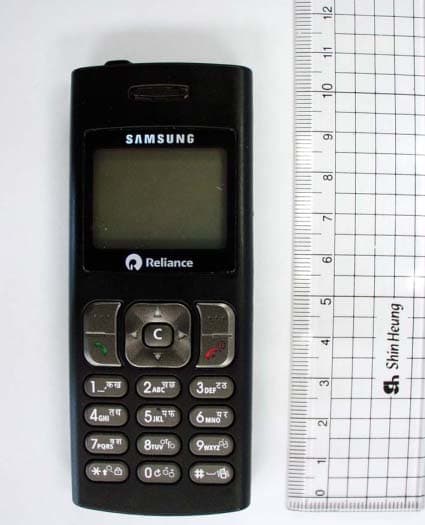

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA)

FCC ID Label Location

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA)

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Team IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 442-742 TEST REPORT ON SAR Model Tested: SCH-N353 FCC ID (Requested): A3LSCHN353 Job No: FB-017 Report No: FB-017-S1 Date issued: Apr. 09, 2004 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By Date MH PARK – Test Engineer Checked By Date JH CHOI - Manager Authorized By Date JK CHOI – Senior Manager 1 of 25 Contents 1. General Information.............................................................................................3 2. Description of Device...........................................................................................3 3. Description of Test Equipment..............................................................................4 3.1 SAR Measurement Setup.........................................................................................4 3.2 Dasy3 E-Field Probe...............................................................................................5 3.3 SAM Phantom.....................................................................................................6 3.4 Brain & Muscle Simulating Mixture Characterization....................................................7 3.5 Device Holder for transmitters.................................................................................8 3.6 Validation Dipole...................................................................................................8 3.7 Equipment Calibration.............................................................................................9 4. SAR Measurement Procedure.............................................................................10 5. Description of test position..............................................................................11 5.1 SAM Phantom Shape............................................................................................11 5.2 Cheek/Touch Position............................................................................................11 5.3 Ear/Tilt 15 Position..............................................................................................13 5.4 Body/Holster/Belt Clip Configuration.......................................................................14 6. Measurement Uncertainty..................................................................................16 7. System Verification.........................................................................................17 7.1 Tissue Verification..............................................................................................17 7.2 Test System Validation...........................................................................................17 8. SAR Measurement Results.................................................................................18 8.1 Measurement Results(Cellular CDMA Right Head SAR-Touch)......................................19 8.2 Measurement Results(Cellular CDMA Right Head SAR-Tilt)..........................................20 8.3 Measurement Results(Cellular CDMA Left Head SAR-Touch)........................................21 8.4 Measurement Results(Cellular CDMA Left Head SAR-Tilt)............................................22 8.5 Measurement Results(Cellular CDMA Body SAR w/o Holster).......................................23 9. Conclusion.......................................................................................................24 10. Reference.......................................................................................................25 Report Number : FB-017-S1 2 of 25 1. GENERAL INFORMATION Test Sample : Single-Mode Cellular Phone (CDMA) Model Number : SCH-N353 Serial Number : Identical prototype (S/N : FB-017-B) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : JK JHUN, Assistant Manager Phone : +82- 31-279-6395 Fax : +82- 31-279-6433 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Non-Broadcast Transmitter Held to Ear (TNE) Test Dates : April 06, 2004 ~ April 07, 2004 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 824.70 – 848.31 MHz (CDMA) Rx Freq. Range : 869.70 – 893.31 MHz (CDMA) Max. RF Output Power : 0.294W ERP PCS (24.69dBm) Antenna Manufacturer : SAMSUNG ELECTRO-MECHANICS Model No. : IAPS000C3728HA Antenna Dimensions : Intenna Report Number : FB-017-S1 3 of 25 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY3 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, Pentium computer, near-field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung Pentium 550MHz computer with Windows 2000 system and SAR Measurement Software DASY3, A/D interface card, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A data acquisition electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. is connected to the Electro-optical coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data t…

Text truncated - open the document above for the full version.

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA)

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3Dong, Youngtong-Gu, Suwon-city, Gyeonggi-Do, Korea 442-600 FCC CFR47 PART 22 SUBPART CERTIFICATION REPORT Model Tested: SCH-N353 FCC ID (Requested): A3LSCHN353 Report No: FB-017-R1 Job No: FB-017 Date issued: April 9, 2004 - Abstract – All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part22. Prepared By Date JH NAM – Test Engineer Checked By Date JH CHOI - Engineer Authorized By Date JK CHOI – Senior Manager © Copyright SAMSUNG Electronics Euro QA Lab 2004 2004.04.10 2004.04.12 2004.04.12 Report Number : FB-017-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information 3 1.1 2.1033 General Information 3 2. INTRODUCTION 4 2.1 General 4 3. MEASURING INSTRUMENT CALIBRATION 5 4. TEST EQUIPMENT LIST 6 5. DESCRIPTION OF TESTS 7 5.1 Effective Radiated Power/Equivalent Isotropic Radiated Power 7 5.2 Radiated Spurious & Harmonic Emission 8 5.3 Occupied Bandwidth 10 5.4 Spurious and Harmonic Emissions at Antenna Terminal 10 5.4.1 Occupied Bandwidth Emission Limits 10 5.4.2 Conducted Spurious Emission 11 5.5 Frequency Stability / Temperature Variation 12 6. TEST DATA 13 6.1 Effective Radiated Power(E.R.P.) 13 6.2 Radiated Spurious & Harmonic Measurement 14 6.3 Radiated Spurious & Harmonic Conversion Table 15 6.4 Frequency Stability 16 6.4.1 Frequency Stability Table 16 6.4.2 Frequency Stability Graph 17 7.SAMPLE CALCULATION 19 7.1 Emission Designator 19 8. CONCLUSION 20 9. TEST PLOTS21 Report Number : FB-017-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Rart2, Subpart J, Sections 2.1033 – 2.1055. 2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416, Maetan-3Dong, Youngtong-Gu, Suwon City Gyeonggi-Do, KOREA 442-600 Attention: FCC ID: Wallace Oh, Engineering Manager (QA Lab) A3LSCHN353 Quantity: Quantity production is planned Emission Designators: 1M25F9W Tx Freq. Range: 824.70-848.31MHz Rx Freq. Range: 869.70-893.31 MHz Max. Power Rating: 0.294W ERP CDMA( 24.69 dBm) FCC Classification(s): Licensed Equipment (EUT) Type: Single modulation CDMA Phone Modulation(s): CDMA Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 22(H), Dates of Test: Apr 06-08, 2004 Place of Test: SAMSUNG Lab, Test Report S/N: FB-017-R1 Report Number : FB-017-R1 2. INTRODUCTION 2.1 General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416,Maetan-3Dong, Youngtong-Gu,, Suwon City, Gyeonggi-Do, KOREA 442- 600 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FB-017-R1 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. End of page – . . Report Number : FB-017-R1 4. TEST EQUIPMENT LIST Name of Equipment Model Serial No. Due Date ESI26 836119/010 2004-09-15 E4440A(3Hz~26.5GHz) MY41000236 2004-11-07 Spectrum Analyzer E4440A(3Hz~26.5GHz) MY41000233 2004-11-14 SMIQ03B 83824/021 2005-01-15 Signal Generator SMR20 835197/030 2005-01-15 E4419B GB41293846 2004-10-02 Power Meter E34401A 3146A78101 2004-07-29 8498A MA91050290 2004-08-13 Power Sensor 8485A 3318A19924 2004-10-04 Amplifier 5S1G4 304866 2004-11-17 Pre-Amplifier 8449B 3008A00691 2005-01-16 8960 GB42230535 2004-11-17 Communication test set 8960 GB42360886 2004-11-10 Antenna Master MA0001 ANT0967 Not Required Controller HD100 100/756 Not Required PL-4S 13005454 2004-08-22 SH-241 92000548 2004-12-04 Environmental Chamber SH-241 92000549 2004-12-04 Horn Antenna HF906 360306/011 2005-03-11 Receive Antenna HL040 353255/019 2004-07-14 8494A 3308A31997 2005-01-17 Attenuator 8496A 3308A14426 2005-01-17 4278-311-2 B3679637 2005-01-14 Directional Coupler 4278-111-2 B103DC8722 2005-01-14 WHK1.0/15G-10SS 1 Not Required WHK1.0/15G-10SS 1 Not Required WHK/3.5/18G-10SS 3 Not Required High Pass Filter WHK/3.5/18G-10SS 4 Not Required Shielded Semi-Anechoic Chamber RF0002 ANT0001 Not Required Power Supply E3640A MY40003595 2004-07-11 Report Number : FB-017-R1 5. DESCRIPTION OF TESTS 5.1 Effective Radiated Power Test Set-up for the ERP/EIRP TEST Effective Radiated Power Output and Equivalent Isotropic Radiated Power Measurements by Substitution Method according to ANSI/TIA/EIA-603-A-2001, Aug. 15, 2001: The EUT was placed on a Non-conducted turntable 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the highest reading on the receive spectrum analyzer. For CDMA signals, an average detector is used, with RBW=VBW=3MHz, SPAN=10MHz. A half-wave dipole was substituted in place of the EUT. This …

Text truncated - open the document above for the full version.

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN353 Single-Mode Cellular Phone(CDMA)
