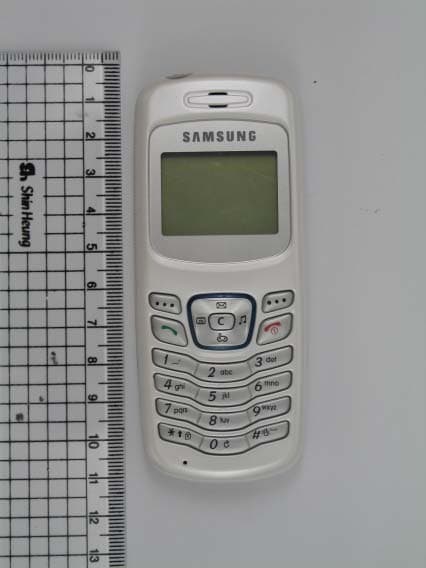

A3LSCHN500Single-Band CDMA Phone

* Some of the contents of this manual may differ from your phone, depending on the software installed or your service provider. World Wide Webhttp://www.samsungmobile.com English 06/2005 Rev.1.0 ELECTRONICS PORTABLE CELLULAR TELEPHONE SCH-N500 User’s Manual Please read this manual before operating your phone, and keep it for future reference. Contents 3 ContentsIMPORTANT SAFETY PRECAUTIONS ............. 7UNPACKING ................................................. 9YOUR PHONE.............................................. 10Phone Layout ........................................... 10Display .................................................... 13Backlight ................................................. 14GETTING STARTED ..................................... 15Installing a Battery ................................... 15Charging the Battery ................................. 16Switching On or Off the Phone .................... 18Using the Soft Keys................................... 19Your Phone’s Modes .................................. 20CALL FUNCTIONS ....................................... 23Making a Call ........................................... 23Answering a Call ....................................... 29Silencing the Call Ringer ............................ 30Options During a Call ................................ 30Using Caller ID ......................................... 31Viewing Missed Calls ................................. 31Call Forwarding ........................................ 32Call Waiting ............................................. 32Three-Way Calling .................................... 33ENTERING TEXT ......................................... 34Changing the Text Input Mode.................... 35Using T9(English) Mode ............................. 36Using Alphabet Mode................................. 37Using Symbol Mode................................... 39Using Number Mode .................................. 39 Contents 4 USING THE MENUS ..................................... 40Accessing a Menu Function by Scrolling........ 40Using Shortcuts ........................................ 41List of Menu Functions ............................... 42PHONE BOOK ............................................. 46Find (Menu 1-1) .......................................... 46 Add Entry (Menu 1-2) .................................. 48 Groups (Menu 1-3) ...................................... 51 Memory Status (Menu 1-4) ........................... 52 MESSAGES.................................................. 53Write (Menu 2-1) ........................................ 53 Inbox (Menu 2-2) ........................................ 58 Outbox (Menu 2-3) ...................................... 59 Drafts (Menu 2-4) ....................................... 59 Templates (Menu 2-5) ................................. 60 Erase Messages (Menu 2-6) .......................... 61 Settings (Menu 2-7) .................................... 61 Voice Mail (Menu 2-8) .................................. 63 SMS Groups (Menu 2-9) .............................. 64 Quick SMS (Menu 2-0) ................................. 64 CALL HISTORY ........................................... 67Missed (Menu 3-1) ...................................... 67 Received (Menu 3-2) ................................... 68 Dialled (Menu 3-3) ...................................... 69 Erase History (Menu 3-4) ............................. 69 Call Duration (Menu 3-5) .............................. 69 Contents 5 SOUND ....................................................... 71Ring Tones (Menu 4-1) ................................ 71 Ringer Volume (Menu 4-2) ............................ 72 Alerts (Menu 4-3) ........................................ 73 Key Tone (Menu 4-4) ................................... 73 Power On/Off Melody (Menu 4-5) .................. 74 DISPLAY .................................................... 75Language (Menu 5-1) .................................. 75 Service Area (Menu 5-2) .............................. 75 Wallpaper (Menu 5-3) .................................. 75 Banner (Menu 5-4) ...................................... 76 Menu Theme (Menu 5-5) ............................... 76 Backlight (Menu 5-6) .................................. 76 LCD Contrast (Menu 5-7) ............................. 77 Quick Menu Indicator (Menu 5-8) .................. 77 ORGANISER ............................................... 78Scheduler (Menu 6-1) .................................. 78 Task List (Menu 6-2) .................................... 82 Memo Pad (Menu 6-3) ................................. 83 Alarm (Menu 6-4) ........................................ 84 Calculator (Menu 6-5) .................................. 85 World Time (Menu 6-6) ................................ 86 Countdown (Menu 6-7) ................................ 87 SETTING .................................................... 89Call (Menu 7-1) ........................................... 89 Phone/System (Menu 7-2) ............................ 93 Security (Menu 7-3) .................................... 95 Contents 6 GAMES ....................................................... 99Jump Jump (Menu 8-1) .............................. 100 Dolmen (Menu 8-2) ................................... 100 Settings (Menu 8-3) .................................. 100 HEALTH AND SAFETY INFORMATION ....... 101Exposure to radio frequency (RF) signals ... 101Road safety............................................ 105Operating environment............................ 106Electronic devices ................................... 106Potentially explosive environment ............. 108Emergency calls...................................... 109Other important safety information ........... 110Care and maintenance............................. 111Acknowledging special precautions and the FCC and industry canada notice ...................... 112APPENDIX ................................................ 114Appendix A:CERTIFI…

Text truncated - open the document above for the full version.















































June 30, 2005        !"# $%&' ( &) "*   +,-   . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4  .(5(65(5 / (5 1 # )57/(5)8 )94144 *4    1    1: ;&/ 1&19<;3<4




















































June 30, 2005
!
 ""
 ""
#$%"
 &
'
()
*+  !

, !
 "-

)


 .
/01
#
 23!

.
A3LSCHN500 , $
5
 5!

1  " .


 !
6
2)
5
 ,
)(
/01
#
 2
3!
  -
 $

 5!
5

' +
7"

7"
8
3
and Operational
 %
"
5

-9
%%  2

:
! "

!  !
  "
 !
$%"
! %
 !
  !
 5 "

-

% !
6
/01
#
 2
3!
 !
-  7
% %

 5!
 !

  "
! 7
 !
 6
6  !




7
%- 2




! 7


-
5 "
6
5
  7
% !
6

/01

#
 2
3!
 !


 5 "
6  !
-
5
- 5


 "%
 !


!
5

 5 "


! "
6  !
7
 "%

 5
! 7


"+ 2







;"
<
"
=
3-
/01
#
"
0





















































































June 30, 2005

!
 ""
 ""
 #
 !
$
%
$&'"
 #
(
)*
+,  !

- !
 ".

*



 /
012
$
 %
3!%
FCC ID: A3LSCHN500 - &
5
 67 "
 5!


7
8 "


   /


 !
9
%*)
 !
%*
5
 -
*)
012
$
 %
3!%
 &
 6  "
 5!
5


'
'
:
'

'
 !
 ;
"
5

 !

 ' %

7
! "

!  !
  "
 !
&'"
! '
 !
  !
 5 "
.

' !
9
012
$
 %3!

 !

.
' '
 5!
 !

  "
! <
 !
 9
9  !




<
'. %


! <


.
5 "
9
5
  <
' !
9

012
$
 %
3!
5


 5 "
9  !
.
5
. 5


 "'
 !


!
5

 5 "


! "
9  !
<

 "'

 5
! <


", %






="
>
"
?
3.
012
$
"
1%

© 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN500 Single Band CDMA Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN500 Single Band CDMA Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN500 Single Band CDMA Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN500 Single Band CDMA Phone

9. Sample Label 10. FCC ID Label Location

© 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN500 Single Band CDMA Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN500 Single Band CDMA Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN500 Single Band CDMA Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN500 Single Band CDMA Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN500 Single Band CDMA Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN500 Single Band CDMA Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN500 Single Band CDMA Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHN500 Single Band CDMA Phone

1 of 25 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Team IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 442-742 TEST REPORT ON SAR Model Tested: SCH-N500 Additional Model: SCH-N501,SCH-N502 SCH-N503,SCH-N504 FCC ID (Requested): A3LSCHN500 Job No: FC-085 Report No: FC-085-S1 Date issued: Jun. 22, 2005 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By Date EH JUNG – Test Engineer Checked By Date SH PARK – Senior Manager Authorized By Date JK CHOI – General Manager Report Number : FC-085-S1 2 of 25 Contents 1. General Information.............................................................................................3 2. Description of Device...........................................................................................3 3. Description of Test Equipment..............................................................................4 3.1 SAR Measurement Setup.........................................................................................4 3.2 DASY4 E-Field Probe.............................................................................................5 3.3 SAM Phantom.....................................................................................................6 3.4 Brain & Muscle Simulating Mixture Characterization....................................................7 3.5 Device Holder for transmitters.................................................................................8 3.6 Validation Dipole...................................................................................................8 3.7 Equipment Calibration.............................................................................................9 4. SAR Measurement Procedure.............................................................................10 5. Description of test position..............................................................................11 5.1 SAM Phantom Shape............................................................................................11 5.2 Cheek/Touch Position............................................................................................11 5.3 Ear/Tilt 15 Position..............................................................................................13 5.4 Body/Holster/Belt Clip Configuration.......................................................................14 6. Measurement Uncertainty..................................................................................16 7. System Verification.........................................................................................17 7.1 Tissue Verification..............................................................................................17 7.2 Test System Validation...........................................................................................17 8. SAR Measurement Results.................................................................................18 8.1 Measurement Results(Cellular CDMA Right Head SAR-Touch)....................................19 8.2 Measurement Results(Cellular CDMA Right Head SAR-Tilt)..........................................20 8.3 Measurement Results(Cellular CDMA Left Head SAR-Touch)........................................21 8.4 Measurement Results(Cellular CDMA Left Head SAR-Tilt)............................................22 8.5 Measurement Results(Cellular CDMA Body SAR w/o Holster).......................................23 9. Conclusion.......................................................................................................24 10. Reference.......................................................................................................25 Report Number : FC-085-S1 3 of 25 1. GENERAL INFORMATION Test Sample : Single-Mode Cellular Phone (CDMA) Model Number : Additional Model : SCH-N500 SCH-N501,SCH-N502,SCH-N503,SCH-N504 Serial Number : Identical prototype ( S/N : FC-085-A ) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : SC CHOI, Engineer Phone : +82-31-279-0851 Fax : None Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Jun. 16, 2005 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 824.70 – 848.31 MHz (CDMA) Rx Freq. Range : 869.70 – 893.31 MHz (CDMA) Max. RF Output Power : 0.241 W ERP CDMA (23.83 dBm) Antenna Manufacturer : INTOPS Model No. : ICS-0085 Antenna Dimensions : [Intenna] 36.6 23.8 7 Report Number : FC-085-S1 4 of 25 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung computer with Windows XP system and SAR Measurement Software DASY4, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A data acquisition electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. is connected to the Electro-optical coupler (EOC). The EOC performs the conversi…

Text truncated - open the document above for the full version.

APPENDIX G Plots of The SAR Measurements SAMSUNG FCC ID : A3LSCHN500 835MHz CDMA Head SAR DUT: SCH-N500; Serial: FC-085-A Program Name: SCH-N500 CDMA Right(Job No. : FC-085) Procedure Name: Cheek/Touch, Ch.0777, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.6;Test Date-16/Jun/2005[OET Bulletin 65- Supplement C, July 2001] Communication System: CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium parameters used: f = 848.31 MHz; σ = 0.9 mho/m; ε r = 40.7; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ES3DV2 - SN3017; ConvF(6.33, 6.33, 6.33); Calibrated: 2004-09-24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2004-12-03 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1141 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch, Ch.0777, Ant.Intenna, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.25 mW/g Cheek/Touch, Ch.0777, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.4 V/m; Power Drift = -0.191 dB Peak SAR (extrapolated) = 1.53 W/kg SAR(1 g) = 1.11 mW/g Maximum value of SAR (measured) = 1.19 mW/g 0 dB = 1.19mW/g SAMSUNG FCC ID : A3LSCHN500 835MHz CDMA Head SAR DUT: SCH-N500; Serial: FC-085-A Program Name: SCH-N500 CDMA Right(Job No. : FC-085) Procedure Name: Ear/Tilt, Ch.0363, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.6;Test Date-16/Jun/2005[OET Bulletin 65- Supplement C, July 2001] Communication System: CDMA; Frequency: 835.89 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835.89 MHz; σ = 0.9 mho/m; ε r = 40.7; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ES3DV2 - SN3017; ConvF(6.33, 6.33, 6.33); Calibrated: 2004-09-24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2004-12-03 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1141 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Ear/Tilt, Ch.0363, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.6 V/m; Power Drift = -0.089 dB Peak SAR (extrapolated) = 0.828 W/kg SAR(1 g) = 0.594 mW/g Maximum value of SAR (measured) = 0.630 mW/g Ear/Tilt, Ch.0363, Ant.Intenna, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.641 mW/g SAMSUNG FCC ID : A3LSCHN500 835MHz CDMA Head SAR DUT: SCH-N500; Serial: FC-085-A Program Name: SCH-N500 CDMA Left(Job No. : FC-085) Procedure Name: Cheek/Touch, Ch.0777, Ant.Intenna, Bat. Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.6;Test Date-16/Jun/2005[OET Bulletin 65- Supplement C, July 2001] Communication System: CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium parameters used: f = 848.31 MHz; σ = 0.9 mho/m; ε r = 40.7; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ES3DV2 - SN3017; ConvF(6.33, 6.33, 6.33); Calibrated: 2004-09-24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2004-12-03 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1141 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch, Ch.0777, Ant.Intenna, Bat. Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 1.25 mW/g Cheek/Touch, Ch.0777, Ant.Intenna, Bat. Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 30.0 V/m; Power Drift = -0.094 dB Peak SAR (extrapolated) = 1.49 W/kg SAR(1 g) = 1.09 mW/g Maximum value of SAR (measured) = 1.17 mW/g 0 dB = 1.17mW/g SAMSUNG FCC ID : A3LSCHN500 835MHz CDMA Head SAR DUT: SCH-N500; Serial: FC-085-A Program Name: SCH-N500 CDMA Left(Job No. : FC-085) Procedure Name: Ear/Tilt, Ch.0363, Ant.Intenna, Bat. Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.6;Test Date-16/Jun/2005[OET Bulletin 65- Supplement C, July 2001] Communication System: CDMA; Frequency: 835.89 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835.89 MHz; σ = 0.9 mho/m; ε r = 40.7; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ES3DV2 - SN3017; ConvF(6.33, 6.33, 6.33); Calibrated: 2004-09-24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2004-12-03 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1141 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Ear/Tilt, Ch.0363, Ant.Intenna, Bat. Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.5 V/m; Power Drift = -0.194 dB Peak SAR (extrapolated) = 0.789 W/kg SAR(1 g) = 0.570 mW/g Maximum value of SAR (measured) = 0.607 mW/g Ear/Tilt, Ch.0363, Ant.Intenna, Bat. Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.628 mW/g SAMSUNG FCC ID : A3LSCHN500 835MHz CDMA Head SAR DUT: SCH-N500; Serial: FC-085-A Program Name: SCH-N500 CDMA Body (Job No. : FC-085) Procedure Name: Body, Ch. 0363, Ant. Intenna, Bat. Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.7;Test Date-16/Jun/2005[OET Bulletin 65- Supplement C, July 2001] Communication System: CDMA; Frequency: 835.89 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835.89 MHz; σ = 0.95 mho/m; ε r = 53.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3017; ConvF(6.28, 6.28, 6.28); Calibrated: 2004-09-24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2004-12-03 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1143 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Body, Ch. 0363, Ant. Intenna, Bat. Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.9 V/m…

Text truncated - open the document above for the full version.

APPENDIX H Probe Calibration

APPENDIX F The Validation Measurements DUT: Dipole 835 MHz; Serial: 451 Program Name: 835MHz Dipole Validation 2005.06.16 Procedure Name: 835MHz @ 250mW Procedure Notes: Communication System: CDMA; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.9 mho/m; ε r = 40.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3017; ConvF(6.33, 6.33, 6.33); Calibrated: 2004-09-24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2004-12-03 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1141 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 835MHz @ 250mW/Area Scan (51x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 2.69 mW/g 835MHz @ 250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.7 V/m; Power Drift = -0.071 dB Peak SAR (extrapolated) = 3.67 W/kg SAR(1 g) = 2.45 mW/g Maximum value of SAR (measured) = 2.64 mW/g 0 dB = 2.64mW/g

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 22 SUBPART CERTIFICATION REPORT Model Tested: SCH-N500 Additional Model: SCH-N501, SCH-N502 SCH-N503, SCH-N504 FCC ID (Requested): A3LSCHN500 Report No: FC-085-R1 Job No: FC-085 Date issued: June 22, 2005 - Abstract – All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part22. Prepared By Date YE PARK – Test Engineer Checked By Date SH PARK – Senior Manager Authorized By Date JK CHOI – General Manager © Copyright SAMSUNG Electronics 2005 Report Number : FC-085-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information 3 1.1 2.1033 General Information 3 2. INTRODUCTION 4 2.1 General 4 3. MEASURING INSTRUMENT CALIBRATION 5 4. TEST EQUIPMENT LIST 6 5. DESCRIPTION OF TESTS 7 5.1 Effective Radiated Power/Equivalent Isotropic Radiated Power 7 5.2 Radiated Spurious & Harmonic Emission 8 5.3 Occupied Bandwidth 10 5.4 Spurious and Harmonic Emissions at Antenna Terminal 10 5.4.1 Occupied Bandwidth Emission Limits 10 5.4.2 Conducted Spurious Emission 11 5.5 Frequency Stability / Temperature Variation 12 6. TEST DATA 13 6.1 Effective Radiated Power(E.R.P.) 13 6.2 Radiated Spurious & Harmonic Measurement 14 6.3 Radiated Spurious & Harmonic Conversion Table 15 6.4 Frequency Stability 16 6.4.1 Frequency Stability Table 16 6.4.2 Frequency Stability Graph 17 7.SAMPLE CALCULATION 19 7.1 Emission Designator 19 8. CONCLUSION 20 9. TEST PLOTS21 Report Number : FC-085-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47 CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1 2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416 Maetan3-Dong, Yeongtong-Gu, Suwon City Gyeonggi-Do, Korea 443-742 Attention: FCC ID: SungJoo KIM, Engineering Manager (QA Lab) A3LSCHN500 Additional Model SCH-N501, SCH-N502, SCH-N503, SCH-N504 Quantity: Quantity production is planned Emission Designators: 1M25F9W Tx Freq. Range: 824.70-848.31MHz Rx Freq. Range: 869.70-893.31 MHz Max. Power Rating: 0.242W ERP CDMA (23.83 dBm) FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) Equipment (EUT) Type: Single-Mode Cellular Phone Modulation(s): CDMA Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 22(H), Dates of Test: June. 15, 17, 2005 Place of Test: SAMSUNG Lab, Test Report S/N: FC-085-R1 Report Number : FC-085-R1 2. INTRODUCTION 2.1 General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu,, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FC-085-R1 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. - End of page - Report Number : FC-085-R1 4. TEST EQUIPMENT LIST Name of Equipment Model Serial No. Due Date ESI26 836119/010 2005-09-20 E4440A(3Hz~26.5GHz) MY41000236 2005-10-27 Spectrum Analyzer E4440A(3Hz~26.5GHz) MY41000233 2005-11-04 SMIQ03B 83824/021 2005-12-27 Signal Generator SMR20 835197/030 2006-01-18 Power Meter E4419B GB41293846 2005-09-21 8481B 3318A10325 2005-10-06 Power Sensor 8485A 3318A19924 2005-09-20 Amplifier 5S1G4 304866 2005-10-19 Pre-Amplifier 8449B 3008A00691 2006-01-11 8960 GB42230535 2005-11-04 Communication test set 8960 GB42360886 2005-10-27 Antenna Master MA0001 ANT0967 Not Required Controller HD100 100/756 Not Required PL-4S 13005454 2005-07-31 SH-241 92000548 2005-11-22 Environmental Chamber SH-241 92000549 2005-11-22 Horn Antenna HF906 360306/011 2006-03-17 Dipole Antenna 3121C-DB4 9007-587 2005-12-02 Receive Antenna HL040 353255/019 2005-08-13 8494A 3308A31997 2006-01-03 Attenuator 8496A 3308A14426 2006-01-04 11636B 51941 Not Required 11636B 51942 Not Required Divider 11636B 51946 Not Required WHK1.0/15G-10SS 1 Not Required WHK1.0/15G-10SS 1 Not Required WHK/3.5/18G-10SS 3 Not Required High Pass Filter WHK/3.5/18G-10SS 4 Not Required Shielded Fully Anechoic Chamber RF0002 ANT0001 Not Required Report Number : FC-085-R1 5. DESCRIPTION OF TESTS 5.1 Effective Radiated Power Test Set-up for the ERP/EIRP TEST Effective Radiated Power Output and Equivalent Isotropic Radiated Power Measurements by Substitution Method according to ANSI/TIA/EIA-603-A-2001, Aug. 15, 2001: The EUT was placed on a Non-conducted turntable 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the highest reading on the receive spectrum analyzer. For CDMA signals, an average detector is used, with RBW=…
