A3LSCHR210Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA)

* Depending on the software installed or your service provider or country, some of the descriptions in this guide may not match your phone exactly. * Depending on your country, your phone and accessories may appear different from the illust rations in this guide. World Wide Web http://www.samsungmobile.com R210.book Page 1 Monday, Sep tember 18, 200 6 10:34 AM SCH-R210User’s Guide D r af t 0 . 1 2 0 0 6 . 0 8 . 0 7 R210.book Page 2 Monday, Sep tember 18, 200 6 10:34 AM Intellectual PropertyAll Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relati ng to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and intern ational treaty provisions. Intellectual Property includ es, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Samsung Telecommunications America (STA), Inc.Headquarters:1301 East Lookout Drive Suite 150 Richardson, TX 75082 Internet Address: http://www.samsungusa.com©2006 Samsung Telecommunications America, Inc. is a registered trademark of Samsung Electronics America, Inc. and its related entities.Printed in South KoreaGH68-xxxxxAOpenwave® is a registered Trademark of Openwave, Inc.RSA® is a registered TrademarSk RSA Security, Inc. R210.book Page 3 Monday, Sep tember 18, 200 6 10:34 AM Disclaimer of Warranties ; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT “AS IS”, AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. R210.book Page 4 Monday, Sep tember 18, 200 6 10:34 AM 1 Drive safely at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. R210.book Page 1 Monday, Sep tember 18, 200 6 10:34 AM Important safety precautions 2 Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children. Accessories and batteriesUse only Samsung-approved accessories and batteries. Use of any unauthorized accessories could damage your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 22. • The phone could explode if the battery is replaced with an incorrect type.• Dispose of the used batteries according to the manufacturer’s instructions. R210.book Page 2 Monday, Sep tember 18, 200 6 10:34 AM 3 Contents Overview of menu functions 4 Your phone 7 Keys, features, and locationsUnpack 7 Make sure you have each itemGet started 8 First steps to operating your phoneInstall and charge the phone ..................................... 8Power on or off........................................................ 9Keys ..................................................................... 10Menu functions 11 All menu options listed Solve problems 17 Help and personal needsHealth and safety information 19 R210.book Page 3 Monday, Sep tember 18, 200 6 10:34 AM 4 1 Messages1 New Text Msg2 Inbox3 Outbox4 Drafts5 Voicemail6 Wap Push7 Msg Setting8 Erase Msg2 Axcess Shop1 Axcess Shop3 Axcess Web1 Axcess Web4 Contacts1 Find2 Add3 Rename Group4 Memory 5 Calls1 Outgoing2 Incoming3 Missed4 Erase Logs5 Call Timer6 Data Counter6 Gallery1 Image Gallery2 Melody Gallery3 Animelody Gallery7 Tools1 Today2 Calendar3 To Do List4 Alarm Clock5 Me…

Text truncated - open the document above for the full version.


















18600 Broadwick Street






September 25, 2006        !"# $%&' ( &) "*   +,-   . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4  .(5(65(5 / (5 1 # )57/(5)8 )94144 *4    1    1: ;&/ 1&19<;3<4 SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: September 25, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LS CHR210 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD. SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 September 25, 2006 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 FCC ID: A3LSCHR210 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSCHR210), using the Automatic A/B Roaming Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure will recognize when a“9-1-1”call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Steve Kim General Manager American QA Lab SAMSUNG Electronics America INC. Federal Communications Commission. 7435 Oakland Mills Road Columbia, MD 21046 DATE : September 25, 2006 Re : PCS Licensed Transmitter held to ear FCC ID : A3LS CHR210 DOC to FCC ID: A3 LSCHR210 To Whom It May Concern: We hereby certify that this transmit and receive equipment (FCC ID: A3LSCH R210) for tri-Mode mobile station cellular use is capable of compliance with the TIA/EIA-95-B and CDMA-2000 Mobile Station-Base Station Compatibility Standards for Dual-Band Spread Spectrum Systems, Furthermore, we certify compliance to ANSI/TIA/EIA-553-A-1999, Mobile Station- Land Station Compatibility Specification. Should you have any questions or comments concerning the above, Please contact the undersigned. Sincerely Yours, Seoung-Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory & Compliance Group . SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu, Suwon-si,Gyeonggi-do,442-600 Korea

CONFIDENTIAL SCH-R210 Dual-Band Tri-Mode - 46 - 9. Sample Label & Location 폴리프로필렌 한성씨링 제작 주기 문자 및 내용은 당사가 제공하는 에 준할것 바탕색은문자색은삼성 는 반대임 배면에 점착재 도포후 박리지 부착할것 문자는 흐림이나 번짐이 없을것 양산은 설계부서의 승인을 득한후 적용할것 본 품의 사양은 한도 승인견본에 준한다 양산품 입고시 이어야함 그라싱지의 색상은 파랑색으로 통일할것 김주균 조경환 반투명 라미네팅코 CONFIDENTIAL SCH-R210 Dual-Band Tri-Mode - 47 -

of 38 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SCH-R210 FCC ID (Requested): A3LSCHR210 Job No: FD-172 Report No: FD-172-S1 Date issued: Sep.22, 2006 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By YB KIM – Test Engineer Checked By JH NAM – Senior Engineer Authorized By SH PARK – Senior Manager Report Number: FD-172-S1 2 of 38 Contents 2. DESCRIPTION OF DEVICE.......................................................................................................3 3. DESCRIPTION OF TEST EQUIPMENT ..................................................................................... 4 3.1 SAR Measurement Setup .................................................................................................. 4 3.2 E-field Probe ..................................................................................................................... 6 3.3 SAM Phantom ................................................................................................................... 8 3.4 Brain & Muscle Simulating Mixture Characterization .......................................................... 8 3.5 Device Holder for Transmitters .......................................................................................... 9 3.6 Validation Dipole ............................................................................................................... 9 3.7 Equipment Calibration ......................................................................................................10 4. SAR MEASUREMENT PROCEDURE ......................................................................................11 5. DESCRIPTION OF TEST POSITION ........................................................................................12 5.1 SAM Phantom Shape .......................................................................................................12 5.2 Cheek/Touch Position.......................................................................................................12 5.3 EAR/Tilt 15° Position ........................................................................................................14 5.4 Body Holster/Belt Clip Configurations ...............................................................................15 6. MEASUREMENT UNCERTAINTY ............................................................................................17 7. SYSTEM VERIFICATION..........................................................................................................19 7.1 Tissue Verification ............................................................................................................19 7.2 Test System Validation .....................................................................................................19 8. SAR MEASUREMENT RESULTS.............................................................................................20 8.1 Measurement Results(AMPS Right Head SAR - Touch)....................................................22 8.2 Measurement Results(AMPS Right Head SAR - Tilt) ........................................................23 8.3 Measurement Results(AMPS Left Head SAR - Touch) ......................................................24 8.4 Measurement Results(AMPS Left Head SAR - Tilt)...........................................................25 8.5 Measurement Results(AMPS Body SAR without Holster) .................................................26 8.6 Measurement Results(CDMA Right Head SAR - Touch) ...................................................27 8.7 Measurement Results(CDMA Right Head SAR - Tilt) ........................................................28 8.8 Measurement Results(CDMA Left Head SAR - Touch)......................................................29 8.9 Measurement Results(CDMA Left Head SAR - Tilt)...........................................................30 8.10 Measurement Results(CDMA Body SAR without Holster) ...............................................31 8.11 Measurement Results(PCS Right Head SAR - Touch).....................................................32 8.12 Measurement Results(PCS Right Head SAR - Tilt) .........................................................33 8.13 Measurement Results(PCS Left Head SAR - Touch).......................................................34 8.14 Measurement Results(PCS Left Head SAR - Tilt) ...........................................................35 8.15 Measurement Results(PCS Body SAR without Holster) ..................................................36 9. CONCLUSION..........................................................................................................................37 10. REFERENCES .......................................................................................................................38 Report Number: FD-172-S1 3 of 38 1. GENERAL INFORMATION Test Sample : Tri-Mode Dual-Band Analog/PCS Phone(AMPS/CDMA) Model Number : SCH-R210 Serial Number : Identical prototype (S/N : # FD-172-A) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : MS NOH Phone : +82-54-479-3555 Fax : +82-54-479-5866 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Sep.12, 2006 ~ Sep.13, 2006 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 824.04 ~ 848.9 MHz (AMPS) 824.70 ~ 848.31 MHz (CDMA) 1851.25 ~ 1908.75 MHz (PCS) Rx Freq. Range : 869.04 ~ 893.97 MHz (AMPS) 869.70 ~ 893.31 MHz (CDMA) 1931.25 ~ 1988.75 MHz (PCS) Max. RF Output Power : 0.327 W ERP AMPS (25.15 dBm) 0.385 W ERP CDMA (25.85 dBm) 0.295 W EIRP PCS (24.70 dBm) Antenna Manufacturer : SAMSUNG ELECTRONICS Model No.: IAPC0R210A Antenna Dimensions : 38.62mm Report Number: FD-172-…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 22 & 24 SUBPART CERTIFICATION REPORT Model Tested: SCH-R210 FCC ID (Requested): A3LSCHR210 Report No: FD-172-R1 Job No: FD-172 Date issued: September 19, 2006 - Abstract – All measurement reported here in accordance with FCC Rules, 47CFR Part2, Part22, Part24. Prepared By Date SH ONG – Test Engineer Checked By Date WW JANG – Manager Authorized By Date SH PARK – Senior Manager © Copyright SAMSUNG Electronics 2006 Report Number : FD-172-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information 3 1.1 2.1033 General Information 3 2. INTRODUCTION 4 2.1 General 4 3. MEASURING INSTRUMENT CALIBRATION 5 4. TEST EQUIPMENT LIST 6 5. DESCRIPTION OF TESTS 7 5.1.Output Power Variation 7 5.2 Effective Radiated Power/Equivalent Isotropic Radiated Power 8 5.3 Radiated Spurious & Harmonic Emission 9 5.4 Occupied Bandwidth 11 5.5 Spurious and Harmonic Emissions at Antenna Terminal 11 5.5.1 Occupied Bandwidth Emission Limits 11 5.5.2 Conducted Spurious Emission 12 5.6 Frequency Stability / Temperature Variation 13 6. TEST DATA 14 6.1 Effective Radiated Power(E.R.P.) 14 6.2 Equivalent Isotropic Radiated Power(E.I.R.P.) 15 6.3 Cellular CDMA Radiated Spurious & Harmonic Measurement 16 6.4 PCS CDMA Radiated Spurious & Harmonic Measurement 17 6.5 CDMA Radiated Spurious & Harmonic Conversion Table 18 6.6 PCS Radiated Spurious & Harmonic Conversion Table 19 6.7 Frequency Stability 20 6.7.1 CDMA Frequency Stability Table 20 6.7.2 PCS Frequency Stability Table 21 6.7.3 CDMA Frequency Stability Graph 22 6.7.4 PCS Frequency Stability Graph 24 7.SAMPLE CALCULATION 26 7.1 Emission Designator 8. CONCLUSION 27 9. TEST PLOTS 28 Report Number : FD-172-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1 §2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 Attention: FCC ID: SungJoo KIM, Engineering Manager (QA Lab) A3LSCHR210 Quantity: Quantity production is planned Emission Designators: 40K0F8W, 40K0F1D(AMPS), 1M26F9W Tx Freq. Range: 824.04-848.97MHz (AMPS) 824.70-848.31MHz (CDMA) 1851.25-1908.75MHz (PCS CDMA) Rx Freq. Range: 869.04-893.97 MHz (AMPS) 869.70-893.31 MHz (CDMA) 1931.25-1988.75 MHz (PCS CDMA) Max. Power Rating: 0.328 W ERP AMPS( 25.15 dBm) 0.385 W ERP CDMA( 25.85 dBm) 0.295 W EIRP PCS CDMA (24.70 dBm) FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) Equipment (EUT) Type: Modulation(s): AMPS/CDMA Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 24(E), 22(H), 2. Dates of Test: September 11-12, 2006 Place of Test: SAMSUNG Lab, Test Report S/N: FD-172-R1 Report Number : FD-172-R1 2. INTRODUCTION 2.1 General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FD-172-R1 3.MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. - End of page - Report Number : FD-172-R1 4. TEST EQUIPMENT LIST Name Of Equipment Model Serial No. Due Date Spectrum Analyzer ESI26 836119/010 2006-09-26 E4440A(3Hz~26.5GHz)MY41000236 2007-04-14 E4440A(3Hz~26.5GHz)MY41000233 2007-04-05 Signal Generator SMIQ03B 83824/021 2006-12-07 SMR20 835197/030 2007-01-10 Power Meter E4419B GB41293846 2007-09-06 Power Sensor E9300B MY41495557 2007-04-17 Amplifier 5S1G4 304866 2006-10-18 Pre-Amplifier 8449B 3008A00691 2007-01-02 Communication test set 8960 GB42230535 2007-01-02 8960 GB42360886 2007-07-03 Antenna Master MA240 240/618 Not Required Controller HD100 100/756 Not Required Environmental Chamber SH-241 92000548 2006-11-22 SH-241 92000549 2006-11-22 Horn Antenna HF906 360306/011 2007-03-31 Dipole Antenna 3121C-DB4 9007-587 2006-12-02 Receive Antenna HL040 353255/020 2007-04-25 Divider 11636B 51941 Not Required 11636B 51942 Not Required 11636B 51946 Not Required High Pass Filter WHK1.0/15G-10SS 1 Not Required WHK/3.5/18G-10SS 4 Not Required Shielded Fully Anechoic Chamber CHAMBER ANT0001 Not Required Report Number : FD-172-R1 5. DESCRIPTION OF TESTS 5.1 Output Power Variation Test Condition to measure the Output Power This device was tested under all R.C.s and S.O.s and worst case is reported with RC3/SO55, with “All Up” power control bits. The following procedures were followed according to FCC “SAR Measurement P…

Text truncated - open the document above for the full version.

PCTEST™ PT. 22/24 SUPPLEMENT FCC MEASUREMENT SUPPLEMENT Reviewed By: Quality Manager Test Report S/N: 0609250841 Test Dates: September 28, 2006 Phone Type: Tri-mode Dual-Band Analog/PCS Phone (AMPS/CDMA) FCC ID: A3LSCHR210 Page 1 of 6 © 2006 PCTEST ENGINEERING LABORATORY, INC. 1.1 Test Data 1.2 Effective Radiated Power Output A. POWER: Low (Analog Mode) Freq. Tuned REF. LEVEL AFCLPOLERPERP (MHz)(dBm)(dB)(H/V)(W)(dBm) 824.04-36.40031.65H0.0034.873 836.49-36.27531.81H0.0035.154 848.97-36.60031.96H0.0034.985 B. POWER: High (Analog Mode) Freq. Tuned REF. LEVEL AFCLPOLERPERPBATTERY (MHz)(dBm)(dB)(H/V)(W)(dBm) 824.04-16.40031.65H0.3071324.873Standard 836.49-16.27531.81H0.3276325.154Standard 848.97-16.60031.96H0.3151324.985Standard NOTES: Effective Radiated Power Output Measurements by Substitution Method according to ANSI/TIA/EIA-603-A-2001, Aug. 15, 2001: The EUT was placed on a wooden turn table 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. The conducted power at the terminals of the dipole is measured. The ERP is recorded. PCTEST™ PT. 22/24 SUPPLEMENT FCC MEASUREMENT SUPPLEMENT Reviewed By: Quality Manager Test Report S/N: 0609250841 Test Dates: September 28, 2006 Phone Type: Tri-mode Dual-Band Analog/PCS Phone (AMPS/CDMA) FCC ID: A3LSCHR210 Page 2 of 6 © 2006 PCTEST ENGINEERING LABORATORY, INC. 2.1 Test Data 2.2 AMPS Radiated Measurements Field Strength of SPURIOUS Radiation OPERATING FREQUENCY: 824.04MHz CHANNEL: 0991 (Low) MEASURED OUTPUT POWER: 25.154 dBm =0.328W MODULATION SIGNAL: FM (Internal) DISTANCE: 3meters LIMIT: 43 + 10 log 10 (W) = 38.15 dBc FREQ. LEVEL @ ANTENNA SUBSTITUTE ANTENNA CORRECT GENERATOR POL (MHz) TERMINALS (dBm) GAIN (dBd) LEVEL (dBm) (H/V) 1648.08-52.386.10-46.28H 2472.12-65.886.70-59.18H 3296.16-77.486.80-70.68H 4120.20-85.786.50-79.28H 4944.24-84.387.00-77.38H NOTES: (dBc) 71.4 84.3 95.8 104.4 102.5 Radiated Spurious Emission Measurements by Substitution Method according to ANSI/TIA/EIA-603-A-2001, Aug. 15, 2001: The EUT was placed on a wooden turn table 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This spurious level is recorded. For readings above 1GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic or dipole antenna are taken into consideration. PCTEST™ PT. 22/24 SUPPLEMENT FCC MEASUREMENT SUPPLEMENT Reviewed By: Quality Manager Test Report S/N: 0609250841 Test Dates: September 28, 2006 Phone Type: Tri-mode Dual-Band Analog/PCS Phone (AMPS/CDMA) FCC ID: A3LSCHR210 Page 3 of 6 © 2006 PCTEST ENGINEERING LABORATORY, INC. 2.1 Test Data (Continued) 2.3 AMPS Radiated Measurements Field Strength of SPURIOUS Radiation OPERATING FREQUENCY: 836.49MHz CHANNEL: 0383 (Mid) MEASURED OUTPUT POWER: 25.154 dBm =0.328W MODULATION SIGNAL: FM (Internal) DISTANCE: 3meters LIMIT: 43 + 10 log 10 (W) = 38.15 dBc FREQ. LEVEL @ ANTENNA SUBSTITUTE ANTENNA CORRECT GENERATOR POL (MHz) TERMINALS (dBm) GAIN (dBd) LEVEL (dBm) (H/V) 1672.98-49.886.10-43.78H 2509.47-65.286.70-58.58H 3345.96-73.486.80-66.68H 4182.45-72.686.50-66.18H 5018.94-83.887.00-76.88H NOTES: (dBc) 68.9 83.7 91.8 91.3 102.0 Radiated Spurious Emission Measurements by Substitution Method according to ANSI/TIA/EIA-603-A-2001, Aug. 15, 2001: The EUT was placed on a wooden turn table 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This spurious level is recorded. For readings above 1GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic or dipole antenna are taken into consideration. PCTEST™ PT. 22/24 SUPPLEMENT FCC MEASUREMENT SUPPLEMENT Reviewed By: Quality Manager Test Report S/N: 0609250841 Test Dates: September 28, 2006 Phone Type: Tri-mode Dual-Band Analog/PCS Phone (AMPS/CDMA) FCC ID: A3LSCHR210 Page 4 of 6 © 2006 PCTEST ENGINEERING LABORATORY, INC. 2.1 Test Data (Continued) 2.4 AMPS Radiated Measurements Field Strength of SPURIOUS Radiation OPERATING FREQUENCY: 848.97MHz CHANNEL: 0799 (High) MEASURED OUTPUT POWER: 25.154 dBm =0.328W MODULATION SIGNAL: FM (Internal) DISTANCE: 3meters LIMIT: 43 + 10 log 10 (W) = 38.15 dBc FREQ. LEVEL @ ANTENNA SUBSTITUTE ANTENNA CORRECT GENERATOR POL (MHz) TERMINALS (dBm) GAIN (dBd) LEVEL (dBm) (H/V) 1697.94-60.786.10-54.68H 2546.91-74.886.70-68.18H 3395.88-81.286.80-74.48H 4244.85-85.786.50-79.28H 5093.82-83.987.00-76.98H NOTES: (dBc) 79.8 93.3 99.6 104.4 102.1 Radiated Spurious Emission Measurements by Substitution Method according to ANSI/TIA/EIA-603-A-2001, Aug. 15, 2001: The EUT was placed on a wooden turn table 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This spurious level is recorded. For readin gs above 1GHz, the above procedure is repeated using horn antennas and the diff…

Text truncated - open the document above for the full version.

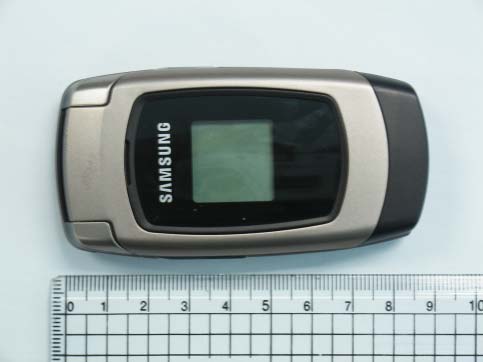

© 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHR210 Tri-Mode Dual-Band Analog/PCS Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHR210 Tri-Mode Dual-Band Analog/PCS Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHR210 Tri-Mode Dual-Band Analog/PCS Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHR210 Tri-Mode Dual-Band Analog/PCS Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHR210 Tri-Mode Dual-Band Analog/PCS Phone © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHR210 Tri-Mode Dual-Band Analog/PCS Phone

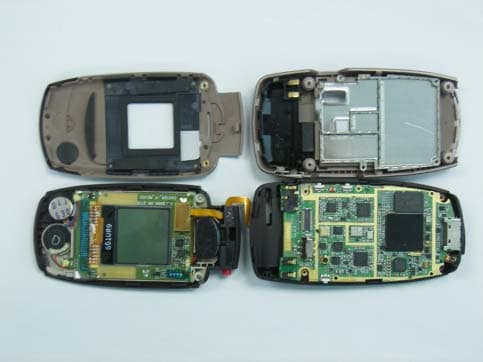

© 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHR210 Tri-Mode Dual-Band Analog/PCS Phone(AMPS/CDMA) © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHR210 Tri-Mode Dual-Band Analog/PCS Phone(AMPS/CDMA) © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHR210 Tri-Mode Dual-Band Analog/PCS Phone(AMPS/CDMA) © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHR210 Tri-Mode Dual-Band Analog/PCS Phone(AMPS/CDMA) © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3L…
