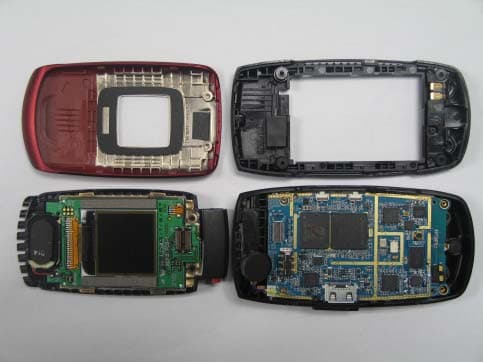

A3LSCHR300Cellular/PCS CDMA Phone

R300.book Page 1 Tuesday, July 24, 200 7 10:41 AM ,y ad se uT 2 egaP koob.00 3 R 002 , 4 2 yl u J M A 1 4:01 7 C M Y CM MY CY CMY K Acr89.pdf 2007-07-26 오전 8:06:57Acr89.pdf 2007-07-26 오전 8:06:57 Intellectual PropertyAll Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relati ng to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and intern ational treaty provisions. Intellectual Property includ es, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Samsung Telecommunications America (STA), Inc.Headquarters:1301 East Lookout Drive Suite 150 Richardson, TX 75082 Tel: 972.761.7000 Customer Care Center:1601 E. Plano Parkway, Suite 150 Plano, TX 75074Toll Free Tel: 1.888.987.HELP (4357)Fax: 972.801.6065Internet Address: http://www.samsungusa.com©2004 Samsung Telecommunications America, Inc. is a registered trademark of Samsung Electronics America, Inc. and its related entities.Licensed by Qualcomm Incorporated under one or more of the following patents: U.S. Patent No. 4, 901, 307; 5, 056, 109; 5, 099, 204; 5,101, 501; 5, 103, 459; 5, 107, 225; 5, 109, 390.Openwave® is a registered Trademark of Openwave, Inc.RSA® is a registered TrademarSk RSA Security, Inc. R300.book Page 3 Tuesday, July 24, 200 7 10:41 AM Disclaimer of Warranties; Exclusion of LiabilityEXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. R300.book Page 4 Tuesday, July 24, 200 7 10:41 AM Use road safety at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. R300.book Page 5 Tuesday, July 24, 200 7 10:41 AM Important safety precautions 1 InterferenceAll wireless phones may be subject to interference, which could affect their performance. Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callKey in the emergency number for your present location, then press [SEND]. Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children.Accessories and batteriesUse only Samsung-approved accessories and batteries. Use of any unauthorized accessories could damage your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 16. • The phone could explode if the battery is replaced with an incorrect type.• Dispose used batteries according to the manufacturer’s instructions. R300.book Page 1 Tuesday, July 24, 200 7 10:41 AM 2 Contents Unpack 3 Make sure you have each itemGet started 4 First steps to operate your phoneMenu functions 8 All menu options listedSolve problems 17 Help and personal needsHealth and safety information 19 R300.book Page 2 Tuesday, July 24, 200 7 10:41 AM 3 Unpack Make sure you have each itemYou can obtain the following accessories for your phone from your local Samsung dealer. Yo u r p h o n e Phone Travel adapter Battery User’s manual • Headset • Battery charger • Portable hands-free • Data link cable• Standard/Extended battery • Travel charger/ adapter • Car charger/adapter • Bluetooth full hands-free kit • Bluetooth headset kit R300.book Page 3 Tuesday, July 24, 200 7 10:41 AM 4 Get started First steps to operate your phoneInstall and charge the phoneLow battery indicatorWhen the battery is low:• a warning tone sounds,• t…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: September 17, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHR300 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics CONFIDENTIAL 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 DATE : August 30, 2007 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Subject: HAC filing FCC ID: A3LSCHR300 Gentlemen: We, Samsung Electronics, hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Steve Kim General Manager American QA Lab SAMSUNG Electronics America INC. SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220

—–“ —™–— “Œ•Œ zjoTyZWW O⮈䏬⦐GwjzP no]_ MODEL : SCH-R 300 FCC ID : A3LSCHR300 FOR INFORMATION CALL : 1 888 987-4357 PORTABLE Dualband PHONE Y\ Z_ MODEL : SCH-R300 FCC ID : A3LSCHR300 FOR INFORMATION CALL : 1 888 987-4357 PORTABLE Dualband PHONE

୍ of 33 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SCH-R300 FCC ID (Requested): A3LSCHR300 Job No: FE-169 Report No: FE-169-S1 Date issued: Oct.01, 2007 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By G G G YB KIM - Test Engineer Authorized By G G G JH NAM - Technical -Manager G Report Number: FE-169-S1 2 of 33 Contents 1. GENERAL INFORMATION............................................................................................................. 3G 2. DESCRIPTION OF DEVICE ........................................................................................................... 3G 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................... 4G 3.1 SAR Measurement Setup ......................................................................................................4G 3.3 SAM Phantom ........................................................................................................................ 8G 3.4 Brain & Muscle Simulating Mixture Characterization ............................................................. 8G 3.5 Device Holder for Transmitters ..............................................................................................9G 3.6 Validation Dipole .................................................................................................................... 9G 3.7 Equipment Calibration.......................................................................................................... 10G 4. SAR MEASUREMENT PROCEDURE ......................................................................................... 11G 5. DESCRIPTION OF TEST POSITION ........................................................................................... 12G 5.1 SAM Phantom Shape...........................................................................................................12G 5.2 Cheek/Touch Position .......................................................................................................... 12G 5.3 EAR/Tilt 15° Position ............................................................................................................ 14G 5.4 Body Holster/Belt Clip Configurations.................................................................................. 15G 6. MEASUREMENT UNCERTAINTY................................................................................................ 17G 7. SYSTEM VERIFICATION ............................................................................................................. 19G 7.1 Tissue Verification ................................................................................................................ 19G 7.2 Test System Validation ......................................................................................................... 19G 8. SAR MEASUREMENT RESULTS ................................................................................................ 20G 8.1 Measurement Results(CDMA Right Head SAR - Touch) ..................................................... 22G 8.2 Measurement Results(CDMA Right Head SAR - Tilt) .......................................................... 23G 8.3 Measurement Results(CDMA Left Head SAR - Touch) ....................................................... 24G 8.4 Measurement Results(CDMA Left Head SAR - Tilt) ............................................................ 25G 8.5 Measurement Results(CDMA Body SAR without Holster)................................................... 26G 8.6 Measurement Results(PCS Right Head SAR - Touch) ........................................................ 27G 8.7 Measurement Results(PCS Right Head SAR - Tilt) ............................................................. 28G 8.8 Measurement Results(PCS Left Head SAR - Touch) .......................................................... 29G 8.9 Measurement Results(PCS Left Head SAR - Tilt) ............................................................... 30G 8.10 Measurement Results(PCS Body SAR without Holster).................................................... 31G 9. CONCLUSION .............................................................................................................................. 32G 10. REFERENCES ............................................................................................................................ 33G G G Report Number: FE-169-S1 3 of 33 1. GENERAL INFORMATION G Test Sample : Dual-Band CDMA Phone Model Number : SCH-R300 Serial Number : Identical prototype (S/N : # FE-169-E) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : CS KIM Phone : +82-031-301-8213 Fax : - Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Sep.06, 2007 ~ Sep.07, 2007 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 824.70 ~ 848.31 MHz (CDMA) 1851.25 ~ 1908.75 MHz (PCS) Rx Freq. Range : 869.70 ~ 893.31 MHz (CDMA) 1931.25 ~ 1988.75 MHz (PCS) Antenna Manufacturer : GALTRONICS Model No.: SCH-R300 Antenna Dimensions : 38.1mm × 8.03mm × 5.38mm CDMA 2000 1x Support G G Report Number: FE-169-S1 4 of 33 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup G Robotic System Measurements are performed using the DASY4(or DASY5) automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near-field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe…

Text truncated - open the document above for the full version.

Report Number: FE-169-S1 Measurement Results(CDMA Body SAR without Holster) Mixture Type : 835 MHz Muscle FREQUENCY Begin/End POWER* MHz Ch. Modulation (dBm) Battery Device Test Position Antenna Position Device Test Position SAR (W/kg) 824.70 1013 CDMA 25.08 25.02Standard 1.5 cm [w/o Holster] Intenna Front 0.281 836.52 384 CDMA 25.05 24.99Standard 1.5 cm [w/o Holster] Intenna Front 0.221 848.31 777 CDMA 25.15 25.12Standard 1.5 cm [w/o Holster] Intenna Front 0.241 ANSI / IEEE C95.1 1992 – SAFETY LIMIT Spatial Peak Uncontrolled Exposure / General Population 1.6W/kg (mW/g) averaged over 1 gram NOTES: 1. The test data reported are the worst-case SAR value with the antenna-head position set in a typical configuration. Test procedures used are according to FCC/OET Bulletin 65, Supp.C [July 2001]. 2. All modes of operation were investigated, and the worst-case results are reported. 3. Tissue parameters and temperatures are listed on the SAR plot. 4. Liquid tissue depth is 15.2 0.2cm 5. Battery is fully charged for all readings. *Power Measured 7 Conducted 6. Battery Option 7 Standard … Extended … Slim 7. Phantom Configuration … Left Head 7 Flat Phantom … Right Head 8. SAR Configuration … Head 7 Body … Hand 9. Test Signal Call Mode … Manu. Test Codes 7 Base Station Simulator 10. Body SAR was tested under RC3/SO32. 11. Test Configuration … With Holster 7 Without Holster Report Number: FE-169-S1 Measurement Results(PCS Body SAR without Holster) Mixture Type : 1900 MHz Muscle FREQUENCY Begin/End POWER* MHz Ch. Modulation (dBm) Battery Device Test Position Antenna Position Device Test Position SAR (W/kg) 1851.25 25 CDMA 25.18 25.15Front 1.5 cm [w/o Holster] Intenna Front 0.073 1880.00 600 CDMA 25.13 25.10Front 1.5 cm [w/o Holster] Intenna Front 0.116 1908.75 1175 CDMA 25.27 25.25Front 1.5 cm [w/o Holster] Intenna Front 0.102 ANSI / IEEE C95.1 1992 – SAFETY LIMIT Spatial Peak Uncontrolled Exposure / General Population 1.6W/kg (mW/g) averaged over 1 gram NOTES: 1. The test data reported are the worst-case SAR value with the antenna-head position set in a typical configuration. Test procedures used are according to FCC/OET Bulletin 65, Supp.C [July 2001]. 2. All modes of operation were investigated, and the worst-case results are reported. 3. Tissue parameters and temperatures are listed on the SAR plot. 4. Liquid tissue depth is 15.2 0.2cm 5. Battery is fully charged for all readings. *Power Measured 7 Conducted 6. Battery Option 7 Standard … Extended … Slim 7. Phantom Configuration … Left Head 7 Flat Phantom … Right Head 8. SAR Configuration … Head 7 Body … Hand 9. Test Signal Call Mode … Manu. Test Codes 7 Base Station Simulator 10. Body SAR was tested under RC3/SO32. 11. Test Configuration … With Holster 7 Without Holster

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 22 & 24 SUBPART CERTIFICATION REPORT Model Tested: SCH-R300 FCC ID (Requested): A3LSCHR300 Report No: FE-169-R1 Job No: FE-169 Date issued: September 14 , 2007 - Abstract – All measurement reported here in accordance with FCC Rules, 47CFR Part2, Part22, Part24 Prepared By JH HAN - Test Engineer Authorized By WW JANG - Technical Manager Report Number : FE-169-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information .......................................................................................3 1.1 §2.1033 General Information ...................................................................................3 2. INTRODUCTION .............................................................................................................3 2.1 General ....................................................................................................................3 3. MEASURING INSTRUMENT CALIBRATION .................................................................3 4. TEST EQUIPMENT LIST.................................................................................................3 5. DESCRIPTION OF TESTS..............................................................................................3 5.1 Output Power Variation ............................................................................................3 5.2 Effective Radiated Power / Equivalent Isotropic Radiated Power ............................3 5.3 Radiated Spurious & Harmonic Emission ................................................................3 5.4 Occupied Bandwidth ................................................................................................3 5.5 Spurious and Harmonic Emissions at Antenna Terminal ..........................................3 5.5.1 Occupied Bandwidth Emission Limits .............................................................3 5.5.2 Conducted Spurious Emission ........................................................................3 5.6 Frequency Stability / Temperature Variation.............................................................3 6. TEST DATA .....................................................................................................................3 6.1 Effective Radiated Power(E.R.P.) ............................................................................3 6.2 Equivalent Isotropic Radiated Power(E.I.R.P.) .........................................................3 6.3 Cellular CDMA Radiated Spurious & Harmonic measurement.................................3 6.4 PCS CDMA Radiated Spurious & Harmonic measurement .....................................3 6.5 CDMA Radiated Spurious & Harmonic Conversion Table ........................................3 6.6 PCS Radiated Spurious & Harmonic Conversion Table ...........................................3 6.7 Frequency Stability...................................................................................................3 6.7.1 CDMA Frequency Stability Table .....................................................................3 6.7.2 PCS Frequency Stability Table ........................................................................3 6.7.3 CDMA Frequency Stability Graph ...................................................................3 6.7.4 PCS Frequency Stability Graph ......................................................................3 7. SAMPLE CALCULATION ...............................................................................................3 7.1 Emission Designator ................................................................................................3 8. CONCLUSION.................................................................................................................3 9. TEST PLOTS...................................................................................................................3 Report Number : FE-169-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1 §2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 Attention: FCC ID: SungJoo KIM, Engineering Manager (QA Lab) A3LSCHR300 Quantity: Quantity production is planned Emission Designators: 1M28F9W(CDMA), 1M28F9W(PCS CDMA) Tx Freq. Range: 824.70-848.31MHz (CDMA) 1851.25-1908.75MHz (PCS CDMA) Rx Freq. Range: 869.70-893.31MHz (CDMA) 1931.25-1988.75MHz (PCS CDMA) Max. Power Rating: 0.182 W ERP CDMA (22.60dBm) 0.321 W EIRP PCS (25.07dBm) FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) Equipment (EUT) Type: Dual-Band CDMA Phone Modulation(s): CDMA Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 2. Dates of Test: September 04 - 05 , 2007 Place of Test: SAMSUNG Lab, Test Report S/N: FE-169-R1 Report Number : FE-169-R1 2. INTRODUCTION 2.1 General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on the rotating device at the same height and at a distance of 3-meters from the receive antenna. The rotating device which can rotate horizontal axis was mounted on the turn unit to facilitate rotation around a vertical axis. The measurement was made for each horizontal/vertical position combination with receive antenna horizontally polarized. This measurement was repeated with receive antenna vertically polarized. The substitution antenna will replace the EUT ant…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., - Abstract – 1of21 – Test EngineerJD JANG TEST REPORT ON HAC Model Tested: FCC ID (Requested) : Job No : Report No : Date issued : Result Summary : Authorized By JH NAM – Technical Manager Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 This document reports on HAC Tests carried out in accordance with ANSI C63.19(2006), FCC Rule Part(s) FCC 47 CFR §20.19, §6.3, §7.3 Prepared By SCH-R300 A3LSCHR300 AE-049 AE-049-M1 M4 Sep.07, 2007 (RF EMISSION Category) 8. MODULATION FACTOR.................................................................................................................. 15 15 16 16 9.1 Handset Capabilities*............................................................................................................ ... 9. FCC 3G MEASUREMENTS – MAY/JUNE 2006.................................................................................... 4. HAC MEASUREMENT PROCEDURE............................................................................................. ... 6. MEASUREMENT UNCERTAINTY...................................................................................................... 5. DESCRIPTION OF TEST POSITION................................................................................................ 5.1 Measurement reference and plane.......................................................................................... ... 8.2 CW and Modulated Signal Zero-span plots.................................................................................... 7. SYSTEM VERIFICATION............................................................................................................... 7.1 Test System Validation......................................................................................................... ... 3. DESCRIPTION OF TEST EQUIPMENT............................................................................................. 3.1 HAC Measurement Setup......................................................................................................... 3.2 Probe Description.................................................................................................................. 3.3 Test Arch Phantom............................................................................................................... ... 3.4 Validation Dipole..................................................................................................................... 3.5 Equipment Calibration............................................................................................................... 2 11. REFERENCES........................................................................................................................... Report Number: 20 21AE-049-M1of 10.3 Worst-case Configuration Evaluation.......................................................................................... 14 9.2 Worst-Case Probe Location Measurements............................................................................... ... 10. Test Results.............................................................................................................................. 10.1 Measurement Results(E-field)................................................................................................ ... 10.2 Measurement Results(H-field)................................................................................................... 16 17 18 17 12 11 13 4 9 11 13 8 4 6 7 3 2. DESCRIPTION OF DEVICE......................................................................................................... 1. GENERAL INFORMATION.......................................................................................................... Contents 3 8.1 Modulation Factors............................................................................................................... ... 7 J Report Number: AE-049-M13 of 21 38.10mm * 8.03mm * 5.38mm Antenna Manufacturer :GALTRONICS Antenna Dmimensions : Antenna Configuration : Tested for :FCC/TCB Certification 2. DESCRIPTION OF DEVICE SCH-R300 Rx Freq. Range : ́Ͳ; ́ΆͿ͸͑ͶͽͶʹ΅΃΀Ϳ ͅʹ ́͑ʹΠ͑͟͝ͽΥΕ͟ June.19 ,2007 ~ June.20 ,2007 Tx Freq. Range : 824.70 ~ 848.31 MHz(CDMA) 1851.25 ~ 1908.76 MHz(PCS) Test Dates : Fax : Test Standard : FCC Classification 1. GENERAL INFORMATION ANSI C 63.19 (2006), FCC 47 CFR § 20.19, §6.3, §7.3 Licensed Portable Transmitter Held to Ear (PCE) +82-31-279-7269 Manufacturer : Contact : Phone : MS KANG +82-31-301-6628 kœˆ“Tiˆ•‹GjkthGw–•ŒGž›Gi“œŒ›––› Serial Number : ́ʹ͹͞΃ͤ͡͡ p‹Œ•›Šˆ“G—™–›–› —ŒGOzVuGaPhlTW[`Th Model Number : Test Sample : 869.70 ~ 893.31 MHz(CDMA) 1931.25 ~ 1988.76 MHz(PCS) ͤ͑͟͢͹Ͳʹ͑;ΖΒΤΦΣΖΞΖΟΥ͑ ́ΖΥΦΡ ΃ΠΓΠΥΚΔ͑ ́ΪΤΥΖΞ ;ΖΒΤΦΣΖΞΖΟΥΤ͑ΒΣΖ͑ΡΖΣΗΠΣΞΖΕ͑ΦΤΚΟΘ͑ΥΙΖ͑͵Ͳ ́Ίͥ͑ΒΦΥΠΞΒΥΖΕ͑ΕΠΤΚΞΖΥΣΚΔ͑ΒΤΤΖΤΤΞΖΟΥ͑ΤΪΤΥΖΞ͑͟ΈΙΚΔΙ ΚΤ͑ΞΒΕΖ͑ΓΪ͑ ́ΔΙΞΚΕ͑͗͑΁ΒΣΥΟΖΣ͑ͶΟΘΚΟΖΖΣΚΟΘ͑Ͳ͸͙͑ ́΁ͶͲ͸͚͑ΚΟ͑΋ΦΣΚΔΙ͑͝ ́ΨΚΥΫΖΣΝΒΟΕ͑ΒΟΕ͑ΔΠΟΤΚΤΥΤ͑ΠΗ ΙΚΘΙ͑ΡΣΖΔΚΤΚΠΟ͑ΣΠΓΠΥΚΔΤ͑ΤΪΤΥΖΞ͙͑ ́ΥΒΦΓΝΚ͚͑͝ΣΠΓΠΥ͑ΔΠΟΥΣΠΝΝΖΣ͑͝ΞΖΒΤΦΣΖΞΖΟΥ͑ΤΖΣΧΖΣ͑͝ ́ΒΞΤΦΟΘ ΔΠΞΡΦΥΖΣ͑͝ΟΖΒΣ͞ΗΚΖΝΕ͑ΡΣΠΓΖ͑͝ΡΣΠΓΖ͑ΒΝΚΘΟΞΖΟΥ͑ΤΖΟΤΠΣ͑͝ΒΟΕ͑ΥΙΖ͑ ́Ͳ;͑ΥΨΚΟ͑ΡΙΒΟΥΠΞ͑ΔΠΟΥΒΚΟΚΟΘ͑ΥΙΖ ΓΣΒΚΟ͑Ζ΢ΦΚΧΒΝΖΟΥ͑ΞΒΥΖΣΚΒΝ͑͟΅ΙΖ͑ΣΠΓΠΥ͑ΚΤ͑Β͑ΤΚΩ͞ΒΩΚΤ͑ΚΟΕΦΤΥΣΚΒΝ͑ΣΠΓΠΥ͑ΡΖΣΗΠΣΞΚΟΘ͑ΡΣΖΔΚΤΖ͑ΞΠΧΖΞΖΟΥΤ ΥΠ͑ΡΠΤΚΥΚΠΟ͑ΥΙΖ͑ΡΣΠΓΖ͑ΥΠ͑ΥΙΖ͑ΝΠΔΒΥΚΠΟ͙͑ΡΠΚΟΥΤ͚͑ΠΗ͑ΞΒΩΚΞΦΞ͑ΖΝΖΔΥΣΠΞΒΘΟΖΥΚΔ͑ΗΚΖΝΕ͙͑Ͷ;ͷ͚͙͑ΤΖΖ͑ͷΚΘ͟ ͚ͤ͟͢͟ ͷΚΘΦΣΖ͑ͤ͑͟͢͹Ͳʹ͑;ΖΒΤΦΣΖΞΖΟΥ͑ ́ΪΤΥΖΞ͑ ́ΖΥΦΡ 3. DESCRIPTION OF TEST EQUIPMENT ́ΪΤΥΖΞ͑͹ΒΣΕΨΒΣΖ Ͳ͑ΔΖΝΝ͑ΔΠΟΥΣΠΝΝΖΣ͑ΤΪΤΥΖΞ͑ΔΠΟΥΒΚΟΤ͑ΥΙΖ͑ΡΠΨΖΣ͑ΤΦΡΡΝΪ͑͝ΣΠΓΠΥ͑ΔΠΟΥΣΠΝΝΖΣ͑͝ΥΖΒΔΙ͑ΡΖΟΕΒΟΥ͙͑ͻΠΪΤΥΚΔΜ͚͑͝ΒΟΕ Β͑ΣΖΞΠΥΖ͑ΔΠΟΥΣΠΝ͑ΚΤ͑ΦΤΖΕ͑ΥΠ͑ΕΣΚΧΖ͑ΥΙΖ͑ΣΠΓΠΥ͑ΞΠΥΠΣΤ͑͟΅ΙΖ͑΁ʹ͑ΔΠΟΤΚΤΥΤ͑ΠΗ͑ΥΙΖ͑ ́ΒΞΤΦΟΘ͑ΔΠΞΡΦΥΖΣ ΨΚΥΙ͑ΈΚΟΕΠΨΤ͑Ή΁͑ΤΪΤΥΖΞ͑ΒΟΕ͑͹Ͳʹ͑;ΖΒΤΦΣΖΞΖΟΥ͑ ́ΠΗΥΨΒΣΖ͑͵Ͳ ́Ίͥ͑͝ͽʹ͵͑ΞΠΟΚΥΠΣ͑͝ΞΠΦΤΖ͑ΒΟΕ ΜΖΪΓΠΒΣΕ͑͟΅ΙΖ͑ ́ΥΒΦΓΝΚ͑΃ΠΓΠΥ͑ΚΤ͑ΔΠΟΟΖΔΥΖΕ͑ΥΠ͑ΥΙΖ͑ΔΖΝΝ͑ΔΠΟΥΣΠΝΝΖΣ͑ΥΠ͑ΒΝΝΠΨ͑ΤΠΗΥΨΒΣΖ͑ΞΒΟΚΡΦΝΒΥΚΠΟ͑ΠΗ ΥΙΖ͑ΣΠΓΠΥ͑͟Ͳ of 21Report Number: AE-049-M14 data acquisition electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD- conversion, offset…

Text truncated - open the document above for the full version.

Calibration of The Validation Dipole APPENDIX F

© 2007 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHR300 Dual-Band CDMA Phone

© 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHR300 Dual-Band CDMA Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHR300 Dual-Band CDMA Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHR300 Dual-Band CDMA Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHR300 Dual-Band CDMA Phone 1.5Cm © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHR300 Dual-Band CDMA Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHR300 Dual-Band CDMA Phon…
