A3LSCHR530MPortable Handset with Multi-band CDMA/LTE, WLAN, RFID and Bluetooth

GH68_3XXXXA Printed in Korea SCH-R530M ANDROID SMARTPHONE User Manual Please read this manual before operating your phone and keep it for future reference. This document is watermarked because certain important information in the document has not yet been verified. This document has been sent to you as a draft and for informational purposes only. The document should only be used for internal purposes and may not be distributed outside of Samsung, except to Samsung's carrier customer for testing purposes. Distributing the document outside of Samsung, except to Samsung's carrier customer for testing purposes could result in legal exposure to the company if the preliminary, unverified information in the draft turns out to be inaccurate. DRAFT FOR INTERNAL USE ONLY SCH-R530_UM_Eng_LG1_CB_070612_F3 Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING DRAFT FOR INTERNAL USE ONLY THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. SAFE™ ("Samsung Approved For Enterprise") TO THE FULL EXTENT PERMITTED BY LAW SAMSUNG ELECTRONICS CO., LTD., SAMSUNG TELECOMMUNICATIONS AMERICA, LLC, AND THEIR AFFILIATES (COLLECTIVELY REFERRED TO HEREIN AS THE "SAMSUNG ENTITIES") EXPRESSLY DISCLAIM ANY AND ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, INTEROPERABILITY OR NON-INFRINGEMENT, WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ APPROVED DEVICES AND SAFE™ APPROVED APPLICATIONS. IN NO EVENT SHALL THE SAMSUNG ENTITIES BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND WHATSOEVER WITH RESPECT TO INFORMATION TECHNOLOGY SECURITY PROTECTION, SAFE™ APPROVED DEVICES OR SAFE™ APPROVED APPLICATIONS. In addition, information technology security protection will be affected by features or functionality associated with, among other things the e-mail platform, master data management, and virtual private network solutions selected by the software provider, solution provider or user. Choice of an e-mail, master data management, and virtual private network solution is at the sole discretion of the software provider, solution provider or user and any associated effect on information technology security protection is solely the responsibility of the software provider, solution provider or user. For complete statement of limited warranty, please refer to www.samsung.com/us/safe, available on the web and where Samsung smartphone and Galaxy Tab™ devices are sold. DRAFT FOR INTERNAL USE ONLY Samsung Telecommunications America (STA), LLC ©2012 Samsung Telecommunications America, LLC. Samsung is a registered trademark of Samsung Electronics Co., Ltd. Do you have questions about your Samsung Mobile Phone? For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at: www.samsung.com/us/support Headquarters: 1301 E. Lookout Drive Richardson, TX 75082 Customer Care Center: 1000 Klein Rd. Plano, TX 75074 Toll Free Tel: 1.888.987.HELP (4357) Internet Address: http://www.samsung.com DRAFT FOR INTERNAL USE ONLY The Bluetooth ® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth word mark and “B Design”) are registered trademarks and are wholly owned by the Bluetooth SIG. Nuance ® , VSuite™, T9 ® Text Input, and the Nuance lo…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: August 9, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHR530M To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea Federal Communications Commission 7435 Oakland Mills Roaad Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSCHR530M Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group. Au August 5, 2012 14, 2012

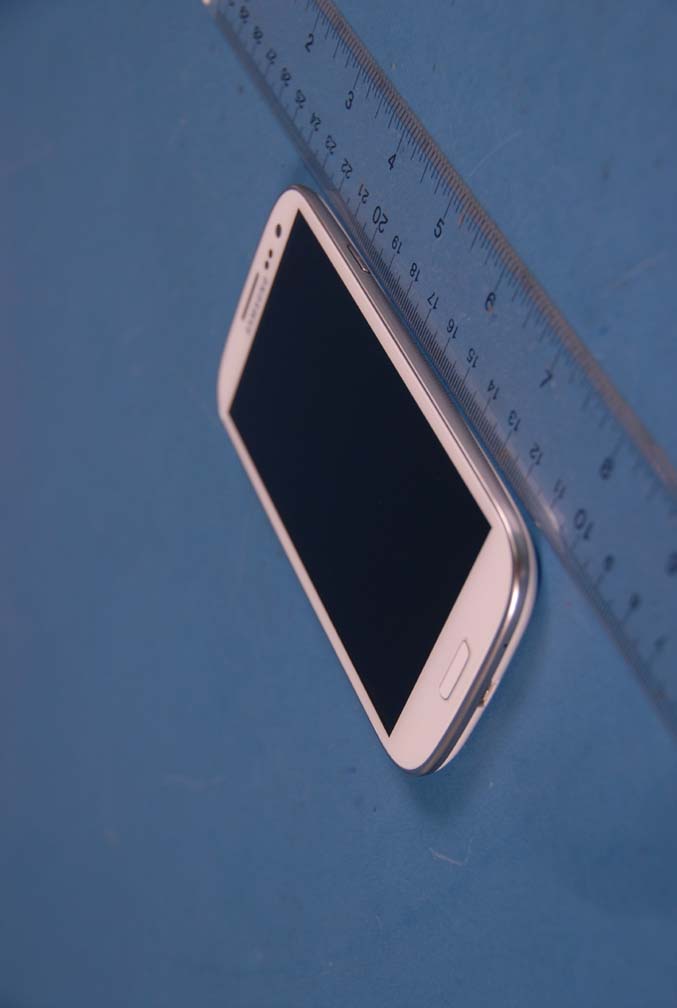

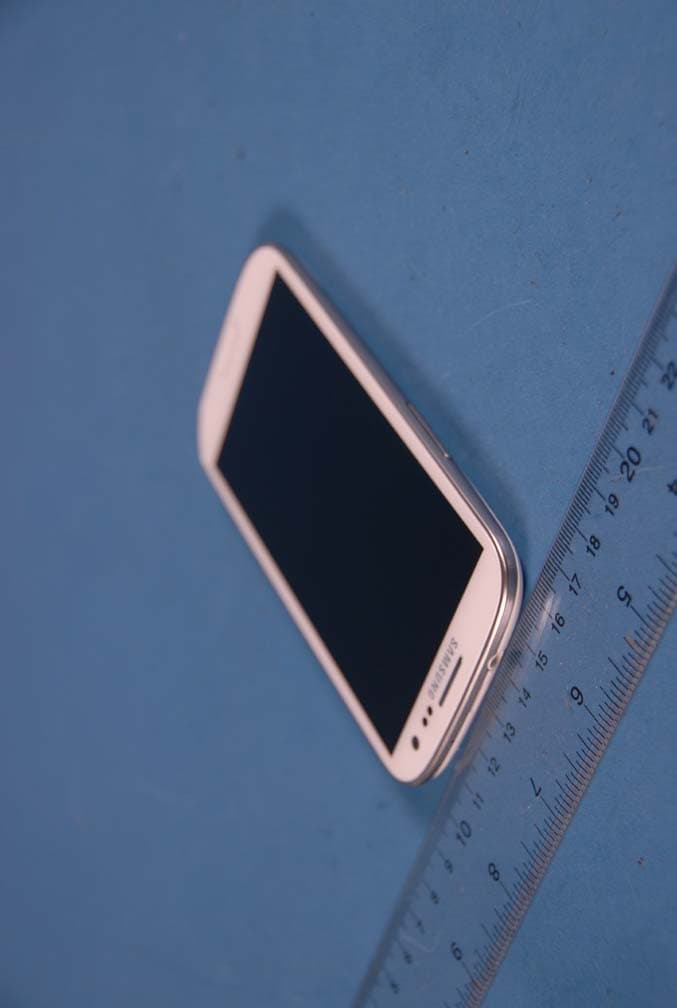

SAMSUNG ELECTRONICS FCC ID: A3LSCHR530M Model: SCH-R530M External Photos EUT Type: Portable Handset Page 1 of 4 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS SAMSUNG ELECTRONICS FCC ID: A3LSCHR530M Model: SCH-R530M External Photos EUT Type: Portable Handset Page 2 of 4 © 2012 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSCHR530M Model: SCH-R530M External Photos EUT Type: Portable Handset Page 3 of 4 © 2012 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSCHR530M Model: SCH-R530M External Photos EUT Type: Portable Handset Page 4 of 4 © 2012 PCTEST Engineering Laboratory Inc.

Label and Location Samsung Phone Model: SCH-R530M FCC ID: A3LSCHR530M Label: Location: Top Back plate of device Phone: Label is placed inside of the battery compartment. Label Bottom

SAMSUNG ELECTRONICS FCC ID: A3LSCHR530M Model: SCH-R530M Internal Photos EUT Type: Portable Handset Page 1 of 8 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS SAMSUNG ELECTRONICS FCC ID: A3LSCHR530M Model: SCH-R530M Internal Photos EUT Type: Portable Handset Page 2 of 8 © 2012 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSCHR530M Model: SCH-R530M Internal Photos EUT Type: Portable Handset Page 3 of 8 © 2012 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSCHR530M Model: SCH-R530M Internal Photos EUT Type: Portable Handset Page 4 of 8 © 2012 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSCHR530M Model: SCH-R530M Internal Photos EUT Type: Portable Handset Page 5 of 8 © 2012 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSCHR530M Model: SCH-R530M Internal Photos EUT Type: Portable Handset Page 6 of 8 © 2012 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSCHR530M Model: SCH-R530M Internal Photos EUT Type: Portable Handset Page 7 of 8 © 2012 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LSCHR530M Model: SCH-R530M Internal Photos EUT Type: Portable Handset Page 8 of 8 © 2012 PCTEST Engineering Laboratory Inc.

© 2012 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

FCC ID: A3LSCHR530M SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 54 0Y1207230995-R7.A3L 07/23/12 - 07/30/12 and 09/04/2012 - 09/05/2012 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 07/23/12 - 07/30/12 and 09/04/2012 - 09/05/2012 416, Maetan 3-dong, Yeongtong-gu, Suwon-si Test Site/Location: Gyeonggi-do, 443-742 PCTEST Lab, Columbia, MD, USA Republic of Korea Document Serial No.: 0Y1207230995-R7.A3L FCC ID: A3LSCHR530M APPLICANT: SAMSUNG ELECTRONICS CO., LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093 SCH-R530M 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) Cell. CDMA/EVDO824.70 - 848.31 MHz24.20 0.190.450.45 AWS CDMA/EVDO1711.25 - 1753.75 MHz24.640.22 0.710.81 PCS CDMA/EVDO1851.25 - 1908.75 MHz24.980.18 0.700.72 LTE Band 4 (AWS)1710.7 - 1754.3 MHz22.930.42 0.620.62 LTE Band 2 (PCS)1850.7 - 1909.3 MHz23.450.44 0.500.50 2.4 GHz WLAN2412 - 2462 MHz15.430.07 0.200.20 5.8 GHz WLAN5745 - 5825 MHz12.010.000.11 5.2 GHz WLAN5180 - 5240 MHz12.010.020.10 5.3 GHz WLAN5260 - 5320 MHz11.800.040.12 5.5 GHz WLAN5500 - 5700 MHz11.780.000.07 Bluetooth2402 - 2480 MHz9.53 0.671.531.53 SAR Band & ModeTx Frequency Conducted Power [dBm] N/A Simultaneous SAR per KDB 690783 D01: Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. Note: This revised Test Report (S/N: 0Y1207230995-R7.A3L) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSCHR530M SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 54 0Y1207230995-R7.A3L 07/23/12 - 07/30/12 and 09/04/2012 - 09/05/2012 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 LTE CHECKLIST PER KDB 941225 D05 ........................................................................................7 3 INTRODUCTION ..............................................................................................................................8 4 SAR MEASUREMENT SETUP ........................................................................................................9 5 DOSIMETRIC ASSESSMENT ...................................................................................................... 10 6 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 7 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 12 8 FCC AND HEALTH CANADA SAFETY CODE 6 RF EXPOSURE LIMITS .................................. 15 9 FCC MEASUREMENT PROCEDURES ........................................................................................ 16 10 RF CONDUCTED POWERS ......................................................................................................... 20 11 SYSTEM VERIFICATION .............................................................................................................. 28 12 SAR DATA SUMMARY ................................................................................................................. 31 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 42 14 EQUIPMENT LIST ......................................................................................................................... 49 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 50 16 CONCLUSION ............................................................................................................................... 52 17 REFERENCES .............................................................................................................................. 53 FCC ID: A3LSCHR530M SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 54 0Y1207230995-R7.A3L 07/23/12 - 07/30/12 and 09/04/2012 - 09/05/2012 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 1 DEVICE UNDER TEST 1.1 Device Overview Cell. CDMA/EVDO824.70 - 848.31 MHz AW S CDMA/EVDO1711.25 - 1753.75 MHz PCS CDMA/EVDO1851.25 - 1908.75 MHz LTE Band 4 (AWS)1710.7 - 1754.3 MHz LTE Band 2 (PCS)1850…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHR530M FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1207230999.A3L 07/23/2012-07/30/2012 Portable Handset Page 1 of 84 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2U40 07/09/12 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 07/23/2012-07/30/2012 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab, Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1207230999.A3L FCC ID: A3LSCHR530M APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): SCH-R530M EUT Type: Portable Handset FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 IC Specification(s): RSS-210 Issue 8 Test Procedure(s): ANSI C63.4-2003/2009, ANSI C63.10-2009, KDB 789033 Max. Power (mW) Max. Power (dBm) 1205180 - 524016.412.16 2205260 - 532015.511.90 3205500 - 570015.811.98 1205180 - 524013.111.17 2205260 - 532012.110.84 3205500 - 570011.910.77 1405190 - 523013.711.37 2405270 - 531013.111.16 3405510 - 567012.711.05 Co nd ucte d Po we r Mode T x Fr eq ue ncy (MHz) UNII Band 80 2.1 1n Channel Bandwidth (MHz) 80 2.1 1a 80 2.1 1n This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003/2009 and ANSI C63.10-2009. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 802.11a/n (UNII) Reviewed by: FCC ID: A3LSCHR530M FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1207230999.A3L 07/23/2012-07/30/2012 Portable Handset Page 2 of 84 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2U40 07/09/12 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................. 5 2.3 TEST CONFIGURATION ........................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.5 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS......................................................................................................... 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N................................................................................ 11 6.3 UNII OUTPUT POWER MEASUREMENT – 802.11A/N .......................................................................... 25 6.4 PEAK POWER SPECTRAL DENSITY – 802.11A/N................................................................................ 27 6.5 PEAK EXCURSION RATIO – 802.11A/N................................................................................................. 42 6.6 FREQUENCY STABILITY ........................................................................................................................ 57 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 60 6.8 RADIAT…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHR530M FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1207230999.A3L 07/23/2012-07/30/2012 Portable Handset Page 42 of 84 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2U40 07/09/12 6.5 Peak Excursion Ratio – 802.11a/n §15.407(a)(6) The spectrum analyzer was connected to the antenna terminal while the EUT was operating in the continuous transmission mode at the appropriate center frequencies. Method SA-1, as defined in KDB 789033 and with the settings described in Section 6.4 of this test report, was used to generate the average signal trace and the procedure outlined in section F) was used to generate the peak signal trace. A minimum of 100 trace averages were used for the average signal. The peak and average traces are then used to determine the peak excursion. The largest permissible difference between the modulation envelope (measured using a peak hold function) and the maximum conducted output power is 13 dBm/MHz. Figure 6-4. Test Instrument & Measurement Setup Reviewed by: FCC ID: A3LSCHR530M FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1207230999.A3L 07/23/2012-07/30/2012 Portable Handset Page 43 of 84 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2U40 07/09/12 518036a67.7313.0-5.27 520040a68.6513.0-4.36 524048a67.5213.0-5.49 518036 n (20MHz) 6.5/7.2 (MCS0) 8.0313.0-4.97 520040 n (20MHz) 6.5/7.2 (MCS0) 8.0313.0-4.97 524048 n (20MHz) 6.5/7.2 (MCS0) 8.3313.0-4.67 519038 n (40MHz) 13.5/15 (MCS0) 8.4513.0-4.55 523046 n (40MHz) 13.5/15 (MCS0) 8.4313.0-4.57 526052a67.9813.0-5.02 528056a68.3113.0-4.69 532064a68.0713.0-4.93 526052 n (20MHz) 6.5/7.2 (MCS0) 8.4313.0-4.58 528056 n (20MHz) 6.5/7.2 (MCS0) 8.4513.0-4.55 532064 n (20MHz) 6.5/7.2 (MCS0) 7.9913.0-5.01 527054 n (40MHz) 13.5/15 (MCS0) 8.5813.0-4.42 531062 n (40MHz) 13.5/15 (MCS0) 8.6413.0-4.36 5500100a66.7413.0-6.26 5580116a67.7313.0-5.27 5700140a65.4513.0-7.56 5500100 n (20MHz) 6.5/7.2 (MCS0) 7.7213.0-5.28 5580116 n (20MHz) 6.5/7.2 (MCS0) 7.6713.0-5.33 5700140 n (20MHz) 6.5/7.2 (MCS0) 8.0013.0-5.00 5510102 n (40MHz) 13.5/15 (MCS0) 8.3513.0-4.65 5550110 n (40MHz) 13.5/15 (MCS0) 7.3713.0-5.63 5670134 n (40MHz) 13.5/15 (MCS0) 7.7413.0-5.26 Band I Band II Band III Margin [dB] Max Permissible Peak Excursion Ra tio [dBm/MHz] Frequenc y [MHz] Channel No. Measured Peak Excursion Ra tio [dBm] 802.11 Mode Da ta Ra te [Mbps] Table 6-7. Conducted Peak Excursion Ratio Measurements Reviewed by: FCC ID: A3LSCHR530M FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1207230999.A3L 07/23/2012-07/30/2012 Portable Handset Page 44 of 84 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2U40 07/09/12 Plot 6-51. Peak Excursion Ratio Plot (802.11a (UNII Band 1) – Ch. 36) Plot 6-52. Peak Excursion Ratio Plot (802.11a (UNII Band 1) – Ch. 40) Reviewed by: FCC ID: A3LSCHR530M FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1207230999.A3L 07/23/2012-07/30/2012 Portable Handset Page 45 of 84 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2U40 07/09/12 Plot 6-53. Peak Excursion Ratio Plot (802.11a (UNII Band 1) – Ch. 48) Plot 6-54. Peak Excursion Ratio Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 36) Reviewed by: FCC ID: A3LSCHR530M FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1207230999.A3L 07/23/2012-07/30/2012 Portable Handset Page 46 of 84 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2U40 07/09/12 Plot 6-55. Peak Excursion Ratio Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 40) Plot 6-56. Peak Excursion Ratio Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 48) Reviewed by: FCC ID: A3LSCHR530M FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1207230999.A3L 07/23/2012-07/30/2012 Portable Handset Page 47 of 84 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2U40 07/09/12 Plot 6-57. Peak Excursion Ratio Plot (40MHz BW 802.11n (UNII Band 1) – Ch. 38) Plot 6-58. Peak Excursion Ratio Plot (40MHz BW 802.11n (UNII Band 1) – Ch. 46) Reviewed by: FCC ID: A3LSCHR530M FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1207230999.A3L 07/23/2012-07/30/2012 Portable Handset Page 48 of 84 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2U40 07/09/12 Plot 6-59. Peak Excursion Ratio Plot (802.11a (UNII Band 2) – Ch. 52) Plot 6-60. Peak Excursion Ratio Plot (802.11a (UNII Band 2) – Ch. 56) Reviewed by: FCC ID: A3LSCHR530M FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1207230999.A3L 07/23/2012-07/30/2012 Portable Handset Page 49 of 84 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2U40 07/09/12 Plot 6-61. Peak Excursion Ratio Plot (802.11a (UNII Band 2) – Ch. 64) Plot 6-62. Peak Excursion Ratio Plot (20MHz BW 802.11n (UNII Band 2) – Ch. 52) Reviewed by: FCC ID: A3LSCHR530M FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1207230999.A3L 07/23/2012-07/30/2012 Portable Handset Page 50 of 84 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2U40 07/09/12 Plot 6-63. Peak Excursion Ratio Plot (20MHz BW 802.11n (UNII Band 2) – Ch. 56) Plot 6-64. Peak Excursion Ratio Plot (20MHz BW 802.11n (UNII Band 2) – Ch. 64) Reviewed by: FCC ID: A3LSCHR530M FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1207230999.A3L 07/23/2012-07/30/2012 Portable Handset Page 51 of 84 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.2U40 07/09/12 Plot 6-65. Peak Excursion Ratio Plot (40MHz BW 802.11n (UNII Band 2) – Ch. 54) Plot 6-66. Peak Excursion Ratio…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHR530M FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1207231000.A3L 07/31/2012-08/01/2012 Portable Handset Page 1 of 21 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5DFS 5/9/12 Company Name: Date of Testing: Samsung Electronics Co., Ltd. 07/31/2012-08/01/2012 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab. Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1207231000.A3L FCC ID: A3LSCHR530M COMPANY: Samsung Electronics Co., Ltd. Model(s): SCH-R530M EUT Type: Portable Handset Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-II Band) 5500 – 5700 MHz (UNII-III Band) Output Power: 15.488 mW (11.90 dBm) Conducted (802.11a UNII Band II) 15.776 mW (11.98 dBm) Conducted (802.11a UNII Band III) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in t…

Text truncated - open the document above for the full version.
