A3LSCHR830Multi-Band CDMA/ LTE Phone with WLAN, Bluetooth and RFID

GH68_3XXXXA Printed in KoreaXX SCH-R830 ANDROID SMARTPHONE User Manual Please read this manual before operating your phone and keep it for future reference. This document is watermarked because certain important information in the document has not yet been verified. This document has been sent to you as a draft and for informational purposes only. The document should only be used for internal purposes and may not be distributed outside of Samsung, except to Samsung's carrier customer for testing purposes. Distributing the document outside of Samsung, except to Samsung's carrier customer for testing purposes could result in legal exposure to the company if the preliminary, unverified information in the draft turns out to be inaccurate. DRAFT FOR INTERNAL USE ONLY FOR DIVX REVIEW ONLY SCH-R830_UM_Eng_LI7_CB_092612_D0 Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING DRAFT FOR INTERNAL USE ONLY FOR DIVX REVIEW ONLY THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. Samsung Telecommunications America (STA), LLC Headquarters: 1301 E. Lookout Drive Richardson, TX 75082 Customer Care Center: 1000 Klein Rd. Plano, TX 75074 Toll Free Tel: 1.888.987.HELP (4357) Internet Address: http://www.samsung.com DRAFT FOR INTERNAL USE ONLY FOR DIVX REVIEW ONLY ©2012 Samsung Telecommunications America, LLC. Samsung is a registered trademark of Samsung Electronics Co., Ltd. Do you have questions about your Samsung Mobile Device? For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at: www.samsung.com/us/support 4GLTE coverage is available in select markets. 4G, as used with this phone, refers to the fact that the phone is designed with LT E technology. Google, the Google logo, Android, the Android logo, Google Play, Gmail, Google Mail, Google Maps, Google Music, Google Talk, Picasa, YouTube, and other marks are trademarks of Google Inc. Wi-Fi is a registered trademark of the Wireless Fidelity Alliance, Inc. ACCESS ® and NetFront™ are trademarks or registered trademarks of ACCESS Co., Ltd. in Japan and other countries. The Bluetooth ® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth word mark and “B Design”) are registered trademarks and are wholly owned by the Bluetooth SIG. DivX ® , DivX Certified ® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. DivX Certified ® to play DivX ® video up to HD 720p, including premium content. ABOUT DIVX VIDEO: DivX ® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified ® device must be registered in order to play purchased DivX Video-on- Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu (tap Applications > Settings > About phone > Legal information > License settings > DivX® VOD > Register ). Go to vod.divx.com for more information on how to complete your registration. microSD™ and the microSD logo are Trademarks of the SD Card Association. DRAFT FOR INTERNAL USE ONLY FOR DIVX REVIEW ONLY Openwave ® is a registered Tradem…

Text truncated - open the document above for the full version.

Applications and Widgets 113 –Share shot: Uses Wi-Fi Direct to share your pictures quickly with your friends. –Buddy photo share: Uses face recognition from pictures in your contacts to send your friends or family pictures of themselves. • Color effects: Choose color theme for the picture: None (normal color), Negative, Black and white, Sepia, Washed out, Cold vintage, Warm vintage, Posterize, Solarize, Blue point, Green point, or Red-yellow point. • Settings: –Edit shortcuts: Select which function shortcuts appear in the function menu. –Self-portrait: Set the front camera so you can take pictures of yourself. –Flash: Choose Off, On, or Auto flash. –Shooting mode: Choose Single shot, Burst shot, HDR, Face detection, Smile shot, Beauty, Panorama, Cartoon, Share shot, or Buddy photo share. –Scene mode: Choose a mode to match conditions. –Exposure value: Adjust the picture brightness level by moving the slider. –Focus mode: Choose a type of automatic focus. –Timer: Set a delay before taking a picture. –Effects: Apply a color effect to pictures. –Resolution: Choose a size (in pixels) for the image. –White balance: Choose a setting for the light source. –ISO: Choose a setting for imaging sensitivity. –Metering: Select a method for measuring light. –Anti-Shake: Enable Anti-Shake to minimize the effect of camera movement. –Auto contrast: Allow automatic light/dark adjustment. –Guidelines: Enable or disable an on-screen grid to aid in photo composition. –Image quality: Choose a quality setting for photos. –GPS Tag: Add GPS location information to photo details. –Save as flipped: Set to On to take and save a mirror-image picture when using the self portrait camera. –Storage: Choose to store your pictures in Phone memory or on an optional Memory card. –Reset: Set all Camera settings to the defaults. DRAFT FOR INTERNAL USE ONLY FOR DIVX REVIEW ONLY 114 Camcorder Use your phone’s built-in Camcorder to record video.  From the Apps screen, touch Camera ➔ Mode. Important!Do not take videos of people without their permission. Do not take videos in places where cameras are not allowed. Do not take videos in places where you may interfere with another person’s privacy. Capturing Video 1.From the Apps screen, touch Camera ➔ Mode. 2.Using the display as a viewfinder, compose your shot by aiming the lens at the subject. •Touch the screen to focus on the area you touched. •“Pinch” the screen, or press the Volume key, to zoom in or out. •To configure settings, see “Camcorder Options” on page 115. 3.To start recording, touch the Record button (). 4.To capture an image from the video while recording, touch . This feature is not available when the Anti- Shake feature is activated. 5.To stop recording, touch the Stop button (). 6.After recording, touch Image Viewer to view the video. While viewing the video, use these options: •Pinch the screen to zoom in or out, or double-touch to zoom all the way in or out. •Touch Play to review the video. •Touch Share to send the video using Dropbox, Google+, Bluetooth, Wi-Fi Direct, Messaging, YouTube, Gmail, or Email. Mode Record Options menu Image Viewer button button DRAFT FOR INTERNAL USE ONLY FOR DIVX REVIEW ONLY Applications and Widgets 115 •Touch Slideshow to review all your videos in sequence. •Touch Delete to erase the video. •Touch Back to return to the Camcorder to record more videos. Camcorder Options  While in Camcorder mode, the following options are available: • Self recording: Record video with the front lens. • Flash: Choose Off or On. • Recording mode: Choose a recording mode, from: –Normal: Record a video of any length. –Limit for MMS: Record a video of a size suitable for sending in a Video message. • Color effects: Choose color theme for the picture: None (normal color), Negative, Black and white, Sepia, Washed out, Cold vintage, Warm vintage, Posterize, Solarize, Blue point, Green point, or Red-yellow point. • Settings. –Edit shortcuts: Select which function shortcuts appear in the function menu. –Self-recording: Set the front camera so you can take videos of yourself or video chat. –Flash: Choose Off or On. –Recording mode: Choose Normal or Limit for MMS recording mode. –Exposure value: Adjust the picture brightness level by moving the slider. –Timer: Set a delay before starting recording. –Effects: Apply an effect to videos. –Resolution: Choose a size (in pixels) for the recording. –White balance: Choose a setting for the light source. –Guidelines: Enable to display a grid to aid in video composition. –Video quality: Choose a quality setting for videos. –Save as flipped: Set to On to take and save a mirror-image video when using the self portrait camcorder. –Storage: Choose to store your videos in Phone memory or on an optional Memory card. –Reset: Set all Camcorder settings to the defaults. DRAFT FOR INTERNAL USE ONLY FOR DIVX REVIEW ONLY 116 Change mode Change your home screen layouts to a more structured Easy mode for first-time smart phone users.  From the Apps screen, touch Change mode, then select Basic mode (default setting) or Easy mode. Chrome Launches the Google Chrome web browser.  From the Apps screen, touch Chrome. Clock The Clock application includes these features: • Alarm: Create alarms to go off once, or to repeat. • World clock: Display the time and date in any time zone. • Stopwatch: Record lap times. • Timer: Measure elapsed time. • Desk clock: Choose whether the clock calendar and weather appears on the display, and what outputs are active, when you connect your phone to an optional dock.  From the Apps screen, touch Clock. Contacts Contacts lets you access and manage your Contacts list, Contacts Groups, Favorites list, and Speed dial settings. (see “Contacts” on page 41.)  From the Apps screen, touch Contacts. DRAFT FOR INTERNAL USE ONLY FOR DIVX REVIEW ONLY Applications and Widgets 117 Downloads View and manage files and other items you download to your phone. 1.From the Apps screen, touch Downloads. 2.Touch an item to open …

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea October 5, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSCHR830 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: October 8, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHR830 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

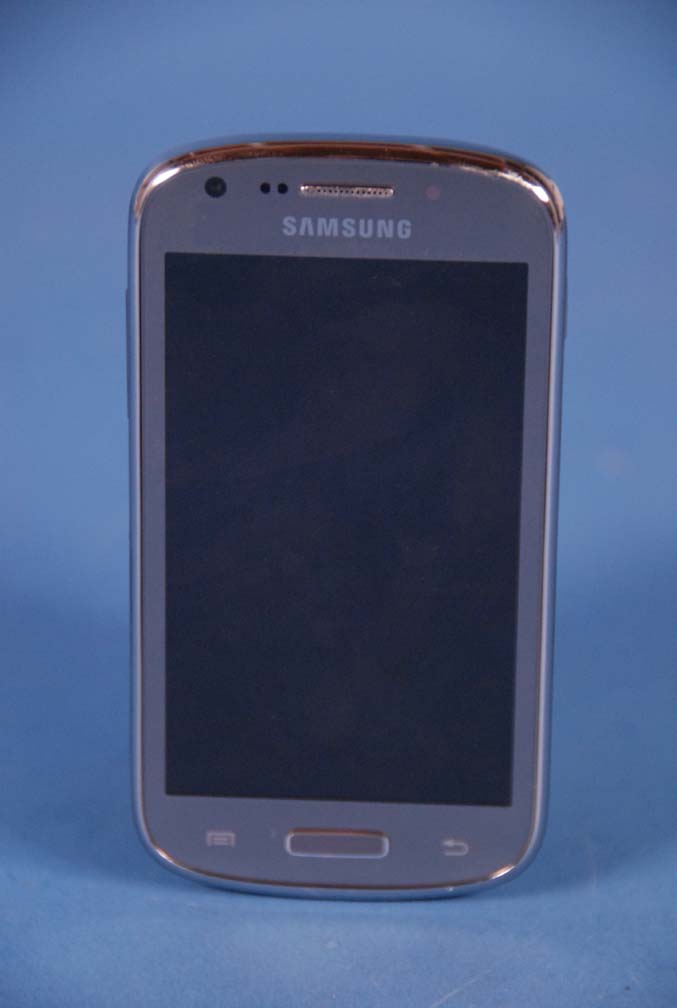

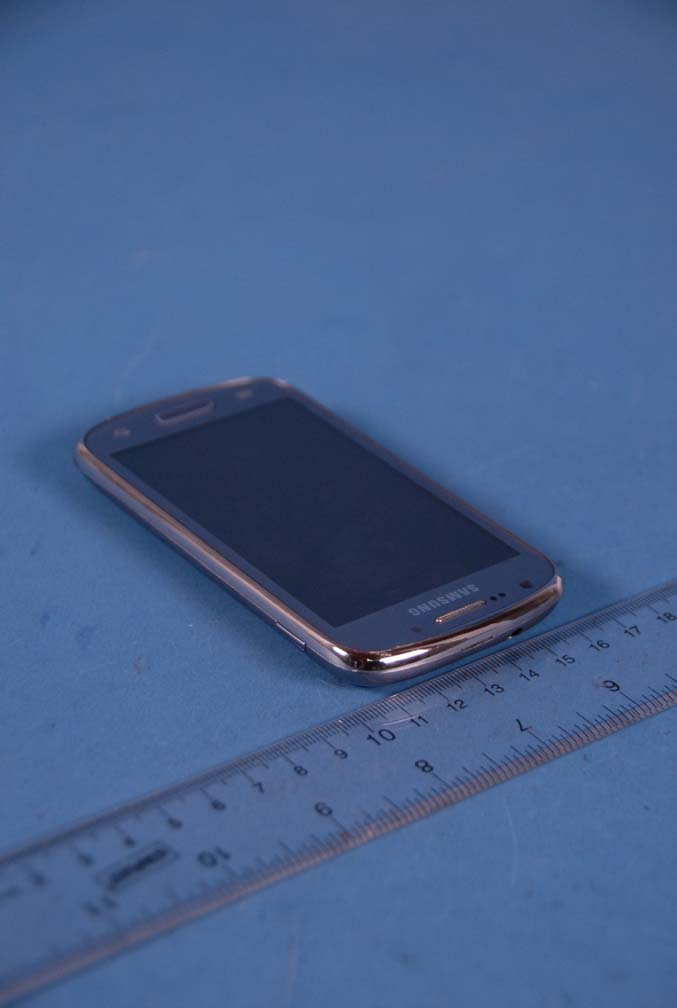

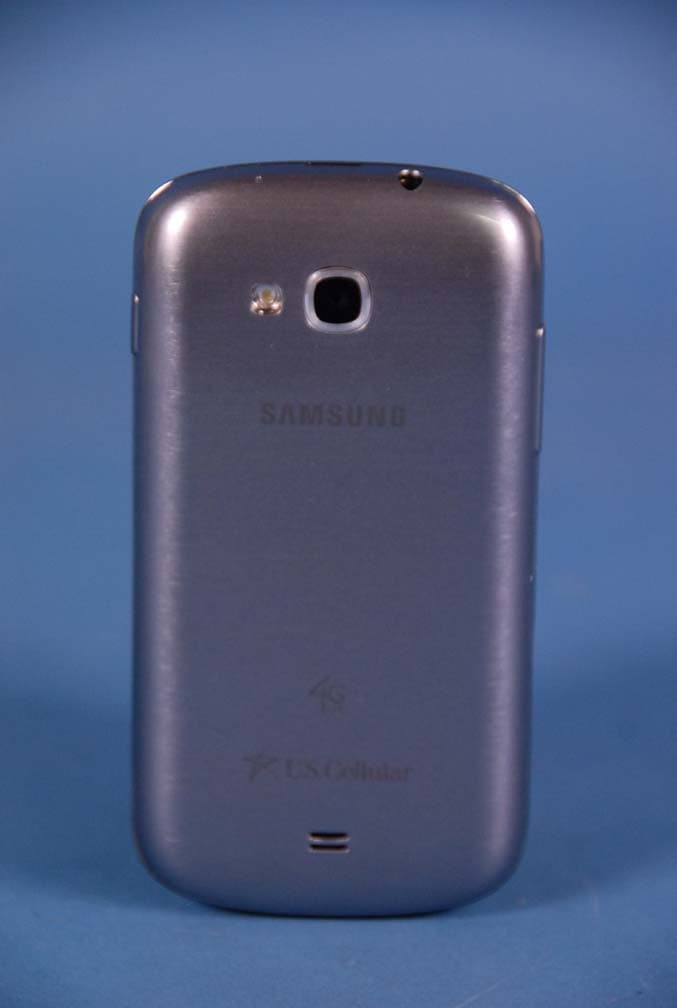

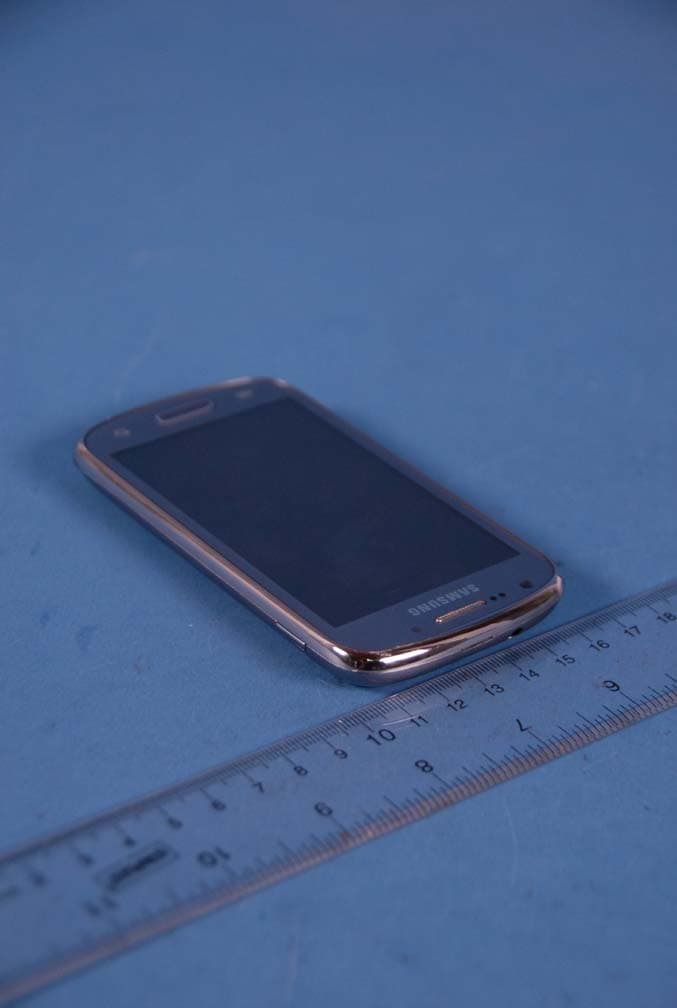

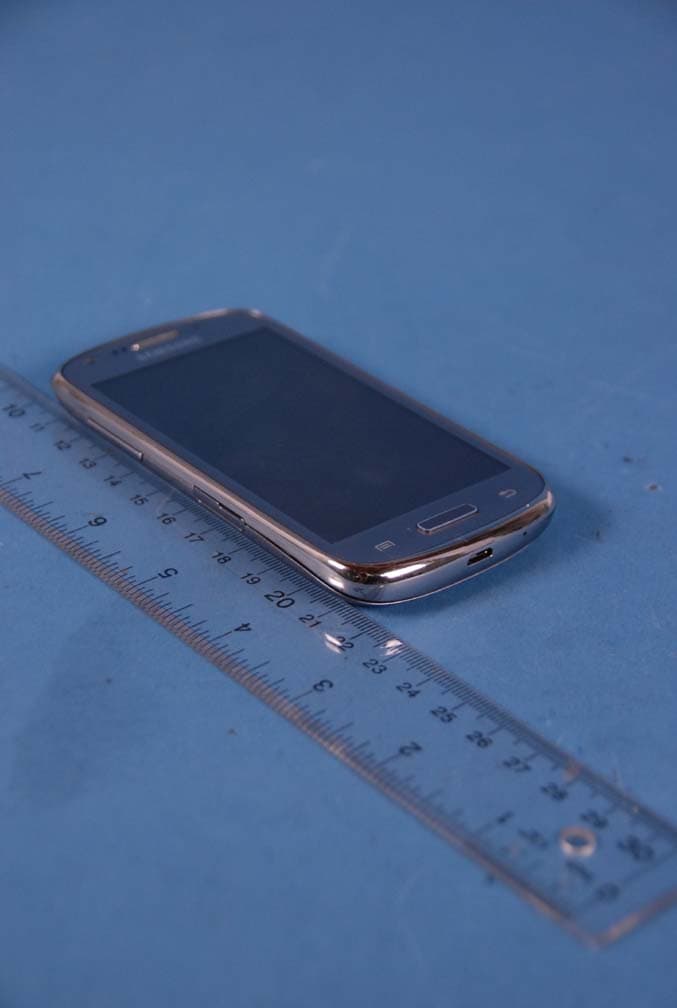

Samsung FCC ID: A3LSCHR830 Model: SCH-R830 External Photos EUT Type: Portable Handset Page 1 of 4 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung FCC ID: A3LSCHR830 Model: SCH-R830 External Photos EUT Type: Portable Handset Page 2 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHR830 Model: SCH-R830 External Photos EUT Type: Portable Handset Page 3 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHR830 Model: SCH-R830 External Photos EUT Type: Portable Handset Page 4 of 4 © 2012 PCTEST Engineering Laboratory Inc.

Label and Location Samsung Phone Model: SCH-R830 FCC ID: A3LSCHR830 Label: Location: Top Back plate of device Bottom Label is placed inside of the battery compartment.

Samsung FCC ID: A3LSCHR830 Model: SCH-R830 Internal Photos EUT Type: Portable Handset Page 1 of 9 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung FCC ID: A3LSCHR830 Model: SCH-R830 Internal Photos EUT Type: Portable Handset Page 2 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHR830 Model: SCH-R830 Internal Photos EUT Type: Portable Handset Page 3 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHR830 Model: SCH-R830 Internal Photos EUT Type: Portable Handset Page 4 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHR830 Model: SCH-R830 Internal Photos EUT Type: Portable Handset Page 5 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHR830 Model: SCH-R830 Internal Photos EUT Type: Portable Handset Page 6 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHR830 Model: SCH-R830 Internal Photos EUT Type: Portable Handset Page 7 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHR830 Model: SCH-R830 Internal Photos EUT Type: Portable Handset Page 8 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LSCHR830 Model: SCH-R830 Internal Photos EUT Type: Portable Handset Page 9 of 9 © 2012 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LSCHR830 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1209181352.A3L 09/14/12 - 09/26/12 Portable Handset Page 1 of 62 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 09/14/12 - 09/26/12 416, Maetan 3-dong, Yeongtong-gu, Suwon-si Test Site/Location: Gyeonggi-do, 443-742 PCTEST Lab, Columbia, MD, USA Republic of Korea Document Serial No.: 0Y1209181352.A3L FCC ID: A3LSCHR830 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093 SCH-R830 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) Cell. CDMA/EVDO824.70 - 848.31 MHz25.23 0.370.600.86 AWS CDMA/EVDO1711.25 - 1753.75 MHz25.370.26 0.610.63 PCS CDMA/EVDO1851.25 - 1908.75 MHz25.500.36 0.600.60 LTE Band 12701.5 - 713.5 MHz23.810.12 0.250.25 LTE Band 5 (Cell)826.5 - 846.5 MHz23.820.20 0.260.34 LTE Band 4 (AWS)1712.5 - 1752.5 MHz23.870.26 0.390.39 LTE Band 2 (PCS)1852.5 - 1907.5 MHz23.910.32 0.320.32 2.4 GHz WLAN2412 - 2462 MHz17.17<0.1 0.100.10 5.8 GHz WLAN5745 - 5825 MHz9.75<0.10.20 5.2 GHz WLAN5180 - 5240 MHz9.86<0.10.18 5.3 GHz WLAN5260 - 5320 MHz10.42<0.10.25 5.5 GHz WLAN5500 - 5700 MHz10.12<0.10.66 Bluetooth2402 - 2480 MHz10.55 0.691.281.11 SAR Band & ModeTx Frequency Conducted Power [dBm] N/A Simultaneous SAR per KDB 690783 D01: Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT Reviewed by: FCC ID: A3LSCHR830 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1209181352.A3L 09/14/12 - 09/26/12 Portable Handset Page 2 of 62 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE CHECKLIST PER KDB 941225 D05 ....................................................................................... 7 3 INTRODUCTION ............................................................................................................................. 8 4 SAR MEASUREMENT SETUP ....................................................................................................... 9 5 DOSIMETRIC ASSESSMENT ...................................................................................................... 12 6 DEFINITION OF REFERENCE POINTS ...................................................................................... 13 7 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 14 8 FCC RF EXPOSURE LIMITS........................................................................................................ 17 9 FCC MEASUREMENT PROCEDURES........................................................................................ 18 10 RF CONDUCTED POWERS......................................................................................................... 22 11 SYSTEM VERIFICATION.............................................................................................................. 30 12 SAR DATA SUMMARY ................................................................................................................. 33 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS......................................................... 49 14 EQUIPMENT LIST......................................................................................................................... 57 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 58 16 CONCLUSION............................................................................................................................... 60 17 REFERENCES .............................................................................................................................. 61 Reviewed by: FCC ID: A3LSCHR830 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1209181352.A3L 09/14/12 - 09/26/12 Portable Handset Page 3 of 62 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 1 DEVICE UNDER TEST 1.1 Device Overview Cell. CDMA/EVDO824.70 - 848.31 MHz AWS CDMA/EVDO1711.25 - 1753.75 MHz PCS CDMA/EVDO1851.25 - 1908.75 MHz LTE Band 12701.5 - 713.5 MHz LTE Band 5 (Cell)826.5 - 846.5 MHz LTE Band 4 (AWS)1712.5 - 1752.5 MHz LTE Band 2 (PCS)1852.5 - 1907.5 MHz 2.4 GHz WLAN2412 - 2462 MHz 5.8 GHz WLAN5745 - 5825 MHz 5.2 GHz WLAN5180 - 5240 MHz 5.3 GHz WLAN5260 - 5320 MHz 5.5 GHz WLAN5500 - 5700 MHz Bluetooth2402 - 2480 MHz NFC13.56 MHz Band & ModeTx Frequ…

Text truncated - open the document above for the full version.

© 2012 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

Reviewed by: FCC ID: A3LSCHR830 FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1209181355.A3L 9/19 - 10/8/2012 Portable Handset Page 1 of 72 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.3U40 09/10/12 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 9/19 - 10/8/2012 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab, Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1209181355.A3L FCC ID: A3LSCHR830 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): SCH-R830 EUT Type: Portable Handset FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 IC Specification(s): RSS-210 Issue 8 Test Procedure(s): ANSI C63.10-2009, KDB 789033 Max. Power (mW) Max. Power (dBm) 1205180 - 524010.010.02 2205260 - 532011.010.42 3205500 - 570010.310.12 1205180 - 524010.110.06 2205260 - 532010.510.23 3205500 - 570010.310.12 1405190 - 523010.210.10 2405270 - 53109.99.94 3405510 - 56709.09.54 Conducted Power Mode Tx Frequency (MHz) UNII Band 802.11n Channel Bandwidth (MHz) 802.11a 802.11n This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009, and KDB 789033. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 802.11a/n (UNII) Reviewed by: FCC ID: A3LSCHR830 FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1209181355.A3L 9/19 - 10/8/2012 Portable Handset Page 2 of 72 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.3U40 09/10/12 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................. 5 2.3 TEST CONFIGURATION ........................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.5 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS......................................................................................................... 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N................................................................................ 11 6.3 UNII OUTPUT POWER MEASUREMENT – 802.11A/N .......................................................................... 25 6.4 PEAK POWER SPECTRAL DENSITY – 802.11A/N................................................................................ 27 6.5 PEAK EXCURSION RATIO – 802.11A/N................................................................................................. 42 6.6 FREQUENCY STABILITY ........................................................................................................................ 45 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 48 6.8 RADIATED BAND EDGE MEASUREMENTS (20MHZ BW) ................................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHR830 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1209181356.A3L 9/19 - 10/8/2012 Portable Handset Page 1 of 22 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5DFS 9/14/12 Company Name: Date of Testing: Samsung Electronics Co., Ltd. 9/19 - 10/8/2012 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab. Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1209181356.A3L FCC ID: A3LSCHR830 COMPANY: Samsung Electronics Co., Ltd. Model(s): SCH-R830 EUT Type: Portable Handset Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-II Band) 5500 – 5700 MHz (UNII-III Band) Output Power: 11.015 mW (10.42 dBm) Conducted (802.11a UNII Band II) 10.280 mW (10.12 dBm) Conducted (802.11a UNII Band III) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurem…

Text truncated - open the document above for the full version.
