A3LSCHS329Cellular CDMA Phone

* Depending on the software in stalled or your service provider or country, some of the descriptions in this guide may not match your phone exactly. * Depending on your country, your phone and accessories ma y appear different from the illustrations in this guide. World Wide Webhttp://www.samsungmobile.com Printed in Korea Code No.:GH68-XXXXXA English. 08/2007. Rev. 1.0 SCH-S329User’s Guide Dr a f t 0 1 2 0 0 7 . 0 8 . 0 2 Copyright informationJava TM is a trademark or registered trademark of Sun Microsystems, Inc. Important safety precautions Drive safely at all timesDo not use a hand-held phone while driving. Park your vehicle first.Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force.InterferenceAll wireless phones may be subject to interference, which could affect their performance. Failure to comply with the following precautions may be dangerous or illegal. 1 Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry.Sensible useUse only in the normal position (held to your ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callsKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children.Accessories and batteriesUse only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised ac cessories could damage you or your phone and may be dangerous. Use of authorised softwareUse only Samsung-authorised software. The use of any unauthorised software could damage your phone.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 33. • The phone could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufacturer’s instructions. At very high volumes, prolonged listening to a headset can damage your hearing. 2 About this GuideThis User’s Guide provides you with condensed information about how to use your phone.In this guide, the following instruction icons appear: Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features. → Indicates that you need to press the Navigation keys to scroll to the specified option and then select it. [ ] Indicates a key on the phone. For example, [ ] < > Indicates a soft key, whose function is displayed on the phone screen. For example, < Menu > • Camera and camcorder Use the camera module on your phone to take a photo or record a video. Special features of your phone •MP3 player Play music files using your phone as an MP3 player. •FM radio Listen to your favourite radio stations anytime, anywhere. 3 • Photo studio Add a frame or apply special effects to decorate your photos. • Flight mode Switch your phone to Flight mode to use its non-wireless functions while on an airplane. •Web browser Access the wireless web to get up-to-the-minute information and a wide variety of media content. •SOS message Send SOS messages to your family or friends for help in an emergency. •Memory disk Access an external memory card to copy files directly by connecting the phone to a PC. • Cricket scorer Keep track of the cricket score. 4 Contents Unpack 6 Make sure you have each itemGet started 6 First steps to operating your phoneAssemble and charge the phone ...................... 6Power on or off.............................................. 7Phone layout ................................................. 7Keys and icons .............................................. 8Access menu functions .................................. 11Enter text .................................................... 12Customise your phone ................................... 13Use an optional memory card ......................... 15 Step outside the phone 17 Begin with call functions, camera, MP3 player, web browser, and other special featuresMake or answer calls..................................... 17Use the camera............................................ 17Play music................................................... 18Listen to the FM radio ................................... 20Browse the web ........................................... 21Use Contacts ............................................... 21Send messages ............................................ 22View messages ............................................ 24Menu functions 25 All menu options listedHealth and safety information 34 5 1 do mOre1 TATA zone2 SMS Services2 Calls1 Missed 2 Incoming3 Outgoing4 Rejected5 Air time6 Area code7 Call reject8 Call settings3 Display1 Screen saver2 Functional screen3 Power On/Off4 Dialing font5 Time settings6 Backlight 4 Sounds1 Ringer2 Ringer Vol./Type3 Key tone4 Function alert5 Hour alert6 Cricket alert5 Messages1 Text message2 SOS message3 Message settings4 Memory info6 Entertainment1 FM radio2 Games3 Cricket scorer 7 Contacts1 Search2 Add3 Group settings4 Speed dial5 My phone #6 Memory info8 Utilities1 Today2 Calendar3 Task list4 Alarm5 Memo pad6 Calculator7 Countdown8 Clock 9 Settings1 Auto key lock2 Security3 Entry method4 Language5 Domain preset6 Shortcuts Overview of menu functions To access Menu mode, press < Menu > in Idle mode. 6 Unpack Make sure you have each item• Phone•Travel adapter•Ba…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: August 31, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHS329 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics CONFIDENTIAL 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

of 27 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SCH-S329 FCC ID (Requested): A3LSCHS329 Job No: FE-159 Report No: FE-159-S1 Date issued: Aug.30, 2007 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By JD JANG - Test Engineer Authorized By JH NAM - Technical Manager Report Number: FE-159-S1 2 of 27 Contents 1. GENERAL INFORMATION............................................................................................................. 3 2. DESCRIPTION OF DEVICE ........................................................................................................... 3 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................... 4 3.1 SAR Measurement Setup ......................................................................................................4 3.2 E-field Probe .......................................................................................................................... 6 3.3 SAM Phantom ........................................................................................................................ 8 3.4 Brain & Muscle Simulating Mixture Characterization ............................................................. 8 3.5 Device Holder for Transmitters ..............................................................................................9 3.6 Validation Dipole .................................................................................................................... 9 3.7 Equipment Calibration.......................................................................................................... 10 4. SAR MEASUREMENT PROCEDURE ......................................................................................... 11 5. DESCRIPTION OF TEST POSITION ........................................................................................... 12 5.1 SAM Phantom Shape...........................................................................................................12 5.2 Cheek/Touch Position .......................................................................................................... 12 5.3 EAR/Tilt 15° Position ............................................................................................................ 14 5.4 Body Holster/Belt Clip Configurations.................................................................................. 15 6. MEASUREMENT UNCERTAINTY................................................................................................ 17 7. SYSTEM VERIFICATION ............................................................................................................. 18 7.1 Tissue Verification ................................................................................................................ 18 7.2 Test System Validation ......................................................................................................... 18 8. SAR MEASUREMENT RESULTS ................................................................................................ 19 8.1 Measurement Results(CDMA Right Head SAR - Touch) ..................................................... 21 8.2 Measurement Results(CDMA Right Head SAR - Tilt) .......................................................... 22 8.3 Measurement Results(CDMA Left Head SAR - Touch) ....................................................... 23 8.4 Measurement Results(CDMA Left Head SAR - Tilt) ............................................................ 24 8.5 Measurement Results(CDMA Body SAR without Holster)................................................... 25 9. CONCLUSION .............................................................................................................................. 26 10. REFERENCES ............................................................................................................................ 27 Report Number: FE-159-S1 3 of 27 1. GENERAL INFORMATION Test Sample : Single-Mode Cellular Phone Model Number : SCH-S329 Serial Number : Identical prototype (S/N : # FE-159-A) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : JP Kwang Phone : +82-31-301-8047 Fax : +82-31-279-6777 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Non-Broadcast Transmitter Held to Ear (TNE) Test Dates : Aug.25, 2007 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 824.70 ~ 848.31 MHz (CDMA) Rx Freq. Range : 869.70 ~ 893.31 MHz (CDMA) Antenna Manufacturer : INTOPS Model No.: SCH-S329 Antenna Dimensions : 40.18mm * 21.37mm CDMA 2000 1x Support Report Number: FE-159-S1 4 of 27 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung computer with Windows XP system and SAR Measurement Software DASY4, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A Report Number: FE-159-S1 5 o…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 22 SUBPART CERTIFICATION REPORT Model Tested: SCH-S329 FCC ID (Requested): A3LSCHS329 Report No: FE-159-R1 Job No: FE-159 Date issued: 2007-09-06 - Abstract – All measurement reported here in accordance with FCC Rules, 47CFR Part2, Part22 Prepared By SH ONG – Test Engineer Authorized By WW JANG - Technical Manager © Copyright SAMSUNG Electronics 2006 Report Number : FE-159-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information .......................................................................................3 1.1 §2.1033 General Information ...................................................................................3 2. INTRODUCTION .............................................................................................................4 2.1 General ....................................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION .................................................................5 4. TEST EQUIPMENT LIST.................................................................................................6 5. DESCRIPTION OF TESTS..............................................................................................7 5.1 Output Power Variation ............................................................................................7 5.2 Effective Radiated Power / Equivalent Isotropic Radiated Power ............................8 5.3 Radiated Spurious & Harmonic Emission ................................................................9 5.4 Occupied Bandwidth .............................................................................................. 11 5.5 Spurious and Harmonic Emissions at Antenna Terminal ........................................ 11 5.5.1 Occupied Bandwidth Emission Limits ........................................................... 11 5.5.2 Conducted Spurious Emission ......................................................................12 5.6 Frequency Stability / Temperature Variation...........................................................13 6. TEST DATA ...................................................................................................................14 6.1 Effective Radiated Power(E.R.P.) ..........................................................................14 6.2 Cellular CDMA Radiated Spurious & Harmonic measurement...............................15 6.3 CDMA Radiated Spurious & Harmonic Conversion Table ......................................16 6.4 Frequency Stability.................................................................................................17 6.4.1 CDMA Frequency Stability Table ...................................................................17 6.4.2 CDMA Frequency Stability Graph .................................................................17 7. SAMPLE CALCULATION .............................................................................................17 7.1 Emission Designator ..............................................................................................17 8. CONCLUSION...............................................................................................................17 9. TEST PLOTS.................................................................................................................17 Report Number : FE-159-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1 §2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 Attention: FCC ID: SungJoo KIM, Engineering Manager (QA Lab) A3LSCHS329 Quantity: Quantity production is planned Emission Designators: 1M28F9W(CDMA) Tx Freq. Range: 824.70-848.31MHz (CDMA) Rx Freq. Range: 869.70-893.31MHz (CDMA) Max. Power Rating: 0.153 W ERP CDMA (21.85dBm) FCC Classification(s): Licensed Non-Broadcast Transmitter Held to Ear(TNE) Equipment (EUT) Type: Single-Band CDMA Phone Modulation(s): CDMA Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 2. Dates of Test: August 23-24, 2007 Place of Test: SAMSUNG Lab, Test Report S/N: FE-159-R1 Report Number : FE-159-R1 2. INTRODUCTION 2.1 General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on the rotating device at the same height and at a distance of 3-meters from the receive antenna. The rotating device which can rotate horizontal axis was mounted on the turn unit to facilitate rotation around a vertical axis. The measurement was made for each horizontal/vertical position combination with receive antenna horizontally polarized. This measurement was repeated with receive antenna vertically polarized. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Report Number : FE-159-R1 3. MEASURING INSTRUMENT…

Text truncated - open the document above for the full version.

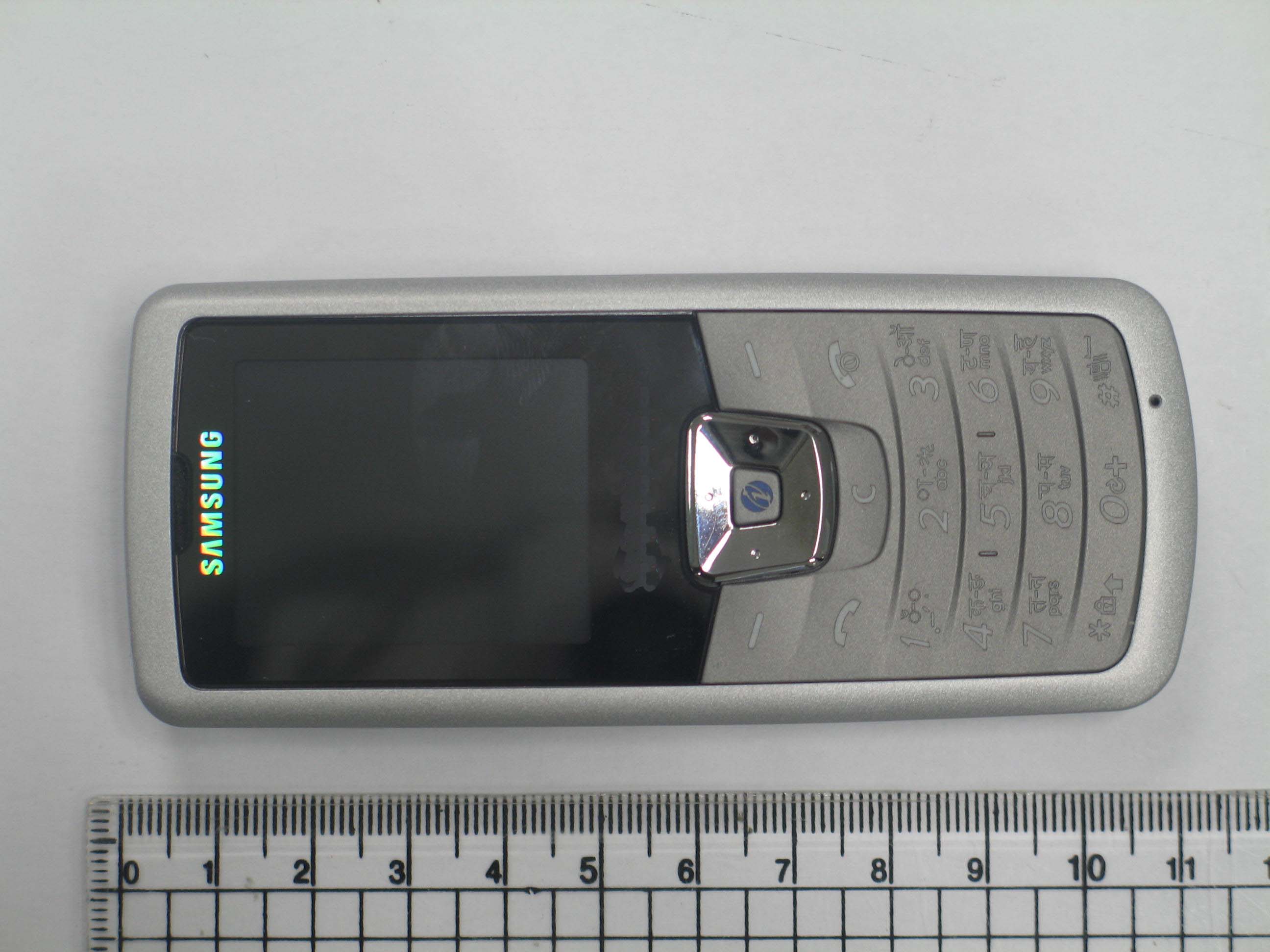

© 2007 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHS329 Single-Band CDMA Phone

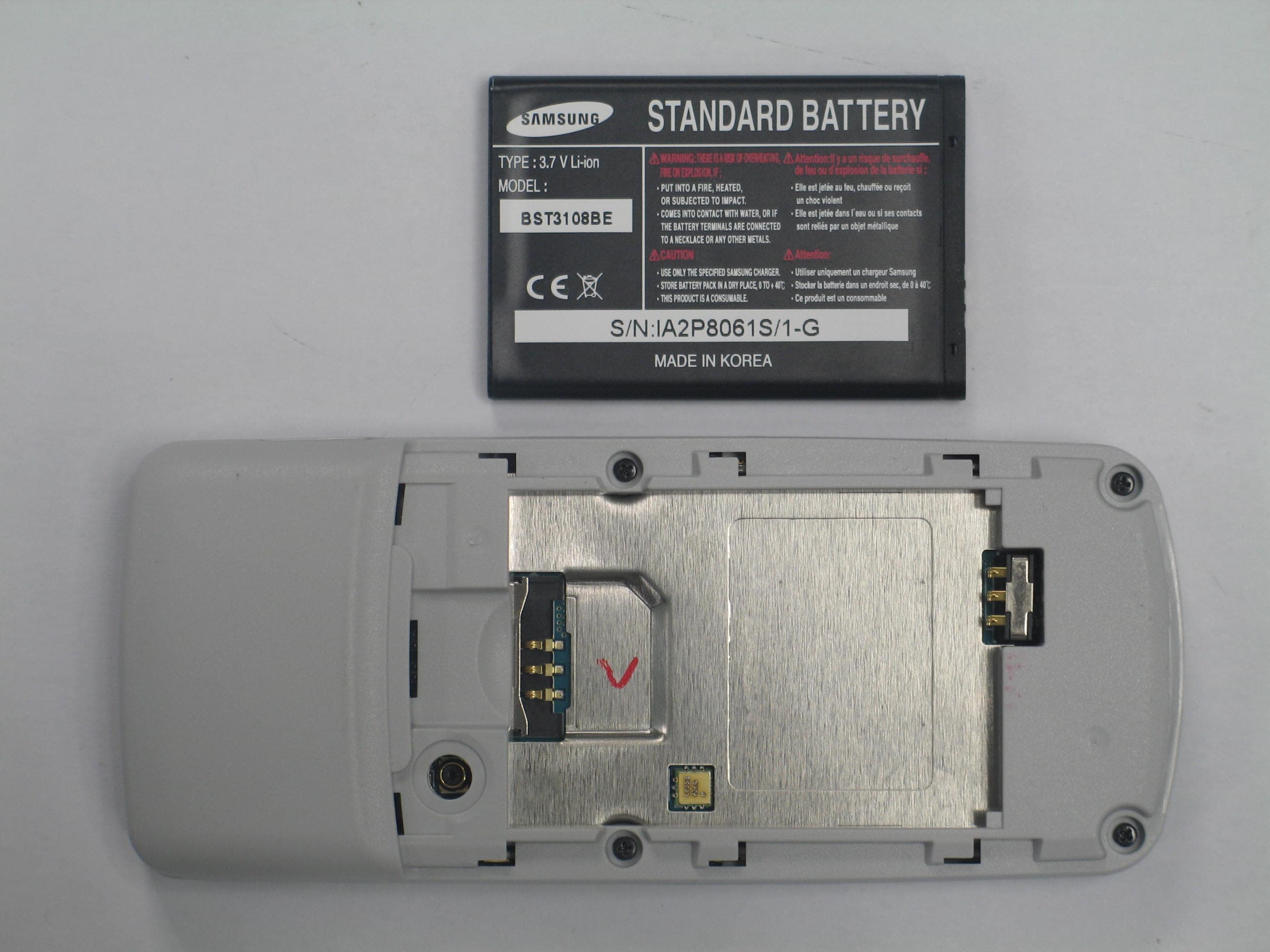

© 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS329 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS329 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS329 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS329 Single-Mode Cellular Phone 1.5Cm © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS329 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS329 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS329 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS329 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS329 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS329 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS329 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS329 Single-Mode Cellular Phone
