A3LSCHS399Cellular CDMA Phone

* Depending on the software installed or your service provider or country, some of the descriptions in this guide may not match your phone exactly. * Depending on your country, your phone and accessories may appear different from the illust rations in this guide. Printed in Korea Code No.:GH68-XXXXXA English. 05/2007. Rev.1.0 World Wide Webhttp://www.samsungmobile.com Draft 01 2007. 05. 02 SCH-S399User’s Guide Drive safely at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Important safety precautions 1 InterferenceAll wireless phones may be subject to interference, which could affect their performance. Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callsKey in the emergency number for your present location, then press [ ]. Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children.Accessories and batteriesUse only Samsung-approved accessories and batteries. Use of any unauthorised accessories could damage your phone and may be dangerous.Use of authorised softwareUse only Samsung-authorise d software. The use of any unauthorised software could damage your phone.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 31 • The phone could explode if the battery is replaced with an incorrect type.• Dispose of used batteries according to the manufacturer’s instructions. 2 About this GuideThis User’s Guide provides you with condensed information about how to use your phone. To quickly learn the basics for your ph one, please refer to “Step outside the phone.”In this guide, the following instruction icons appear: Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features.  Indicates that you can get more information on the referenced page. → Indicates that you need to press the Navigation keys to scroll to the specified option and then select it. [ ] Indicates a key on the phone. For example, [] < > Indicates a soft key, whose function is displayed on the phone screen. For example, < Menu > • Simple, sleek design with Intenna Samsung’s powerful intenna technology allows the best call quality without an annoying external antenna. Special features of your phone • Phonebook Store home, office, or cellular phone numbers for your contacts. 3 Special features of your phone • Short message service (SMS) Chat and share interest with your friends, family, or co-workers by SMS messages. •Game Enjoy embedded games on your phone.. •Calendar Keep track of your daily and monthly schedule. •Alarm Use your phone as an alarm clock to wake you up in the morning or notify you of an impending event. •Calculator Perform basic calculations and do currency conversions. 4 Contents Unpack 6 Make sure you have each itemYour phone 6 Buttons, features, and locationsGet started 7 First steps to operating your phoneInstall and charge the phone ..................................... 7Power on or off........................................................ 8Keys and display ..................................................... 9Access menu functions ............................................ 11Customise your phone ............................................. 12Make/Answer calls .................................................. 13Step outside the phone 14 Begin with Phonebook, me ssages, and other features Use Phonebook....................................................... 14Send/View messages .............................................. 15 Use the alarm clock ................................................ 16Manage schedule .................................................... 16 Enter text 18 ABC, T9 Word, 123, and Symbol modeCall functions 22 Advanced calling featuresMenu functions 25 All menu options listedSolve problems 46 Help and personal needsHealth and safety information 48 5 Overview of menu functions To access Menu mode, press < Menu > in Idle mode. 1 Calls1 Missed2 Incoming3 Outgoing4 Air time2 Phonebook1 Find2 Add3 Group settings4 My phone #5 Memory status 3 Message1 Write2 Inbox3 Outbox4 Draft5 Voice mail6 Erase7 Settings8 Memory status9 SMS groups0 SOS message 4 Organiser1 Calendar2 Alarm3 Calculator4 To do list5 Memo pad6 Countdown7 World time8 Unit converter9 Stopwatc5 Entertainment1 SMS service2 Game3 Cricket scorer4 Voice memo 6 Setup1 Sounds2 Display3 Calls4 Shortcuts5 Phone6 Security 6 Unpack Make sure you have each itemYou can obtain various accessories from your local Samsung dealer. Yo u r p h o n e First steps to operating your phoneUIM card informationWhen you subscribe to a cel lular network, you receive a plug-in UIM (User Identification Module) card loaded with your subscription detail s, such as your PIN, and available optional services. Install and charge the phone Phone Travel Adapter Battery User’s Guide • The items supplied with your phone and the accessories available at your Samsung dealer may vary, depending on your country or servic…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: June 1, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHS399 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Parts List & Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

From: 장왈운 [[email protected]] Sent: Sunday, June 17, 2007 9:36 PM To: steve Cc: Channy; Gregory; Mia Kang; Randy; annalee; courtenay; 박병준; 박승호; 이현경; 장왈운 Subject: Fwd: RE: Questions Regarding FCC ID: A3LSCHS399 Page 1 of 3Samsung Enterprise Portal mySingle 6/18/2007 Dear Steve, SCH-S399 doesn't use the USB function. Sincerely, Chase Jang ------- Original Message ------- Sender : Stephen S. Liu (PCTEST)<[email protected]> Date : 2007-06-16 00:56 Title : RE: Questions Regarding FCC ID: A3LSCHS399 Hi Mr. Jang, Please re-address #3. Please inform us about the USB data cable capability for JBP portion for A3LSCHS399. Best Regards, Steve From: 장왈운[mailto:[email protected]] Sent: Thursday, June 14, 2007 7:04 AM To: steve Cc: Channy; Gregory; Mia Kang; Randy; annalee; courtenay; 박병준; 박승호; 이현경; 장왈운 Subject: Fwd: Questions Regarding FCC ID: A3LSCHS399 Dear Steve, 1,2,3 Please see attached file. 4. There is no problem. It's correct. 1013 ch : H, V, V 384 CH : H, V, H 777 CH : H, V, V 5. Please see attached file. Sincerely, Chase Jang ------- Original Message ------- Sender : PCTEST TCB<[email protected]> Date : 2007-06-13 05:36 Title : Questions Regarding FCC ID: A3LSCHS399 To: Mr. Chase Jang / Samsung Electronics Co., Ltd. From: Mr. Stephen Liu / PCTEST TCB RE: FCC ID: A3LSCHS399 Applicant: Samsung Electronics Co., Ltd. Correspondence Reference Number: A3L7470 Confirmation Number: 705300470 Date of Original Email: June 12, 2007 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. 1. Operational Description indicate frequency range beyond the USA band. Please revise, and ensure the device will only operate between 824.70 – 838.31 MHz Tx. 2. The Block Diagram does not indicate the presence of the FM Radio, as stated in the Users Manual (pg. 5, 8, 28). Please clarify. 3. Block Diagram and Schematics show USB connectivity is available. Please submit JBP portion for this application. 4. RF Report Page 16 (Section 6.3) does not fully correspond to the data stated in Page 15 for the low channel. Please correct. 5. There does not appear to be any deviation/ppm data on Page 17 (section 6.4). Please correct. The items indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Stephen Liu Certification Engineer PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) steve @pctestlab.com This communication and its attachments contain information from PCTEST Engineering Page 2 of 3Samsung Enterprise Portal mySingle 6/18/2007 Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you. From: 장왈운[mailto:[email protected]] Sent: Wednesday, May 30, 2007 9:32 AM To: annalee Cc: Channy; Gregory; Mia Kang; Randy; courtenay; steve; 박병준; 박승호; 이현경; 장왈운; 김성주 Subject: An application of FCC approval A3LSCHS399 Hello Anna Lee. I'd like to get the FCC grant for FCC ID : A3LSCHS399 The EUTs to be tested were dispatched by DHL on May 28. Please issue the grant by June 8. Sincerely, Chase Jang MODEL SAR EMC(RF) FM MODEAMPS IC HAC (RF-emission) HAC (T-coil) PART 15B SCH-S399 SEC SEC - - - - - PCTEST [CDMA] Head : 0.998 W/kg Body : 0.582 W/kg - - - - - - Verification TA:ATADD11IBE Page 3 of 3Samsung Enterprise Portal mySingle 6/18/2007

23 11 23 28

of 28 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SCH-S399 FCC ID (Requested): A3LSCHS399 Job No: FE-104 Report No: FE-104-S1 Date issued: Jun.07, 2007 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By DK LEE - Test Engineer Authorized By JH NAM - Technical Manager Report Number: FE-104-S1 2 of 27 Contents 1. GENERAL INFORMATION............................................................................................................. 3 2. DESCRIPTION OF DEVICE ........................................................................................................... 3 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................... 4 3.1 SAR Measurement Setup ......................................................................................................4 3.2 E-field Probe .......................................................................................................................... 6 3.3 SAM Phantom ........................................................................................................................ 8 3.4 Brain & Muscle Simulating Mixture Characterization ............................................................. 8 3.5 Device Holder for Transmitters ..............................................................................................9 3.6 Validation Dipole .................................................................................................................... 9 3.7 Equipment Calibration.......................................................................................................... 10 4. SAR MEASUREMENT PROCEDURE ......................................................................................... 11 5. DESCRIPTION OF TEST POSITION ........................................................................................... 12 5.1 SAM Phantom Shape...........................................................................................................12 5.2 Cheek/Touch Position .......................................................................................................... 12 5.3 EAR/Tilt 15° Position ............................................................................................................ 14 5.4 Body Holster/Belt Clip Configurations.................................................................................. 15 6. MEASUREMENT UNCERTAINTY................................................................................................ 17 7. SYSTEM VERIFICATION ............................................................................................................. 18 7.1 Tissue Verification ................................................................................................................ 18 7.2 Test System Validation ......................................................................................................... 18 8. SAR MEASUREMENT RESULTS ................................................................................................ 19 8.1 Measurement Results(CDMA Right Head SAR - Touch) ..................................................... 21 8.2 Measurement Results(CDMA Right Head SAR - Tilt) .......................................................... 22 8.3 Measurement Results(CDMA Left Head SAR - Touch) ....................................................... 23 8.4 Measurement Results(CDMA Left Head SAR - Tilt) ............................................................ 24 8.5 Measurement Results(CDMA Body SAR without Holster)................................................... 25 9. CONCLUSION .............................................................................................................................. 26 10. REFERENCES ............................................................................................................................ 27 Report Number: FE-104-S1 3 of 27 1. GENERAL INFORMATION Test Sample : Single-Mode Cellular Phone Model Number : SCH-S399 Serial Number : Identical prototype (S/N : # FE-104-A) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : SC CHOI Phone : +82-31-301-0851 Fax : +82-31-279-6777 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Non-Broadcast Transmitter Held to Ear- TNE Test Dates : May.22, 2007 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 824.70 ~ 848.31 MHz (CDMA) Rx Freq. Range : 869.70 ~ 893.31 MHz (CDMA) Max. RF Output Power : 0.148 W ERP CDMA (21.70 dBm) Antenna Manufacturer : PARTRON Model No.: SCH-S399 Antenna Dimensions : 35.3 x 10.3 mm CDMA 2000 1x Support Report Number: FE-104-S1 4 of 27 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung computer with Windows XP system and SAR Measurement Software DASY4, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulati…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 22 SUBPART CERTIFICATION REPORT Model Tested: SCH-S399 FCC ID (Requested): A3LSCHS399 Report No: FE-104-R1 Job No: FE-104 Date issued: June 13,2007 - Abstract – All measurement reported here in accordance with FCC Rules, 47CFR Part2, Part22 Prepared By JH HAN – Test Engineer Authorized By WW JANG - Technical Manager Report Number : FE-104-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information .......................................................................................3 1.1 §2.1033 General Information ...................................................................................3 2. INTRODUCTION .............................................................................................................4 2.1 General ....................................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION .................................................................5 4. TEST EQUIPMENT LIST.................................................................................................6 5. DESCRIPTION OF TESTS..............................................................................................7 5.1 Output Power Variation ............................................................................................7 5.2 Effective Radiated Power / Equivalent Isotropic Radiated Power ............................8 5.3 Radiated Spurious & Harmonic Emission ................................................................9 5.4 Occupied Bandwidth .............................................................................................. 11 5.5 Spurious and Harmonic Emissions at Antenna Terminal ........................................ 11 5.5.1 Occupied Bandwidth Emission Limits ........................................................... 11 5.5.2 Conducted Spurious Emission ......................................................................12 5.6 Frequency Stability / Temperature Variation...........................................................13 6. TEST DATA ...................................................................................................................14 6.1 Effective Radiated Power(E.R.P.) ..........................................................................14 6.2 Cellular CDMA Radiated Spurious & Harmonic measurement...............................15 6.3 CDMA Radiated Spurious & Harmonic Conversion Table ......................................16 6.4 Frequency Stability.................................................................................................17 6.4.1 CDMA Frequency Stability Table ...................................................................17 6.4.2 CDMA Frequency Stability Graph .................................................................18 7. SAMPLE CALCULATION .............................................................................................20 7.1 Emission Designator ..............................................................................................20 8. CONCLUSION...............................................................................................................21 9. TEST PLOTS.................................................................................................................22 Report Number : FE-104-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1 §2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 Attention: FCC ID: SungJoo KIM, Engineering Manager (QA Lab) A3LSCHS399 Quantity: Quantity production is planned Emission Designators: 1M28F9W(CDMA) Tx Freq. Range: 824.70-848.31MHz (CDMA) Rx Freq. Range: 869.70-893.31MHz (CDMA) Max. Power Rating: 0.148 W ERP CDMA (21.70dBm) FCC Classification(s): Licensed Non-Broadcast Transmitter Held to Ear (TNE) Equipment (EUT) Type: Single-Band Cellular Phone Modulation(s): CDMA Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 2. Dates of Test: May 18-19, 2007 Place of Test: SAMSUNG Lab, Test Report S/N: FE-104-R1 Report Number : FE-104-R1 2. INTRODUCTION 2.1 General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FE-104-R1 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has …

Text truncated - open the document above for the full version.

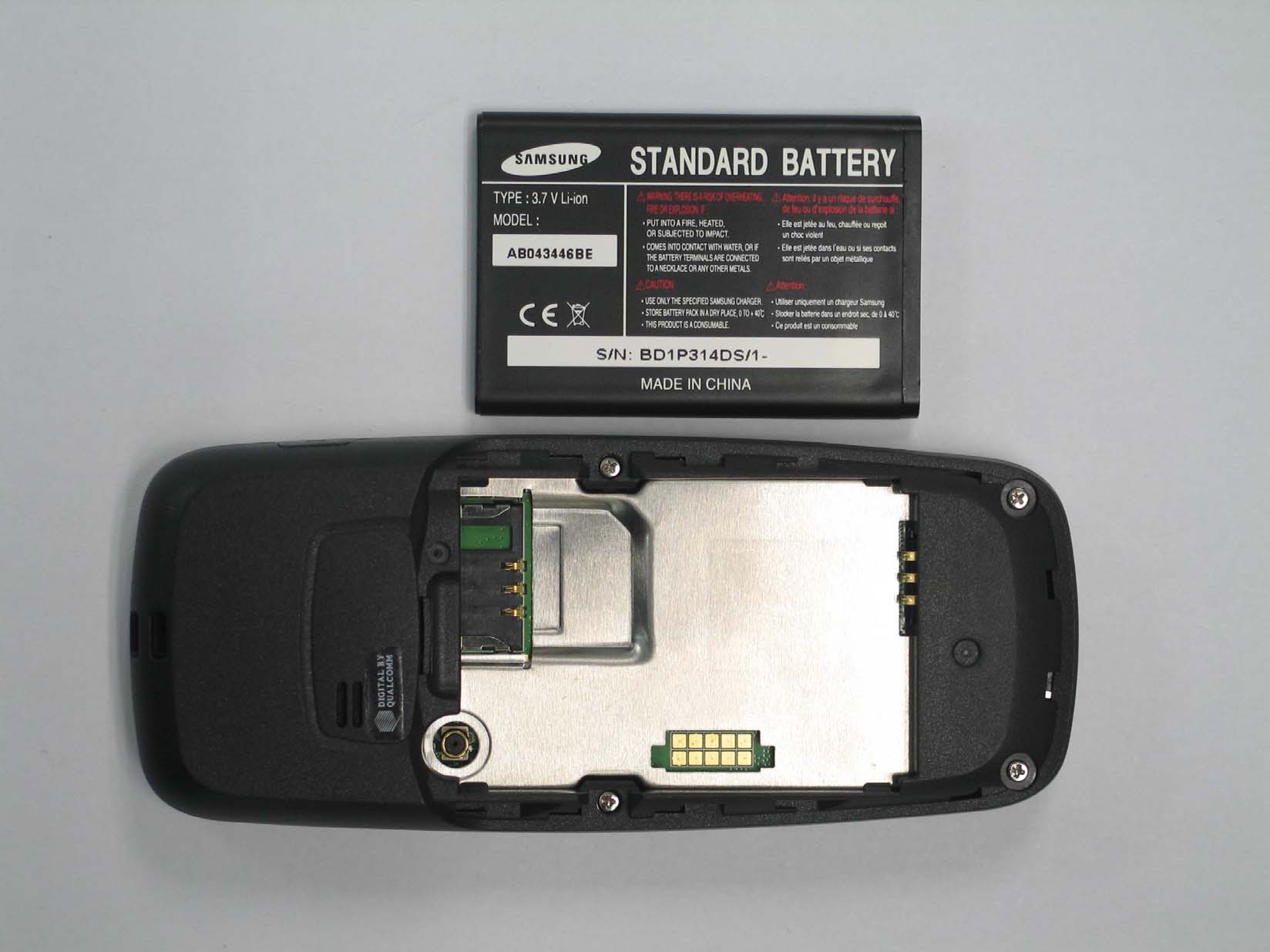

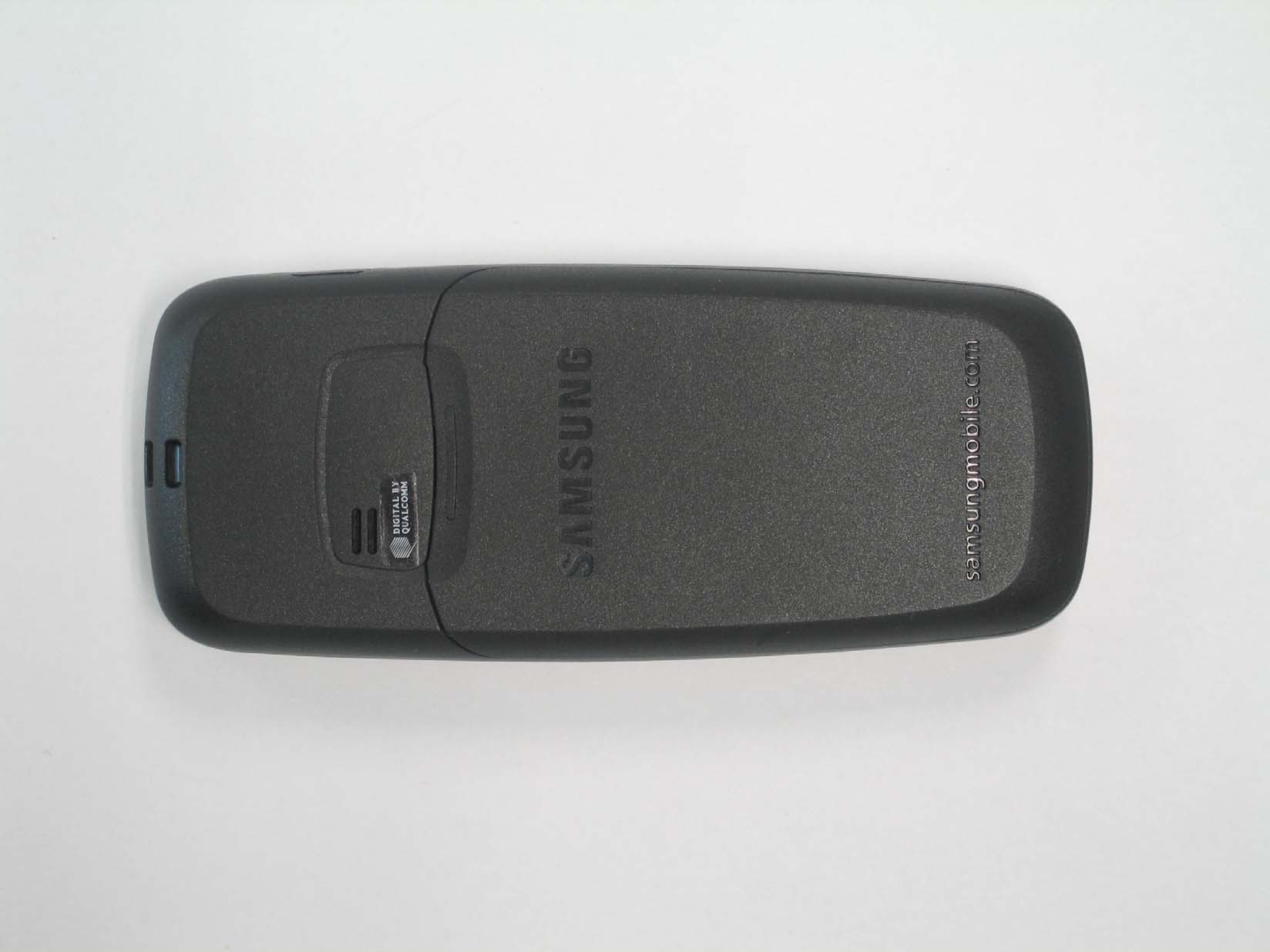

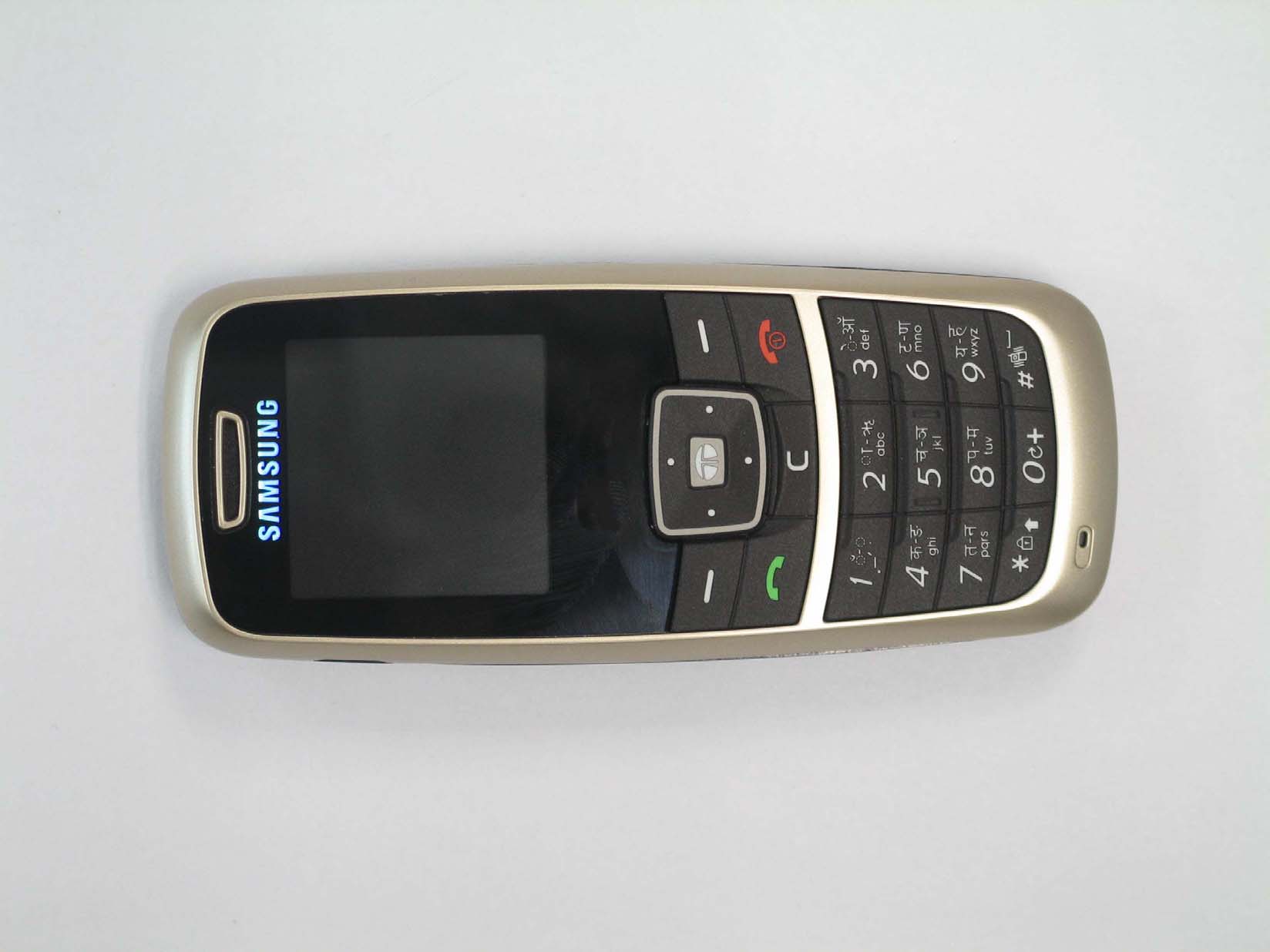

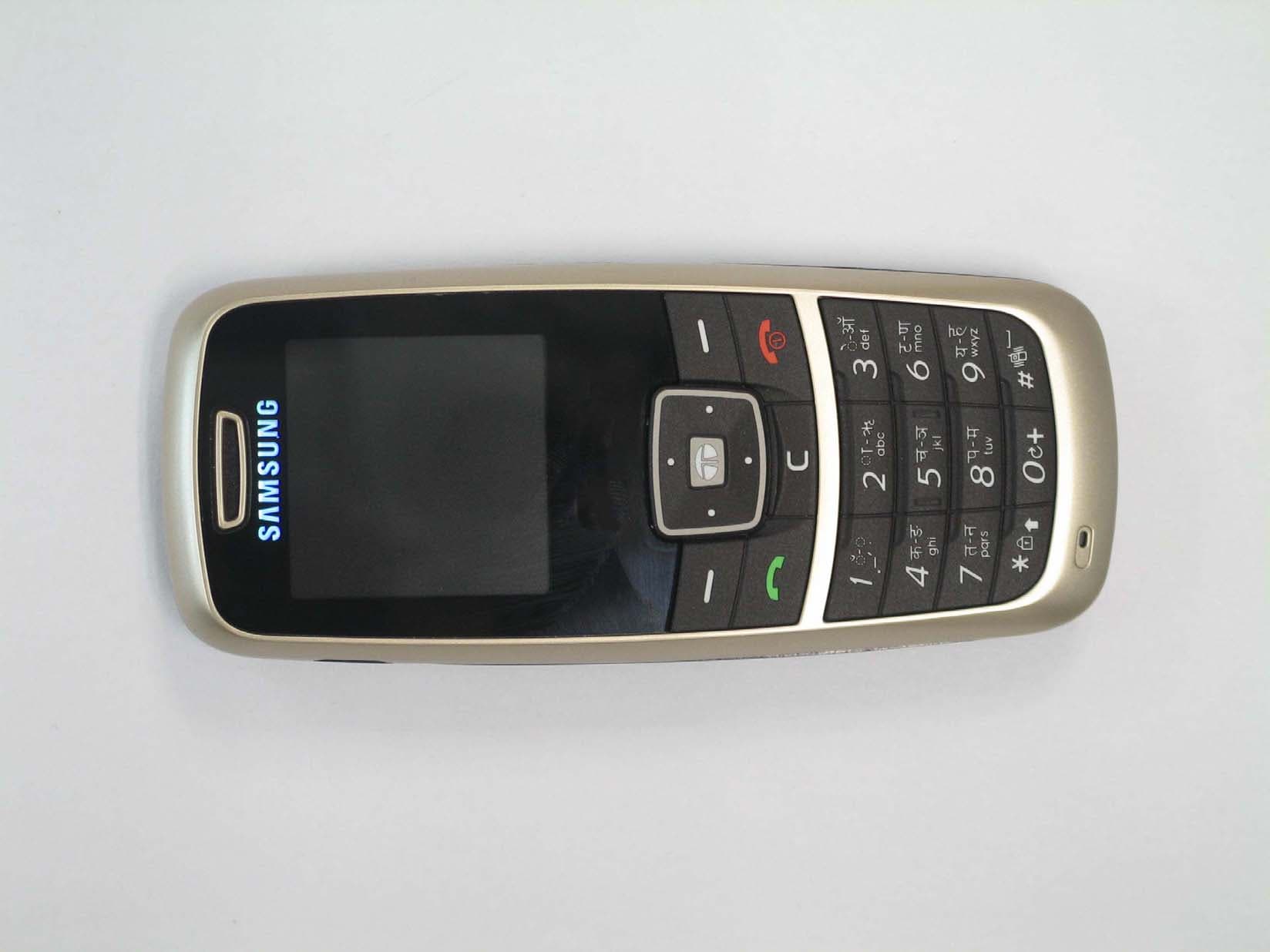

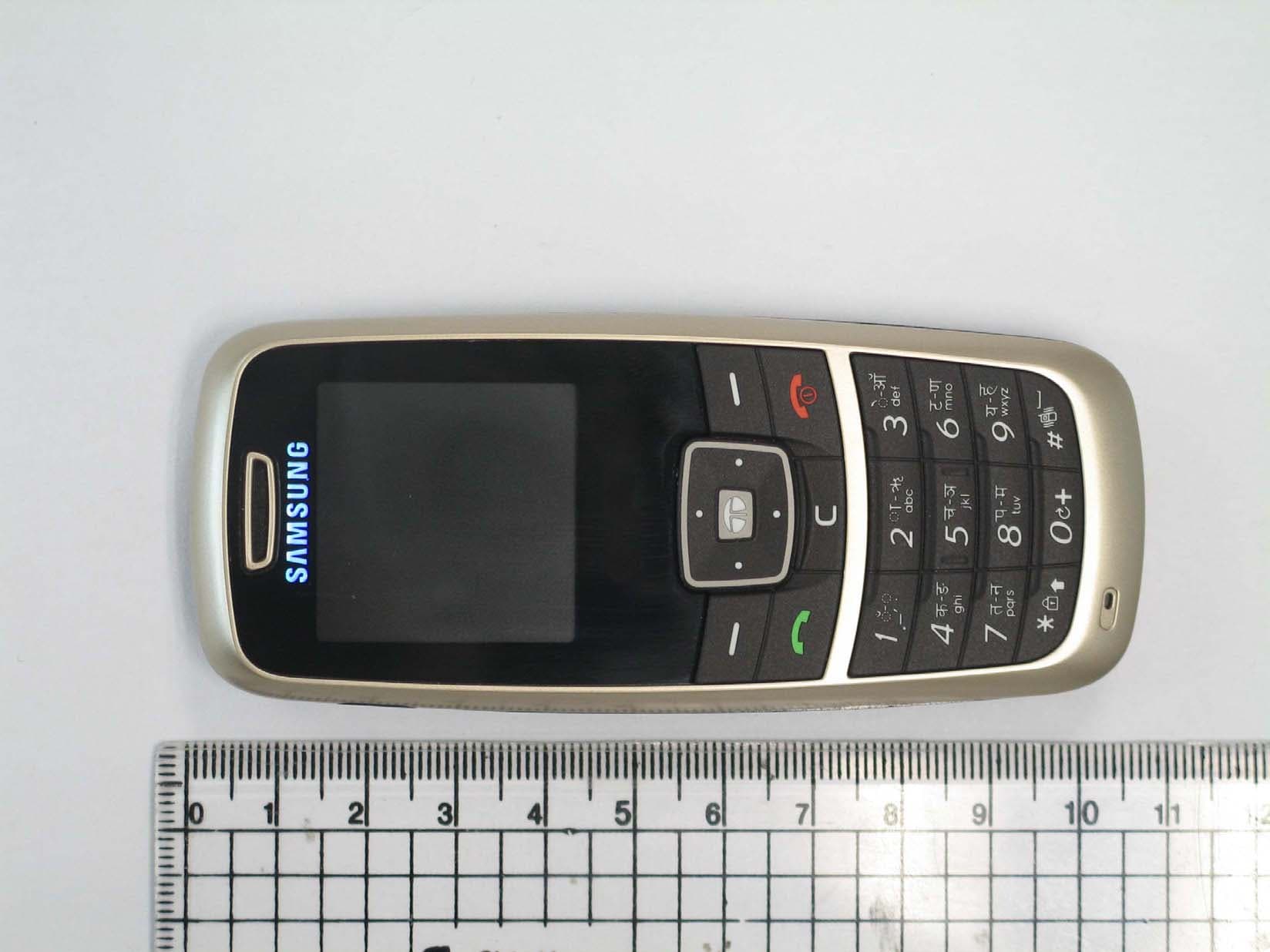

© 2007 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHS399 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHS399 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHS399 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHS399 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHS399 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHS399 Single-Mode Cellular Phone

© 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS399 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS399 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS399 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS399 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS399 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS399 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS399 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS399 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS399 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS399 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS399 Single-Mode Cellular Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSCHS399 Single-Mode Cellular Phone
