DRAFT Internal Use Only GH68_37222A Printed in China PORTABLE DUAL- BAND MOBILE PHONE User Manual Please read this manual before operating your phone and keep it for future reference. This document is watermarked because certain important information in the document has not yet been verified. This document has been sent to you as a draft and for informational purposes only. The document should only be used for internal purposes and may not be distributed outside of Samsung, except to Samsung's carrier customer for testing purposes. Distributing the document outside of Samsung, except to Samsung's carrier customer for testing purposes could result in legal exposure to the company if the preliminary, unverified information in the draft turns out to be inaccurate. DRAFT Internal Use Only S735C_English_UDLH3_PS_083012_F1 Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR DRAFT Internal Use Only IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. Samsung Telecommunications America (STA), LLC Headquarters: 1301 E. Lookout Drive Richardson, TX 75082 DRAFT Internal Use Only © 2012 Samsung Telecommunications America, LLC. Samsung is a registered trademark of Samsung Electronics Co., Ltd. Do you have questions about your Samsung Mobile Device? For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at: www.samsung.com/us/support Nuance ® , VSuite™, T9 ® Text Input, and the Nuance logo are trademarks or registered trademarks of Nuance Communications, Inc., or its affiliates in the United States and/or other countries. The Bluetooth ® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth word mark and “B Design”) are registered trademarks and are wholly owned by the Bluetooth SIG. microSD™ and the microSD logo are Trademarks of the SD Card Association. Customer Care Center: 1000 Klein Rd. Plano, TX 75074 Toll Free Tel: 1.888.987.HELP (4357) Internet Address: http://www.samsung.com DRAFT Internal Use Only 1 Table of Contents Section 1: Getting Started ....................................................7 Understanding this User Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Battery Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Initial Device Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Switching the Device On or Off . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Locking and Unlocking the Device . . . . . . . . . . . . . . . . . . . . . . . . 14 Creating a New Google Account . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Signing into Your Google Account . . . . . . . . . . . . . . . . . . . . . . . . . 16 Retrieving your Google Account Password . . . . . . . . . . . . . . . . . . 16 Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Section 2: Understanding Your Device ..............................19 Features of Your Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Device Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea October 5, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSCHS735C Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: October 5, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHS735C To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

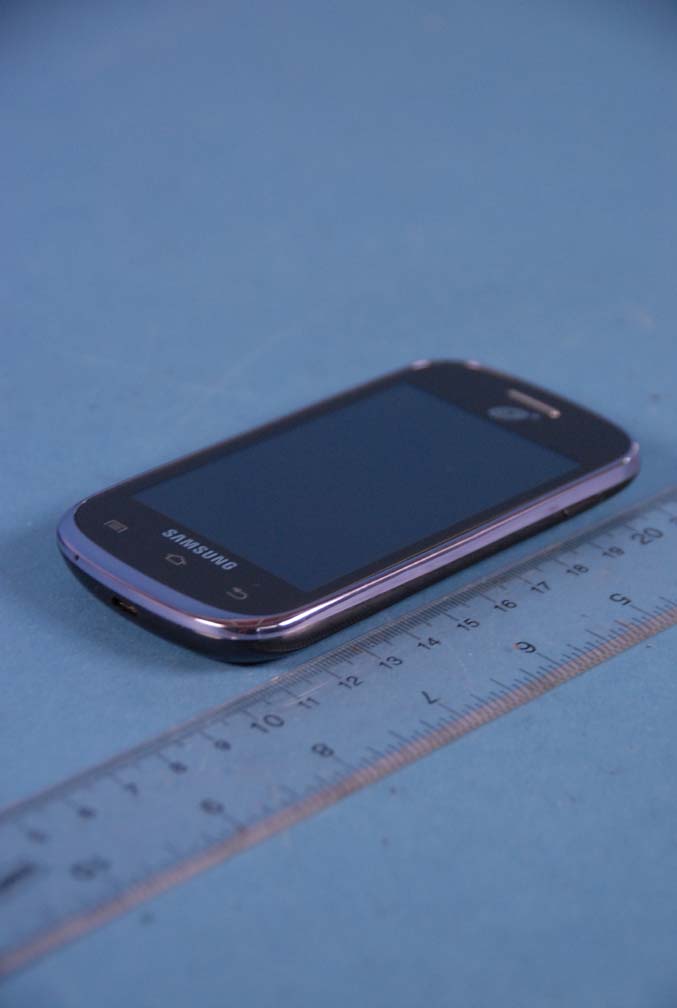

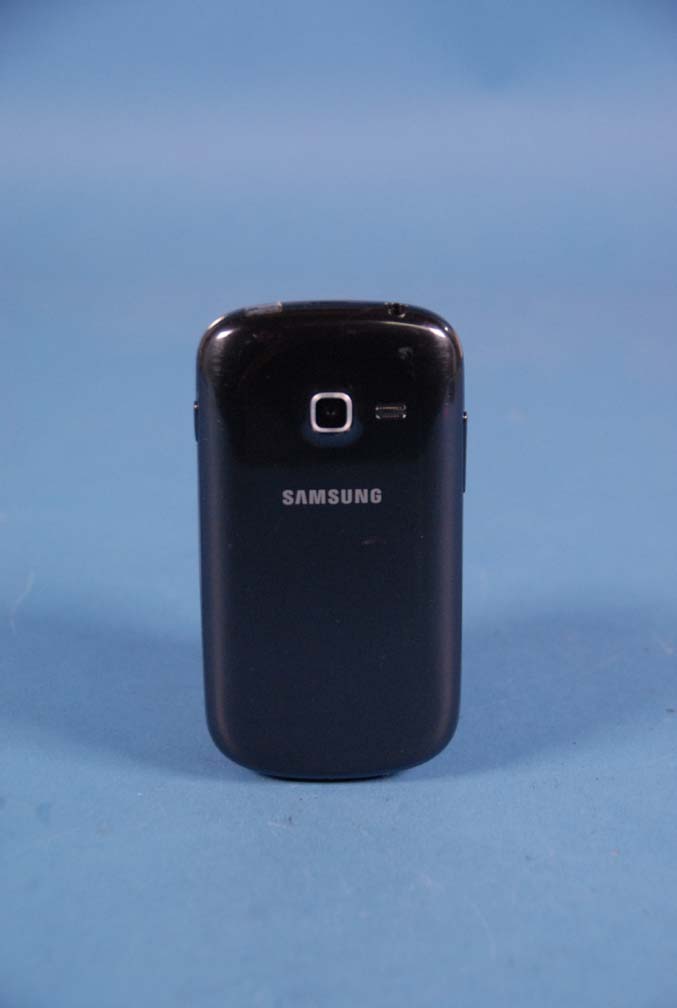

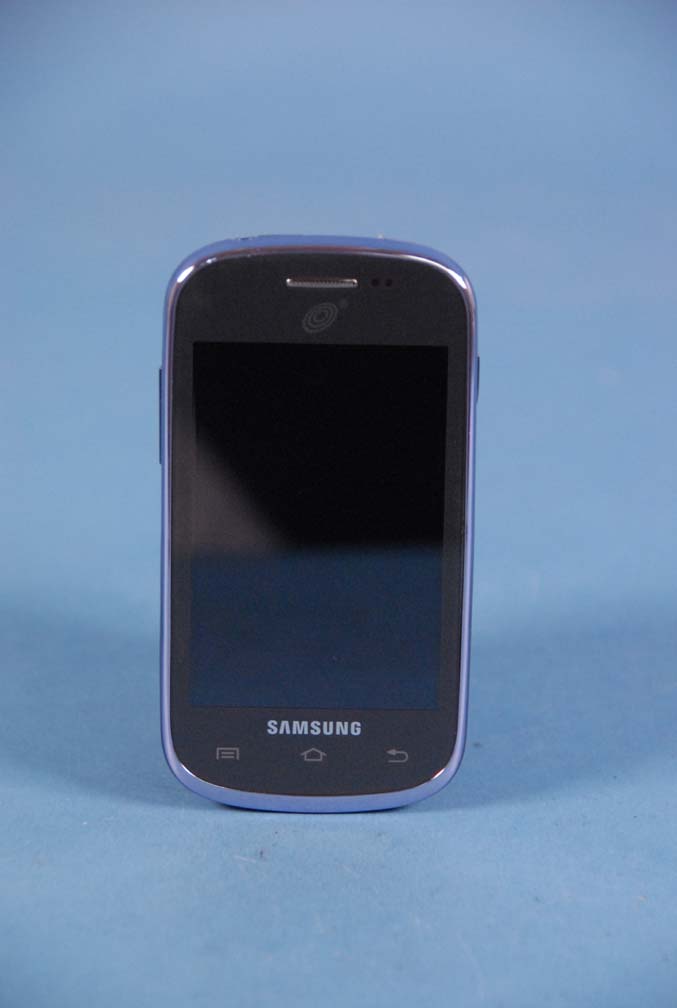

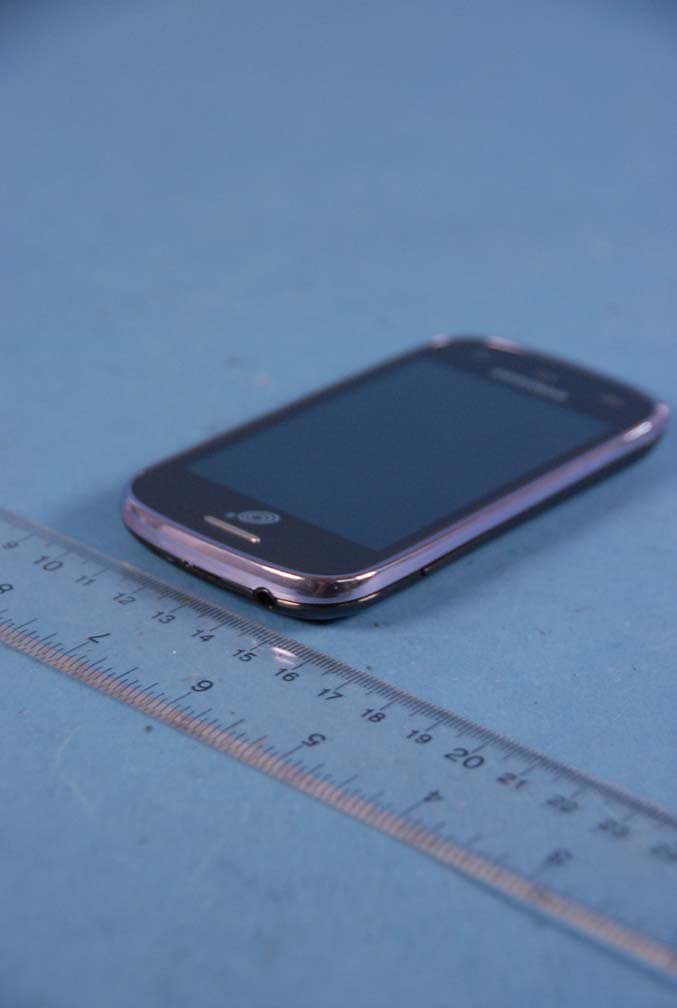

Samsung Electronics Co., Ltd. FCC ID: A3LSCHS735C Model: SCH-S735C External Photos EUT Type: Portable Handset Page 1 of 4 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSCHS735C Model: SCH-S735C External Photos EUT Type: Portable Handset Page 2 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHS735C Model: SCH-S735C External Photos EUT Type: Portable Handset Page 3 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHS735C Model: SCH-S735C External Photos EUT Type: Portable Handset Page 4 of 4 © 2012 PCTEST Engineering Laboratory Inc.

Label and Location Samsung Phone Model:SCH-S735C FCC ID:A3LSCHS735C Label: Location: Top Back plate of device Bottom Model : SCH-S735C GPSAS735CGB FCC ID : A3LSCHS735C TracFone Wireless, Inc.

Samsung Electronics Co., Ltd. FCC ID: A3LSCHS735C Model: SCH-S735C Internal Photos EUT Type: Portable Handset Page 1 of 9 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSCHS735C Model: SCH-S735C Internal Photos EUT Type: Portable Handset Page 2 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHS735C Model: SCH-S735C Internal Photos EUT Type: Portable Handset Page 3 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHS735C Model: SCH-S735C Internal Photos EUT Type: Portable Handset Page 4 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHS735C Model: SCH-S735C Internal Photos EUT Type: Portable Handset Page 5 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHS735C Model: SCH-S735C Internal Photos EUT Type: Portable Handset Page 6 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHS735C Model: SCH-S735C Internal Photos EUT Type: Portable Handset Page 7 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHS735C Model: SCH-S735C Internal Photos EUT Type: Portable Handset Page 8 of 9 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHS735C Model: SCH-S735C Internal Photos EUT Type: Portable Handset Page 9 of 9 © 2012 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSCHS735C SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 29 0Y1209261413.A3L 09/26/12 - 10/01/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 09/26/12 - 10/01/12 416, Maetan 3-dong, Yeongtong-gu, Suwon-si Test Site/Location: Gyeonggi-do, 443-742 PCTEST Lab, Columbia, MD, USA Republic of Korea Document Serial No.: 0Y1209261413.A3L FCC ID: A3LSCHS735C APPLICANT: SAMSUNG ELECTRONICS CO., LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093 SCH-S735C 1 gm Head (W /kg) 1 gm Body-Worn (W /kg) PCS CDMA/EVDO1851.25 - 1908.75 MHz25.460.780.45 2.4 GHz WLAN2412 - 2462 MHz16.850.280.12 Bluetooth2402 - 2480 MHz9.61 1.040.57 N/A Simultaneous SAR per KDB 690783 D01: SAR Band & ModeTx Frequency Conducted Power [dBm] Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all co nfigurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSCHS735C SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 29 0Y1209261413.A3L 09/26/12 - 10/01/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 INTRODUCTION ..............................................................................................................................5 3 SAR MEASUREMENT SETUP ........................................................................................................6 4 DOSIMETRIC ASSESSMENT .........................................................................................................7 5 DEFINITION OF REFERENCE POINTS .........................................................................................8 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ...............................................................9 7 FCC RF EXPOSURE LIMITS ........................................................................................................ 12 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 9 RF CONDUCTED POWERS ......................................................................................................... 16 10 SYSTEM VERIFICATION .............................................................................................................. 18 11 SAR DATA SUMMARY ................................................................................................................. 20 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 23 13 EQUIPMENT LIST ......................................................................................................................... 25 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 26 15 CONCLUSION ............................................................................................................................... 27 16 REFERENCES .............................................................................................................................. 28 FCC ID: A3LSCHS735C SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 29 0Y1209261413.A3L 09/26/12 - 10/01/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 1 DEVICE UNDER TEST 1.1 Device Overview PCS CDMA/EVDO1851.25 - 1908.75 MHz 2.4 GHz WLAN2412 - 2462 MHz Bluetooth2402 - 2480 MHz Band & ModeTx Frequency 1.2 DUT Antenna Locations Figure 1-1 DUT Antenna Locations 1900 MHz CDMA/EVDO Tx/Rx Ant To p Left Bottom 2.4 GHz WIFI /BT Tx/Rx Ant 61 mm 116 mm Right Front of Device GPS Rx Ant. 1.3 SAR Test Exclusions Applied (A) WIFI/BT The separation between the main antenna and the Bluetooth/WLAN antenna is 67 mm. RF Conducted Power of Bluetooth Tx is 9.141 mW (Please refer to the EMC DSS Report for a full set of Bluetooth conducted powers). FCC ID: A3LSCHS735C SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 4 of 29 0Y1209261413.A3L 09/26/12 - 10/01/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 2.4 GHz WIFI and Bluetooth share the same antenna path and cannot transmit simultaneously. Per KDB Publication 648474, Bluetooth SAR was not required based on the maximum conducted power, the Bluetooth/WLAN to main antenna separation distance and Body-SAR of the main anten…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHS735C FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1209261415.A3L Aug. 1 - Sept. 28, 2012 Portable Handset Page 1 of 40 © 2012 PCTEST Engineering Laboratory, Inc. REV 2.2WBGNFI 07/09/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. Aug. 1 - Sept. 28, 2012 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab, Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1209261415.A3L FCC ID: A3LSCHS735C APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): SCH-S735C EUT Type: Portable Handset FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 Test Procedure(s): ANSI C63.10-2009, KDB 558074 Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) 802.11b 2412 - 246248.41716.8568.70718.37 802.11g 2412 - 246215.17111.8166.22218.21 802.11n 2412 - 246212.33110.9152.84517.23 Avg Conducted Mode Tx Frequency (MHz) Peak Conducted This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009, and KDB 558074. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11b/g/n Reviewed by: FCC ID: A3LSCHS735C FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1209261415.A3L Aug. 1 - Sept. 28, 2012 Portable Handset Page 2 of 40 © 2012 PCTEST Engineering Laboratory, Inc. REV 2.2WBGNFI 07/09/2012 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................. 5 2.3 TEST CONFIGURATION ........................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.5 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS......................................................................................................... 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11B/G/N.............................................................................. 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G/N............................................................................... 17 6.4 POWER SPECTRAL DENSITY (802.11B/G/N) ....................................................................................... 18 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE.................................................................................. 24 6.6 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 28 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 32 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 36 6.9 LINE-CONDUCTED TEST DATA..............................................…

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. FCC ID: A3LSCHS735C Model: SCH-S735C Test Set-Up Photos EUT Type: Portable Handset Page 1 of 3 © 2012 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSCHS735C Model: SCH-S735C Test Set-Up Photos EUT Type: Portable Handset Page 2 of 3 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHS735C Model: SCH-S735C Test Set-Up Photos EUT Type: Portable Handset Page 3 of 3 © 2012 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSCHS735C SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: Page D1 of D4 09/26/12 - 10/01/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 APPENDIX D: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSCHS735C SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: Page D2 of D4 09/26/12 - 10/01/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 SAR Test Setup Photo 1: Right Cheek SAR Test Setup Photo 2: Right Tilt FCC ID: A3LSCHS735C SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: Page D3 of D4 09/26/12 - 10/01/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 SAR Test Setup Photo 3: Left Cheek SAR Test Setup Photo 4: Left Tilt FCC ID: A3LSCHS735C SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: Page D4 of D4 09/26/12 - 10/01/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 SAR Test Setup Photo 5: Body Worn Back Side at 1.5 cm Note: Headset Cable is connected to the device during body-worn SAR assessment, as seen above.
