A3LSCHS738CCellular/PCS CDMA Phone with WLAN and Bluetooth

DRAFT Internal Use Only GH68_37XXXA Printed in China PORTABLE DUAL- BAND MOBILE PHONE User Manual Please read this manual before operating your phone and keep it for future reference. This document is watermarked because certain important information in the document has not yet been verified. This document has been sent to you as a draft and for informational purposes only. The document should only be used for internal purposes and may not be distributed outside of Samsung, except to Samsung's carrier customer for testing purposes. Distributing the document outside of Samsung, except to Samsung's carrier customer for testing purposes could result in legal exposure to the company if the preliminary, unverified information in the draft turns out to be inaccurate. DRAFT Internal Use Only S738C_UM_English_WYLK3_PS_112612_F1 Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR DRAFT Internal Use Only IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. Samsung Telecommunications America (STA), LLC Headquarters: 1301 E. Lookout Drive Richardson, TX 75082 DRAFT Internal Use Only © 2012 Samsung Telecommunications America, LLC. Samsung is a registered trademark of Samsung Electronics Co., Ltd. Do you have questions about your Samsung Mobile Device? For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at: www.samsung.com/us/support Nuance ® , VSuite™, T9 ® Text Input, and the Nuance logo are trademarks or registered trademarks of Nuance Communications, Inc., or its affiliates in the United States and/or other countries. The Bluetooth ® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth word mark and “B Design”) are registered trademarks and are wholly owned by the Bluetooth SIG. microSD™ and the microSD logo are Trademarks of the SD Card Association. Customer Care Center: 1000 Klein Rd. Plano, TX 75074 Toll Free Tel: 1.888.987.HELP (4357) Internet Address: http://www.samsung.com DRAFT Internal Use Only 1 Table of Contents Section 1: Getting Started ....................................................7 Understanding this User Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Battery Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Initial Device Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Switching the Device On or Off . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Locking and Unlocking the Device . . . . . . . . . . . . . . . . . . . . . . . . 14 Creating a New Google Account . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Signing into Your Google Account . . . . . . . . . . . . . . . . . . . . . . . . . 16 Retrieving your Google Account Password . . . . . . . . . . . . . . . . . . 16 Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Section 2: Understanding Your Device ..............................19 Features of Your Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Device Display . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: December 14, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSCHS738C To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea December 11, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSCHS738C Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

Date: December 11, 2011 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO.,LTD. FCC ID: A3LSCHS738C Part 20.19 Certification To Whom It May Concern: The following are the model designations and their associated key features for this FCC ID, according to requirem ent in the TCB Guidance issued on June 20, 2008. We, Samsung Electronics, hereby declare the samples evaluated in this application are equivalent to production s amples. FCC ID: A3LSCHS738C Model(s): SCH-S738C Air Interfaces: Cellular, PCS, 2.4GHz Wi-Fi & BT Radio Services: CDMA, EVDO Rev A Key Features: GPS SMS Bluetooth Wi-Fi MP3 Player Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Engineer : Taekkyun Choi Samsung Electronics CO. LTD TEL: +82-301-1529 E-mail: [email protected]

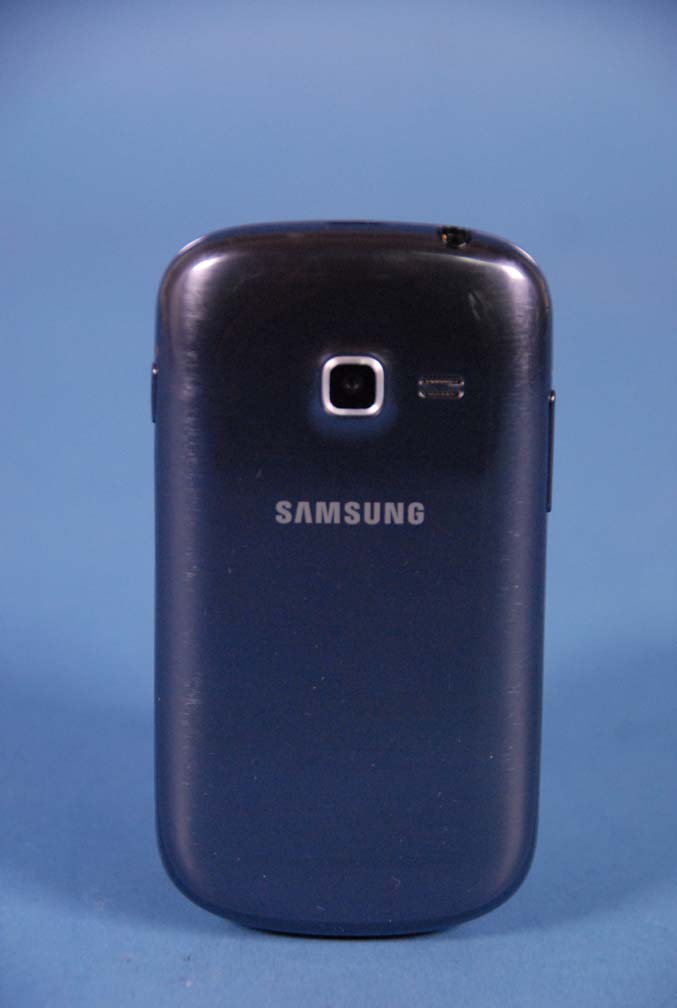

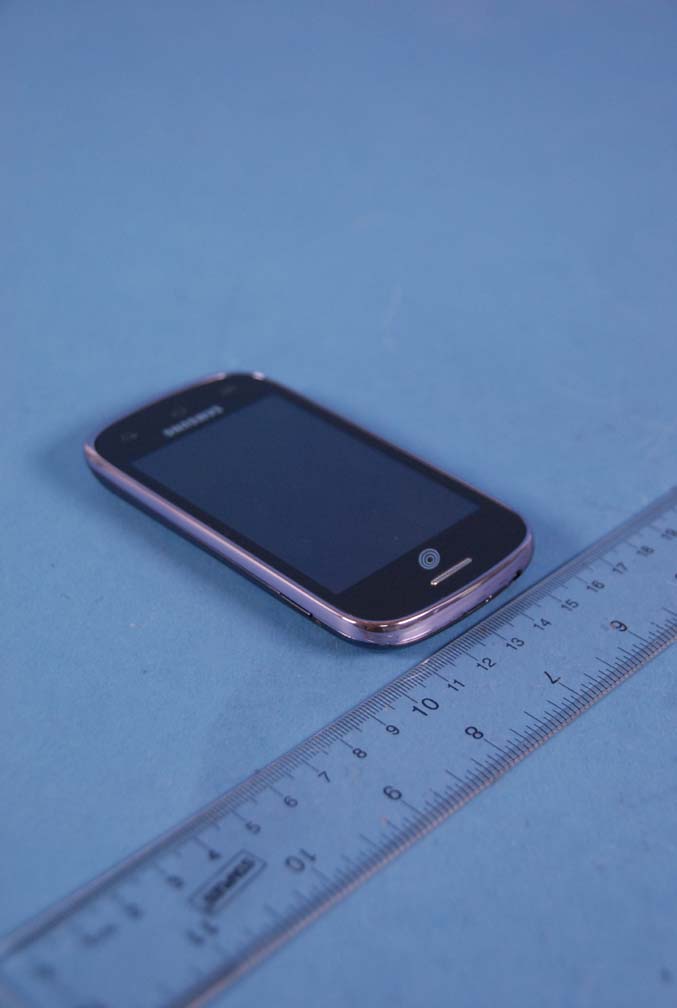

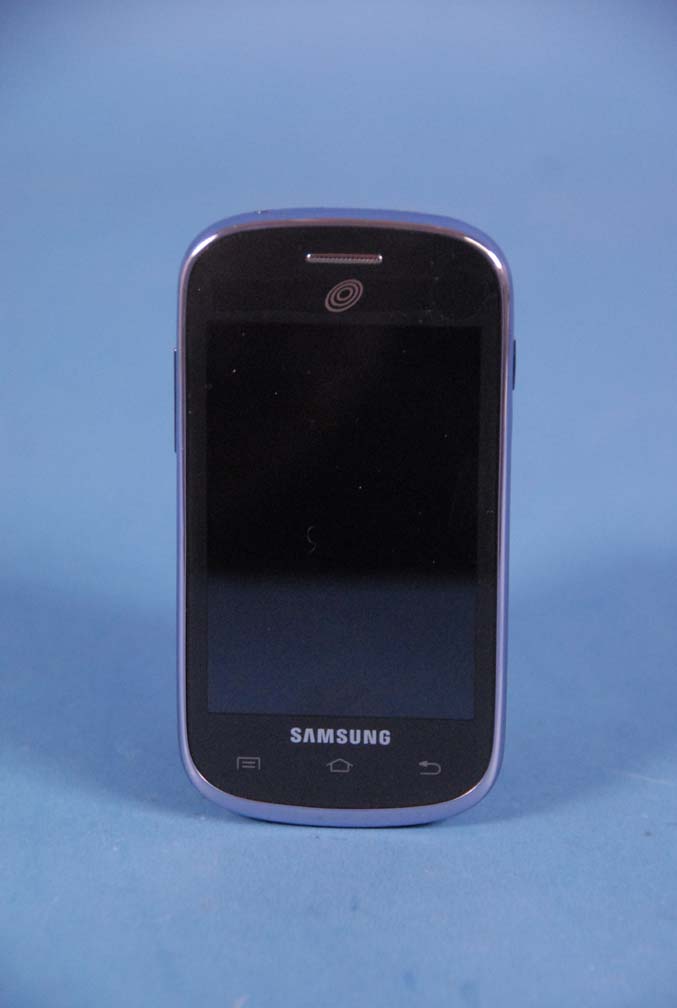

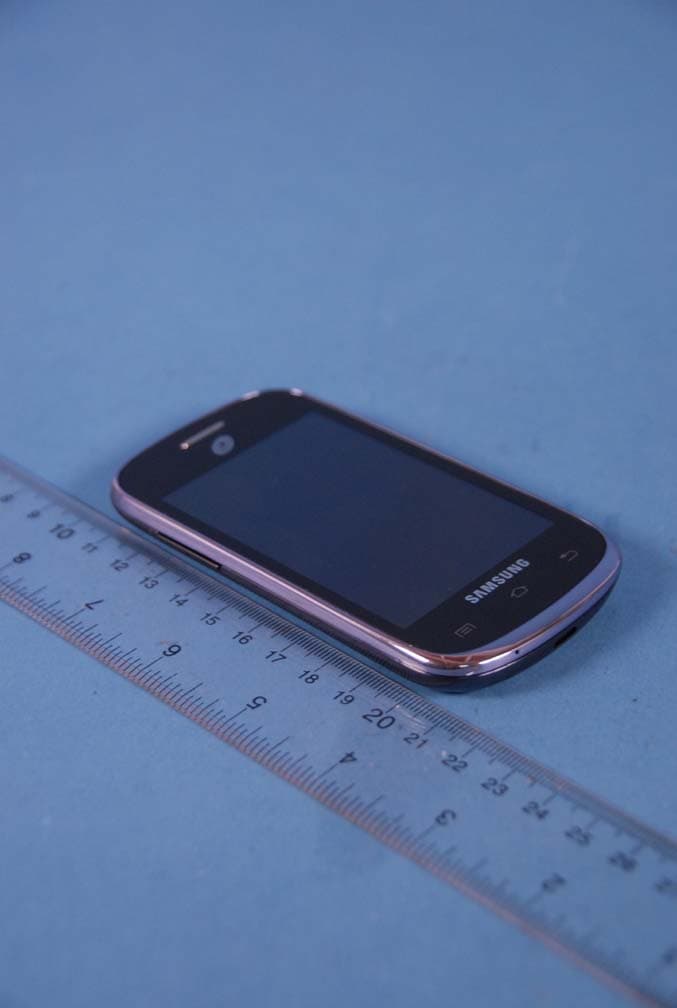

Samsung Electronics Co., Ltd. FCC ID: A3LSCHS738C Model: SCH-S738C External Photos EUT Type: Portable Handset Page 1 of 4 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSCHS738C Model: SCH-S738C External Photos EUT Type: Portable Handset Page 2 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHS738C Model: SCH-S738C External Photos EUT Type: Portable Handset Page 3 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHS738C Model: SCH-S738C External Photos EUT Type: Portable Handset Page 4 of 4 © 2012 PCTEST Engineering Laboratory Inc.

Label and Location Samsung Phone Model:SCH-S738 C FCC ID:A3LSCHS738C Label: Location: Top Back of device Bottom

Samsung Electronics Co., Ltd. FCC ID: A3LSCHS738C Model: SCH-S738C Internal Photos EUT Type: Portable Handset Page 1 of 8 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSCHS738C Model: SCH-S738C Internal Photos EUT Type: Portable Handset Page 2 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHS738C Model: SCH-S738C Internal Photos EUT Type: Portable Handset Page 3 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHS738C Model: SCH-S738C Internal Photos EUT Type: Portable Handset Page 4 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHS738C Model: SCH-S738C Internal Photos EUT Type: Portable Handset Page 5 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHS738C Model: SCH-S738C Internal Photos EUT Type: Portable Handset Page 6 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHS738C Model: SCH-S738C Internal Photos EUT Type: Portable Handset Page 7 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSCHS738C Model: SCH-S738C Internal Photos EUT Type: Portable Handset Page 8 of 8 © 2012 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSCHS738C SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 31 0Y1211211667-R1.A3L 11/23/12 - 11/26/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 11/23/12 - 11/26/12 416, Maetan 3-dong, Yeongtong-gu, Suwon-si Test Site/Location: Gyeonggi-do, 443-742 PCTEST Lab, Columbia, MD, USA Republic of Korea Document Serial No.: 0Y1211211667-R1.A3L FCC ID: A3LSCHS738C APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SCH-S738C 1 gm Head (W /kg) 1 gm Body- Worn (W/kg) PCECell. CDMA/EVDO824.70 - 848.31 MHz24.780.470.81 0 PCEPCS CDMA/EVDO1851.25 - 1908.75 MHz24.771.100.52 0 DTS2.4 GHz WLAN2412 - 2462 MHz16.110.29< 0.1 0 DSSBluetooth2402 - 2480 MHz9.74 1.39 0.92 N/A Reported SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. Note: This revised Test Report (S/N: 0Y1211211667-R1.A3L) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSCHS738C SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 31 0Y1211211667-R1.A3L 11/23/12 - 11/26/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 INTRODUCTION ..............................................................................................................................6 3 DOSIMETRIC ASSESSMENT .........................................................................................................7 4 DEFINITION OF REFERENCE POINTS .........................................................................................8 5 TEST CONFIGURATION POSITIONS FOR HANDSETS ...............................................................9 6 RF EXPOSURE LIMITS ................................................................................................................ 12 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 8 RF CONDUCTED POWERS ......................................................................................................... 16 9 SYSTEM VERIFICATION .............................................................................................................. 18 10 SAR DATA SUMMARY ................................................................................................................. 20 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 23 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 26 13 EQUIPMENT LIST ......................................................................................................................... 27 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 28 15 CONCLUSION ............................................................................................................................... 29 16 REFERENCES .............................................................................................................................. 30 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSCHS738C SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 31 0Y1211211667-R1.A3L 11/23/12 - 11/26/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 1 DEVICE UNDER TEST 1.1 Device Overview Cell. CDMA/EVDOVoice/Data824.70 - 848.31 MHz PCS CDMA/EVDOVoice/Data 1851.25 - 1908.75 2.4 GHz WLANData2412 - 2462 MHz BluetoothData2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v05. Maximum Nominal Maximum Nominal Mode / Band Modulated Average (dBm) 24.5 Cell. CDMA/…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHS738C FCC Pt. 22/24 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1211211668.A3L November 23 - 28, 2012 Portable Handset Page 1 of 36 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.7CFI 09/27/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. November 23 - 28, 2012 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab., Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1211211668.A3L FCC ID: A3LSCHS738C APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Application Type: Certification Model(s): SCH-S738C EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 Test Device Serial No.: identical prototype [S/N: ZCB00KVA] Max. Power (W) Max. Power (dBm) CDMA850824.70 - 848.311M28F9W0.13921.44 CDMA19001851.25 - 1908.751M28F9W0.40726.10 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 / IC RSS-132/RSS-133 Reviewed by: FCC ID: A3LSCHS738C FCC Pt. 22/24 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1211211668.A3L November 23 - 28, 2012 Portable Handset Page 2 of 36 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.7CFI 09/27/2012 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT...........................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 EVALUATION PROCEDURE.............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 OCCUPIED BANDWIDTH ................................................................................................................... 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 9 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 9 4.0 TEST EQUIPMENT CALIBRATION DATA ....................................................................................10 5.0 SAMPLE CALCULATIONS ............................................................................................................11 6.0 TEST RESULTS .............................................................................................................................12 6.1 SUMMARY......................................................................................................................................... 12 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ........................................................................... 13 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA .................................................... 13 6.4 CELLULAR CDMA RADIATED MEASUREMENTS........................................................................... 14 6.5 PCS CDMA RADIATED MEASUREMENTS..…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHS738C HAC (RF EMISSIONS) TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0Y1212031724.A3L 12/3/2012 Portable Handset Page 1 of 76 © 2012 PCTEST Engineering Laboratory, Inc. REV 8.4C 08/10/10 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 12/3/2012 416 Maetan 3-Dong, Yeongtong-gu, Suwon-si Test Site/Location: Gyeonggi-do, 443-742, Republic of Korea PCTEST Lab, Columbia, MD, USA Test Report Serial No.: 0Y1212031724.A3L FCC ID: A3LSCHS738C APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Rule Part(s): § 20.19(b) HAC Standard: ANSI C63.19-2007 §6.3(v), §7.3(v); EUT Type: Portable Handset Model(s): SCH-S738C Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) 1851.25 - 1908.75 MHz (PCS CDMA) Test Device Serial No.: Pre-Production Sample [S/N: 73] C63.19-2007 HAC Category: M4 (RF EMISSIONS CATEGORY) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2007 and had been tested in accordance w ith the specified measurement procedures. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. Test results reported herein relate only to the item(s) tested and are for North American Bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com HEARING AID COMPATIBILITY Reviewed by: FCC ID: A3LSCHS738C HAC (RF EMISSIONS) TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0Y1212031724.A3L 12/3/2012 Portable Handset Page 2 of 76 © 2012 PCTEST Engineering Laboratory, Inc. REV 8.4C 08/10/10 TABLE OF CONTENTS 1. INTRODUCTION............................................................................................................................. 3 2. TEST SITE LOCATION................................................................................................................... 4 3. EUT DESCRIPTION........................................................................................................................ 5 4. ANSI/IEEE C63.19 PERFORMANCE CATEGORIES .................................................................... 6 5. SYSTEM SPECIFICATIONS...........................................................................................................7 6. TEST PROCEDURE ..................................................................................................................... 13 7. SYSTEM CHECK .......................................................................................................................... 15 8. MODULATION FACTOR...............................................................................................................18 9. FCC 3G MEASUREMENTS.......................................................................................................... 20 10. OVERALL MEASUREMENT SUMMARY ..................................................................................... 21 11. EQUIPMENT LIST......................................................................................................................... 24 12. MEASUREMENT UNCERTAINTY................................................................................................ 25 13. TEST DATA................................................................................................................................... 26 14. CALIBRATION CERTIFICATES.................................................................................................... 35 15. CONCLUSION............................................................................................................................... 71 16. REFERENCES.............................................................................................................................. 72 17. TEST PHOTOGRAPHS ................................................................................................................74 Reviewed by: FCC ID: A3LSCHS738C HAC (RF EMISSIONS) TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0Y1212031724.A3L 12/3/2012 Portable Handset Page 3 of 76 © 2012 PCTEST Engineering Laboratory, Inc. REV 8.4C 08/10/10 1. INTRODUCTION On July 10, 2003, the Federal Communications Commission (FCC) adopted new rules requiring wireless manufacturers and service providers to provide digital wireless phones that are compatible with hearing aids. The FCC has modified the exemption for wireless phones under the Hearing Aid Compatibility Act of 1998 (HAC Act) in WT Docket 01-309 RM-8658 1 to extend the benefits of wireless telecommunications to individuals with hearing disabilities. These benefits encompass business, social and emergency communications, which increase the value of the wireless network for everyone. An estimated more than 10% of the population in the United States show signs of hearing impairment and of that fraction, almost 80% use hearing aids. Approximately 500 million people worldwide suffer from hearing loss. Compatibility Tests Involved: The standard calls for wireless communications devices to be measured for: ƒ RF Electric-field emissions ƒ RF Magnetic-field emissions ƒ T-coil mode, magnetic-signal strength in the audio band ƒ T-coil mode, magnetic-signal frequency response through the audio band ƒ T-coil mode, magnetic-signal and noise articulation index The hearing aid m…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHS738C HAC (T-COIL) TEST REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1212031754.A3L 12/3/2012 - 12/4/2012 Portable Handset Page 1 of 38 © 2012 PCTEST Engineering Laboratory, Inc. REV…

Text truncated - open the document above for the full version.
