A3LSCHU710Dual-Band CDMA Phone with Bluetooth

* Some of the contents of this manual may differ from your phone, depending on the software insta lled or your service provider. World Wide Webhttp://www.samsungmobile.com SCH-U710User’s Guide Draft Intellectual PropertyAll Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relati ng to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and intern ational treaty provisions. Intellectual Property includ es, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Samsung Telecommunications America (STA), Inc.Headquarters:1301 East Lookout Drive Suite 150 Richardson, TX 75082 Tel: 972.761.7000 Customer Care Center:1601 E. Plano Parkway, Suite 150 Plano, TX 75074Toll Free Tel: 1.888.987.HELP (4357)Fax: 972.801.6065Internet Address: http://www.samsungusa.com©2004 Samsung Telecommunications America, Inc. is a registered trademark of Samsung Electronics America, Inc. and its related entities.Licensed by Qualcomm Incorporated under one or more of the following patents: U.S. Patent No. 4, 901, 307; 5, 056, 109; 5, 099, 204; 5,101, 501; 5, 103, 459; 5, 107, 225; 5, 109, 390.Openwave® is a registered Trademark of Openwave, Inc.RSA® is a registered TrademarSk RSA Security, Inc. Disclaimer of Warranties; Exclusion of LiabilityEXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Use road safety at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Important safety precautions 1 InterferenceAll wireless phones may be subject to interference, which could affect their performance. Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callKey in the emergency number for your present location, then press [ ]. Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children.Accessories and batteriesUse only Samsung-approved accessories and batteries. Use of any unauthorized accessories could damage your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 17. • The phone could explode if the battery is replaced with an incorrect type.• Dispose used batteries according to the manufacturer’s instructions. 2 Contents Unpack 3 Make sure you have each itemGet started 4 First steps to operate your phoneMenu functions 8 All menu options listedSolve problems 17 Help and personal needsHealth and safety information 19 3 Unpack Make sure you have each itemYou can obtain the following accessories for your phone from your local Samsung dealer. Phone Travel adapter Battery User’s manual • Headset • Battery charger • Portable hands-free • Data link cable• Standard/Extended battery • Travel charger/ adapter • Car charger/adapter • Bluetooth full hands-free kit • Bluetooth headset kit 4 Get started First steps to operate your phoneInstall and charge the phoneLow battery indicatorWhen the battery is low:• a warning tone sounds,• the battery low message displays, and • the empty battery icon blinks. If the battery level becomes too low, the phone automatically turns off. Recharge your battery. Power on or off Install the battery: To remove the battery, slide the battery catch toward the top of the phone and hold it. Plug the adapter into the…

Text truncated - open the document above for the full version.


















18600 Broadwick Street






August 30, 2006        !"# $%&' ( &) "*   +,-   . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4  .(5(65(5 / (5 1 # )57/(5)8 )94144 *4    1    1: ;&/ 1&19<;3<4 SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: August 30, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LS CHU710 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 DATE : August 31, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Subject: HAC filing FCC ID: A3LSCHU710 Gentlemen: We, Samsung Electronics, hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Steve Kim General Manager American QA Lab SAMSUNG Electronics America INC.

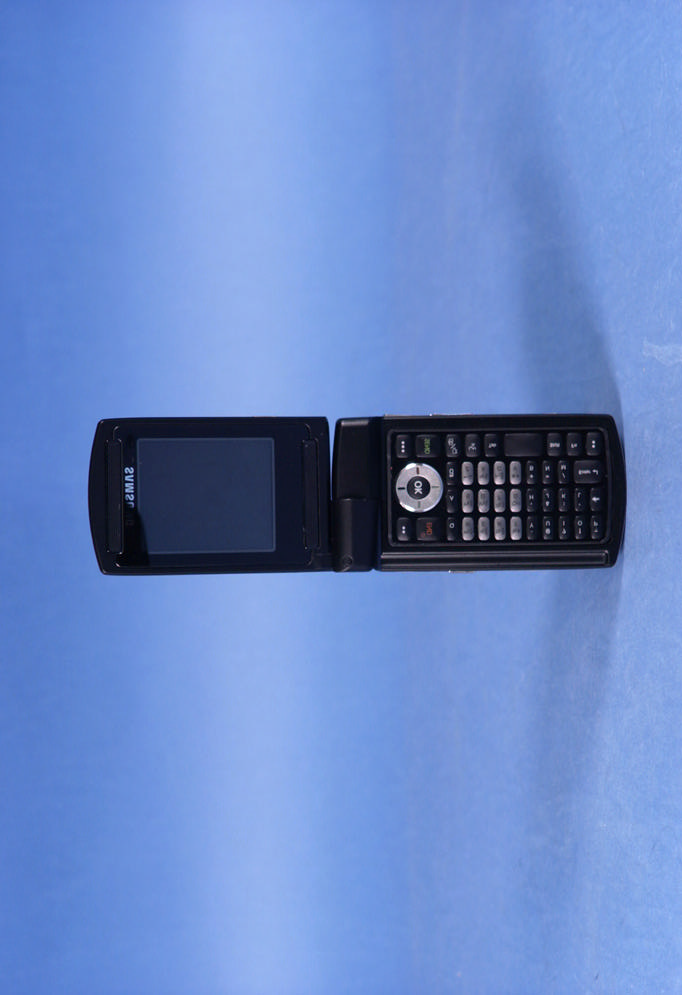

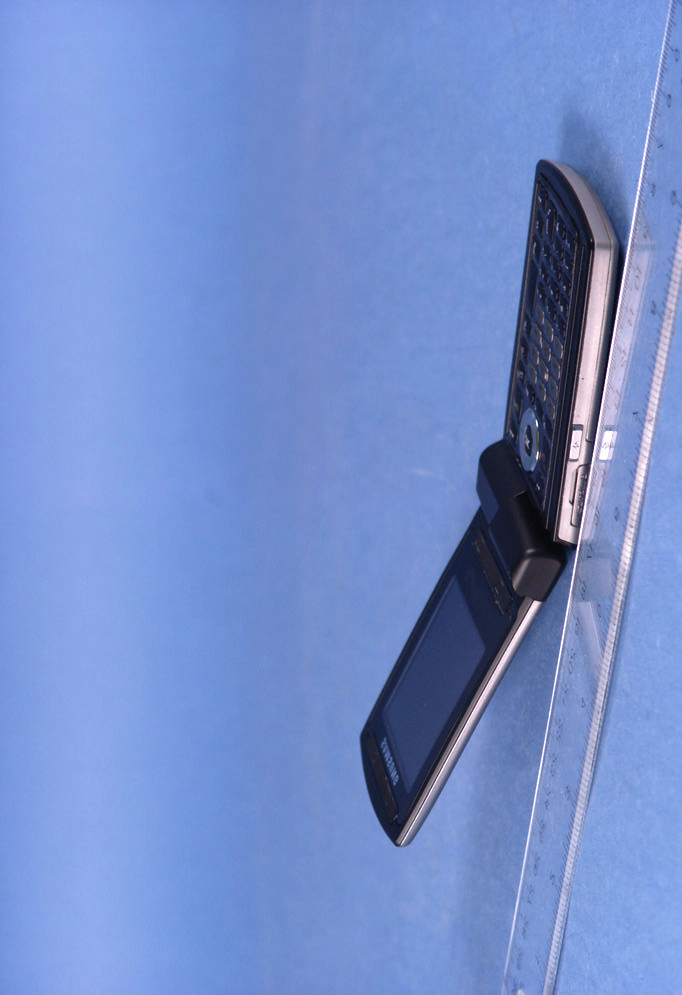

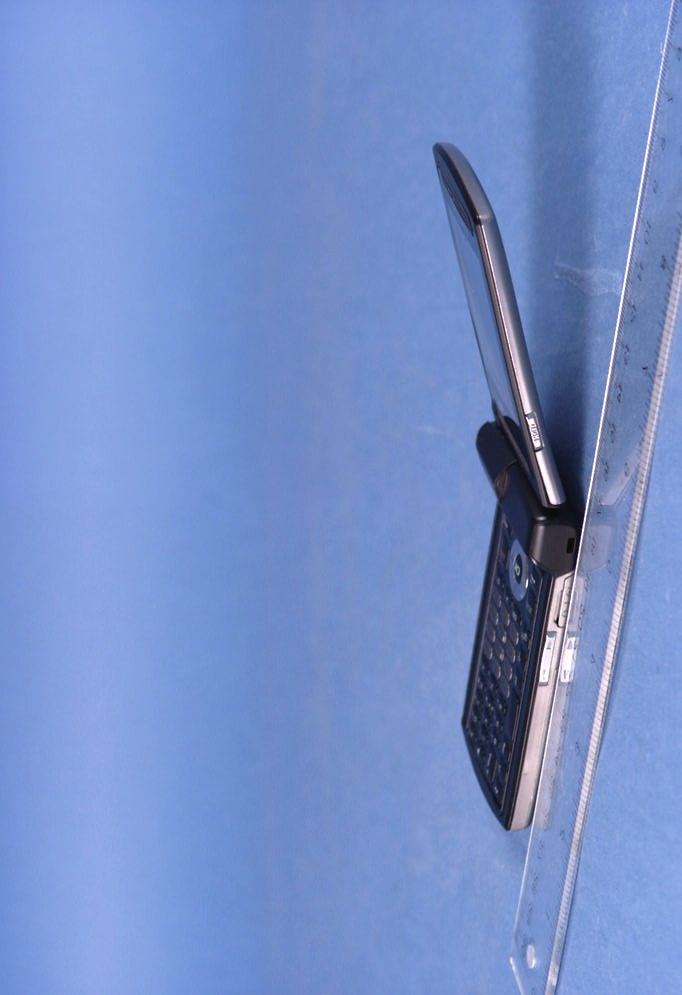

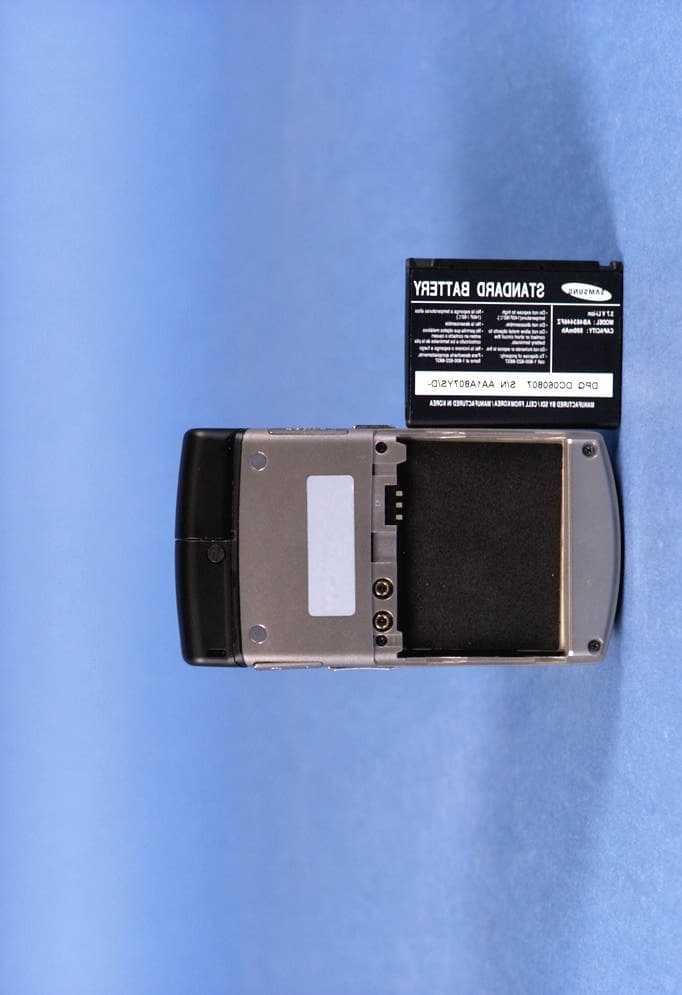

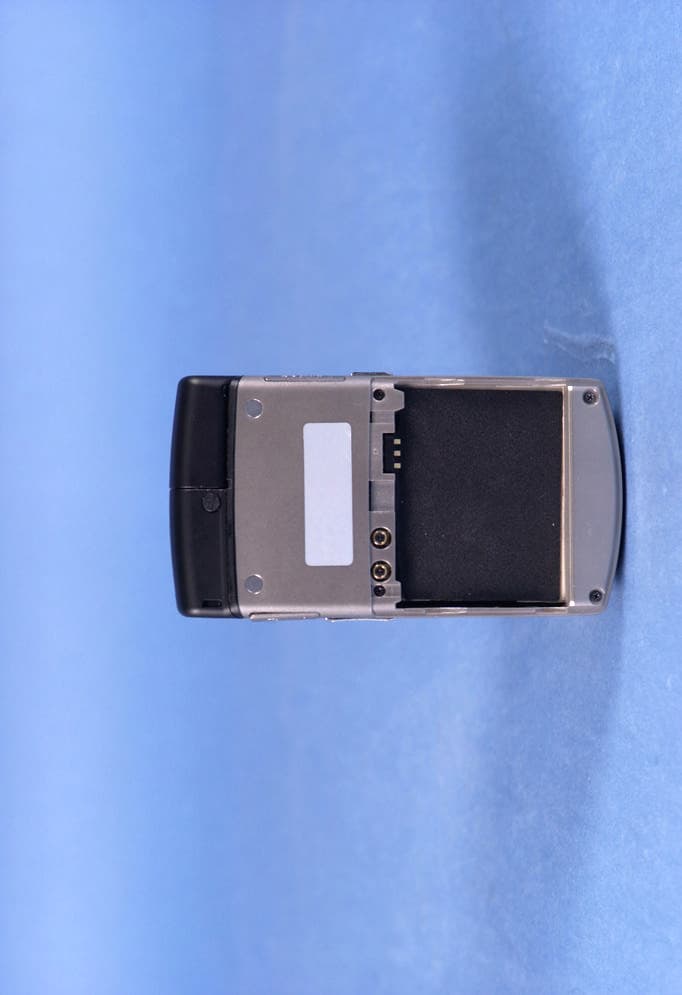

SAMSUNG FCC ID: A3LSCHU710 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth and EVDO Model: SCH-U710 SAMSUNG FCC ID: A3LSCHU710 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth and EVDO Model: SCH-U710 SAMSUNG FCC ID: A3LSCHU710 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth and EVDO Model: SCH-U710 SAMSUNG FCC ID: A3LSCHU710 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth and EVDO Model: SCH-U710 SAMSUNG FCC ID: A3LSCHU710 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth and EVDO Model: SCH-U710 SAMSUNG FCC ID: A3LSCHU710 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth and EVDO Model: SCH-U710 SAMSUNG FCC ID: A3LSCHU710 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth and EVDO Model: SCH-U710

SAMSUNG FCC ID: A3LSCHU710 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth and EVDO Model: SCH-U710 SAMSUNG FCC ID: A3LSCHU710 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth and EVDO Model: SCH-U710 SAMSUNG FCC ID: A3LSCHU710 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth and EVDO Model: SCH-U710 SAMSUNG FCC ID: A3LSCHU710 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth and EVDO Model: SCH-U710 SAMSUNG FCC ID: A3LSCHU710 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth and EVDO Model: SCH-U710 SAMSUNG FCC ID: A3LSCHU710 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth and EVDO Model: SCH-U710 SAMSUNG FCC ID: A3LSCHU710 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth and EVDO Model: SCH-U710 SAMSUNG FCC ID: A3LSCHU710 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA Phone with Bluetooth and EVDO Model: SCH-U710

Reviewed by: FCC ID:A3LSCHU710CERTIFICATION REPORT Quality Manager SAR Filename:Test Dates:EUT Type: 060830075708/31/06 - 09/01/06Dual-Band CDMA Phone with Bluetooth and EVDO Page 1 of 25 © 2006 PCTEST Engineering Laboratory, Inc.v 3.2 Applicant Name:Date of Testing: Samsung Electronics, Co. Ltd.08/31/06 - 09/01/06 18600 Broadwick St.Test Site/Location: Rancho Dominguez, CA 90220 USAPCTEST Lab, Columbia, MD, USA United StatesTest Report Serial No.: 0608300757 FCC ID:A3LSCHU710 APPLICANT:SAMSUNG ELECTRONICS, CO. LTD. EUT Type:Dual-Band CDMA Phone with Bluetooth and EVDO Application Type:Certification FCC Rule Part(s):§ 2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification:Licensed Transmitter Held to Ear (PCE) Model(s):SCH-U710 Tx Frequency:824.70 - 848.31 MHz (Cellular CDMA) / 1851.25 - 1908.75 MHz (PCS CDMA) Conducted Power:CDMA = 25.5 dBm PCS = 25.5 dBm Max. SAR Measurement:0.523 W/kg CDMA Head SAR / 0.388 W/kg CDMA Body SAR 0.684 W/kg PCS Head SAR / 0.496 W/kg PCS Body SAR Test Device Serial No.:Pre-Production[S/N: FD-158-A] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std.C95.1-2005 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions:Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body -worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not specified in this filing may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID:A3LSCHU710CERTIFICATION REPORT Quality Manager SAR Filename:Test Dates:EUT Type: 060830075708/31/06 - 09/01/06Dual-Band CDMA Phone with Bluetooth and EVDO Page 2 of 25 © 2006 PCTEST Engineering Laboratory, Inc.v 3.2 TABLE OF CONTENTS 1INTRODUCTION....................................................................................................................3 2TEST SITE LOCATION...........................................................................................................4 3SAR MEASUREMENT SETUP................................................................................................5 4DASY E-FIELD PROBE SYSTEM...........................................................................................7 5PROBE CALIBRATION PROCESS.........................................................................................8 6PHANTOM AND EQUIVALE NT TISSUES...............................................................................9 7DOSIMETRIC ASSESSMENT & PHANTOM SPECS.............................................................. 10 8DEFINITION OF REFERENCE POINTS................................................................................ 11 9TEST CONFIGURATION POSITIONS................................................................................... 12 10ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS................................................................. 14 11MEASUREMENT UNCERTAINTIES...................................................................................... 15 12SYSTEM VERIFICATION..................................................................................................... 16 13FCC 3G MEASUREMENT PROCEDURES – MAY 2006......................................................... 17 14SAR DATA SUMMARY......................................................................................................... 19 15EQUIPMENT LIST................................................................................................................ 22 16CONCLUSION..................................................................................................................... 23 17REFERENCES..................................................................................................................... 24 Reviewed by: FCC ID:A3LSCHU710CERTIFICATION REPORT Quality Manager SAR Filename:Test Dates:EUT Type: 060830075708/31/06 - 09/01/06Dual-Band CDMA Phone with Bluetooth and EVDO Page 3 of 25 © 2006 PCTEST Engineering Laboratory, Inc.v 3.2 1INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSIC95. 1-2005 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-2002 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring the Specific Absorption Rat…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 22 & 24 SUBPART CERTIFICATION REPORT Model Tested: SCH-U710 FCC ID (Requested): A3LSCHU710 Report No: FD-158-R1 Job No: FD-158 Date issued: Aug 25, 2006 - Abstract – All measurement reported here in accordance with FCC Rules, 47CFR Part2, Part22, Part24. Prepared By Date YE PARK – Test Engineer Checked By Date WW JANG – Manager Authorized By Date SH PARK – Senior Manager © Copyright SAMSUNG Electronics 2006 Report Number : FD-158-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information 3 1.1 2.1033 General Information 3 2. INTRODUCTION 4 2.1 General 4 3. MEASURING INSTRUMENT CALIBRATION 5 4. TEST EQUIPMENT LIST 6 5. DESCRIPTION OF TESTS 7 5.1.Output Power Variation 7 5.2 Effective Radiated Power/Equivalent Isotropic Radiated Power 8 5.3 Radiated Spurious & Harmonic Emission 9 5.4 Occupied Bandwidth 11 5.5 Spurious and Harmonic Emissions at Antenna Terminal 11 5.5.1 Occupied Bandwidth Emission Limits 11 5.5.2 Conducted Spurious Emission 12 5.6 Frequency Stability / Temperature Variation 13 6. TEST DATA 14 6.1 Effective Radiated Power(E.R.P.) 14 6.2 Equivalent Isotropic Radiated Power(E.I.R.P.) 15 6.3 Cellular CDMA Radiated Spurious & Harmonic Measurement 16 6.4 PCS CDMA Radiated Spurious & Harmonic Measurement 17 6.5 CDMA Radiated Spurious & Harmonic Conversion Table 18 6.6 PCS Radiated Spurious & Harmonic Conversion Table 19 6.7 Frequency Stability 20 6.7.1 CDMA Frequency Stability Table 20 6.7.2 PCS Frequency Stability Table 21 6.7.3 CDMA Frequency Stability Graph 22 6.7.4 PCS Frequency Stability Graph 24 7.SAMPLE CALCULATION 26 7.1 Emission Designator 8. CONCLUSION 27 9. TEST PLOTS 28 Report Number : FD-158-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1 §2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 Attention: FCC ID: SungJoo KIM, Engineering Manager (QA Lab) A3LSCHU710 Quantity: Quantity production is planned Emission Designators: 1M25F9W Tx Freq. Range: 824.70-848.31MHz (CDMA) 1851.25-1908.75MHz (PCS CDMA) Rx Freq. Range: 869.70-893.31 MHz (CDMA) 1931.25-1988.75 MHz (PCS CDMA) Max. Power Rating: 0.247 W ERP CDMA( 23.93 dBm) 0.360 W EIRP PCS CDMA ( 25.56 dBm) FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) Equipment (EUT) Type: Dual-Band CDMA Phone with Bluetooth Modulation(s): CDMA Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 24(E), 22(H), 2. Dates of Test: Aug 22-23, 2006 Place of Test: SAMSUNG Lab, Test Report S/N: FD-158-R1 Report Number : FD-158-R1 2. INTRODUCTION 2.1 General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FD-158-R1 3.MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. - End of page - Report Number : FD-158-R1 4. TEST EQUIPMENT LIST Name Of Equipment Model Serial No. Due Date Spectrum Analyzer ESI26 836119/010 2006-09-26 E4440A(3Hz~26.5GHz)MY41000236 2007-04-14 E4440A(3Hz~26.5GHz)MY41000233 2007-07-21 Signal Generator SMIQ03B 83824/021 2006-12-07 SMR20 835197/030 2007-01-10 Power Meter E4419B GB41293846 2006-09-07 Power Sensor 8481B 3318A10325 2006-09-08 8485A 3318A19924 2006-09-08 Amplifier 5S1G4 304866 2006-10-18 Pre-Amplifier 8449B 3008A00691 2007-01-02 Communication test set 8960 GB42230535 2007-01-02 8960 GB42360886 2007-07-03 Antenna Master MA240 240/618 Not Required Controller HD100 100/756 Not Required Environmental Chamber SH-241 92000548 2006-11-22 SH-241 92000549 2006-11-22 Horn Antenna HF906 360306/011 2007-03-31 Dipole Antenna 3121C-DB4 9007-587 2006-12-02 Receive Antenna HL040 353255/019 2006-08-24 Divider 11636B 51941 Not Required 11636B 51942 Not Required 11636B 51946 Not Required High Pass Filter WHK1.0/15G-10SS 1 Not Required WHK/3.5/18G-10SS 4 Not Required Shielded Fully Anechoic Chamber CHAMBER ANT0001 Not Required Report Number : FD-158-R1 5. DESCRIPTION OF TESTS 5.1 Output Power Variation Test Condition to measure the Output Power This device was tested under all R.C.s and S.O.s and worst case is reported with RC3/SO55, with “All Up” power control bits. The following procedures were followed according to FCC “SAR Measurement Procedures for 3G Devices”, May 2006. 1. If the mobile …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSCHU710 C63.19-2006 v3.12 TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0608300760 August 21 - 22, 2006 Dual-Band CDMA Phone with Bluetooth Page 1 of 69 © 2006 PCTEST Engineering Laboratory, Inc. v4.2 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. August 21 - 22, 2006 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 USA PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0608300760 FCC ID: A3LSCHU710 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Rule Part(s): § 20.19(b), §6.3(v), §7.3(v) HAC Standard: ANSI C63.19-2006 v3.12 FCC Classification: Licensed Transmitter Held to Ear (PCE) EUT Type: Dual-Band CDMA Phone with Bluetooth Model(s): SCH-U710 Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) 1851.25 - 1908.75 MHz (PCS CDMA) Test Device Serial No.: Pre-Production Sample [S/N: FD-158-A] C63.19 HAC Rated Category: M4 (RF EMISSIONS CATEGORY) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2006 and had been tested in accordance with the specified measurement procedures. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com HEARING AID COMPATIBILITY CERTIFICATE Reviewed by: FCC ID: A3LSCHU710 C63.19-2006 v3.12 TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0608300760 August 21 - 22, 2006 Dual-Band CDMA Phone with Bluetooth Page 2 of 69 © 2006 PCTEST Engineering Laboratory, Inc. v4.2 TABLE OF CONTENTS 1. INTRODUCTION ............................................................................................................................. 3 2. TEST SITE LOCATION ................................................................................................................... 4 3. EUT DESCRIPTION ........................................................................................................................ 5 4. ANSI/IEEE C63.19 PERFORMANCE CATEGORIES..................................................................... 6 5. SYSTEM SPECIFICATIONS...........................................................................................................7 6. TEST PROCEDURE ..................................................................................................................... 13 7. SYSTEM CHECK .......................................................................................................................... 15 8. MODULATION FACTOR...............................................................................................................18 9. OVERALL MEASUREMENT SUMMARY ..................................................................................... 20 10. EQUIPMENT LIST......................................................................................................................... 23 11. MEASUREMENT UNCERTAINTY ................................................................................................ 24 12. TEST DATA ................................................................................................................................... 25 13. CALIBRATION CERTIFICATES.................................................................................................... 34 14. CONCLUSION............................................................................................................................... 64 15. REFERENCES .............................................................................................................................. 65 APPENDIX A. TEST PHOTOGRAPHS...................................................................................................... 67 Reviewed by: FCC ID: A3LSCHU710 C63.19-2006 v3.12 TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0608300760 August 21 - 22, 2006 Dual-Band CDMA Phone with Bluetooth Page 3 of 69 © 2006 PCTEST Engineering Laboratory, Inc. v4.2 1. INTRODUCTION On July 10, 2003, the Federal Communications Commission (FCC) adopted new rules requiring wireless manufacturers and service providers to provide digital wireless phones that are compatible with hearing aids. The FCC has modified the exemption for wireless phones under the Hearing Aid Compatibility Act of 1998 (HAC Act) in WT Docket 01-309 RM-8658 1 to extend the benefits of wireless telecommunications to individuals with hearing disabilities. These benefits encompass business, social and emergency communications, which increase the value of the wireless network for everyone. An estimated more than 10% of the population in the United States show signs of hearing impairment and of that fraction, almost 80% use hearing aids. Approximately 500 million people worldwide suffer from hearing loss. Compatibility Tests Involved: The standard calls for wireless communications devices to be measured for: ƒ RF Electric-field emissions ƒ RF Magnetic-field emissions ƒ T-coil mode, magnetic-signal strength in the audio band ƒ T-coil mode, magnetic-signal frequency response through the audio band ƒ T-coil mode, magnetic-signal and noise articulation index The hearing aid must be measured for: ƒ RF immunity in microphone mode ƒ RF immunity in T-coil mode In the following tests and result…

Text truncated - open the document above for the full version.

© 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHU710 Dual-Band CDMA Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHU710 Dual-Band CDMA Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHU710 Dual-Band CDMA Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHU710 Dual-Band CDMA Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHU710 Dual-Band CDMA Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSCHU710 Dual-Band CDMA Phone with Bluetooth

Samsung FCC ID: A3LSCHU710 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Phone Model: SCH-U710 Samsung FCC ID: A3LSCHU710 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Phone Model: SCH-U710 Samsung FCC ID: A3LSCHU710 EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Phone Model: SCH-U710 Samsung FCC ID: A3LSCHU…
