A3LSCHW2013Mobile Phone

User manual SCH-W2013 Draft 6.1 2012-10-24 Only for Approval using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information Refer to— (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery damage. Never use a damaged charger or…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea November 5, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSCHW2013 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

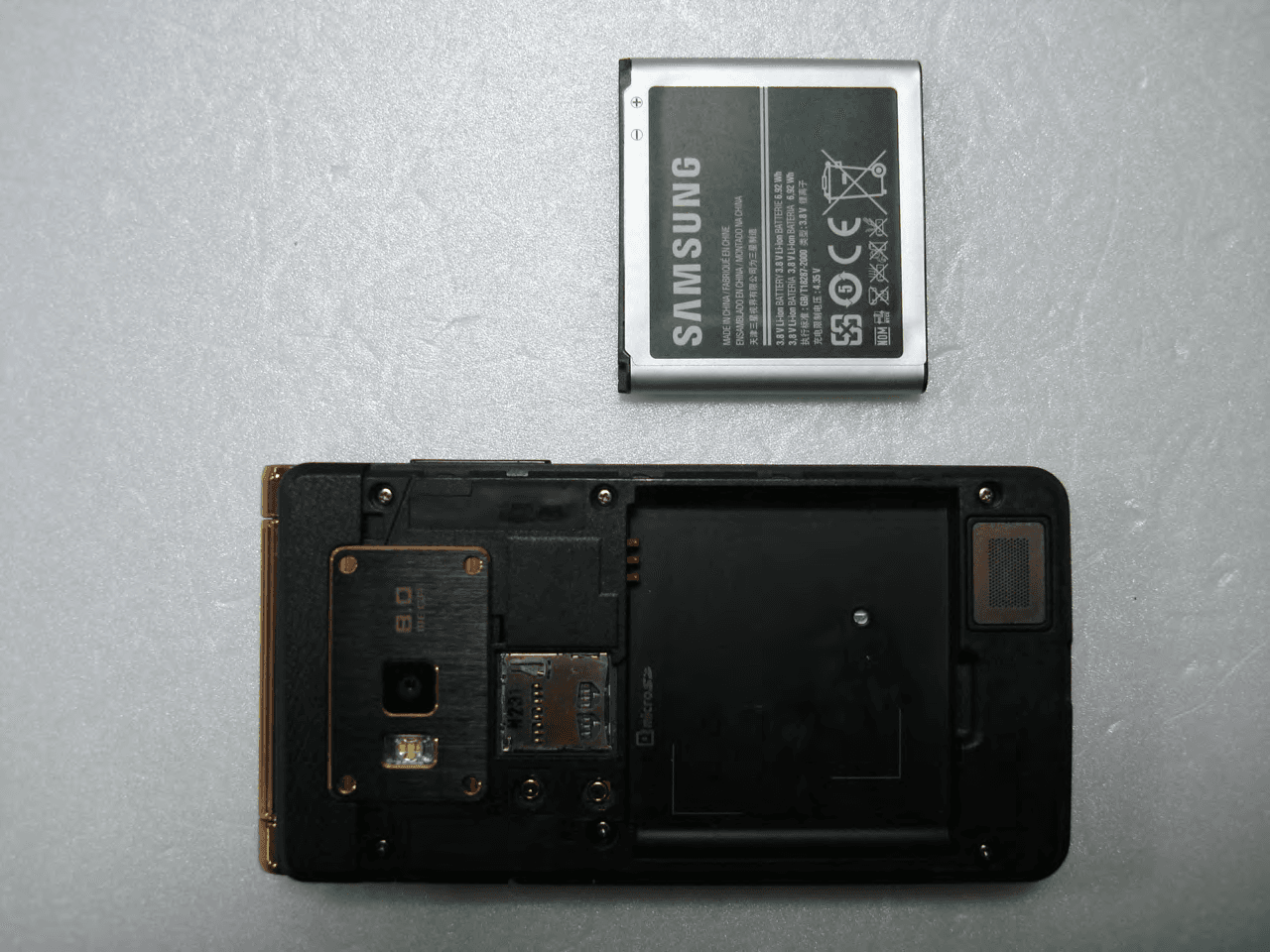

Label and Location Samsung Phone Model: SCH-W2013 FCC ID: A3LSCHW2013 Label: Location: Top Back plate of device Bottom Phone: Label is placed inside of the battery compartment.

Head Body-Worn Accessory Hot Spot IEEE 1528, Supp C Supp C FCC KDB 941225 D06 1 CDMA 850/1900 MHz Voice + WiFi 2.4GHzYes10mmN/AYes 2 CDMA 850/1900 MHz Voice + WiFi 5GHzYes10mmN/A5GHz Client onlyYes 3 CDMA 850/1900 MHz Data + WiFi 2.4GHzYes10mmYesCDMA+Wi-FI HotspotYes 4CDMA 850/1900 MHz Data + WiFi 5GHzN/A Not supported by S/W 5GHz Wi-Fi Hotspot No 5GSM 1900 MHz Voice + WiFi 2.4GHzYes10mmN/AYes 6GSM 1900 MHz Voice + WiFi 5GHzYes10mmN/A5GHz Client onlyYes 7GSM 1900 MHz Data + WiFi 2.4GHzN/A Not supported by S/W GSM + Wi-Fi Hotspot No 8GSM 1900 MHz Data + WiFi 5GHzN/A Not supported by S/W GSM + Wi-Fi Hotspot No 9CDMA 850/1900 MHz Voice + GSM 1900 MHz DataYes10mmN/AYes 10CDMA 850/1900 MHz Data + GSM 1900 MHz DataN/A Simultaneous Tx less than 30 seconds Receive GSM MMS with CDMA browsing. No 11CDMA 850/1900 MHz Data + GSM 1900 MHz VoiceYes10mmN/AYes 12CDMA 850/1900 MHz Voice + GSM 1900 MHz Data +WiFi 2.4GHzN/A Simultaneous Tx less than 30 seconds Receive GSM MMS with WiFi browsing No 13CDMA 850/1900 MHz Data + GSM 1900 MHz Data +WiFi 2.4GHzN/A Simultaneous Tx less than 30 seconds Receive GSM MMS with CDMA browsing or WiFi Hopspot mode No 14CDMA 850/1900 MHz Data + GSM 1900 MHz Voice + WiFi 2.4GHzYes10mmYes GSM Voice+CDMA+Wi- FI Hotspot Yes 15CDMA 850/1900 MHz Voice + GSM 1900 MHz Data +WiFi 5GHzN/A Simultaneous Tx less than 30 seconds Receive GSM MMS with WiFi browsing. No 16CDMA 850/1900 MHz Data + GSM 1900 MHz Data +WiFi 5GHzN/A Simultaneous Tx less than 30 seconds Receive GSM MMS with CDMA browsing or WiFi Hopspot mode No 17CDMA 850/1900 MHz Data + GSM 1900 MHz Voice + WiFi 5GHzN/A Not supported by S/W 5GHz Wi-Fi Hotspot No Notes: 1.GSM/WCDMA/LTE use one modem and transciever IC.The signals can not be transmitted simultaneously. 2.This model cannot act as a master device in 5GHz WiFi, so this model is not capable of 5GHz WiFi hotspot. This cannot be changedby any S/W modification by any party after it is manufactured. Scenario Possible? No.Capable Transmit ConfigurationsNote

SPORTON INTERNATIONAL INC. Page Number : 1 of 40 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : A3LSCHW2013 FCC SAR Test Report Report No. : FA2O0932 FCC SAR Test Report APPLICANT : SAMSUNG Electronics Co., LTD. EQUIPMENT : Mobile Phone BRAND NAME : Samsung MODEL NAME : SCH-W2013 MARKETING NAME : Grande FCC ID : A3LSCHW2013 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Nov. 23, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 40 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : A3LSCHW2013 FCC SAR Test Report Report No. : FA2O0932 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 6 3.2 Applied Standard .................................................................................................................................................... 7 3.3 Device Category and SAR Limits ........................................................................................................................... 7 3.4 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 8 4.1 Introduction ............................................................................................................................................................ 8 4.2 SAR Definition ........................................................................................................................................................ 8 5. SAR Measurement System ........................................................................................................................................... 9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server ............................................................................................................................................. 11 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder........................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................14 5.8 Test Equipment List ...............................................................................................................................................16 6. Tissue Simulating Liquids ...........................................................................................................................................17 7. SAR Measurement Evaluation ....................................................................................................................................19 7.1 Purpose of System Performance check ................................................................................................................19 7.2 System Setup ........................................................................................................................................................19 7.3 SAR System Verification Results .............................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 50 TEL : 886-3-327-3456 Report Issued Date : Oct. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A3LSCHW2013 FCC RF Test Report Report No. : FR2O0932A FCC RF Test Report APPLICANT : SAMSUNG Electronics Co., LTD. EQUIPMENT : Mobile Phone BRAND NAME : Samsung MODEL NAME : SCH-W2013 MARKETING NAME : Grande FCC ID : A3LSCHW2013 STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DTS) Digital Transmission System The product was received on Sep. 27, 2012 and completely tested on Oct. 19, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 50 TEL : 886-3-327-3456 Report Issued Date : Oct. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A3LSCHW2013 FCC RF Test Report Report No. : FR2O0932A TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Testing Site ........................................................................................................................................ 6 1.5 Applied Standards ............................................................................................................................. 6 1.6 Ancillary Equipment List .................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 RF Output Power ............................................................................................................................... 7 2.2 Test Mode .......................................................................................................................................... 8 2.3 Connection Diagram of Test System ................................................................................................. 9 2.4 RF Utility ............................................................................................................................................ 9 3 TEST RESULT .......................................................................................................................................... 10 3.1 6dB Bandwidth Measurement ......................................................................................................... 10 3.2 Peak Output Power Measurement .................................................................................................. 13 3.3 Power Spectral Density Measurement ............................................................................................ 16 3.4 Conducted Band Edges and Spurious Emission Measurement ..................................................... 21 3.5 Radiated Band Edges and Spurious Emission Measurement ........................................................ 30 3.6 AC Conducted Emission Measurement........................................................................................... 44 3.7 Antenna Requirements .................................................................................................................... 48 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 49 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 50 SPORTON INTERNATIONAL INC. Page Number : 3 of 50 TEL : 886-3-327-3456 Report Issued Date : Oct. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A3LSCHW2013 FCC RF Test Report Report No. : FR2O0932A REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR2O0932A Rev. 01 Initial issue of report Oct. 30, 2012 SPORTON INTERNATIONAL INC. Page Number : 4 of 50 TEL : 886-3-327-3456 Report Issued Date : Oct. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A3LSCHW2013 FCC RF Test Report Report No. : FR2O0932A SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 15.247(a)(2) A8.2(a) 6dB Bandwidth ≥ 0.5MHz Pass - 3.2 15.247(b)(1) A8.1(b) Peak Output Power ≤ 30dBm Pass - 3.5 15.247(e) A8.2(b) Power Spectral Density ≤ 8dBm Pass - 3.4 15.247(d) A8.5 Conducted Band Edges and Spurious Emission ≤ 20dBc Pass - 3.5 15.247(d) A8.5 Radiated Band Edges and Spurious Emission 15.209(a) & 15.247(d) Pass Under limit 6.86 dB at 32.970 MHz 3.6 15.207 Gen 7.2.2 AC Conducted Emission 15.207(a) Pass Under limit 14.90 dB at 2.526 MHz 3.7 15.203 & 15.247(b) A8.4 Antenna Requirement N/A Pass - SPORTON INTERNATIONAL INC. Page Number : 5 of 50 TEL : 886-3-327-3456 Rep…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 104 TEL : 886-3-327-3456 Report Issued Date : Oct. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A3LSCHW2013 FCC RF Test Report Report No. : FR2O0932B FCC RF Test Report APPLICANT : SAMSUNG Electronics Co., LTD. EQUIPMENT : Mobile Phone BRAND NAME : Samsung MODEL NAME : SCH-W2013 MARKETING NAME : Grande FCC ID : A3LSCHW2013 STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DTS) Digital Transmission System The product was received on Sep. 27, 2012 and completely tested on Oct. 19, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 104 TEL : 886-3-327-3456 Report Issued Date : Oct. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A3LSCHW2013 FCC RF Test Report Report No. : FR2O0932B TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Testing Site ........................................................................................................................................ 6 1.5 Applied Standards ............................................................................................................................. 6 1.6 Ancillary Equipment List .................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 Carrier Frequency Channel ............................................................................................................... 7 2.2 Pre-Scanned RF Power ..................................................................................................................... 8 2.3 Test Mode .......................................................................................................................................... 9 2.4 Connection Diagram of Test System ............................................................................................... 11 2.5 RF Utility .......................................................................................................................................... 11 3 TEST RESULT ........................................................................................................................................... 12 3.1 6dB Bandwidth Measurement ......................................................................................................... 12 3.2 Output Power Measurement ............................................................................................................ 23 3.3 Power Spectral Density Measurement ............................................................................................ 28 3.4 Conducted Band Edges and Spurious Emission Measurement ..................................................... 47 3.5 Radiated Band Edges and Spurious Emission Measurement ........................................................ 68 3.6 AC Conducted Emission Measurement........................................................................................... 98 3.7 Antenna Requirements .................................................................................................................. 102 4 LIST OF MEASURING EQUIPMENT ...................................................................................................... 103 5 UNCERTAINTY OF EVALUATION ......................................................................................................... 104 SPORTON INTERNATIONAL INC. Page Number : 3 of 104 TEL : 886-3-327-3456 Report Issued Date : Oct. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A3LSCHW2013 FCC RF Test Report Report No. : FR2O0932B REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR2O0932B Rev. 01 Initial issue of report Oct. 30, 2012 SPORTON INTERNATIONAL INC. Page Number : 4 of 104 TEL : 886-3-327-3456 Report Issued Date : Oct. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A3LSCHW2013 FCC RF Test Report Report No. : FR2O0932B SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 15.247(a)(2) A8.2(a) 6dB Bandwidth ≥ 0.5MHz Pass - 3.2 15.247(b) A8.4 Power Output Measurement ≤ 30dBm Pass - 3.3 15.247(e) A8.2(b) Power Spectral Density ≤ 8dBm/3kHz Pass - 3.4 15.247(d) A8.5 Conducted Band Edges ≤ 20dBc Pass - Conducted Spurious Emission Pass - 3.5 15.247(d) A8.5 Radiated Band Edges 15.209(a) & 15.247(d) Pass - Radiated Spurious Emission Pass Under limit 0.16 dB at 4824.000 MHz 3.6 15.207 Gen 7.2.4 AC Conducted Emission 15.2…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 3 TEL : 886-3-327-3456 Report Issued Date : Oct. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A3LSCHW2013 FCC RF Test Report Report No. : FR2O0932B Setup Photographs <Conducted Emission> SPORTON INTERNATIONAL INC. Page Number : 2 of 3 TEL : 886-3-327-3456 Report Issued Date : Oct. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A3LSCHW2013 FCC RF Test Report Report No. : FR2O0932B <Radiated Emission> Z Plane LF HF SPORTON INTERNATIONAL INC. Page Number : 3 of 3 TEL : 886-3-327-3456 Report Issued Date : Oct. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : A3LSCHW2013 FCC RF Test Report Report No. : FR2O0932B Y Plane LF HF

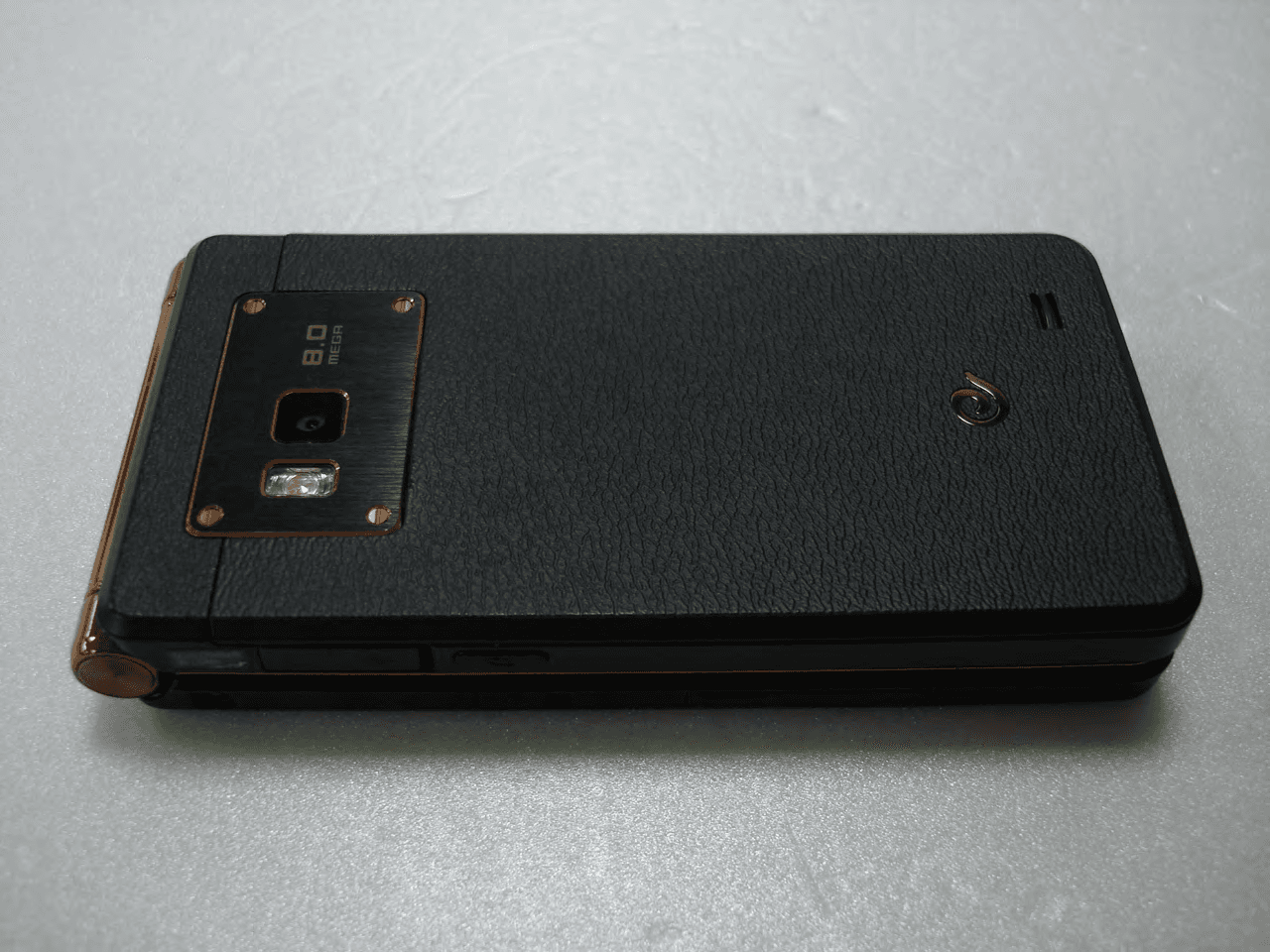

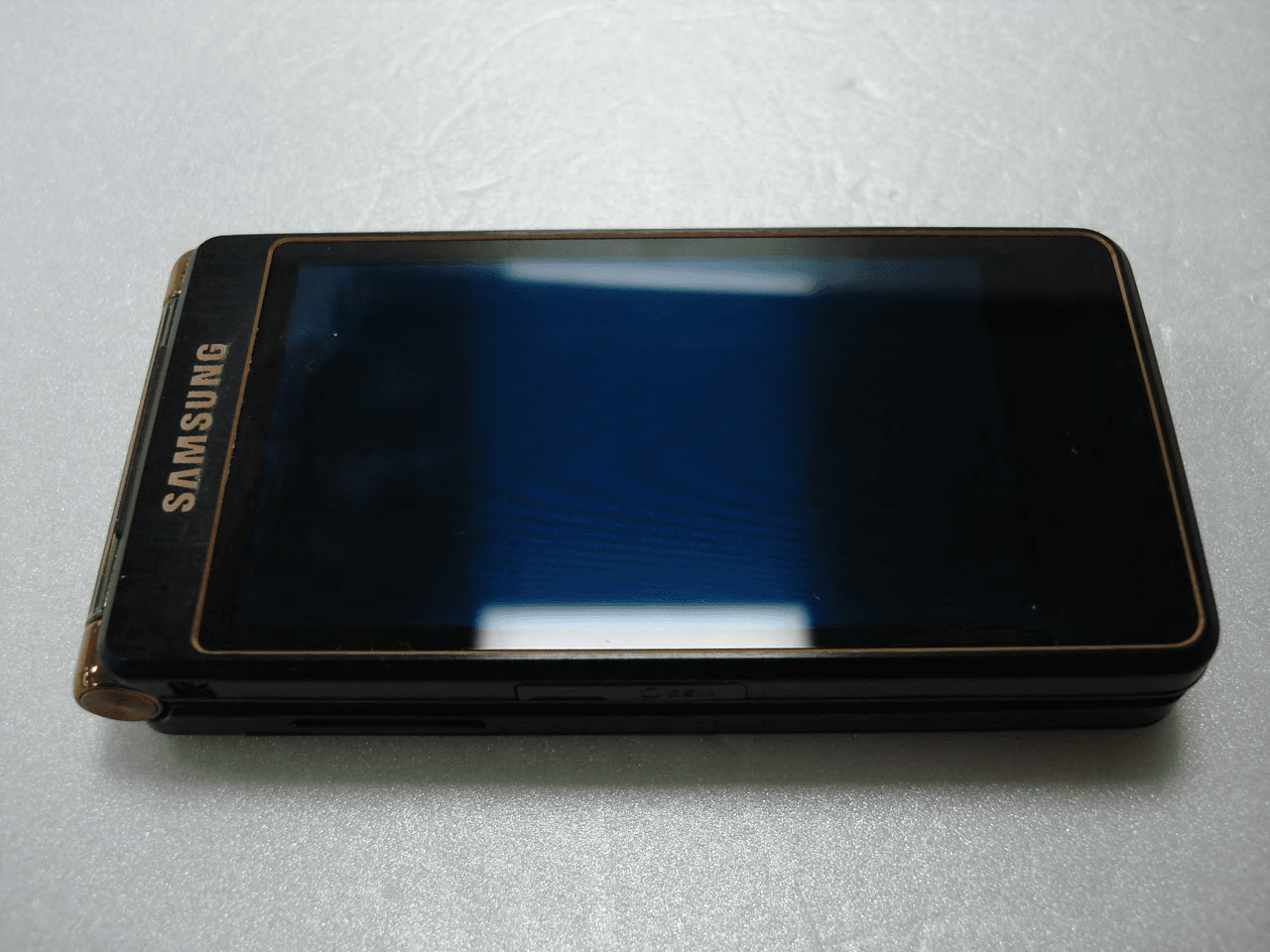

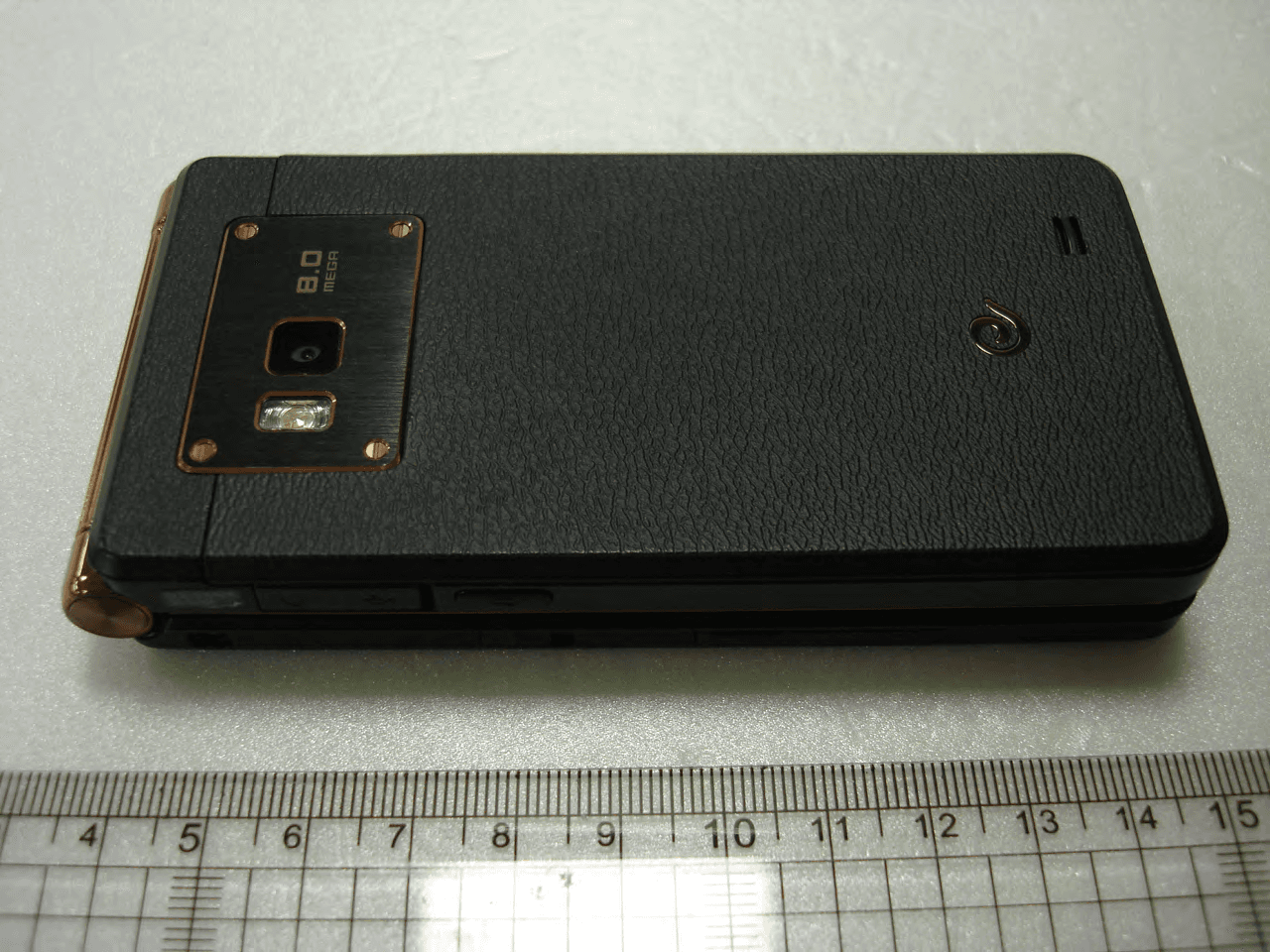

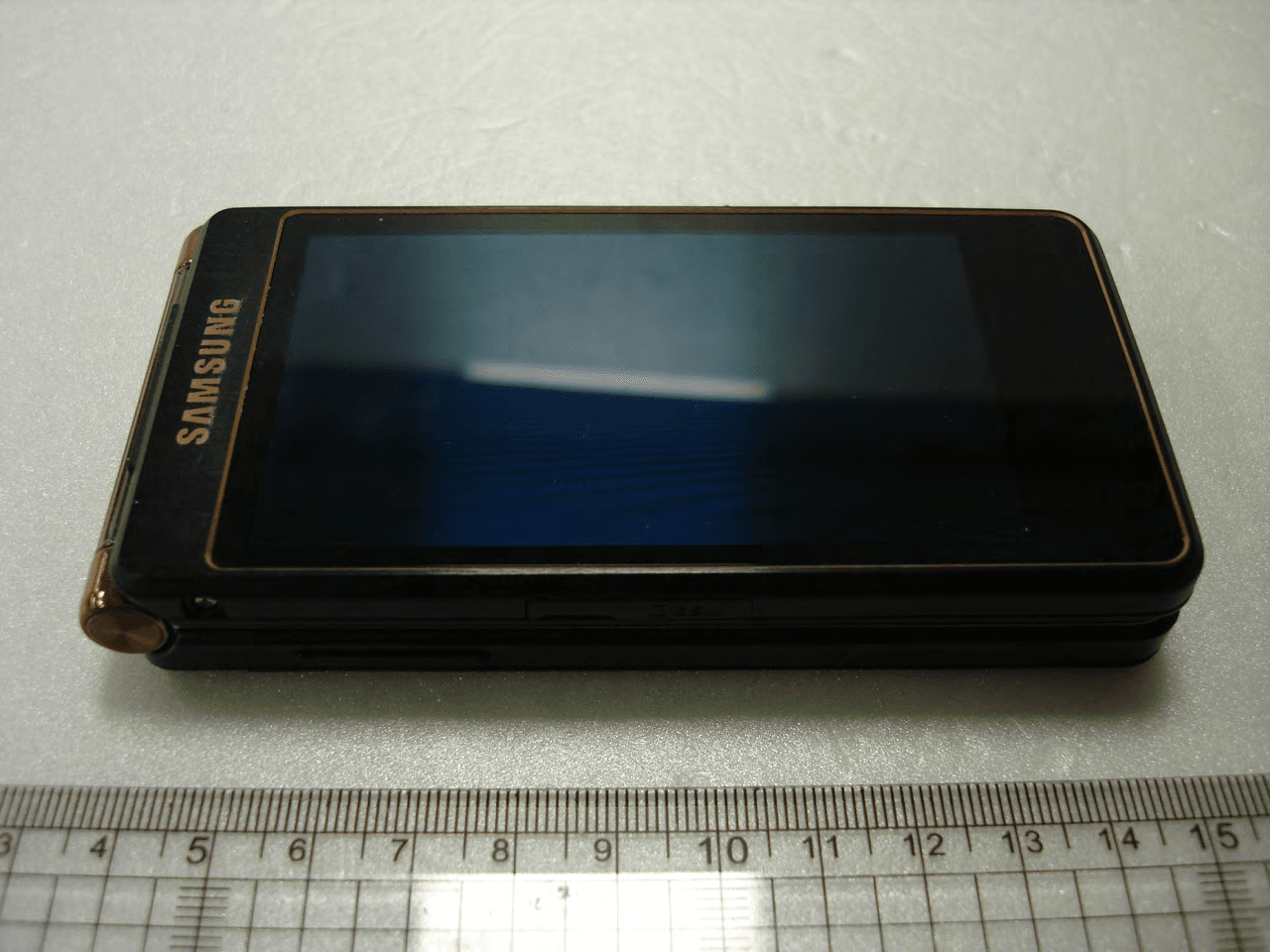

SPORTON INTERNATIONAL INC. Page Number : 1 of 3 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : A3LSCHW2013 FCC SAR Test Report Report No. : FA2O0932 Product Photos SPORTON INTERNATIONAL INC. Page Number : 2 of 3 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : A3LSCHW2013 FCC SAR Test Report Report No. : FA2O0932 Test Setup Photos Right Cheek Right Tilted Left Cheek Jaw Region SAR - Flat Phantom_6.5cm Left Tilted Jaw Region SAR - Flat Phantom_6.5cm SPORTON INTERNATIONAL INC. Page Number : 3 of 3 TEL : 886-3-327-3456 Report Issued Date : Nov. 23, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : A3LSCHW2013 FCC SAR Test Report Report No. : FA2O0932 Front of the DUT with Phantom 1 cm Gap (without Headset) Front of the DUT with Phantom 1 cm Gap (with Headset) Back of the DUT with Phantom 1 cm Gap (without Headset) Back of the DUT with Phantom 1 cm Gap (with Headset)
