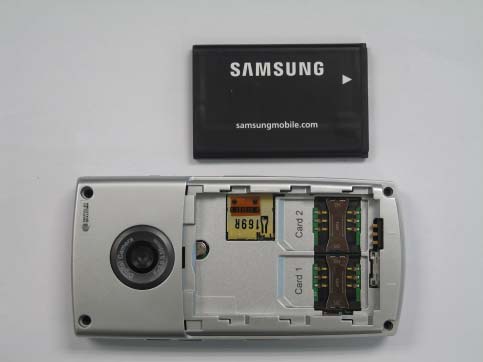

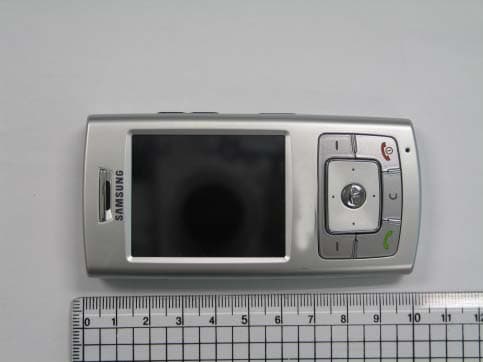

of 33 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SCH-W339 FCC ID (Requested): A3LSCHW339 Job No: FD-251 Report No: FD-251-S1 Date issued: Jan.22, 2007 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By KS PARK - Test Engineer Checked By JH NAM - Senior Engineer Authorized By SH PARK - Senior Manager Report Number: FD-251-S1 2 of 33 Contents 1. GENERAL INFORMATION............................................................................................................. 3 2. DESCRIPTION OF DEVICE ........................................................................................................... 3 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................... 4 3.1 SAR Measurement Setup ......................................................................................................4 3.2 E-field Probe .......................................................................................................................... 6 3.3 SAM Phantom ........................................................................................................................ 8 3.4 Brain & Muscle Simulating Mixture Characterization ............................................................. 8 3.5 Device Holder for Transmitters ..............................................................................................9 3.6 Validation Dipole .................................................................................................................... 9 3.7 Equipment Calibration.......................................................................................................... 10 4. SAR MEASUREMENT PROCEDURE ......................................................................................... 11 5. DESCRIPTION OF TEST POSITION ........................................................................................... 12 5.1 SAM Phantom Shape...........................................................................................................12 5.2 Cheek/Touch Position .......................................................................................................... 12 5.3 EAR/Tilt 15° Position ............................................................................................................ 14 5.4 Body Holster/Belt Clip Configurations.................................................................................. 15 6. MEASUREMENT UNCERTAINTY................................................................................................ 17 7. SYSTEM VERIFICATION ............................................................................................................. 19 7.1 Tissue Verification ................................................................................................................ 19 7.2 Test System Validation ......................................................................................................... 19 8. SAR MEASUREMENT RESULTS ................................................................................................ 20 8.1 Measurement Results(CDMA Right Head SAR - Touch) ..................................................... 22 8.2 Measurement Results(CDMA Right Head SAR - Tilt) .......................................................... 23 8.3 Measurement Results(CDMA Left Head SAR - Touch) ....................................................... 24 8.4 Measurement Results(CDMA Left Head SAR - Tilt) ............................................................ 25 8.5 Measurement Results(CDMA Body SAR without Holster)................................................... 26 8.6 Measurement Results(PCS Right Head SAR - Touch) ........................................................ 27 8.7 Measurement Results(PCS Right Head SAR - Tilt) ............................................................. 28 8.8 Measurement Results(PCS Left Head SAR - Touch) .......................................................... 29 8.9 Measurement Results(PCS Left Head SAR - Tilt) ............................................................... 30 8.10 Measurement Results(PCS Body SAR without Holster).................................................... 31 9. CONCLUSION .............................................................................................................................. 32 10. REFERENCES ............................................................................................................................ 33 Report Number: FD-251-S1 3 of 33 1. GENERAL INFORMATION Test Sample : Dual-Band CDMA Phone with Bluetooth Model Number : SCH-W339 Serial Number : Identical prototype (S/N : # FD-251-F) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : KB Lee Phone : +82-31-301-5126 Fax : - Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Jan.16, 2007 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 824.70 ~ 848.31 MHz (CDMA) 1851.25 ~ 1908.75 MHz (PCS) 2402 ~ 2480 MHz (Bluetooth) Rx Freq. Range : 869.70 ~ 893.31 MHz (CDMA) 1931.25 ~ 1988.75 MHz (PCS) 2402 ~ 2480 MHz (Bluetooth) Max. RF Output Power : 0.207 W ERP CDMA (23.17 dBm) 0.202 W EIRP PCS (23.06 dBm) Antenna Manufacturer : INTOPS Model No.: SCH-W339 Antenna Dimensions : - CDMA 2000 1x Support Report Number: FD-251-S1 4 of 33 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Sa…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 22 & 24 SUBPART CERTIFICATION REPORT Model Tested: SCH-W339 FCC ID (Requested): A3LSCHW339 Report No: FD-251-R1 Job No: FD-251 Date issued: January 23, 2007 - Abstract – All measurement reported here in accordance with FCC Rules, 47CFR Part2, Part22, Part24. Prepared By JH HAN – Test Engineer Checked By WW JANG – Manager Authorized By SH PARK – Senior Manager © Copyright SAMSUNG Electronics 2007 Report Number : FD-251-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information 3 1.1 2.1033 General Information 3 2. INTRODUCTION 4 2.1 General 4 3. MEASURING INSTRUMENT CALIBRATION 5 4. TEST EQUIPMENT LIST 6 5. DESCRIPTION OF TESTS 7 5.1.Output Power Variation 7 5.2 Effective Radiated Power/Equivalent Isotropic Radiated Power 8 5.3 Radiated Spurious & Harmonic Emission 9 5.4 Occupied Bandwidth 11 5.5 Spurious and Harmonic Emissions at Antenna Terminal 11 5.5.1 Occupied Bandwidth Emission Limits 11 5.5.2 Conducted Spurious Emission 12 5.6 Frequency Stability / Temperature Variation 13 6. TEST DATA 14 6.1 Effective Radiated Power(E.R.P.) 14 6.2 Equivalent Isotropic Radiated Power(E.I.R.P.) 15 6.3 Cellular CDMA Radiated Spurious & Harmonic Measurement 16 6.4 PCS CDMA Radiated Spurious & Harmonic Measurement 17 6.5 CDMA Radiated Spurious & Harmonic Conversion Table 18 6.6 PCS Radiated Spurious & Harmonic Conversion Table 19 6.7 Frequency Stability 20 6.7.1 CDMA Frequency Stability Table 20 6.7.2 PCS Frequency Stability Table 21 6.7.3 CDMA Frequency Stability Graph 22 6.7.4 PCS Frequency Stability Graph 24 7.SAMPLE CALCULATION 26 7.1 Emission Designator 8. CONCLUSION 27 9. TEST PLOTS 28 Report Number : FD-251-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1 §2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 Attention: FCC ID: SungJoo KIM, Engineering Manager (QA Lab) A3LSCHW339 Quantity: Quantity production is planned Emission Designators: 1M2 6F9W (CDMA) 1M27F9W (PCS CDMA) Tx Freq. Range: 824.70-848.31MHz (CDMA) 1851.25-1908.75MHz (PCS CDMA) Rx Freq. Range: 869.70-893.31 MHz (CDMA) 1931.25-1988.75 MHz (PCS CDMA) Max. Power Rating: 0.207 W ERP CDMA( 23.17 dBm) 0.202 W EIRP PCS CDMA ( 23.06 dBm) FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) Equipment (EUT) Type: Dual-Band CDMA Phone with Bluetooth Modulation(s): CDMA Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 24(E), 22(H), 2. Dates of Test: January 15 -16, 2007 Place of Test: SAMSUNG Lab, Test Report S/N: FD-251-R1 Report Number : FD-251-R1 2. INTRODUCTION 2.1 General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FD-251-R1 3.MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. - End of page - Report Number : FD-251-R1 4. TEST EQUIPMENT LIST Name Of Equipment Model Serial No. Due Date Spectrum Analyzer ESI26 836119/010 2007-10-01 E4440A(3Hz~26.5GHz)MY41000236 2007-04-14 E4440A(3Hz~26.5GHz)MY41000233 2007-07-21 Signal Generator SMR20 835197/030 2008-01-11 Power Meter E4419B GB41293846 2007-09-06 Power Sensor E9300B MY41495557 2007-09-24 Amplifier 5S1G4 304866 2007-10-19 Pre-Amplifier 8449B 3008A00691 2008-01-02 Communication test set 8960 GB42230535 2008-01-02 8960 GB42360886 2007-07-03 Antenna Master MA240 240/618 Not Required Controller HD100 100/756 Not Required Environmental Chamber SH-241 92000548 2007-11-16 SH-241 92000549 2007-11-16 Horn Antenna HF906 360306/011 2007-03-31 Dipole Antenna 3121C-DB4 9007-588 2007-05-29 Receive Antenna HL040 353255/020 2007-04-25 Divider 11636B 51942 Not Required 11636B 51946 Not Required High Pass Filter WHK1.0/15G-10SS 1 Not Required WHK/3.5/18G-10SS 4 Not Required Shielded Fully Anechoic Chamber CHAMBER ANT0001 Not Required Report Number : FD-251-R1 5. DESCRIPTION OF TESTS 5.1 Output Power Variation Test Condition to measure the Output Power This device was tested under all R.C.s and S.O.s and worst case is reported with RC3/SO55, with “All Up” power control bits. The following procedures were followed according to FCC “SAR Measurement Procedures for 3G Devices”, May 2006. 1. If the mobile station (MS) supports Reverse TCH RC 1 and Forward TCH RC 1, s…

Text truncated - open the document above for the full version.
