A3LSCX3200Laser Printer

SCX-3200 Series Multi-Functional Mono Printer User’s Guide imagine the possibilities Thank you for purchasing a Samsung product. Copyright_ 2 copyright © 2010 Samsung Electronics Co., Ltd. All rights reserved. This user’s guide is provided for informatio n purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this user’s guide. •Samsung and the Sams ung logo are trademarks of Samsung Electronics Co., Ltd. •Microsoft, Windows, Windows Vista, Windows 7, and Windows Server 2008 R2 are either registered trademarks or trademarks of Microsoft Corporation. •TrueType, LaserWriter, and Macintosh are tradema rks of Apple Computer, Inc. •All other brand or product names are trademarks of their respective companies or organizations. Refer to the 'LICENSE.txt' file in the provided CD-ROM for the open source license information. REV. 0.95 Contents_ 3 Contents COPYRIGHT 2 CONTENTS 3 8 Safety information 12 Regulatory information 20 About this user’s guide 22 Features of your new product INTRODUCTION 24 24 Machine overview 24Front view 26 Control panel overview 27 Understanding the status LED 27Status LED 27Wireless LED (SCX-3205W(K) only) 27 Introducing the useful buttons 27Print Screen button (SCX-3200 only) 27Eco Print button 27+/- buttons 27WPS button (SCX-3205W(K) only) 27Stop/Clear button 28Power button 28Turning on the machine GETTING STARTED 29 29 Setting up the hardware 29Location 29 Printing a configuration report 29 Supplied software 30 System requirements 30Windows 30Macintosh 31Linux 31 Installing USB connected machine’s driver 31Windows 32Macintosh 33Linux 33 Sharing your machine locally 34Windows 34Macintosh NETWORK SETUP (SCX-3205W(K) ONLY) 35 35 Network environment 35 Introducing useful network programs 35SyncThru™ Web Service 35SyncThru™ Web Admin Service 35SetIP 35 Using a wired network 35Printing a network configuration report 36Setting IP address 37Network parameter setting 37Restoring factory default settings 37 Installing network connected machine’s driver 37Windows 38Macintosh Contents Contents_ 4 39Linux 39 IPv6 Configuration 39Printing a network configuration report 39Setting IPv6 addresses 40Manual address configuration 40Installing printer driver 40Using SyncThru™ Web Service WIRELESS NETWORK SETUP (SCX-3205W(K) ONLY) 41 41 Using a wireless network with WPS button on the control panel 41Items to prepare 41Choosing your network connection 41Setting a wireless network in PBC mode 42 Using a wireless network from the computer 42Choosing your network connection 42How to print a network configuration report 42IP addresses 42Wireless network name and network key 42Installing a wireless network with cables 42 Setting a wireless network with USB cable 42Installing the machine on a wireless network with an access point (Windows) 44Installing the machine on an Ad-Hoc wireless network (Windows) 45Installing the machine on a wireless network with an access point (Macintosh) 46Installing the machine on an Ad-Hoc wireless network (Macintosh) 47 Setting a wireless network with network cable 47Preparing items 47Setting IP address 48Configuring the machine’s wireless network 49 Completing the installation 49 Troubleshooting 49Wireless network problems 49Solving other problems BASIC SETUP 51 51 Altitude adjustment 51 Setting the default tray and paper 51From your computer 52 Using the power saving feature 52 Changing font setting MEDIA AND TRAY 53 53 Loading originals 53On the scanner glass 53 Selecting print media 53Guidelines for selecting the print media 54Media sizes supported in each mode 54 Changing the tray size 55 Loading paper in the tray 55Tray 55Manual feeding in the tray 56 Printing on special media 56Envelopes 57Transparencies 57Labels 57Card stock/Custom-sized paper 57Letterhead/Preprinted paper Contents Contents_ 5 58 Using the output support PRINTING 59 59 Introducing useful software program 59Samsung AnyWeb Print 59 Printer driver features 59Printer driver 59 Basic printing 60Canceling a print job 60 Opening printing preferences 60Using Presets setting 61 Using help 61 Using special print features 61Printing multiple pages on one sheet of paper 61Printing posters 61Printing booklets (Manual) 61Printing on both sides of the paper (Manual) 62Change percentage of your document 62Fitting your document to a selected paper size 62Using watermarks 63Using overlays 63Print quality options 64 Changing the default print settings 64 Setting your machine as a default machine 64 Printing to a file (PRN) 64 Macintosh printing 64Printing a document 65Changing printer settings 65Printing multiple pages on one sheet of paper 65 Linux printing 65Printing from applications 66Printing files 66Configuring printer properties COPYING 67 67 Basic copying 67 Changing the settings for each copy 67Original Type 67Darkness 67Erasing background images 67Setting the copy scan size 67 ID card copying SCANNING 69 69 Basic scanning method 69 Scanning originals and sending to your computer (Scan to PC) 69For USB connected machine 69 Using Samsung Scan and Fax manager 70Set Scan Button tab 70Change Port tab 70 Scanning with TWAIN-enabled software 71 Scanning using the WIA driver 71Windows XP 71Windows Vista 71Windows 7 71 Macintosh scanning 71Scanning with USB 71Scanning with network (SCX-3205W(K) only) Contents Contents_ 6 72 Linux Scanning 72Scanning 72Adding Job Type Settings 73Using the Image Manager MANAGEMENT TOOLS 74 74 Introducing useful management tools 74 Using SyncThru™ Web Service (SCX-3205W(K) only) 74To access SyncThru™ Web Service 74SyncThru™ Web Service overview 75 Using the Smart Panel program 75Understanding Smart Panel 75Changing the Smart Panel Program Settings 75 SmarThru 75Starting SmarThru 76Using SmarThru 76 Using the Linux Unified Driver Configurator 76Opening the Unified Driver Configurator 77Printers configuration window 78Scanners configuration 78…

Text truncated - open the document above for the full version.

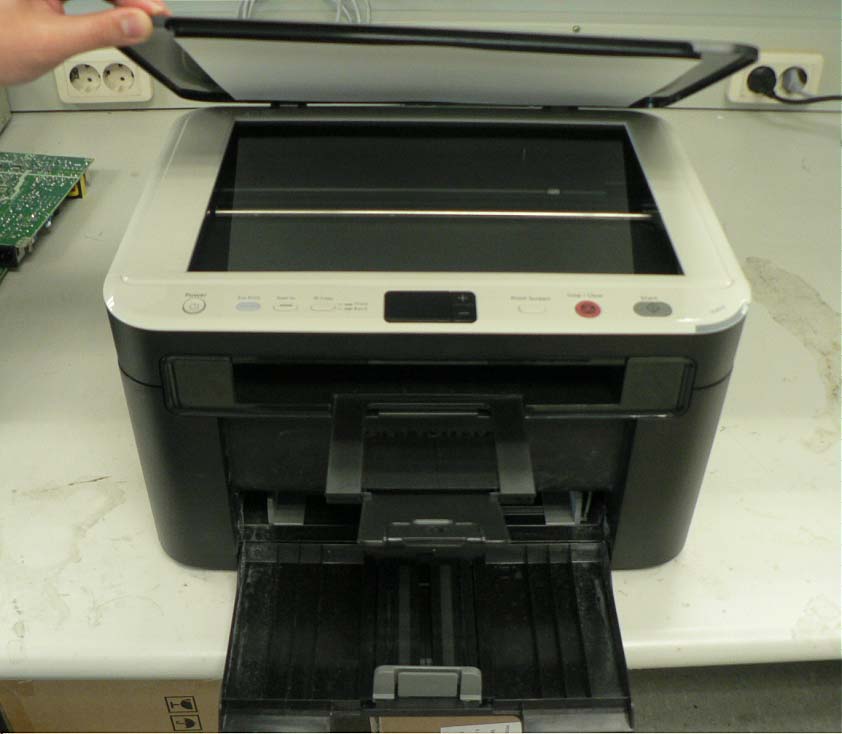

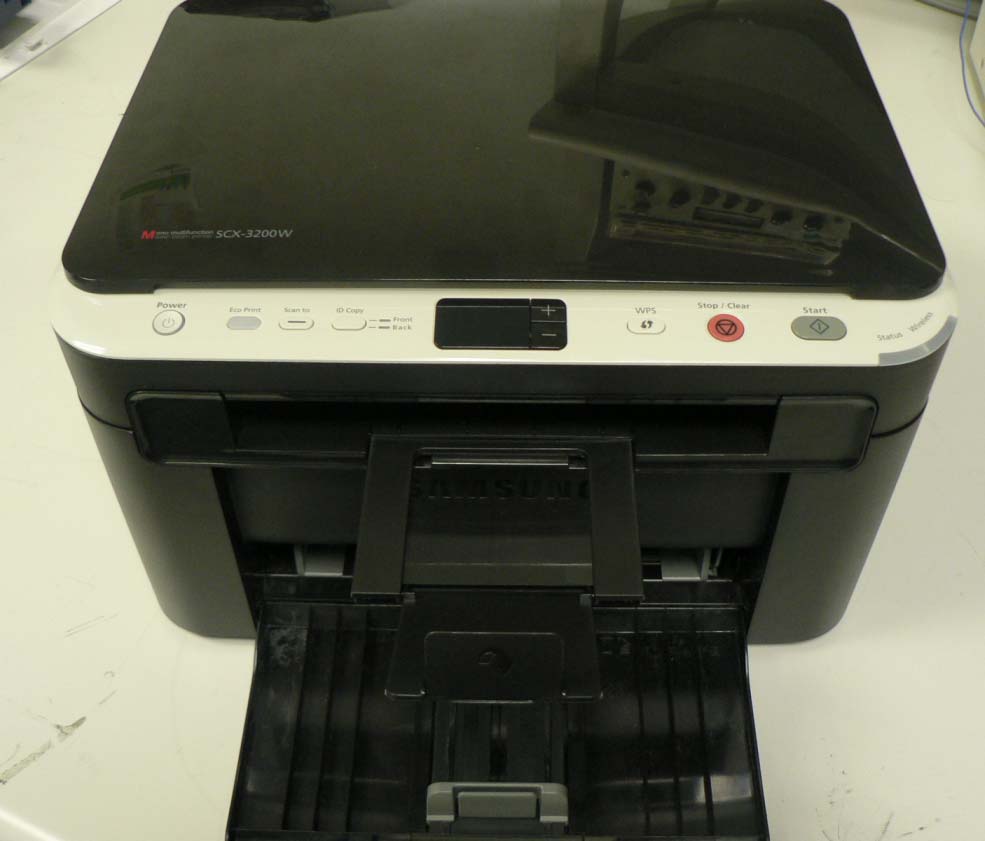

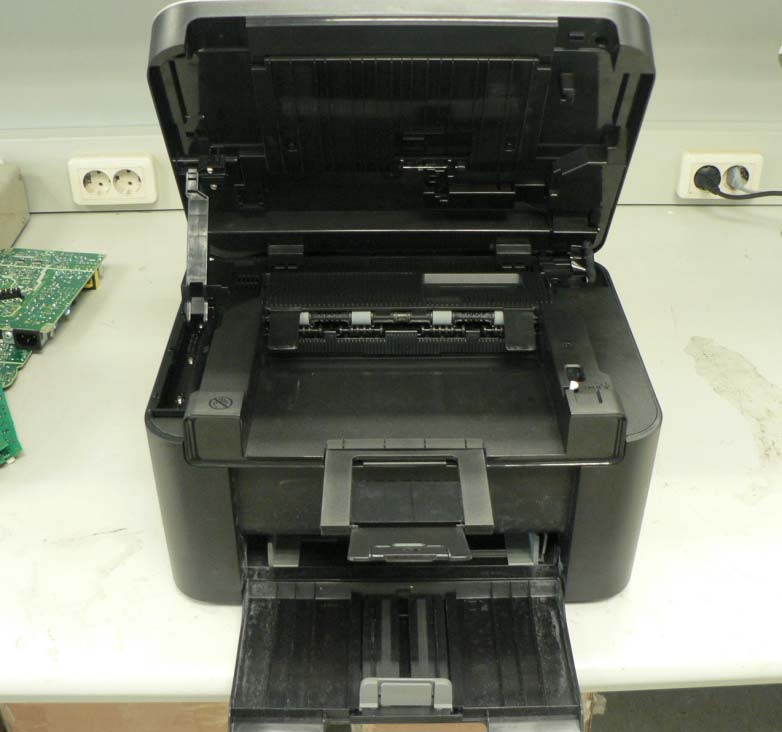

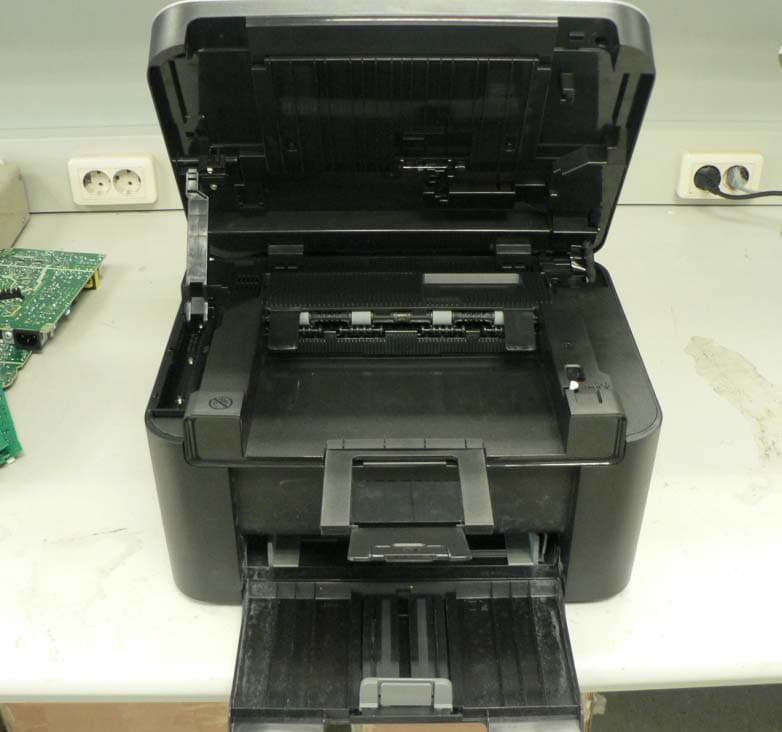

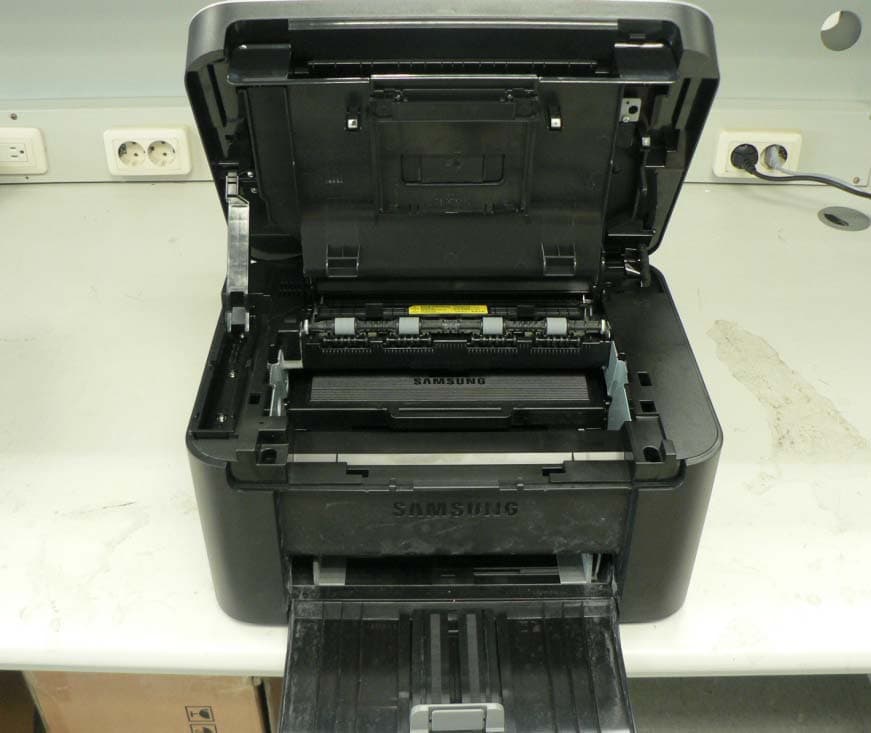

1. External Pictures 1) Front View 2) Rear View 3) Side View 1 4) Side View 2 2. Internal Pictures 1) Front View ① 2) Front View ② 3) Front View ③ 4) Front View ④

Project No. : LBE10030152 Mono Laser MFP : SCX -3200W -46 /46 - This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. Inside View – Rearside Label

3. Print Board Assembled(PBA) Pictures 1) Top View of Main Controller 2) Bottom View of Main Controller 3) Top View of SMPS/HVPS 4) Bottom View of SMPS/HVPS 5) Top View of OPE 6) Bottom View of OPE 7) Top View of Sensor 8) Bottom View of Sensor

Project No. : LBE10030152 Mono Laser MFP : SCX -3200W -7/46 - This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.5 EUT Description The following features describe EUT represented by this report: Item Specification and Description Processor JUPITER5(375Mhz) Standard System memory 128MB DDR2 SDRAM Resolution True 600x600dpi (Addressible 1 200dpi support) Copy Quality mode Text : 600x300dpi Mixed : 600x300dpi Photo : 600x600dpi Paper Handling Paper Tray(standard) 150 Sheets Power Rating 110~127 VAC, 4A, 50/60 Hz Power Consumption Power off mode: Less than 0.45W Ready mode: Less than 36W Power save mode: 5.6W Average operating mode : Less than 270W Printer Language SPL, PCL5e PC Interfaces USB2.0, Ethernet 10/100 Tx Base, 802.11b/g/n(Wireless model only) OS compatibility Windows 2000/XP(32/64bit)/2003(32/64bit)/Vista(32/64bit)/2008(32/64bit)/Win7(32/64bit)/2008R2(64bit) Various Linux OS: - RedHat Enterprise Linux WS 4, 5 (32/64bit) - Fedora Core 2~9 (32/64bit) - Mandriva 2005, 2006, 2007, 2008(32/64bit) - openSuSE 9.1, 9.2, 9.3, 10.0, 10.1, 10.2, 10.3, 11.0 (32bit) - SuSE Linux Enterprise Desktop 9, 10 (32/64bit) - Ubuntu 6.04, 6.10, 7.04, 7.10, 8.04 (32/64bit) - Debian 3.1, 4.0 (32/64bit) Mac OS 10.3~10.6 Modes of Operation USB Printing, Network Printing, Wireless Network Printing, Scan to PC, Copy Intended Class for Emissions Class B

-1/46 - E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE10030152 Issue No. 2 Name of organization Samsung Electronics Co., Ltd. Address 416 Maetan 3-Dong, Yeongtong-Gu , Suwon -Si, Gyeonggi-Do 443 -742 Korea Applicant Date of application March 08, 2010 Type of device Clas s B digital devices, peripherals Equipment authorization Declaration of Conformity Certification Veri fication FCC ID A3LSCX3200 Kind of product Mono Laser MFP SCX -3200W Model No. Variant Model No. SCX -3200, SCX-3201, SCX-3205, SCX -3205W EUT Manufacturer Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeong-Buk, 730-030, Korea Samsung Electronics (Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech IDZ, Shandong Province, P.R. China Shin Heung Digital Electronics Co., Ltd. 98, Samsung Road, Weihai Hi-Tech IDZ, Shandong Province, P.R. China Intops (Weihai) Electronics Co., Ltd. Keji Road-268 -1 , Weihai Hi-Tech,Industries Development Zone, Shandong Province , CHINA Applied Standards FCC Part 15, Subpart B / ANSI C63.4-2003 Test Period March 11, 2010 ~ April 20, 2010 Issue date April 20 , 2010 Test result : Complied The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) Tested by : Sung Jin Sim Reviewed by : No Cheon Park This report is the test result about the sphere accredited by KOLAS which signed the Mutual Recognition Arrangement of International Laboratory Accreditation Cooperation. The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 416 Maetan 3-Dong, Yeongtong-Gu , Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82 31 277 7752, Fax: 82 31 277 7753 Project No. : LBE10030152 Mono Laser MFP : SCX -3200W -2/46 - This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. Table of contents 1. Summary of test results 1.1 Emission 2. General Information 2.1 Test facility 2.2 Accreditation and listing 3. Test configuration 3.1 Test Peripherals 3.2 EU T operating mode 3.3 Details of Sampling 3.4 Used cable description 3.5 EUT Description 3.6 Clock Frequencies 3.7 Test configuration and condition 3.8 Measurement uncertainty 4. Result of individual tests 4.1 Conducted disturbance 4.2 Radiated disturbance Appendix – EUT photography Project No. : LBE10030152 Mono Laser MFP : SCX -3200W -3/46 - This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 1. Summary of test results 1.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standard Result Remarks Conducted Disturbance (Mains Port) Complied Meets Class B Limit Radiated Disturbance FCC Part 15 Subpart B Complied Meets Class B Limit 2. General Information 2.1 Test facility The SEC EMC Laboratory is located on Samsung Electronics Co., Ltd. at 416 Maetan 3-Dong , Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea . All testing are performed in Semi -anechoic chambers conforming to the site attenuation Characteristics defined by ANSI C63.4, CISPR 22, 16 -1 and 16-2. and Shielded rooms. The SEC EMC Laboratory is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. Project No. : LBE10030152 Mono Laser MFP : SCX -3200W -4/46 - This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 2.2 Accreditation and listing Laboratory Qualifications Remarks UKAS(United Kingdom Accreditation Service) Accredited : 4290 Korea Communications Commission Radio Research Agency Accredited : KR0004 FCC(Federal Communications Commission) Accredited : KR0004 National Voluntary Laboratory Accreditation Program Lab Code: 200623-0 Norges Elektriske Materiellkontroll Accredited : ELA 195 VCCI (Voluntary Control Council for Interference by Information Technology Equipment) C-2421,R-2224 China Quality Certification Center 5-053, 5 -054 TUV Rhineland H9354285 GOST(GOSTSTANDART) ROSTEST Elektrotechnicky Zkusebni Ustav Reg. No.: 001 IC(Industry Canada) Assigned Code: 5871 Project No. : LBE10030152 Mono Laser MFP : SCX -3200W -5/46 - This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3. Test Setup configuration 3.1 Test Peripherals The cables used for these peripherals are either permanently attached by the peripheral manufacturer or coupled with an assigned cable as defined below. The following is a listing of the EUT and peripherals utilized during the performance of EMC test: 3.2 EUT operating mode To achieve compliance applied standard specification, the following mode(s) were made during compliance testing: Operating Mode 1 1:99 copy printing Operating Mode 2 USB printing Operating Mode 3 Network printing Operating Mode 4 Wireless Network printing Operating Mode 5 Scan to PC (2400 dpi) Operating Mode 6 Stand -by 3.3 Details of Sampling Cust omer selected, single unit. Description Model No. Serial No. Manufacturer FCC ID/DoC Mono Laser MFP SCX -3200W - SAMSUNG A3LSCX3200 PC PP18L 27182225373 DELL DoC AC Adapter LA65NS1-00 CN-0YD637-71615-83C -0A0A Dongguang Lite Power DoC USB mouse MS201U 7B50528 Monterey international corp. DoC Headset - - Plantronics - Project No. : LBE10030152 Mono Laser MFP : SCX -3200W -6/46 - This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.4 Used cable description The EUT is configured, installed, arranged and operated in a manner cons istent with typical applications. Interface cables/loads/devices are connected to at least one of each type of interface port of the EUT, and where practical, each cable shall be terminated in a device typical of actual usage. The type(s) of interconnecting cables to be used and the interface port (of the EUT) to which these were connected; Connected cable L…

Text truncated - open the document above for the full version.

Project No. : LBE10030152 Mono Laser MFP : SCX -3200W -12 /46 - This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 4.1.3 Photograph of Test Setup Fron t Rear Project No. : LBE10030152 Mono Laser MFP : SCX -3200W -28 /46 - This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 4.2.3 Photograph of Test Setup Front (30 MHz to 1 GHz) Rear (30 MHz to 1 GHz) Project No. : LBE10030152 Mono Laser MFP : SCX -3200W -29 /46 - This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. Front (1 GHz to 2 GHz) Rear (1 GHz to 2 GHz)
