A3LSCX3405WMono Laser Printer

BASIC User’s Guide SCX-340x/340xW Series SCX-340xF/340xFW Series SCX-340xFH/340xHW Series BASIC User’s Guide This guide provides information concerning installation, basic operation and troubleshooting on windows.ADVANCEDThis guide provides informatio n about installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries. 2 BASIC 1. IntroductionKey benefits 5 Features by models 7 Useful to know 13 About this user’s guide 14 Safety information 15 Machine overview 20 Control panel overview 24 Turning on the machine 29 Installing the driver locally 30 Reinstalling the driver 31 2. Menu Overview and Basic SetupMenu overview 33 Machine’s basic settings 38 Media and tray 40 Basic printing 52 Basic copying 58 Basic scanning 63 Basic faxing 64 3. MaintenanceOrdering supplies and accessories 69 Available supplies 70 Available maintenance parts 71 Storing the toner cartridge 72 Redistributing toner 74 Replacing the toner cartridge 76 Monitoring the supplies life 78 Setting the toner low alert 79 Cleaning the machine 80 Tips for moving & storing your machine 86 4. TroubleshootingTips for avoiding paper jams 88 Clearing original document jams 89 Clearing paper jams 94 Understanding the status LED 98 Understanding display messages 100 3 BASIC 5. AppendixSpecifications 106 Regulatory information 116 Copyright 129 1. IntroductionThis chapter provides information you need to know before using the machine.•Key benefits 5 • Features by models 7 • Useful to know 13 • About this user’s guide 14 • Safety information 15 • Machine overview 20 • Control panel overview 24 • Turning on the machine 29 • Installing the driver locally 30 • Reinstalling the driver 31 Key benefitsEnvironmentally friendly• To save toner and paper, this machine supports Eco feature (see "Eco printing" on page 56). • To save paper, you can print multiple pages on one single sheet of paper (see "Using advanced print features" on page 228). • To save paper, you can print on both sides of the paper (double-sided printing) (Manual) (see "Using advanced print features" on page 228). • To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use. Fast high resolution printing• You can print with a resolution of up to 1,200 x 1,200 dpi effective output. • Fast, on-demand printing. - For single-side printing, 20 ppm (A4) or 21 ppm (Letter). Convenience• Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keyboard G (see "Easy Capture Manager" on page 267). • Samsung Easy Printer Manager and Printing Status (or Smart Panel) is a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see "Using Samsung Printer Status" on page 276 or "Using Smart Panel" on page 278). • AnyWeb Print helps you screen-captu re, preview, scrap, and print the screen of Windows Internet Explorer more easily, than when you use the ordinary program (see "Samsung AnyWeb Print" on page 268). • Smart Update allows you to check for the latest software and install the latest version during the printer driver installation process. This is available only for Windows. • If you have Internet access, you can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads. Key benefitsWide range of functionality and application support• Supports various paper sizes (see "Print media specifications" on page 109). • Print watermark: You can customize your documents with words, such as “Confidential” (see "Using advanced print features" on page 228). • Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then be taped together to form a poster (see "Using advanced print features" on page 228). • You can print in various operating systems (see "System requirements" on page 112). • Your machine is equipped with a USB interface and/or a network interface. Supports various wireless network setting method • Using the WPS (Wi-Fi Protected Setup™) button - You can easily connect to a wireless network using the WPS button on the machine and the access point (a wireless router). • Using the USB cable or a network cable- You can connect and set various wireless network settings using a USB cable or a network cable. • Using the Wi-Fi Direct- You can conveniently print from your mobile device using the Wi-Fi or Wi-Fi Direct feature. See "Introducing wireless set up methods" on page 157. Features by modelsSome features and optional goods may not be available depending on model or country.Operating System (  : Included, Blank: Not available) Software Operating System SCX-340x Series SCX-340xW Series SCX-340xF Series SCX-340xFW Series SCX-340xHW Series SCX-340xFH Series Windows   Macintosh   Linux   Unix Software SCX-340x Series SCX-340xW Series SCX-340xF Series SCX-340xFW Series SCX-340xHW Series SCX-340xFH Series SPL printer driver   PCL printer driver Features by models PS printer driverXPS printer driver a   Direct Printing UtilitySamsung Easy Printer Manager Scan to PC settings   Fax to PC settings  Device Settings   Samsung Printer Status   Smart Panel   AnyWeb Print   SyncThru™ Web Service  (SCX-340xW Series only)  (SCX-340xFW/ SCX-340xHW Series only) SyncThru Admin Web Service  (SCX-340xW Series only)  (SCX-340xFW/ SCX-340xHW Series only) Easy Eco Driver   Fax Samsung Network PC Fax  Software SCX-340x Series SCX-340xW Series SCX-340xF Series SCX-340xFW Series SCX-340xHW Series SCX-340xFH Series Features by models 9 1. Introduction (  : Included, Blank: Not available) Scan Twain scan driver   WIA scan driver   Samsung Scan Assistant   SmarThru 4SmarThru Office   a. For XPS driver, it is only …

Text truncated - open the document above for the full version.

Installing driver over the network 151 2. Using a Network-Connected Machine On some UNIX OS, for example on Solaris 10, just added printers may not be enabled and/or may not accept jobs. In this case run the following two commands on the root terminal:“ accept <printer_name> ” “ enable <printer_name> ” Uninstalling the printer driver package The utility should be used to delete the printer installed in the system. a Run “ uninstallprinter ” command from the terminal. It will open the Uninstall Printer Wizard . The installed printers are listed in the drop-down list. b Select the printer to be deleted. c Click Delete to delete the printer from the system. d Execute the “ . /install –d ” command to uninstall the whole package. e To verify removal results, execute the “ . /install –c ” command. To re-install it, use the command “ . /install ” to reinstall the binaries. Setting up the printerTo add the printer to your UNIX system, run ‘installprinter’ from the command line. This will bring up the Add Printer Wizard window. Setup the printer in this window according to the following steps: 1 Type the name of the printer. 2 Select the appropriate printer model from the model list. 3 Enter any description corresponding to the type of the printer in the Type field. This is optional. 4 Specify any printer description in the Description field. This is optional. 5 Specify the printer location in the Location field. 6 Type the IP address or DNS name of the printer in the Device textbox for network-connected printers. On IBM AIX with jetdirect Queue type , only the DNS name is possible-numeric IP address is not allowed. 7 Queue type shows the connection as lpd or jetdirect in the corresponding list box. Additionally, usb type is available on Sun Solaris OS. 8 Select Copies to set the number of copies. 9 Check the Collate option to receive copies already sorted. 10 Check the Reverse Order option to receive copies in the reverse order. Installing driver over the network 152 2. Using a Network-Connected Machine 11 Check the Make Default option to set this printer as default. 12 Click OK to add the printer. 153 2. Using a Network-Connected Machine IPv6 configuration IPv6 is supported properly only in Windows Vista or higher. • Some features and optional goods may not be available depending on model or country (see "Features by models" on page 7 or "Menu overview" on page 33). • If the IPv6 network seems to not be working, set all the network setting to the factory defaults and try again using Clear Setting . In the IPv6 network environment, follow the next procedure to use the IPv6 address.10 From the control panel 1 Connect your machine to the network with a network cable. 2 Turn on the machine. 3 Print a Network Configuration Report that will check IPv6 addresses (see "Printing a network configuration report" on page 141). 4 Select Start > Control Panel > Printers and Faxes . 5 Click Add a printer in the left pane of the Printers and Faxes windows. 6 Click Add a local printer in the Add Printer windows. 7 The Add Printer Wizard window appears. Follow the instructions in the window. If the machine does not work in the network environment, activate IPv6. Refer to the next section followed by. Activating IPv6 1 Press the ( Menu ) button on the control panel. 2 Press Network > TCP/IP (IPv6) > IPv6 Activate . 3 Select On and press OK . 4 Turn the machine off and turn it on again. 5 Reinstall your printer driver. IPv6 configuration 154 2. Using a Network-Connected Machine Setting IPv6 addressesThe machine supports the following IPv6 addresses for network printing and managements.• Link-local Address : Self-configured local IPv6 address (Address starts with FE80). • Stateless Address : Automatically configured IPv6 address by a network router. • Stateful Address : IPv6 address configured by a DHCPv6 server. • Manual Address : Manually configured IPv6 address by a user. DHCPv6 address configuration (Stateful)If you have a DHCPv6 server on your network, you can set one of the following options for default dynamic host configuration. 1 Press the ( Menu ) button on the control panel. 2 Press Network > TCP/IP (IPv6) > DHCPv6 Config . 3 Press OK to select the required value you want. • DHCPv6 Addr. : Always use DHCPv6 regardless of router request. • DHCPv6 Off : Never use DHCPv6 regardless of router request. • Router : Use DHCPv6 only when requested by a router. 11 From the SyncThru™ Web Service For models that do not have the display screen on the control panel, you need to access SyncThru™ Web Service first using the IPv4 address and follow the below procedure to use IPv6. 1 Access a web browser, such as Internet Explorer, from Windows. G Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go . 2 If it’s your first time logging into SyncThru™ Web Service you need to log-in as an administrator. Type in the below default ID and password.• ID: admin • Password: sec00000 3 When the SyncThru™ Web Service window opens, move the mouse cursor over the Settings of the top menu bar and then click Network Settings . 4 Click TCP/IPv6 on the left pane of the website. 5 Check the IPv6 Protocol check box to activate IPv6. 6 Check the Manual Address check box. Then, the Address/Prefix text box is activated. IPv6 configuration 155 2. Using a Network-Connected Machine 7 Enter the rest of the address (e.g.,:3FFE:10:88:194:: AAAA . “A” is the hexadecimal 0 through 9, A through F). 8 Choose the DHCPv6 configuration. 9 Click the Apply button. Using SyncThru™ Web Service 1 Start a web browser, such as Internet Explorer, that supports IPv6 addressing as a URL. 2 Select one of the IPv6 addresses ( Link-local Address , Stateless Address , Stateful Address , Manual Address ) from Network Configuration Report (see "Printing a network configuration report" on page 141). 3 Enter the IPv6 addresses (e.g.,: http://[FE80::215:99FF:FE66:7701]). Address must be enclosed in '[ ]' brackets. 156…

Text truncated - open the document above for the full version.

ClocksFreq.ClocksFreq. Main12MHzVideo23.571MHz CPU433MHzDDR2300MHz USB12MHzCIS4MHz

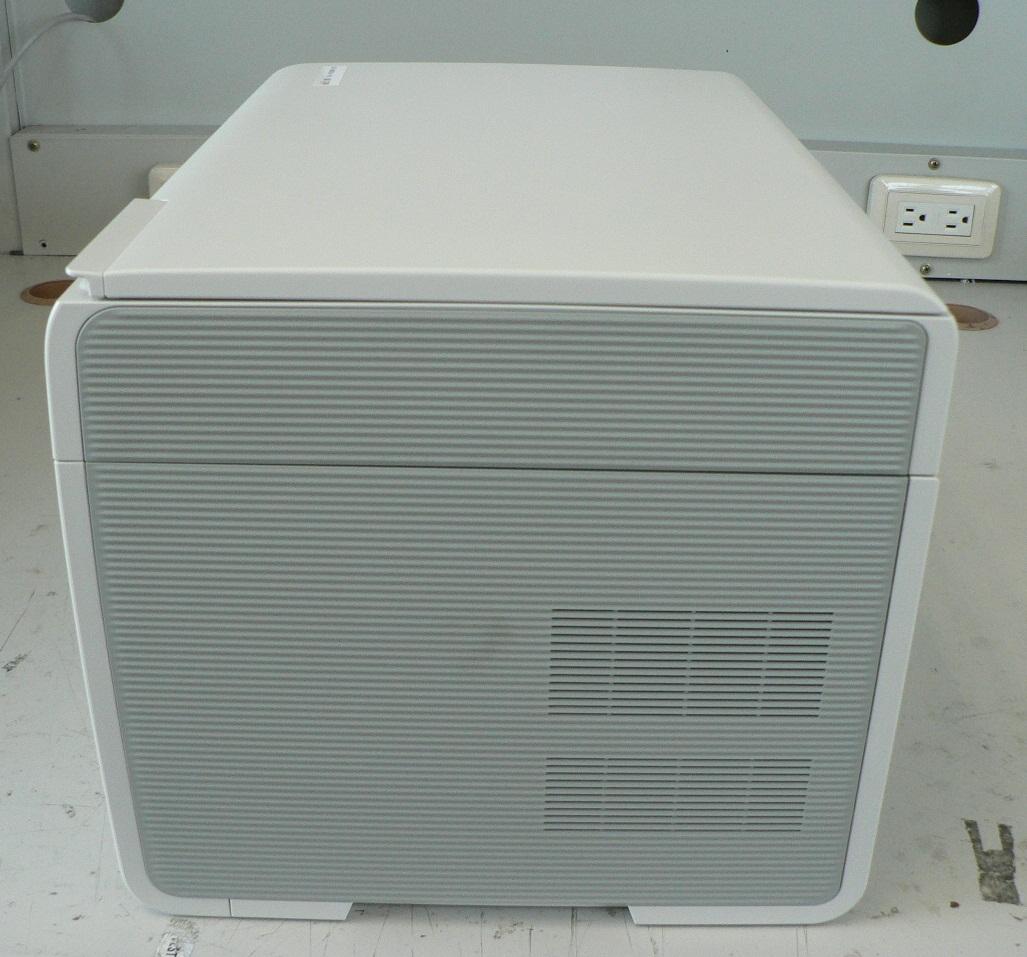

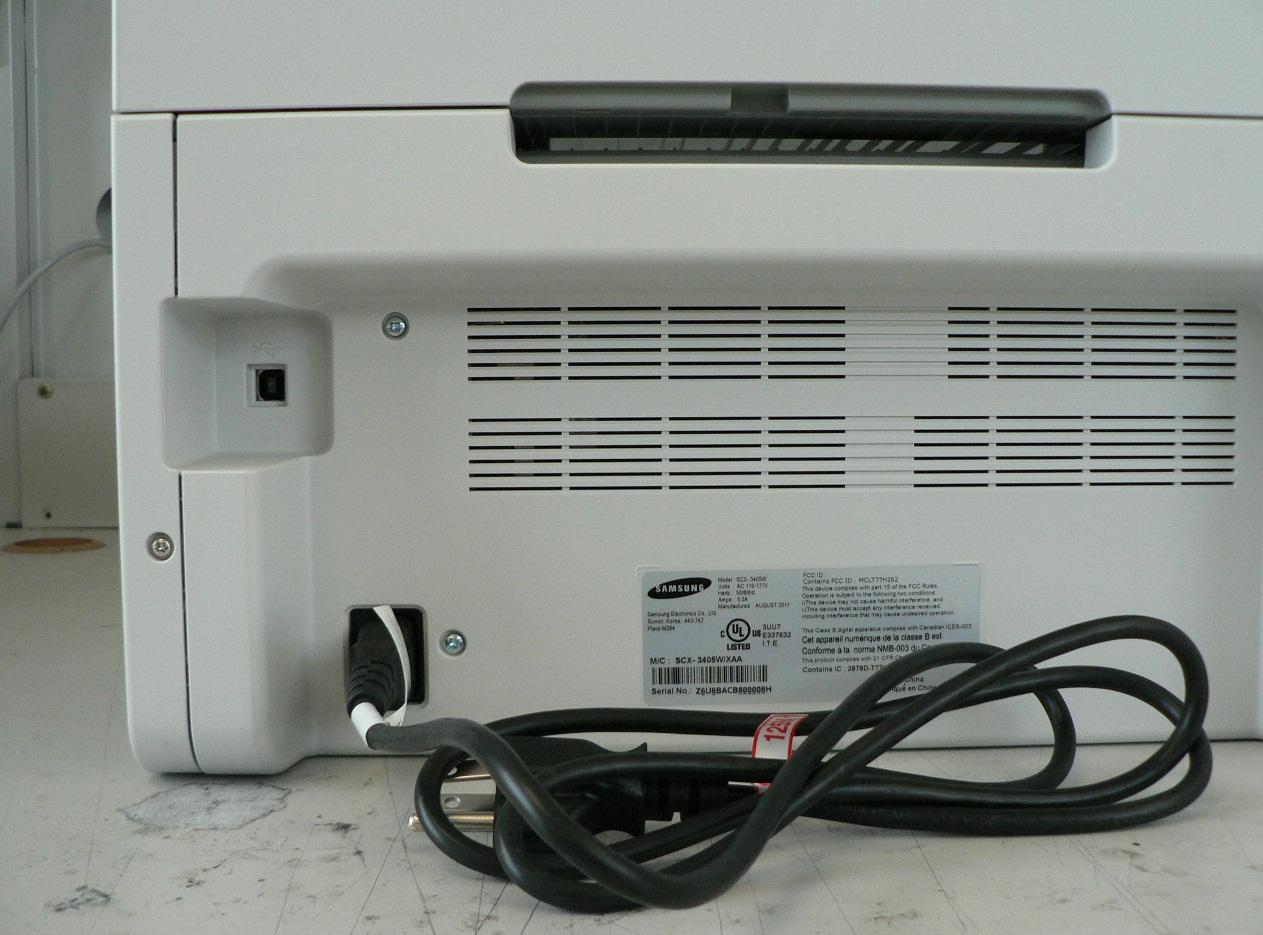

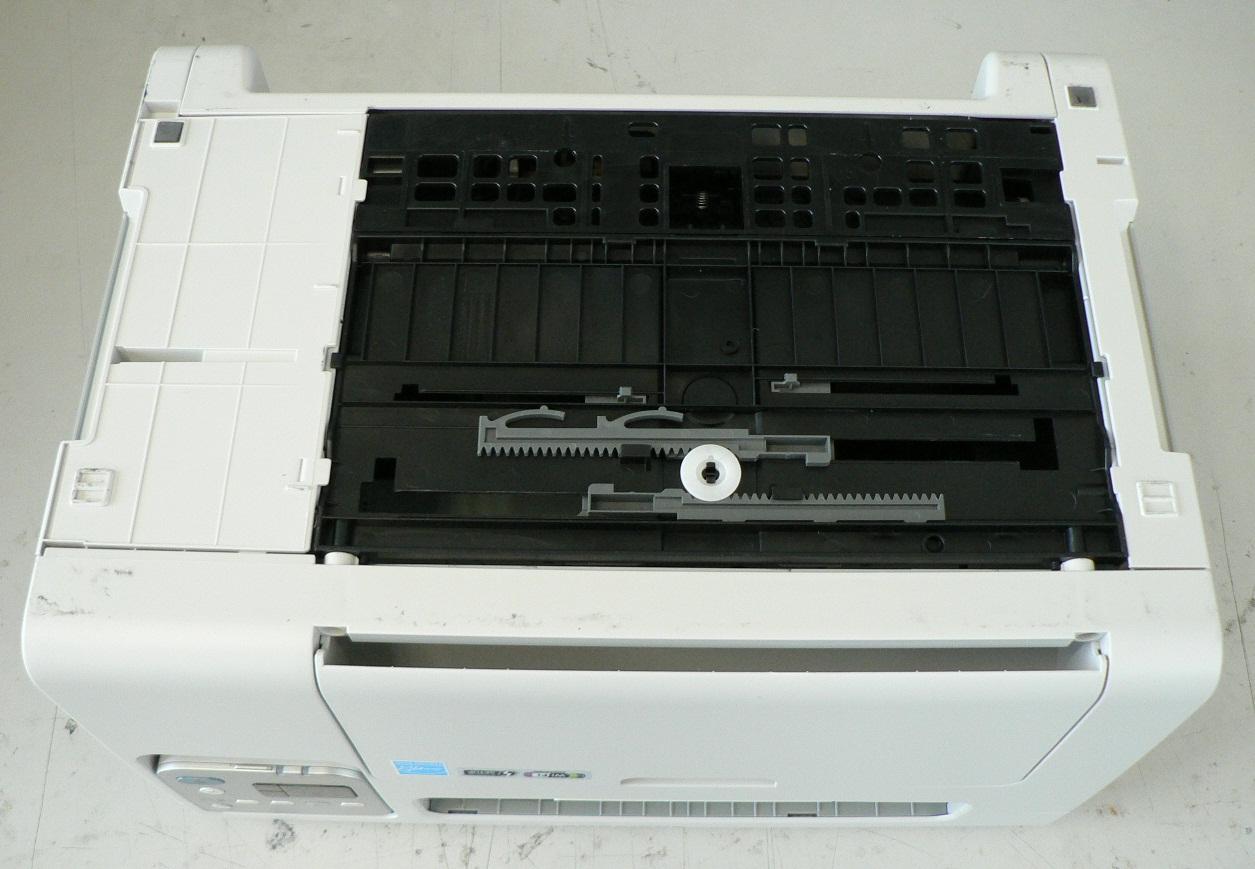

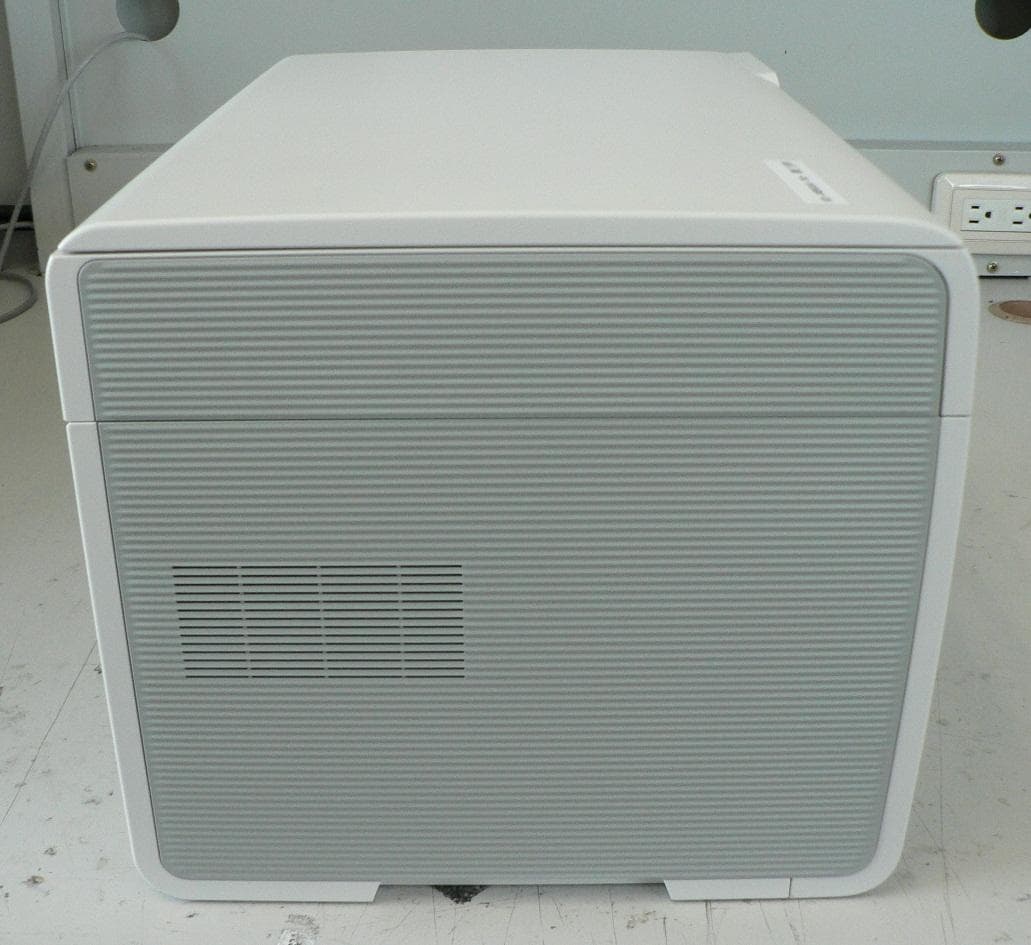

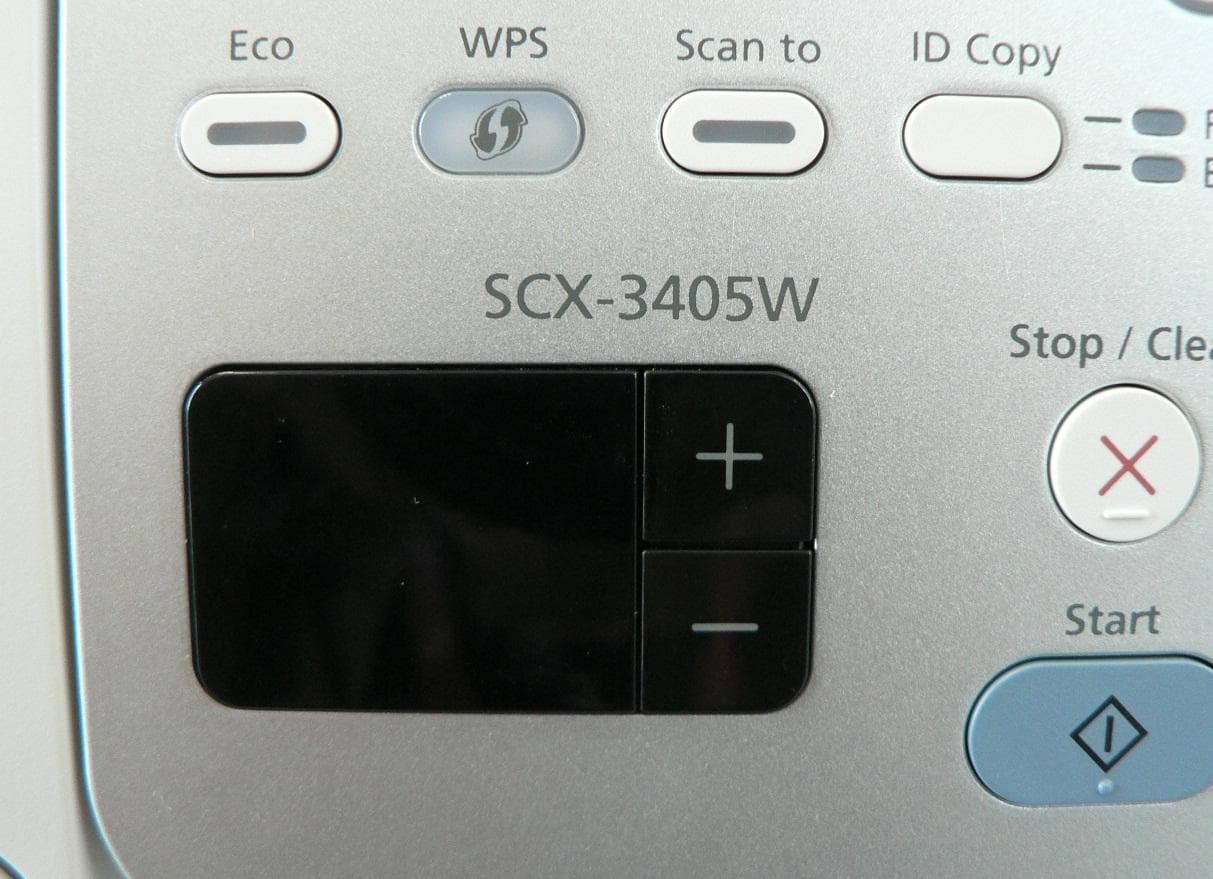

1. Printer Photo SCX-3405W Printer_Front SCX-3405W Printer_Rear SCX-3405W SIDE_RIGHT SCX-3405W SIDE_LEFT SCX-3405W TOP VIEW SCX-3405W Bottom VIEW SCX-3405W Model Name SCX-3405W Power Cord With Printer SCX-3405W Power Cord

Project No. : LBE20113599 MONO LASER MFP : SCX-3405W -39/40- This report must not be reproduced, except in full, without written permission from CS & Environment center. Appendix – EUT photography Front View Rear View with label location Project No. : LBE20113599 MONO LASER MFP : SCX-3405W -40/40- This report must not be reproduced, except in full, without written permission from CS & Environment center. Side View (1) Side View (2) Label

2. Internal Printer Photo SCX-3405W Printer_Front SCX-3405W Printer_Rear SCX-3405W SIDE_RIGHT SCX-3405W SIDE_LEFT SCX-3405W TOP VIEW SCX-3405W Bottom VIEW 3. PBA Photo SCX-3405W Main PBA_Top SCX-3405W Main PBA_Bottom SUNGHO, BluejayV1 SCX-3405W SMPS & HVPS PBA_Front SUNGHO, BluejayV1 SCX-3405W SMPS & HVPS PBA_Rear SHANDONG, BluejayV1 SCX-3405W SMPS & HVPS PBA_Front SHANDONG, BluejayV1 SCX-3405W SMPS & HVPS PBA_Rear SCX-3405W OPE PBA_Front SCX-3405W OPE PBA_Rear SCX-3405W Wireless module_Front SCX-3405W Wireless module_Rear

Project No. : LBE20113599 MONO LASER MFP : SCX-3405W -7/40- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.5 EUT Description The following features describe EUT represented by this report: Item Specification and Description Processor CHORUS3-N (433Mhz) Standard System memory 64MB DDR2 SDRAM Resolution 1200 x 1200 dpi Copy Quality mode Text > Scan: 600x300dpi , Printing : 600x600dpi @ Platen Text/Photo > Scan: 600x300dpi , Printing : 600x600dpi @ Platen Photo > Scan: 600x600dpi , Printing : 1200x1200dpi @ Platen Paper Handling 150-sheet Cassette @ 80g/㎡, 10-sheet @ Special Paper Power Rating 110-127 VAC, 5A 50/60 Hz Power Consumption -. Power Save mode: 3.5W -. Printing Mode : 310W -. Ready Mode : 30W -. Off Mode : 0.45W Printer Language SPL PC Interfaces High speed USB2.0, 802.11 b/g/n OS compatibility Windows 2000/XP(32/64bits)/Vista(32/64bits)/2003 Server(32/64bits)/2008 Server(32/64bits)/7(32/64bits)/2008 Server R2(64bits) Mac OS X 10.4 ~ 10.6 RedHat Enterprise Linux WS 4, 5 (32/64 bit) Fedora 5, 6, 7, 8, 9, 10, 11, 12, 13 (32/64 bit) SuSE Linux 10.1 (32 bit) OpenSuSE 10.2, 10.3, 11.0, 11.1, 11.2 (32/64 bit) Mandriva 2007, 2008, 2009, 2009.1, 2010 (32/64 bit) Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10, 10.04 (32/64 bit) SuSE Linux Enterprise Desktop 10, 11 (32/64 bit) Debian 4.0, 5.0 (32/64 bit) Sun Solaris 9,10 (x86, SPARC) HP-UX 11.0, 11i v1, 11i v2, 11i v3 (PA-RISC, Itanium) IBM AIX 5.1, 5.2, 5.3, 5.4 Modes of Operation USB Printing, Platen Scan, Platen Copy, Wireless Intended Class for Emissions Class B

-1/40- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE20113599 Issue No. 2 Applicant Name of organization Samsung Electronics Co., Ltd. Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do 443-742 Korea Date of application August 29, 2011 EUT Type of device Class B personal computers and peripherals Equipment authorization Declaration of Conformity Certification Verification FCC ID A3LSCX3405W Kind of product MONO LASER MFP Model No. SCX-3405W Variant Model No. SCX-3400, SCX-3405 Manufacturer 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, Korea 730-030 2) Samsung Electronics (Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 3) Weihai Shin Heung Digital Electronics Co., Ltd. 98, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 4) Intops : Intops (Weihai) Electronics Co., Ltd. Keji Road-268-1, Weihai Hi-Tech,Industries Development Zone , Shandong Province , CHINA Applied Standards FCC Part 15, Subpart B / ANSI C63.4-2009 Test Period August 31, 2011 ~ September 05, 2011 Issue date September 20, 2011 Test result : Complied The equipment under test has found to be compliant with the applied standards. The result is not applied the uncertainty concept. This mean that the result is applied the original (standard) limit. (Refer to the attached test result for more detail.) Tested by : Joung Jae Park Reviewed by : Tae Young, Jang The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from CS & Environment center. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82 31 277 7752, Fax: 82 31 277 7753 Project No. : LBE20113599 MONO LASER MFP : SCX-3405W -2/40- This report must not be reproduced, except in full, without written permission from CS & Environment center. Table of contents 1. Report information 1.1 Revision history - 3 page 1.2 Sample calculation - 3 page 2. Summary of test results 2.1 Emission - 3 page 3. General Information 3.1 Test facility - 4 page 4. Test configuration 4.1 Test configuration - 4 page 4.2 EUT operating mode(s) - 6 page 4.3 Details of Sampling - 6 page 4.4 Clock Frequencies - 6 page 4.5 EUT Description - 7 page 4.6 Test configuration and condition - 8 page 4.7 Measurement uncertainty - 8 page 5. Result of individual tests 5.1 Conducted disturbance - 9 page 5.2 Radiated disturbance - 21 page Appendix – EUT photography - 39 page Project No. : LBE20113599 MONO LASER MFP : SCX-3405W -3/40- This report must not be reproduced, except in full, without written permission from CS & Environment center. 1. Report information 1.1 Revision history 1.2 Sample calculation 1.2.1 Conducted disturbance (at 10 MHz) ◦ Class B limit = 60 dBμV (Quasi-peak limit) ◦ Level (50 dBμV) = Meter Reading (40.2 dBμV) + factor ( 9.8 dB, AMN factor 9.7 dB + Cable loss 0.1 dB) ◦ Margin (10 dB) = Limit (60 dBμV) – Level (50 dBμV) = 10 dB below limit 1.2.2 Radiated disturbance (at 100 MHz) ◦ Class B limit = 40 dBμV/m at 3 m ◦ Level (30 dBμV/m) = Meter Reading (50 dBμV) + factor (- 20 dB(1/m), antenna factor + cable loss – amplifier gain) ◦ Margin (10 dB) = Limit (40 dBμV/m) – Level (30 dBμV/m) = 10 dB below limit 2. Summary of test results 2.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standard Result Conducted Disturbance (Mains Port) FCC Part 15 Subpart B / ANSI C63.4-2009 Complied Radiated Disturbance Complied No. Revised detailed information Issue 1 CPU Speed (533 MHz → 433 MHz) Issue 2 Section 4.1 is given an incorrect page number in the Table of Contents on page 2 of the test report (5 page → 4 page) Project No. : LBE20113599 MONO LASER MFP : SCX-3405W -4/40- This report must not be reproduced, except in full, without written permission from CS & Environment center. 3. General Information 3.1 Test facility The CS & Environment center is located on Samsung Electronics Co., Ltd. at 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation Characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The CS & Environment center is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. 4. Test Setup configuration 4.1 Test configuration 4.1.1 Test Peripherals The cables used for these peripherals are either permanently attached by the peripheral manufacturer or coupled with an assigned cable as defined below. The following is a listing of the EUT and peripherals utilized during the performance of EMC test: Seq Description Model No. Serial No. Manufacturer Fcc ID / DoC A Mono laser MFP SCX-3405W - SAMSUNG A3LSCX3405W B Notebook PC PP18L 29359007709 Dell DoC C Adapter LA65NS1-00 CN-OYD637-71615-83C-DE60 Dell DoC D USB mouse MS201U 73H1886 Monterey international DoC E Head set COV903 - COSY - Project No. : LBE20113599 MONO LASER MFP : SCX-3405W -5/40- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.1.2 Test cables No. Connected cable Length [m] Shielded [Y/N] Note 1 Power 1.8 No For EUT 2 Power 1.8 No For Notebook PC 3 USB 1.5 Yes From Notebook PC to EUT 4 USB 1.8 Yes From Notebook PC to Mouse 5 Audio 1.5 No From Notebook PC to Headphone 4.1.3 Test arrangement Project No. : LBE20113599 MONO LASER MFP : SCX-3405W -6/40- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.2 EUT operating mode To achieve compliance applied standard specification, the following mode(s) were made during compliance testing: Operating Mode 1 Standby Operating Mode 2 1:99 scan copy printing Operating Mode 3 Wireless printing Operating Mode 4 USB printing Operating Mode 5 Scan to PC 4.3 Details of Sampling Customer selected, sing…

Text truncated - open the document above for the full version.

Project No. : LBE20113599 MONO LASER MFP : SCX-3405W -10/40- This report must not be reproduced, except in full, without written permission from CS & Environment center. 5.1.3 Photograph of Test Setup Front Rear Project No. : LBE20113599 MONO LASER MFP : SCX-3405W -24/40- This report must not be reproduced, except in full, without written permission from CS & Environment center. 5.2.3 Photograph of Test Setup Front (Below 1 GHz) Rear (Below 1 GHz) Project No. : LBE20113599 MONO LASER MFP : SCX-3405W -25/40- This report must not be reproduced, except in full, without written permission from CS & Environment center. Front (above 1 GHz)
