A3LSCX4100Digital Laser Multi Function Printer

Digital Laser MFP SCX-4100 About the User’s Guides Your machine comes with the two user’s guides: This Laser MFP User’s Guide provides information you need for setting up your machine and installing the supplied software. It also provides all of the detailed instructions for using your machine as a printer, a scanner and a copier and information for maintaining and troubleshooting the machine. The SmarThru 4 User’s Guide provides the basic description about using the multi-function application. Samsung SmarThru allows you to scan and edit images, and to scan for copying, faxing and sending an e-mail on your computer. You can also find a brief description on the automatic text recognition program, AnyPage. This manual is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any changes, direct or indirect, arising from or related to the use of this manual. © 2004 Samsung Electronics Co., Ltd. All rights reserved. • SCX-4100 and Samsung logo are trademarks of Samsung Electronics Co., Ltd. • PCL and PCL 6 are trademarks of Hewlett-Packard Company. •Microsoft, Windows, Windows 9x, Window Me, Windows 2000, Windows NT 4.0 and Windows XP are registered trademarks of Microsoft Corporation. • Apple, AppleTalk, TrueType, LaserWriter and Macintosh are trademarks of Apple Computer, Inc. • PostScrip 3, Adobe Acrobat Reader, Adobe PhotoDeluxe and Adobe Photoshop are trademarks of Adobe System, Inc. • All other brand or product names are trademarks of their respective companies or organizations. ii CONTENTS Chapter 1: GETTING STARTED Unpacking .................................................................... 1.2 Selecting a Location ................................................. 1.3 Understanding the Component Location ........................... 1.4 Front View .............................................................. 1.4 Rear View ............................................................... 1.4 Control Panel Functions ............................................ 1.5 Installing the Toner Cartridge ........................................ 1.6 Loading Paper .............................................................. 1.8 Changing the Paper Size in the Paper Tray ................ 1.10 Making Connections .................................................... 1.11 Turning the Machine On ............................................... 1.12 About Samsung Software ............................................. 1.13 Printer Driver Features ........................................... 1.14 Installing Samsung Software in Windows ....................... 1.15 System Requirements ............................................ 1.15 Installing Samsung Software ................................... 1.16 Installing Samsung SmarThru ................................. 1.19 Repairing Software ...................................................... 1.22 Removing Software ..................................................... 1.23 Uninstalling the MFP Driver ..................................... 1.23 Uninstalling Samsung SmarThru .............................. 1.24 Changing the Display Language .................................... 1.25 Setting the Paper Size and Type ................................... 1.26 Using the Save Modes ................................................. 1.27 Toner Save Mode .................................................. 1.27 Power Save Mode .................................................. 1.27 Chapter 2: PAPER HANDLING Selecting Print Materials ................................................. 2.2 Type, Input Sources and Capacities ........................... 2.2 Guidelines for Paper and Special Materials .................. 2.3 Selecting an Output Location .......................................... 2.4 Printing to the Front Output Tray (Face down) ............. 2.5 Printing to the Rear Output Slot (Face up) .................. 2.5 Loading Paper in the Paper Tray ...................................... 2.7 Using the Manual Feeder ................................................ 2.8 Setting the Paper Type and Size for the Manual Feeder 2.10 Chapter 3: PRINTING Printing a Document in Windows ..................................... 3.2 Canceling a Print Job ................................................ 3.5 Using a Favorite Setting ........................................... 3.6 Using Help .............................................................. 3.6 Setting Paper Properties ................................................ 3.7 Setting Graphic Properties .............................................. 3.8 Printing Multiple Pages on One Sheet of the Paper ........... 3.10 Printing a Reduced or Enlarged Document ...................... 3.12 Fitting Your Document to a Selected Paper Size .............. 3.13 iii Printing Posters .......................................................... 3.14 Using Watermarks ...................................................... 3.15 Using an Existing Watermark .................................. 3.15 Creating a Watermark ............................................ 3.16 Editing a Watermark .............................................. 3.17 Deleting a Watermark ............................................ 3.17 Using Overlays ........................................................... 3.18 What is an Overlay? ............................................... 3.18 Creating a New Page Overlay .................................. 3.18 Using a Page Overlay ............................................. 3.20 Deleting a Page Overlay ......................................... 3.21 Setting Up the Locally Shared Printer ............................. 3.22 In Windows 9x/Me ................................................. 3.22 In Windows NT 4.0/2000/XP ................................... 3.23 Chapter 4: COPYING Loading Paper for Copying ............................................. 4.2 …

Text truncated - open the document above for the full version.

SCANNING 5.2 Scanning Basics Your machine offers two ways to scan: • From the Samsung SmarThru software: Launch Samsung SmarThru and open the Scan Wizard to begin scanning. See below. • From TWAIN-compliant software: You can use other software including Adobe PhotoDeluxe and Adobe Photoshop. See page 5.6. NOTES: • To scan with your machine, you must install the MFP driver. • Scanning is done through the same LPT or USB port currently assigned for your printer port. Scanning Using Samsung SmarThru Samsung SmarThru is the accompanying software for your machine. With the SmarThru, scanning becomes a pleasure. Follow these steps to start scanning using the SmarThru: 1Make sure that your machine and computer are turned on and properly connected to each other. 2Lift the document cover. SCANNING 5.3 5 3Load the document to be scanned face down on the glass and align it with document guides on the left top corner of the glass. 4Close the document cover. 5Once you have installed Samsung software, you see the SmarThru icon on the desktop. Double-click the SmarThru 4 icon. The SmarThru 4 window opens. Double-click this icon. SCANNING 5.4 6To open the Scan Wizard, click the Scan Wizard icon in the plug-in bar on the left of the SmarThru 4 window. The Scan Wizard lets you use the following services: • Scan Lets you scan the original documents and save them in the Image Manager of the Samsung SmarThru system. The Image Manager is an image database manager and image editor program. • Copy Lets you use your machine to produce professional quality copies. You can adjust the image size and select advanced settings. • Scan to Email Lets you scan the original documents and then launches a default mail program of your system, such as Microsoft Outlook Express, so that you can send the scanned image attached to a new mail. To send e-mail using the Samsung SmarThru system, you need to enable the Internet Gate and configure an e-mail account in SmarThru Configuration. Refer to the SmarThru User’s Guide. • Scan to FAX Lets you scan the original documents and then launches a New Fax form which helps you to send them as a fax image. This service is available only when you enable and configure the Fax Gate in SmarThru Configuration. Refer to the SmarThru User’s Guide. Scan Wizard icon. SCANNING 5.5 5 •Scan to WEB Lets you scan the original documents for further publishing to the Web. • Scan to OCR Lets you scan the original documents and pass them to the OCR program. OCR (Optical Character Recognition) is the process of converting a scanned image into text that you can edit in a word processing program. After you scan your document, the software processes or “recognizes” it. Then you can change it and either save the file or open it in any word processing program on your computer. 7Click the service icon according to your job. 8The Samsung Scan Manager opens for the selected service. Adjust the scan settings. You can use the Help button to receive on-line help. 9To start scanning, click Scan. For more information, please refer to the SmarThru User’s Guide which came with your machine. NOTE: If you want to cancel the scan job, press the Stop/Clear button on the control panel. SCANNING 5.6 Scanning Process with TWAIN- enabled Software If you want to scan documents using other software, you will need to use TWAIN-compliant software, such as Adobe PhotoDeluxe or Adobe Photoshop. The first time you scan with your machine, select it as your TWAIN source in the application you use. The basic scanning process involves a number of steps: • Place your photograph or page on the document glass. See page 5.2. • Open an application, such as PhotoDeluxe or Photoshop. • Open the TWAIN window and set the scan options. • Scan and save your scanned image. You need to follow the program’s instructions for acquiring an image. Please refer to the user’s guide of the application. 6 USING OTHER OPERATING S YSTEMS This chapter gives you information about how to use your machine in the Macintosh or Linux system. This chapter includes: • Using Your Printer in Macintosh • Using Your Printer in Linux USING OTHER OPERATING SYSTEMS 6.2 Using Your Printer in Macintosh Installing Software in Macintosh Your machine Macintosh systems with a built-in USB interface. When you print a file from a Macintosh computer, you can use the SPL driver to support your machine’s major printing features. System Requirements To use your machine and its software with a Macintosh, your system should have: Macintosh Hardware Requirement: • One of the following Macintosh models: - Power Macintosh series - Power Macintosh G3, G4 - iMac series - PowerBook series - iBook series •USB interface Macintosh System Requirement: Mac OS 8.6 or later NOTES: • Mac OS 10.0 version is not supported. • Your printer must be connected directly to your Macintosh using a USB cable. • The Samsung SCX-4100 does not support Postscript printing. Ensure that the application you are using does not expect to be able to use Postscript. USING OTHER OPERATING SYSTEMS 6.3 6 Installing Software Mac OS 8.6 ~ 9.x 1Turn the machine and computer off and plug the supplied USB cable into your machine’s USB connector. You must use a USB 1.1 compliant cable that is no more than 3 m length. NOTE: When you are using a USB hub, connect the machine’s cable to the first tier of the hub, or the machine may malfunction. If the machine doesn’t work with the hub, connect it directly to the USB port. 2Turn on your computer and machine. 3Insert the CD-ROM which came with your machine into the CD-ROM drive. 4Double-click SAMSUNG_MFP on your Macintosh desktop. 5Double-click the Classic folder. 6Double-click the West folder. 7Double-click the Samsung Laser Printer installer icon next to each language to select the correct one. 8Click Continue and then click Continue. USING OTHER OPERATING SYSTEMS 6.4 9The Samsung Laser Printer installer window opens. Select the installation type. The window provides the following two optio…

Text truncated - open the document above for the full version.

7 MAINTENANCE This chapter provides information for maintaining your machine and the toner cartridge. This chapter includes: • Printing the System Data List • Clearing the Memory • Cleaning Your Machine • Maintaining the Toner Cartridge • Consumables and Replacement Parts MAINTENANCE 7.2 Printing the System Data List Your machine can print the system data report shows the status of the user-selectable options. You may print this list to confirm your changes after changing any settings. To print the stystem data list: 1Press Menu/Exit until "Reports" appears on the top line of the display. "System Data" appears on the bottom line. 2Press Start/Copy. The system data list prints out. Clearing the Memory You can selectively clear information stored in your machine’s memory. 1Press Menu/Exit on the control panel until "Maintenance" appears on the top line of the display. 2Press the scroll button ( or ) until you see "Clear Settings" on the bottom line and press Start/Copy. The first available menu item, “Paper Setting” displays on the bottom line. 3Press the scroll button ( or ) until you see the item you want to clear. • Paper Setting: Restores all of the Paper Setting options to the factory default. • Copy Setup: Restores all of the Copy Setup options to the factory default. • All Settings: Resets all of your settings to the factory default. • Machine Setup: Resets all of the system settings, such as the display language and save modes, to the factory default. 4Press Start/Copy. The selected memory is cleared and the display asks you to continue clearing the next item. 5To clear another item, press Start/Copy and repeat steps 3 and 4 . Or, to return to Standby mode, press Stop/Clear. MAINTENANCE 7.3 7 Cleaning Your Machine To maintain print quality, follow the cleaning procedures below each time the toner cartridge is replaced or if print quality problems occur. NOTES: • While cleaning the inside of the machine, be careful not to touch the transfer roller, located underneath the toner cartridge. Oil from your fingers can cause print quality problems. • Cleaning the cabinet of your machine with products containing large amounts of alcohol, solvent, or other strong substances can discolor or crack the cabinet. Cleaning the Outside Clean the cabinet of the machine with a soft lint-free cloth. You can dampen the cloth slightly with water, but be careful not to let any water drip onto or inside the machine. Cleaning the Inside During the printing process, paper, toner and dust particles can accumulate inside the machine. This buildup can cause print quality problems, such as toner specks or smearing. Cleaning the inside of the machine clears or reduces these problems. 1Turn the machine off and unplug the power cord. Wait for the machine to cool down. 2Open the front cover and pull the toner cartridge out, lightly pushing it down. MAINTENANCE 7.4 3With a dry lint-free cloth, wipe away any dust and spilled toner from the toner cartridge area and the toner cartridge cavity. CAUTION: To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary. Do not touch the black transfer roller inside the machine. 4Reinsert the toner cartridge and close the cover. 5Plug in the power cord and turn the machine on. MAINTENANCE 7.5 7 Cleaning the Document Glass Keeping the document glass clean helps ensure the best possible copies. We suggest that you clean the document glass at the start of each day and during the day, as needed. 1Slightly dampen a soft lint-free cloth or paper towel with water. 2Lift the document glass. 3Wipe the surface of the document glass until it is clean and dry. 4Wipe the underside of the white document cover until it is clean and dry. 5Close the document cover. MAINTENANCE 7.6 Maintaining the Toner Cartridge Toner Cartridge Storage To get the most from the toner cartridge, keep the following guidelines in mind: • Do not remove the toner cartridge from its package until ready for use. • Do not refill the toner cartridge. The machine warranty does not cover damage caused by using a refilled cartridge. • Store toner cartridges in the same environment as your machine. • To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Saving Toner To save toner, use the Toner Save feature; see page 1.27. Using this feature extends the life of the toner cartridge and reduces your cost per page, but it also reduces the print quality. Expected Cartridge Life The life of the toner cartridge depends on the amount of toner that print jobs require. When printing text at IDC 5% coverage, a new toner cartridge lasts an average of 3,000 pages. The original toner cartridge supplied with the machine lasts an average of 1,000 pages. The actual number may be different depending on the print density of the page you print. If you print a lot of graphics, you may need to change the cartridge more often. MAINTENANCE 7.7 7 Redistributing Toner When the toner cartridge is near the end of its life, white streaks or light print occurs. You can temporarily reestablish the print quality by redistributing the remaining toner in the cartridge. 1 Open the front cover. 2Pull the toner cartridge out and gently roll the cartridge 5 or 6 times to distribute the toner evenly inside the cartridge. NOTE: If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets the toner into fabric. 3Reinstall the cartridge and close the front cover. MAINTENANCE 7.8 Replacing the Toner Cartridge When the toner eventually runs out, only blank pages print when a print job is sent. At this stage, the toner cartridge needs to be replaced. The machine stops printing. 1Open the front cover. 2Lightly pushing the used cartridge down, pull it out. 3Unpack the new toner cartridge and gently roll it horizontally four or five times to distribute the toner evenly inside the cartridge. Save …

Text truncated - open the document above for the full version.

XC61FN3112MR K4S641632F ADDR(1:12) DATA(0:15) ADDR(1:20)DATA(0:15) DI/DO uart PPD(0:7)

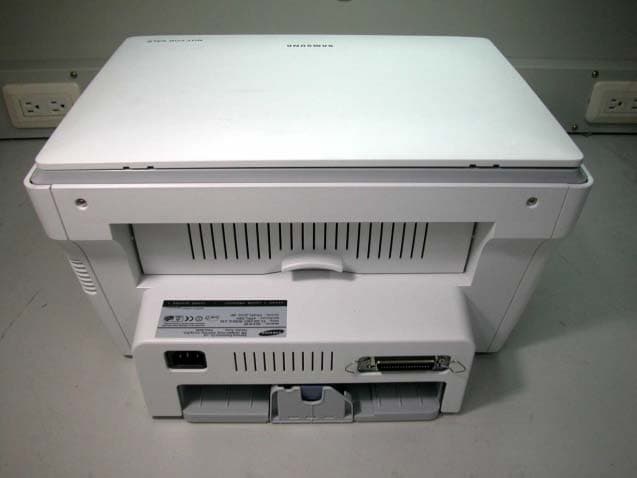

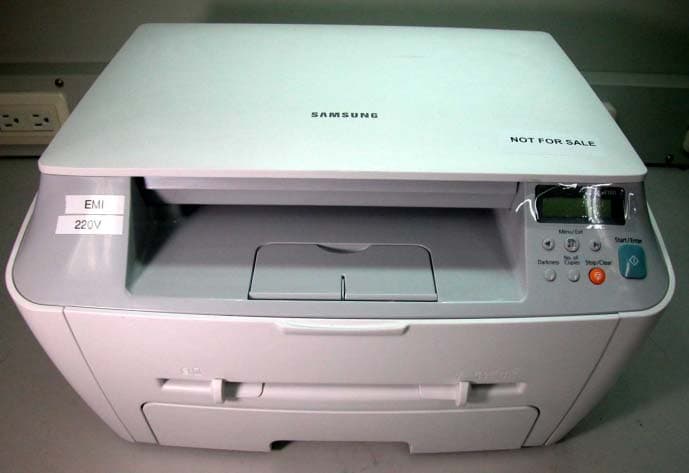

FrontViewofEUT Rear View of EUT Side View of EUT Side View of EUT

Label Location

TopViewofMainController Bottom View of Main Controller TopViewofSMPS+HVPS Bottom View of SMPS + HVPS

1 of 19 Samsung EMC Testing and Certification Laboratory Project No: LBE040926 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC Test Report According to FCC Part 15 Subpart B Project No. LBE040926 Equipment under Test Applicant Samsung Electronics Co. Ltd; 416 Maetan-3 Dong, Yeoung tong-Ku, Suwon City, Gyeonggi-Do, Korea, 442-742 FCC ID A3LSCX4100 Product Name MFP Model Name SCX-4100 Manufacturer Samsung Electronics Co. Ltd 259, Gongdan-Dong, Gumi-City, Kyung-Buk, 730-030, Korea Date of Test May 10, 2004 Issued Date May 10, 2004 Name/Position Signature Tested by Choon Kil.KIM Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Kyu Baek, Chung Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. 2 of 19 Samsung EMC Testing and Certification Laboratory Project No: LBE040926 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information related Product 1.2 Detail Information related Product 1.3 Operating mode and condition 1.4 Test System Details 1.5 Equipment Modifications 1.6 Test Procedure 1.7 Test Configuration 1.8 Applied Standard 1.9 Test Facility 2. Summary of Test Results 3. Description of individual tests 3.1 Conducted Emission 3.2 Radiated Emission 4. Appendix 4.1 Test Photography 4.2 EUT Photography 3 of 19 Samsung EMC Testing and Certification Laboratory Project No: LBE040926 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant Samsung Electronics Co. Ltd; Model name SCX-4100 Applicant Address 416 Maetan3- Dong, Yeoung tong-Ku, Suwon City, Gyeonggi-Do, Korea, 443-742 Contact Person Choon Kil.KIM Kind of product MFP Valiant list Manufacturer Samsung Electronics Co. Ltd., 259, Gongdan-Dong, Gumi-City, Kyung-Buk, 730-030, Korea New / Alternative / Permissive change Information This report is original report # 1.2 Detail Information related Product Specification Item Specification Remark Consumables 1-piece toner cartridge system Power consumption Sleep mode : 10W Standby mode : 85W Average : 350W Warm-up Time 42 seconds Toner Cartridge Life 3,000 pages (for starter, 1,000 pages) @ ISO 19752 5% Coverage Power requirements 110~127V, 50/60Hz, 4.0A Set Dimension (W x D x H) 422 x 400 x 239 mm General Specification Weight Gross 10.7 kg (including consumables, accessories and package) Scanner and Compatibility TWAIN standard 4 of 19 Samsung EMC Testing and Certification Laboratory Project No: LBE040926 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Scan method CIS Scan resolution 600 x 600 dpi(optical) Scan Speed 72 seconds (Linearuty, Gray Scale) 150 seconds (Color 300 dpi) Copy Speed Letter : 15 copies per minute A4 : 14 copies per minute Copier Specifications Copy resolution 600 x 600 dpi Print method Laser Beam Printing Print speed Letter : 15 pages per minute A4 : 14 pages per minute Print resolution 600 x 600 dpi Emulation SPL(GDI) PC interface Compatible with USB 1.1 Specifications and IEEE1284 Parallel Memory 8MB Printer Specifications First printing time Standby mode : 12 seconds Operating Frequency 1.3 Operating Mode and Condition The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O port. Where applicable, peripherals were attached to the I/O cables. We found the worst case of emission level for the EUT and the operation mode of EUT was selected to the copy mode during the test. 1.4 Test System Details 1.5 Equipment Modifications No equipment modifications were required. 5 of 19 Samsung EMC Testing and Certification Laboratory Project No: LBE040926 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.6 Test Procedure 1.6.1 Disturbance Voltage at Mains EUT was placed on a platform nominal size, 1m by 1.5m, raised 80cm above the conducti ng ground plane. The rear of tabletop was located 40cm to the vertical conducting groud plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80cm from any other grounded conducing surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bindle 30cm to 40cm long and were handed at a 40cm height to the ground plane. Each EUT current-carrying power lead, except the ground(safety)lead, were individually connected through a LISN to the input power source. All unused 50 ohm connectors of the LISN were resistively terminated in 50 ohm when not connected to the measuring equipment. 1.6.2 Radiated disturbance EUT was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. I/O cables that were connected to the peripherals were bundle in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged 40cm height to the ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane and the run table azimuth was varied to obtain the ma…

Text truncated - open the document above for the full version.

16 of 19 Samsung EMC Testing and Certification Laboratory Project No: LBE040926 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix 4.1 Test Photography Pic. 1 Conducted Emission (Front) Pic. 2 Conducted Emission (Rear) 17 of 19 Samsung EMC Testing and Certification Laboratory Project No: LBE040926 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Pic. 3 Radiated Emission (Front) Pic. 4 Radiated Emission (Rear)
