A3LSCX4216FMulti-Function Printer

Digital Laser MFP SCX-4216F SCX-4016 SCX-4116 About the User’s Guides Your machine comes with the three user’s guides: This Laser MFP User’s Guide provides information you need for setting up your machine and installing the supplied software. It also provides all of the detailed instructions for using your machine as a printer, a scanner and a copier and information for maintaining and troubleshooting the machine. The Laser Facsimile User’s Guide (only for SCX-4216F) provides information for using your machine as a fax machine. You can find how to send and receive a fax, and how to set fax-related options. The SmarThru 3 User’s Guide provides the basic description about using the multi-function application. Samsung SmarThru allows you to scan and edit images, and to scan for copying, faxing and sending an e-mail on your computer. You can also find a brief description on the automatic text recognition program, AnyPage. This manual is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any changes, direct or indirect, arising from or related to use of this manual. © 2002 Samsung Electronics Co., Ltd. All rights reserved. •SCX-4016, SCX-4116, SCX-4216F and Samsung logo are trademarks of Samsung Electronics Co., Ltd. •Centronics is a trademark of Centronics Data Computer Corporation. •IBM and IBM PC are trademarks of International Business Machines Corporation. •Apple, AppleTalk, TrueType, LaserWriter and Macintosh are trademarks of Apple Computer, Inc. •Microsoft, Windows, Windows 9x, Window Me, Windows 2000, Windows NT 4.0 and Windows XP are registered trademarks of Microsoft Corporation. •All other brand or product names are trademarks of their respective companies or organizations. ii C ONTENTS Chapter 1: G ETTING S TARTED Unpacking .......................................................... 1.2 Selecting a Location ........................................ 1.4 Understanding the Component Location .................. 1.5 Front View ..................................................... 1.5 Rear View ...................................................... 1.6 Control Panel Functions ................................... 1.7 Installing the Toner Cartridge ............................... 1.10 Loading Paper .................................................... 1.12 Making Connections ............................................ 1.15 Turning the Machine On ....................................... 1.17 Changing the Display Language ............................ 1.17 Setting the Paper Type and Size ........................... 1.18 Using the Save Modes ......................................... 1.19 Toner Save Mode ........................................... 1.19 Power Save Mode .......................................... 1.19 CCD Power Save Mode ................................... 1.20 Chapter 2: I NSTALLING S OFTWARE About Samsung Software ..................................... 2.2 System Requirements .......................................... 2.3 Installing Samsung Software in Windows ................ 2.4 Installing the USB Driver in Windows 98/Me ....... 2.8 Uninstalling Samsung Software ............................. 2.9 Uninstalling the MFP Driver .............................. 2.9 Uninstalling Samsung SmarThru ...................... 2.10 Using the CD-ROM ......................................... 2.12 iii Chapter 3: P APER H ANDLING Selecting Print Materials ....................................... 3.2 Size, Input Sources and Capacities .................... 3.2 Guidelines for Paper and Special Materials .......... 3.3 Selecting an Output Location ................................. 3.4 Printing to the Front Output Tray (Face down) .... 3.5 Printing to the Rear Output Slot (Face up) .......... 3.5 Loading Paper in the Paper Tray ............................ 3.6 Using the Bypass Tray .......................................... 3.8 Setting the Paper Type and Size for the Bypass Tray . 3.10 Chapter 4: C OPYING Loading Paper for Copying .................................... 4.2 Making Copies on the Document Glass .................... 4.2 Making Copies from the Automatic Document Feeder (For SCX-4116/4216F) ................................................ 4.4 Setting Copy Options ........................................... 4.5 Contrast ........................................................ 4.6 Image ........................................................... 4.6 Reduced/Enlarged Copy ................................... 4.7 Number of Copies ........................................... 4.7 Using Special Copy Features ................................. 4.8 Auto Fit Copying ............................................. 4.8 Clone Copying ................................................ 4.9 Collation Copying ........................................... 4.10 2-side Copying .............................................. 4.10 2-up or 4-up Copying ..................................... 4.11 Poster Copying .............................................. 4.12 Changing the Default Settings .............................. 4.13 Setting the Time Out Option ................................. 4.14 Chapter 5: P RINTING Printing a Document ............................................ 5.2 Canceling a Print Job ....................................... 5.5 Using a Favorite Setting .................................. 5.6 Using Help ..................................................... 5.6 Setting Paper Properties ....................................... 5.7 Printing Multiple Pages on One Sheet of Paper (N-Up Print- ing) ................................................................... 5.8 Printing a Reduced or Enlarged Document .............. 5.10 iv Fitting Your Document to a Selected Paper Size ...... 5.11 Printing Posters .................................................. 5.12 Using Watermarks .............................................. 5.…

Text truncated - open the document above for the full version.

5 PRINTING This chapter explains how to print your documents in Windows and how to use the print settings. This chapter includes: •Printing a Document •Setting Paper Properties •Printing Multiple Pages on One Sheet of Paper (N-Up Printing) •Printing a Reduced or Enlarged Document •Fitting Your Document to a Selected Paper Size •Printing Posters •Using Watermarks •Using Overlays •Setting Graphic Properties •Setting Up the Locally Shared Printer PRINTING 5.2 Printing a Document The following procedure describes the general steps required for printing from various Windows applications. The exact steps for printing a document may vary depending on the application program you are using. Refer to your software application’s User’s Guide for the exact printing procedure. NOTE: For detailed information about printing from a Macintosh computer, see Appendix A. 1Open the document you want to print. 2Select Print from the File menu. The Print window is displayed. It may look slightly different depending on your application. The basic print settings are selected within the Print window. These settings include the number of copies and print range. 3To take advantage of the printer features provided by your machine, click Properties in the application’s print window and go to Step 4. If you see Setup, Printer or Options, click that button instead. Then click Properties in the next screen. Make sure that your machine is selected.
Windows 98 PRINTING 5.3 5 4Now you see the Samsung SCX-4x16 Series Properties window, which allows you to access all of information you will need when using your machine. The Layout tab is first displayed. If necessary, select the Orientation option. The Orientation option allows you to select the direction in which information is printed on a page. •Portrait prints across the width of the page, letter style. •Landscape prints across the length of the page, spreadsheet style. •If you want to rotate the page in 180 degrees, select Rotate 180 Degrees . 5From the Paper tab, select the paper source, size and type. For further details, see page 5.7. The preview image shows the sample page with the settings you currently specified.
Landscape
Portrait PRINTING 5.4 6If necessary, you can set in what sequence the pages will be printed from the Extra tab. Select the required print order from the Print Order drop-down list. •Normal: Your machine prints in normal order. •Reverse All Pages: Your machine prints all pages in reversed order. This setting is helpful when you are using the rear output slot. •Print Odd Pages: Your machine prints only the odd pages of the document. •Print Even Pages : Your machine prints only the even pages of the document. 7Click other tabs on the top of the Samsung SCX-4x16 Series Properties window to access other features, if needed. 8When you finish setting the properties, click OK until the Print window is displayed. 9Click OK to start printing. Notes: •Most Windows applications will override settings you specified in the printer driver. Change all of the print settings available in the software application first, and change any remaining settings using the printer driver. •The settings you change remain in effect only while you are using the current program. To make your changes permanent, make them in the Printers folder. Follow these steps: 1. Click the Windows Start menu. 2. For Windows 95/98/Me/NT 4.0/2000, select Settings and then Printers. For Windows XP, select Printers and Faxes. 3. Select the Samsung SCX-4x16 Series printer. 4. Click the right mouse button on the printer icon and: •For Window 95/98/Me, select Properties. •For Windows 2000/XP, select Print Setup or select Properties and click Printing Preferences. •For Windows NT 4.0, select Document Default. 5. Change the settings on each tab and click OK. PRINTING 5.5 5 Canceling a Print Job There are two ways to cancel a print job: To stop a print job from the control panel: Press the Stop/Clear button. Your machine will finish printing the page that is moving through the machine and delete the rest of the print job. Pressing the button cancels only the current job. If more than one print job is in the machine’s memory, you need to press the button once for each job. To stop a print job from the Printers folder: 1From the Windows Start menu, select Settings. 2Select Printers to open the Printers window and double-click the Samsung SCX-4x16 Series icon. 3From the Document menu, select Cancel Printing (Windows 9x/Me) or Cancel (Windows NT 4.0/2000/XP). NOTE: You can access this window simply by double-clicking the printer icon at the bottom right corner of the Windows desktop.
Windows 98 PRINTING 5.6 Using a Favorite Setting The Favorites option, which is visible on each properties tab, allows you to save the current properties settings for future use. To save a Favorites item: 1Change the settings on each tab, as needed. 2Enter a name for the item in the Favorites input box. 3Click Save. To use a saved setting, select it from the Favorites drop-down list. To delete a favorite setting item, select it from the list and click Delete. You can also restore the printer driver’s default settings by selecting <Printer Default> from the list. Using Help Your machine has a help screen that can be activated by the Help button in the printer’s properties window. These help screens give detailed information about the printer features provided by the printer driver. You can also click from the upper right hand corner, and then click on any setting. PRINTING 5.7 5 Setting Paper Properties Use the following options to set the paper handling needs when you access the printer properties. See page 5.2 for more information about accessing printer properties. Click the Paper tab to access many paper properties. PropertyDescription Copies Copies allows you to choose the number of copies to be printed. You can enter up to 999. Size The Size option allows you to choose the size of paper loaded in the tray. If the…

Text truncated - open the document above for the full version.

PRINTING FROM A MACINTOSH A.6 Using Advanced Printing Features The SAMSUNG SPL II Printer window contains five categories of advanced properties. Listed below is the name of each property. - Darkness/Quality - Layout - Color - Background Printing - Paper Source The following figures display each property in the SAMSUNG SPL II Printer window. Darkness/Quality Layout Select the print darkness. Select the print resolution. Select the number of pages you want to print on one sheet of paper. The pages will appear decreased in size and arranged on the sheet. To print the border of each page, check this box. PRINTING FROM A MACINTOSH A.7 A Color Background Printing Select the grayscale mode.  Black&White Grayscale Turns background printing on or off. Select priority for your print job in the queue of jobs waiting to print, click one of the following: • Urgent: to print before any Normal priority job. • Normal: to print in the order the job is received. • Print at: to print at the specific time you enter in the day and time in the fields to the right. • Put document on hold: to hold the print job in the print queue until you are ready to release it. PRINTING FROM A MACINTOSH A.8 Paper Source Select the corresponding paper source. If Auto Select is set, the machine automatically selects the print material from the paper tray, according to the following order: the Bypass tray and the paper tray. B SPECIFICATIONS This chapter includes: •General Specifications •Scanner and Copy Specifications •Printer Specifications •Facsimile Specifications (For SCX-4216F) •Paper Specifications SPECIFICATIONS B.2 General Specifications ItemDescription Automatic document feeder (for SCX-4116/4216F) Up to 30 sheets (20 lb, 75 g/m 2 ) ADF Document size (for SCX-4116/4216F) Width: 142 to 216 mm (5.6 to 8.5 inches) Length: 148 to 356 mm (5.8 to 14 inches) Paper input capacity Paper tray: 250 sheets (weight: 75 g/m 2 , 20 lb) Bypass tray: 1 sheets (weight: 75 g/m 2 , 20 lb) Paper output capacity Front output tray: 150 sheets (face down) Rear output slot: 1 sheet (face up) Paper type Paper tray: Plain paper (60 ~ 90 g/m 2 , 16 ~ 24 lb) Bypass tray: Plain paper, Transparencies, Labels, Card, Post card, Envelopes (60 ~ 120 g/m 2 , 16 ~ 32 lb) Consumables 1-piece toner cartridge system Power requirements 100 ~ 127 VAC, 50/60 Hz, 4.5A 220 ~ 240 VAC, 50/60 Hz, 2.5A Power consumption Sleep mode: 19 W Standby mode: 85 W(100 ~ 127 VAC) / 95 W(220 ~ 240 VAC) Average: 350 W Noise Warm-up: 50 dB Standby mode: 35 dB Printing: 55 dB Warm-up Time 30 seconds Operating conditions Temperature: 50 o F to 89 o F (10 o C to 32 o C) Humidity: 20 % to 80 % RH LCD 16 characters x 2 lines Toner cartridge life 3,000 pages (for starter, 1,000 pages) @ IDC 5 % coverage SET dimension (W x D x H) SCX-4116/4216F: 474 x 436 x 417 mm SCX-4016: 474 x 436 x 353 mm SPECIFICATIONS B.3 B Scanner and Copier Specifications Weight Net: 13 (SCX-4116/4216F)/11.7 (SCX-4016) Kg (including consumables) Gross: 17 (SCX-4116/4216F)/15.7 (SCX-4016) Kg (including consumables, accessories and package) Package Weight Paper: 2.7 Kg Plastic: 0.7 Kg ItemDescription CompatibilityTWAIN standard Scanning method Sheet-fed and Flat-bed CCD (Charge Coupled Device) module Resolution Optical: 600 dpi (Mono and Color) Enhanced: 4,800 dpi Effective scanning length Platen: 297 mm (11.7 in.) ADF (for SCX-4116/4216F): 356 (14 in.) Effective scanning width 8.2 inches (208 mm) Color bit depth Internal: 32 bit External: 24 bit Mono bit depth 1 bit for Text mode 8 bit for Gray mode Scan speed (Text mode) Platen: 23 seconds ADF (SCX- 4116/4216F): 25 seconds Copy speed 17 copies per minute (Letter) Paper size Letter, A4, Legal Copy resolution Platen: 600 x 300 (Text, Mixed) / 600 x 600 (Photo) ADF (for SCX-4116/4216F): 600 x 300 (Text, Mixed, Photo) Zoom rate Platen: 25 ~ 400 % ADF (for SCX-4116/4216F): 25 ~ 100 % ItemDescription SPECIFICATIONS B.4 Printer Specifications Multiple copies99 pages Grayscale 256 levels ItemDescription Printing methodLaser Beam Printing Printing speed 17 pages per minute (Letter) Paper size Paper tray: Letter, A4, Legal, Folio, A5, A6 Bypass tray: Letter, Legal, A4, Folio, Executive, A5, A6, A6 card, Post Card 4x6, HagaKi, Envelope 7-3/4, Envelope 9, Envelope 10, Envelope DL, Envelope C5, Envelope C6, Envelope B5 * Min.: 76 x 127 mm (3 x 5 in.) Max.: 216 x 356 (8.5 x 14 in.) Print resolution 600 x 600 dpi Emulation SPL (GDI) PC Interface IEEE 1284, USB 1.1 Compatibility Windows 95/98/2000/NT 4.0/Me/XP Macintosh 8.6 or higher First printing time Standby mode: 12 seconds Power save mode: 42 seconds ItemDescription SPECIFICATIONS B.5 B Facsimile Specifications (For SCX-4216F) ItemDescription CompatibilityITU-T Group 3, ECM Applicable line Public Switched Telephone Network (PSTN) or behind PABX Data coding MH/MR/MMR (ECM Mode) and JPEG for color fax transmission Modem speed 33600/28800/21600/19200/14400/12000/9600/ 7200/4800/2400 bps with fall back Transmission speed Approx. 3 seconds/page * Transmission time applies to memory transmission of text data with ECM compression using only ITU-T No.1 Chart. Scanning speed Platen: approx. 3 seconds/letter (at standard fax resolution mode) ADF: approx. 5 seconds/letter (at standard fax resolution mode) Maximum document length Platen: 297 mm ADF: 1.5 m Paper size Letter, A4, Legal Resolution Standard: 203 x 98 dpi Fine: 203 x 196 dpi Super Fine: 300 x 300 dpi / 203 x 392 dpi Photo: 203 x 196 dpi Color: 200 x 200 dpi User Memory 4 MB (320 pages) Halftone 256 levels Auto dialer Speed dialing (registration for 100 numbers) SPECIFICATIONS B.6 Paper Specifications Overview Your machine accepts a variety of print materials, such as cut-sheet paper (including up to 100% recycled fiber content paper), envelopes, labels, transparencies and custom-size paper. Properties, such as weight, composition, grain and moisture content, are important factors affecting the machine’s performance and the output quality. Paper that does not meet the …

Text truncated - open the document above for the full version.

Project NO. : LBE030209 Product :Multi Function Printer Model No. : SCX-4216F Date of test :January 27, 2003 ~ January 29, 2003 Issued Date :February 4, 2003 Tested by: Jin Hwan, JUNG / Test Engineer Reviewed by: Yang Soo, KIM / Technical Manager Authorized by: Kyu Baek, CHUNG / Chief of EMC Lab. SAMSUNG ELECTRONICS Co., Ltd. Suwon EMC Test Laborator y 416 Maetan-3 Dong, Paldal-Ku, Suwon City, Kyungki-Do, Korea,442-742 Tel. : 81-31-200-2185 Fax. : 81-31-200-2189 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC TEST REPORT According to FCC Part 15B Class B Page 01 of 14 Project NO. : LBE030209 Table of Contents 1. General Information 1.1 Product Description 1.2 System Block Diagram of Test Configuration 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement 2.2 Operation Enviroment 2.3 Justification 2.4 EUT Exercise Soft ware 2.5 Test Procedure 3. Conducted Emission Test Data 4. Radiated Emission Test Data 5. Test Equipment Used This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 02 of 14 Project NO. : LBE030209 Project NO. : LBE030209 1. General Information APPLICANT :SAMSUNG ELECTRONICS CO., LTD. ADDRESS :416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 442-742 CONTACT ADDRESS :Shandong Samsung Telecommunications Co.,Ltd, Jinzhou Road, Weihai Hi-Tech. IDZ Shandong Province, CHINA 264209 CONTACT PERSON :Sang Cheol, Park REGULATION(S) :FCC Part 15B Class B Model & Variant Names :: SERIAL NUMBER :- KIND OF PRODUCT :Multi Function Printer TESTED DATE :January 27, 2003 ~ January 29, 2003 TEST SITE :SAMSUNG EMC TEST LAB. FCC Registration Number : 873282 Anechoic Chamber #2 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 03 of 14 SCX-4216F SCX-4116 SCX-4016 1.1 Product Description SCX-4216F is supporting the FAX(TX ,RX),SCAN(ADF,FLATEN),PRINTER Mode. SCX-4116 is supporting the SCAN(ADF,FLATEN),PRINTER Mode. SCX-4016 is supporting the SCAN(FLATEN),PRINTER Mode. SCX-4x16 models have 1.2 System Block Diagram of Test Configuration This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 04 of 14 Project NO. : LBE030209 RTC clock 32.768kHz, OPE-Micom clock 7.37MHz ,Video clock 14.7456 KHz Video 1/4 clock 11.059 MHz ,USB clock 48MHz. System clock 10MHz, Modem clock 28.224MHz, CPU clock 66MHz, BA AC POWER 13 4 D C 5 6 AC POWER TEL 2 Project NO. : LBE030209 2.5.2 Configuration of EUT and peripherals MarkItemModel No.Serial No.ManufacturerRemark APlain Paper FaxSCX-4216F-SamsungEUT BNote PCPP01X CN-03J010-12961-29N DELL- CAC AdapterADP-90FB TH-06G356-17971-29C-27ET DELL- DMouseM-UR69LNB23424350Logitech- 2.5.3 Used Cable Description No.ItemLength[m]Shielded(Y/N) 1AC Power Cable1.7N 2Tel line2.0N 3USB Cable1.5Y 4Parallel Cable1.5Y 5Mouse Cable1.5Y 6AC Power Cable2.0Y This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Remark Page 05 of 14 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement * Cabling was taken into consideration and test data was taken under worse case conditions. 1)Conduction(Front View) 2)Conduction(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 06 of 14 Project NO. : LBE030209 3) Radiation(Front View) 4) Radiation(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 07 of 14 Project NO. : LBE030209 2.2 Operation Enviroment ConductionRadiation Temperature [centigrade] : 24.821.2 Humidity [%] :2023 Power supply :AC120V/60HzAC120V/60Hz 2.3 Justification The system was configured in typical fashion(as a customer would normally use it) for testing. 2.4 EUT Exercise Soft ware The EUT exercised all possible mode during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. 2.5 Test Procedure 2.5.1 Conducted Emissions Eut was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of tabletop was located 40cm to the vertical conducting ground plane. The rear of EUT,including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80cm from any other grounded conducting surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged at a 40cm height to the ground plane. Each EUT current-carrying power lead,except the ground(safety) lead, were individually connected through a LISN to the input power source. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 08 of 14 Project NO. : LBE030209 All unused 50 ohm connectors of the LISN were resistively terminated in 50 ohm when not connected to the measuring equipment. 2.5.2 Radiated Emissions Eut was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of EUT,including peripherals was aligned and flush with rear of tabletop. I/O cables that were connected to the peripherals were bundle in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged 40cm height to the ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane to obtain the maximum signal strength. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 09 of 14 Project NO. : LBE030209 3. Conducted Emission…

Text truncated - open the document above for the full version.

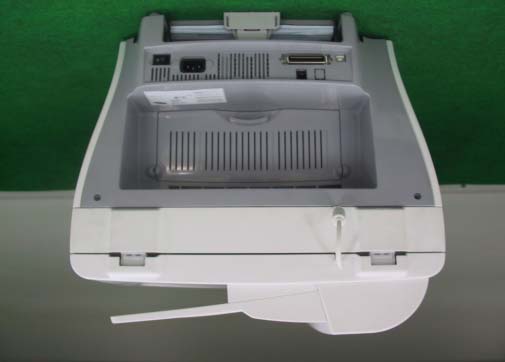

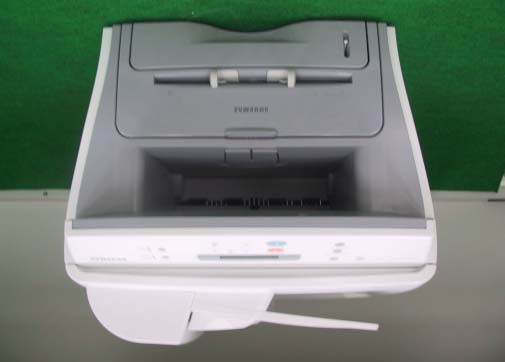

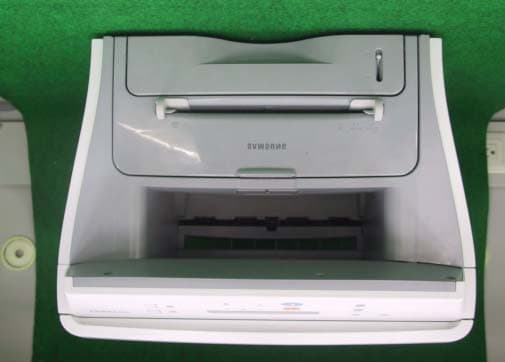

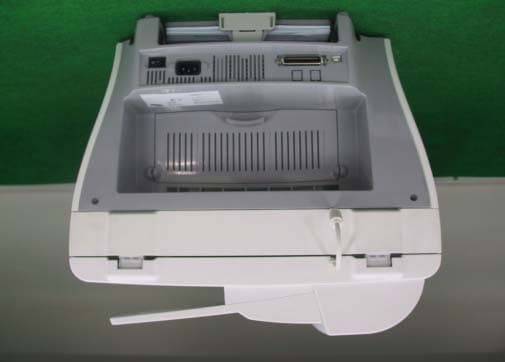

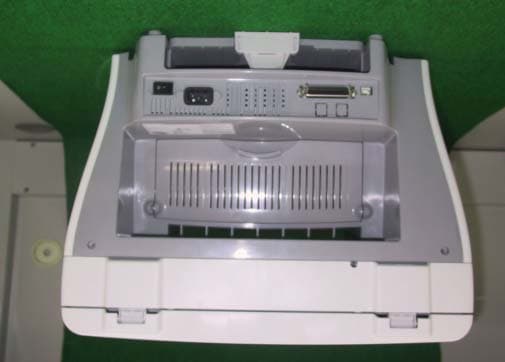

2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement * Cabling was taken into consideration and test data was taken under worse case conditions. 1)Conduction(Front View) 2)Conduction(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 06 of 14 Project NO. : LBE030209 3) Radiation(Front View) 4) Radiation(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 07 of 14 Project NO. : LBE030209
