A3LSCX4833FDLaser Printer

SCX-483x SeriesSCX-563x SeriesSCX-573x Series User’s GuideBasic imagine the possibilities This guide provides information concerning installation, basic operation and troubleshooting on windows Y Contents  XX U Introduction \ Key benefits ^ Features by models _ Useful to know ` About this user’s guide X W Safety information X ] Machine overview X ` Control panel overview Y \ Turning on the machine Y ] Installing the driver locally Y ^ Reinstalling the driver  Y U Menu overview and basic setup Y ` Menu overview Z [ Changing the display language Z \ Media and tray \ X Basic printing \ ^ Basic copying ] Y Basic scanning ] Z Basic faxing ] _ Using USB memory device Z U Maintenance ^ \ Ordering supplies and accessories ^ ] Available supplies ^ ^ Available accessories ^ ` Available maintenance parts _ W Redistributing toner _ Y Replacing the toner cartridge _ [ Upgrading a memory module _ ] Monitoring the supplies life _ ^ Setting the toner low alert _ _ Cleaning the machine  [ U Troubleshooting ` Z Tips for avoiding paper jams ` [ Clearing original document jams X W X Clearing paper jams X W _ Understanding the status LED X X W Understanding display messages Contents Z  \ U Appendix X Y Z Specifications X Z Z Regulatory information X [ ] Copyright 1. IntroductionThis chapter provides information you need to know before using the machine.•Key benefits 5 •Features by models 7 •Useful to know 8 • About this user’s guide 9 • Safety information 10 • Machine overview 16 • Control panel overview 19 • Turning on the machine 25 • Installing the driver locally 26 • Reinstalling the driver 27   Key benefitsEnvironmentally friendly• To save toner and paper, this machine supports Eco feature. • To save paper, you can print multiple pages on one single sheet of paper (see Advanced Guide). • To save paper, you can print on both sides of the paper (double- sided printing) (see Advanced Guide). • To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use. Print with excellent quality and speed• You can print with a resolution of up to 1,200 x 1,200 dpi effective output. • Fast, on-demand printing. SCX-483x Series: - For single-side printing, 31 ppm (A4) or 33 ppm (Letter). - For duplex printing, 15 ppm (A4) or 16 ppm (Letter).SCX-563x Series or SCX-573x Series: - For single-side printing, 35 ppm (A4) or 37 ppm (Letter).- For duplex printing, 17 ppm (A4) or 18 ppm (Letter). Convenience• Printing Status (or Smart Panel) is a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see Advanced Guide). • AnyWeb Print helps you screen-capture, preview, scrap, and print the screen of Windows Internet Explorer more easily, than when you use the ordinary program (see Advanced Guide).   Key benefitsWide range of functionality and application support• Supports various paper sizes (see "Print media specifications" on page 125).• Print watermark: You can customize your documents with words, such as “Confidential” (see Advanced Guide). • Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of pap er and can then be taped together to form a poster (see Advanced Guide). • You can print in various operating systems (see "System requirements" on page 128).• Your machine is equipped with a USB interface and/or a network interface. Expand your machine’s capacity• This machine has an extra memory slot for adding more memory (see "Available accessories" on page 77). • Zoran IPS Emulation compatible with PostScript 3 (PS) enables PS printing. • Zoran IPS Emulation compatible with PostScript 3• ©1995-2005, Zoran Corporation. All rights reserved. Zoran, the Zoran logo, IPS/PS3, and OneImage are trademarks of Zoran Corporation. • 136 PS3 fonts• Contains UFST and MicroType from Monotype Imaging Inc.   Features by modelsSome features and optional goods may not be available depending on model or country. (  : Included,  : Optional, Blank: Not available) Features SCX-4833FDSCX-4835FDSCX-4833HD SCX-4833FRSCX-4835FR SCX-5637FRSCX-5639FRSCX-5637HR SCX-5737FWSCX-5739FW Print, Copy, Scan, Fax     Hi-Speed USB 2.0     IEEE 1284 Parallel     Network Interface Ethernet 10/100 Base TX wired LAN  Network Interface Ethernet 10/100/1000 Base TX wired LAN    Network Interface 802.11b/g/n wireless LAN  Eco printing     Duplex (2-sided) printing     Samsung Easy Printer Manager     Memory     Tray 2 (520 sheets)     SyncThru™ Web Service     Automatic Document Feeder (ADF)  Dual Automatic Document Feeder (DADF)    Useful to know The machine does not print.• Open the print queue list and remove the document from the list (see "Canceling a print job" on page 51). • Remove the driver and install it again (see "Installing the driver locally" on page 26). • Select your machine as your default machine in your Windows. Where can I purchase accessories or supplies?• Inquire at a Samsung distributor or your retailer.• Visit www.samsung.com/supplies. Select your country/ region to view product service information. The status LED flashes or remains constantly on.• Turn the product off and on again.• Check the meanings of LED indications in this manual and troubleshoot accordingly (see "Understanding the status LED" on page 108). A paper jam has occurred.• Open and close the front door.• Check the instructions on removing jammed paper in this manual and troubleshoot accordingly (see "Clearing paper jams" on page 101). Printouts are blurry.• The toner level might be low or uneven. Shake the toner cartridge. • Try a different print resolution setting.• Replace the toner cartridge.Where can I download the machine’s driver?• Visit www.samsung.com/printer to download the latest machine’s driver, and install it on your system. 9 1. Introduction About this user’s guideThis user's guide provides information for your bas…

Text truncated - open the document above for the full version.

Media and tray 46 2. Menu overview and basic setup Preprinted paperWhen loading preprinted paper, the printed side should be facing up with an uncurled edge at the front. If you experience problems with paper feeding, turn the paper around. Note that print quality is not guaranteed.• Must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the machine’s fusing temperature for 0.1 second (about 170°C (338°F)). • Must be non-flammable and should not adversely affect machine rollers. • Before you load preprinted paper, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper, reducing print quality.  6 Setting the paper size and type After loading paper in the paper tray, set the paper size and type using the control panel buttons. • Accessing menus may differ from model to model (see "Accessing the menu" on page 29). • It may be necessary to press OK to navigate to lower-level menus for some models. 1 Select ( Menu ) > System Setup > Paper Setup > Paper Size or Paper Type on the control panel. 2 Select the tray and the option you want. 3 Press OK to save the selection. Media and tray 47 2. Menu overview and basic setup • The settings set from the machine driver override the settings on the control panel. a To print from an application, open an application and start the print menu. b Open Printing Preferences (see "Opening printing preferences" on page 52). c Press the Paper tab G and select an appropriate paper type. • If you want to use special-sized paper such as billing paper, select the Paper tab > Size > Edit... and set Custom G Paper Size Settings in the Printing Preferences (see "Opening printing preferences" on page 52).  7 Preparing originals type • Do not load paper smaller than 142 x 148 mm (5.6 x 5.8 inches) or larger than 216 x 356 mm (8.5 x 14 inches). • Do not attempt to load the following types of paper, in order to prevent paper jam, low print quality and machine damage.- Carbon-paper or carbon-backed paper - Coated paper - Onion skin or thin paper - Wrinkled or creased paper - Curled or rolled paper - Torn paper • Remove all staples and paper clips before loading. • Make sure any glue, ink, or correction fluid on the paper is completely dry before loading. • Do not load originals that include different sizes or weights of paper. • Do not load booklets, pamphlets, transparencies, or documents with other unusual characteristics. Media and tray 48 2. Menu overview and basic setup  8 Loading originals You can use the scanner glass or the document feeder to load an original for copying, scanning, and sending a fax.On the scanner glassUsing the scanner glass, you can copy or scan originals. You can get the best scan quality, especially for colored or gray-scaled images. G Make sure that no originals are in the document feeder. If an original is detected in the document feeder, the machine gives it priority over the original on the scanner glass. 1 Lift and open the scanner lid. Media and tray 49 2. Menu overview and basic setup 2 Place the original face down on the scanner glass. Align it with the registration guide at the top left corner of the glass. 3 Close the scanner lid. • Leaving the scanner lid open while copying may affect copy quality and toner consumption. • Dust on the scanner glass may cause black spots on the printout. Always keep it clean (see "Cleaning the machine" on page 88). • If you are copying a page from a book or magazine, lift the scanner lid until its hinges are caught by the stopper and then close the lid. If the book or magazine is thicker than 30 mm, start copying with the scanner lid open. • Be careful not to break the scanner glass. You may get hurt. • Do not put hands while closing the scanner lid. The scanner lid may fall on your hands and get hurt. • Do not look the light from inside of the scanner while copying or scanning. It is harmful to eyes. In the document feeder Using the document feeder, you can load up to 50 sheets of paper (75 g/m2, 20 lbs bond) for one job. 1 Flex or fan the edge of the paper stack to separate the pages before loading originals. Media and tray 50 2. Menu overview and basic setup 2 Load the original face up into the document feeder. Make sure that the bottom of the original stack matches the paper size marked on the document input tray. 3 Adjust the document feeder width guides to the paper size. Dust on the document feeder glass may cause black lines on the printout. Always keep the glass clean (see "Cleaning the machine" on page 88). 51 2. Menu overview and basic setup Basic printing  9 Printing If you are a Macintosh, Linux, or Unix OS user, refer to the Advanced Guide. The following Printing Preferences window is for Notepad in Windows 7. 1 Open the document you want to print. 2 Select Print from the File menu. 3 Select your machine from the Select Printer list. 4 The basic print settings including the number of copies and print range are selected within the Print window. To take advantage of the advanced printing features, click Properties or Preferences from the Print window (see "Opening printing preferences" on page 52). 5 To start the print job, click OK or Print in the Print window.  10 Canceling a print job If the print job is waiting in the print queue or print spooler, cancel the job as follows:• You can access this window by simply double-clicking the machine icon ( ) in the Windows task bar. • You can also cancel the current job by pressing ( Stop/Clear ) on the control panel. Basic printing 52 2. Menu overview and basic setup  11 Opening printing preferences •The Printing Preferences window that appears in this user’s guide may differ depending on the machine in use. However, the composition of the Printing Preferences window is similar. • When you select an option in Printing Preferences , you may see a warning mark or . An mark means you can select that certain option but it is n…

Text truncated - open the document above for the full version.

Power S/W CPU: Chorus Clock: Mhz PHY IC AC201A1KMLG ISP1582 MAINBOARD DCDC ST1S10 DCDC ST1S10 DCDC ST1S10 3.3V system 1.8V DDR 1.0V CHORUS3 LAFE1001 SCX-4833FD Block Diagram 2010.007.12 5V SMPS UR5596 0.9V VTT

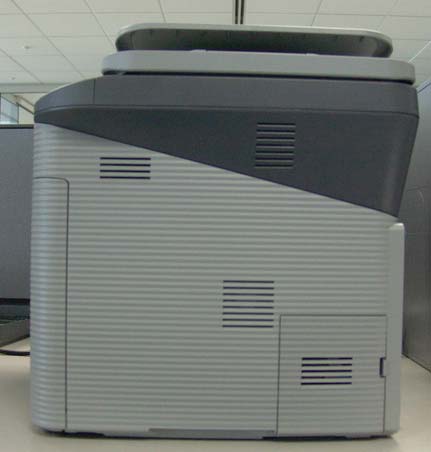

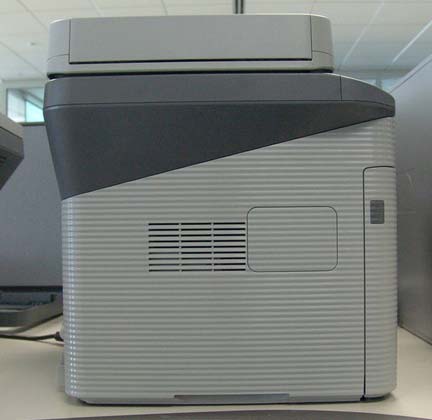

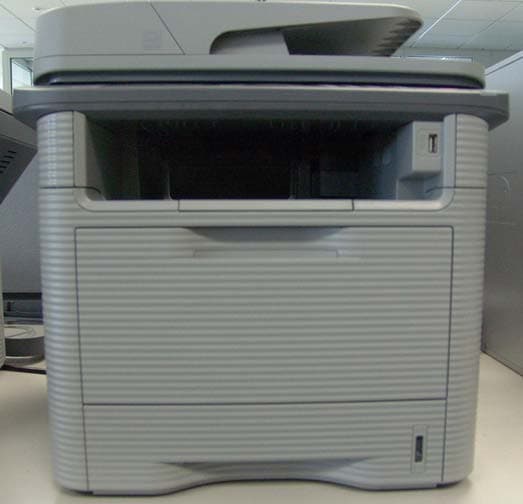

1. External Pictures 1) Front View 2) Rear View 3) Side View 1 4) Side View 2

Project No. : LBE20101227 MONO LASER PRINTER : SCX-4833FD - 70/73- This report must not be reproduced, except in full, without written permission from CS & Environment center. Appendix – EUT photography Front View Rear View & Label location Project No. : LBE20101227 MONO LASER PRINTER : SCX-4833FD - 73/73- This report must not be reproduced, except in full, without written permission from CS & Environment center. Right inside View Label

2. Print Board Assembled(PBA) Pictures 1) Main PBA 2) SMPS 3)HVPS 3)FAX 4)OPE

Project No. : LBE20101227 MONO LASER PRINTER : SCX-4833FD - 7/73- This report must not be reproduced, except in full, without written permission from CS & Environment center. 3.5 EUT Description The following features describe EUT represented by this report: Item Specification and Description Processor CHORUS3 (360 Mhz) Standard System memory 128 MB DDR2 SDRAM Resolution True 600 x 600 dpi (Addressible 1 200 dpi support) Copy Quality mode Text : Scan 300 x 300 dpi, Print: 600 x 600 dpi (Platen, ADF) Mixed : Scan 300 x 300 dpi, Print: 600 x 600 dpi (Platen, ADF) Photo : Scan 300 x 300 dpi, Print: 600 x 600 dpi (ADF) Scan 600 x 600 dpi, Print: 1200 x 1200 dpi (Platen) Paper Handling Paper Tray(standard) 250 Sheets MP Tray 50sheets Power Rating 110 ~ 127 VAC, 5 A, 50/60 Hz Power Consumption Power save mode : 9 Watts Printing mode: MAX. 600 Watts Printer Language PCL6/PS3 PC Interfaces USB2.0, NW, FAX OS compatibility Windows 2000/XP (32/64 bits) /Vista (32/64 bits) /2003 Server (32/64 bits) /2008 Server(32/64 bits) /7 (32/64 bits) /2008 Server R2 Various Linux OS:Fedora Core 4, 5, 6,Fedora 7, 8, 9, 10, 11, 12, RedHat Enterprise Linux WS 4, 5, SuSE 10.0, 10.1 openSuSE 10.2, 10.3, 11.0, 11.1, 11.2 SuSE Linux Enterprise Desktop 10, 11 Debian 4.0, 5.0 Ubuntu 5.04, 5.10, 6.04, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10 Mandriva 2005LE, 2006, 2007, 2007.1 2008, 2008.1, 2009, 2009.1 Mac OS 10.3 ~ 10.6 Modes of Operation USB Printing, ADF Scan, ADF Copy, 1 200 dpi Printing, Fax RX, Fax TX, Network Printing Intended Class for Emissions Class B

Project N Applican EUT Applied Test Per Issue da Test res The eq (Refer Tested by This report Arrangeme n The test res without writt E E E No. L nt Name Date Ty E au Kin M M Standards riod ate ult : Comp quipment un r to the attac y : Sung J is the test re nt of Internati sults in this re ten permissio 416 Te l E E E M M M C C C LBE2010122 of organi Address of applica pe of devi Equipmen uthorizatio FCC ID nd of prod Model No anufactur s plied nder test ha ched test re Jin Sim esult about t ional Laborat eport only ap on from SEC 6 Maetan 3-Don : 82 31 277 775 C C C T T T E E E 27 zation S 4 G ation ice nt on uct . V rer Sa 25 Sa (26 W 98 P.R In Ke Sh as found to esult for mo the sphere a tory Accredit pply to the tes EMC Labora ng, Yeongtong- 52, Fax: 82 3 -1/73- E E E S S S T T T Issue No. amsung E 416 Maetan Gyeonggi-Do C Declaration Variant Mod amsung Ele 59, Gongdan-D amsung Ele 64209) SAMS Weihai Shin H 8, Samsung R R.China tops : Intop eji Road-268-1 handong Provi FCC Oc be complia ore detail.) Revi accredited by tation Coope sted sample. atory. Gu, Suwon-Si, 1 277 7753 R R R E E E P P P Electronic 3-Dong, Yeo o 443-742 K Oct Class B digi n of Conform A3 MONO SC del No. ctronics Co Dong, Gumi-C ctronics (Sh SUNG ROAD H Heung Digita Road, Weihai H ps (Weihai) E 1 , Weihai Hi-T ince , CHINA Part 15, Su tober 15, 20 Nove ant with the iewed by : y KOLAS wh ration. This report Gyeonggi-Do, P P P O O O R R R s Co., Ltd ongtong-Gu Korea tober 14, 20 ital devices mity Cer 3LSCX4833F O LASER M CX-4833FD S o., Ltd. City, Gyeongsa handong) D HI-TECH IDZ, al Electronic Hi-Tech. IDZ, Electronics Tech,Industries ubpart B / AN 010 ~ Octob ember 12, 20 applied sta No Cheon hich signed must not be 443-742 Korea R R R T T T 1 d. u, Suwon-Si, 010 , peripheral rtification FD MFP D SCX-4835F angbuk-Do, Ko igital Printin WEIHAI, CHI cs Co., Ltd. Shandong Pro Co., Ltd. s Developmen NSI C63.4-2 ber 30, 201 010 ndards. n Park the Mutual R reproduced, a , ls Verificatio FD orea 730-030 ng Co.Ltd INA ovince, nt Zone, 2003 0 Recognition except in fu on ll, Project No. : LBE20101227 MONO LASER PRINTER : SCX-4833FD - 2/73- This report must not be reproduced, except in full, without written permission from CS & Environment center. Table of contents 1. Summary of test results 1.1 Emission 2. General Information 2.1 Test facility 3. Test configuration 3.1 Test Peripherals 3.2 EUT operating mode 3.3 Details of Sampling 3.4 Used cable description 3.5 EUT Description 3.6 Clock Frequencies 3.7 Test configuration and condition 3.8 Measurement uncertainty 4. Result of individual tests 4.1 Conducted disturbance 4.2 Radiated disturbance Appendix – EUT photography Project No. : LBE20101227 MONO LASER PRINTER : SCX-4833FD - 3/73- This report must not be reproduced, except in full, without written permission from CS & Environment center. 1. Summary of test results 1.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standard Result Remarks Conducted Disturbance (Mains Port) FCC Part 15 Subpart B Complied Meets Class B Limit Radiated Disturbance Complied Meets Class B Limit Project No. : LBE20101227 MONO LASER PRINTER : SCX-4833FD - 4/73- This report must not be reproduced, except in full, without written permission from CS & Environment center. 2. General Information 2.1 Test facility The CS & Environment center is located on Samsung Electronics Co., Ltd. at 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation Characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The CS & Environment center is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. 3. Test Setup configuration 3.1 Test Peripherals The cables used for these peripherals are either permanently attached by the peripheral manufacturer or coupled with an assigned cable as defined below. The following is a listing of the EUT and peripherals utilized during the performance of EMC test: Description Model No. Serial No. Manufacturer Fcc ID / DoC Mono Laser MFP SCX-4833FD - SAMSUNG A3L PC PP18L 29359007709 DELL DoC Dock PD01X CN-0HD026-48643-83K-2197 DELL DoC Telephone SP-F131 KKCTB05225 SAMSUNG DoC USB MOUSE MOARUO 0740007850 Primax Electronics DoC Headset MH21 - COZY - USB memory DT Mini Slim 4GB - Kingston DoC Project No. : LBE20101227 MONO LASER PRINTER : SCX-4833FD - 5/73- This report must not be reproduced, except in full, without written permission from CS & Environment center. 3.2 EUT operating mode To achieve compliance applied standard specification, the following mode(s) were made during compliance testing: Operating Mode 1 Stand-by Operating Mode 2 USB printing (Duplex) Operating Mode 3 Network printing (Duplex) Operating Mode 4 1284 port printing (Duplex) Operating Mode 5 DADF copy printing Operating Mode 6 Scan to PC Operating Mode 7 Scan to USB memory stick Operating Mode 8 Fax transmission Operating Mode 9 Fax receiving 3.3 Details of Sampling Customer selected, single unit. Project No. : LBE20101227 MONO LASER PRINTER : SCX-4833FD - 6/73- This report must not be reproduced, except in full, without written permission from CS & Environment center. 3.4 Used cable description The EUT is configured, installed, arranged and operated in a manner consistent with typical applications. Interface cables/loads/devices are connected to at least one of each type of interface port of the EUT, and where practical, each cable shall be terminated in a device typical of actual usage. The type(s) of interconnecting cables to be used and the interface port (of the EUT) to which these were connected; Connected cable Length [m] Shielded [Y/N] Note Power 1.5 No - LAN 2.0 No For EUT LAN 2.0 No For PC USB 1.5 Yes From PC to Mouse USB 1.5 Yes From EUT to PC IEEE 1284B Parallel 1.5 Yes From EUT to PC Telephone 2.0 No From EUT to Phone Telephone 2.0 No For EUT Head…

Text truncated - open the document above for the full version.

Project No. : LBE20101227 MONO LASER PRINTER : SCX-4833FD - 12/73- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.1.3 Photograph of Test Setup Front Rear Project No. : LBE20101227 MONO LASER PRINTER : SCX-4833FD - 42/73- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.2.3 Photograph of Test Setup Front Rear Project No. : LBE20101227 MONO LASER PRINTER : SCX-4833FD - 43/73- This report must not be reproduced, except in full, without written permission from CS & Environment center. Front (above 1GHz) Rear (above 1GHz)
