A3LSCX5737FWLaser Printer

SCX-483x SeriesSCX-563x SeriesSCX-573x Series User’s GuideBasic imagine the possibilities This guide provides information concerning installation, basic operation and troubleshooting on windows Y Contents  XX U Introduction \ Key benefits ^ Features by models _ Useful to know ` About this user’s guide X W Safety information X ] Machine overview X ` Control panel overview Y \ Turning on the machine Y ] Installing the driver locally Y ^ Reinstalling the driver  Y U Menu overview and basic setup Y ` Menu overview Z [ Changing the display language Z \ Media and tray \ X Basic printing \ ^ Basic copying ] Y Basic scanning ] Z Basic faxing ] _ Using USB memory device Z U Maintenance ^ \ Ordering supplies and accessories ^ ] Available supplies ^ ^ Available accessories ^ ` Available maintenance parts _ W Redistributing toner _ Y Replacing the toner cartridge _ [ Upgrading a memory module _ ] Monitoring the supplies life _ ^ Setting the toner low alert _ _ Cleaning the machine  [ U Troubleshooting ` Z Tips for avoiding paper jams ` [ Clearing original document jams X W X Clearing paper jams X W _ Understanding the status LED X X W Understanding display messages Contents Z  \ U Appendix X Y Z Specifications X Z Z Regulatory information X [ ] Copyright 1. IntroductionThis chapter provides information you need to know before using the machine.•Key benefits 5 •Features by models 7 •Useful to know 8 • About this user’s guide 9 • Safety information 10 • Machine overview 16 • Control panel overview 19 • Turning on the machine 25 • Installing the driver locally 26 • Reinstalling the driver 27   Key benefitsEnvironmentally friendly• To save toner and paper, this machine supports Eco feature. • To save paper, you can print multiple pages on one single sheet of paper (see Advanced Guide). • To save paper, you can print on both sides of the paper (double- sided printing) (see Advanced Guide). • To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use. Print with excellent quality and speed• You can print with a resolution of up to 1,200 x 1,200 dpi effective output. • Fast, on-demand printing. SCX-483x Series: - For single-side printing, 31 ppm (A4) or 33 ppm (Letter). - For duplex printing, 15 ppm (A4) or 16 ppm (Letter).SCX-563x Series or SCX-573x Series: - For single-side printing, 35 ppm (A4) or 37 ppm (Letter).- For duplex printing, 17 ppm (A4) or 18 ppm (Letter). Convenience• Printing Status (or Smart Panel) is a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see Advanced Guide). • AnyWeb Print helps you screen-capture, preview, scrap, and print the screen of Windows Internet Explorer more easily, than when you use the ordinary program (see Advanced Guide).   Key benefitsWide range of functionality and application support• Supports various paper sizes (see "Print media specifications" on page 125).• Print watermark: You can customize your documents with words, such as “Confidential” (see Advanced Guide). • Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of pap er and can then be taped together to form a poster (see Advanced Guide). • You can print in various operating systems (see "System requirements" on page 128).• Your machine is equipped with a USB interface and/or a network interface. Expand your machine’s capacity• This machine has an extra memory slot for adding more memory (see "Available accessories" on page 77). • Zoran IPS Emulation compatible with PostScript 3 (PS) enables PS printing. • Zoran IPS Emulation compatible with PostScript 3• ©1995-2005, Zoran Corporation. All rights reserved. Zoran, the Zoran logo, IPS/PS3, and OneImage are trademarks of Zoran Corporation. • 136 PS3 fonts• Contains UFST and MicroType from Monotype Imaging Inc.   Features by modelsSome features and optional goods may not be available depending on model or country. (  : Included,  : Optional, Blank: Not available) Features SCX-4833FDSCX-4835FDSCX-4833HD SCX-4833FRSCX-4835FR SCX-5637FRSCX-5639FRSCX-5637HR SCX-5737FWSCX-5739FW Print, Copy, Scan, Fax     Hi-Speed USB 2.0     IEEE 1284 Parallel     Network Interface Ethernet 10/100 Base TX wired LAN  Network Interface Ethernet 10/100/1000 Base TX wired LAN    Network Interface 802.11b/g/n wireless LAN  Eco printing     Duplex (2-sided) printing     Samsung Easy Printer Manager     Memory     Tray 2 (520 sheets)     SyncThru™ Web Service     Automatic Document Feeder (ADF)  Dual Automatic Document Feeder (DADF)    Useful to know The machine does not print.• Open the print queue list and remove the document from the list (see "Canceling a print job" on page 51). • Remove the driver and install it again (see "Installing the driver locally" on page 26). • Select your machine as your default machine in your Windows. Where can I purchase accessories or supplies?• Inquire at a Samsung distributor or your retailer.• Visit www.samsung.com/supplies. Select your country/ region to view product service information. The status LED flashes or remains constantly on.• Turn the product off and on again.• Check the meanings of LED indications in this manual and troubleshoot accordingly (see "Understanding the status LED" on page 108). A paper jam has occurred.• Open and close the front door.• Check the instructions on removing jammed paper in this manual and troubleshoot accordingly (see "Clearing paper jams" on page 101). Printouts are blurry.• The toner level might be low or uneven. Shake the toner cartridge. • Try a different print resolution setting.• Replace the toner cartridge.Where can I download the machine’s driver?• Visit www.samsung.com/printer to download the latest machine’s driver, and install it on your system. 9 1. Introduction About this user’s guideThis user's guide provides information for your bas…

Text truncated - open the document above for the full version.

Media and tray 46 2. Menu overview and basic setup Preprinted paperWhen loading preprinted paper, the printed side should be facing up with an uncurled edge at the front. If you experience problems with paper feeding, turn the paper around. Note that print quality is not guaranteed.• Must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the machine’s fusing temperature for 0.1 second (about 170°C (338°F)). • Must be non-flammable and should not adversely affect machine rollers. • Before you load preprinted paper, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper, reducing print quality.  6 Setting the paper size and type After loading paper in the paper tray, set the paper size and type using the control panel buttons. • Accessing menus may differ from model to model (see "Accessing the menu" on page 29). • It may be necessary to press OK to navigate to lower-level menus for some models. 1 Select ( Menu ) > System Setup > Paper Setup > Paper Size or Paper Type on the control panel. 2 Select the tray and the option you want. 3 Press OK to save the selection. Media and tray 47 2. Menu overview and basic setup • The settings set from the machine driver override the settings on the control panel. a To print from an application, open an application and start the print menu. b Open Printing Preferences (see "Opening printing preferences" on page 52). c Press the Paper tab G and select an appropriate paper type. • If you want to use special-sized paper such as billing paper, select the Paper tab > Size > Edit... and set Custom G Paper Size Settings in the Printing Preferences (see "Opening printing preferences" on page 52).  7 Preparing originals type • Do not load paper smaller than 142 x 148 mm (5.6 x 5.8 inches) or larger than 216 x 356 mm (8.5 x 14 inches). • Do not attempt to load the following types of paper, in order to prevent paper jam, low print quality and machine damage.- Carbon-paper or carbon-backed paper - Coated paper - Onion skin or thin paper - Wrinkled or creased paper - Curled or rolled paper - Torn paper • Remove all staples and paper clips before loading. • Make sure any glue, ink, or correction fluid on the paper is completely dry before loading. • Do not load originals that include different sizes or weights of paper. • Do not load booklets, pamphlets, transparencies, or documents with other unusual characteristics. Media and tray 48 2. Menu overview and basic setup  8 Loading originals You can use the scanner glass or the document feeder to load an original for copying, scanning, and sending a fax.On the scanner glassUsing the scanner glass, you can copy or scan originals. You can get the best scan quality, especially for colored or gray-scaled images. G Make sure that no originals are in the document feeder. If an original is detected in the document feeder, the machine gives it priority over the original on the scanner glass. 1 Lift and open the scanner lid. Media and tray 49 2. Menu overview and basic setup 2 Place the original face down on the scanner glass. Align it with the registration guide at the top left corner of the glass. 3 Close the scanner lid. • Leaving the scanner lid open while copying may affect copy quality and toner consumption. • Dust on the scanner glass may cause black spots on the printout. Always keep it clean (see "Cleaning the machine" on page 88). • If you are copying a page from a book or magazine, lift the scanner lid until its hinges are caught by the stopper and then close the lid. If the book or magazine is thicker than 30 mm, start copying with the scanner lid open. • Be careful not to break the scanner glass. You may get hurt. • Do not put hands while closing the scanner lid. The scanner lid may fall on your hands and get hurt. • Do not look the light from inside of the scanner while copying or scanning. It is harmful to eyes. In the document feeder Using the document feeder, you can load up to 50 sheets of paper (75 g/m2, 20 lbs bond) for one job. 1 Flex or fan the edge of the paper stack to separate the pages before loading originals. Media and tray 50 2. Menu overview and basic setup 2 Load the original face up into the document feeder. Make sure that the bottom of the original stack matches the paper size marked on the document input tray. 3 Adjust the document feeder width guides to the paper size. Dust on the document feeder glass may cause black lines on the printout. Always keep the glass clean (see "Cleaning the machine" on page 88). 51 2. Menu overview and basic setup Basic printing  9 Printing If you are a Macintosh, Linux, or Unix OS user, refer to the Advanced Guide. The following Printing Preferences window is for Notepad in Windows 7. 1 Open the document you want to print. 2 Select Print from the File menu. 3 Select your machine from the Select Printer list. 4 The basic print settings including the number of copies and print range are selected within the Print window. To take advantage of the advanced printing features, click Properties or Preferences from the Print window (see "Opening printing preferences" on page 52). 5 To start the print job, click OK or Print in the Print window.  10 Canceling a print job If the print job is waiting in the print queue or print spooler, cancel the job as follows:• You can access this window by simply double-clicking the machine icon ( ) in the Windows task bar. • You can also cancel the current job by pressing ( Stop/Clear ) on the control panel. Basic printing 52 2. Menu overview and basic setup  11 Opening printing preferences •The Printing Preferences window that appears in this user’s guide may differ depending on the machine in use. However, the composition of the Printing Preferences window is similar. • When you select an option in Printing Preferences , you may see a warning mark or . An mark means you can select that certain option but it is n…

Text truncated - open the document above for the full version.

Power S/W CPU: Chorus Clock: Mhz PHY IC RTL8211D MAINBOARD DCDC ST1S10 DCDC ISL88550 A DCDC ST1S10 3.3V system 1.8V DDR2 LAFE1001 Rainier SCX-4833FR,SCX-5637FR,SCX-5737FW Block Diagram V0.4 2010.10.12 5V 0.9V VTT 1.1V CHORUS4 5V SMPS 24VS1 24V1 24V2

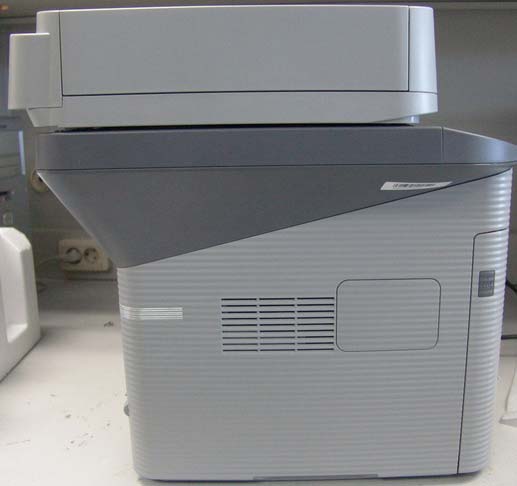

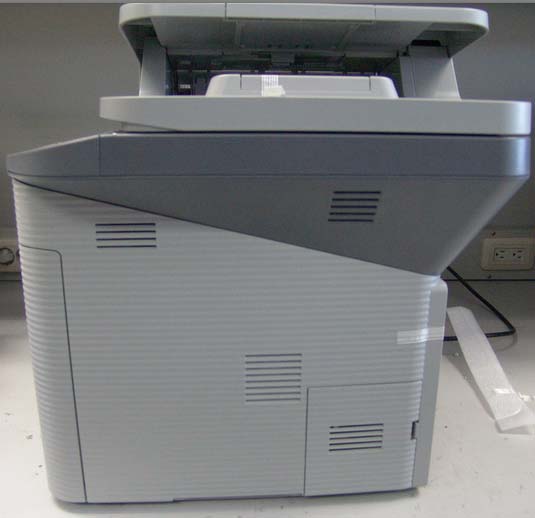

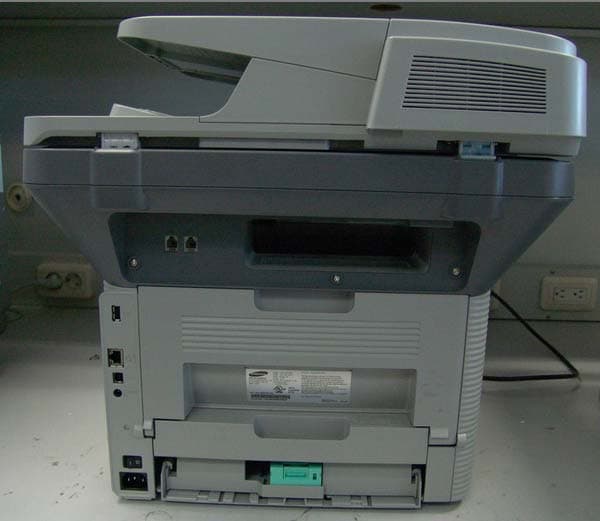

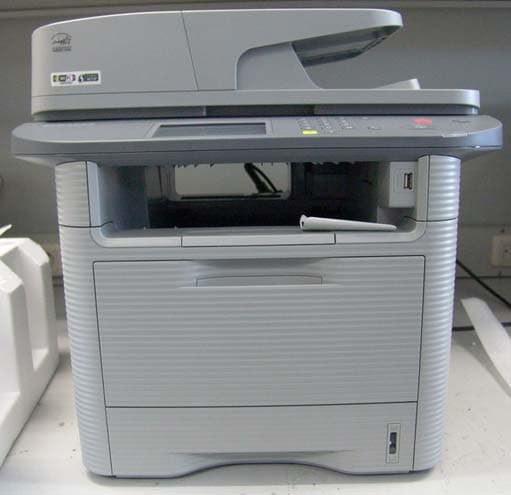

1. External Pictures 1) Front View 2) Rear View 3) Side View 1 4) Side View 2

Project No. : LBE20101433 Mono Laser MFP : SCX-5737FW - 59/59- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. Label Location Rating Label

2. Print Board Assembled(PBA) Pictures 1) Main PBA (TOP/BOTTOM) 2) SMPS (TOP/BOTTOM) 3)HVPS (TOP/BOTTOM) 3)FAX (TOP/BOTTOM) 4) LCD / OPE (TOP / BOTTOM) 5) WIRELESS (TOP/BOTTOM)

Project No. : LBE20101433 Mono Laser MFP : SCX-5737FW - 6/59- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.5 EUT Description Item Specification Remarks Processor CHORUS4(600MHz) - Standard System memory 128MB DDR2 SDRAM - Resolution True 600x600dpi (Addressible 1200dpi support) - Copy Quality mode Text : Scan 300 x 300 dpi, Print: 600 x 600 dpi (Platen, ADF) Mixed : Scan 300 x 300 dpi, Print: 600 x 600 dpi (Platen, ADF)· Photo : Scan 300 x 300 dpi, Print: 600 x 600 dpi (ADF) Scan 600 x 600 dpi, Print: 1200 x 1200 dpi (Platen) - Paper Handling Paper Tray(standard) 250 Sheets MP Tray 50sheets - Power Rating 110~127 Vac, 5A, 50/60 Hz - Power Consumption Power save mode : 9 Watts Printing mode: MAX. 600 Watts - Printer Language PCL6/PS3 - PC Interfaces USB2.0, NW, FAX - OS compatibility Windows 2000/XP (32/64 bits) /Vista (32/64 bits) /2003 Server (32/64 bits) /2008 Server(32/64 bits) /7 (32/64 bits) /2008 Server R2 Various Linux OS:Fedora Core 4, 5, 6,Fedora 7, 8, 9, 10, 11, 12, RedHat Enterprise Linux WS 4, 5, SuSE 10.0, 10.1 openSuSE 10.2, 10.3, 11.0, 11.1, 11.2 SuSE Linux Enterprise Desktop 10, 11 Debian 4.0, 5.0 Ubuntu 5.04, 5.10, 6.04, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10 Mandriva 2005LE, 2006, 2007, 2007.1 2008, 2008.1, 2009, 2009.1 Mac OS 10.3 ~ 10.6 - Modes of Operation USB Printing, ADF Scan, ADF Copy, 1200dpi Printing, Fax RX, Fax TX, Network Printing - Intended Class for Emissions Class B -

-1/59- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE20101433 Issue No. 1 Applicant Name of organization Samsung Electronics Co., Ltd. Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-City, Gyeonggi-Do, Korea 443-742 Date of application 2 November 2010 EUT Type of device Class B digital devices and peripherals Equipment authorization Cerification FCC ID A3LSCX5737FW Kind of product Mono Laser MFP Model No. SCX-5737FW Variant Model No. SCX-5739FW, SCX-5637FR, SCX-5639FR Manufacturer 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, Korea 730-030 2) Samsung Electronics (Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 3) Weihai Shin Heung Digital Electronics Co., Ltd. 98, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 4) Intops : Intops (Weihai) Electronics Co., Ltd., Keji Road-268-1 , Weihai Hi-Tech,Industries Development Zone , Shandong Province , CHINA Applied Standards FCC Part 15, Subpart B / ANSI C63.4-2003 Test Period 2 November 2010 ~ 5 November 2010 Issue date 12 November 2010 Test result : Complied The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) Tested by : Kyeong Dong Kim Reviewed by : No Cheon Park The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from CS & Environment centre. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82 31 277 7752, Fax: 82 31 277 7753 Project No. : LBE20101433 Mono Laser MFP : SCX-5737FW - 2/59- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. Table of contents 1. Summary of test results 1.1 Emission 2. General Information 2.1 Test facility 3. Test configuration 3.1 Test Peripherals 3.2 EUT operating mode 3.3 Details of Sampling 3.4 Used cable description 3.5 EUT Description 3.6 Clock Frequencies 3.7 Test configuration and condition 3.8 Measurement uncertainty 4. Result of individual tests 4.1 Conducted disturbance 4.2 Radiated disturbance Appendix – EUT photography Project No. : LBE20101433 Mono Laser MFP : SCX-5737FW - 3/59- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 1. Summary of test results 1.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standardResult Remarks Conducted Disturbance FCC Part 15 Subpart B CompliedMeets Class B Limit Radiated Disturbance CompliedMeets Class B Limit 2. General Information 2.1 Test facility The CS & Environment Centre is located on Samsung Electronics Co., Ltd. at 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation characteristics defined by ANSI C 63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The CS & Environment Centre is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. Project No. : LBE20101433 Mono Laser MFP : SCX-5737FW - 4/59- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3. Test configuration 3.1 Test Peripherals The following is a listing of the EUT and supporting peripherals utilized during testing. Description Model No. Serial No. Manufacturer FCC ID and/or DoC Mono Laser MFP SCX-5737FW - Samsung A3LSCX5737FW Notebook PC Latitude D410 JP-0NC428-71761 -54J-D01C Dell DoC AC Adapter HP-OQ065B83 CN-0N2765-47890 -44I-0249 Hipro Electronics For Notebook PC Serial Mouse Serial Mouse 1022949 Microsoft C3KMS1 USB Mouse MOARUO 0816028775 Primax DoC USB Memory DT Mini - Kingston DoC Telephone SP-F209K KKAY413543T Yontae Electronics - 3.2 EUT operating mode (selected) To achieve compliance with the applied standards and/or specifications, two different SMPS which developed by Dongyang and Lite-On respectively were applied for testing, and the following mode(s) were considered and tested. Operating Mode 1 Standby mode Operating Mode 2 DADF Copy & Fax Rx Operating Mode 3 Fax Tx & USB Duplex Print Operating Mode 4 P1284 Duplex Print & Network Ping & Scan to USB Operating Mode 5 Wireless Duplex Print & Scan to PC 3.3 Details of Sampling - Customer selected, single unit. Project No. : LBE20101433 Mono Laser MFP : SCX-5737FW - 5/59- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.4 Used cable description The EUT is configured, installed, arranged and operated in a manner consistent with typical applications. Interface cables/loads/devices are connected to at least one of each type of interface port of the EUT, and where practical, each cable shall be terminated in a device typical of actual usage. The type(s) of interconnecting cables to be used and the interface port (of the EUT) to which these were connected. USB printing and P1284 printing mode were checked by turns because P1284 cable and USB cable from EUT to peripheral cannot be connected simultaneously Connected cable Length [m] Shielded [Y/N] Note Power 1.8 No For EUT Power 0.8 No For Notebook PC Tel line 2.0 No EUT to telephone Tel line 3.0 No EUT to K/P system P1284 1.8 Yes For EUT to Notebook PC Ethernet 3.0 No EUT to HUB Serial 1.8 No Notebook PC to Card reader USB 1.8 Yes EUT to Notebook PC USB 1.8 Yes Notebook PC to mouse Headset 1.8 No EUT to Headset Project No. : LBE20101433 Mono Laser MFP : SCX-5737FW - 6/59- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.5 EUT Description Item Specification Remarks Processor CHORUS4(600MHz) - Standard System memory 128MB DDR2 SDRAM - Resolution True 600x600dpi (Addressible 1200dpi support) - Copy Quality mode Text : Scan 300 x 300 dpi, Print: 600 x 600 dpi (Platen, ADF) Mixed : Scan 300…

Text truncated - open the document above for the full version.

Project No. : LBE20101433 Mono Laser MFP : SCX-5737FW - 10/59- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 4.1.3 Photograph of Test Setup Front Rear Project No. : LBE20101433 Mono Laser MFP : SCX-5737FW - 34/59- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 4.2.3 Photograph of Test setup Front Rear
