1 DVD-ROM DRIVESD-616 http://www.samsungelectronics.com User's Guide BG68-00285A Rev:00 Safety Precautions The following diagrams illustrate the precautions to be taken when usingyour DVD-ROM drive. You must not use the drive in any manner other than that specified in this guide. Avoid exposing your eyes or skin to direct or scattered radiation. CAUTION Do not attempt to repair the DVD-ROM drive yourself. Contactyour dealer or local SAMSUNG representative for all repairs.If you make any adjustments or perform any operations otherthan those specified in this guide, you run the risk of exposure tohazardous radiation. W ARRANTY Please refer to the Samsung limited warranty statements . Precautions 1. To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. 2. Always check each disc for cracks before using it. If there are cracks on the surfaces, especially around the border of the cen-ter hole, we recommend that you make a copy of the discimmediately and then stop using it. If you continue using thedisc, it will probably develop more cracks and eventually causeirreparable damage. 3. Do not use poor quality discs: From unknown sources Without any copyright Scratched or damaged in any way Your DVD-ROM Drive 2 3 COMPACT 12 3 4 56 1. Connector for stereo headphones with a 3.6 mm stereo mini-jack2. Headphone volume control3. Indicator light (when it is green, a disc is being read)4. Disc compartment (the compartment opens and closes automatically when you press the Eject button) 5. Emergency eject hole (if the compartment does not open when you press the Eject button, power off the computer, insert a pin or unfoldedpaper clip in the hole and push firmly) 6. Eject button 2 13 4 5 Before you install the DVD-ROM drive, we strongly recommend that youcheck that your setup meets the system requirements listed below.System Requirements Upgrading the Firmware Flash Memory To install your DVD-ROM drive in the PC, proceed as follows.Installing the DVD-ROM Drive 1 Make sure that the PC is powered off and disconnected from any power source. 2 If necessary, attach a horizontal bracket to both sides of the drive. 3 Remove the cover from a free expansion slot and install the DVD-ROM drive, as shown in the illustration. Item Description Computer Intel Pentium III ( or higher), 64 MB of RAM (or higher) with an IDE interface Free expansion unit 5.25 inch Disk space 100 MB minimum Windows version Windows 95 OSR2 / 98 or Windows NT 4.0 (or higher) Playback of DVD Video PC with Window95 OSR2 DVD-Video playback software or appropriate hardware (MPEG2 card etc.) 1. Two-pin digital audio output terminal for use with a sound or MPEG card supporting digital audio features 2. Four-pin sound output terminal for use with a sound card (refer to the sound card documentation for further details) 3. Master/slave select terminal4. Forty-pin host IDE interface connector5. Four-pin power terminal The product firmware can be upgraded by downloading the updated file from thefollowing Web site: http://www.samsungelectronics.com Use of the brackets depends on your computermodel; you can purchase these accessoriesseparately from your computer dealer. If you have no free expansion slot, install thedrive in place of the diskette drive. DVD-ROM drive 4 Connecting the Cables 1. Power cable 2. Master/slave select terminal3. IDE cable 4. Audio cable 1 Connecting the power cableThe 4-pin power cable from the internal power unit of your computer must beconnected to the power terminal on the rear of the DVD-ROM drive. 2 Installing a jumper on the master/slave select terminalInstall the jumper in the correct position on the terminal:MA to use the device in the master modeSL to use the device in the slave modeCS to control the device via a CSEL host interface signalSee Step 3 for further details. 3 Connecting the IDE cableTwo configurations are possible. The DVD-ROM drive is the only IDE device in addition to the hard disk. 4 Connecting the audio cable from a sound cardConnect the 4-pin audio cable between the sound output terminal on the DVD-ROM drive and the audio input terminal on the sound card. Install the jumper in the SL position (Slave).Connect the 40-pin flat IDE cable from the IDE porton the mother board, first to the DVD-ROM drive and then to the ha r d disk . Install the jumper in the MA position (Master).Connect the 40-pin flat IDE cable from a secondIDE port on the mother board directly to the DVD-ROM drive or first to another additional IDE drive and then to the DVD-ROM drive. IDE port Mother board DVD-ROM (SL) Hard disk (MA) You already have an additional IDE device installed in your computer. Mother board Second IDE cable DVD-ROM (MA) CD-ROM (SL) Hard disk (SL) Hard disk (MA) First IDE cable 5 Setting Up the Device Driver Automatic Setup Manual Setup LAST DRIVE = Z- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - DEVICE = C :\SAMSUNG\SSCDROM.SYS /D : SSCD000 /V- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - C :\SAMSUNG\MSCDEX /D:SSCD000 1 Insert the setup diskette in the diskette drive and change the directory to A:,where A: is the diskette drive. To do so, type A: after the C:\ prompt and press [Enter] . 2 Type CDSETUP and press [Enter] . 3 Reboot the computer. 1 Make the C:\SAMSUNG directory. 2 Copy the files from the diskette to the C:\SAMSUNG directory. To do so, type COPY A: * . * C:\SAMSUNG after the C:\ prompt and press [Enter] . 3 Edit the CONFIG.SYS file. Add the DEVICE=C:\SAMSUNG\SSCDROM.SYS \D:SSCD000 /V entry. 4 Edit the AUTOEXEC.BAT file. Add the C:\SAMSUNG\MSCDEX /D:SSCD000 entry. 5 Reboot the computer. 6 7 Installing the Device Driver Using the DVD-ROM DriveStoring and Cleaning Your Discs No additional device driver is needed for Windows 95/98/NT, as the default Windows devic…
Text truncated - open the document above for the full version.

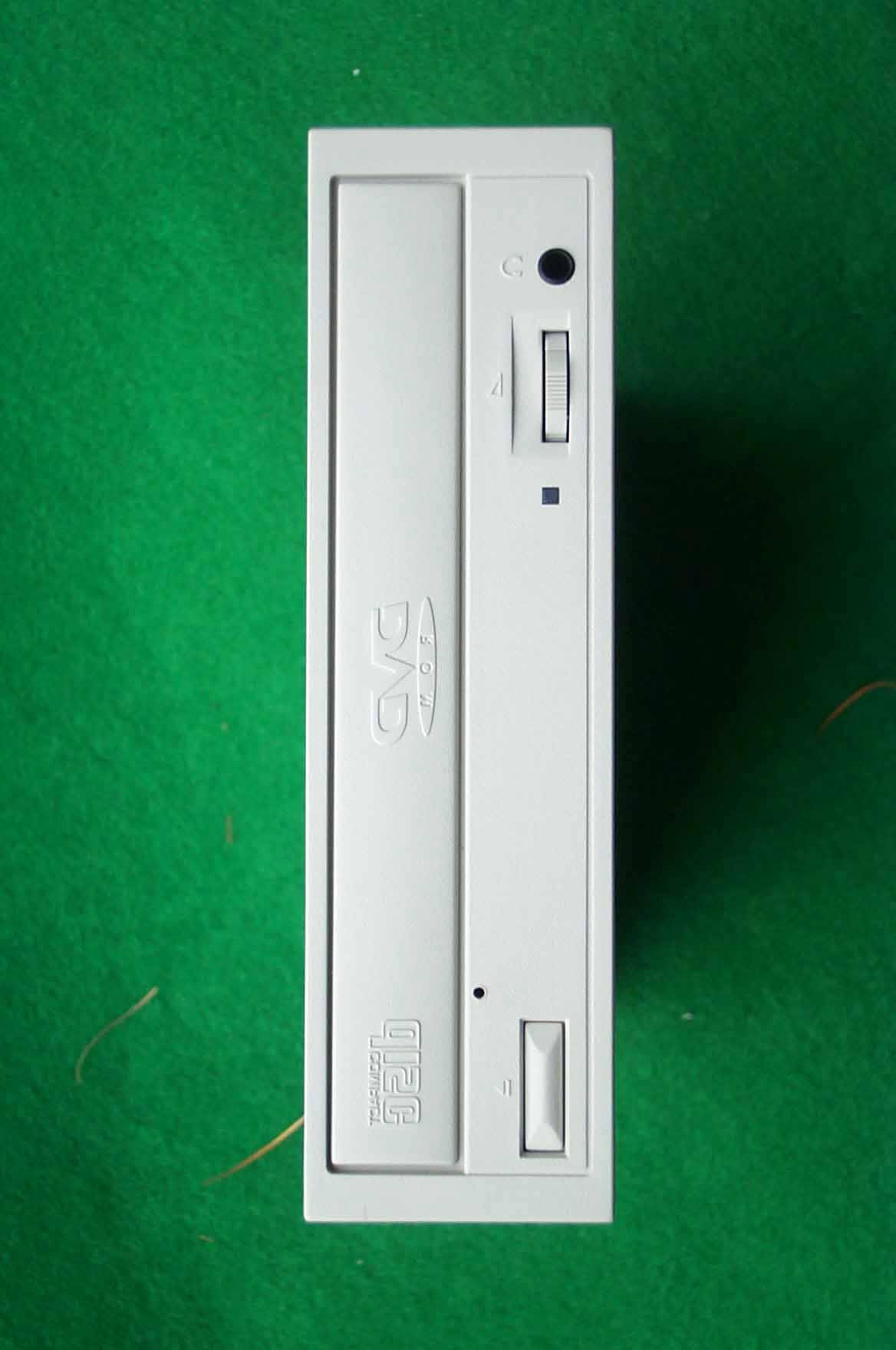

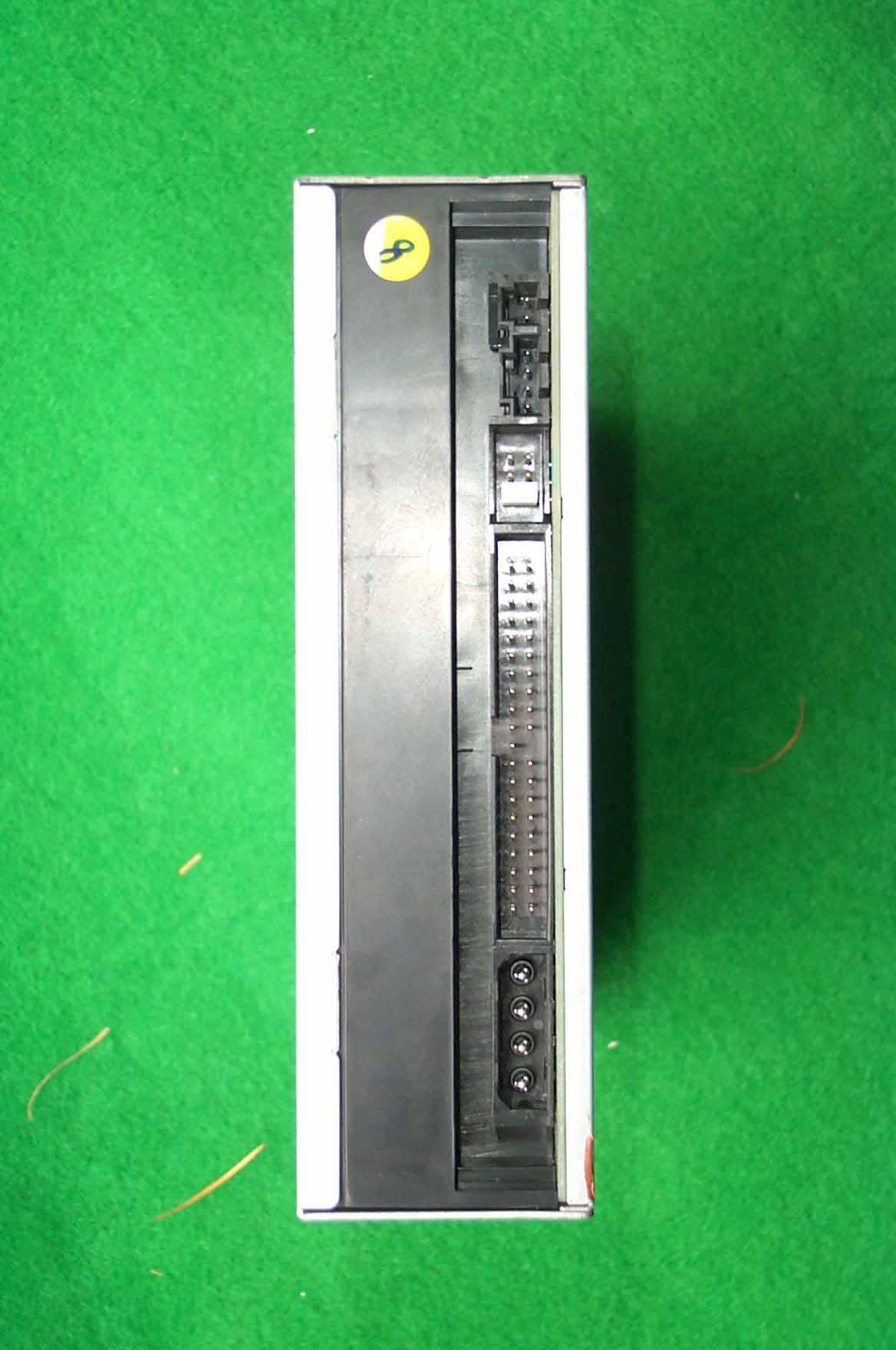

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-00147 FCC ID : A3LSD616 External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-00147 FCC ID : A3LSD616
SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-00147 FCC ID : A3LSD616 FCC ID Label Sample
SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-00147 FCC ID : A3LSD616 FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER ∫∫∫∫ ∫∫∫∫∫∫∫∫ ∫∫∫∫2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : A3LSD616 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
SK TECH CO., LTD. Page 1 of 5 SKT SKTOS-00147 FCC ID : A3LSD616 Internal Photographs of EUT SK TECH CO., LTD. Page 2 of 5 SKT SKTOS-00147 FCC ID : A3LSD616 SK TECH CO., LTD. Page 3 of 5 SKT SKTOS-00147 FCC ID : A3LSD616 SK TECH CO., LTD. Page 4 of 5 SKT SKTOS-00147 FCC ID : A3LSD616 SK TECH CO., LTD. Page 5 of 5 SKT SKTOS-00147 FCC ID : A3LSD616
SK TECH CO., LTD. Page 1 of 13 SKT SKTOS-00147 FCC ID : A3LSD616 Certificate of Compliance Test Report No.: SKTOS-00147 NVLAP CODE : 200220-0 Applicant: Samsung Electronics Co., Ltd. Applicant Address: 416, Maetan-3Dong, Paldal-Gu, Suwon City, Kyunggi-Do, Korea Product: DVD-ROM DRIVE FCC ID: A3LSD616 Model No.: SD-616 Receipt No.: SKE20001113-826 Date of receipt: Nov. 13, 2000 Date of Issue: Nov. 17, 2000 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 1992 Rule Parts: FCC part 15 Subpart B Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by:Y.H. Kang Tested by:S.K.Lee/Engineer Approved by: J.Y.Hyun /Lab.Manager Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ ☞☞ ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 13 SKT SKTOS-00147 FCC ID : A3LSD616 》》 》》》》 》》 Contents 《《 《《《《 《《 Contents 2 List of Tables 2 List of Figures 2 List of Photographs 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Data 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical characteristics 5 3.2 Submitted documents 5 4. Measurement conditions 6 4.1 Modes of operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 7 4.4 Test Setup 7 4.5 Uncertainty 7 5. Emission Test 8 5.1 Conducted Emissions 8 5.2 Radiated Emissions 12 》 》》 》List of Tables Table 1 List of test and measurement equipment 4 Table 2 Test Data, Conducted Emissions 11 Table 3 Test Data, Radiated Emissions 13 》 》》 》List of Figures Figure 1 Spectral Diagram, LINE-PE 9 Figure 2 Spectral Diagram, Neutral-PE 10 SK TECH CO., LTD. Page 3 of 13 SKT SKTOS-00147 FCC ID : A3LSD616 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ANSI C63.4/1992 for measurement of radio interference. SK TECH CO., LTD. Page 4 of 13 SKT SKTOS-00147 FCC ID : A3LSD616 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment z Conducted Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESHS 10 862970/019 04.2001 LISN KNW-407 M63284 07.2001 LISN ESH2-Z5 862060/029 06.2001 Conducted Cable N/A N/A 07.2001 z Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESVS 10 825120/013 04.2001 Spectrum Analyzer R3361A 11730187 07.2001 Amplifier 8447F 3113A05153 05.2001 Log Periodic Antenna UHALP9107 91071238 04.2001 Biconical Antenna BBA9106 N/A 04.2001 Open Site Cable N/A N/A 07.2001 Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 91X519 N/A Amp & Receiver connection cable N/A N/A 07.2001 Amp & Spectrum connection cable N/A N/A 07.2001 50Ω Switcher MP59B M93083 07.2001 2.3 Test Date Date of Application : Nov. 13, 2000 Date of Test : Nov. 15, 2000 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 13 SKT SKTOS-00147 FCC ID : A3LSD616 3. Description of the tested samples The EUT is DVD-ROM DRIVE. 3.1 Rating and Physical Characteristics ● ●● ●Drive Performance • Data transfer rate Sustained : Max. 21,600KB/sec(16X) / Max. 7,200KB/sec(48X) PIO Mode 4 : 16.6MB/sec Multiword DMA mode 2 : 16.6MB/sec UDMA mode 2 : 33MB/sec • Access time (1/3 stroke) : 110ms / 90ms (Typical) • Data buffer capacity : 512KB ● ●● ●Front Panel • Eject button : Auto eject or Auto inject • Indicator(LED) : BUSY • Headphone output : Stereo mini-jack(Φ3.6mm) 0.60V ± 20%(rms) 33Ω • Volume control : Wheel knob ● ●● ●Rear Panel • Required power : +5VDC : 2.0A, +12VDC : 1.0A (rms) • Interface connector : ATAPI • Audio output : Line out 0.70V ± 20% (rms) : 47㏀ • Jumper block : Device configuration jumper ● ●● ●General • Dimensions : 148.2(W) x 42(H) x 202(D) mm • Net Weight : 880 g ● ●● ●Reliability • MTBF : 125,000 POH (Duty 20%) 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 13 SKT SKTOS-00147 FCC ID : A3LSD616 4. Measurement Conditions Testing Input Voltage : AC 120V, 60Hz (DC 5V, 2.0A by the PC) 4.1 Modes of Operation The EUT was in the following operation mode during all testing; EUT is set the PC and play audio or video CDs and/or DVDs. Check to normal operating condition. 4.2 List of Peripherals Description Manufacturer Model Name Serial No. FCC ID Personal Computer H.P Brio BA600/550 SG01901646 DoC Monitor Samsung SyncMaster750P PG17HS9U/ADC DoC Printer H.P 2225C 3245S12493 DSI6XU2225 Keyboard H.P SK-2502C M004103083 DoC Mouse 1 H.P M-S48a LZE01252031 JNZ201213 Mouse 2 Logitech M-BE55 LZE02551778 DoC Joystick Logitech J-ZA10 LZA01651409 DoC Speaker FAN HAI DIAN CMK600 None N/A INNO Dispenser Biopia BD-2000 None DoC Earphone None None None N/A SK TECH CO., LTD. Page 7 of 13 SKT SKTOS-00147 FCC ID : A3LSD616 4.3 Type of Used Cables Description Length Type of shield Manufacturer Remark PC power cable…
