A3LSD816DVD-ROM Drive

1 Your DVD-ROM Drive 234 5 89 213 45 Before you install the DVD-ROM drive, we strongly recommend that you check that your setup meets the system requirements listed below. System Requirements Upgrading the Firmware Flash MemoryConnecting the Cables To install your DVD-ROM drive in the PC, proceed as follows. Installing the DVD-ROM Drive 1Make sure that the PC is powered off and disconnected from any power source. 2If necessary, attach a horizontal bracket to both sides of the drive. 3Remove the cover from a free expansion slot and install the DVD-ROM drive, as shown in the illustration. ItemDescription ComputerIntel Pentium III (or higher), 350MHz or higher, 128 MB of RAM (or higher) with an IDE interface Disk space100 MB minimum Windows versionWindows 95 OSR2 / 98 / 2000 / ME / XP / Windows NT 4.0 (or higher) DVD-ROM DRIVE SD-816 User's Guide BG68-00613A Rev.00 Safety Precautions The following diagrams illustrate the precautions to be taken when using your DVD-ROM drive. You must not use the drive in any manner other than that specified in this guide. Avoid exposing your eyes or skin to direct or scattered radiation. CAUTION Do not attempt to repair the DVD-ROM drive yourself. Contact your dealer or local SAMSUNG representative for all repairs. If you make any adjustments or perform any operations other than those specified in this guide, you run the risk of exposure to hazardous radiation. WARRANTY Please refer to the Samsung limited warranty statements. Precautions 1. To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. 2. Always check each disc for cracks before using it. If there are cracks on the surfaces, especially around the border of the cen- ter hole, we recommend that you make a copy of the disc immediately and then stop using it. If you continue using the disc, it will probably develop more cracks and eventually cause irreparable damage. 3. Do not use poor quality discs: From unknown sources  Without any copyright Scratched or damaged in any way 67 Setting Up the Device DriverInstalling the Device Driver Using the DVD-ROM Drive Storing and Cleaning Your Discs Solving Technical Problems Automatic Setup Manual Setup LAST DRIVE = Z - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - DEVICE = C :\SAMSUNG\SSCDROM.SYS /D : SSCD000 /V - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - C :\SAMSUNG\MSCDEX /D:SSCD000 SAMSUNG continually strives to improve its products. Both the design specifications and these user instructions are thus subject to change without notice. Technical Specifications 1. Two-pin digital audio output terminal for use with a sound or MPEG card supporting digital audio features 2. Four-pin sound output terminal for use with a sound card (refer to the sound card documentation for further details) 3. Master/slave select terminal 4. 40-pin host IDE interface connector 5. 4-pin power terminal The product firmware can be upgraded by downloading the updated file from the following Web site: http://www.samsung-ODD.com www.samsungelectronics.com Use of the brackets depends on your computer model; you can purchase these accessories separately from your computer dealer. If you have no free expansion slot, install the drive in place of the diskette drive. DVD-ROM drive 1. Power cable 2. Master/slave select terminal 3. IDE cable 4. Audio cable 1Connecting the power cable The 4-pin power cable from the internal power unit of your computer must be connected to the power terminal on the rear of the DVD-ROM drive. 2Installing a jumper on the master/slave select terminal Install the jumper in the correct position on the terminal: MA to use the device in the master mode SL to use the device in the slave mode CS to control the device via a CSEL host interface signal See Step 3 for further details. 3Connecting the IDE cable Two configurations are possible. The DVD-ROM drive is the only IDE device in addition to the hard disk. 4 Connecting the audio cable from a sound card Connect the 4-pin audio cable between the sound output terminal on the DVD-ROM drive and the audio input terminal on the sound card. Install the jumper in the SL position (Slave). Connect the 40-pin flat IDE cable from the IDE port on the mother board, first to the DVD-ROM drive and then to the hard disk . Install the jumper in the MA position (Master). Connect the 40-pin flat IDE cable from a second IDE port on the mother board directly to the DVD-ROM drive or first to another additional IDE drive and then to the DVD-ROM drive. IDE port Mother board DVD-ROM (SL) Hard disk (MA) You already have an additional IDE device installed in your computer. Mother board Second IDE cable DVD-ROM (MA) CD-ROM (SL) Hard disk (SL) Hard disk (MA) First IDE cable 1Insert the setup diskette in the diskette drive and change the directory to A:, where A: is the diskette drive. To do so, type A:after the C:\prompt and press [Enter]. 2Type CDSETUPand press [Enter]. 3Reboot the computer. 1Make the C:\SAMSUNGdirectory. 2Copy the files from the diskette to the C:\SAMSUNGdirectory. To do so, type COPY A: * . * C:\SAMSUNGafter the C:\prompt and press [Enter]. 3Edit the CONFIG.SYSfile. Add the DEVICE=C:\SAMSUNG\SSCDROM.SYS \D:SSCD000 /Ventry. 4Edit the AUTOEXEC.BATfile. Add the C:\SAMSUNG\MSCDEX /D:SSCD000entry. 5Reboot the computer. No additional device driver is needed for Windows 95/98/2000/ME/XP/NT, as the default Windows device driver is used. You can check that the DVD-ROM drive has been correctly detected by Windows. To do so, proceed as follows. 1Double-click on the My Computericon on your desktop. 2Double-click on the Control Panelfolder. 3Double-click on the Systemicon. 4Click on the Device Managertab. 5Expand the CD-ROMbranch. The SAMSUNG DVD-ROM SD - *** device name is displayed. The SAMSUNG device…

Text truncated - open the document above for the full version.

FLASH ROM (256KB-70ns) SPINDLE MOTOR PICK-UP LENS DISC TURN TABLE RF-AMP -FE 생성 -TE 생성 -RF 생성 A,B,C,D E1,E2,F1,F2 SLED MOTOR M63028FP -TRACK DRIVE -FOCUS DRIVE -LOADING & SLED DRIVE -.SPINDLE MOTOR DRIVE TRO FMO FEO DMO DRIVE 신호 HALL 신호 TRACK FOCUS SLED LOADING MICOM -.DECK CONTROL -.SYSTEM CONTROL I/F -.ATAPI INTERFACE 지원 -.AUDIO BUFFERING 지원 MT1358E DSP -.FE SERVO CONTROL -.TE SERVO CONTROL -.SLED SERVO CONTROL -.SEARCH CONTROL -.SPINDLE CONTROL -.PLL -.SUBCODE 복조 -.AUDIO DAC -.DIGITAL OUT 33.86MHz HOST INTERFACE LINE OUT HP OUT ADDRESS,DATA MOTOR ON/OFF 4M DRAM (25ns) TROPEN

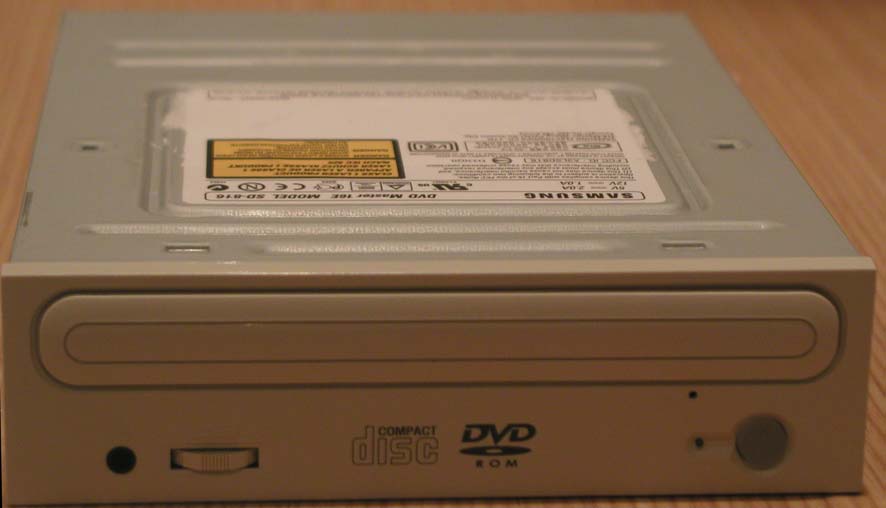

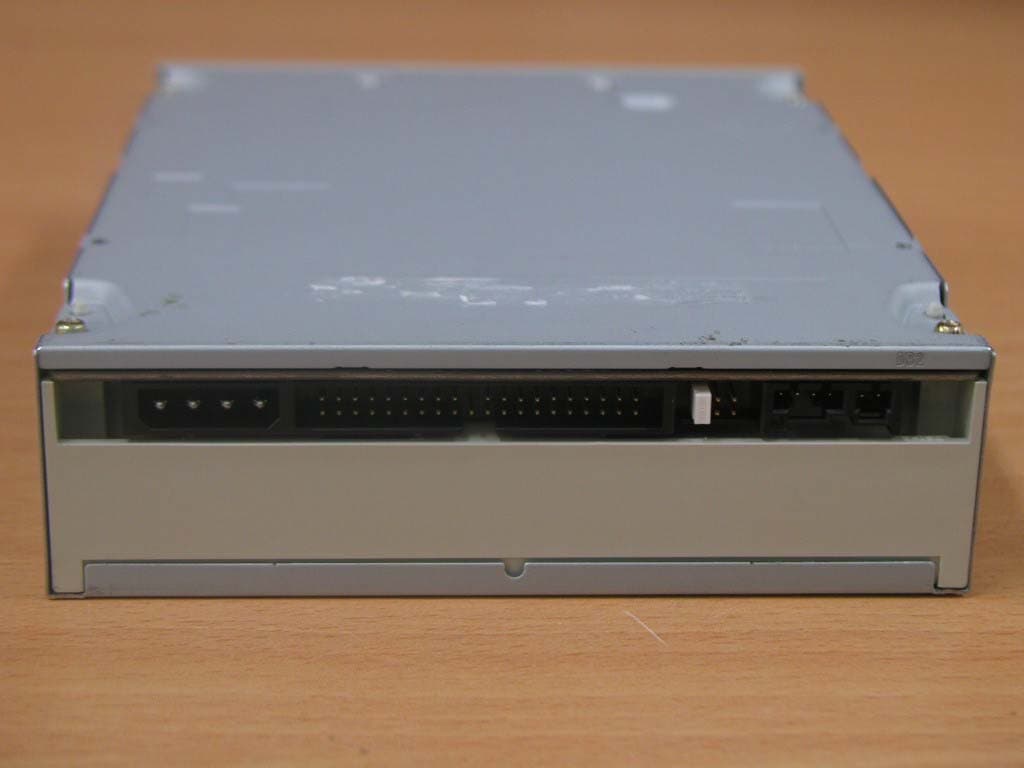

SD-816 PICTURE FRONT REAR

Inside PCB(FRONT) PCB(REAR)

Page 1 of 12 Project NO. : LBE020749 Project NO. : LBE020749 Product :DVD-ROM Drive Model No. : SD-816 Date of test :September 09, 2002 - September 10, 2002 Issued Date :September 11, 2002 Tested by: Jin Hwan, JUNG / Test Engineer Reviewed by: Yang Soo, KIM / Technical Manager Authorized by: Kyu Baek, CHUNG / Chief of EMC Lab. SAMSUNG ELECTRONICS Co., Ltd. Suwon EMC Test Laborator y 416 Maetan-3 Dong, Paldal-Ku, Suwon City, Kyungki-Do, Korea,442-742 Tel. : 81-31-200-2185 Fax. : 81-31-200-2189 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC TEST REPORT According to FCC Part 15B Class B Page 2 of 12 Project NO. : LBE020749 Table of Contents 1. General Information 1.1 Product Description 1.2 System Block Diagram of Test Configuration 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement 2.2 Operation Enviroment 2.3 Justification 2.4 EUT Exercise Soft ware 2.5 Test Procedure 3. Conducted Emission Test Data 4. Radiated Emission Test Data 5. Test Equipment Used This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 3 of 12 Project NO. : LBE020749 1. General Information APPLICANT :SAMSUNG ELECTRONICS CO., LTD. ADDRESS :416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 442-742 CONTACT ADDRESS :416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 442-742 CONTACT PERSON :Ki Ho,Kim REGULATION(S) :FCC Part 15B Class B MODEL NUMBER: SD-816 SERIAL NUMBER :- KIND OF PRODUCT :DVD-ROM Drive TESTED DATE :September 09, 2002 - September 10, 2002 TEST SITE :SAMSUNG EMC TEST LAB. FCC Registration Number : 98856 Anechoic Chamber #1 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 4 of 12 Project NO. : LBE020749 1.1 Product Description Speed CD-R : 48X, DVD-R :16X Access Time CD(100ms) , DVD(95ms) Buffer512KB Interface ATAPI (E-IDE) Size 1.2 System Block Diagram of Test Configuration This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 148.2(W) * 42(H) * 184(D) mm E B C D A AC POWER AC POWER 1 2 3 4 5 F 6 Page 5 of 12 Project NO. : LBE020749 2.5.2 Configuration of EUT and peripherals MarkItemModel No.Serial No.ManufacturerRemark ADVD-ROM DriveSD-816-SamsungEUT BComputerVectva XE310 FR12634657 HP CLCD MonitorCX-151S C N192H4NT319256 Samsung DKeyBoard RT7D00 TH-025PGG-37171-13A-5201 DELL EMouse M-S34 LNA10104642 Logitech FEar Phone- -- 2.5.3 Used Cable Description No.ItemLength[m]Shielded(Y/N) 1AC Power Cable1.7N 2Video Cable1.8Y 3Mouse Cable2.0N 4Keyboard Cable1.8N 5AC Power Cable1.7N 6Ear Phone Cable2.0N This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Remark Page 6 of 12 Project NO. : LBE020749 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement * Cabling was taken into consideration and test data was taken under worse case conditions. 1)Conduction(Front View) 2)Conduction(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 7 of 12 Project NO. : LBE020749 3) Radiation(Front View) 4) Radiation(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 8 of 12 Project NO. : LBE020749 2.2 Operation Enviroment ConductionRadiation Temperature [centigrade] : 2221.5 Humidity [%] :5951 Power supply :AC120V/60HzAC120V/60Hz 2.3 Justification The system was configured in typical fashion(as a customer would normally use it) for testing. 2.4 EUT Exercise Soft ware The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. 2.5 Test Procedure 2.5.1 Conducted Emissions Eut was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of tabletop was located 40cm to the vertical conducting ground plane. The rear of EUT,including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80cm from any other grounded conducting surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged at a 40cm height to the ground plane. Each EUT current-carrying power lead,except the ground(safety) lead, were individually connected through a LISN to the input power source. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 9 of 12 Project NO. : LBE020749 All unused 50 ohm connectors of the LISN were resistively terminated in 50 ohm when not connected to the measuring equipment. 2.5.2 Radiated Emissions Eut was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of EUT,including peripherals was aligned and flush with rear of tabletop. I/O cables that were connected to the peripherals were bundle in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged 40cm height to the ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane to obtain the maximum signal strength. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 3. Conducted Emission Test Data The initial step in collecting conducted data was to perform a quasi-peak scan over the measurement range using a receiver. The final data represents worst-case emissions. O Test Mode : Meter readingTotalLimitsResult Frequency(a)PhaseLoss QPAV(b)QPAVQPAV [MHz][dBuV][dB][dBuV][dBuV] 0.2…

Text truncated - open the document above for the full version.

Page 6 of 12 Project NO. : LBE020749 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement * Cabling was taken into consideration and test data was taken under worse case conditions. 1)Conduction(Front View) 2)Conduction(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 7 of 12 Project NO. : LBE020749 3) Radiation(Front View) 4) Radiation(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory.
