A3LSECCTOCUSB Flash Drive

■ ■■ ■ Product ProductProduct Product : USB Flash Drive : USB Flash Drive: USB Flash Drive : USB Flash Drive ■ ■■ ■ Model No. Model No.Model No. Model No. : MCAQD04GA**P : MCAQD04GA**P: MCAQD04GA**P : MCAQD04GA**P- -- -*4*** *4****4*** *4*** ■ ■■ ■ Manufacturer ManufacturerManufacturer Manufacturer : SAMSUNG ELECTRONICS Co.,LTD. : SAMSUNG ELECTRONICS Co.,LTD.: SAMSUNG ELECTRONICS Co.,LTD. : SAMSUNG ELECTRONICS Co.,LTD. ■ ■■ ■ Manufacturer Address Manufacturer AddressManufacturer Address Manufacturer Address : San #16 : San #16: San #16 : San #16 Banwol BanwolBanwol Banwol- -- -Ri RiRi Ri, ,, , Taean TaeanTaean Taean- -- -Eup EupEup Eup, ,, , Hwasung HwasungHwasung Hwasung- -- -City, City,City, City, Gyeonggi GyeonggiGyeonggi Gyeonggi- -- -Do, Korea, Do, Korea,Do, Korea, Do, Korea, 445 445445 445- -- -701 701701 701 ■ ■■ ■ Telephone TelephoneTelephone Telephone : 81 : 81: 81 : 81- -- -031 031031 031- -- -208 208208 208- -- -6520 65206520 6520 ■ ■■ ■ USB Flash Drive USB Flash DriveUSB Flash Drive USB Flash Drive User Manual User ManualUser Manual User Manual This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Fcc information to the user This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or experienced radio TV technician for help. CAUTION! Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment.

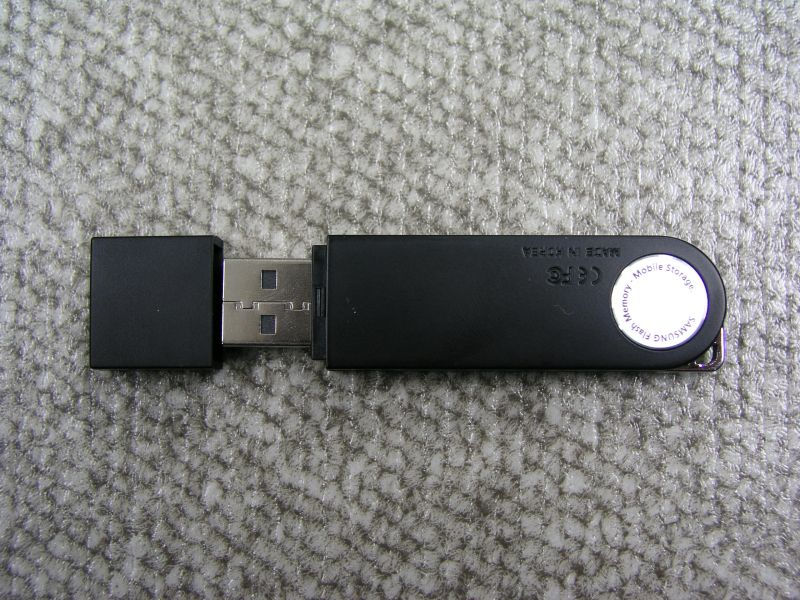

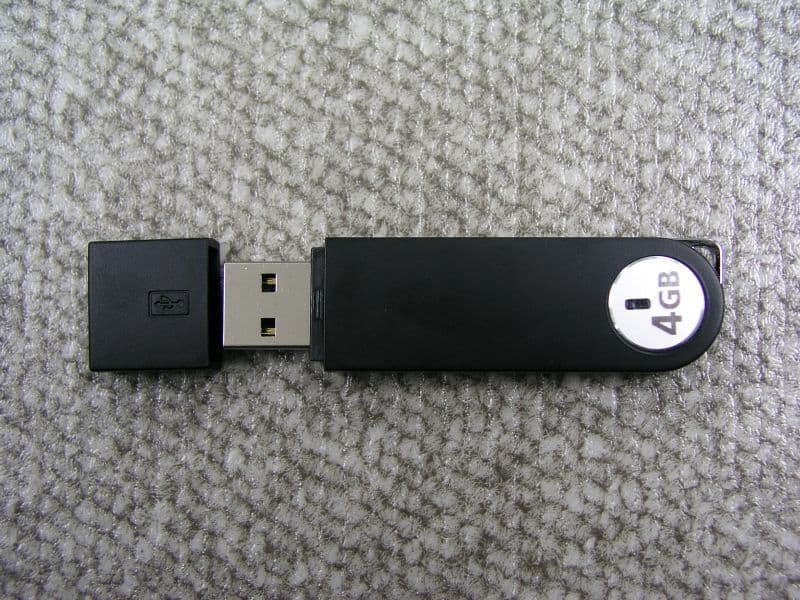

<External photographs>

Test Report No. : LBE060348 -22/22- Picture 9. Label

<Internal photographs>

-1/22- EMC TEST REPORT CS Management Center, Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si,Gyeonggi-Do, 443-742 Korea (Tel: 82 31 277 7752, Fax: 82 31 277 7753) FCC Registration No. : KR0004 NVLAP Code : 200623-0 1. Applicant ◦ Name of organization : Samsung Electronics Co., Ltd. ◦ Address : 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea ◦ Date of application : 2006.02.01 2. Purpose for the report : Approval for EMC 3. Kind of product : USB Flash Drive (Model name : MCAQD04GA**P-*4***) 4. Date of test : 2006. 02. 03 5. Applied standard : FCC Part 15 B, Class B 6. FCC ID or DoC/Verification : A3LSECCTOC 7. Report No. : LBE060348 Issue 1 8. Test result : PASS The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) Tested by Name : Hyeok Je Kwon Reviewed by Name : No Cheon Park This report is the test result about the sphere accredited by KOLAS which signed the Mutual Recognition Arrangement of International Laboratory Accreditation Cooperation. 2006. 02. 14 Samsung Electronics Co., Ltd. Chief of CS Management Center Test Report No. : LBE060348 -2/22- TEST RESULT Test Report No. : LBE060348 Applicant / Address : Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea Manufacture / Address : Samsung Electronics Co., Ltd. San#16 Banwol-Ri, Taean-up, Hwasung-City, Gyeonggi-Do, 445-701, Korea EUT : 1. Product name : USB Flash Drive 2. Model name : MCAQD04GA**P-*4*** 3. Brand name : Samsung 4. Variant model : MC8DD02GA**P-*4***, MC4GD01GA**P-*4*** MC2GD512A**P-*4***, MC1GD256A**P-*4*** MC1GD128A**P-*4***, MC8QD02GA**P-*4*** MC4DD01GA**P-*4*** Basic Standards : ANSI C63.4:2003 Test Result : PASS The equipment under test has found to be compliant with the applied standards Test Lab. : CS Management Center, Samsung Electronics Co., Ltd. ` Tested by : Hyeok Je, Kwon Reviewed by : No Cheon Park Date of Issue : 2006. 02. 14 Test Report No. : LBE060348 -3/22- Table of contents 1. General information 1.1 Basic information related product 1.2 Detail information related product 1.3 Operating mode and condition 1.4 Equipment modifications 1.5 Test procedure 1.6 Test configuration 1.7 Applied standard 1.8 Test facility 2. Summary of test results 3. Description of individual tests 3.1 Conducted Emission 3.2 Radiated Emission 4. Appendix 4.1 Test photography 4.2 EUT photography Test Report No. : LBE060348 -4/22- 1. General information 1.1 Basic information related product Applicant Samsung Electronics Co., Ltd. Model name MCAQD04GA**P-*4*** Applicant address 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea Contact person Hee Tai, Kim Kind of product USB Flash Drive Variant model MC8DD02GA**P-*4*** -> 2GB MC4GD01GA**P-*4*** -> 1GB MC2GD512A**P-*4*** -> 512MB MC1GD256A**P-*4*** -> 256MB MC1GD128A**P-*4*** -> 128MB MC8QD02GA**P-*4*** -> 2GB MC4DD01GA**P-*4*** -> 1GB Manufacturer Samsung Electronics Co., Ltd. San#16 Banwol-Ri, Taean-up, Hwasung-City, Gyeonggi-Do, 445-701, Korea New / Alternative / Permissive change information New Test Report No. : LBE060348 -5/22- 1.2 Detail Information related product 1.2.1 Specification Item Specification Remark USB Flash Drive • Fully compatible with the USB 2.0 High speed Specification, USB- IF certified • USB Specification V1.1 Mass Storage Compliance • USB Bulk Only Mass Storage Support • USB Class Definition for Bootability Support • Interface Speed: up to - High Speed: 25~400M Mb/s - Full Speed: 500Kb/s~10Mb/s • High Performance - Sequential Read: 20MB/s - Sequential Write: 10MB/s • Storage Capacities: 128MB~4GB • Low Vcc Program Inhibit Function • Auto Sleep Mode • USB Bus Powered (4.75 Volt -5.25 Volt) • Suspend: ≤ 500uA - 1.3 Operating mode and condition MP3 files in the EUT are played by windows media player connected to the laptop. The program was playing the mp3 files continuously during the each test. - Test Voltage : AC 120 V, 60 Hz 1.4 Equipment modifications No equipment modifications were required. Test Report No. : LBE060348 -6/22- 1.5 Test procedure 1.5.1 Conducted emission EUT was placed on a platform nominal size, 1 m by 1.5 m, raised 80 cm above the conducting ground plane. The rear of tabletop was located 40 cm to the vertical conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80 cm from any other grounded conducting surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bindle 30 cm to 40 cm long and were handed at a 40 cm height to the ground plane. Each EUT current-carrying power lead, except the ground(safety) lead, were individually connected through a LISN to the input power source. All unused 50 ohm connectors of the LISN were resistively terminated in 50 ohm when not connected to the measuring instrument. Frequency Band [MHz] Instrument Detector Resolution Bandwidth Video Bandwidth Quasi-Peak 9 kHz - 0.15 to 30 EMI Receiver Average 9 kHz - Test Report No. : LBE060348 -7/22- 1.5.2 Radiated emission EUT was placed on a platform of nominal size, 1 m by 1.5 m, raised 80 cm above the conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. The I/O cables that were connected to the peripherals were bundle in center. They were folded back and forth forming a bundle 30 cm to 40 cm long and were hanged 40 cm height to the ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane and the trun table azimuth was varied to obtain the maximum signal strength The system configuration, clock speed, mode of operation or video resolution, turntable azimuth with respect to the antenna were noted for each frequency found…

Text truncated - open the document above for the full version.

Test Report No. : LBE060348 -18/22- 4. Appendix 4.1 Test photography Picture 1. Conducted emission (Front) Picture 2. Conducted emission (Rear) Test Report No. : LBE060348 -19/22- Picture 3. Radiated emission (Front) Picture 4. Radiated emission (Rear)
