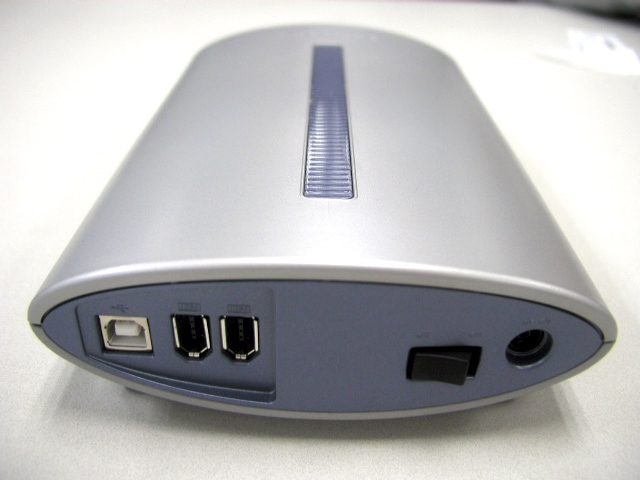

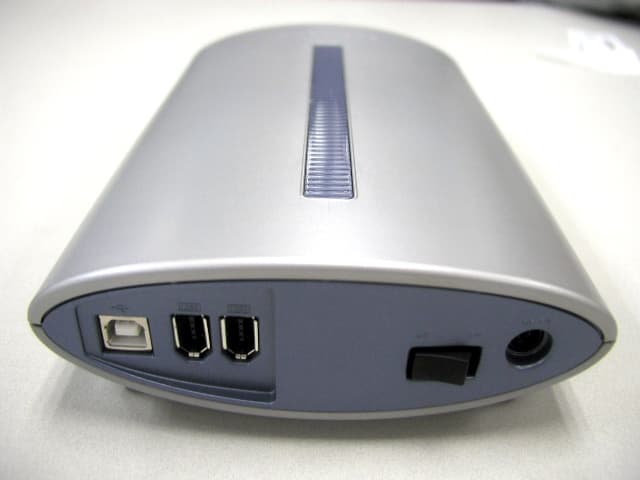

A3LSEZ00UPExternal Hard Disk Drive

Samsung is not responsible for loss of data. Please back up data frequently. SEV04UPSEV08UP BF68-00152B 2002.05. Rev.00 http://www.samsunghdd.co.kr Safety Precautions 1 Identifying the Parts and Checking the Package Kits 2 Troubleshooting Guide 21 Product Specifications 22 For USB-Port Installation 5 For 1394-Port Installation 6 Installing the Hardware Turning Handy Q Power ON & OFF Installing the Software Windows PC 3 Macintosh 4 System Requirements Turn ing Power OF F 7 Turning Power O N 9 Installing USB 2.0/1.1. Driver Windows 98 Second Edition (Initial Installation) 11 Windows ME/2000/XP 13 Mac OS 8.x ~ 9.x 14 - Installing the Device Driver 14 Mac OS X 15 Installing the IEEE 1394 Driver Windows 98SE/2000 Professional/ME/XP 16 Initial Use of HANDY Q in Mac OS X 17 Macintosh 20 - OS 8.6 ~ 9.0 20 - OS 9.1 or higher 20 What is a ? HANDY Q is the name of a new high-performance external hard drive by Samsung. It supports both the high-speed IEEE 1394 interface and the high-speed USB 2.0 interface. Unlike the existing desktop hard drives, HANDY Q gives your system large storage space instantlywithout the need to open up the computer.With the formatting and partitioning already done, you can use the large storage space instantly upon connecting Samsung HANDY Q to the USB or 1394 port on your computer without rebooting the system. HANDY Q supports both USB 1.1 and 2.0. The USB 2.0 connection is up to 40 times faster compared to the USB 1.1 connection. HANDY Q automatically detects the connected port. When the drive is connected through the USB port, data is transferred in USB mode, and when connected through the 1394 port, it is transferred in1394 mode. Contents 2 Identifying the Parts and Checking the Package Contents Front Package Contents Setup CD User Guide AC adapter Power/LED lamp 1394 cable Power cord USB 1.1/2.0 cable Back USB port 1394 port Power switch Power supply slot 1 Carefully follow all instructions below to prevent loss of data or damage to your Handy Q drive. This product is precision equipment and, the HDD inside is extremely susceptible to shock and static electricity. Avoid high-temperature, high-humidity storage.Make sure you save the data before turning the power off or pulling the plug out. The manufacturer does not guarantee the safety of data that is not saved on the hard disc. The manufacturer’s guarantee does not apply to problems due to user’s failure to follow instructions in the User’s Manual. Frequently check for viruses and take necessary precautions to prevent infection. Loss or damage to the parts including the stickers and product labels can cause immediate malfunction. Take necessary precautions to keep all the parts intact. Make sure you back up all important data files.Do not remove the cable or turn the power off while the system is running. Safety Precautions Macintosh 4 FireWire (IEEE 1394) Power PC (iMAC DV, G3, or later) with a FireWire-mounted boardMac OS 8.6 or higherRAM: Minimum 32MBInternet connection USB 1.1 Macintosh Power PC with a USB-1.1 portRAM: Minimum 32MBInternet connection Windows PC 3 The following are the minimum system requirements to installand run Handy Q. System Requirements IEEE 1394 CPU: Pentium or fasterRAM: Minimum 32MBWindows 98SE, Windows ME, Windows 2000, Windows XP (Handy Q does not support Windows 95, Windows 98, and Windows NT) One or more IEEE 1394 portsOr, an IEEE 1394-compatible PCI card or PCMCIA card (for notebook computers). USB 2.0 / 1.1 CPU: Pentium or fasterRAM: Minimum 32MBWindows 98SE, Windows ME, Windows 2000, Windows XP (Handy Q does not support Windows 95, Windows 98, and Windows NT) One or more IEEE 1394 portsOr, an IEEE 1394-compatible PCI card or PCMCIA card (for notebook computers). Note: Apple computers currently do not support USB 2.0. Note: When connected through the USB 1.1 port, the computer uses the USB connection. 6 Installing the Hardware 5 Make sure your computer meets the system requirements. See Pages 3 & 4 for System Requirements.Connect the AC adaptor to the power supply slot on the back of Handy Q as shown in the picture.Connect the power cord to the ACadaptor as shown in the picture. Turn the power on using the power switchon the back of Handy Q.Connect the USB data cable to the USB port on Handy Q as shown in the picture.Connect the USB data cable to the USB port of the USB PCI card, which is connected to the computer. For USB-port Installation For 1394-Port Installation Make sure your computer meets the system requirements. See Pages 3 & 4 for System Requirements.Connect the AC adaptor to the power supply slot on the back of Handy Q as shown in the picture.Connect the power cord to the ACadaptor as shown in the picture. Turn the power on using the power switchon the back of Handy Q.Connect the 1394 data cable to the 1394 port on Handy Q as shown in the picture.Connect the 1394 data cable to the 1394 port of the 1394 PCI card, which is connected to the computer. 8 7 - For USB Click the Eject Hardware/USB Storage Device icon( )on the right-hand corner of the taskbar, and the following small message box appears above the taskbar.Click the message box to make it disappear and the next dialogue box to appear. You can now safely remove Handy Q from your computer.Click OK, and you can safely remove the device from the system. Turn ing Power OFF Windows - For IEEE 1394 Click the Eject Hardware/IEEE 1394 Storage Device icon( )on the right-hand corner of the taskbar, and the following small message box appears above the taskbar. Click the message box to make it disappear and the next dialogue box to appear.Click OK, and you can safely remove the device from the system. Turning Handy Q Power ON & OFF Macintosh Drag the Handy Q disc icon( )to the trashcan. HANDY_Q Turn ing Power On 9 ReconnectingIf the power is off, turn Handy Q on before connecting the data cable to your computer. Installing the Software 10 Before you start using Handy Q, you need to install a USB/1394 driver compatible with your…

Text truncated - open the document above for the full version.

HANDY Q Block Diagram




       |zi w–™› plll XZ`[ w–™› ! !  "
#$%"




 & '% ()'*$"+, & % ("+,

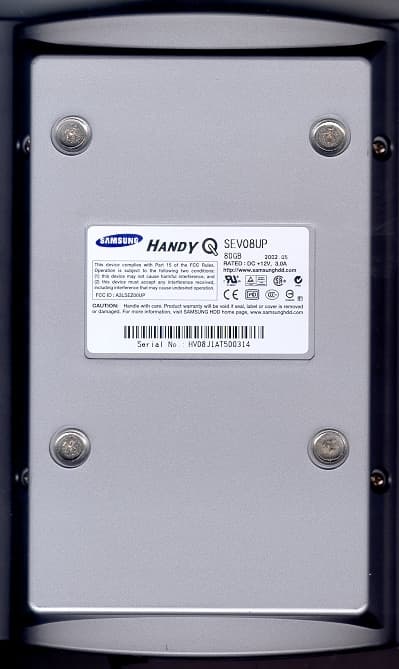

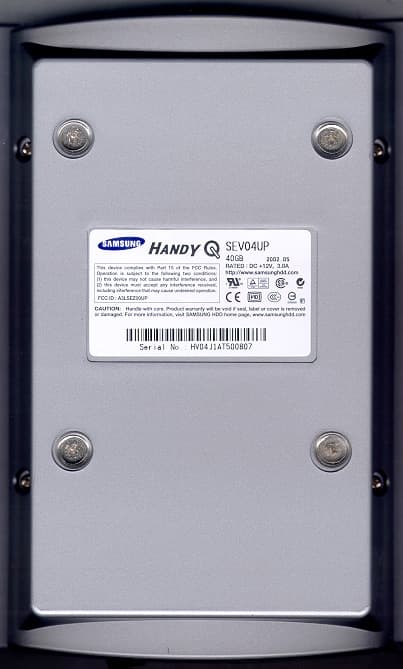

Page 14 of 15 JOB NO. : LEB020119 5. FCC Label Configuration and Location 5.1 Label Configulation 5.2 Location of Label This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government.

Main B'd Front Main B'd Rear Main B'd Front Main B'd Rear LED B'd Front LED B'd Rear

Page 1 of 15 JOB NO. : LEB020119 Product :External Hard Disk Drive Model No. : SEV08UP JOB NO. : LEB020119 1. This test reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 2. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 3. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. Date of test :May 30 , 2002 Issued Date :June 04, 2002 Prepared by: Tae Young,Jang / Test Engineer Reviewed by: Chun Kil,Kim / Technical Manager Authorised by: Yang Su,Kim / Quality Manager This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. EMI TEST REPORT FCC Part 15 Subpart B, Class B LAB CODE : 200447 Page 2 of 15 JOB NO. : LEB020119 Table of Contents 1. General Information 1.1 Product Description 1.2 Configuration of EUT and peripherals 1.3 Used Cable Description 1.4 System Block Diagram of Test Configuration 1.5 Test Facility 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement 2.2 Operation Enviroment 2.3 Test Procedure 3. Conducted Emission Test Data 4. Radiated Emission Test Data 5. Label Configuration and Location 6. Test Equipment Used Distribution This test report has been made available as follows: CS Management Center, EMC Laboratory1 original Storage Division1 copy This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 3 of 15 JOB NO. : LEB020119 1. General Information Applicant :Samsung Electronics Co., Ltd. CS Management Center EMC Test Laboratory Tel.: +81-(0)31-200-2135 Fax.: +81-(0)31-200-2189 Full Address :416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 442-742 Kind of Produ c:External Hard Disk Drive FCC ID:A3LSEZ00UP Project Name :Handy-Q Basic Model : SEV08UP(Brand Name: SAMSUNG) Variant Model :SEV04UP(Brand Name: SAMSUNG) Test Report Produced by :Tae Young, Jang/ Test Eng. 1.1 Product Description 1) Justification The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O Ports. Where applicable, peripherals were attached to the I/O cables. The mode of operation utilized for testing was selected to best simulate typical EUT use. The Test mode is standby,Reading and Writing Via USB,Reading and Writing Via 1394 the test results of Reading and Writing Via 1394 mode was the worst case emissions. Further details of cabling and configuration are shown in the test system configuration. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 4 of 15 JOB NO. : LEB020119 2) Operating Frequency : 24,576MHz(IEEE1394 Clock), 30MHz(USB2.0 Clock) 3) Description of Testing operating mode IEEE1394USB IEEE1394USB - 4) Tested Resolution : This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. STAND BY READ Operating Mode Operating section of EUT WRITE ColorsTested Video modeResolutionsRefresh rates Page 5 of 15 JOB NO. : LEB020119 5) Assemble Parts ItemSpecificationRemark Main ControllerOxford semi. , OXFW911 Cypress, ISD300A1 SMPSSAMSUNG, AC100-240, 1.0-0.5A, 50/60Hz HVPSSAMSUNG, DC12V, 3.0AHIGH VOLAGE POWER SUPPLY Ports 1 USB, 2 IEEE1394l Port This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 6 of 15 JOB NO. : LEB020119 2.5.2 Configuration of EUT and peripherals MarkItemModel No.Serial No.ManufacturerRemark A
     SEV08UP- zˆ”šœ•Ž EUT B
 Pavilion 7845 KR11401739HP C   55E Plus DP15H8PK803078   D   SKR-2283S7CAE021898    E  SMB-6029EAE22731    F   PSCV360104A C020382036B
  2.5.3 Used Cable Description No.ItemLength[m]Shielded(Y/N) 1EUT AC Power cable1.7N 21394 cable1.7Y 3Viedo cable1.5Y 4Mouse cable2.0N 5USB1.8Y 6Keyboard Cable1.7N 7 Computer AC Power cable 1.7N 8 Monitor AC Power cable 1.7N This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Remark Page 7 of 15 JOB NO. : LEB020119 1.4 System Block Diagram of Test Configuration 1.5 Test Facility All test described in this report were performed by : SAMSUNG ELECTRONICS CO., LTD. EMC TESTING LABORATORY 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 442-742 Semi Anechoic Chamber #1(Registration Number:98856) and Shielded Room. This test facility has been filed in FCC under the criteria in ANSI C63.4-1992. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. G E B F D A C



                     Page 8 of 15 JOB NO. : LEB020119 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement * Cabling was taken into consideration and test data was taken under worse case conditions. 1)Conduction(Front View) 2)Conduction(Rear View) This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 9 of 15 JOB NO. : LEB020119 3) Radiation(Front View) 4) Radiation(Rear View) This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 10 of 15 JOB NO. : LEB020119 2.2 Operation Enviroment ConductionRadiation Temperature [ C ] : 23C23C Humidity [ % ] 63C63C Power supply :AC120V/60HzAC120V/60Hz 2.3 Test Procedure 2.3.1 Conducted Emissions Eut was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of tabletop was located 40cm to the vertical conducting ground plane. The rear of EUT,including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80cm from any other grounded conducting surface. I/O cables and…
