A3LSGHA401Single-Band PCS GSM/ EDGE/ WCDMA Phone with BT

* Depending on the software installed or your service provider or country, some of the descriptions in this guide may not match your phone exactly. * Depending on your country, your phone and accessories may appear different from the illustrations in this guide. World Wide Webhttp://www.samsungmobile.com Printed in Korea Code No.:GH68-XXXXXA English (AUS). 10/2006. Rev. 1.0 SGH-A401User’s Guide Use road safety at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force.InterferenceAll wireless phones may be subject to interference, which could affect their performance. Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Important safety precautions 1 Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry.Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callsKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children. Accessories and batteriesUse only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised accessories could damage you or your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 112. • The phone could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufacturer’s instructions. At very high volumes, prolonged listening to a headset can damage your hearing. 2 About this GuideThis User’s Guide provides you with condensed information about how to use your phone. To quickly learn the basics for your phone, please refer to “Get started” and “Step outside the phone.”In this guide, the following instruction icons appear: Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features.  Indicates that you can get more information on the referenced page. → Indicates that you need to press the Navigation keys to scroll to the specified option and then select it. [] Indicates a key on the phone. For example, [] <> Indicates a soft key, whose function is displayed on the phone screen. For example, < Menu > •3G Your phone is capable of operating in a 3G environment, allowing much greater data transfer speed, video streaming, and video conferencing. Special f eatures of your phone • Camera and camcorder Use the camera module on your phone to take a photo or record a video. • Media player Play media files on your phone. You can enjoy high quality videos and music. Special features of your phone 3 • Bluetooth Transfer media files and personal data and connect to other devices using free, wireless Bluetooth technology. •Web browser Access the wireless web to get up-to-the-minute information and a wide variety of media content. • Messenger Have a conversation with other people by sending and receiving instant messages. • Multimedia Message Service (MMS) Send and receive MMS messages with a combination of text, images, video, and audio. •E-mail Send and receive e-mails with image, video, and audio attachments. •Java Enjoy Java™-based embedded games and download new games. •Phonebook Store home, office, or cellular phone numbers for your contacts. • Name card Create name cards with your number and profile. Whenever introducing yourself to others, use this convenient electronic name card. 4 Contents Unpack 6 Make sure you have each itemYour phone 6 Keys, features, and locationsGet started 7 First steps to operating your phoneInstall and charge the phone.............................. 7Power on or off ................................................ 9Keys and display .............................................. 9Access menu functions .................................... 13Customise your phone .................................... 14Make/Answer calls .......................................... 17Step outside the phone 18 Begin with your camera, the media player, the web, and other special featuresUse the camera.............................................. 18Play media files .............................................. 19 Browse the web.............................................. 20Use Phonebook .............................................. 21Send messages .............................................. 22View messages .............................................. 24Use Bluetooth ................................................ 25Switch applications ......................................... 27 Enter text 28 ABC, T9, Number, and Symbol modesCall functions 31 Advanced calling featuresMenu functions 36 All menu options listedSolve problems 110 Help and personal needsHealth and safety information 112 Index 121 5 1 Call log p. 36 1 Recent contacts2 Missed calls3 Dialled calls4 Received calls5 Delete all6 Call time7 Data volume8 Data call time9 Call cost 1 p. 36p. 37p. 37p. 37p. 37p. 38p. 38p. 39p. 39 2 Phonebook p. 39 1 Search contact2 New contact3 Groups4 Speed dial list5 My business card6 Copy all7 Own number8 FDN list9 Service number 1 10 Settings11 Memory status p. 4…

Text truncated - open the document above for the full version.


















18600 Broadwick Street






November 13, 2006        !"# $%&' ( &) "*   +,-   . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4  .(5(65(5 / (5 1 # )57/(5)8 )94144 *4    1    1: ;&/ 1&19<;3<4 SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: November 13, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3L SGHA401 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 45 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

of 32 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SGH-A401 FCC ID (Requested): A3LSGHA401 Job No: FD-204 Report No: FD-204-S1 Date issued: Nov.13, 2006 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By DK LEE - Test Engineer Checked By JH NAM - Senior Engineer Authorized By SH PARK - Senior Manager Report Number: FD-204-S1 2 of 32 Contents 1. GENERAL INFORMATION............................................................................................................. 3 2. DESCRIPTION OF DEVICE ........................................................................................................... 3 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................... 4 3.1 SAR Measurement Setup ......................................................................................................4 3.2 E-field Probe .......................................................................................................................... 6 3.3 SAM Phantom ........................................................................................................................ 8 3.4 Brain & Muscle Simulating Mixture Characterization ............................................................. 8 3.5 Device Holder for Transmitters ..............................................................................................9 3.6 Validation Dipole .................................................................................................................... 9 3.7 Equipment Calibration.......................................................................................................... 10 4. SAR MEASUREMENT PROCEDURE ......................................................................................... 11 5. DESCRIPTION OF TEST POSITION ........................................................................................... 12 5.1 SAM Phantom Shape...........................................................................................................12 5.2 Cheek/Touch Position .......................................................................................................... 12 5.3 EAR/Tilt 15° Position ............................................................................................................ 14 5.4 Body Holster/Belt Clip Configurations.................................................................................. 15 6. MEASUREMENT UNCERTAINTY................................................................................................ 17 7. SYSTEM VERIFICATION ............................................................................................................. 19 7.1 Tissue Verification ................................................................................................................ 19 7.2 Test System Validation ......................................................................................................... 19 8. SAR MEASUREMENT RESULTS ................................................................................................ 20 8.1 Measurement Results(WCDMA850 Right Head SAR - Touch) ........................................... 21 8.2 Measurement Results(WCDMA850 Right Head SAR - Tilt) ................................................ 22 8.3 Measurement Results(WCDMA850 Left Head SAR - Touch).............................................. 23 8.4 Measurement Results(WCDMA850 Left Head SAR - Tilt)................................................... 24 8.5 Measurement Results(WCDMA850 Body SAR without Holster) ......................................... 25 8.6 Measurement Results(GSM1900 Right Head SAR - Touch) ............................................... 26 8.7 Measurement Results(GSM1900 Right Head SAR - Tilt) .................................................... 27 8.8 Measurement Results(GSM1900 Left Head SAR - Touch).................................................. 28 8.9 Measurement Results(GSM1900 Left Head SAR - Tilt)....................................................... 29 8.10 Measurement Results(GPRS1900 Body SAR without Holster)......................................... 30 9. CONCLUSION .............................................................................................................................. 31 10. REFERENCES ............................................................................................................................ 32 Report Number: FD-204-S1 3 of 32 1. GENERAL INFORMATION Test Sample : Dual-Band Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth. Model Number : SGH-A401 Serial Number : Identical prototype (S/N : # FD-204-S) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : JH KIM Phone : +82-31-301-8044 Fax : +82-31-279-7607 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Nov.04, 2006 ~ Nov. 06 2006 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 826.4 ~ 846.6 MHz (WCDMA850) 1850.20 ~ 1909.80 MHz (GSM1900) 2402 ~ 2480 MHz (Bluetooth) Rx Freq. Range : 871.4 ~ 891.6 MHz (WCDMA850) 1930.20 ~ 1989.80 MHz (GSM1900) 2402 ~ 2480 MHz (Bluetooth) Max. RF Output Power : 1.592 W ERP WCDMA850 (32.02 dBm) 0.243 W EIRP GSM1900 (23.85 dBm) Antenna Manufacturer : SB Telecom Model No.: A401_ANT Antenna Dimensions : 18mm WCDMA850 Support HSDPA Not Support Report Number: FD-204-S1 4 of 32 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested : SGH-A401 FCC ID(Requested) : A3LSGHA401 Report No : FD-204-R1 Job No : FD-204 Date issued : November 10, 2006 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By SH ONG - Test Engineer Checked By WW JANG - Manager Authorized By SH PARK – Senior Manager © Copyright SAMSUNG Electronics 2006 Report Number : FD-204-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION .....................................................................3 1.1. §2.1033 General Information .........................................................................3 2. INTRODUCTION .......................................................................................................4 2.1. General..........................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION ...........................................................5 4. TEST EQUIPMENT LIST...........................................................................................6 5. DESCRIPTION OF TESTS ........................................................................................7 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power ..................7 5.2. Radiated Spurious & Harmonic Emission ......................................................8 5.3. Occupied Bandwidth ....................................................................................10 5.4. Spurious and Harmonic Emission at Antenna Terminal................................10 5.4.1. Occupied Bandwidth Emission Limits ..............................................10 5.4.2. Conducted Spurious Emission .........................................................12 5.5. Frequency Stability / Temperature Variation .................................................13 6. TEST DATA .............................................................................................................14 6.1. Equivalent Isotropic Radiated Power (E.I.R.P.) ............................................14 6.2. GSM1900 Radiated Spurious & Harmonic measurement ............................15 6.3. GSM1900 Radiated Spurious & Harmonic Conversion Table ......................16 6.4. Frequency Stability.......................................................................................17 6.4.1. GSM1900 Frequency Stability Table ................................................17 6.4.2. GSM1900 Frequency Stability Graph...............................................18 7. CONCLUSION.........................................................................................................20 8. TEST PLOTS...........................................................................................................21 Report Number : FD-204-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • Attention : SungJoo KIM, Engineering Manager (QA Lab) • FCC ID : A3LSGHA401 • Quantity : Quantity production is planned • Emission Designators : 247KGXW(GSM1900), 247KG7W(GSM1900 EDGE), 4M18F9W(Cell. WCDMA) • Tx Freq. Range : 1850.2MHz -1909.8MHz (GSM1900) 826.40-846.60MHz (Cellular WCDMA) • Rx Freq. Range : 1930.2MHz - 1989.8MHz (GSM1900) 871.40-891.60 MHz (Cellular WCDMA) • Max. Power Rating : 1.592 W EIRP GSM1900 (32.02dBm) 0.446 W EIRP GSM1900 EDGE(26.49dBm) 0.243 W ERP WCDMA (23.85dBm) • FCC Classification(s) : Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : Dual Mode PCS GSM/EDGE/Cellular WCDMA Phone with Bluetooth • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : 22(H), §24(E), 2 • Dates of Test : November 3-4, November 6-7, 2006 • Place of Test : SAMSUNG Lab, • Test Report S/N : FD-204-R1 Report Number : FD-204-R1 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Figure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FD-204-R1 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. Report Number : FD-204-R1 4. TEST EQUIPMENT LIST Name Of Equip…

Text truncated - open the document above for the full version.

© 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHA401 Dual Mode PCS GSM/EDGE/Cellular WCDMA Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHA401 Dual Mode PCS GSM/EDGE/Cellular WCDMA Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHA401 Dual Mode PCS GSM/EDGE/Cellular WCDMA Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHA401 Dual Mode PCS GSM/EDGE/Cellular WCDMA Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHA401 Dual Mode PCS GSM/EDGE/Cellular WCDMA Phone with Bluetooth © 2006 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHA401 Dual Mode PCS GSM/EDGE/Cellular WCDMA Phone with Bluetooth

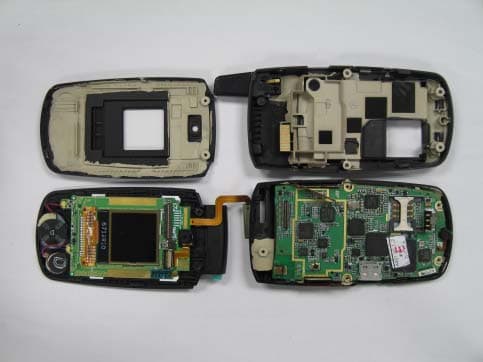

© 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHA401 Dual-Band Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth. © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHA401 Dual-Band Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth. © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHA401 Dual-Band Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth. © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHA401 Dual-Band Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth. © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHA401 Dual-Band Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth. © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHA401 Dual-Band Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth. © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHA401 Dual-Band Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth. © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHA401 Dual-Band Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth. © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHA401 Dual-Band Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth. © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHA401 Dual-Band Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth. © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHA401 Dual-Band Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth. © 2006 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHA401 Dual-Band Dual-Mode GSM/EDGE/WCDMA Phone with Bluetooth.
