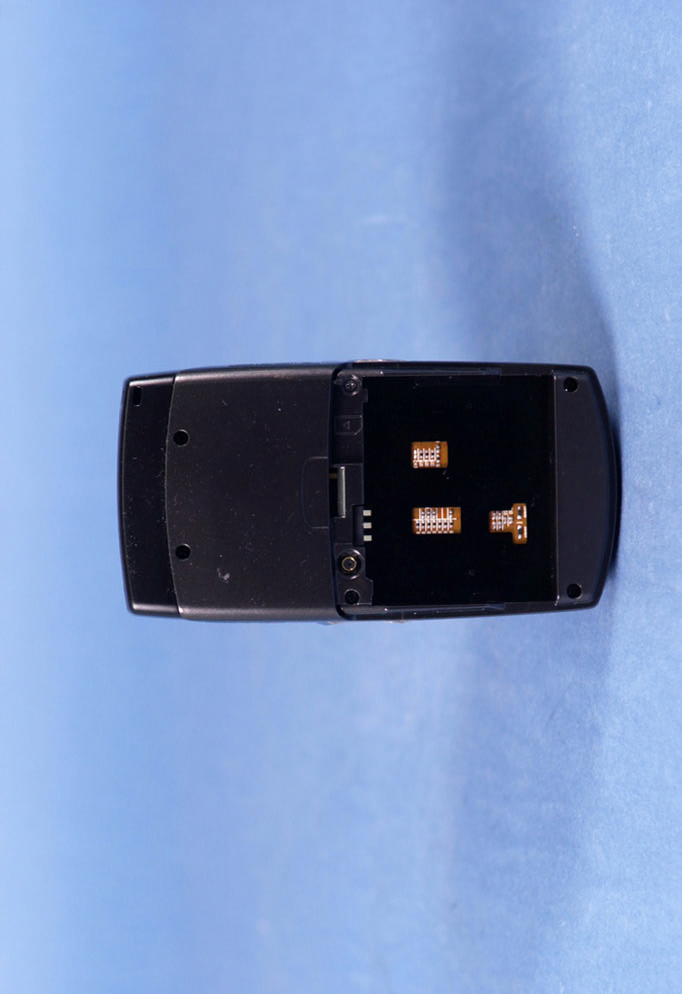

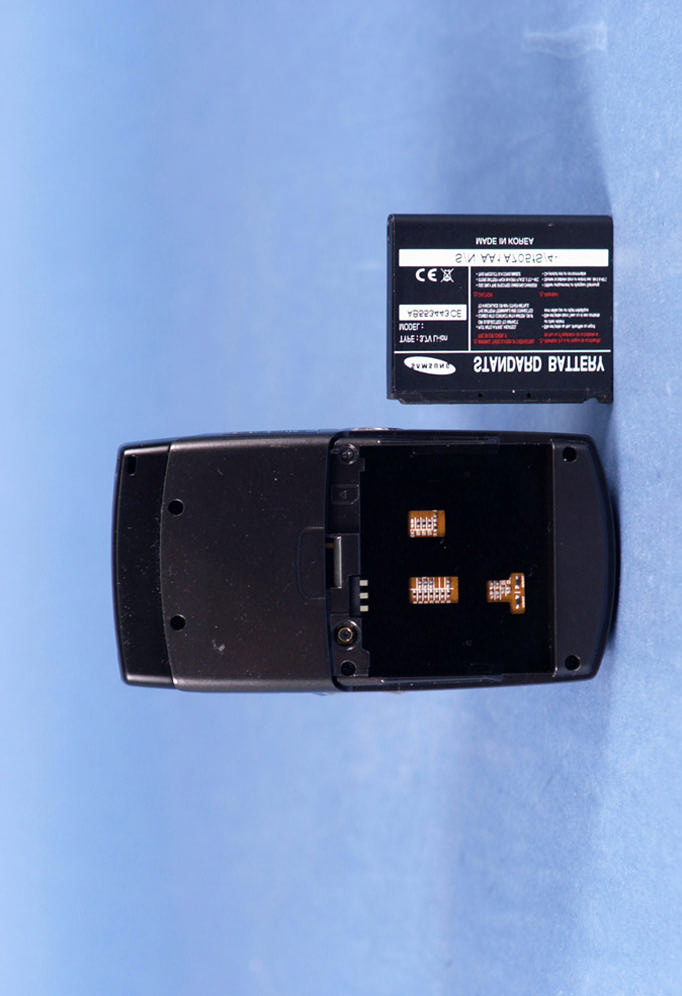

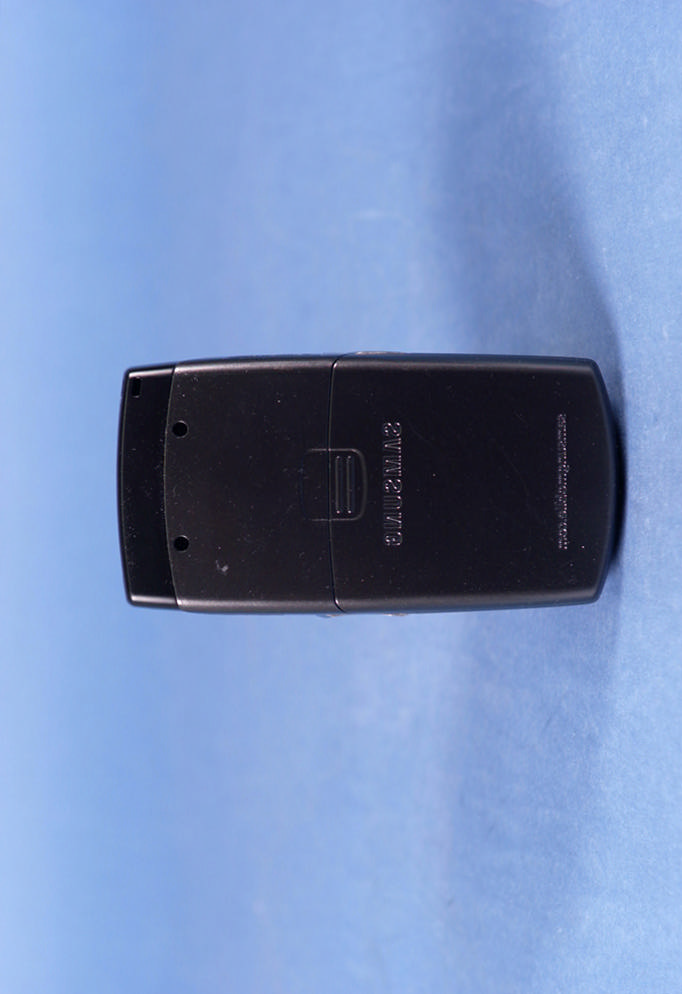

SAMSUNG FCC ID: A3LSGHA707 EUT Photographs © 2006 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone with BT Model: SGH-A707 SAMSUNG FCC ID: A3LSGHA707 EUT Photographs © 2006 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone with BT Model: SGH-A707 SAMSUNG FCC ID: A3LSGHA707 EUT Photographs © 2006 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone with BT Model: SGH-A707 SAMSUNG FCC ID: A3LSGHA707 EUT Photographs © 2006 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone with BT Model: SGH-A707 SAMSUNG FCC ID: A3LSGHA707 EUT Photographs © 2006 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone with BT Model: SGH-A707 SAMSUNG FCC ID: A3LSGHA707 EUT Photographs © 2006 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone with BT Model: SGH-A707 SAMSUNG FCC ID: A3LSGHA707 EUT Photographs © 2006 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone with BT Model: SGH-A707

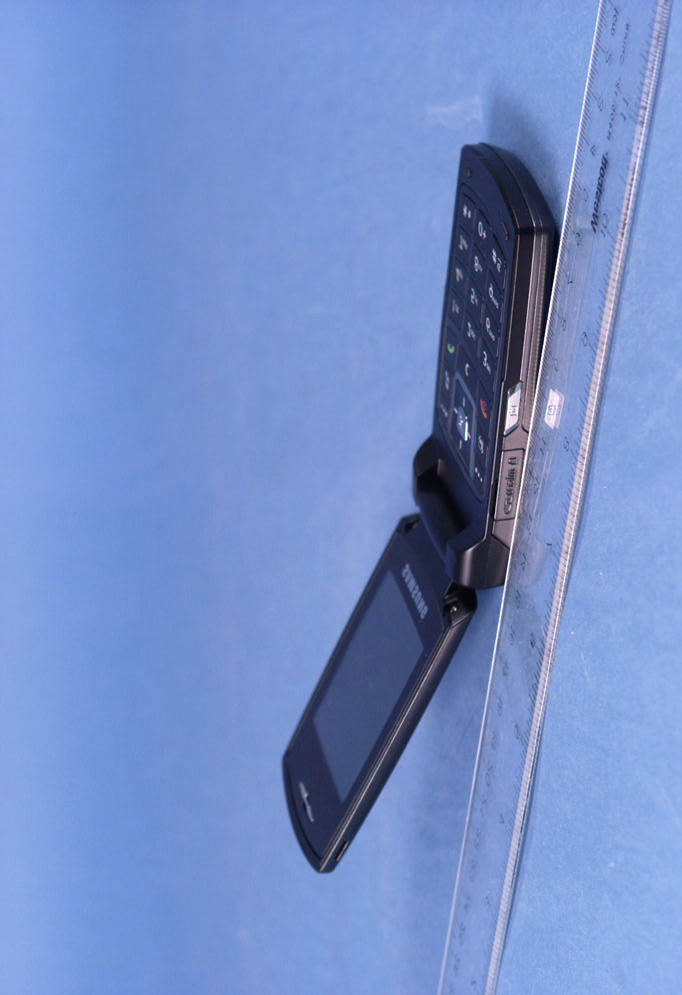

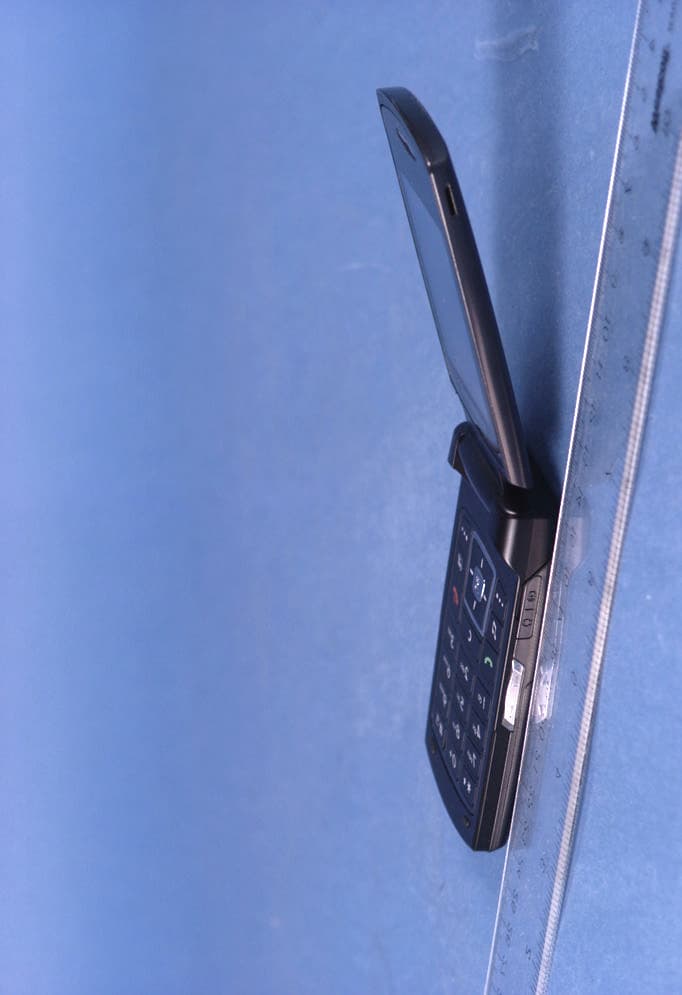

SAMSUNG FCC ID: A3LSGHA707 EUT Photographs © 2006 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone with BT Model: SGH-A707 SAMSUNG FCC ID: A3LSGHA707 EUT Photographs © 2006 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone with BT Model: SGH-A707 SAMSUNG FCC ID: A3LSGHA707 EUT Photographs © 2006 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone with BT Model: SGH-A707 SAMSUNG FCC ID: A3LSGHA707 EUT Photographs © 2006 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone with BT Model: SGH-A707 SAMSUNG FCC ID: A3LSGHA707 EUT Photographs © 2006 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone with BT Model: SGH-A707 SAMSUNG FCC ID: A3LSGHA707 EUT Photographs © 2006 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone with BT Model: SGH-A707 SAMSUNG FCC ID: A3LSGHA707 EUT Photographs © 2006 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone with BT Model: SGH-A707

Reviewed by: FCC ID: A3LSGHA707 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0609150808G 09/22/06 - 09/23/06 Dual-Band GSM/WCDMA Phone with Bluetooth Page 1 of 24 © 2006 PCTEST Engineering Laboratory, Inc. v 3.2 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 09/22/06 - 09/23/06 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 USA PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0609150808 FCC ID: A3LSGHA707 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: Dual-Band GSM/WCDMA Phone with Bluetooth Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): SGH-A707 Tx Frequency: 824.20 - 848.80 MHz (Cellular GSM) 1850.20 - 1909.80 MHz (GSM PCS) Conducted Power: 33.48 dBm @ GSM850 29.63 dBm @ GSM1900 Max. SAR Measurement: 0.236 W/kg GSM Head SAR / 0.499 W/kg GSM Body SAR 0.165 W/kg PCS Head SAR / 0.348 W/kg PCS Body SAR Test Device Serial No.: Pre-Production [S/N: FD-148-J] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not specified in this filing may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: A3LSGHA707 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0609150808G 09/22/06 - 09/23/06 Dual-Band GSM/WCDMA Phone with Bluetooth Page 2 of 24 © 2006 PCTEST Engineering Laboratory, Inc. v 3.2 TABLE OF CONTENTS 1 INTRODUCTION....................................................................................................................3 2 TEST SITE LOCATION...........................................................................................................4 3 SAR MEASUREMENT SETUP................................................................................................5 4 DASY E-FIELD PROBE SYSTEM............................................................................................7 5 PROBE CALIBRATION PROCESS..........................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS..............................................................10 8 DEFINITION OF REFERENCE POINTS................................................................................11 9 TEST CONFIGURATION POSITIONS...................................................................................12 10 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS..................................................................14 11 MEASUREMENT UNCERTAINTIES......................................................................................15 12 SYSTEM VERIFICATION......................................................................................................16 13 FCC 3G MEASUREMENT PROCEDURES – MAY 2006..ERROR! BOOKMARK NOT DEFINED. 14 SAR DATA SUMMARY.........................................................................................................18 15 EQUIPMENT LIST................................................................................................................21 16 CONCLUSION.....................................................................................................................22 17 REFERENCES.....................................................................................................................23 Reviewed by: FCC ID: A3LSGHA707 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0609150808G 09/22/06 - 09/23/06 Dual-Band GSM/WCDMA Phone with Bluetooth Page 3 of 24 © 2006 PCTEST Engineering Laboratory, Inc. v 3.2 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-2002 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring the Specific Absor…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSGHA707 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0609150808W 09/22/06 - 09/23/06 Dual-Band GSM/WCDMA Phone with Bluetooth Page 1 of 24 © 2006 PCTEST Engineering Laboratory, Inc. v 3.21w Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 09/22/06 - 09/23/06 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 USA PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0609150808 FCC ID: A3LSGHA707 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: Dual-Band GSM/WCDMA Phone with Bluetooth Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): SGH-A707 Tx Frequency: 826.40 - 846.60 MHz (Cellular WCDMA) 1852.4 - 1907.6 MHz (PCS WCDMA) Conducted Power: 23.65 dBm @ WCDMA850 23.19 dBm @ WCDMA1900 Max. SAR Measurement: 0.125 W/kg UMTS Head SAR / 0.489 W/kg UMTS Body SAR 0.48 W/kg PCS Head SAR / 0.397 W/kg PCS Body SAR Test Device Serial No.: Pre-Production [S/N: FD-148-J] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: A3LSGHA707 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0609150808W 09/22/06 - 09/23/06 Dual-Band GSM/WCDMA Phone with Bluetooth Page 2 of 24 © 2006 PCTEST Engineering Laboratory, Inc. v 3.21w TABLE OF CONTENTS 1 INTRODUCTION....................................................................................................................3 2 TEST SITE LOCATION...........................................................................................................4 3 SAR MEASUREMENT SETUP................................................................................................5 4 DASY E-FIELD PROBE SYSTEM............................................................................................7 5 PROBE CALIBRATION PROCESS..........................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS..............................................................10 8 DEFINITION OF REFERENCE POINTS................................................................................11 9 TEST CONFIGURATION POSITIONS...................................................................................12 10 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS..................................................................14 11 MEASUREMENT UNCERTAINTIES......................................................................................15 12 SYSTEM VERIFICATION......................................................................................................16 13 FCC 3G MEASUREMENT PROCEDURES – MAY 2006.........................................................17 14 SAR DATA SUMMARY.........................................................................................................18 15 EQUIPMENT LIST................................................................................................................21 16 CONCLUSION.....................................................................................................................22 17 REFERENCES.....................................................................................................................23 Reviewed by: FCC ID: A3LSGHA707 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0609150808W 09/22/06 - 09/23/06 Dual-Band GSM/WCDMA Phone with Bluetooth Page 3 of 24 © 2006 PCTEST Engineering Laboratory, Inc. v 3.21w 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz (c) 2006 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-2002 IEEE Recommended Practice for Measurements and Computations of Radio Frequency Electromagnetic Fields with Respect to Human Exposure, 100 kHz-300 …

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d026 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 40.2, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5 cm Test Date: 09-22-2006; Ambient Temp: 23.2°C; Tissue Temp: 20.4°C Probe: EX3DV4 - SN3589; ConvF(8.36, 8.36, 8.36); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 835MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.58 mW/g; SAR(10 g) = 1.69 mW/g Target SAR(1g) = 2.38 mW/g; Deviation = 8.6 % 0 dB = 3.02mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d026 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 40.2, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5 cm Test Date: 09-23-2006; Ambient Temp: 23.6°C; Tissue Temp: 20.7°C Probe: EX3DV4 - SN3589; ConvF(8.36, 8.36, 8.36); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 835MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.59 mW/g; SAR(10 g) = 1.71 mW/g Target SAR(1g) = 2.38 mW/g; Deviation = 9.1 % 0 dB = 3.02mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 502 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.38 mho/m, ε r = 39.72, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.0 cm Test Date: 09-22-2006; Ambient Temp: 23.2°C; Tissue Temp: 20.4°C Probe: EX3DV4 - SN3589; ConvF(7.11, 7.11, 7.11); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP:1357 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 1900MHz Dipole Validation Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 4.34 mW/g; SAR(10 g) = 2.23 mW/g. Target SAR(1g) =3.97 mW/g; Deviation = 9.3 % 0 dB = 5.42mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 502 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.38 mho/m, ε r = 39.72, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.0 cm Test Date: 09-23-2006; Ambient Temp: 23.6°C; Tissue Temp: 20.7°C Probe: EX3DV4 - SN3589; ConvF(7.11, 7.11, 7.11); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP:1357 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 1900MHz Dipole Validation Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 4.22 mW/g; SAR(10 g) = 2.17 mW/g Target SAR(1g) =3.97 mW/g; Deviation = 6.3 % 0 dB = 5.26mW/g

PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A707; Type: Dual Band WCDMA/GSM /EDGE Phone with BT; S/N: FD-148-J Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 40.2, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 09-22-2006; Ambient Temp: 23.2°C; Tissue Temp: 20.4°C Probe: EX3DV4 - SN3589; ConvF(8.36, 8.36, 8.36); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: GSM850, Right Head, Touch, Mid.ch Area Scan (7x16x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 0.340 V/m Peak SAR (extrapolated) = 0.234 W/kg SAR(1 g) = 0.144 mW/g; SAR(10 g) = n.a. 0 dB = 0.190mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A707; Type: Dual Band WCDMA/GSM /EDGE Phone with BT; S/N: FD-148-J Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 40.2, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 09-22-2006; Ambient Temp: 23.2°C; Tissue Temp: 20.4°C Probe: EX3DV4 - SN3589; ConvF(8.36, 8.36, 8.36); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: GSM850, Right Head, Tilt, Mid.ch Area Scan (7x16x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 0.548 V/m Peak SAR (extrapolated) = 0.187 W/kg SAR(1 g) = 0.137 mW/g; SAR(10 g) = 0.093 mW/g 0 dB = 0.161mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A707; Type: Dual Band WCDMA/GSM /EDGE Phone with BT; S/N: FD-148-J Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 40.2, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 09-22-2006; Ambient Temp: 23.2°C; Tissue Temp: 20.4°C Probe: EX3DV4 - SN3589; ConvF(8.36, 8.36, 8.36); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: GSM850, Left Head, Touch, Mid.ch Area Scan (7x16x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.26 V/m Peak SAR (extrapolated) = 0.332 W/kg SAR(1 g) = 0.236 mW/g; SAR(10 g) = 0.157 mW/g 0 dB = 0.267mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A707; Type: Dual Band WCDMA/GSM /EDGE Phone with BT; S/N: FD-148-J Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 40.2, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 09-22-2006; Ambient Temp: 23.2°C; Tissue Temp: 20.4°C Probe: EX3DV4 - SN3589; ConvF(8.36, 8.36, 8.36); Calibrated: 7/14/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn704; Calibrated: 6/1/2006 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Mode: GSM850, Left Head, Tilt, Mid.ch Area Scan (7x16x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.88 V/m Peak SAR (extrapolated) = 0.042 W/kg SAR(1 g) = 0.033 mW/g; SAR(10 g) = 0.024 mW/g 0 dB = 0.036mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SGH-A707; Type: Dual Band WCDMA/GSM /EDGE Phone with BT; S/N: FD-148-J Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain ( σ = 1.43 mho/m, ε r = 39.72, ρ = 1000 kg/m 3 ) Phantom section: Right …
