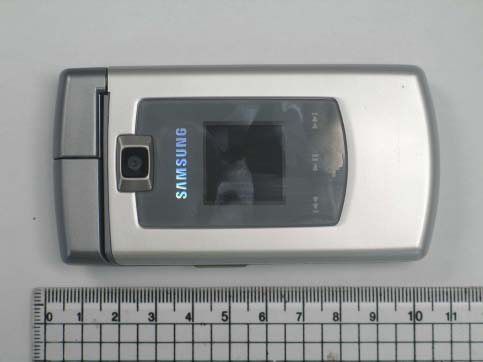

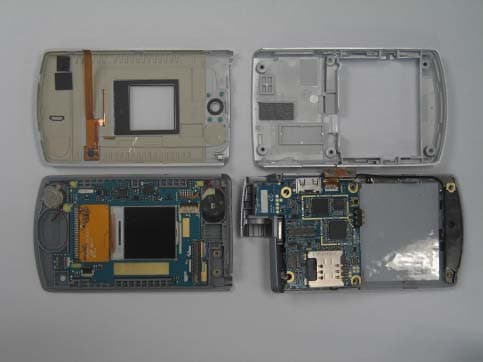

A3LSGHA821Cellular WCDMA/ PCS GSM/ EDGE Phone with Bluetooth

* Depending on the software in stalled or your service provider or country, some of the descriptions in this guide may not match your phone exactly. * Depending on your country, your phone and accessories ma y appear different from the illustrations in this guide. World Wide Webhttp://www.samsungmobile.com Printed in Korea Code No.:GH68-xxxxxA English (AUS). 06/2007. Rev. 1.0 SGH-A 82 1 User’s Guide D ra f t 2007. 0 8 2 1 Important safety precautions Drive safely at all timesDo not use a hand-held phone while driving. Park your vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force.InterferenceAll wireless phones may be subject to interference, which could affect their performance. Failure to comply with the following precautions may be dangerous or illegal. Copyright information•Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide.Bluetooth QD ID: xxxxxxx •Java TM is a trademark or registered trademark of Sun Microsystems, Inc. 1 Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callsKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children. Accessories and batteriesUse only Samsung-approved batteries and accessories, such as headsets and PC data cables.Use of any unauthorized accessories could damage you and your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 34. • The phone could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufacturer’s instructions. At very high volumes, prolonged listening to a headset can damage your hearing. 2 About this GuideThis User’s Guide provides you with condensed information about how to use your phone.In this guide, the following instruction icons appear: Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features. → Indicates that you need to press the Navigation keys to scroll to the specified option and then select it. [ ] Indicates a key on the phone. For example, [ ] < > Indicates a soft key, whose function is displayed on the phone screen. For example, < Select > •3G Your phone is capable of operating in a 3G environment, allowing much greater data transfer speed, video streaming, and video conferencing. Special features of your phone • Camera and camcorder Use the camera module on your phone to take a photo or record a video. • Music player Play music files on your phone. 3 •Java Enjoy Java-based embedded games and download new games. • Image editor Edit or decorate your photos. • Digital data printing Print images, messages, and personal data directly from your phone. •Bluetooth Transfer media files and personal data, and connect to other devices using wireless Bluetooth technology. • File viewer Open documents in various formats on the phone without corruption. •Web browser Access the wireless web to get up-to-the-minute information and a wide variety of media content. •Email Send and receive emails with image, video, and audio attachments. 4 Contents Unpack 6 Make sure you have each itemGet started 6 First steps to operating your phoneKeys and iconsAccess menu functions ................................... 9Enter text .................................................... 10Customise your phone ................................... 11Step outside the phone 14 Begin with call functions, camera, music player, web browser, and other special featuresMake or answer calls ..................................... 14Use the camera ............................................ 15Play music ................................................... 16Browse the web............................................ 18Use Phonebook............................................. 18 Send messages ............................................ 19View messages ............................................ 21Use Bluetooth .............................................. 21Switch applications ....................................... 23 Menu functions 25 All menu options listedHealth and safety information 34 5 1 Call log2 Phonebook3 Music player4 Browser1 BigPond Home2 Enter URL3 Bookmarks4 Saved pages 5 History6 Advanced7 Browser settings5 My PlaceBigPondFOXTELYellow searchBigPond Music 5 My PlaceMy EmailCall 1234 infoWhereis MapsBigBlog & PhotosDownloadsMy Account6 Messages1 Create message2 Inbox3 Email inbox4 Drafts5 Outbox6 Sentbox7 My folders8 Templates9 Delete all10 Messages settings11 Memory status7 Calendar 8 Camera9 My filesImagesVideosSoundsGames and moreOther files* Applications1 Voice recorder2 Memo3 Task4 Calculator5 Converter6 Timer7 Stopwatch8 World clock9 PocketNews 1 0 Alarms# Settings1 Phone profiles2 Time & date3 Display settings4 Phone settings5 Call settings6 Security7 Application settings8 Connectivity9 Memory settings10 Master reset 1. Available only if supported by your USIM or SIM card. Overview of menu functions To access Menu mode, press [ OK ] in Idle mode. 6 Unpack Make sure you have each item• Phone•Travel…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: August 31, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSGHA821 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics CONFIDENTIAL 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

From: 김성연 [[email protected]] Sent: Sunday, September 09, 2007 8:41 PM To: PCTEST TCB Cc: 장왈운; 장우태; PCTEST - Gregory Czumak; PCTEST - Randy Ortanez; PCTEST - Steve Liu; PCTEST - Mia Kang; 박병준 ; 이현경 Subject: Re: Question Regarding FCC ID: A3LSGHA821 Page 1 of 2Samsung Enterprise Portal mySingle 9/10/2007 Hello Gregory, The EUT does not employ 3GPP Release6 (HSDPA/HSUPA) but employ 3GPP Release5 (HSDPA). Sincerely, David Kim Quality Manager SAMSUNG ELECTRONICS., LTD. Regulatory Compliance Group Tel. 82.31.301.8414 Fax. 82.31.279.7799 [email protected] ------- Original Message ------- Sender : PCTEST TCB<[email protected]> Date : 2007-09-08 05:16 Title : Question Regarding FCC ID: A3LSGHA821 To: Mr. Chase Jang / Samsung Electronics Co., Ltd. From: Mr. Gregory Czumak / PCTEST TCB RE: FCC ID: A3LSGHA821 Applicant: Samsung Electronics Co., Ltd. Correspondence Reference Number: A3L7761 Confirmation Number: 708310761-63 Date of Original Email: September 7, 2007 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. 1. Please verify that the EUT does not employ 3GPP Release 6 (HSDPA/HSUPA). The item indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Gregory Czumak Senior Certification Engineer Quality Manager PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you. Page 2 of 2Samsung Enterprise Portal mySingle 9/10/2007

znoTh_YXOzhP wwGRGvwwGO{dWUW_P ⵉ䈐㇤ 㦤ᷱ䞌 W^W^WZW^W^WZ ptlpa tvklsGaGznoTh_YX yh{lkGaGZU^G} `WWG”h mjjGpkGaGhZsznoh_YX zzuGaGTh_YXnzto thklGpuGrvylhGi€Gzhtz|un ptlpa tvklsGaGznoTh_YX yh{lkGaGZU^G} `WWG”h mjjGpkGaGhZsznoh_YX zzuGaGTh_YXnzto thklGpuGrvylhGi€Gzhtz|un

of 32 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SGH-A821 FCC ID (Requested): A3LSGHA821 Job No: FE-158 Report No: FE-158-S1 Date issued: Aug.30,2007 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By DK LEE - Test Engineer Authorized By JH NAM - Technical Manager Report Number: FE-158-S1 2 of 32 Contents 1. GENERAL INFORMATION............................................................................................................. 3 2. DESCRIPTION OF DEVICE ........................................................................................................... 3 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................... 4 3.1 SAR Measurement Setup ......................................................................................................4 3.2 E-field Probe .......................................................................................................................... 6 3.3 SAM Phantom ........................................................................................................................ 8 3.4 Brain & Muscle Simulating Mixture Characterization ............................................................. 8 3.5 Device Holder for Transmitters ..............................................................................................9 3.6 Validation Dipole .................................................................................................................... 9 3.7 Equipment Calibration.......................................................................................................... 10 4. SAR MEASUREMENT PROCEDURE ......................................................................................... 11 5. DESCRIPTION OF TEST POSITION ........................................................................................... 12 5.1 SAM Phantom Shape...........................................................................................................12 5.2 Cheek/Touch Position .......................................................................................................... 12 5.3 EAR/Tilt 15° Position ............................................................................................................ 14 5.4 Body Holster/Belt Clip Configurations.................................................................................. 15 6. MEASUREMENT UNCERTAINTY................................................................................................ 17 7. SYSTEM VERIFICATION ............................................................................................................. 19 7.1 Tissue Verification ................................................................................................................ 19 7.2 Test System Validation ......................................................................................................... 19 8. SAR MEASUREMENT RESULTS................................................................................................20 8.1 Measurement Results(WCDMA850 Right Head SAR - Touch) ........................................... 21 8.2 Measurement Results(WCDMA850 Right Head SAR - Tilt) ................................................ 22 8.3 Measurement Results(WCDMA850 Left Head SAR - Touch).............................................. 24 8.4 Measurement Results(WCDMA850 Left Head SAR - Tilt)................................................... 24 8.5 Measurement Results(WCDMA850 Body SAR without Holster) ......................................... 25 8.6 Measurement Results(GSM1900 Right Head SAR - Touch) ............................................... 26 8.7 Measurement Results(GSM1900 Right Head SAR - Tilt) .................................................... 27 8.8 Measurement Results(GSM1900 Left Head SAR - Touch................................................... 29 8.9 Measurement Results(GSM1900 Left Head SAR - Tilt)....................................................... 29 8.10 Measurement Results(GSM1900 Body SAR without Holster)........................................... 31 9. CONCLUSION ............................................................................................................................ 312 10. REFERENCES ............................................................................................................................ 32 Report Number: FE-158-S1 3 of 32 1. GENERAL INFORMATION Test Sample : Single band GSM/EDGE and WCDMA Phone With Bluetooth Model Number : SGH-A821 Serial Number : Identical prototype (S/N : # FE-158-B) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : SN KANG Phone : +82-31-301-0549 Fax : - Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Aug.23, 2007 ~ Aug.24, 2007 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 826.4 ~ 846.6 MHz (WCDMA850) 1850.20 ~ 1909.80 MHz (GSM1900) 2402 ~ 2480 MHz (Bluetooth) Rx Freq. Range : 871.4 ~ 891.6 MHz (WCDMA850) 1930.20 ~ 1989.80 MHz (GSM1900) 2402 ~ 2480 MHz (Bluetooth) Antenna Manufacturer : YOKOWO Model No.: SGH-A821 Antenna Dimensions : 45.05 mm WCDMA 850 Supported HSDPA Supported Report Number: FE-158-S1 4 of 32 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equ…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested : SGH-A821 FCC ID(Requested) : A3LSGHA821 Report No : FE-158-R1 Job No : FE-158 Date issued : September 03, 2007 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By JW LEE– Test Engineer Authorized By WW JANG - Technical Manager Report Number : FE-158-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION .....................................................................3 1.1. §2.1033 General Information .........................................................................3 2. INTRODUCTION .......................................................................................................4 2.1. General..........................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION ...........................................................5 4. TEST EQUIPMENT LIST...........................................................................................6 5. DESCRIPTION OF TESTS ........................................................................................7 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power ..................7 5.2. Radiated Spurious & Harmonic Emission ......................................................8 5.3. Occupied Bandwidth ....................................................................................10 5.4. Spurious and Harmonic Emission at Antenna Terminal................................10 5.4.1. Occupied Bandwidth Emission Limits ..............................................10 5.4.2. Conducted Spurious Emission .........................................................12 5.5. Frequency Stability / Temperature Variation .................................................13 6. TEST DATA .............................................................................................................14 6.1. Equivalent Isotropic Radiated Power (E.I.R.P.) ............................................14 6.2. GSM1900 Radiated Spurious & Harmonic measurement ............................15 6.3. GSM1900 Radiated Spurious & Harmonic Conversion Table ......................16 6.4. Frequency Stability.......................................................................................17 6.4.1. GSM1900 Frequency Stability Table ................................................17 6.4.2. GSM1900 Frequency Stability Graph...............................................18 7. CONCLUSION.........................................................................................................20 8. TEST PLOTS...........................................................................................................21 Report Number : FE-158-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • Attention : SungJoo KIM, Engineering Manager (QA Lab) • FCC ID : A3LSGHA821 • Quantity : Quantity production is planned • Emission Designators : 250KGXW(GSM1900) 246KG7W(GSM1900 EDGE) 4M17F9W(Cellular WCDMA) • Tx Freq. Range : 826.4 - 846.6MHz(Cellular WCDMA) 1850.2MHz - 1909.8MHz (GSM1900) • Rx Freq. Range : 871.40-891.60 MHz (Cellular WCDMA) 1930.2MHz - 1989.8MHz (GSM1900)) • Max. Power Rating : 0.121 W ERP Cellular WCDMA (20.82dBm) 1.033 W EIRP GSM1900 (30.14dBm) 0.632 W EIRP GSM1900 EDGE(28.01 dBm) • FCC Classification(s) : Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : 850 WCDMA/HSDPA and 1900 GSM/EDGE Phone with Bluetooth. • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §22(H), §2. • Dates of Test : August 21-22 , 2007 • Place of Test : SAMSUNG Lab, • Test Report S/N : FE-158-R1 Report Number : FE-158-R1 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on the rotating device at the same height and at a distance of 3-meters from the receive antenna. The rotating device which can rotate horizontal axis was mounted on the turn unit to facilitate rotation around a vertical axis. The measurement was made for each horizontal/vertical position combination with receive antenna horizontally polarized. This measurement was repeated with receive antenna vertically polarized. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure2. Photograph of 3m Fully-Anechoic Chamber Figure1. Map of the Suwon City area. Report Number : FE-158-R1 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. Report Number…
