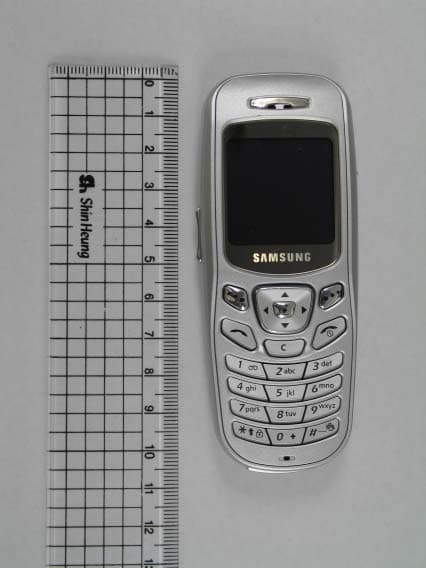

A3LSGHC230Single-Band PCS GSM Phone

* Some of the contents of this manual may differ from your phone, depending on the software insta lled or your service provider. * Depending on your country, your phone and accessories may appear different from the illustrations in this manual. World Wide Webhttp://www.samsungmobile.com Printed in Korea Code No.:GH68-xxxxxA English. 03/2005. Rev 1.0 SGH-C230User’s Guide Use road safety at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Important safety precautions 1 InterferenceAll wireless phones may be subject to interference, which could affect their performance. Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callKey in the emergency number for your present location, then press [ ]. Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children.Accessories and batteriesUse only Samsung-approved accessories and batteries. Use of any unauthorised accessories could damage your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 62. • The phone could explode if the battery is replaced with an incorrect type.• Dispose of used batteries according to the manufacturer’s instructions. 2 About this GuideThis User’s Guide provides you with condensed information about how to use your phone. To quickly learn the basics for your phone, please refer to “Getting started and Step outside the phone.”In this guide, the following instruction icons appear: Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features.  Indicates that you can get more information on the referenced page. → Indicates that you need to press the Navigation keys to scroll to the specified option and then select it. [ key name ] Indicates a key on the phone. For example, [] < soft key > Indicates a soft key, whose function is displayed on the phone screen. For example, < Menu > •Tri-band operation Use your phone in worldwide GSM networks, in any of 900, 1800, and 1900 bands. Special features of your phone • Simple, compact design with Intenna Samsung’s powerful intenna technology allows the best call quality without an annoying external antenna. •WAP browser Access the wireless web and access various services and up-to-the-minute information. 3 Special features of your phone •Phonebook Store up to 2000 contact numbers. • Multimedia Message Service (MMS) Send and receive MMS messages with a combination of text, images, and sounds. •FM radio Listen to your favourite radio channels using the headset. • Calendar and To do list Keep track of your daily, weekly, and monthly schedules and tasks. • Voice recorder Record memos or sounds. •Java Enjoy Java ™ -based embedded games and download new games. •IrDA Send and receive Phonebook and Organiser data via an infrared port. 4 Contents Unpack 6 Make sure you have each itemYour phone 6 Buttons, features, and locationsGet started 7 First steps to operate your phoneInstall and charge the phone ................................... 7Power on or off ...................................................... 8Keys and display .................................................... 9Access menu functions.......................................... 11Customise your phone .......................................... 12Make/Answer calls................................................ 13Step outside the phone 14 Begin with your WAP, messages, FM radio, and other special featuresBrowse WAP ........................................................ 14 Use Phonebook .................................................... 14Send messages.................................................... 15View messages .................................................... 16Listen to the FM radio ........................................... 17 Enter text 18 ABC, T9, Number, and Symbol modeCall functions 21 Advanced calling featuresMenu functions 25 All menu options listedSolve problems 60 Health and safety information 62 Index 68 5 Overview of menu functions To access Menu mode, press < Menu > in Idle mode. 1 SIM AT  p. 28 2 2 Call records  p. 29 1 Missed calls2 Received calls3 Dialled calls4 Delete all5 Call time6 Call costs *  p. 29  p. 29  p. 29  p. 29  p. 29  p. 30 3 Network services  p. 30 1 Call diverting2 Call barring3 Call waiting4 Network selection5 Caller ID6 Closed user group7 Band selection  p. 30  p. 31  p. 32  p. 32  p. 32  p. 33  p. 33 4 Sound settings  p. 34 1 Ring tone2 Ring volume3 Alert type4 Keypad tone5 Message tone6 Alert on call7 Power on/off8 Extra tones  p. 34  p. 34  p. 34  p. 34  p. 34  p. 35  p. 35  p. 35 5 Messages  p. 35 1 Text messages2 Multimedia messages3 Push messages  p. 35  p. 40  p. 44 6 Funbox  p. 45 1 WAP browser2 Games3 Sounds4 Images5 Delete all6 Memory status  p. 45  p. 47  p. 48  p. 48  p. 49  p. 49 7 Organiser  p. 49 1 Alarm2 Calendar3 Time & Date4 Calculator5 To do list6 Voice memo7…

Text truncated - open the document above for the full version.















































April 4, 2005        !"# $%&' ( &) "*   +,-   . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4  .(5(65(5 / (5 1 # )57/(5)8 )94144 *4    1    1: ;&/ 1&19<;3<4




















































April 4, 2005
!
 ""
 ""
#$%"
 &
'
()
*+  !

, !
 "-

)


 .
/01
#
 23!

.
A3LSGHC230 , $
5
 5!

1  " .


 !
6
2)
5
 ,
)(
/01
#
 2
3!
  -
 $

 5!
5

' +
7"

7"

 %
8
3

 !
*%
 %
"
5

-9
%%  2

:
! "

!  !
  "
 !
$%"
! %
 !
  !
 5 "

-

% !
6
/01
#
 2
3!
 !
-  7
% %

 5!
 !

  "
! 7
 !
 6
6  !




7
%- 2




! 7


-
5 "
6
5
  7
% !
6

/01

#
 2
3!
 !


 5 "
6  !
-
5
- 5


 "%
 !


!
5

 5 "


! "
6  !
7
 "%

 5
! 7


"+ 2







;"
<
"
=
3-
/01
#
"
0





















































































April 4, 2005

!
 ""
 ""
 #
 !
$
%
$&'"
 #
(
)*
+,  !

- !
 ".

*



 /
012
$
 %
3!%

/
A3LSGHC230 - &
5
 67 "
 5!


7
8 "


   /


 !
9
%*)
 !
%*
5
 -
*)
012
$
 %
3!%
 &
 6  "
 5!
5


'
'
:
'

'
 !
 ;
"
5

 !

 ' %

7
! "

!  !
  "
 !
&'"
! '
 !
  !
 5 "
.

' !
9
012
$
 %3!

 !

.
' '
 5!
 !

  "
! <
 !
 9
9  !




<
'. %


! <


.
5 "
9
5
  <
' !
9

012
$
 %
3!
5


 5 "
9  !
.
5
. 5


 "'
 !


!
5

 5 "


! "
9  !
<

 "'

 5
! <


", %






="
>
"
?
3.
012
$
"
1%

© 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone

© 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone

1 of 25 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Team IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 442-742 TEST REPORT ON SAR Model Tested: SGH-C230 FCC ID (Requested): A3LSGHC230 Job No: FC-033 Report No: FC-033-S1 Date issued: Apr. 1, 2005 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By Date KS AN - Test Engineer Checked By Date JH CHOI - Manager Authorized By Date JK CHOI - Senior Manager Report Number : FC-033-S1 2 of 25 Contents 1. General Information.............................................................................................3 2. Description of Device...........................................................................................3 3. Description of Test Equipment..............................................................................4 3.1 SAR Measurement Setup.........................................................................................4 3.2 DASY4 E-Field Probe.............................................................................................5 3.3 SAM Phantom.....................................................................................................6 3.4 Brain & Muscle Simulating Mixture Characterization.......................................................7 3.5 Device Holder for transmitters....................................................................................8 3.6 Validation Dipole....................................................................................................8 3.7 Equipment Calibration.............................................................................................9 4. SAR Measurement Procedure.............................................................................10 5. Description of test position..............................................................................11 5.1 SAM Phantom Shape.............................................................................................11 5.2 Cheek/Touch Position............................................................................................11 5.3 Ear/Tilt 15 Position..............................................................................................13 5.4 Body/Holster/Belt Clip Configuration..........................................................................14 6. Measurement Uncertainty...................................................................................16 7. System Verification............................................................................................17 7.1 Tissue Verification.................................................................................................17 7.2 Test System Validation...........................................................................................17 8. SAR Measurement Results.................................................................................18 8.1 Measurement Results(GSM1900 Right Head SAR-Touch)......................................19 8.2 Measurement Results(GSM1900 Right Head SAR-Tilt).............................................20 8.3 Measurement Results(GSM1900 Left Head SAR-Touch)...........................................21 8.4 Measurement Results(GSM1900 Left Head SAR-Tilt)...............................................22 8.5 Measurement Results(GSM1900 Body SAR w/o Holster).......................................23 9. Conclusion.......................................................................................................24 10. Reference.......................................................................................................25 Report Number : FC-033-S1 3 of 25 1. GENERAL INFORMATION Test Sample : Dual-Band GSM1900 Phone Model Number : SGH-C230 Serial Number : Identical prototype (S/N : FC-033-B) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : SH Lee, Engineer Phone : +82-31-279-6554 Fax : +82-31-279-6263 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Mar. 25, 2005 - Mar. 28, 2005 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 1850.20 – 1909.80 MHz (GSM1900) Rx Freq. Range : 1930.20 – 1989.80 MHz (GSM1900) Max. RF Output Power : 0.766W EIRP GSM1900 (28.84dBm) Antenna Manufacturer : EMW Model No.: HIR-01503-0000AA Antenna Dimensions : 34.8mm 22mm6.2mm Report Number : FC-033-S1 4 of 25 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung computer with Windows XP system and SAR Measurement Software DASY4, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A data acquisition electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. is connected to the Electro-optical coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data to the measuremen…

Text truncated - open the document above for the full version.

SAMSUNG FCC ID : A3LSGHC230 -- 1900MHz GSM1900 Head SAR DUT: SGH-C230; Serial: FC-033-B Program Name: SGH-C230 GSM1900 Right (Job No. : FC-033) Procedure Name: Cheek/Touch, Ch.512, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.3; Test Date-28/Mar/2005 [OET Bulletin 65-Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1850.2 MHz; σ = 1.4 mho/m; ε r = 38.6; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(8.29, 8.29, 8.29); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch, Ch.512, Ant.Intenna, Bat.Standard/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.301 mW/g Cheek/Touch, Ch.512, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.8 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.370 W/kg SAR(1 g) = 0.265 mW/g Maximum value of SAR (measured) = 0.288 mW/g SAMSUNG FCC ID : A3LSGHC230 -- 1900MHz GSM1900 Head SAR DUT: SGH-C230; Serial: FC-033-B Program Name: SGH-C230 GSM1900 Right (Job No. : FC-033) Procedure Name: Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.3; Test Date-28/Mar/2005 [OET Bulletin 65-Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.4 mho/m; ε r = 38.6; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(8.29, 8.29, 8.29); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.221 mW/g Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.7 V/m; Power Drift = 0.084 dB Peak SAR (extrapolated) = 0.387 W/kg SAR(1 g) = 0.213 mW/g Maximum value of SAR (measured) = 0.235 mW/g SAMSUNG FCC ID : A3LSGHC230 -- 1900MHz GSM1900 Head SAR DUT: SGH-C230; Serial: FC-033-B Program Name: SGH-C230 GSM1900 Left (Job No. : FC-033) Procedure Name: Cheek/Touch, Ch.512, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.3; Test Date-28/Mar/2005 [OET Bulletin 65-Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1850.2 MHz; σ = 1.4 mho/m; ε r = 38.6; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(8.29, 8.29, 8.29); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch, Ch.512, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.8 V/m; Power Drift = -0.046 dB Peak SAR (extrapolated) = 0.369 W/kg SAR(1 g) = 0.266 mW/g Maximum value of SAR (measured) = 0.281 mW/g Cheek/Touch, Ch.512, Ant.Intenna, Bat.Standard/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.308 mW/g SAMSUNG FCC ID : A3LSGHC230 -- 1900MHz GSM1900 Head SAR DUT: SGH-C230; Serial: FC-033-B Program Name: SGH-C230 GSM1900 Left (Job No. : FC-033) Procedure Name: Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.3; Test Date-28/Mar/2005 [OET Bulletin 65-Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.4 mho/m; ε r = 38.6; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(8.29, 8.29, 8.29); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.0 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.348 W/kg SAR(1 g) = 0.204 mW/g Maximum value of SAR (measured) = 0.219 mW/g Ear/Tilt, Ch.661, Ant.Intenna, Bat.Standard/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.243 mW/g SAMSUNG FCC ID : A3LSGHC230 -- 1900MHz GSM1900 Head SAR DUT: SGH-C230(Body); Serial: FC-033-B Program Name: SGH-C230 GSM1900 Body (Job No. : FC-033) Procedure Name: Body, Ch.512, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.1;Test Date-25/Mar/2005[OET Bulletin 65-Supplement C, July 2001] Communication System: Body GPRS ; Frequency: 1850.2 MHz;Duty Cycle: 1:4.15 Medium parameters used: f = 1850.2 MHz; σ = 1.56 mho/m; ε r = 51.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(7.76, 7.76, 7.76); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Body, Ch.512, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.9 V/…

Text truncated - open the document above for the full version.

1900MHz Brain Dipole Validation DUT: Dipole 1900 MHz; Serial: 548 Program Name: 1900 Dipole Validation 2005.03.25 Procedure Name: 1900MHz @250mW Procedure Notes: : Meas.Tissue Temp(celsius)-21.1; Test Date-25/Mar/2005 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.4 mho/m; ε r = 38.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(8.29, 8.29, 8.29); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1143 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 1900MHz @250mW/Area Scan (51x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 15.4 mW/g 1900MHz @250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 89.2 V/m; Power Drift = -0.021 dB Peak SAR (extrapolated) = 18.6 W/kg SAR(1 g) = 9.99 mW/g; SAR(10 g) = 5.19 mW/g Maximum value of SAR (measured) = 11.1 mW/g 1900MHz Brain Dipole Validation DUT: Dipole 1900 MHz; Serial: 548 Program Name: 1900 Dipole Validation 2005.03.28 Procedure Name: 1900MHz @250mW Procedure Notes: : Meas.Tissue Temp(celsius)-21.2; Test Date-28/Mar/2005 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.4 mho/m; ε r = 38.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3537; ConvF(8.29, 8.29, 8.29); Calibrated: 2004-12-15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn468; Calibrated: 2004-12-07 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1248 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 1900MHz @250mW/Area Scan (51x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 15.2 mW/g 1900MHz @250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 89.6 V/m; Power Drift = 0.012 dB Peak SAR (extrapolated) = 19.5 W/kg SAR(1 g) = 10.3 mW/g Maximum value of SAR (measured) = 11.5 mW/g

© 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone 1.5cm © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC230 GSM1900 Phone

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested: SGH-C230 FCC ID (Requested): A3LSGHC230 Report No: FC-033-R1 Job No: FC-033 Date issued: March 31, 2005 - Abstract – All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By Date SS LEE – Test Engineer Checked By Date JH CHOI - Engineer Authorized By Date JK CHOI – Senior Manager © Copyright SAMSUNG Electronics 2005 2005.03.31 2005.04.01 2005.03.31 Report Number : FC-033-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information 3 1.1 2.1033 General Information 3 2. INTRODUCTION 4 2.1 General 4 3. MEASURING INSTRUMENT CALIBRATION 5 4. TEST EQUIPMENT LIST 6 5. DESCRIPTION OF TESTS 7 5.1 Equivalent Isotropic Radiated Power 7 5.2 Radiated Spurious & Harmonic Emission 8 5.3 Occupied Bandwidth 9 5.4 Spurious and Harmonic Emissions at Antenna Terminal 9 5.4.1 Occupied Bandwidth Emission Limits 9 5.4.2 Conducted Spurious Emission 11 5.5 Frequency Stability / Temperature Variation 13 6. TEST DATA 14 6.1 Equivalent Isotropic Radiated Power (E.I.R.P.) 14 6.2 Radiated Spurious & Harmonic Measurement 15 6.3 Radiated Spurious & Harmonic Conversion Table 16 6.4 Frequency Stability 17 6.4.1 Frequency Stability Table 17 6.4.2 Frequency Stability Graph 18 7. CONCLUSION 20 8. TEST PLOTS 21 Report Number : FC-033-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 442-742 Attention: FCC ID: SungJoo KIM, Engineering Manager (QA Lab) A3LSGHC230 Quantity: Quantity production is planned Emission Designators: 250KGXW Tx Freq. Range: 1850.2MHz -1909.8MHz Rx Freq. Range: 1930.2MHz – 1989.8MHz Max. Power Rating: 0.766 W EIRP GSM1900 (28.84 dBm) FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) Equipment (EUT) Type: GSM1900/PCS Phone Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 24(E), Dates of Test: March. 24-25, 2005 Place of Test: SAMSUNG Lab, Test Report S/N: FC-033-R1 - End of page - Report Number : FC-033-R1 2. INTRODUCTION General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 442-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FC-033-R1 3.MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. - End of page - Report Number : FC-033-R1 4. TEST EQUIPMENT LIST Name of Equipment Model Serial No. Due Date ESI26 836119/010 2005-09-20 E4440A(3Hz~26.5GHz) MY41000236 2005-10-27 Spectrum Analyzer E4440A(3Hz~26.5GHz) MY41000233 2005-11-04 SMIQ03B 83824/021 2005-12-27 Signal Generator SMR20 835197/030 2006-01-18 Power Meter E4419B GB41293846 2005-09-21 8481B 331…

Text truncated - open the document above for the full version.
