A3LSGHC500LPCS GSM Phone

Printed in Korea Code No.: GH68-xxxxxA English (LTN). 03/2007. Rev.1.0 World Wide Web http://www.samsungmobile.com SGH-C500LUser’s Guide • Depending on the software installed or your service provider or country, some of the descriptions in this guide may not match your phone exactly. • Depending on your country, your phone and accessories may appear different from the illustrations in this guide. 1. SIM AT*2. Call records2.1 Missed calls2.2 Received calls2.3 Dialled calls2.4 Delete all2.5 Call time2.6 Call cost*3. Network services3.1 Call diverting3.2 Call barring3.3 Call waiting3.4 Network selection3.5 Caller ID3.6 Closed user group3.7 Band selection4. Sound settings4.1 Ring tone4.2 Ring volume4.3 Alert type4.4 Keypad tone4.5 Message tone 4.6 Alert on call4.7 Power on/off4.8 Extra tones 5. Messages5.1 Text messages5.2 Multimedia messages5.3 Push messages5.4 Configuration messages5.5 SOS messages6. Funbox6.1 WAP browser6.2 Games6.3 Sounds6.4 Images6.5 Delete all6.6 Memory status7. Organiser7.1 Alarm7.2 Calendar7.3 Time & Date7.4 Calculator7.5 To do list7.6 Voice memo8. Camera8.1 Take photos8.2 My photos8.3 Memory status 9. Phone settings9.1 Display settings9.2 Greeting message9.3 Own number9.4 Language9.5 Security9.6 Extra settings9.7 Shortcuts9.8 Volume key9.9 Connection settings9.0 Reset settingsPress the Ph.Book soft key in Idle mode.1 Search2 New entry3 Group search4 Edit group5 Speed dial6 Delete all7 Memory status8 SDN* * Shows only if supported by your SIM card. Phone layout and key functions Web access/ Confirm key In Idle mode, accesses the web browser. Selects the highlighted option or confirms input in a menu mode. Dial key Makes and answers a call. In Idle mode, retrieves the most recent calls. Volume keys In Idle mode, adjust the keypad tone volume. Send an SOS message when pressed four times. X SOS mode Soft keysPerform functions indicated by the text above the key. Power/End keyTurns the phone on or off when pressed and held. Also ends a call.Cancel/Clear keyDeletes characters from the display. Returns the display to the previous menu level. Silent mode key X Silent mode Voicemail server key X Voicemail server Alphanumeric keys 4-way navigation keysIn Menu mode, scroll through menu options.In Idle mode, access your favourite menus directly. Installing the SIM card and battery 1. Remove the battery cover and insert the SIM card. 2. Install the battery and reattach the cover. Battery cover Battery Charging the battery 1. Plug the supplied travel adapter. 2. When charging is finished, unplug the adapter. Note : Do not remove the battery from the phone without unplugging the adapter first. Otherwise, the phone may be damaged. To AC wall outlet Adjusting the volume 1. In Idle mode, press the Menu soft key. 2. Select Sound settings → Ring volume . 3. Press Up or Down to adjust the volume level. 4. Press the OK soft key. While a call is in progress, press the Volume keys to adjust the earpiece volume. Changing a ringtone for calls 1. In Idle mode, press the Menu soft key. 2. Select Sound settings → Ring tone . 3. Select a ringtone. Redialling recent numbers 1. In Idle mode, press . 2. Press Up or Down to scroll to the number you want. 3. Press to dial the number. Using the menus In Idle mode, press the Menu soft key to enter the main menu. Use the 4-way navigation keys ( ) as shortcuts to access your favourite menus.1. In Idle mode, press the Menu soft key. 2. Select Phone settings → Shortcuts . 3. Select a key.4. Select a menu to be assigned to the key. To exit the menu without changing the menu settings, press this key. Labels at the bottom corners of the display show the current soft key functions. Press the left soft key ( ) or right soft key ( ) to perform the function indicated. To return to the previous menu level, press the soft key or c . To select or modify a menu or feature:1. In Idle mode, press the Menu soft key. 2. Press the Navigation keys to reach a desired menu and then press the Select soft key or . 3. If the menu contains any submenus, locate the one you want by pressing the Navigation keys. Press the Select soft key or to enter the submenu. If the selected menu contains additi onal submenus, repeat this step. 4. Press the Navigation keys to find the setting of your choice.5. Press the Select soft key or to confirm your chosen setting. Shortcut numbersYou can quickly access the menu you want by using shortcut numbers. The shortcut number displays in front of the menu name in Menu mode. Switching on or off the phone 1. Press and hold for more than one second to switch on the phone. 2. To switch off the phone, press and hold for more than two seconds. Changing the display language 1. In Idle mode, press the Menu soft key. 2. Select Phone settings → Language . 3. Select a language. Making a call 1. In Idle mode, enter an area code and phone number, and press . 2. When you want to end the call, press . Answering a call 1. When the phone rings, press the Accept soft key or to answer a call. To reject the call, press the Reject soft key or . 2. To end the call, press . Your phone displays the following status indicators on the top of the screen: Icon Description Received signal strengthCall in progressOut of your service area; you cannot make or receive calls except for emergency callsGPRS networkRoaming networkCall ringer set to vibrateSilent modeMute mode, during a callWhisper mode, during a callCall diverting feature activeSOS message feature activeNew text messageNew multimedia messageNew voicemail messageAlarm setBattery power level Menu map Entering text Changing the text input modeIn a text input field, press the right soft key until the input mode indicator you want appears: •: T9 mode•: ABC mode• : Number mode • None: Symbol mode T9 mode1. Press 2 to 9 to start entering a word. Pre ss each key once for one letter. Example: To enter “Hello” in T9 mode, press 4 , 3 , 5 , 5 , and 6 . T9 predicts the word that you are typing, and it may change with each key that…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: April 16, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSGHC500L To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Parts List & Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

of 27 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SGH-C500L FCC ID (Requested): A3LSGHC500L Job No: FE-062 Report No: FE-062-S1 Date issued: Apr.12, 2007 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By S PARK - Test Engineer Authorized By JH NAM - Technical manager Report Number: FE-062-S1 2 of 26 Contents 1. GENERAL INFORMATION............................................................................................................. 3 2. DESCRIPTION OF DEVICE ........................................................................................................... 3 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................... 4 3.1 SAR Measurement Setup ......................................................................................................4 3.2 E-field Probe .......................................................................................................................... 6 3.3 SAM Phantom ........................................................................................................................ 8 3.4 Brain & Muscle Simulating Mixture Characterization ............................................................. 8 3.5 Device Holder for Transmitters ..............................................................................................9 3.6 Validation Dipole .................................................................................................................... 9 3.7 Equipment Calibration.......................................................................................................... 10 4. SAR MEASUREMENT PROCEDURE ......................................................................................... 11 5. DESCRIPTION OF TEST POSITION ........................................................................................... 12 5.1 SAM Phantom Shape...........................................................................................................12 5.2 Cheek/Touch Position .......................................................................................................... 12 5.3 EAR/Tilt 15° Position ............................................................................................................ 14 5.4 Body Holster/Belt Clip Configurations.................................................................................. 15 6. MEASUREMENT UNCERTAINTY................................................................................................ 17 7. SYSTEM VERIFICATION ............................................................................................................. 18 7.1 Tissue Verification ................................................................................................................ 18 7.2 Test System Validation ......................................................................................................... 18 8. SAR MEASUREMENT RESULTS ................................................................................................ 19 8.1 Measurement Results(GSM1900 Right Head SAR - Touch) ............................................... 20 8.2 Measurement Results(GSM1900 Right Head SAR - Tilt) .................................................... 21 8.3 Measurement Results(GSM1900 Left Head SAR - Touch).................................................. 22 8.4 Measurement Results(GSM1900 Left Head SAR - Tilt)....................................................... 23 8.5 Measurement Results(GPRS1900 Body SAR without Holster)........................................... 24 9. CONCLUSION .............................................................................................................................. 25 10. REFERENCES ............................................................................................................................ 26 Report Number: FE-062-S1 3 of 26 1. GENERAL INFORMATION Test Sample : Single-Band PCS GSM Phone Model Number : SGH-C500L Serial Number : Identical prototype (S/N : # FE-050-A) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : JW LEE Phone : +82-31-301-5188 Fax : +82-31-279-7621 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Apr.04, 2007 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 1850.20 ~ 1909.80 MHz (GSM1900) Rx Freq. Range : 1930.20 ~ 1989.80 MHz (GSM1900) Max. RF Output Power : 1.722 W EIRP GSM1900 (32.36 dBm) Antenna Manufacturer : SEM Model No.: IAPGC500LA Antenna Dimensions : 36.53mm Report Number: FE-062-S1 4 of 26 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung computer with Windows XP system and SAR Measurement Software DASY4, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A Report Number: F…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested : SGH-C500L FCC ID(Requested) : A3LSGHC500L Report No : FE-062-R1 Job No : FE-062 Date issued : April 09, 2007 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By JH HAN – Test Engineer Authorized By WW JANG - Technical Manager Report Number : FE-062-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION .....................................................................3 1.1. §2.1033 General Information .........................................................................3 2. INTRODUCTION .......................................................................................................4 2.1. General..........................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION ...........................................................5 4. TEST EQUIPMENT LIST...........................................................................................6 5. DESCRIPTION OF TESTS ........................................................................................7 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power ..................7 5.2. Radiated Spurious & Harmonic Emission ......................................................8 5.3. Occupied Bandwidth ....................................................................................10 5.4. Spurious and Harmonic Emission at Antenna Terminal................................10 5.4.1. Occupied Bandwidth Emission Limits ..............................................10 5.4.2. Conducted Spurious Emission .........................................................12 5.5. Frequency Stability / Temperature Variation .................................................13 6. TEST DATA .............................................................................................................14 6.1. Equivalent Isotropic Radiated Power (E.I.R.P.) ............................................14 6.2. GSM1900 Radiated Spurious & Harmonic measurement ............................15 6.3. GSM1900 Radiated Spurious & Harmonic Conversion Table ......................16 6.4. Frequency Stability.......................................................................................17 6.4.1. GSM1900 Frequency Stability Table ................................................17 6.4.2. GSM1900 Frequency Stability Graph...............................................18 7. CONCLUSION.........................................................................................................20 8. TEST PLOTS...........................................................................................................21 Report Number : FE-062-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • Attention : SungJoo KIM, Engineering Manager (QA Lab) • FCC ID : A3LSGHC500L • Quantity : Quantity production is planned • Emission Designators : 249KGXW(GSM1900) • Tx Freq. Range : 1850.2MHz -1909.8MHz (GSM1900) • Rx Freq. Range : 1930.2MHz - 1989.8MHz (GSM1900) • Max. Power Rating : 1.722 W EIRP GSM1900 (32.36dBm) • FCC Classification(s) : Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : Single-Band PCS GSM Phone • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §2. • Dates of Test : April 02 - 03, 2007 • Place of Test : SAMSUNG Lab, • Test Report S/N : FE-062-R1 Report Number : FE-062-R1 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Figure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FE-062-R1 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. Report Number : FE-062-R1 4. TEST EQUIPMENT LIST Name Of Equipment Model Serial No. Due Date Spectrum Analyzer ESI26 836119/010 2007-10-01 E4440A(3Hz~26.5GHz)MY41000236 2007-04-14 E4440A(3Hz~26.5GHz)MY41000233 2007-07-21 Signal Generator SMR20 835197/030 2008-01-11 Amplifier 5S1G4 304866 2007-10-19 Network Analyzer 8753E JP38160590 2007-06-26 Power Sens…

Text truncated - open the document above for the full version.

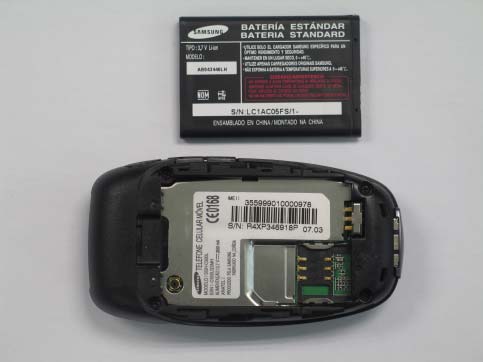

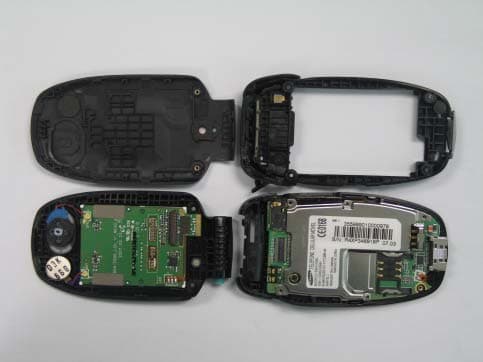

© 2007 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC500L Single-Band PCS GSM Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC500L Single-Band PCS GSM Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC500L Single-Band PCS GSM Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC500L Single-Band PCS GSM Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC500L Single-Band PCS GSM Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHC500L Single-Band PCS GSM Phone

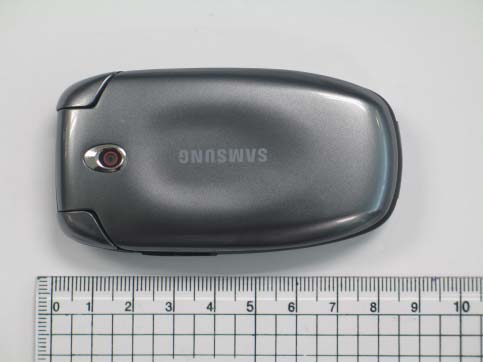

© 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHC500L Single-Band PCS GSM Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHC500L Single-Band PCS GSM Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHC500L Single-Band PCS GSM Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHC500L Single-Band PCS GSM Phone 1.5cm © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHC500L Single-Band PCS GSM Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHC500L Single-Band PCS GSM Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHC500L Single-Band PCS GSM Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHC500L Single-Band PCS GSM Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHC500L Single-Band PCS GSM Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHC500L Single-Band PCS GSM Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHC500L Single-Band PCS GSM Phone © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSGHC500L Single-Band PCS GSM Phone
