A3LSGHD100Single-Band PCS GSM Phone

Samsung Electronics Co Ltd

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jul 20, 2003
Application Purpose: Original Equipment
Date of Application: Jul 20, 2003
Equipment Note: Single-Band PCS GSM Phone
Frequency Range: 1850.20000000 - 1909.80000000
Company: Samsung Electronics Co Ltd
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

TRI BAND GPRS TELEPHONE SGH-D100 * Some of the contents of this manual may differ from your phone, depending upon the software installed or your service provider. Printed in Korea Code No.: GH68-xxxxxA English. 07/2003. Rev. 1.0 World Wide Web http://www.samsungmobile.com 3rd version (2003. 07. 02) 2 3 Contents Important Safety Precautions................................ 7 Unpacking.............................................................. 9 Your Phone.......................................................... 10 Phone Layout.......................................................... 10 Display................................................................... 13 Service Light........................................................... 16 Getting Started.................................................... 17 Installing the SIM Card............................................. 17 Charging the Battery................................................ 19 Switching the Phone On or Off................................... 21 Call Functions ...................................................... 22 Making a Call .......................................................... 22 Adjusting the Volume............................................... 24 Answering a Call...................................................... 25 Viewing Missed Calls ................................................ 26 Quickly Switching to Silent Mode................................ 28 Selecting Functions and Options.......................... 29 Phonebook........................................................... 31 Storing a Number with a Name.................................. 31 Using Phonebook Entry Options ................................. 34 Searching for a Number in Phonebook ........................ 35 Editing a Caller Group .............................................. 37 Speed-dialling ......................................................... 38 Deleting All of the Phonebook Entries ......................... 40 Checking the Memory Status..................................... 41 Entering Text....................................................... 42 Changing the Text Input Mode................................... 43 Using the T9 Mode................................................... 44 Using the Alphabet Mode .......................................... 46 Using the Number Mode ........................................... 47 Using the Symbol Mode............................................ 48 Contents 4 Options During a Call........................................... 49 Putting a Call on Hold............................................... 49 Using the Menu Functions ......................................... 50 Switching the Microphone Off (Mute).......................... 51 Muting/Sending Key Tones........................................ 52 Sending DTMF Tones................................................ 52 Searching for a Number in Phonebook ........................ 53 Answering a Second Call........................................... 54 Making a Multi-party Call .......................................... 54 Using the Menus .................................................. 57 Accessing a Menu Function by Scrolling ...................... 57 Accessing a Menu Function by Using Its Shortcut ......... 58 List of Menu Functions.............................................. 59 Text Messages ..................................................... 65 Inbox (Menu 1.1) ..................................................... 65 Outbox (Menu 1.2) ................................................... 67 Write New (Menu 1.3) .............................................. 68 Templates (Menu 1.4) .............................................. 71 Settings (Menu 1.5) ................................................. 71 Delete All (Menu 1.6) ............................................... 73 Memory Status (Menu 1.7) ........................................ 73 Voice Mail (Menu 1.8) ............................................... 74 Broadcast (Menu 1.9) ............................................... 75 Picture Messages................................................. 77 Inbox (Menu 2.1) ..................................................... 77 Outbox (Menu 2.2) ................................................... 80 Draft (Menu 2.3) ...................................................... 81 Write New (Menu 2.4) ............................................... 82 Templates (Menu 2.5) ............................................... 86 Delete All (Menu 2.6) ................................................ 87 Memory Status (Menu 2.7) ........................................ 87 Setup (Menu 2.8) ..................................................... 88 MMS Profile (Menu 2.9) ............................................. 89 E-Mail Messages .................................................. 90 Inbox (Menu 3.1) .................................................... 90 Outbox (Menu 3.2) ................................................... 93 Draft (Menu 3.3) ...................................................... 94 Write New (Menu 3.4) ............................................... 95 Templates (Menu 3.5) ............................................... 97 Contents 5 Delete All (Menu 3.6) ................................................ 98 Memory Status (Menu 3.7) ........................................ 98 Setup (Menu 3.8) ..................................................... 99 Email-Profile (Menu 3.9) .......................................... 100 Call Records....................................................... 102 Missed Calls (Menu 4.1) ........................................... 102 Received Calls (Menu 4.2) ....................................... 103 Dialled Calls (Menu 4.3) ................................................ 103 Delete All (Menu 4.4) .............................................. 104 Call Time (Menu 4.5) ....................................…

Text truncated - open the document above for the full version.

Attestation Statements

June 9, 2003 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSGHD100 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

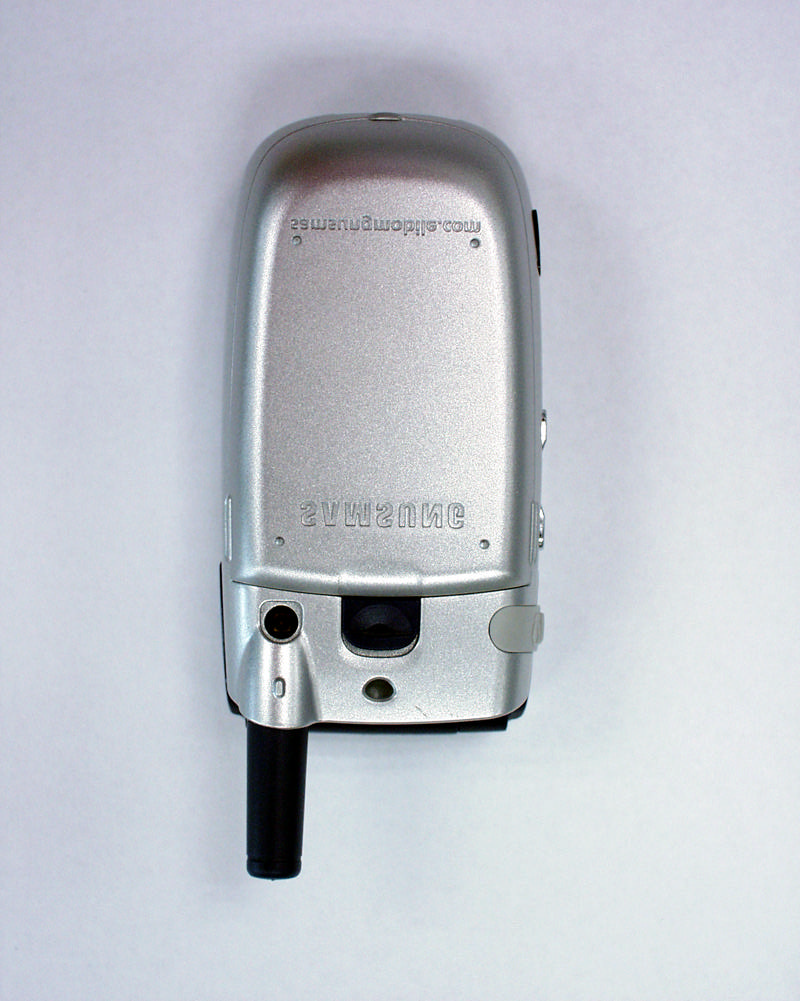

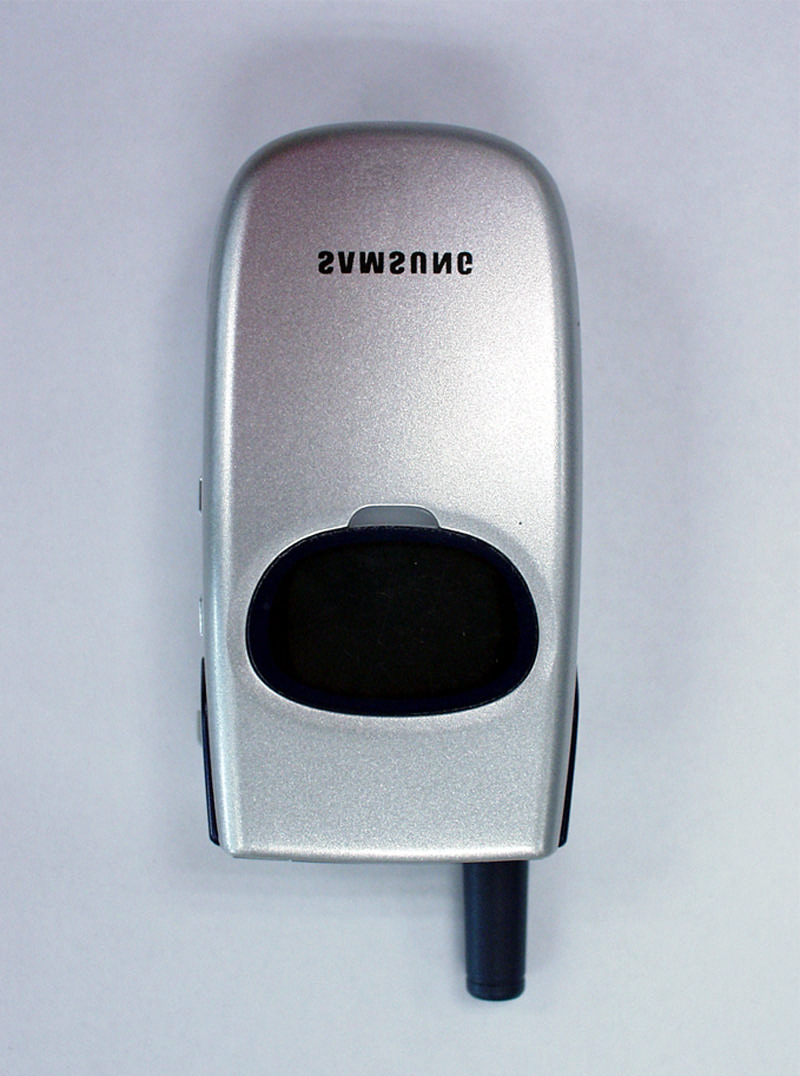

External Photos

Internal Photos

RF Exposure Info

2 of 30 Contents 1. General Information.............................................................................................3 2. Description of Device...........................................................................................3 3. Description of Test Equipment..............................................................................4 3.1 SAR Measurement Setup.........................................................................................4 3.2 DASY3 E-Field Probe.............................................................................................5 3.3 SAM Phantom.....................................................................................................6 3.4 Brain & Muscle Simulating Mixture Characterization....................................................7 3.5 Device Holder for transmitters.................................................................................8 3.6 Validation Dipole...................................................................................................8 3.7 Equipment Calibration.............................................................................................9 4. SAR Measurement Procedure.............................................................................10 5. Description of test position..............................................................................11 5.1 SAM Phantom Shape............................................................................................11 5.2 Cheek/Touch Position............................................................................................11 5.3 Ear/Tilt 15 Position..............................................................................................13 5.4 Body/Holster/Belt Clip Configuration.......................................................................14 6. Measurement Uncertainty..................................................................................16 7. System Verification.........................................................................................17 7.1 Tissue Verification..............................................................................................17 7.2 Test System Validation...........................................................................................17 8. SAR Measurement Results.................................................................................18 8.1 Measurement Results(PCS GSM Right Head SAR-Touch)............................................19 8.2 Measurement Results(PCS GSM Right Head SAR-Touch)............................................20 8.3 Measurement Results(PCS GSM Right Head SAR-Tilt)................................................21 8.4 Measurement Results(PCS GSM Right Head SAR-Tilt)................................................22 8.5 Measurement Results(PCS GSM Left Head SAR-Touch)..............................................23 8.6 Measurement Results(PCS GSM Left Head SAR-Touch)..............................................24 8.7 Measurement Results(PCS GSM Left Head SAR-Tilt)..................................................26 8.8 Measurement Results(PCS GSM Left Head SAR-Tilt)..................................................27 8.9 Measurement Results(PCS GSM Body SAR w/o Holster)........................................28 8.10 Measurement Results(PCS GSM Body SAR w/o Holster).........................................29 9. Conclusion.......................................................................................................30 10. Reference.......................................................................................................32 3 of 30 1. GENERAL INFORMATION Test Sample : Single-Band PCS Only Phone Model Number : SGH-D100 Serial Number : Identical prototype (S/N : # FA-010-D ) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : DJ. Kim, Assistant Manager Phone : +82- 54-479-5695 Fax : +82- 54-479-5715 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : May 16,2003 ~ May 19,2003 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 1850.00 – 1910.00 MHz (PCS GSM) Rx Freq. Range : 1930.00 – 1990.00 MHz (PCS GSM) Max. RF Output Power : 0.923 W EIRP PCS (29.65dBm) Antenna Manufacturer : E.M.W Model No. : D5-1-S1-07600 Antenna Dimensions : Length = 20 mm [Fixed] 4 of 30 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY3 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, Pentium computer, near-field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung Pentium 550MHz computer with Windows 2000 system and SAR Measurement Software DASY3, A/D interface card, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A data acquisition electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. is connected to the Electro-optical coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data to the PC plug-in card. 5 of 30 System Electronics The DAE3 consists of a highly sens…

Text truncated - open the document above for the full version.

RF Exposure Info

SAMSUNG FCC ID: A3LSGHD100 -- 1900MHz.PCS GSM Head SAR SAM Phantom; Right Cheek(CRP) Section; Probe:ET3DV6 - SN1551; ConvF(5.30,5.30,5.30) Head 1900 MHz: σ = 1.37 mho/m ε r = 39.0 ρ = 1.00 g/cm 3 ; Antenna Position-Fixed; Crest Factor 8.0 SAR (1g): 0.383 mW/g SAMSUNG Single-Band PCS Only Phone Model: SGH-D100 GSM 1900 Mode, Ch.512 [1850.2MHz]; Standard Battery; Flip = open; Ambient Temp. (°C) - 22.8 Conducted Power = 30.0dBm; Right Head Phantom, Cheek/Touch Position; Meas. Tissue Temp. (°C) - 20.9 Test Date -- 05/16/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001 SAR Tot [mW/g] 4.06E-2 1.22E-1 2.03E-1 2.84E-1 3.65E-1 SAMSUNG FCC ID: A3LSGHD100 -- 1900MHz.PCS GSM HeadSAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1551; ConvF(5.30,5.30,5.30) Head 1900 MHz: σ = 1.37 mho/m ε r = 39.0 ρ = 1.00 g/cm 3 ; Antenna Position-Fixed; Crest Factor 8.0 SAR (1g): 0.0679 mW/g SAMSUNG Single-Band PCS Only Phone Model: SGH-D100 GSM 1900 Mode, Ch.512 [1850.2MHz]; Standard Battery; Flip = open; Ambient Temp. (°C) - 22.8 Conducted Power = 30.0dBm; Right Head Phantom, Ear/Tilt 15 deg Position; Meas. Tissue Temp. (°C) - 20.9 Test Date -- 05/16/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001 SAR Tot [mW/g] 5.70E-3 1.71E-2 2.85E-2 3.99E-2 5.13E-2 SAMSUNG FCC ID: A3LSGHD100 -- 1900MHz.PCS GSM Head SAR SAM Phantom; Right Cheek(CRP) Section; Probe:ET3DV6 - SN1551; ConvF(5.30,5.30,5.30) Head 1900 MHz: σ = 1.35 mho/m ε r = 39.2 ρ = 1.00 g/cm 3 ; Antenna Position-Fixed; Crest Factor 8.0 SAR (1g): 0.362 mW/g SAMSUNG Single-Band PCS Only Phone Model: SGH-D100 GSM 1900 Mode, Ch.512 [1850.2MHz]; Slim Battery; Flip = open; Ambient Temp. (°C) - 22.9 Conducted Power = 30.0dBm; Right Head Phantom, Cheek/Touch Position; Meas. Tissue Temp. (°C) - 20.7 Test Date -- 05/19/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001 SAR Tot [mW/g] 3.90E-2 1.17E-1 1.95E-1 2.73E-1 3.51E-1 SAMSUNG FCC ID: A3LSGHD100 -- 1900MHz.PCS GSM Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1551; ConvF(5.30,5.30,5.30) Head 1900 MHz: σ = 1.35 mho/m ε r = 39.2 ρ = 1.00 g/cm 3 ; Antenna Position-Fixed; Crest Factor 8.0 SAR (1g): 0.0708 mW/g SAMSUNG Single-Band PCS Only Phone Model: SGH-D100 GSM 1900 Mode, Ch.512 [1850.2MHz]; Slim Battery; Flip = open; Ambient Temp. (°C) - 22.9 Conducted Power = 30.0dBm; Right Head Phantom, Ear/Tilt 15 deg Position; Meas. Tissue Temp. (°C) - 20.7 Test Date -- 05/19/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001 SAR Tot [mW/g] 5.80E-3 1.74E-2 2.90E-2 4.06E-2 5.22E-2 SAMSUNG FCC ID: A3LSGHD100 -- 1900MHz.PCS GSM Head SAR SAM Phantom; Left Cheek(CRP) Section; Probe:ET3DV6 - SN1551; ConvF(5.30,5.30,5.30) Head 1900 MHz: σ = 1.37 mho/m ε r = 39.0 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 8.0 SAR (1g): 0.354 mW/g SAMSUNG Single-Band PCS Only Phone Model: SGH-D100 GSM 1900 Mode, Ch.512 [1850.2MHz]; Standard Battery; Flip = open; Ambient Temp. (°C) - 22.8 Conducted Power = 30.0dBm; Left Head Head Phantom, Cheek/Touch Position; Meas. Tissue Temp. (°C) - 20.9 Test Date -- 05/16/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001 SAR Tot [mW/g] 3.80E-2 1.14E-1 1.90E-1 2.66E-1 3.42E-1 SAMSUNG FCC ID: A3LSGHD100 -- 1900MHz.PCS GSM Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1551; ConvF(5.30,5.30,5.30) Head 1900 MHz: σ = 1.37 mho/m ε r = 39.0 ρ = 1.00 g/cm 3 ; Antenna Position-Fixed; Crest Factor 8.0 SAR (1g): 0.0811 mW/g SAMSUNG Single-Band PCS Only Phone Model: SGH-D100 GSM 1900 Mode, Ch.512 [1850.2MHz]; Standard Battery; Flip = open; Ambient Temp. (°C) - 22.8 Conducted Power = 30.0dBm; Left Head Phantom, Ear/Tilt 15 deg Position; Meas. Tissue Temp. (°C) - 20.9 Test Date -- 05/16/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001 SAR Tot [mW/g] 8.10E-3 2.43E-2 4.05E-2 5.67E-2 7.29E-2 SAMSUNG FCC ID: A3LSGHD100 -- 1900MHz.PCS GSM Head SAR SAM Phantom; Left Cheek(CRP) Section; Probe:ET3DV6 - SN1551; ConvF(5.30,5.30,5.30) Head 1900 MHz: σ = 1.35 mho/m ε r = 39.2 ρ = 1.00 g/cm 3 ; Antenna Position-Fixed; Crest Factor 8.0 SAR (1g): 0.322 mW/g SAMSUNG Single-Band PCS Only Phone Model: SGH-D100 GSM 1900 Mode, Ch.512 [1850.2MHz]; Slim Battery; Flip = open; Ambient Temp. (°C) - 22.9 Conducted Power = 30.0dBm; Left Head Phantom, Cheek/Touch Position; Meas. Tissue Temp. (°C) - 20.7 Test Date -- 05/19/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001 SAR Tot [mW/g] 3.64E-2 1.09E-1 1.82E-1 2.55E-1 3.28E-1 SAMSUNG FCC ID: A3LSGHD100 -- 1900MHz.PCS GSM Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1551; ConvF(5.30,5.30,5.30) Head 1900 MHz: σ = 1.35 mho/m ε r = 39.2 ρ = 1.00 g/cm 3 ; Antenna Position-Fixed; Crest Factor 8.0 SAR (1g): 0.0647 mW/g SAMSUNG Single-Band PCS Only Phone Model: SGH-D100 GSM 1900 Mode, Ch.512 [1850.2MHz]; Slim Battery; Flip = open; Ambient Temp. (°C) - 22.9 Conducted Power = 30.0dBm; Left Head Phantom, Ear/Tilt 15 deg Position; Meas. Tissue Temp. (°C) - 20.7 Test Date -- 05/19/2003 [FCC/OET Bulletin 65 - Supplement C, July 2001 SAR Tot [mW/g] 6.00E-3 1.80E-2 3.00E-2 4.20E-2 5.40E-2 SAMSUNG FCC ID: A3LSGHD100 -- 1900MHz.PCS GSM Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1551; ConvF(4.90,4.90,4.90) Body 1900 MHz: σ = 1.52 mho/m ε r = 51.1 ρ = 1.00 g/cm 3 ; Antenna Position-Fixed; Crest Factor 8.0 SAR (1g): 0.0792 mW/g SAMSUNG Single-Band PCS Only Phone Model: SGH-D100 GSM 1900 Mode, Ch.661 [1880.0MHz]; Standard Battery; Flip = close; Ambient Temp. (°C) - 23.0 Conducted Power = 30.0dBm; Spacing = 1.5cm. from flat phantom to phone, w/o beltclip or holster; Meas.Tissue Temp. (°C) - 20.3 Test Date -- 05/19/2003 [ FCC/OET Bulletin 65- Supplement C - July 2001 ]] SAR Tot [mW/g] 9.00E-3 2.70E-2 4.50E-2 6.30E-2 8.10E-2 SAMSUNG FCC ID: A3LSGHD100 -- 1900MHz.PCS GSM Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1551; ConvF(4.90,4.90,4.90) Body 1900 MHz: σ = 1.52 mho/m ε r = 51.1 ρ = 1.00 g/cm 3 ; Antenna Position-Fixed; Crest Factor 8.0 SAR (1g): 0.0928 mW/g SAMSUNG Single-Band PCS Only Phone Model: SGH-D100 GSM 1900 Mode, Ch.661 [1880.0MHz]; Slim Ba…

Text truncated - open the document above for the full version.

RF Exposure Info

© 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LS GHD100 Single - Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LS GHD100 Single - Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LS GHD100 Single - Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LS GHD100 Single - Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LS GHD100 Single - Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LS GHD100 Single - Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LS GHD100 Single - Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LS GHD100 Single - Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LS GHD100 Single - Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LS GHD100 Single - Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LS GHD100 Single - Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LS GHD100 Single - Band PCS Only Phone

Test Report

amp Radiated Spurious & Harmonic Configuration for Calibration

Test Setup Photos

Contact Information

Applicant

Jenni Chun(General Manager)

[email protected]973-808-6375Fax: 973-808-6361

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

SAMSUNG ELECTRONICS CO., LTD.No Cheon Park

[email protected]82-31-200-2185Fax: 82-31-200-2189

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	24E	1.85 GHz - 1.91 GHz	923.00 mW	300KGXW	2.5000000000 ppm

Confidentiality

Long Term

Grant Notes

Output is EIRP. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the phone and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. The highest reported SAR values are � Head: 0.383 W/kg; Body-worn: 0.0928 W/kg. This device contains 900 MHz GSM and 1800 DCS functions that are not operational in U.S. Territories. This filing is only applicable for 1900 MHz PCS operations.
