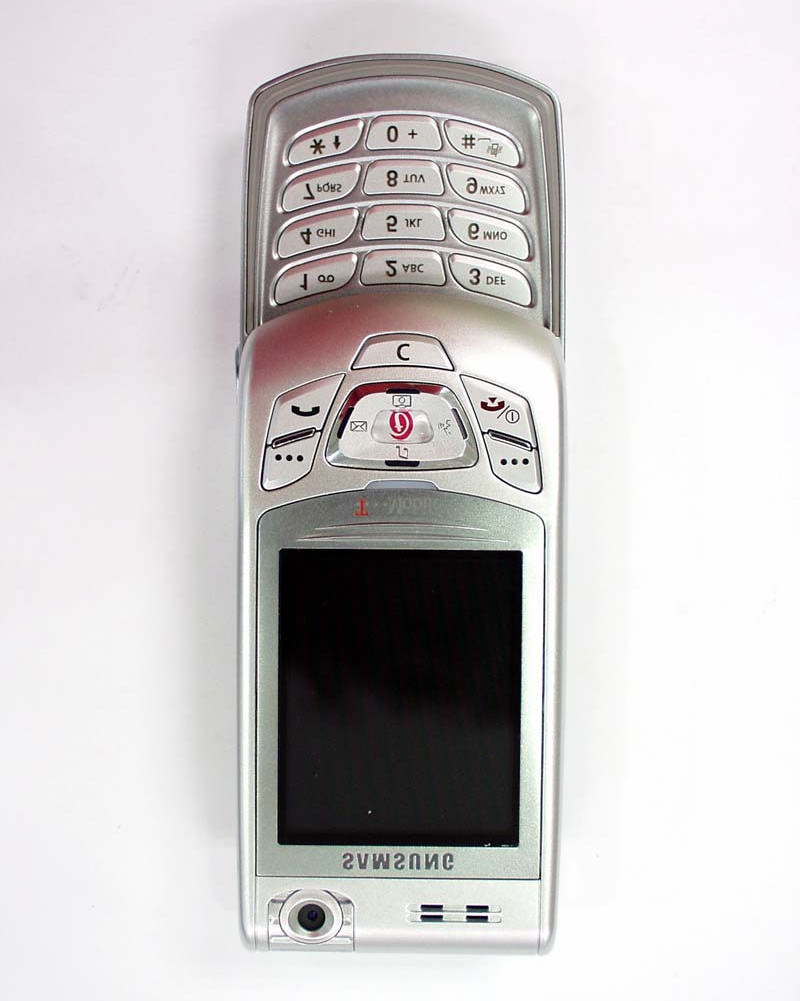

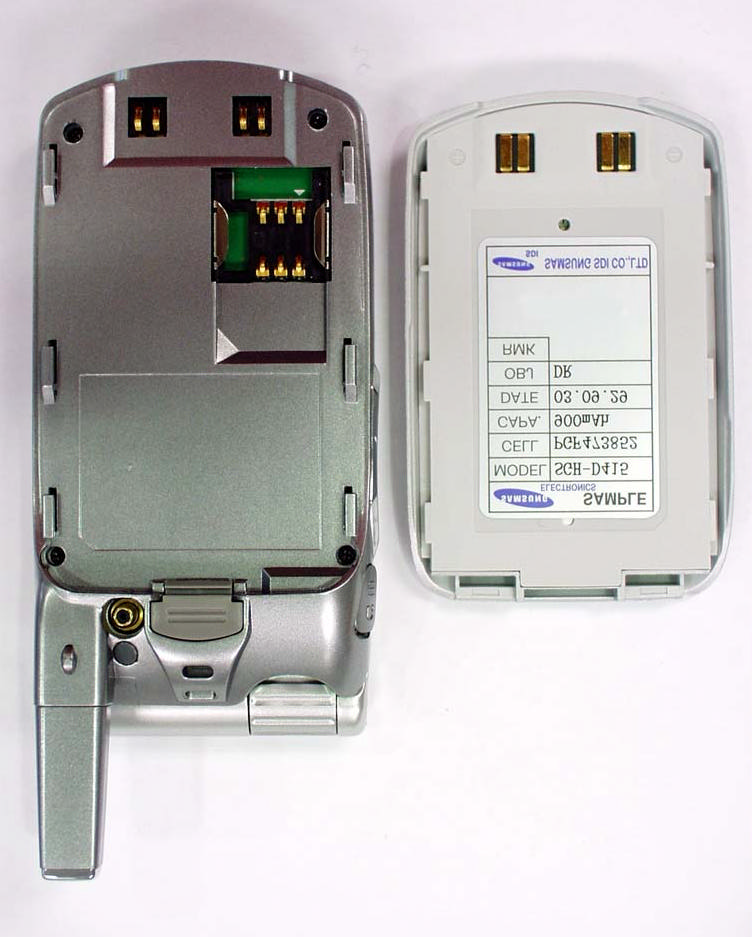

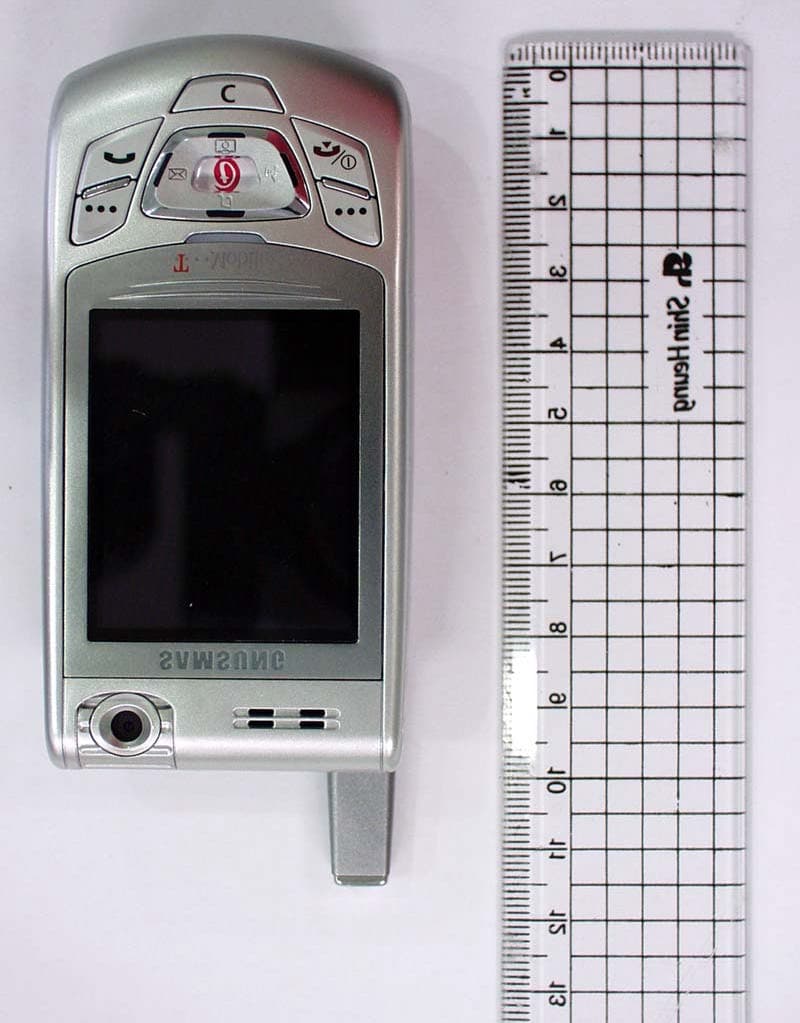

A3LSGHD415Single-Band PCS GSM Phone

DUAL BAND GPRS Series SGH-d415 Portable Digital Telephone User Manual Please read this manual before operating your phone, and keep it for future reference. Printed in Korea Code No.: GH68-xxxxxA English.12/2003. Rev. 1.0 Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating thereto (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Samsung Telecommunications America (STA), Inc. Headquarters: 1130 E. Arapaho Road Richardson, TX 75081 Tel: 972-761-7000 Fax: 972-761-7001 Customer Care Center: 1601 E. Plano Parkway Suite 150 Plano, TX 75047 Tel: 888-987-HELP (4357) Fax: 972-761-7501 Internet Address: http://www.samsungusa.com/ wireless ©2003 Samsung Telecommunications America. All rights reserved. No reproduction in whole or in part allowed without prior written approval. Samsung is a registered trademark of Samsung Electronics America, Inc. and its related entities. Table of Contents 1 Table of Contents Important Safety Precautions......................... 7 Unpacking ...................................................... 9 Your Phone ................................................... 10 Phone Layout ........................................................ 10 Display ................................................................. 13 Service Light ......................................................... 16 Camera ................................................................ 16 Getting Started ............................................. 17 Installing the SIM Card ........................................... 17 Charging the Battery .............................................. 19 Switching the Phone On or Off ................................. 21 Using the Keypad Lock Feature ................................ 22 Call Functions ............................................... 23 Making a Call......................................................... 23 Adjusting the Volume ............................................. 25 Answering a Call .................................................... 26 Viewing Missed Calls............................................... 27 Quickly Switching to Silent Mode .............................. 29 Selecting Functions and Options................... 31 Phone Book .................................................. 33 Storing a Number with a Name ................................ 33 Using Phone Book Entry Options .............................. 36 Searching for and Dialing a Number in Phone Book ..... 37 Editing a Caller Group............................................. 39 Speed-dialing ........................................................ 40 Deleting All of the Phone Book Entries....................... 41 Checking the Memory Status ................................... 42 Using the Service Dialing Numbers ........................... 43 Table of Contents 2 Entering Text ................................................ 45 Changing the Text Input Mode ................................. 46 Using T9 Mode....................................................... 47 Using Alphabet Mode .............................................. 49 Using Number Mode ............................................... 50 Using Symbol Mode ................................................ 50 Options During a Call .................................... 51 Putting a Call on Hold ............................................. 51 Using the Menu Functions ....................................... 52 Switching the Microphone Off (Mute) ........................ 53 Muting or Sending Key Tones................................... 54 Sending a Sequence of DTMF Tones ......................... 54 Searching for a Number in Phone Book ..................... 55 Call Waiting........................................................... 55 Making a Multi-party Call......................................... 56 Using the Menus ........................................... 59 Accessing a Menu Function by Scrolling..................... 59 Using Shortcuts ..................................................... 60 List of Menu Functions ............................................ 61 Text Messages .............................................. 67 Inbox (Menu 1.1).................................................... 67 Outbox (Menu 1.2).................................................. 68 Write New (Menu 1.3)............................................. 70 Templates (Menu 1.4)............................................. 72 Settings (Menu 1.5)................................................ 73 Delete All (Menu 1.6).............................................. 74 Memory Status (Menu 1.7)....................................... 74 Voice Mail (Menu 1.8).............................................. 75 Broadcast (Menu 1.9).............................................. 75 Table of Contents 3 Picture Messages.......................................... 77 Inbox (Menu 2.1).................................................... 77 Outbox (Menu 2.2).................................................. 8…

Text truncated - open the document above for the full version.

December 8, 2003 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSGHD415 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

© 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD415 Single-Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD415 Single-Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD415 Single-Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD415 Single-Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD415 Single-Band PCS Only Phone

© 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD415 Single-Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD415 Single-Band PCS Only Phone

18 of 25 8. SAR MEASUREMENT RESULTS Procedures Used To Establish Test Signal The handset was placed into simulated call mode (PCS GSM) using manufacturers test codes. Such test signals offer a consistent means for testing SAR and are recommended for evaluating SAR. When test modes are not available or inappropriate for testing a handset, the actual transmission is activated through a base station simulator or similar equipment. See data pages for actual procedure used in measurement. Device Test Conditions The handset is battery operated. Each SAR measurement was taken with a fully charged battery. In order to verify that the device was tested at full power, conducted output power measurements were performed before and after each SAR measurement to confirm the output power. If a conducted power deviation of more than 5% occurred, the test was repeated. EUT Handset Reference Points ERP-Ear Reference Point Horizontal Center Line Vertical Center Line Figure 8.1 Handset Reference Points

© 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD415 Single-Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD415 Single-Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD415 Single-Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD415 Single-Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD415 Single-Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD415 Single-Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD415 Single-Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD415 Single-Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD415 Single-Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD415 Single-Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD415 Single-Band PCS Only Phone © 2003 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD415 Single-Band PCS Only Phone

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Team IT R&D Center 416, Maetan-3dong, Youngtong-Gu, Suwon-city, Gyeonggi-do, Korea 442-600 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested: SGH-D415 FCC ID (Requested): A3LSGHD415 Report No: FA-034-R1 Date issued: DECEMBER 9, 2003 - Abstract – All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By Date JH NAM– Test Engineer Checked By Date CW PARK - Manager Authorized By Date JK CHOI – Senior Manager TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information ---------------------------------------------------------- 3 1.1 2.1033 General Information -----------------------------------------------------------3 2. INTRODUCTION ----------------------------------------------------------------------------- 4 2.1 General ---------------------------------------------------------------------------------------4 3. MEASURING INSTRUMENT CALIBRATION ------------------------------------------ 5 4. TEST EQUIPMENT LIST ---------------------------------------------------------------------6 5. DESCRIPTION OF TESTS -------------------------------------------------------------------7 5.1 Equivalent Isotropic Radiated Power ---------------------------------------------------7 5.2 Radiated Spurious & Harmonic Emission ---------------------------------------------8 5.3 Occupied Bandwidth ------------------------------------------------------------------------9 5.4 Spurious and Harmonic Emissions at Antenna Terminal-------------------------- 9 5.4.1 Occupied Bandwidth Emission Limits ----------------------------------------------9 5.4.2 Conducted Spurious Emission ------------------------------------------------------10 5.5 Frequency Stability / Temperature Variation -----------------------------------------11 6. TEST DATA ------------------------------------------------------------------------------------12 6.1 Equivalent Isotropic Radiated Power (E.I.R.P.) -------------------------------------12 6.2 Radiated Spurious & Harmonic Measurement --------------------------------------13 6.3 Radiated Spurious & Harmonic Conversion Table ---------------------------------14 6.4 Frequency Stability -------------------------------------------------------------------------15 6.4.1 Frequency Stability Table -----------------------------------------------------------15 6.4.2 Frequency Stability Graph ----------------------------------------------------------17 7. CONCLUSION -----------------------------------------------------------------------------------18 8. TEST PLOTS ------------------------------------------------------------------------------------ 19 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Rart2, Subpart J, Sections 2.1033 – 2.1055. 1.1 §2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416, Maetan-3Dong, Youngtong-Gu, Suwon City Gyeonggi-Do, KOREA 442-600 Attention: FCC ID: Wallace Oh, Engineering Manager (QA Lab) A3LSGHD415 Quantity: Quantity production is planned Emission Designators: 270KGXW Tx Freq. Range: 1850.2MHz -1909.8MHz Rx Freq. Range: 1930.2MHz – 1989.8MHz Max. Power Rating: 1.858W EIRP GSM1900 (32.69dBm) FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) Equipment (EUT) Type: Single modulation PCS GSM Phone Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 24(E) Dates of Test: Dec. 4, 8-9, 2003 Place of Test: SAMSUNG Lab, Test Report S/N: FA - 034 - R1 2. INTRODUCTION 2.1 General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416,Maetan-3Dong, Youngtong-Gu, Suwon City, Gyeonggi-Do, KOREA 442- 600 The site have 1 Fully-anechoic chamber and measurement facility. Figure1. Map of the Suwon City area. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable. 3-meters from the receive antenna. The receive antenna height and turntable rotations was adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure would be repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Fi gure2. Photograph of 3m Fully-Anechoic Chamber 3.MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. . . 4. TEST EQUIPMENT LIST Name of Equipment Model Serial No. Due Date ESI26 100009 2004-09-15 E4440A(3Hz~26.5GHz) MY41000236 2004-11-07 Spectrum Analyzer E4440A(3Hz~26.5GHz) MY41000233 2004-11-14 SMIQ03B 83824/021 2004-01-20 Signal Generator SMR20 835197/030 2004-01-20 Power Meter E4419B GB41293846 2004-10-02 8481B 3318A10325 2004-10-06 Power Sensor 8485A 3318A19924 2004-10-04 Amplifier 5S1G4 304866 2004-11-17 Pre-Amplifier 8449B 3008A00691 2004-01-21 8960 GB42230535 2004-11-17 Communication test set 8960 GB42360886 2004-01-09 Antenna Master MA0001 ANT0967 Not Required Controller HD100 100/756 Not Required PL-4S 13005454 2004-08-22 SH-241 92000548 2004-12-04 Environmental Chamber SH-241 92000549 2004-12-04 HF906 360306/011 2004-02-10 Horn Antenna HF9…
