A3LSGHD500Single-Band PCS GSM Phone w/ Bluetooth
Samsung Electronics Co Ltd
Click to zoom
Application Details
- Equipment Class
- DSS - Part 15 Spread Spectrum Transmitter
- Date of Grant
- Oct 07, 2004
- Application Purpose
- Original Equipment
- Date of Application
- Oct 07, 2004
- Equipment Note
- Single-Band PCS GSM Phone w/ Bluetooth
- Frequency Range
- 2402.00000000 - 2480.00000000
- Company
- Samsung Electronics Co Ltd
- Country
- United States
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
* Some of the contents of this manual may differ from your phone, depending on the software installed or your service provider. World Wide Web http://www.samsungmobile.com Printed in Korea Code No.:GH68-XXXXXA English. 09/2004. Rev 1.0 GPRS TELEPHONE SGH-D500 D r a f t v e r s i o n ( 2 00 4 . 0 9 . 1 4 ) FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standards previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied antenna or one that is approved. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in a violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for a replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain at least a 0.59 inch (1.5 cm.) separation distance, between the user's body and the back of the phone, including the antenna. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Vehicle Mounted External Antenna (optional, if available.) A minimum separation distance of 7.9 inches (20cm) must be maintained between a person and the vehicle mounted external antenna to satisfy FCC RF exposure requirements. For more information about RF exposure, please visit the FCC web site at http://www.fcc.gov/oet/rfsafety/ 3 Contents Important safety precautions........................... 7 Unpacking ........................................................ 9 Your phone..................................................... 10 Phone layout ........................................................... 10 Display................................................................... 13 Camera .................................................................. 16 Flash...................................................................... 16 Getting started ............................................... 17 Installing the SIM card ............................................. 17 Charging the battery ................................................ 19 Switching on or off the phone .................................... 21 Using the Keypad Lock feature .................................. 22 Call functions ................................................. 23 Making a call ........................................................... 23 Adjusting the volume ............................................... 29 Answering a call ...................................................... 30 Viewing missed calls ................................................ 31 Quickly switching to Quiet mode ................................ 32 Using the headset .................................................... 33 Selecting functions and options...................... 34 Using the soft keys .................................................. 34 Selecting options ..................................................... 35 Entering text .................................................. 36 Changing the text input mode ................................... 37 Using ABC mode ...................................................... 38 Using T9 mode ........................................................ 39 Using Number mode................................................. 41 Using Symbolic mode ............................................... 41 Options during a call ...................................... 42 Putting a call on hold................................................ 42 Using the speaker .................................................... 43 Call waiting............................................................. 43 Using the Bluetooth headset...................................... 44 Switching on or off the Voice Clarity feature ................ 45 Switching off the microphone (Mute) .......................... 45 Contents 4 Muting or sending key tones...................................... 46 Using Phonebook ..................................................... 46 Sending a sequence of DTMF tones ............................ 47 Using the message service ........................................ 47 Using SIM services................................................... 48 Making a multi-party call .......................................... 48 Using the menus ............................................ 50 Accessing a menu function by scrolling ....................... 50 Using shortcuts ....................................................... 51 List of menu functions .............................................. 52 Call records .................................................... 58 All calls (Menu 1.1)................................................... 58 Dialled calls (Menu 1.2)............................................. 59 Received calls (Menu 1.3).......................................... 60 Missed calls (Menu 1.4)............................................. 60 Delete all (Menu 1.5)................................................ 60 Call time (Menu 1.6)................................................. 61 Call costs (Menu 1.7)................................................ 62 Phonebook .................................................…
Text truncated - open the document above for the full version.
Attestation Statements
October 1, 2004 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSGHD500 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America October 1, 2004 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID: A3LSGHD500 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests short-term confidentiality for the test setup photos, external photos, internal photos, and user’s manual of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

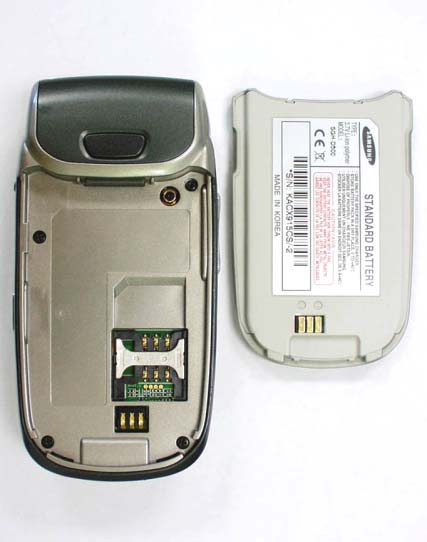

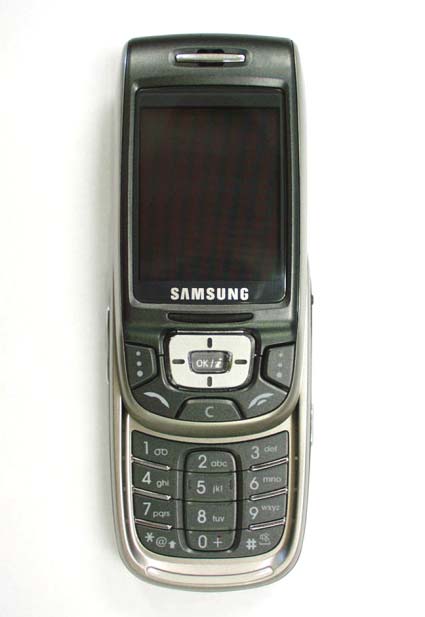

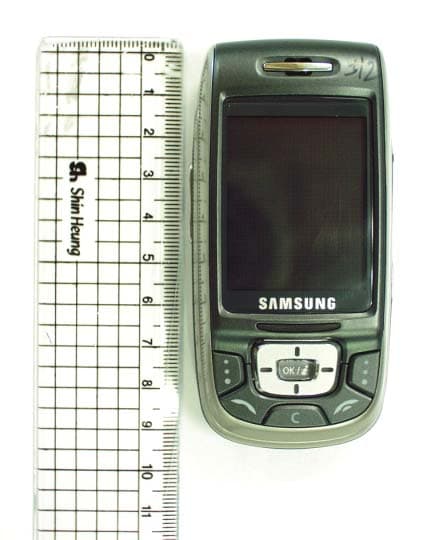

External Photos
© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD500 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD500 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD500 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD500 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD500 Single-Band PCS Only Phone
Internal Photos
© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD500 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD500 Single-Band PCS Only Phone
Test Report
CONFIDENTIAL PROPERTY OF PCTEST FREQUENCY HOPPING SPREAD SPECTRUM (FHSS), FCC RULE PART 15.247 15.230811393.AMW PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE MANUFACTURER NAME & ADDRESS: DATE & LOCATION OF TESTING: SAMSUNG ELECTRONICS CO., LTD. Date(s) of Tests: October 4, 2004 3351 Michelson Drive, Suite 290 Test Report S/N: 15.24930656.A3L Irvine, CA 92612 Test Site: PCTEST Lab, Columbia, MD FCC ID: A3LSGHD500 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. SUMMARY: Model No.: SGH-D500 Equipment EUT Type: Samsung Single-Band Phone with Bluetooth Max. Output Power: 0.00087 W (-0.60 dBm) Conducted Frequency Range: 2402 – 2480 MHz FCC Classification: FCC Part 15 Frequency Hopping Spread Spectrum Transceiver (DSS) FCC Rule Part(s): Parts 15.247; ANSI C-63.4-2001 Installed Options: Bluetooth Other This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2001. If the EUT contains any additional embedded transmitters, then those transmitters were active during all tests. The EUT complies with Industry Bluetooth Standards. The JBC portion of this EUT is covered in the DOC report. Grant Conditions: Listed output power is conducted. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. CONFIDENTIAL PROPERTY OF PCTEST FREQUENCY HOPPING SPREAD SPECTRUM (FHSS), FCC RULE PART 15.247 Page i © 2004 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS ATTESTATION STATEMENTS.....................................................................................................................................................1 1.0 INTRODUCTION.............................................................................................................................................................3 1.1 EVALUATION PROCEDURE.......................................................................................................................................3 1.2 SCOPE........................................................................................................................................................................3 1.3 PCTEST TEST LOCATION...........................................................................................................................................3 2.0 PRODUCT INFORMATION............................................................................................................................................4 2.1 EQUIPMENT DESCRIPTION.......................................................................................................................................4 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS........................................................................................................4 3.0 DESCRIPTION OF TEST...................................................................................................................................................5 3.1 CONDUCTED EMISSIONS..........................................................................................................................................5 3.2 RADIATED EMISSIONS...............................................................................................................................................6 4.0 ANTENNA REQUIREMENTS...........................................................................................................................................7 5.0 TEST EQUIPMENT CALIBRATION DATA.....................................................................................................................8 6.0 CONCLUSION.................................................................................................................................................................9 EXHIBIT A – TEST RESULTS.......................................................................................................................................................10 SUMMARY..........................................................................................................................................................................10 20DB BANDWIDTH MEASUREMENT (HANDSET)..............................................................................................................11 OUTPUT POWER MEASUREMENT.....................................................................................................................................14 BAND EDGE COMPLIANCE................................................................................................................................................17 CARRIER FREQUENCY SEPARATION..................................................................................................................................18 DWELL TIME.......................................................................................................................................................................19 CHANNEL SPACING...........................................................................................................................................................20 RADIATED HARMONIC MEASUREMENTS (CONT.).....................................................................................................21-26 CONDUCTED SPURIOUS MEASUREMENTS.......................................…
Text truncated - open the document above for the full version.
Test Report
CONFIDENTIAL PROPERTY OF PCTEST FREQUENCY HOPPING SPREAD SPECTRUM (FHSS), FCC RULE PART 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15.240930656.A3L Test Dates: Oct. 4, 2004 EUT Type: Samsung Single-Band Phone w/ Bluetooth FCC ID: A3LSGHD500 Page 24 of 38 © 2004 PCTEST Engineering Laboratory, Inc. EXHIBIT A – Test Results (Cont.) Conducted Spurious Measurements §15.205 / §15.209 . CONFIDENTIAL PROPERTY OF PCTEST FREQUENCY HOPPING SPREAD SPECTRUM (FHSS), FCC RULE PART 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15.240930656.A3L Test Dates: Oct. 4, 2004 EUT Type: Samsung Single-Band Phone w/ Bluetooth FCC ID: A3LSGHD500 Page 25 of 38 © 2004 PCTEST Engineering Laboratory, Inc. EXHIBIT A – Test Results (Cont.) Conducted Spurious Measurements §15.205 / §15.209 CONFIDENTIAL PROPERTY OF PCTEST FREQUENCY HOPPING SPREAD SPECTRUM (FHSS), FCC RULE PART 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15.240930656.A3L Test Dates: Oct. 4, 2004 EUT Type: Samsung Single-Band Phone w/ Bluetooth FCC ID: A3LSGHD500 Page 26 of 38 © 2004 PCTEST Engineering Laboratory, Inc. EXHIBIT A – Test Results (Cont.) Conducted Spurious Measurements §15.205 / §15.209 CONFIDENTIAL PROPERTY OF PCTEST FREQUENCY HOPPING SPREAD SPECTRUM (FHSS), FCC RULE PART 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15.240930656.A3L Test Dates: Oct. 4, 2004 EUT Type: Samsung Single-Band Phone w/ Bluetooth FCC ID: A3LSGHD500 Page 27 of 38 © 2004 PCTEST Engineering Laboratory, Inc. EXHIBIT A – Test Results (Cont.) Conducted Spurious Measurements §15.205 / §15.209 CONFIDENTIAL PROPERTY OF PCTEST FREQUENCY HOPPING SPREAD SPECTRUM (FHSS), FCC RULE PART 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15.240930656.A3L Test Dates: Oct. 4, 2004 EUT Type: Samsung Single-Band Phone w/ Bluetooth FCC ID: A3LSGHD500 Page 28 of 38 © 2004 PCTEST Engineering Laboratory, Inc. EXHIBIT A – Test Results (Cont.) Conducted Spurious Measurements §15.205 / §15.209 CONFIDENTIAL PROPERTY OF PCTEST FREQUENCY HOPPING SPREAD SPECTRUM (FHSS), FCC RULE PART 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15.240930656.A3L Test Dates: Oct. 4, 2004 EUT Type: Samsung Single-Band Phone w/ Bluetooth FCC ID: A3LSGHD500 Page 29 of 38 © 2004 PCTEST Engineering Laboratory, Inc. EXHIBIT A – Test Results (Cont.) Radiated Restricted Band Measurements §15.205 / §15.209 Special attention is made for the EUT’s harmonic and spurious radiated emission in the restricted bands of operations. The EUT was tested from 9kHz and up to the tenth harmonic of the fundamental frequency of the transmitter using CISPR quasi peak detector below 1GHZ. Above 1 GHz, average measurement was used, using RBW 1MHz – VBW 10Hz and linearly polarized horn antennas. All harmonics/spurs are at least 20dB below the highest emission in the authorized band using RBW = 100kHz. In addition, peak measurements were taken to ensure that the peak levels are not more than 20dB above the average limit. All out of band emissions, other than those created by the spreading sequence, data sequence, and the carrier modulation must not exceed the limits show in Table G-1 per Section 15.209. Frequency F/S (μV/m) Measured Distance (Meters) 0.009 – 0.490 MHz 2400/F (kHz) 300 0.490 – 1.705 MHz 24000/F (kHz) 30 1.705 – 30.00 MHz 30 30 30.00 – 88.00 MHz 100 3 88.00 – 216.0 MHz 150 3 216.0 – 960.0 MHz 200 3 Above 960.0 MHz 500 3 Table A-18. Restricted Band Limits TEST MEASUREMENT EQUIPMENT Agilent E4448A PSA Spectrum Analyzer 3 Hz - 50GHz HP 8566B Spectrum Analyzer 100Hz – 22GHz HP 83017A Microwave Analyzer 40dB Gain (0.5 – 26.5GHz) HP 3784A Digital Transmission Analyzer EMCO 3115 Horn Antenna (1 – 18GHz) HP 8495A 20dB Attenuator (DC-40GHz) 0 –70dB HP 8493B 10dB Attenuator MicroCoax Cables Low Loss Microwave Cables (1 – 26.5GHz) CDI Dipoles Dipole Antennas (30 – 1000MHz) EMCO 3116 Horn Antenna (18 – 40GHz) CONFIDENTIAL PROPERTY OF PCTEST FREQUENCY HOPPING SPREAD SPECTRUM (FHSS), FCC RULE PART 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15.240930656.A3L Test Dates: Oct. 4, 2004 EUT Type: Samsung Single-Band Phone w/ Bluetooth FCC ID: A3LSGHD500 Page 30 of 38 © 2004 PCTEST Engineering Laboratory, Inc. EXHIBIT A – Test Results (Cont.) Radiated Restricted Band Measurements (Cont.) §15.205 /§15.209 courtesy Operating Frequency: 2480 MHz Number of Channels: 79 Table A-19. Radiated Restricted Band Measurements at 3-meters NOTES: 1. The antenna is manipulated through typical positions, polarity and length during the testing. 2. The EUT is supplied with the minimal AC voltage or/and a new/fully re- charged battery. 3. The spectrum is measured from 9kHz up to the 10 th harmonic and the worst- case emissions are reported. 4. The conducted limits are shown on Figure A-14. Above 1 GHz the limit is 500μV/m. 5. < -135 dBm is below the analyzer measurement floor level. 6. The peak emissions above 1 GHz are not more than 20 dB above average limit. FREQLevelAFCLPOLF/SF/SMargin (MHz)(dBm)(dB/m)(H/V) (dBμV/m) (uV/M)(dB) 2483.7-98.433.0V41.8123.0-12.2 2484.3-95.833.0V42.5133.4-11.5 2484.4-96.033.1V44.1160.3-9.9 2485.1-93.633.1V46.5211.3-7.5 2493.0-100.533.2V39.998.9-14.1 2496.0-99.633.2V40.6107.2-13.4 CONFIDENTIAL PROPERTY OF PCTEST FREQUENCY HOPPING SPREAD SPECTRUM (FHSS), FCC RULE PART 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15.240930656.A3L Test Dates: Oct. 4, 2004 EUT Type: Samsung Single-Band Phone w/ Bluetooth FCC ID: A3LSGHD500 Page 31 of 38 © 2004 PCTEST Engineering Laboratory, Inc. EXHIBIT A – Test Results (Cont.) Line-Conducted Test Data §15.207 Notes: 1. All Modes of operation were investigated and the worst-…
Text truncated - open the document above for the full version.
Test Setup Photos
© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD500 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD500 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD500 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD500 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD500 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHD500 Single-Band PCS Only Phone
Contact Information
Applicant
Jenni Chun(General Manager)
Technical Contact
PCTEST Engineering Lab., Inc.Randy Ortanez
[email protected]410-290-6652
6660-B Dobbin Road · Columbia, Maryland · United States
Test Firm
SAMSUNG ELECTRONICS CO., LTD.No Cheon Park
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 870.00 µW |
