A3LSGHD820Dual-Band GSM/ EDGE Phone with Bluetooth

World Wide Webhttp://www.samsungmobile.com Printed in Korea Code No.:GH68-XXXXXAEnglish. 10 /2005. Drf. 1.0 * Depending on the software installed or your service provider or country, some of the descriptions in this guide may not match your phone exactly. * Depending on your country, your phone and accessories may appear different from the illustrations in this guide. SGH-D820User’s Guide Draft 2005. 10 . 05 D820XAEG2 Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Drive safely at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Important safety precautions 1 InterferenceAll wireless phones may be subject to interference, which could affect their performance.Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children.Accessories and batteriesUse only Samsung-approv ed accessories and batteries. Use of any unauthorised accessories could damage your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 89. • The phone could explode if the battery is replaced with an incorrect type.• Dispose of used batteries according to the manufacturer’s instructions. 2 About this GuideThis User’s Guide provides you with condensed information about how to use your phone. To quickly learn the basics for your phon e, please refer to “Get started” and “Step outside the phone.”In this guide, the following instruction icons appear: Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features.  Indicates that you can get more information on the referenced page. → Indicates that you need to press the Navigation keys to scroll to the specified option and then select it. [ ] Indicates a key on the phone. For example, [] < > Indicates a soft key, whose function is displayed on the phone screen. For example, < Menu > • Camera and camcorder Use the camera module on your phone to take a photo or record a video. Special features of your phone • Phone to TV View photos and video clips captured with the phone on your TV screen. • Image editor Crop, resize, rotate, and decorate your photos. •MP3 player Play MP3 music files using your phone as an MP3 player. 3 Special features of your phone • File viewer Open documents in various formats on the phone without corruption. •Bluetooth Transfer media files and personal data and connect to other devices using free, wireless Bluetooth technology. You can also use a stereo Bluetooth headset to let you enjoy music with high quality stereo sound. • Get personal with photo caller ID See who’s calling you when their very own photo displays. • Multimedia Message Service (MMS) Deliver MMS messages with a combination of text, images, video, and audio. • Voice clarity Use the voice clarity feature to increase the volume and clarity of an incoming call, even in the midst of a crowd. •E-mail Deliver e-mails with im ages, video, and audio attachments. •• Name card Create name cards with your number and profile. Whenever introducing yourself to others, use this convenient electronic name card. •Java Enjoy Java ™ -based embedded games and download new games. 4 Contents Unpack 6 Make sure you have each itemYour phone 6 Buttons, features, and locationsGet started 7 First steps to operating your phoneInstall and charge the phone ..................................... 7Power on or off........................................................ 8Keys and display ..................................................... 9Access menu functions ............................................ 11Customise your phone ............................................. 12Make/Answer calls .................................................. 14Step outside the phone 14 Begin with your camera, music, and other special featuresUse the camera ...................................................... 14Play MP3s .............................................................. 15Browse the web...................................................... 16 Use Phonebook ...................................................... 17Send messages ...................................................... 18View messages....................................................... 19Use Bluetooth wirelsess ........................................... 20Use a memory card................................................. 21 Enter text 23 ABC, T9, Number, and Symbol modesCall functions 25 Advanced calling featuresMenu functions 29 All menu options listedSolve problems 87 Help and personal needsHealth and safety information 89 Index 111 5 1 Call records  p.29 1 Recent contacts2 Missed calls3 Dialled calls4 Received calls5 Delete all6 Call time7 Call costs *  p.29  p.30  p.30  p.30  p.30  p.30  p.31 2 Phonebook  p.31 1 Contact list2 FDN list3 Add new contact4 Group5 Speed dial6 My name card7 Own number8 Manageme…

Text truncated - open the document above for the full version.















































October 25, 2005        !"# $%&' ( &) "*   +,-   . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4  .(5(65(5 / (5 1 # )57/(5)8 )94144 *4    1    1: ;&/ 1&19<;3<4




















































October 25, 2005
!
 ""
 ""
#$%"
 &
'
()
*+  !

, !
 "-

)


 .
/01
#
 23!

.
A3LSGHD820 , $
5
 5!

1  " .


 !
6
2)
5
 ,
)(
/01
#
 2
3!
  -
 $

 5!
5

' +
7"

7"
8
3
and Operational Description "
5

-9
%%  2

:
! "

!  !
  "
 !
$%"
! %
 !
  !
 5 "

-

% !
6
/01
#
 2
3!
 !
-  7
% %

 5!
 !

  "
! 7
 !
 6
6  !




7
%- 2




! 7


-
5 "
6
5
  7
% !
6

/01

#
 2
3!
 !


 5 "
6  !
-
5
- 5


 "%
 !


!
5

 5 "


! "
6  !
7
 "%

 5
! 7


"+ 2







;"
<
"
=
3-
/01
#
"
0





















































































October 25, 2005

!
 ""
 ""
 #
 !
$
%
$&'"
 #
(
)*
+,  !

- !
 ".

*



 /
012
$
 %
3!%
FCC ID: A3LSGHD820 - &
5
 67 "
 5!


7
8 "


   /


 !
9
%*)
 !
%*
5
 -
*)
012
$
 %
3!%
 &
 6  "
 5!
5


'
'
:
'

'
 !
 ;
"
5

 !

 ' %

7
! "

!  !
  "
 !
&'"
! '
 !
  !
 5 "
.

' !
9
012
$
 %3!

 !

.
' '
 5!
 !

  "
! <
 !
 9
9  !




<
'. %


! <


.
5 "
9
5
  <
' !
9

012
$
 %
3!
5


 5 "
9  !
.
5
. 5


 "'
 !


!
5

 5 "


! "
9  !
<

 "'

 5
! <


", %






="
>
"
?
3.
012
$
"
1%

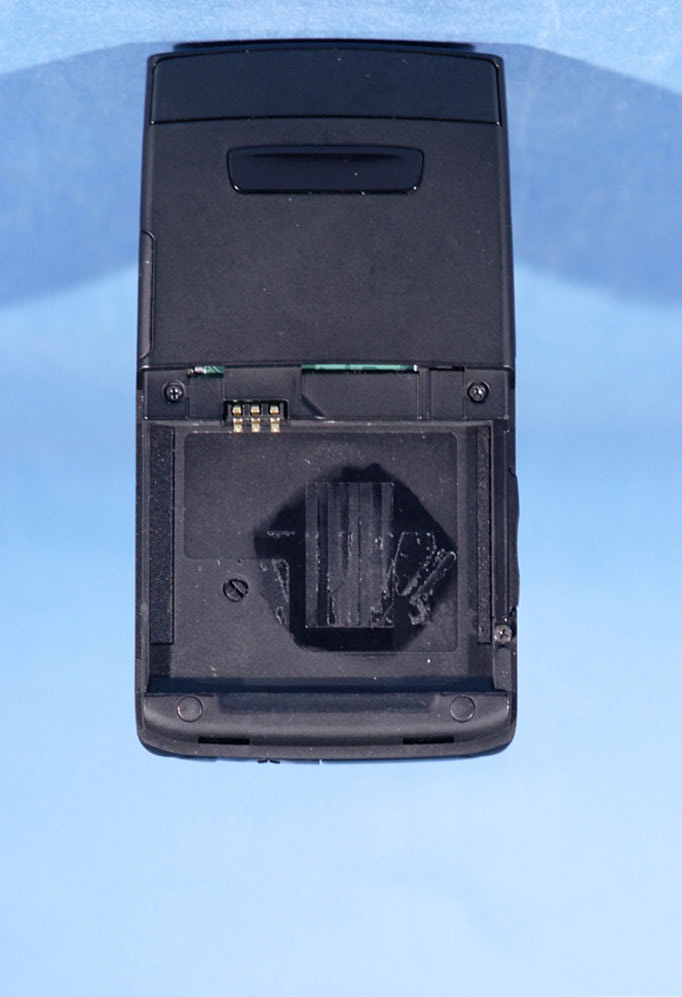

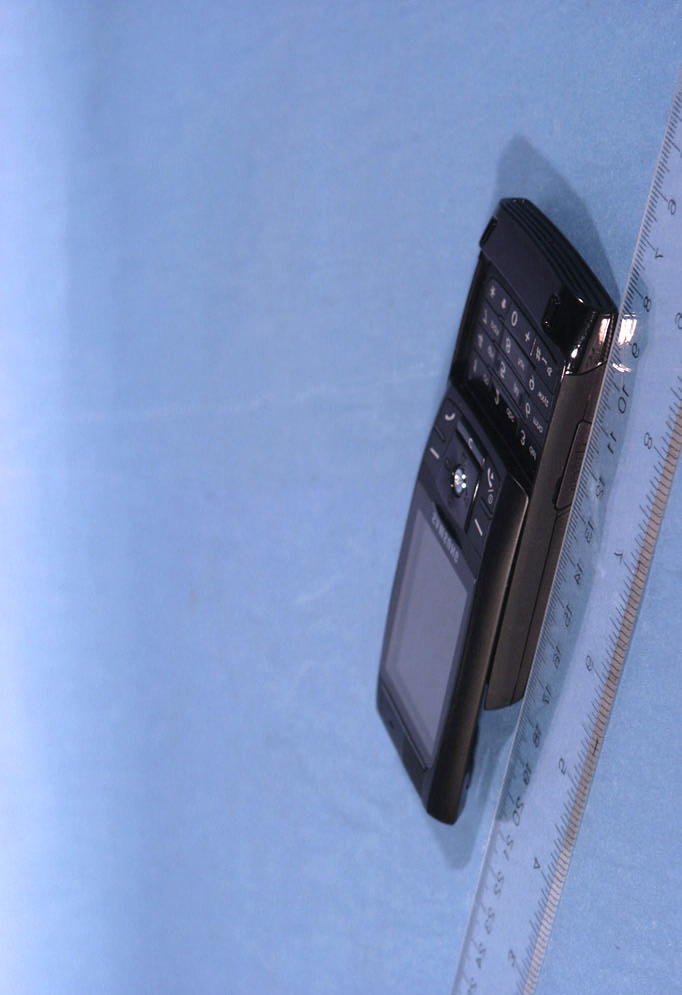

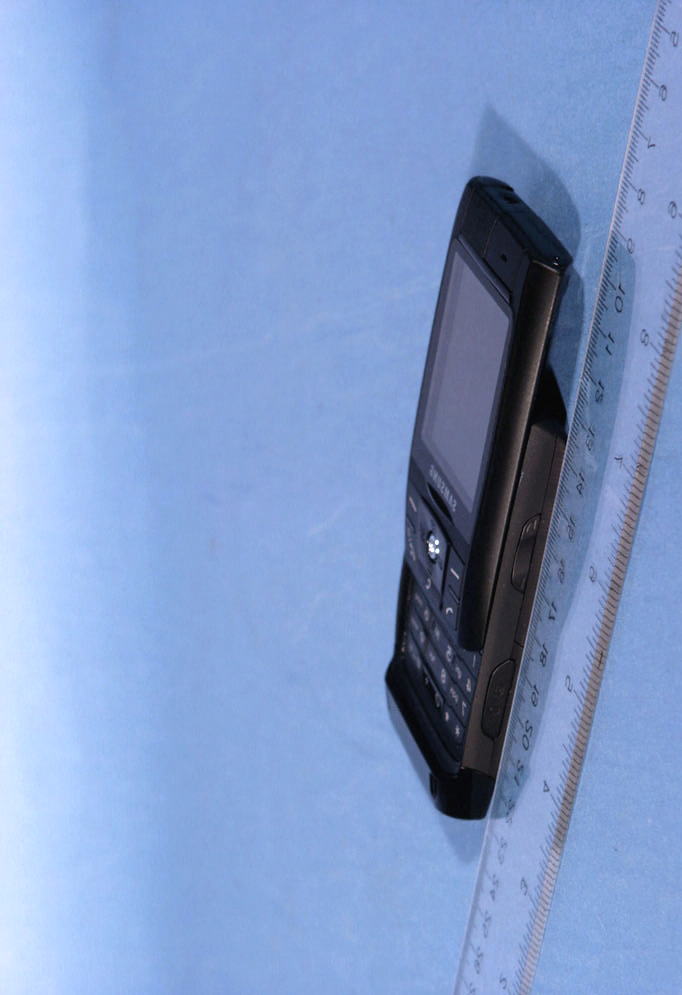

SAMSUNG FCC ID: A3LSGHD820 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Slider Phone Model: SGH-D820 SAMSUNG FCC ID: A3LSGHD820 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Slider Phone Model: SGH-D820 SAMSUNG FCC ID: A3LSGHD820 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Slider Phone Model: SGH-D820 SAMSUNG FCC ID: A3LSGHD820 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Slider Phone Model: SGH-D820 SAMSUNG FCC ID: A3LSGHD820 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Slider Phone Model: SGH-D820 SAMSUNG FCC ID: A3LSGHD820 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Slider Phone Model: SGH-D820 SAMSUNG FCC ID: A3LSGHD820 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Slider Phone Model: SGH-D820

2. Sample Label 3. FCC ID Label Location

SAMSUNG FCC ID: A3LSGHD820 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Slider Phone Model: SGH-D820 SAMSUNG FCC ID: A3LSGHD820 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Slider Phone Model: SGH-D820 SAMSUNG FCC ID: A3LSGHD820 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Slider Phone Model: SGH-D820 SAMSUNG FCC ID: A3LSGHD820 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Slider Phone Model: SGH-D820 SAMSUNG FCC ID: A3LSGHD820 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Slider Phone Model: SGH-D820 SAMSUNG FCC ID: A3LSGHD820 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Slider Phone Model: SGH-D820 SAMSUNG FCC ID: A3LSGHD820 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Slider Phone Model: SGH-D820 SAMSUNG FCC ID: A3LSGHD820 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Slider Phone Model: SGH-D820 SAMSUNG FCC ID: A3LSGHD820 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Slider Phone Model: SGH-D820

Reviewed by: PCTEST SAR REPORT SAR SUMMARY REPORT Quality Manager SAR Filename: Test Dates: EUT Type: FCC ID: 0510050693-R1 10/17/2005 - 10/19/2005 Dual-Band GSM/ EDGE Slider Phone A3LSGHD820 Page 1 of 25 © 2005 PCTEST Engineering Laboratory, Inc. Applicant Name: Date of Testing: Samsung Electronics 10/17/2005 - 10/19/2005 18600 Broadwick Street Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA Test Report Serial No.: 0510050693-R1 FCC ID: A3LSGHD820 APPLICANT: SAMSUNG ELECTRONICS Application Type: Certification FCC Rule Part(s): § 2.1093; FCC/OET Bulletin 65 Supplement C (July 2001) FCC Classification: Licensed Transmitter Held to Ear (PCE) EUT Type: Dual-Band GSM/ EDGE Slider Phone with Bluetooth Model(s): SGH-D820 Tx Frequency: 824.20MHz - 848.8MHz (Cellular GSM) 1850.20MHz - 1909.8MHz (PCS GSM) RF Output Power: 1.539 W ERP Cellular GSM (31.873 dBm) / 0.996 W ERP PCS GSM (29.981 dBm) 0.915 W ERP Cellular GSM EDGE (29.605 dBm) 0.659 W EIRP PCS GSM EDGE (28.179 dBm) Max. SAR Measurement: Cellular GSM: 0.36 W/kg Head SAR, 0.41 W/kg Body SAR PCS GSM: 0.12 W/kg Head SAR, 0.25 W/kg Body SAR Test Device Serial No.: Pre-Production Sample [S/N: FC-131-G] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: PCTEST SAR REPORT SAR SUMMARY REPORT Quality Manager SAR Filename: Test Dates: EUT Type: FCC ID: 0510050693-R1 10/17/2005 - 10/19/2005 Dual-Band GSM/ EDGE Slider Phone A3LSGHD820 Page 2 of 25 © 2005 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION....................................................................................................................3 2. TEST SITE LOCATION...........................................................................................................4 3. SAR MEASUREMENT SETUP................................................................................................5 4. ALIDX-500 E-FIELD PROBE SYSTEM....................................................................................6 5. PROBE CALIBRATION PROCESS..........................................................................................7 6. PHANTOM AND EQUIVALENT TISSUES.............................................................................8-9 7. TEST SYSTEM SPECIFICATIONS........................................................................................10 8. DOSIMETRIC ASSESSMENT AND PHANTOM SPECS.........................................................11 9. DEFINITION OF REFERENCE POINTS................................................................................12 10. TEST CONFIGURATION POSITION.....................................................................................13 11. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS..................................................................14 12. MEASUREMENT UNCERTAINTIES......................................................................................15 13. SAR TEST EQUIPMENT.......................................................................................................16 14. CONCLUSION.....................................................................................................................17 15. REFERENCES.....................................................................................................................18 EXHIBIT A. SYSTEM VERIFICATION................................................................................................19 EXHIBIT B. SAR SETUP PROCEDURES..........................................................................................20 EXHIBIT C. SAR DATA SUMMARY..............................................................................................21-25 Reviewed by: PCTEST SAR REPORT SAR SUMMARY REPORT Quality Manager SAR Filename: Test Dates: EUT Type: FCC ID: 0510050693-R1 10/17/2005 - 10/19/2005 Dual-Band GSM/ EDGE Slider Phone A3LSGHD820 Page 3 of 25 © 2005 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and …

Text truncated - open the document above for the full version.

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0510050692-R1 Test Dates: October 17-19, 2005 Phone Type: Dual-Band GSM/ EDGE w/ Bluetooth FCC ID: A3LSGHD820 Page 1 of 25 © 2005 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: October 17-19, 2005 18600 Broadwick Street Test Report S/N: 0510050692-R1 Rancho Dominguez, CA 90220 Test Site: PCTEST Lab, Columbia MD FCC ID A3LSGHD820 APPLICANT SAMSUNG ELECTRONICS CO., LTD. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H); §2 EUT Type: Dual-Band GSM/ EDGE Phone with Bluetooth Model: SGH-D820 Tx Frequency Range: 824.20 – 848.80MHz (GSM850) / 1850.20MHz – 1909.80MHz (GSM1900) Rx Frequency Range: 869.20 – 893.80MHz (GSM850) / 1930.20MHz – 1989.80MHz (GSM1900) Max. RF Output Power: 1.539 W ERP GSM850 (31.873 dBm) / 0.996 W EIRP GSM1900 (29.981 dBm) 0.915 W ERP EDGE850 (29.605 dBm) / 0.659 W EIRP EDGE1900 (28.179 dBm) Max. SAR Measurement: Cellular GSM: 0.36 W/kg Head SAR, 0.41 W/kg Body SAR PCS GSM: 0.12 W/kg Head SAR, 0.25 W/kg Body SAR Emission Designator(s): 250KGXW Test Device Serial No. Identical Prototype [S/N: # FC-131-G] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0510050692-R1 Test Dates: October 17-19, 2005 Phone Type: Dual-Band GSM/ EDGE w/ Bluetooth FCC ID: A3LSGHD820 Page 2 of 25 © 2005 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-8 5.1 EFFECTIVE RADIATED POWER OUTPUT 9-10 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 11 7.1 RADIATED MEASUREMENTS 12-17 8.1 FREQUENCY STABILITY 18-21 9.1 PLOTS OF EMISSIONS 22 10.1 LIST OF TEST EQUIPMENT 23 11.1 SAMPLE CALCULATIONS 24 12.1 CONCLUSION 25 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0510050692-R1 Test Dates: October 17-19, 2005 Phone Type: Dual-Band GSM/ EDGE w/ Bluetooth FCC ID: A3LSGHD820 Page 3 of 25 © 2005 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: SAMSUNG ELECTRONICS CO., LTD. Address: 18600 Broadwick Street Rancho Dominguez, CA 90220 • FCC ID: A3LSGHD820 • Quantity: Quantity production is planned • Emission Designators: 250KGXW • Tx Freq. Range: 824.20 – 848.80 MHz (GSM850) 1850.20 – 1909.80 MHz (GSM1900) • Rx Freq. Range: 869.20 – 893.80 MHz (GSM850) 1930.20 – 1989.80 MHz (GSM1900) • Max. Power Rating: 1.539 W ERP GSM850 (31.873 dBm) 0.996 W EIRP GSM1900 (29.981 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Dual-Band GSM/ EDGE Phone with Bluetooth • Modulation(s): GSM • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22(H) • Dates of Tests: October 17-19, 2005 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 0510050692-R1 • Deviation from measurement procedure - None PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0510050692-R1 Test Dates: October 17-19, 2005 Phone Type: Dual-Band GSM/ EDGE w/ Bluetooth FCC ID: A3LSGHD820 Page 4 of 25 © 2005 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM …
