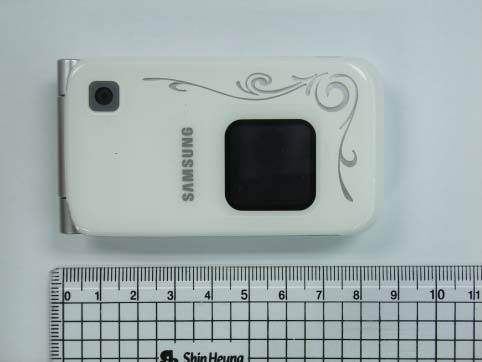

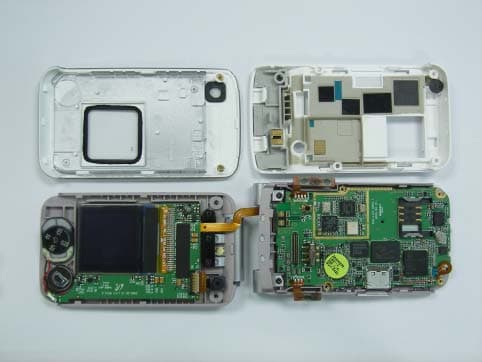

A3LSGHE420Single-Band PCS GSM Phone

World Wide Webhttp://www.samsungmobile.com Printed in Korea Code No.:GH68-XXXXXA English (EU). 08/2006. Rev. 1.0 * Depending on the software installed or your servic e provider or country, some of the descriptions in this guide may not match your phone exactly. * Depending on your country, your phone and accessories may appear different from the illustrations in this guide. SGH-E420User’s Guide D r aft 2 0 0 6 . 0 8 . 0 3 ( V e r s i o n : E 4 2 0 X A FG 4 ) Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Drive safely at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be se nsitive to external radio frequency energy. Follow any regulations or rules in force. InterferenceAll wireless phones may be subject to interference, which could affect their performance. Important safety precautions 1 Be aware of special regulationsMeet any special regulation s in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-re sistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children. Accessories and batteriesUse only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised accessories could damage you or your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 78. • The phone could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufacturer’s instructions. At very high volumes, prolonged listening to a headset can damage your hearing. 2 About this GuideThis User’s Guide provides you with condensed information about how to use your phone. To quickly learn the basics for your phone, please refer to “Get started” and “Step outside the phone.”In this guide, the following instruction icons appear: Indicates that you need to pay careful attention to the subsequent inform ation regarding safety or phone features.  Indicates that you can get more information on the referenced page. → Indicates that you need to press the Navigation keys to scroll to the specified option and then select it. [ ] Indicates a key on the phone. For example, [] < > Indicates a soft key, whose function is displayed on the phone screen. For example, < Menu > •Camera Use the camera module on your phone to take a photo. Special features of your phone •Web browser Access the wireless web to get up-to-the minute information and a wide variety of media content. • Phonebook Store home, office, or cellular phone numbers for your contacts. Special features of your phone 3 •Multimedia Message Service (MMS) Send and receive MMS messages with a combination of text, images, video, and audio. •Java Enjoy Java™-based embedded games and download new games. •Organiser Keep track of your daily, weekly, and monthly schedule. • Voice recorder Record memos or sounds. •Alarm Use your phone as an alarm clock to wake you up in the morning or notify you of an impending event. •Mobile tracker Trace your missing phone by checking the number from a tracking message. 4 Contents Unpack 6 Make sure you have each itemYour phone 6 Keys, features, and locationsGet started 7 First steps to operating your phoneInstall and charge the phone ........................... 7Power on or off.............................................. 9Keys and display............................................ 9Access menu functions .................................. 12Customise your phone ................................... 13Make/Answer calls ........................................ 15Step outside the phone 16 Begin with your camera, the web, and other special featuresUse the camera ............................................ 16Browse the web ............................................ 16 Use Phonebook ............................................ 17Send messages ............................................ 18View messages ............................................ 20Manage your schedule .................................. 21 Enter text 22 ABC, T9, Number, and Symbol modesCall functions 25 Advanced calling featuresMenu functions 30 All menu options listedSolve problems 75 Help and personal needsHealth and safety information 78 Index 99 5 Overview of menu functions To access Menu mode, press < Menu > in Idle mode. 1 SIM-AT MENU p.35 2 2 Call log p.35 1 Missed calls2 Received calls3 Dialled calls4 Delete all5 Call time6 Call costs 1 p.35p.36p.36p.36p.36p.37 3 Network services p.37 1 Call diverting2 Call barring3 Call waiting4 Network selection5 Caller ID6 Band selection7 Active line 1 p.37p.38p.39p.39p.39p.40p.40 4 Sound settings p.40 1 Incoming calls2 Messages p.40p.41 4 Sound settings (continued) 3 Power on/off4 Connection tone5 Keypad tone6 Minute minder7 Silent mode8 Alerts on call p.41p.41p.41p.41p.41p.42 5 Messages p.42 1 Short messages2 Multimedia messages 3 Push messages4 Preset messages5 Voice mail6 Broadcast7 Settings8 Memory status p.42p.45p.48p.48p.49p.49p.50p.52 6 Fun box p.52 1 WWW services2 Media box3 JAVA world p.52p.56p.57 7 Organiser p.58 1 New memo2 Calendar3 To do list4 Clock5 A…

Text truncated - open the document above for the full version.


















18600 Broadwick Street






September 12, 2006        !"# $%&' ( &) "*   +,-   . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4  .(5(65(5 / (5 1 # )57/(5)8 )94144 *4    1    1: ;&/ 1&19<;3<4 SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: September 12, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LS GHE420 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 45 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

of 26 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SGH-E420 Additional Model: SGH-E428 FCC ID (Requested): A3LSGHE420 Job No: FD-129 Report No: FD-129-S1 Date issued: Jul.28, 2006 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By Date YB KIM - Test Engineer Checked By Date JH NAM – Senior Engineer Authorized By Date SH PARK – Senior Manager Report Number: FD-129-S1 2 of 26 Contents 1. GENERAL INFORMATION ........................................................................................................ 3 2. DESCRIPTION OF DEVICE.......................................................................................................3 3. DESCRIPTION OF TEST EQUIPMENT ..................................................................................... 4 3.1 SAR Measurement Setup .................................................................................................. 4 3.2 E-field Probe ..................................................................................................................... 6 3.3 SAM Phantom ................................................................................................................... 8 3.4 Brain & Muscle Simulating Mixture Characterization .......................................................... 8 3.5 Device Holder for Transmitters .......................................................................................... 9 3.6 Validation Dipole ............................................................................................................... 9 3.7 Equipment Calibration ......................................................................................................10 4. SAR MEASUREMENT PROCEDURE ......................................................................................11 5. DESCRIPTION OF TEST POSITION ........................................................................................12 5.1 SAM Phantom Shape .......................................................................................................12 5.2 Cheek/Touch Position.......................................................................................................12 5.3 EAR/Tilt 15° Position ........................................................................................................14 5.4 Body Holster/Belt Clip Configurations ...............................................................................15 6. MEASUREMENT UNCERTAINTY ............................................................................................17 7. SYSTEM VERIFICATION..........................................................................................................18 7.1 Tissue Verification ............................................................................................................18 7.2 Test System Validation .....................................................................................................18 8. SAR MEASUREMENT RESULTS.............................................................................................19 8.1 Measurement Results(GSM1900 Right Head SAR - Touch) ..............................................20 8.2 Measurement Results(GSM1900 Right Head SAR - Tilt)...................................................21 8.3 Measurement Results(GSM1900 Left Head SAR - Touch) ................................................22 8.4 Measurement Results(GSM1900 Left Head SAR - Tilt) .....................................................23 8.5 Measurement Results(GPRS1900 Body SAR without Holster)..........................................24 9. CONCLUSION..........................................................................................................................25 10. REFERENCES .......................................................................................................................26 Report Number: FD-129-S1 3 of 26 1. GENERAL INFORMATION Test Sample : Single-Band PCS GSM Phone Model Number : SGH-E420 Serial Number : Identical prototype (S/N : # FD-129-C) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : SG HWANG Phone : +82-31-301-7031 Fax : - Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Jul.20, 2006 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE s Tx Freq. Range : 1850.20 ~ 1909.80 MHz (GSM1900) Rx Freq. Range : 1930.20 ~ 1989.80 MHz (GSM1900) Max. RF Output Power : 0.752 W EIRP GSM1900 (28.76 dBm) Antenna Manufacturer : INTOPS Model No.: T-2 Antenna Dimensions : 41mm × 11mm × 6.5mm Report Number: FD-129-S1 4 of 26 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung computer with Windows XP system and SAR Measurement Software DASY4, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A Report Number: FD-129-S1 5 of 26 data acquisition electron…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested : SGH-E420 Additional Model : SGH-E428 FCC ID(Requested) : A3LSGHE420 Report No : FD-129-R1 Job No : FD-129 Date issued : July 28, 2006 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By Date YE PARK – Test Engineer Checked By Date WW JANG – Manager Authorized By Date SH PARK – Senior Manager © Copyright SAMSUNG Electronics 2006 Report Number : FD-129-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION .....................................................................3 1.1. §2.1033 General Information .........................................................................3 2. INTRODUCTION .......................................................................................................4 2.1. General..........................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION ...........................................................5 4. TEST EQUIPMENT LIST...........................................................................................6 5. DESCRIPTION OF TESTS ........................................................................................7 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power ..................7 5.2. Radiated Spurious & Harmonic Emission ......................................................8 5.3. Occupied Bandwidth ....................................................................................10 5.4. Spurious and Harmonic Emission at Antenna Terminal................................10 5.4.1. Occupied Bandwidth Emission Limits ..............................................10 5.4.2. Conducted Spurious Emission .........................................................12 5.5. Frequency Stability / Temperature Variation .................................................13 6. TEST DATA .............................................................................................................14 6.1. Equivalent Isotropic Radiated Power (E.I.R.P.) ............................................14 6.2. GSM1900 Radiated Spurious & Harmonic measurement ............................15 6.3. GSM1900 Radiated Spurious & Harmonic Conversion Table ......................16 6.4. Frequency Stability.......................................................................................17 6.4.1. GSM1900 Frequency Stability Table ................................................17 6.4.2. GSM1900 Frequency Stability Graph...............................................18 7. CONCLUSION.........................................................................................................20 8. TEST PLOTS...........................................................................................................21 Report Number : FD-129-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • Attention : SungJoo KIM, Engineering Manager (QA Lab) • FCC ID : A3LSGHE420 • Additional Model : SGH-E428 • Quantity : Quantity production is planned • Emission Designators : 242KGXW(GSM1900) • Tx Freq. Range : 1850.2MHz -1909.8MHz (GSM1900) • Rx Freq. Range : 1930.2MHz - 1989.8MHz (GSM1900) • Max. Power Rating : 0.752 W EIRP GSM1900 (28.76dBm) • FCC Classification(s) : Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : Single-Band PCS GSM Phone • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §2. • Dates of Test : July 20-21, 2006 • Place of Test : SAMSUNG Lab, • Test Report S/N : FD-129-R1 Report Number : FD-129-R1 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Figure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FD-129-R1 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. Report Number : FD-129-R1 4. TEST EQUIPMENT LIST Name Of Equipment Model Serial No. Due Date Spectrum Analyzer ESI26 836119/010 2006-09-26 E4440A(3Hz~26.5GHz)MY41000236 2007-04-14 E4440A(3Hz~26.5GHz)MY41000233 2007-04-05 Sign…
