A3LSGHE736Dual-Band GSM Phone with Bluetooth

World Wide Webhttp://www.samsungmobile.com Printed in Korea Code No.:GH68-08508A English. 10/2005. Rev 1.0 * Depending on the software installe d or your service provider, some of the description in this manual may differ from your phone. * Depending on your country, your phone and accessories may appear different from the illustrations in this manual. SGH-E736User’s Manual Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Use road safety at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Important safety precautions 1 InterferenceAll wireless phones may be subject to interference, which could affect their performance. Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callsKey in the emergency number for your present location, then press . Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children.Accessories and batteriesUse only Samsung-approved accessories and batteries. Use of any unauthorised accessories could damage your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 90. • The phone could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufacturer’s instructions. 2 About this GuideThis User’s Guide provides you with condensed information about how to use your phone. To quickly learn the basics for your ph one, please refer to “Get started” and “Step outside the phone.”In this guide, the following instruction icons appear: Indicates that you need to pay careful attention to the subsequent information regarding safety or phone features.  Indicates that you can get more information on the referenced page. → Indicates that you need to press the Navigation keys to scroll to the specified option and then select it. [ ] Indicates a key on the phone. For example, [] < > Indicates a soft key, whose function is displayed on the phone screen. For example, < Menu > • Camera and camcorder Use the camera module on your phone to take a photo or record a video. Special features of your phone •MP3 player Play MP3 music files using your phone as a MP3 player. •Bluetooth Send photos, images, videos, and other personal data, and connect to other devices using free, wireless Bluetooth technology. 3 Special features of your phone • Get personal with photo caller ID See who’s calling you when their very own photo displays. • Name card Create name cards with your number and profile. Whenever introducing yourself to others, use this convenient electronic name card. •WAP browser Access the wireless web and access various services and up-to-the-minute information. • Multimedia Message Service (MMS) Send and receive MMS messages with a combination of text, images, video, and audio. •E-mail Send and receive e-mails with images, video, and audio attachments. •Java Enjoy Java ™ -based embedded games and download new games. •Calendar Keep track of your daily, weekly, and monthly schedule. • Voice recorder Record memos or sounds. 4 Contents Unpack 6 Make sure you have each itemYour phone 6 Buttons, features, and locationsGet started 7 First steps to operating your phoneInstall and charge the phone ................................... 7Power on or off ...................................................... 8Keys and display .................................................... 9Access menu functions.......................................... 11Customise your phone .......................................... 12Make/Answer calls................................................ 14Step outside the phone 15 Begin with your camera, music, and other special featuresUse camera ......................................................... 15Play MP3s ........................................................... 16 Browse the web ................................................... 17Use Phonebook .................................................... 17Send messages.................................................... 18View messages .................................................... 20Use Bluetooth ...................................................... 21 Enter text 22 ABC, T9, Number, and Symbolic modeCall functions 24 Advanced calling featuresMenu functions 30 All menu options listedSolve problems 89 Help and personal needsHealth and safety information 90 Index 112 5 Overview of menu functions To access Menu mode, press < Menu > in Idle mode. 1 Call records  p.30 1 Current contacts2 Missed calls3 Dialled calls4 Received calls5 Delete all6 Call time7 Call costs *  p.30  p.30  p.30  p.30  p.31  p.31  p.31 2 Phonebook  p.32 1 Contact list2 FDN list * 3 Add new contact4 Group5 Speed dial6 My name card7 Own number8 Management9 Service number *  p.32  p.33  p.33  p.34  p.34  p.35  p.35  p.36  p.36 3 Applications  p.36 1 MP3 Player2 Voice recorder3 Java world4 World time5 Alarm6 Calculator 7 Convertor 8 Timer9 Stopwatch10 SIM-AT*  p.37  p.39  p.40  p.41  p.42  p.42  p.43  p.43 …

Text truncated - open the document above for the full version.

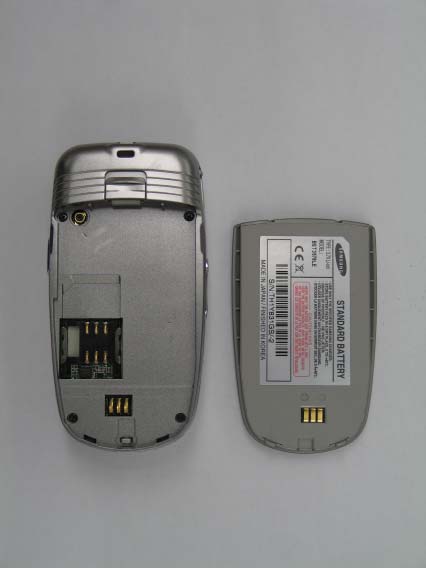

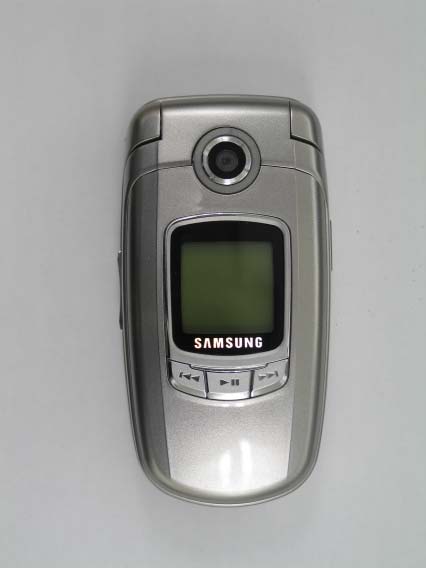

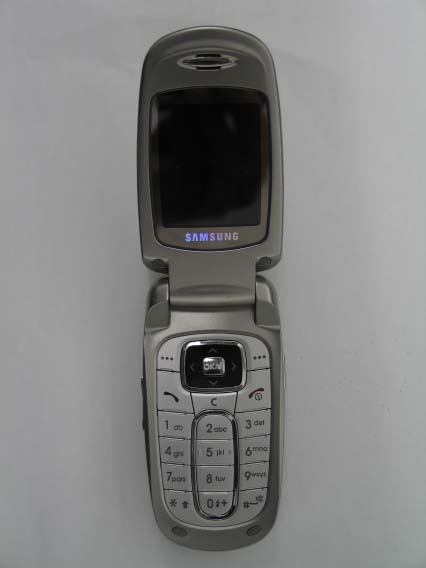

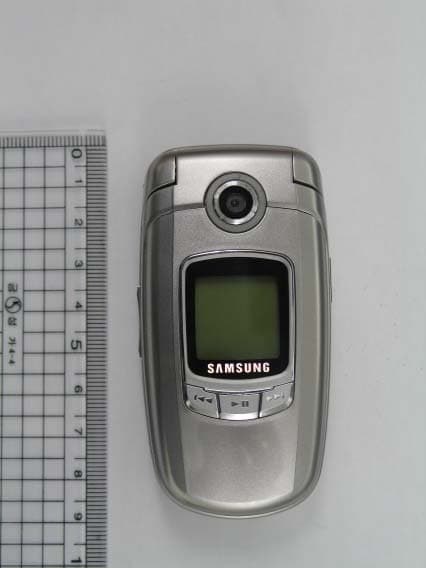

© 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone With Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone With Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone With Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone With Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone With Bluetooth

A3LSGHE736

© 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone With Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone With Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone With Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone With Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone With Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone With Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone With Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone With Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone With Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone With Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone With Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone With Bluetooth

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SGH-E736 FCC ID (Requested): A3LSGHE736 Job No: FC-133 Report No: FC-133-S1 Date issued: Sep. 30,2005 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By Date EH Jung – Test Engineer Checked By Date SH PARK – Senior Manager Authorized By Date JK CHOI –General Manager Report Number : FC-133-S1 2 of 36 Contents 1. General Information.............................................................................................3 2. Description of Device...........................................................................................3 3. Description of Test Equipment..............................................................................4 3.1 SAR Measurement Setup.........................................................................................4 3.2 DASY3 E-Field Probe.............................................................................................5 3.3 SAM Phantom.....................................................................................................6 3.4 Brain & Muscle Simulating Mixture Characterization....................................................7 3.5 Device Holder for transmitters.................................................................................8 3.6 Validation Dipole...................................................................................................8 3.7 Equipment Calibration.............................................................................................9 4. SAR Measurement Procedure.............................................................................10 5. Description of test position..............................................................................11 5.1 SAM Phantom Shape............................................................................................11 5.2 Cheek/Touch Position............................................................................................11 5.3 Ear/Tilt 15 Position..............................................................................................13 5.4 Body/Holster/Belt Clip Configuration.......................................................................14 6. Measurement Uncertainty..................................................................................16 7. System Verification.........................................................................................18 7.1 Tissue Verification..............................................................................................18 7.2 Test System Validation...........................................................................................18 8. SAR Measurement Results.................................................................................19 8.1 Measurement Results(GSM 850Right Head SAR-Touch)..............................20 8.2 Measurement Results(GSM 850Right Head SAR-Tilt)..............................21 8.3 Measurement Results(GSM 850Left Head SAR-Touch)..............................22 8.4 Measurement Results(GSM 850Left Head SAR-Tilt)..............................23 8.5 Measurement Results(GSM 1900Right Head SAR-Touch)........................................24 8.6 Measurement Results(GSM 1900Right Head SAR-Tilt)............................................25 8.7 Measurement Results(GSM 1900Left Head SAR-Touch)..........................................26 8.8 Measurement Results(GSM 1900Left Head SAR-Tilt)..............................................27 8.9 Measurement Results(GSM 850Body SAR w/o Holster)................................28 8.10 Measurement Results(GSM 1900Body SAR w/o Holster)..........................................29 9. Conclusion.......................................................................................................35 10. Reference......................................................................................................36 Report Number : FC-133-S1 3 of 36 1. GENERAL INFORMATION Test Sample : Dual-Band GSM 850/1900 Phone With Bluetooth Model Number : SGH-E736 Serial Number : Identical prototype (S/N :#FC-133-A) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : SS IM Phone : +82-31-279-7296 Fax : +82-31-279-2556 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Sep. 26. 2005 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 824.20 – 848.08 MHz (GSM 850) 1850.20 – 1909.80 MHz (GSM1900) 2402 – 2480 MHz (Bluetooth) Rx Freq. Range : 869.20 – 893.80 MHz (GSM850) 1930.20 – 1989.80 MHz (GSM1900) 2402 – 2480 MHz (Bluetooth) Max. RF Output Power : 1.403 W ERP GSM850 (31.47 dBm) 0.706 W EIRP GSM1900 (28.49dBm) Antenna Manufacturer : Samsung Eletro-Mechanics Model No. IAPG0E736A Antenna Dimensions : 36*1.5*0.3[mm] Report Number : FC-133-S1 4 of 36 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY3 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, Pentium computer, near-field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung Pentium 550MHz computer with Wind…

Text truncated - open the document above for the full version.

SAMSUNG FCC ID : A3LSGHE736 -- 835MHz GSM850 Head SAR DUT: SGH-E736; Serial: FC-133-A Program Name: SGH-E736 GSM850 Right (Job No. : FC-133) Procedure Name: Cheek/Touch, Ch.251, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-22.0; Test Date-26/Sep/2005 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 848.8 MHz; σ = 0.88 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ES3DV3 - SN3080; ConvF(5.75, 5.75, 5.75); Calibrated: 2005-05-26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn670; Calibrated: 2005-04-05 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1141 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch, Ch.251, Ant.Intenna, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.954 mW/g Cheek/Touch, Ch.251, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.77 V/m; Power Drift = -0.017 dB Peak SAR (extrapolated) = 1.32 W/kg SAR(1 g) = 0.884 mW/g Maximum value of SAR (measured) = 0.948 mW/g 0 dB = 0.948mW/g SAMSUNG FCC ID : A3LSGHE736 -- 835MHz GSM850 Head SAR DUT: SGH-E736; Serial: FC-133-A Program Name: SGH-E736 GSM850 Right (Job No. : FC-133) Procedure Name: Ear/Tilt, Ch.190, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-22.0; Test Date-26/Sep/2005 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.88 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ES3DV3 - SN3080; ConvF(5.75, 5.75, 5.75); Calibrated: 2005-05-26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn670; Calibrated: 2005-04-05 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1141 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Ear/Tilt, Ch.190, Ant.Intenna, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.262 mW/g Ear/Tilt, Ch.190, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.7 V/m; Power Drift = -0.020 dB Peak SAR (extrapolated) = 0.317 W/kg SAR(1 g) = 0.246 mW/g Maximum value of SAR (measured) = 0.256 mW/g 0 dB = 0.256mW/g SAMSUNG FCC ID : A3LSGHE736 -- 835MHz GSM850 Head SAR DUT: SGH-E736; Serial: FC-133-A Program Name: SGH-E736 GSM850 Left (Job No. : FC-133) Procedure Name: Cheek/Touch, Ch.251, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-22.0; Test Date-26/Sep/2005 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 848.8 MHz; σ = 0.88 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ES3DV3 - SN3080; ConvF(5.75, 5.75, 5.75); Calibrated: 2005-05-26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn670; Calibrated: 2005-04-05 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1141 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch, Ch.251, Ant.Intenna, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.866 mW/g Cheek/Touch, Ch.251, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.7 V/m; Power Drift = -0.109 dB Peak SAR (extrapolated) = 1.15 W/kg SAR(1 g) = 0.790 mW/g Maximum value of SAR (measured) = 0.846 mW/g 0 dB = 0.846mW/g SAMSUNG FCC ID : A3LSGHE736 -- 835MHz GSM850 Head SAR DUT: SGH-E736; Serial: FC-133-A Program Name: SGH-E736 GSM850 Left (Job No. : FC-133) Procedure Name: Ear/Tilt, Ch.190, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-22.0; Test Date-26/Sep/2005 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.88 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ES3DV3 - SN3080; ConvF(5.75, 5.75, 5.75); Calibrated: 2005-05-26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn670; Calibrated: 2005-04-05 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1141 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Ear/Tilt, Ch.190, Ant.Intenna, Bat.Standard/Area Scan (51x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.254 mW/g Ear/Tilt, Ch.190, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.5 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 0.309 W/kg SAR(1 g) = 0.240 mW/g Maximum value of SAR (measured) = 0.250 mW/g 0 dB = 0.250mW/g SAMSUNG FCC ID : A3LSGHE736 -- 835MHz GSM850 Head SAR DUT: SGH-E736; Serial: FC-133-A Program Name: SGH-E736 GSM850 Right (Job No. : FC-133) Procedure Name: Cheek/Touch, Ch.251, Ant.Intenna, Bat.Standard With BT ON Procedure Notes: Meas.Tissue Temp(celsius)-22.0; Test Date-26/Sep/2005 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 848.8 MHz; σ = 0.88 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ES3DV3 - SN3080; ConvF(5.75, 5.75, 5.75); Calibrated: 2005-05-26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn670; Calibrated: 2005-04-05 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1141 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch, Ch.251, Ant.Intenna, Bat.Standard With BT ON/Zoom Scan (5x5x7)/Cu…

Text truncated - open the document above for the full version.

SAMSUNG FCC ID : A3LSGHE736 835MHz GSM850 Validation DUT: Dipole 835 MHz; Serial: 4d014 Program Name: 835MHz Dipole Validation 2005.09.26 Procedure Name: 835MHz @ 250mW Procedure Notes: Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.88 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV3 - SN3080; ConvF(5.75, 5.75, 5.75); Calibrated: 2005-05-26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn670; Calibrated: 2005-04-05 - Phantom: SAM 835/900 MHz; Type: SAM; Serial: TP-1141 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 835MHz @ 250mW/Area Scan (51x61x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 2.64 mW/g 835MHz @ 250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.3 V/m; Power Drift = -0.056 dB Peak SAR (extrapolated) = 3.70 W/kg SAR(1 g) = 2.45 mW/g Maximum value of SAR (measured) = 2.64 mW/g 0 dB = 2.64mW/g SAMSUNG FCC ID : A3LSGHE736 1900MHz GSM1900 Validation DUT: Dipole 1900 MHz; Serial: 5d023 Program Name: 1900MHz Dipole Validation 2005.09.26 Procedure Name: 1900MHz @ 250mW Procedure Notes: Meas.Tissue Temp(celsius)-21.8; Test Date-12/Sep/2005 [OET Bulletin 65- Supplement C, July 2001] Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.37 mho/m; ε r = 39.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV3 - SN3080; ConvF(4.92, 4.92, 4.92); Calibrated: 2005-05-26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn670; Calibrated: 2005-04-05 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1143 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 1900MHz @ 250mW/Area Scan (51x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 14.4 mW/g 1900MHz @ 250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 88.4 V/m; Power Drift = -0.055 dB Peak SAR (extrapolated) = 17.7 W/kg SAR(1 g) = 9.96 mW/g Maximum value of SAR (measured) = 11.3 mW/g 0 dB = 11.3mW/g

© 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone with Bluetooth 1.5Cm © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone with Bluetooth © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 Dual-Band GSM 850/1900 Phone with Bluetooth

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 FCC CFR47 PART 22 & 24 SUBPART CERTIFICATION REPORT Model Tested: SGH-E736 FCC ID (Requested): A3LSGHE736 Report No: FC-133-R1 Job No: FC-133 Date issued: September 26, 2005 - Abstract – All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part22, Part24. Prepared By Date WW JANG– Test Engineer Checked By Date SH PARK –Senior Manager Authorized By Date JK CHOI – General Manager © Copyright SAMSUNG Electronics 2005 Report Number : FC-133-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information 3 1.1 2.1033 General Information 3 2. INTRODUCTION 4 2.1 General 4 3. MEASURING INSTRUMENT CALIBRATION 5 4. TEST EQUIPMENT LIST 6 5. DESCRIPTION OF TESTS 7 5.1 Effective Radiated Power/Equivalent Isotropic Radiated Power 7 5.2 Radiated Spurious & Harmonic Emission 8 5.3 Occupied Bandwidth 10 5.4 Spurious and Harmonic Emissions at Antenna Terminal 10 5.4.1 Occupied Bandwidth Emission Limits 10 5.4.2 Conducted Spurious Emission 11 5.5 Frequency Stability / Temperature Variation 12 6. TEST DATA 13 6.1 Effective Radiated Power(E.R.P.) 13 6.2 Equivalent Isotropic Radiated Power(E.I.R.P.) 14 6.3 GSM850 Radiated Spurious & Harmonic Measurement 15 6.4 GSM1900 Radiated Spurious & Harmonic Measurement 16 6.5 GSM850 Radiated Spurious & Harmonic Conversion Table 17 6.6 GSM1900 Radiated Spurious & Harmonic Conversion Table 18 6.7 Frequency Stability 19 6.7.1 GSM850 Frequency Stability Table 19 6.7.2 GSM850 Frequency Stability Graph 20 6.7.3 GSM1900 Frequency Stability Table 22 6.7.4 GSM1900 Frequency Stability Graph 23 7.SAMPLE CALCULATION 25 7.1 Emission Designator 8. CONCLUSION 26 9. TEST PLOTS 27 Report Number : FC-133-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1 §2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 Attention: FCC ID: SungJoo KIM, Engineering Manager (QA Lab) A3LSGHE736 Quantity: Quantity production is planned Emission Designators: 246KGXW(GSM850), 248KGXW(GSM1900) Tx Freq. Range: 824.2 - 848.8MHz (GSM850) 1851.25 -1908.75MHz (GSM1900) Rx Freq. Range: 869.2 - 893.8 MHz (GSM850) 1931.25 -1988.75 MHz (GSM1900 ) Max. Power Rating: 1.403W ERP GSM850 ( 31.47dBm) 0.706W EIRP GSM1900 (28.49dBm) FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) Equipment (EUT) Type: Dual-Band GSM850/1900 Phone with Bluetooth Modulation(s): GSM850/ GSM1900 Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 24(E), 22(H), 2. Dates of Test: September 22-23 2005 Place of Test: SAMSUNG Lab, Test Report S/N: FC-133-R1 Report Number : FC-133-R1 2. INTRODUCTION 2.1 General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742. The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FC-133-R1 3.MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. - End of page - Report Number : FC-133-R1 4. TEST EQUIPMENT LIST Name of Equipment Model Serial No. Due Date E4440A(3Hz~26.5GHz) MY41000236 2005-10-27 Spectrum Analyzer E4440A(3Hz~26.5GHz) MY41000233 2005-11-04 SMIQ03B 83824/021 2005-12-27 Signal Generator SMR20 835197/030 2006-01-18 Power Sensor 8481B 3318A10325 2005-10-06 Amplifier 5S1G4 304866 2005-10-19 Pre-Amplifier 8449B 3008A00691 2006-01-11 8960 GB42230535 2005-11-04 Communication test set 8960 GB42360886 2005-10-27 Antenna Master MA0001 ANT0967 Not Required Controller HD100 100/756 Not Required SH-241 92000548 2005-11-22 Environmental Chamber SH-241 92000549 2005-11-22 HF906 360306/011 2006-03-17 Horn Antenna HF906 100134 2006-04-25 Dipole Antenna 3121C-DB4 9007-587 2005-12-02 Receive Antenna HL040 353255/020 2006-06-21 8494A 3308A31997 2006-01-03 Attenuator 8496A 3308A14426 2006-01-04 11636B 51941 Not Required 11636B 51942 Not Required Divider 11636B 51946 Not Required WHK1.0/15G-10SS 1 Not Required WHK1.0/15G-10SS 1 Not Required WHK/3.5/18G-10SS 3 Not Required High Pass Filter WHK/3.5/18G-10SS 4 Not Required Shielded Fully Anechoic Chamber RF0002 ANT0001 Not Required Report Number : FC-133-R1 5. DESCRIPTION OF TESTS 5.1 Effective Radiated Power / Equivalent Isotropic Radiated Power Test Set-up for the ERP/EIRP TEST Effective Radiated Power Output and Equivalent Isotropic Radiated Power output Measurements by Substitution Method acco…

Text truncated - open the document above for the full version.

© 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736 © 2005 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE736
