A3LSGHE830Single-Mode PCS GSM Phone

World Wide Webhttp://www.samsungmobile.com Printed in Korea Code No.: GH68-0XXXXA English. 07/2004. Draft. 1.0 * Some of the contents in this manual may differ from your phone, depending on the softwar installed or your service provider. GPRS TELEPHONE SGH-E830 2 3 ContentsImportant safety precautions ...................... 7Unpacking .................................................... 9Your phone ................................................ 10Phone layout...................................................... 10Display.............................................................. 13Backlight ........................................................... 16Camera ............................................................. 16Built-in antenna ................................................. 17Getting started........................................... 18Inserting/Removing th e SIM card ......................... 18 Installing/Removing/Charging the battery.............. 19Switching the phone on or off............................... 23Selecting functions and options ............................ 24Locking or unlocking the keypad........................... 26 Call functions ............................................. 27Making a call...................................................... 27Ending a call ...................................................... 30Answering a call ................................................. 30Rejecting a call................................................... 30Adjusting the volume .......................................... 31Accessing options during a call ............................. 31Using the ear-microphone.................................... 40Using the external speaker ................................. 40Entering text .............................................. 41Changing the text input mode .............................. 42Using the t9 mode .............................................. 43Using the ABC mode ........................................... 45Using the symbolic mode ..................................... 48Using the number mode ...................................... 48Using the menus ........................................ 49Accessing a menu function................................... 49List of menu functions ......................................... 50 Contents 4 Phonebook menu........................................ 56Find name ........................................................ 56Add entry ......................................................... 59Speed list ........................................................ 60Copy all to phone............................................... 62Send all via infrared ........................................... 63Delete all .......................................................... 65Own number ..................................................... 66Group setting .................................................... 67Memory status .................................................. 68Service directory ............................................... 68SAT (SIM Application Toolkit) ................... 69Call records ................................................ 70Missed calls....................................................... 70Received calls.................................................... 70Dialled calls ...................................................... 71Delete all .......................................................... 71Call time........................................................... 72Call costs.......................................................... 72Network services........................................ 74Call diverting..................................................... 74Call barring ....................................................... 76Call waiting ....................................................... 79Network selection .............................................. 80Caller ID........................................................... 81Active line......................................................... 81Sound settings ........................................... 82Incoming calls ................................................... 82Messages.......................................................... 83Power on/off ..................................................... 84Connection tone ................................................ 84Key tone........................................................... 85Minute minder ................................................... 85Quiet mode ....................................................... 85Slider tone ........................................................ 86Alerts on call ..................................................... 86 Contents 5 Messages ................................................... 87Short messages ................................................. 87Multimedia messages .......................................... 94Push messages ................................................ 105Preset messages .............................................. 106Voice mail ....................................................... 106Broadcast ........................................................ 107Settings .......................................................... 109Memory status ................................................ 113Fun box .................................................... 114WWW services ................................................. 114Media box........................................................ 120JAVA world ...................................................... 124Melody composer ............................................. 128Organiser ................................................. 129New memo ...................................................... 129Calendar ......................................................... 131To do list ..................................…

Text truncated - open the document above for the full version.

July 16, 2004 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSGHE830 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America July 16, 2004 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID: A3LSGHE830 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests short-term confidentiality for the test setup photos, external photos, internal photos, and user’s manual of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

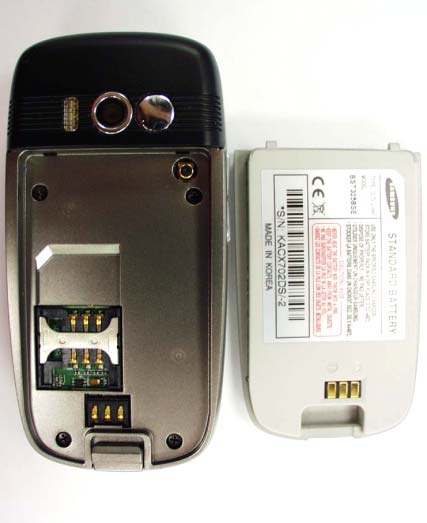

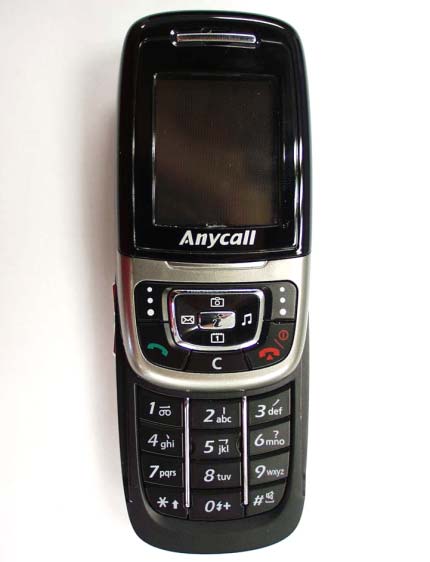

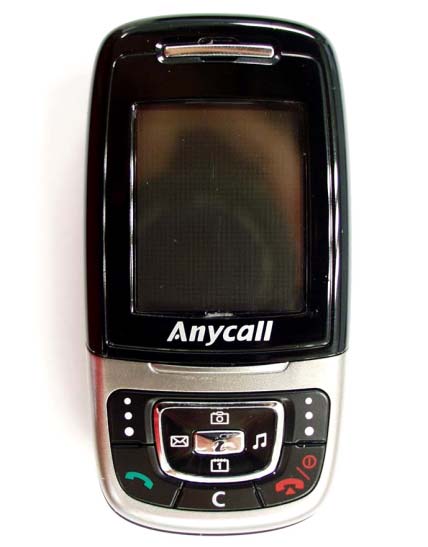

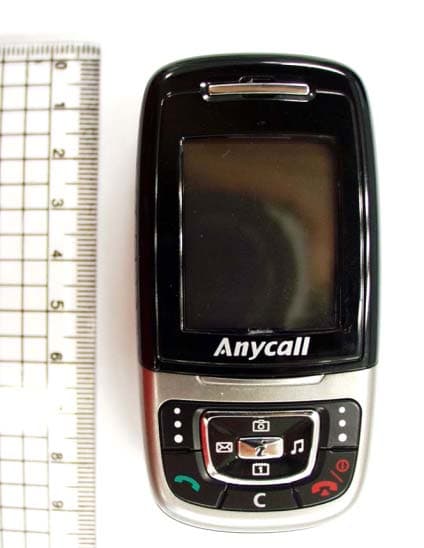

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE830 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE830 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE830 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE830 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE830 Single-Band PCS Only Phone

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE830 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE830 Single-Band PCS Only Phone

1 of 26 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Team IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 442-742 TEST REPORT ON SAR Model Tested: SGH-E830 (Additional Model:SGH-E838,SGH-E830C) FCC ID (Requested): A3LSGHE830 Job No: FB-040 Report No: FB-040-S1 Date issued: Jul. 15, 2004 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By Date JH NAM – Test Engineer Checked By Date JH CHOI - Manager Authorized By Date JK CHOI – Senior Manager Report Number : FB-040-S1 2 of 26 Contents 1. General Information.............................................................................................3 2. Description of Device...........................................................................................3 3. Description of Test Equipment..............................................................................4 3.1 SAR Measurement Setup.........................................................................................4 3.2 DASY4 E-Field Probe.............................................................................................5 3.3 SAM Phantom.....................................................................................................6 3.4 Brain & Muscle Simulating Mixture Characterization....................................................7 3.5 Device Holder for transmitters.................................................................................8 3.6 Validation Dipole...................................................................................................8 3.7 Equipment Calibration.............................................................................................9 4. SAR Measurement Procedure.............................................................................10 5. Description of test position..............................................................................11 5.1 SAM Phantom Shape............................................................................................11 5.2 Cheek/Touch Position............................................................................................11 5.3 Ear/Tilt 15 Position..............................................................................................13 5.4 Body/Holster/Belt Clip Configuration.......................................................................14 6. Measurement Uncertainty..................................................................................16 7. System Verification.........................................................................................17 7.1 Tissue Verification..............................................................................................17 7.2 Test System Validation...........................................................................................17 8. SAR Measurement Results.................................................................................18 8.1 Measurement Results(GSM1900 Right Head SAR-Touch)............................................19 8.2 Measurement Results(GSM1900 Right Head SAR-Tilt)................................................20 8.3 Measurement Results(GSM1900 Left Head SAR-Touch)..............................................21 8.4 Measurement Results(GSM1900 Left Head SAR-Tilt)..................................................22 8.5 Measurement Results(GSM1900 Body SAR w/o Holster).............................................23 8.6 Measurement Results(GPRS1900 Body SAR w/o Holster)............................................24 9. Conclusion.......................................................................................................25 10. Reference.......................................................................................................26 Report Number : FB-040-S1 3 of 26 1. GENERAL INFORMATION Test Sample : Single-Band PCS Only Phone Model Number : SGH-E830, SGH-E838, SGH-E830C Serial Number : Identical prototype (S/N : FB-040-B) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : GT KIM, Assistant Manager Phone : +82-31-279-6067 Fax : +82-31-279-6162 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : July 12, 2004 ~ July 13, 2004 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 1850.20 – 1909.80 MHz (GSM1900) Rx Freq. Range : 1930.20 – 1989.80 MHz (GSM1900) Max. RF Output Power : 1.390 W EIRP GSM1900 ( 31.43 dBm) Antenna Manufacturer : SAMSUNG ELECTRONICF-MECHANICS Model No. : IAPS000C3728HA Antenna Dimensions : Length = [Intenna] Report Number : FB-040-S1 4 of 26 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung computer with Windows XP system and SAR Measurement Software DASY4, LCD monitor, mouse and keyboard. The Stäubli Robot is connected to the cell controller to allow software manipulation of the robot. A data acquisition electronic (DAE) circuit that performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detect…

Text truncated - open the document above for the full version.

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE830 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE830 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE830 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE830 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE830 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE830 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE830 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE830 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE830 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE830 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE830 Single-Band PCS Only Phone © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSGHE830 Single-Band PCS Only Phone

SAMSUNG FCC ID : A3LSGHE830 -- 1900MHz GSM1900 Head SAR DUT: SGH-E830(DOWN); Serial: FB-040-B Program Name: SGH-E830 GSM1900 Right (Job No.: FB-040) Procedure Name: Cheek/Touch, Ch.512, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-20.8; Test Date-12/Jul/2004 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1850.2 MHz; σ = 1.38 mho/m; ε r = 38.7; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1734; ConvF(5.28, 5.28, 5.28); Calibrated: 2004-02-02 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2003-12-16 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1143 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Cheek/Touch, Ch.512, Ant.Intenna, Bat.Standard/Area Scan (51x61x1): Measurement grid: dx=20mm, dy=20mm Reference Value = 14.3 V/m; Power Drift = 0.003 dB Maximum value of SAR (interpolated) = 1.46 mW/g Cheek/Touch, Ch.512, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.3 V/m; Power Drift = 0.003 dB Maximum value of SAR (measured) = 1.55 mW/g Peak SAR (extrapolated) = 2.55 W/kg SAR(1 g) = 1.44 mW/g 0 dB = 1.55mW/g SAMSUNG FCC ID : A3LSGHE830 -- 1900MHz GSM1900 Head SAR DUT: SGH-E830(DOWN); Serial: FB-040-B Program Name: SGH-E830 GSM1900 Right (Job No.: FB-040) Procedure Name: Tilted, Ch.661, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-20.8; Test Date-12/Jul/2004 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.38 mho/m; ε r = 38.7; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1734; ConvF(5.28, 5.28, 5.28); Calibrated: 2004-02-02 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2003-12-16 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1143 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Tilted, Ch.661, Ant.Intenna, Bat.Standard/Area Scan (51x61x1): Measurement grid: dx=20mm, dy=20mm Reference Value = 18.6 V/m; Power Drift = 0.0 dB Maximum value of SAR (interpolated) = 0.473 mW/g Tilted, Ch.661, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.6 V/m; Power Drift = 0.0 dB Maximum value of SAR (measured) = 0.475 mW/g Peak SAR (extrapolated) = 0.723 W/kg SAR(1 g) = 0.445 mW/g 0 dB = 0.475mW/g SAMSUNG FCC ID : A3LSGHE830 -- 1900MHz GSM1900 Head SAR DUT: SGH-E830(DOWN); Serial: FB-040-B Program Name: SGH-E830 GSM1900 Left (Job No.: FB-040) Procedure Name: Cheek/Touch, Ch.512, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-20.8; Test Date-12/Jul/2004 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1850.2 MHz; σ = 1.38 mho/m; ε r = 38.7; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1734; ConvF(5.28, 5.28, 5.28); Calibrated: 2004-02-02 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2003-12-16 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1143 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Cheek/Touch, Ch.512, Ant.Intenna, Bat.Standard/Area Scan (51x61x1): Measurement grid: dx=20mm, dy=20mm Reference Value = 14.7 V/m; Power Drift = 0.0 dB Maximum value of SAR (interpolated) = 1.54 mW/g Cheek/Touch, Ch.512, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.7 V/m; Power Drift = 0.0 dB Maximum value of SAR (measured) = 1.37 mW/g Peak SAR (extrapolated) = 2.07 W/kg SAR(1 g) = 1.24 mW/g 0 dB = 1.37mW/g SAMSUNG FCC ID : A3LSGHE830 -- 1900MHz GSM1900 Head SAR DUT: SGH-E830(DOWN); Serial: FB-040-B Program Name: SGH-E830 GSM1900 Left (Job No.: FB-040) Procedure Name: Tilted, Ch.661, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-20.8; Test Date-12/Jul/2004 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.38 mho/m; ε r = 38.7; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1734; ConvF(5.28, 5.28, 5.28); Calibrated: 2004-02-02 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2003-12-16 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1143 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Tilted, Ch.661, Ant.Intenna, Bat.Standard/Area Scan (51x61x1): Measurement grid: dx=20mm, dy=20mm Reference Value = 17.9 V/m; Power Drift = -0.008 dB Maximum value of SAR (interpolated) = 0.433 mW/g Tilted, Ch.661, Ant.Intenna, Bat.Standard/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.9 V/m; Power Drift = -0.008 dB Maximum value of SAR (measured) = 0.447 mW/g Peak SAR (extrapolated) = 0.646 W/kg SAR(1 g) = 0.406 mW/g 0 dB = 0.447mW/g SAMSUNG FCC ID : A3LSGHE830 -- 1900MHz GSM1900 Body SAR DUT: SGH-E830 (Body); Serial: FB-038-B Program Name: SGH-E830 GSM1900 Body (Job No.: FB-040) Procedure Name: Body, Ch.0661, Ant.Intenna, Bat.Standard Procedure Notes: Meas.Tissue Temp(celsius)-21.5; Test Date-13/Jul/2004 [OET Bulletin 65- Supplement C, July 2001] Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.54 mho/m; ε r = 50.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1735; ConvF(4.7, 4.7, 4.7); Calibrated: 2003-11-20 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detect…

Text truncated - open the document above for the full version.

1900MHz Brain Dipole Validation DUT: Dipole 1900 MHz; Serial: 548 Program Name: 1900 Dipole Validation Procedure Name: 1900MHz @250mW Procedure Notes: Meas.Tissue Temp(celsius)-20.8;Test Date-12/Jul/2004 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.38 mho/m; ε r = 38.7; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1734; ConvF(5.28, 5.28, 5.28); Calibrated: 2004-02-02 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn533; Calibrated: 2003-12-16 - Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1143 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 1900MHz @250mW/Area Scan (51x51x1): Measurement grid: dx=20mm, dy=20mm Reference Value = 94.8 V/m; Power Drift = -0.0005 dB Maximum value of SAR (interpolated) = 15.3 mW/g 1900MHz @250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 94.8 V/m; Power Drift = -0.0005 dB Maximum value of SAR (measured) = 11.6 mW/g Peak SAR (extrapolated) = 17.5 W/kg SAR(1 g) = 10.3 mW/g 0 dB = 11.6mW/g

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3Dong, Youngtong-Gu, Suwon-city, Gyeonggi-Do, Korea 442-600 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested: SGH-E830 Additiond Model: SGH-E838, SGH-E830C FCC ID (Requested): A3LSGHE830 Report No: FB-040-R1 Job No: FB-040 Date issued: July 16, 2004 - Abstract – All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By Date EH JUNG – Test Engineer Checked By Date JH CHOI - Engineer Authorized By Date JK CHOI – Senior Manager © Copyright SAMSUNG Electronics 2004 Report Number : FB-040-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information 3 1.1 2.1033 General Information 3 2. INTRODUCTION 4 2.1 General 4 3. MEASURING INSTRUMENT CALIBRATION 5 4. TEST EQUIPMENT LIST 6 5. DESCRIPTION OF TESTS 7 5.1 Equivalent Isotropic Radiated Power 7 5.2 Radiated Spurious & Harmonic Emission 8 5.3 Occupied Bandwidth 9 5.4 Spurious and Harmonic Emissions at Antenna Terminal 9 5.4.1 Occupied Bandwidth Emission Limits 9 5.4.2 Conducted Spurious Emission 11 5.5 Frequency Stability / Temperature Variation 13 6. TEST DATA 14 6.1 Equivalent Isotropic Radiated Power (E.I.R.P.) 14 6.2 Radiated Spurious & Harmonic Measurement 15 6.3 Radiated Spurious & Harmonic Conversion Table 16 6.4 Frequency Stability 17 6.4.1 Frequency Stability Table 17 6.4.2 Frequency Stability Graph 18 7. CONCLUSION 20 8. TEST PLOTS 21 Report Number : FB-040-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Rart2, Subpart J, Sections 2.1033 – 2.1055. 2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416, Youngtong-3Dong, Youngtong-Gu, Suwon City Gyeonggi-Do, KOREA 442-600 Attention: FCC ID: Additiond Model: Wallace Oh, Engineering Manager (QA Lab) A3LSGHE830 SGH-E838, SGH-E830C Quantity: Quantity production is planned Emission Designators: 250KGXW Tx Freq. Range: 1850.2MHz -1909.8MHz Rx Freq. Range: 1930.2MHz – 1989.8MHz Max. Power Rating: 1.390 W EIRP GSM1900 ( 31.43 dBm) FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) Equipment (EUT) Type: Single modulation GSM1900/PCS Phone Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 24(E), Dates of Test: July.12, 14-15, 2004 Place of Test: SAMSUNG Lab, Test Report S/N: FB-040-R1 - End of page - Report Number : FB-040-R1 2. INTRODUCTION General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416,Maetan-3Dong, Youngtong-Gu, Suwon City, Gyeonggi-Do, KOREA 442- 600 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FB-040-R1 3.MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. - End of page - Report Number : FB-040-R1 4. TEST EQUIPMENT LIST Name of Equipment Model Serial No. Due Date ESI26 836119/010 2004-09-15 E4440A(3Hz~26.5GHz) MY41000236 2004-11-07 Spectrum Analyzer E4440A(3Hz~26.5GHz) MY41000233 2004-11-14 SMIQ03B 83824/021 2005-01-15 Signal Generator SMR20 835197/030 2005-01-15 Power Meter E4419B GB41293846 2004-10-02 8481B 3318A10325 2004-10-06 Power Sensor 8485A 3318A19924 2004-10-04 Amplifier 5S1G4 304866 2004-11-17 Pre-Amplifier 8449B 3008A00691 2005-01-16 8960 GB42230535 2004-11-17 Communication test set 8960 GB42360886 2004-11-10 Antenna Master MA0001 ANT0967 Not Required Controller HD100 100/756 Not Required PL-4S 13005454 2004-08-22 SH-241 92000548 2004-12-04 Environmental Chamber SH-241 92000549 2004-12-04 HF906 360306/011 2005-03-11 Horn Antenna HF906 100134 2005-05-02 3121C-DB4 9007-587 2004-10-21 Dipole Antenna 3121C-DB4 9007-588 2004-10-21 Receive Antenna HL040 353255/020 2005-06-07 8494A 3308A31997 2005-01-17 Attenuator 8496A 3308A14426 2005-01-17 4278-311-2 B3679637 2005-01-14 Directional Coupler 4278-111-2 B103DC8722 2005-01-14 WHK1.0/15G-10SS 1 Not Required WHK1.0/15G-10SS 1 Not Required WHK/3.5/18G-10SS 3 Not Required High Pass Filter WHK/3.5/18G-10SS 4 Not Required Shielded Semi-Anechoic Chamber RF0002 ANT0001 Not Required Report Number : FB-040-R1 5. DESCRIPTION OF TESTS 5.1 Equivalent Isotropic Radiated Power Test Set-up for the EIRP TEST Effective Radiated Power Output and Equivalent Isotropic Radiated Power Measurements by Substitution Method according to ANSI/TIA/EIA-603-A-2001, Aug. 15, 2001: The EUT was placed on a Non-conducted turntable 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the highest reading on the receive spectrum analyzer. For GSM signals, an average detector is used, with RBW=VBW=3MHz, SPAN=10MHz. A Horn …
